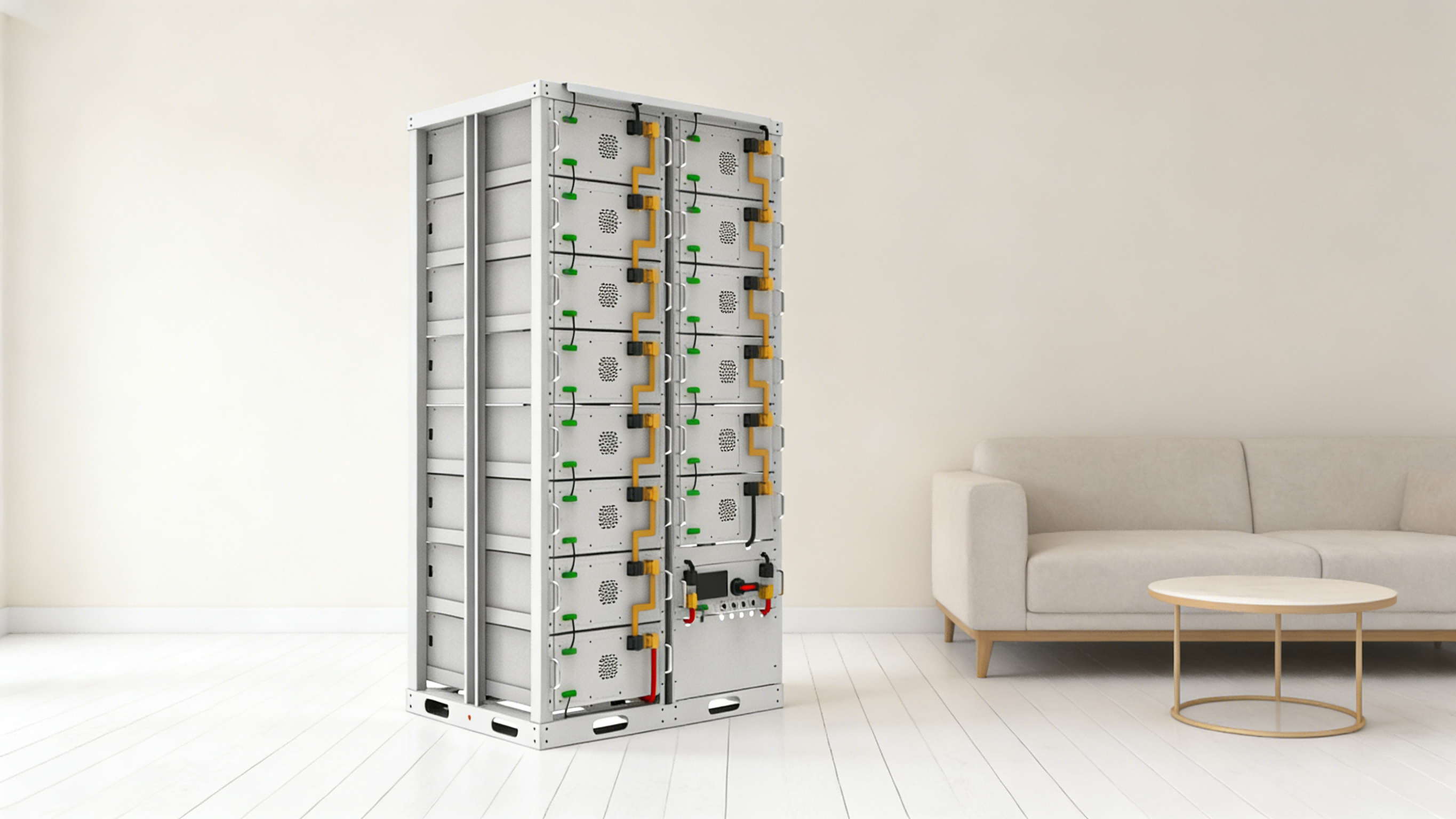

| Model | BOX-RM5128 |
| Battery Type | LiFePO4 |
| IP Level | IP21 (In Door) / IP65 (Out Door) |
| Warranty | Battery: 5 years or 6,000 cycles; Electrical Components and structure: 10 years |
| Nominal Voltage (V) | 51.2*N |
| Nominal Capacity (KWH) | 5.42*N |
| Usable Capacity (KWH) | 5.42*N*90% |
| Battery Module Quantity | N |
| Battery Module Capacity(KWH) | 5.42 |
| Battery Module Voltage(V dc) | 51.2 |
| Battery Module Capacity (Ah) | 280 |
| Battery System Charge Voltage(V dc) | 56*N |
| Battery System Charge Current(Normal) | 50 |
| Battery System Charge Current(Max) | 140 |
| Battery System Discharge lower-Voltage(Vdc) | 48*N |
| Battery System Discharge Current (Standard) | 140 |
| Battery System Discharge Current(Normal) | 140 |
| Efficiency | 96% |
| Communication Mode | RS485/RS232/CAN |
| Relative Humidity | 0~95 % (No Condensation) |
| Working Temperature Range (°C) | 0°C~50°C Charge, -10°C~50°C Discharge |
| Cycle Life | 6000 |
| Certification | CE/IEC/UL/UN38.3/MSDS |
