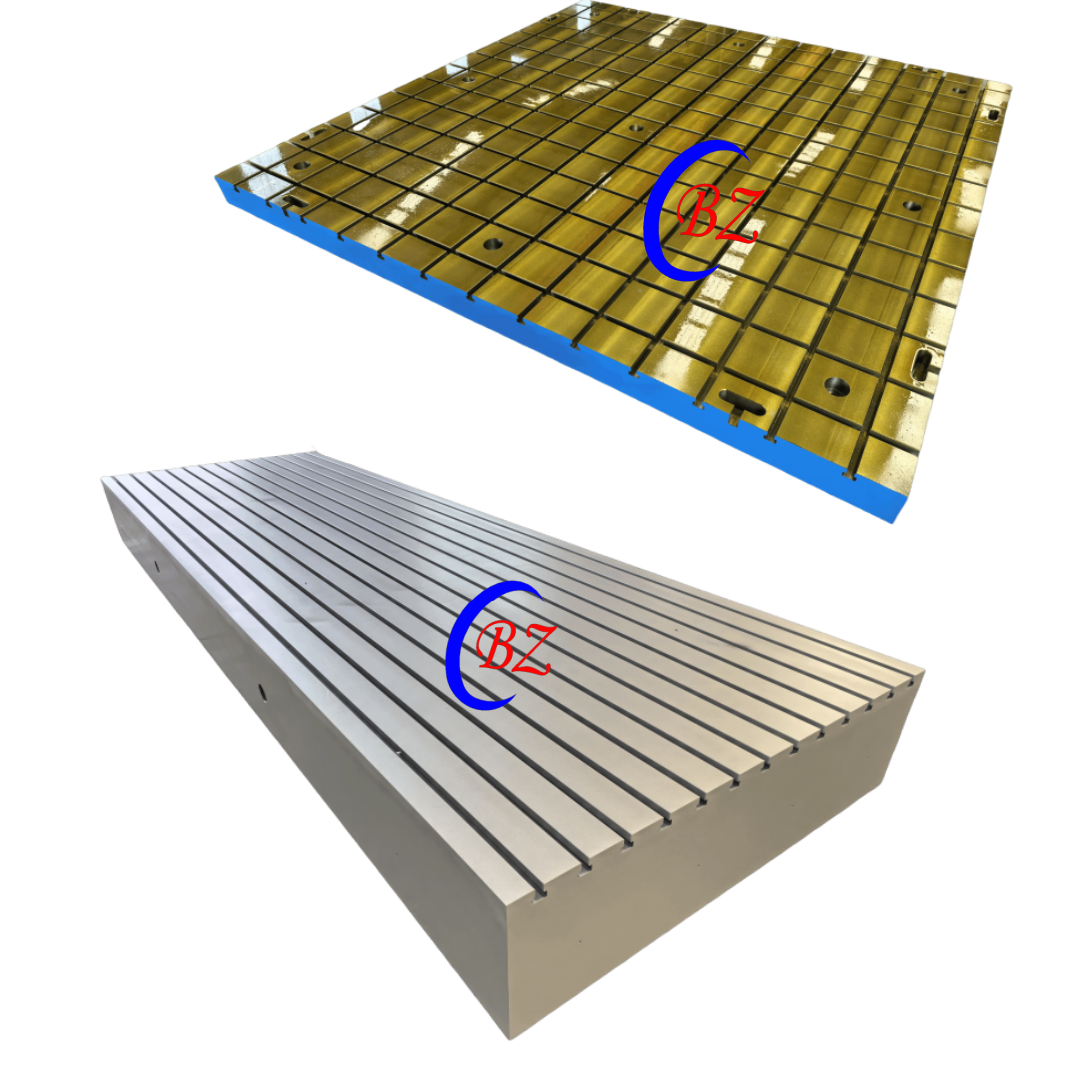

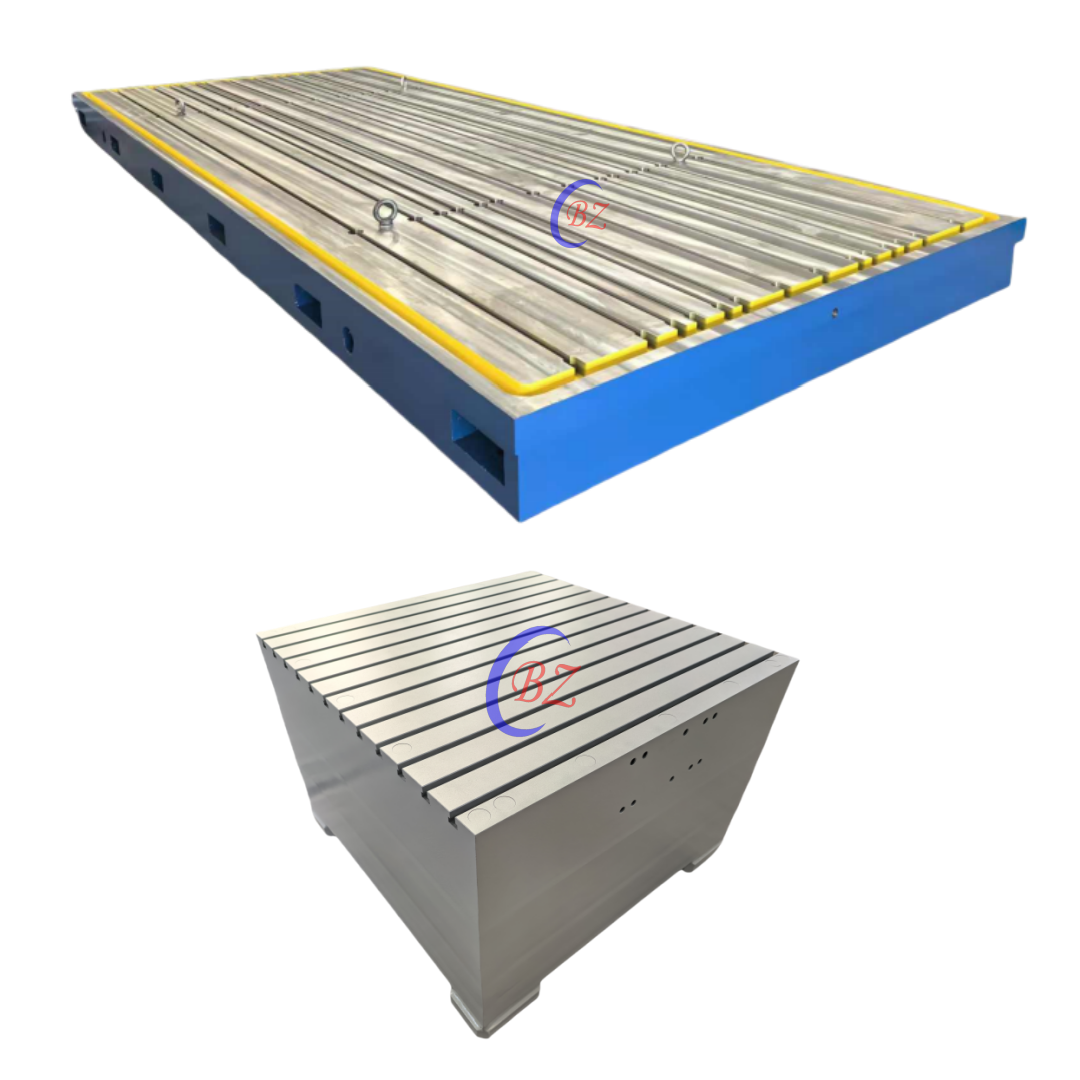

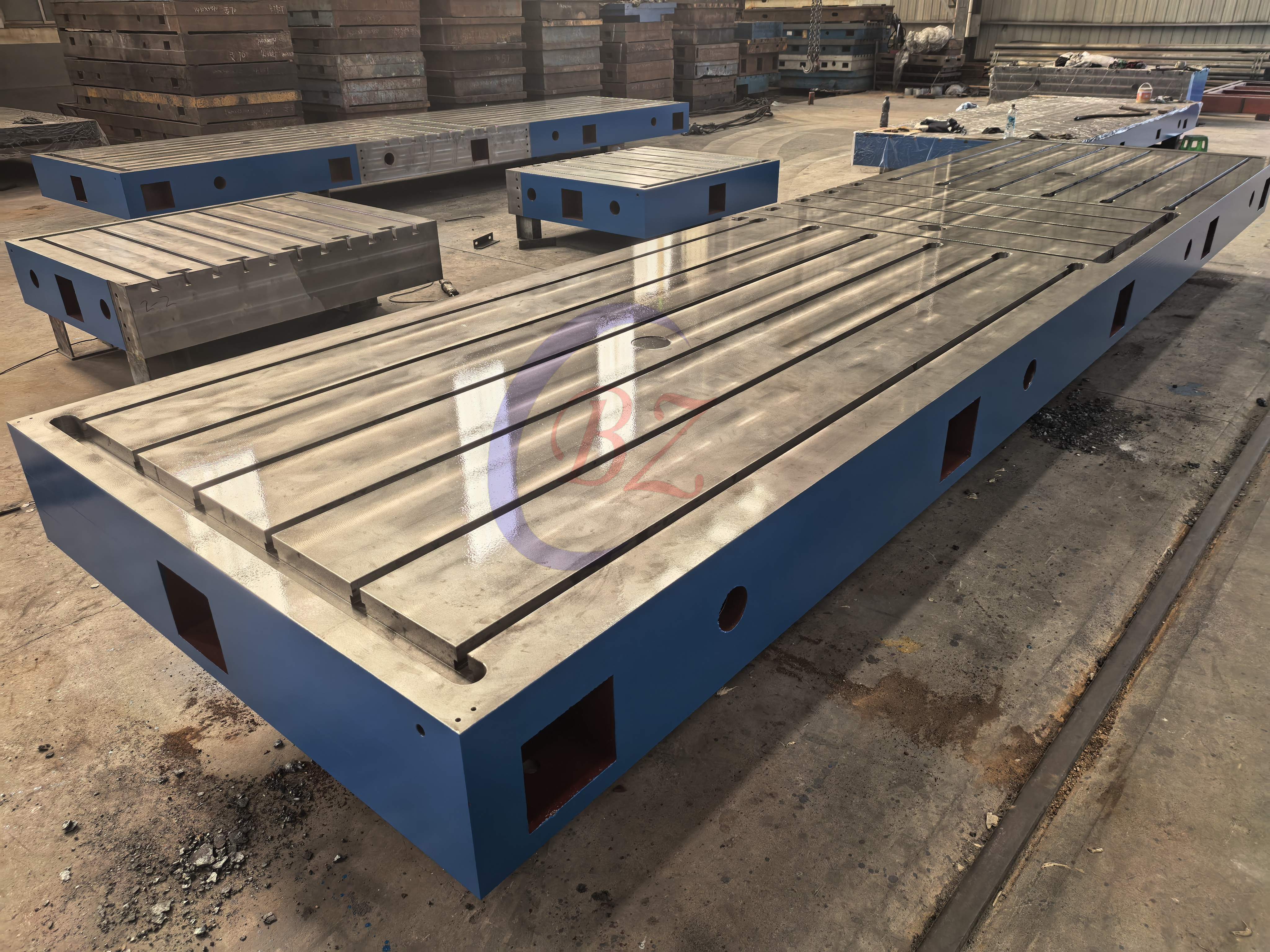

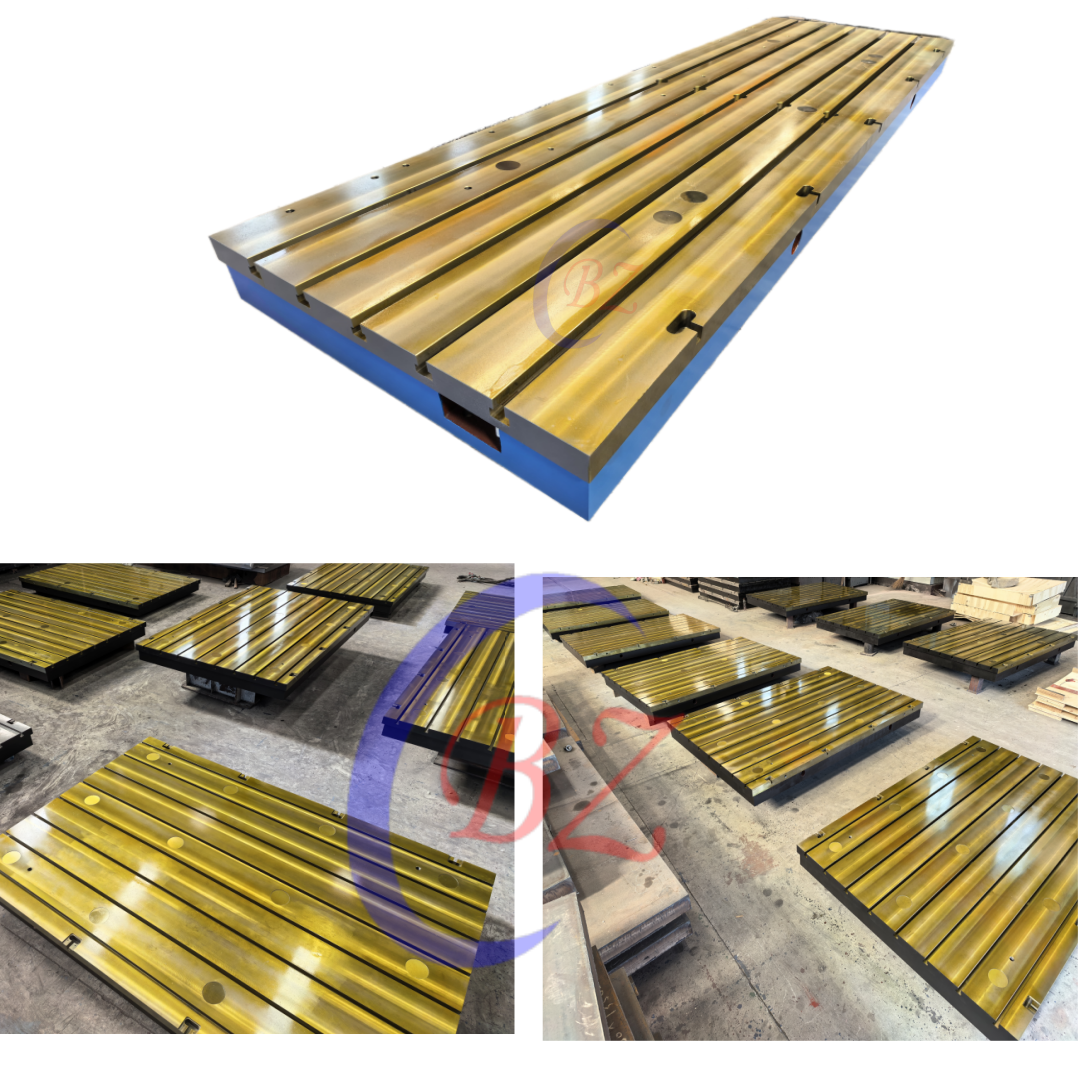

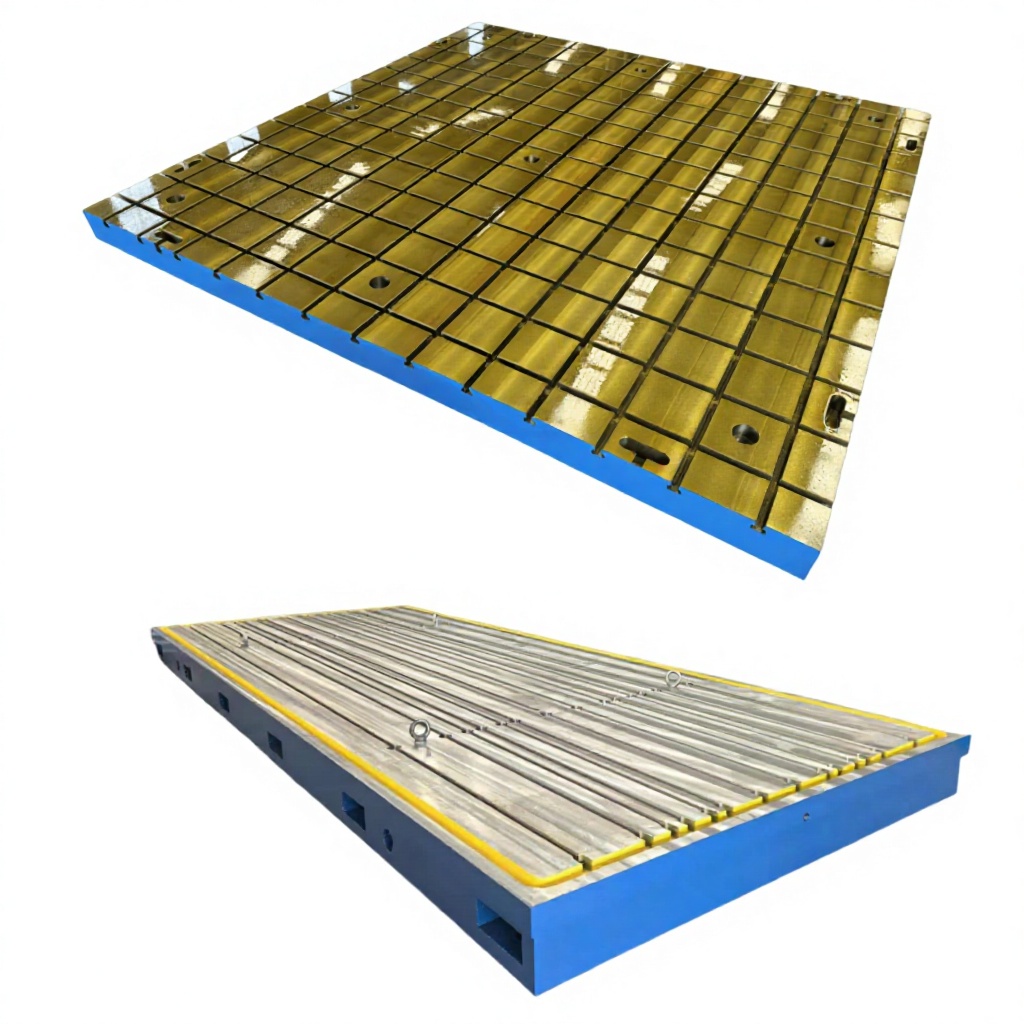

BZC Cast Iron Surface Plate Platform Lapping Surface T Slot Base High Precision 0.05 Accuracy Multi-Purpose Durable Industrial

1 / 5

BZC Cast Iron Surface Plate Platform Lapping Surface T Slot Base High Precision 0.05 Accuracy Multi-Purpose Durable Industrial

Send Inquiry

Product Description

If you need customized products, please feel free to consult at any time. Our designers are online to design the most suitable drawings for you.

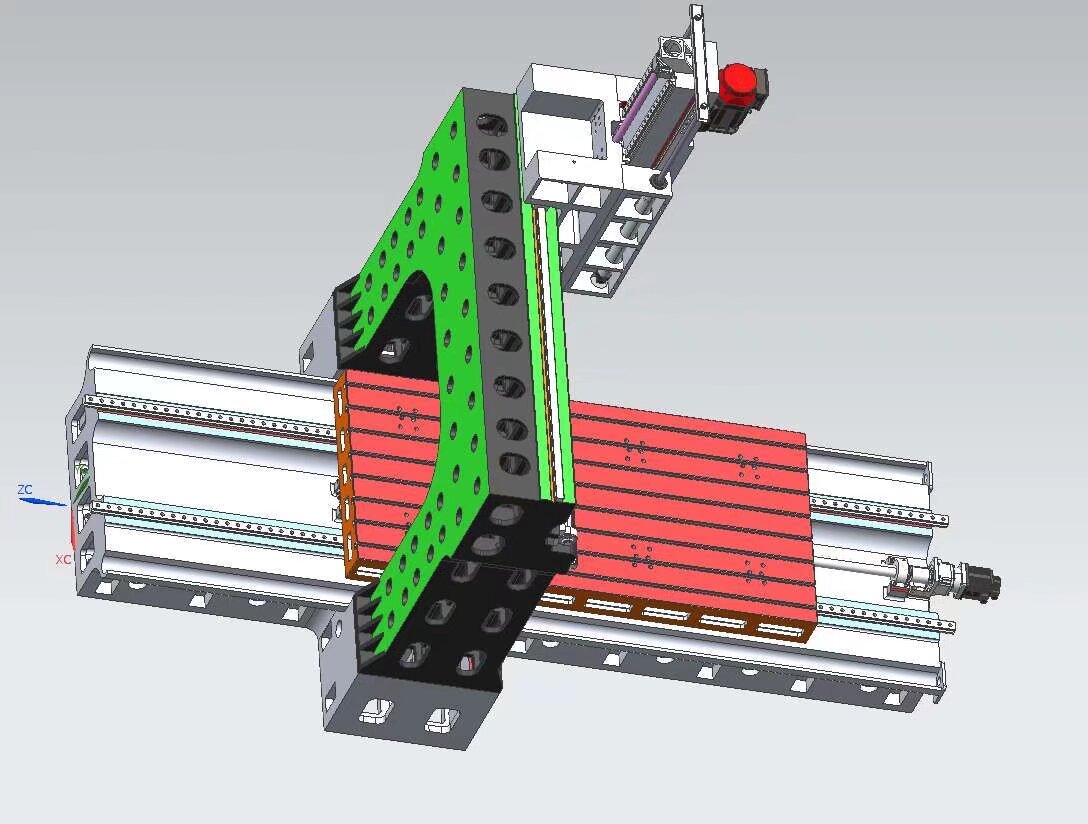

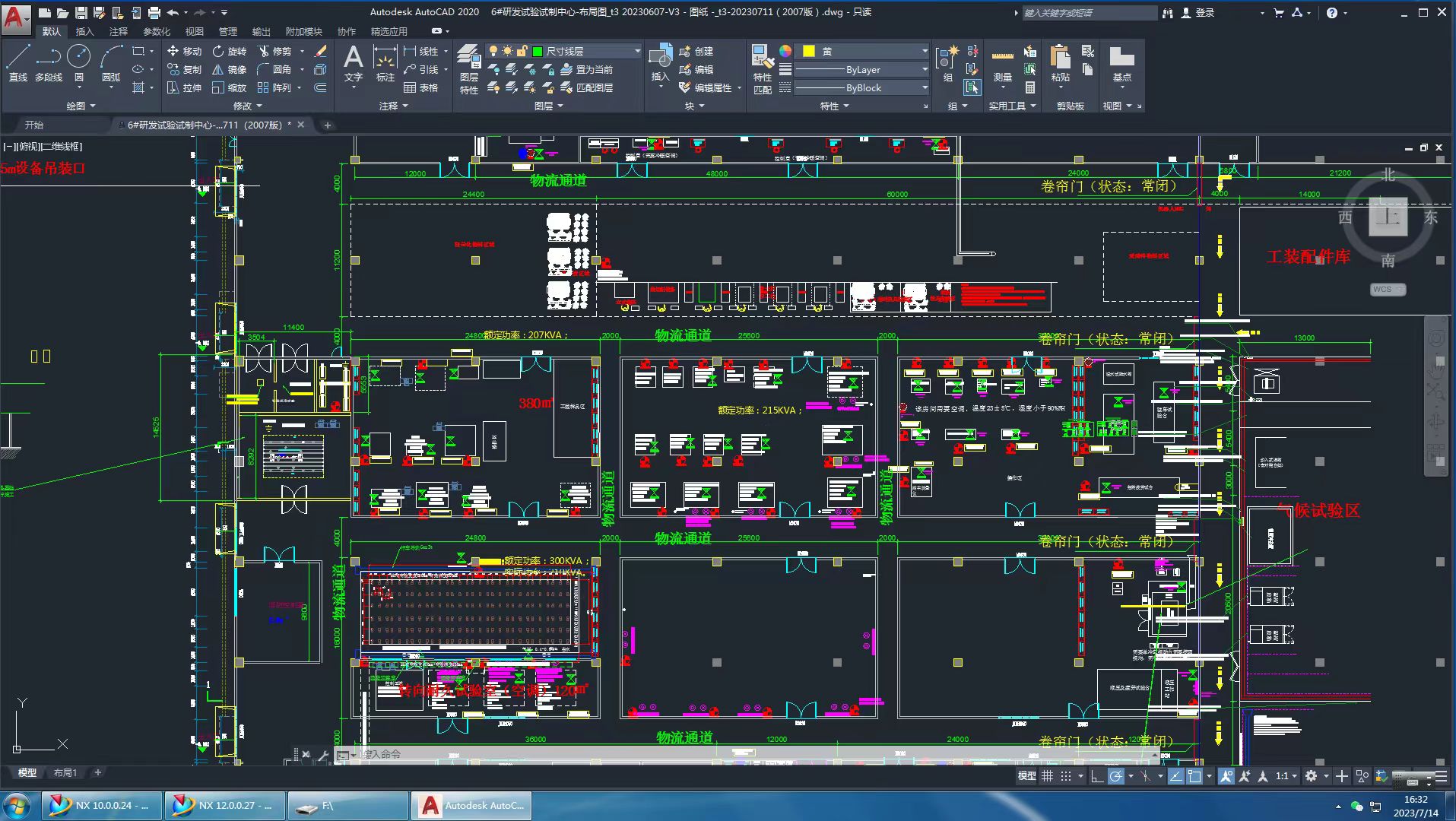

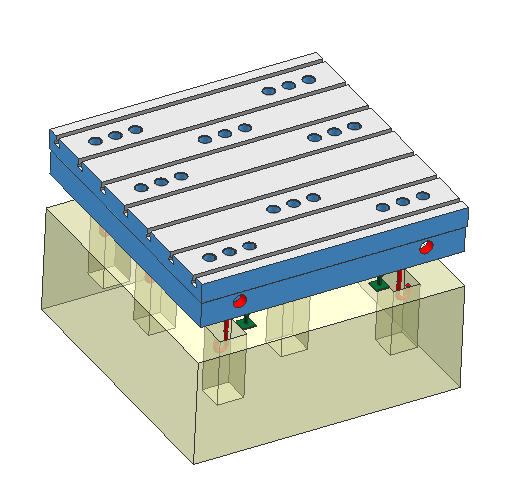

Cast Iron T-Slot Surface Plate Structure

Cast Iron Platform Specifications

As the basic workbench for industrial measurement and processing, the specifications of the cast iron platform mainly include the following aspects:

1. Size Specifications

Standard size range: 300 × 300mm to 4000 × 2000mm
Special customization up to 6000 × 3000mm or larger
The thickness is usually 100-500mm, which is proportional to the platform area

2. Accuracy Level (According to GB/T22095-2008 Standard)

Level 00: Flatness ≤ (2.5+L/1000) μm
Level 0: Flatness ≤ (5+L/1000) μm
Level 1: Flatness ≤ (10+L/1000) μm
(L is the diagonal length, in millimeters)

3. Material Characteristics

HT200 or HT250 gray cast iron (HB170-240 hardness range)

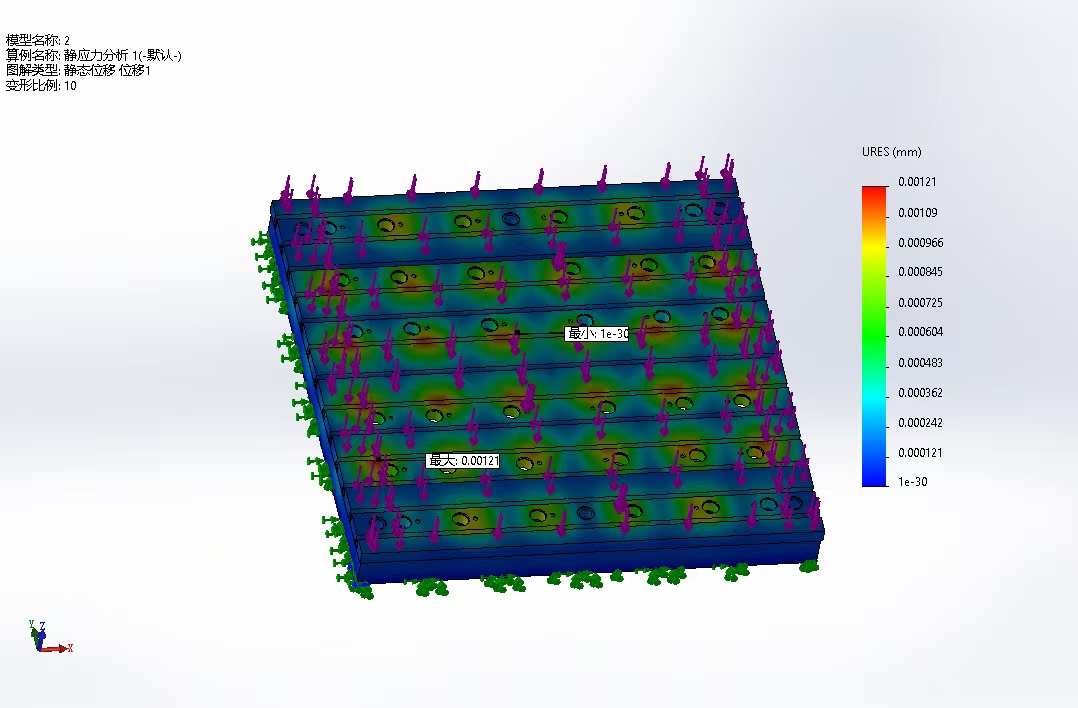

4. Structural Characteristic Parameters

T-slot size: 12/14/18/22/28/36/42mm series
T-shaped groove spacing: adjustable from 50-500mm
Reinforcement arrangement density: 300-500mm interval grid adjustable

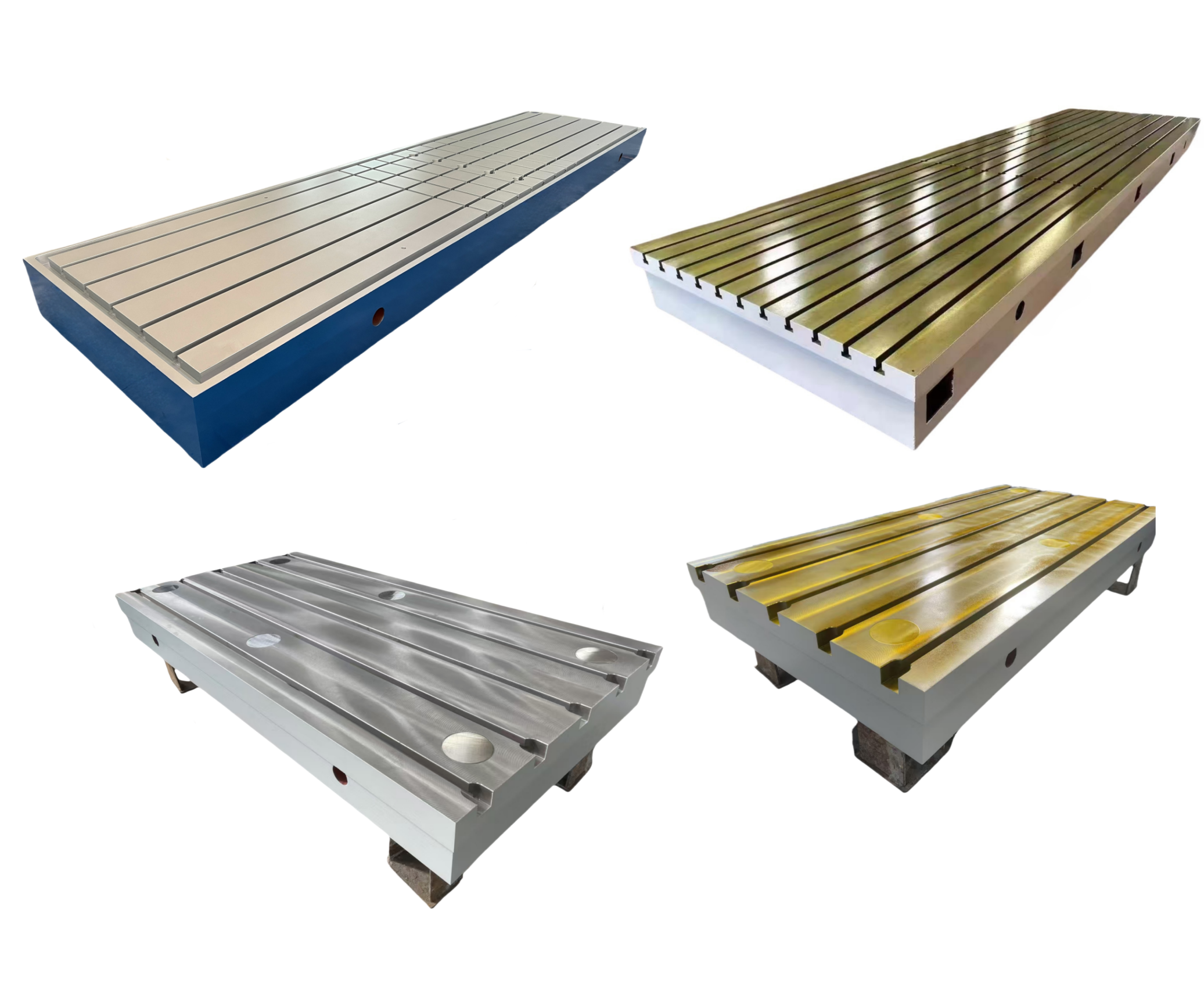

The materials of cast iron platforms are mainly gray cast iron (HT series) and ductile iron (QT series), selected based on accuracy, load and other requirements, with attention to hardness, stress and structure properties.

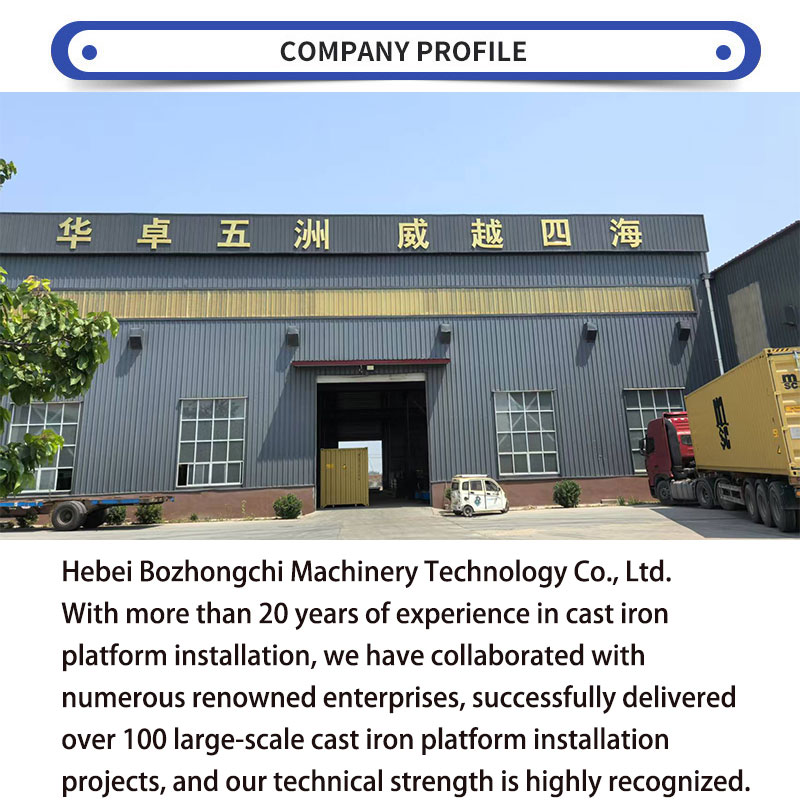

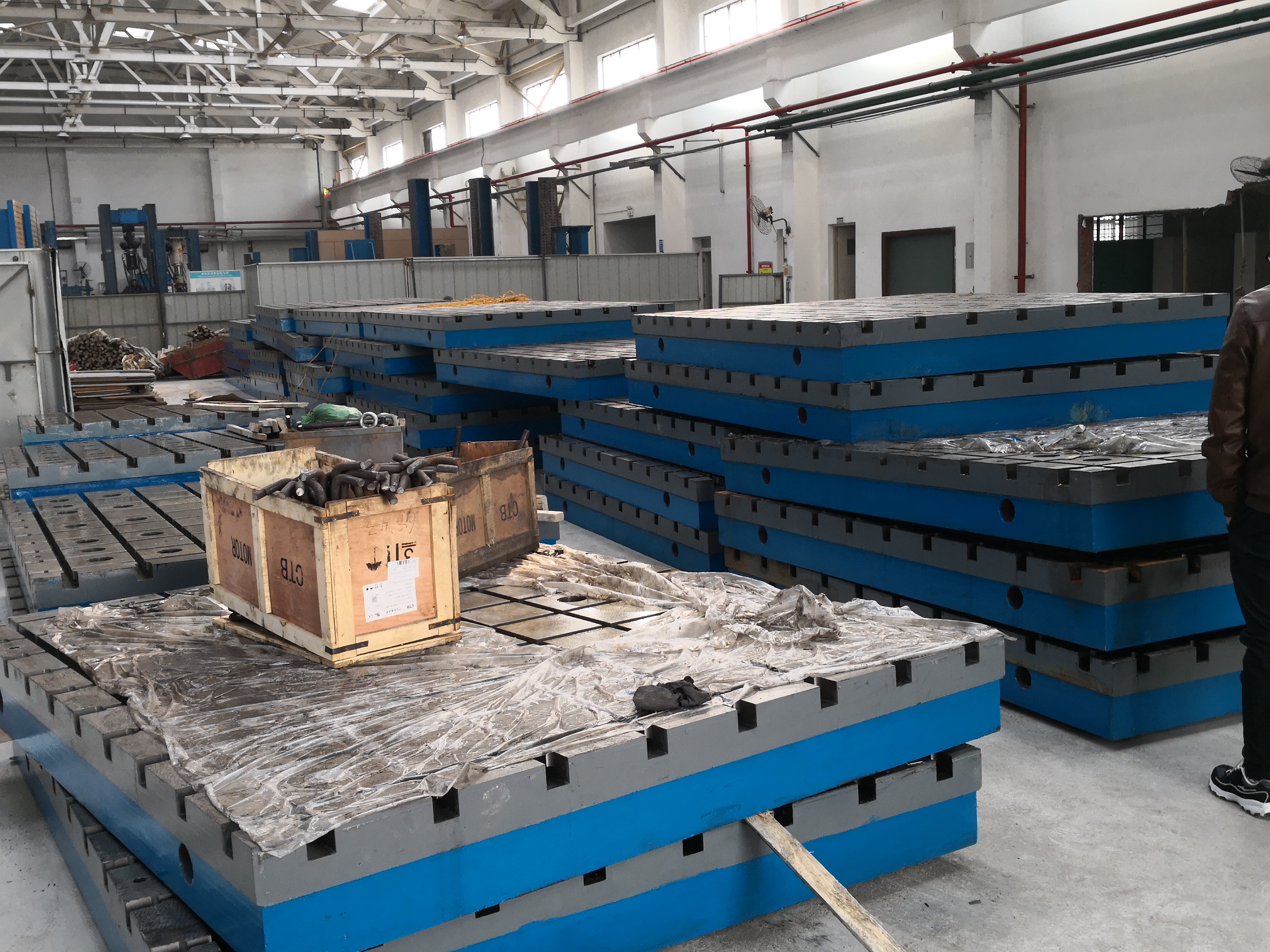

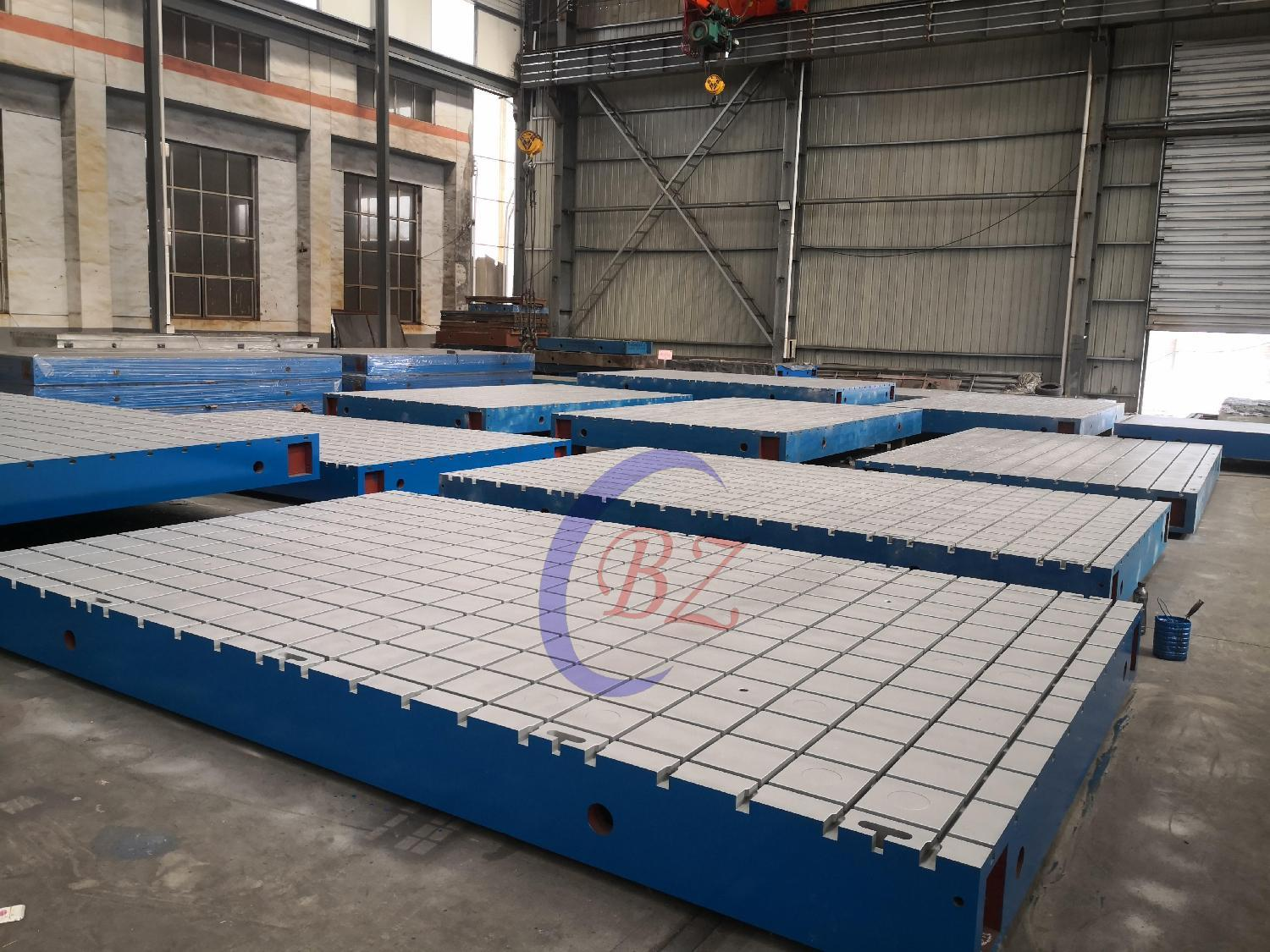

With more than 20 years of experience in cast iron platform installation, we have collaborated with numerous renowned enterprises, successfully delivered over 100 large-scale cast iron platform installation projects, and our technical strength is highly recognized.

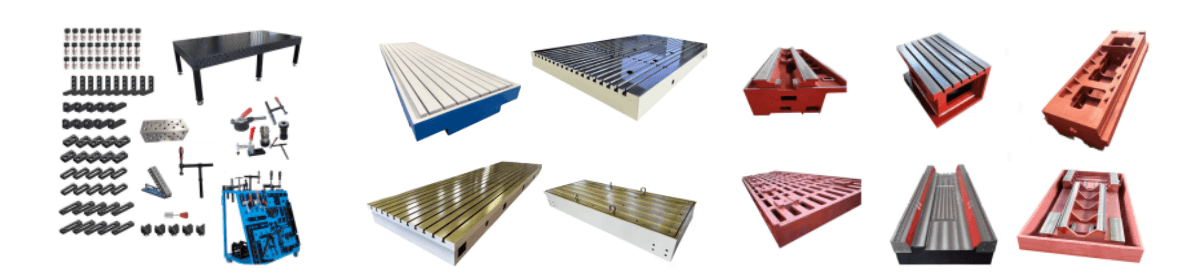

High Quality Cast Iron Platform Enterprise

As a leading casting enterprise in the industry, we provide high-quality cast iron platforms, 3D welding platforms and machine tool castings, helping customers produce efficiently with excellent quality.

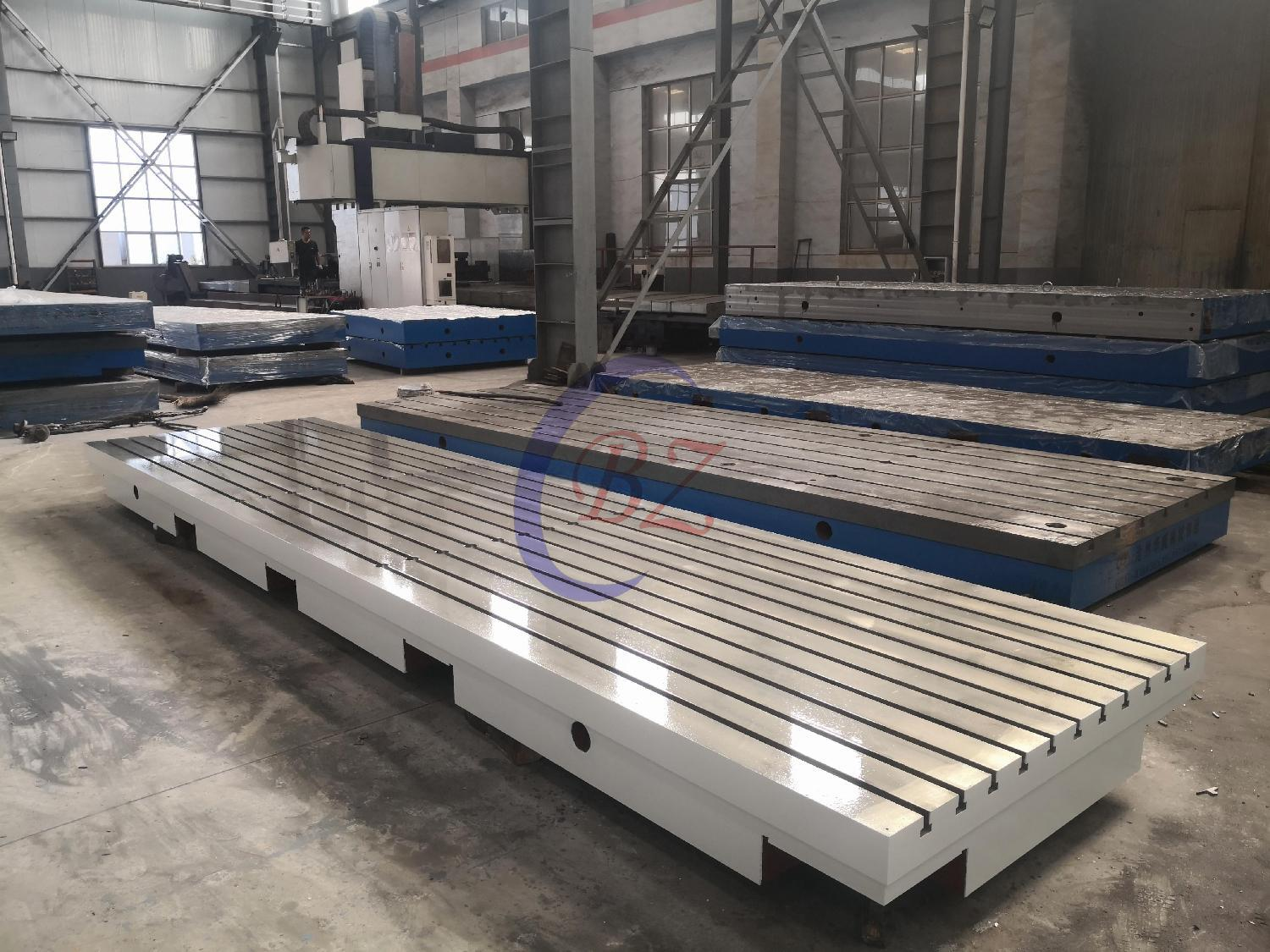

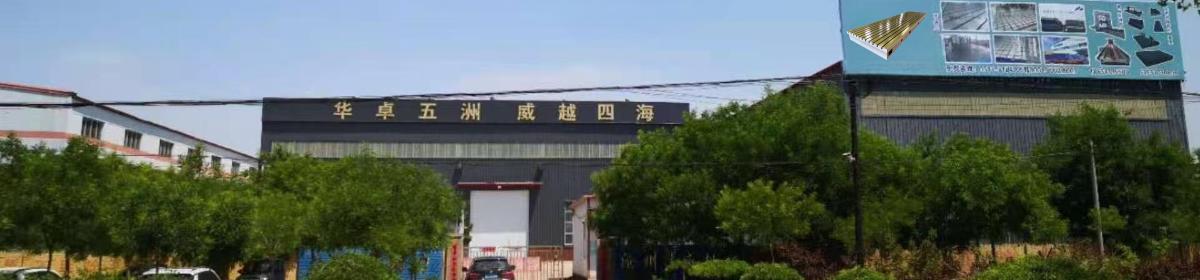

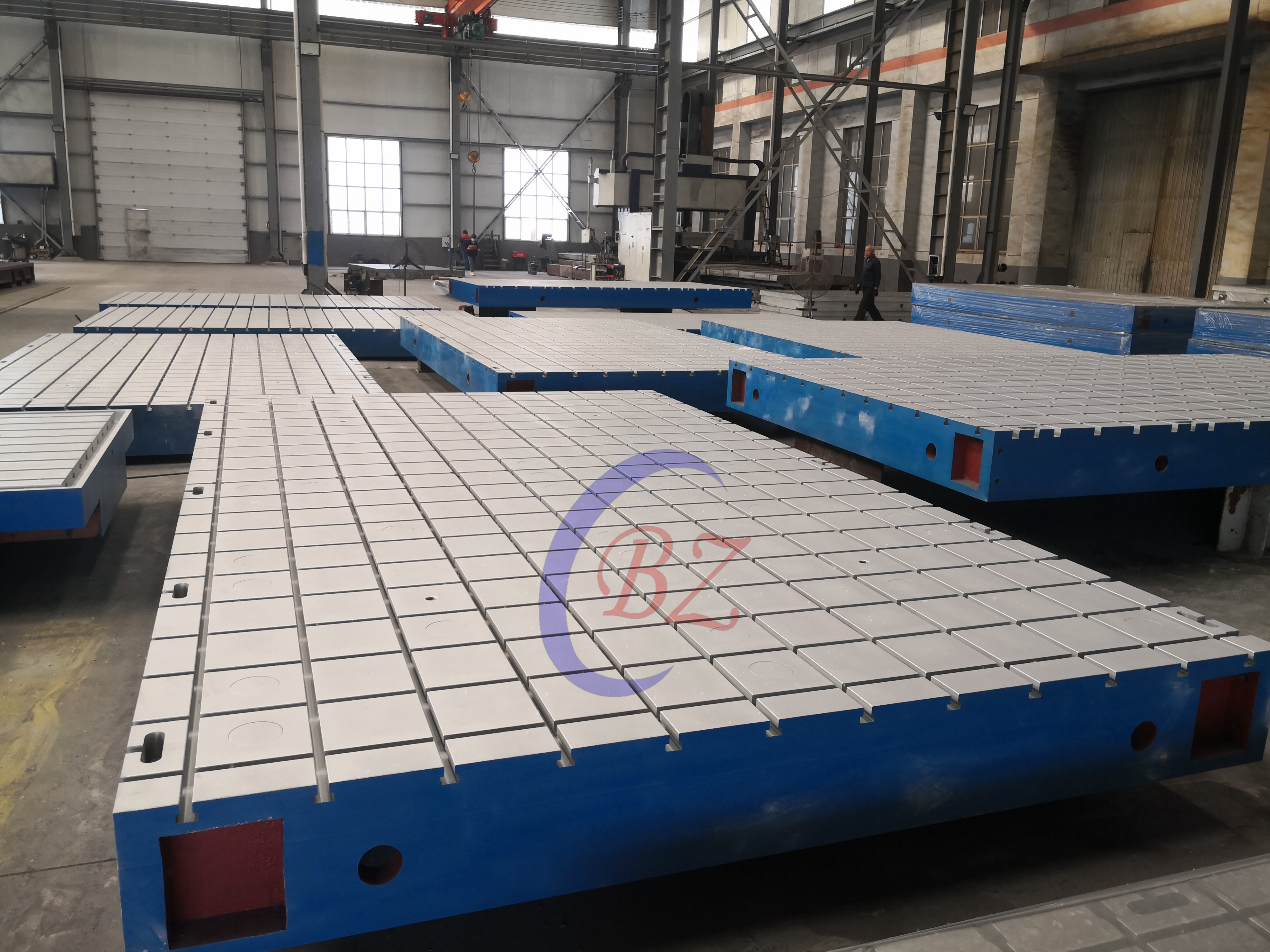

Production Factory Scenery

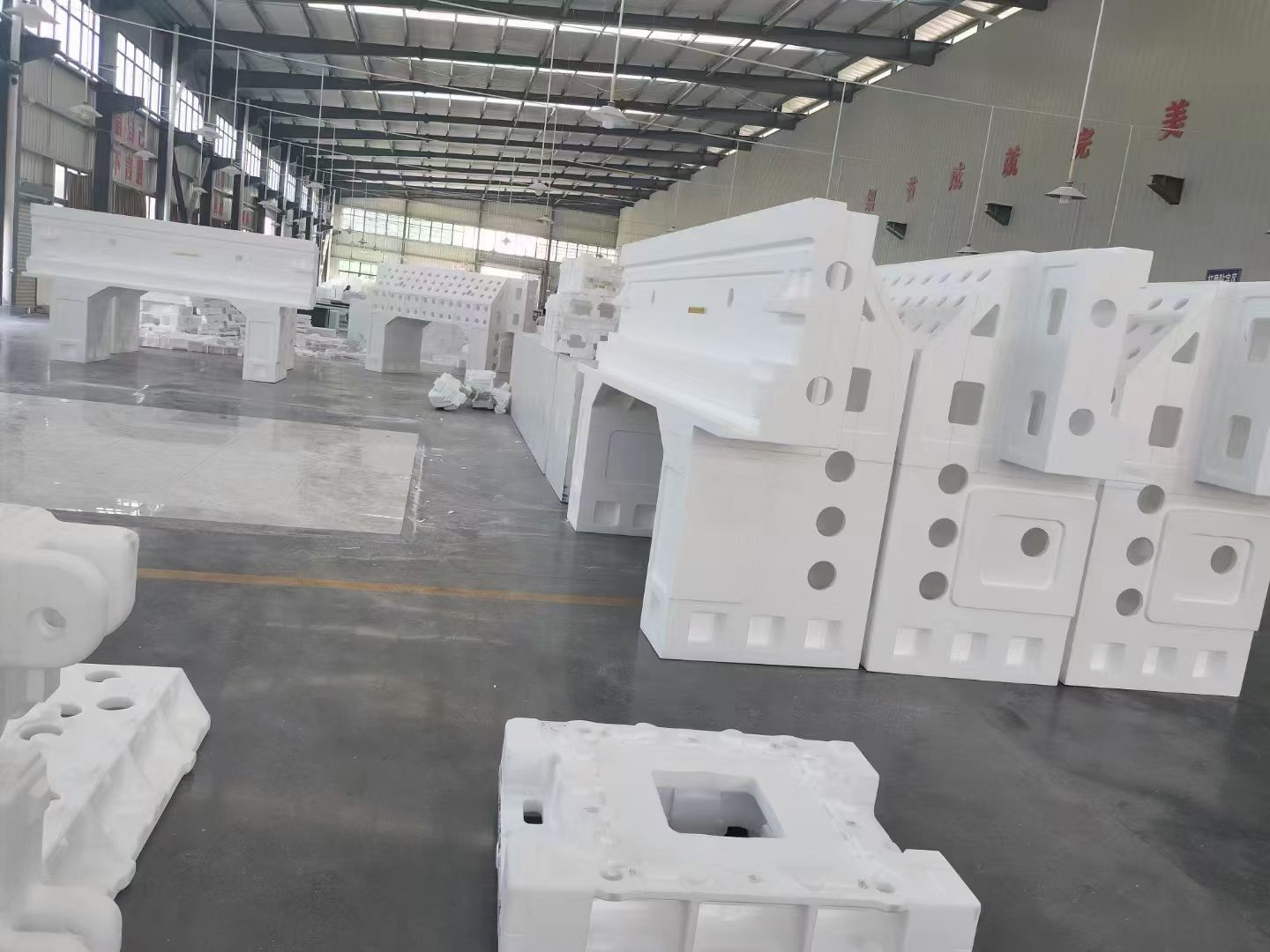

Make foam type

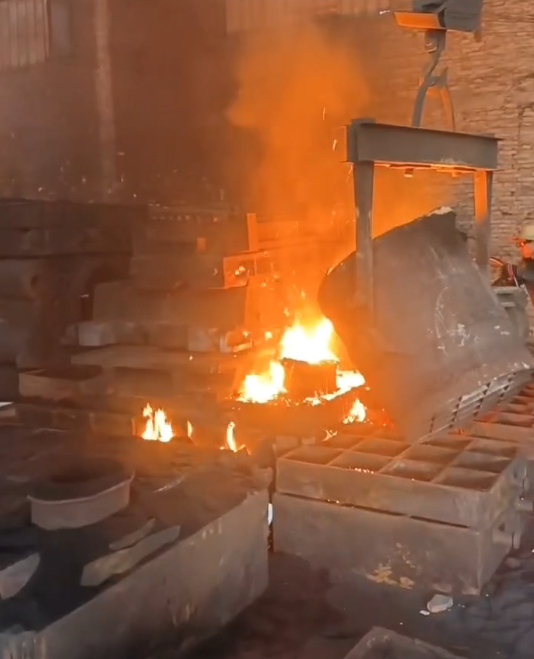

Casting injection of molten iron

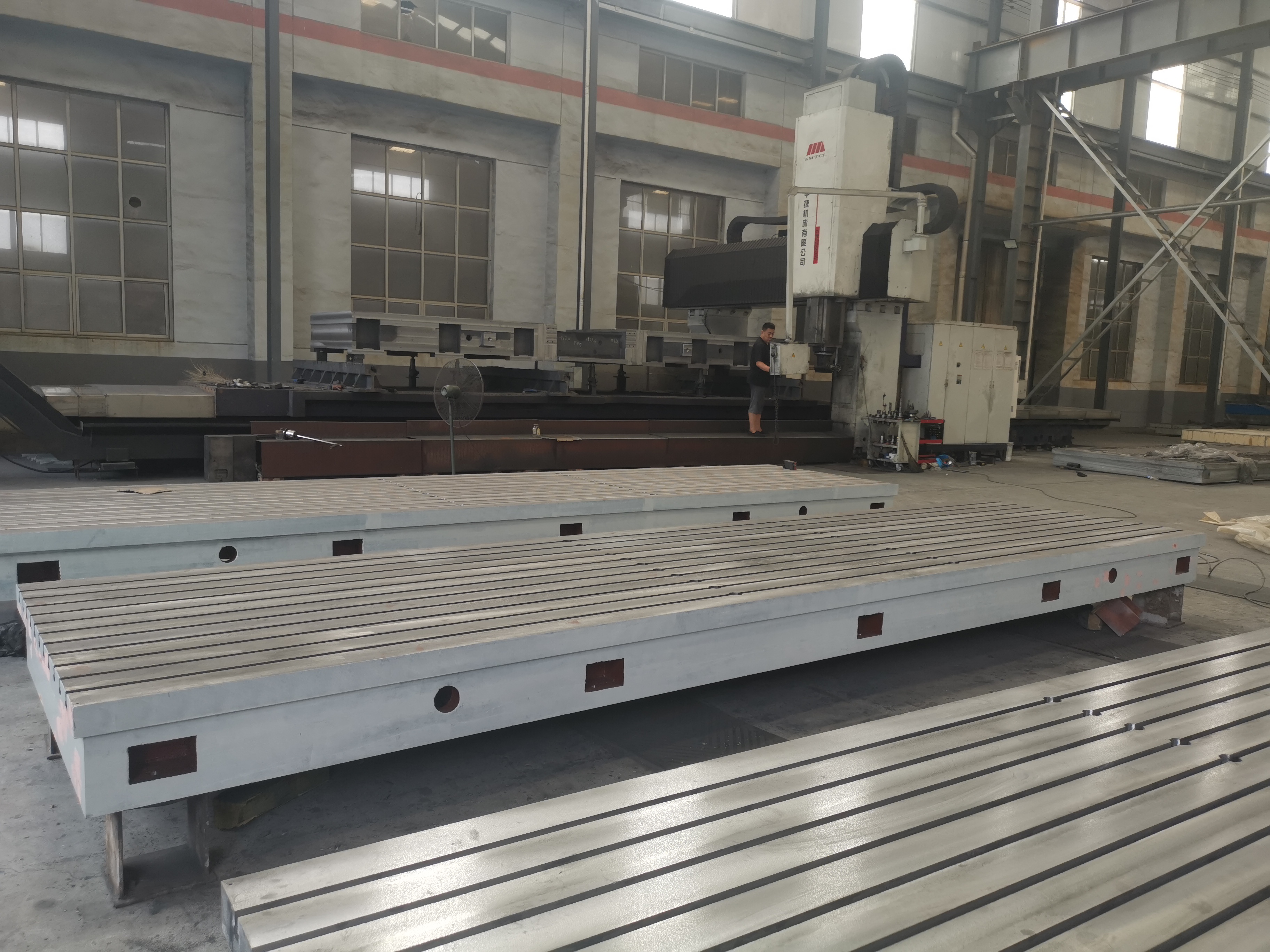

CNC machining

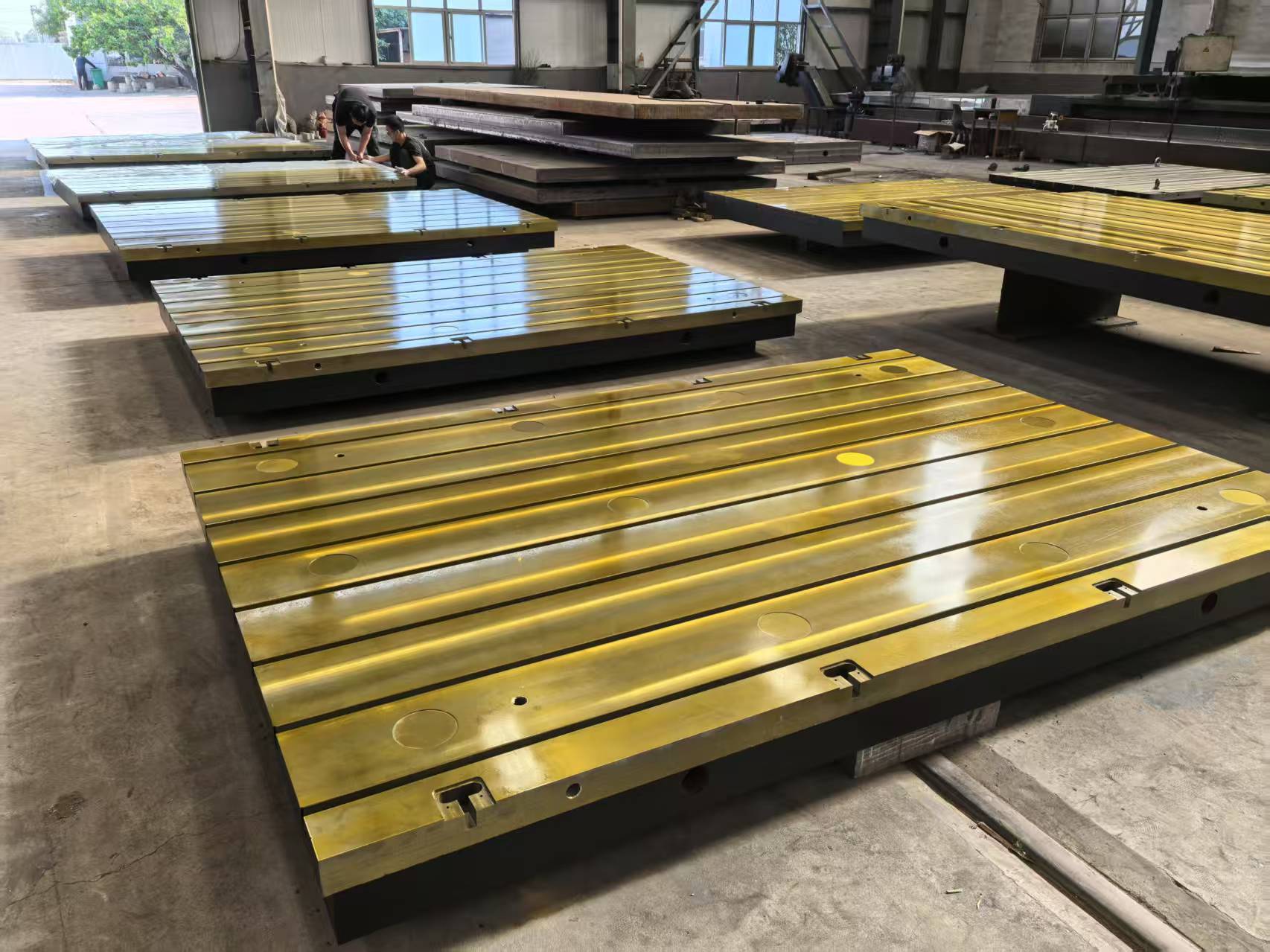

Pre shipment inspection

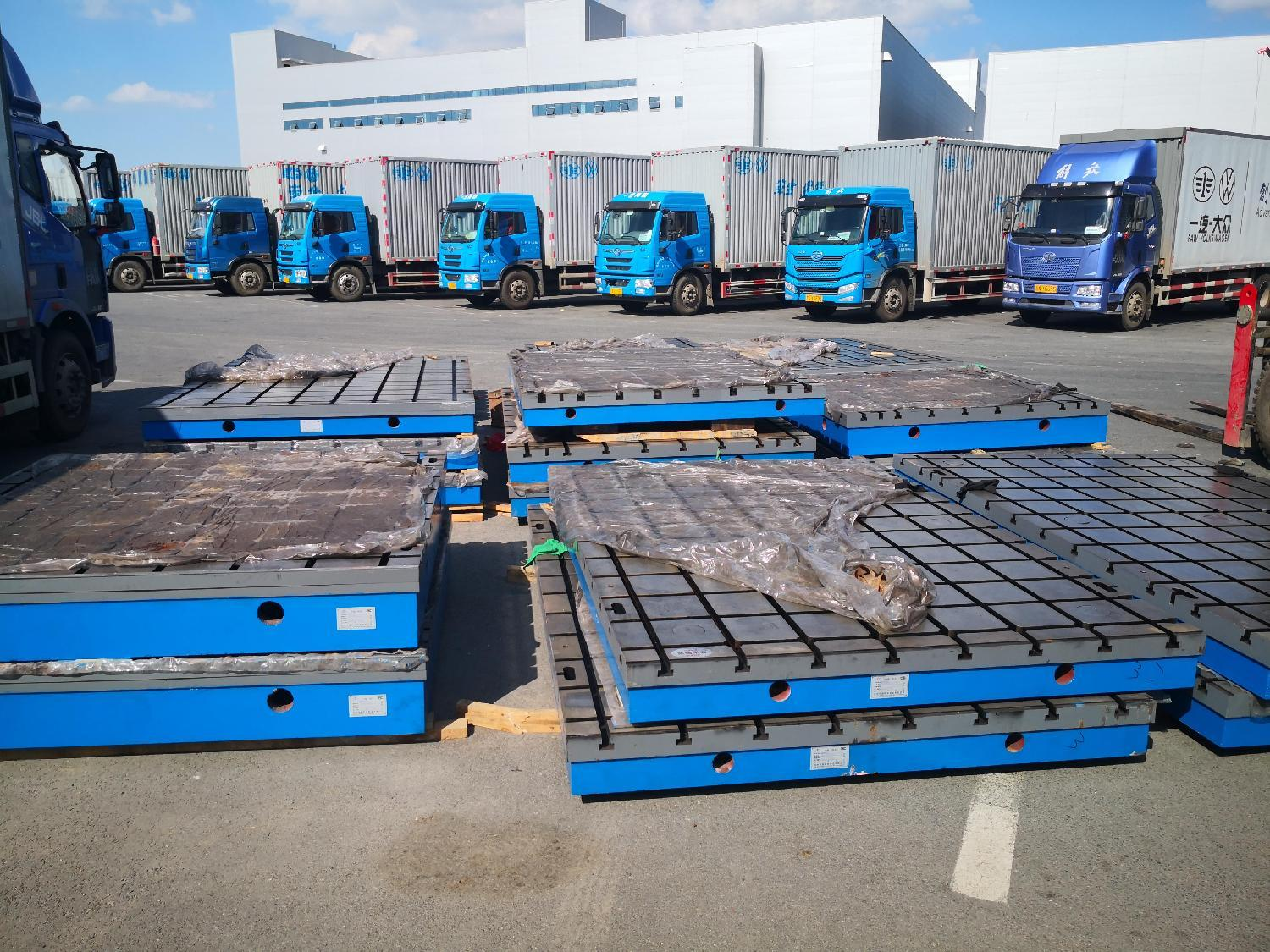

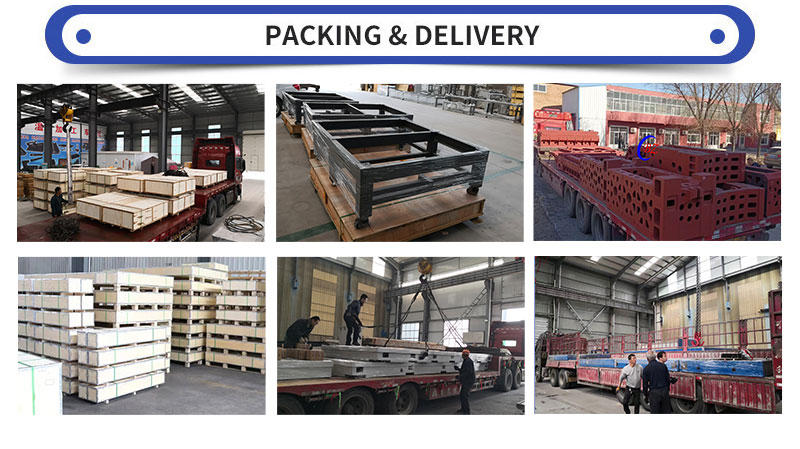

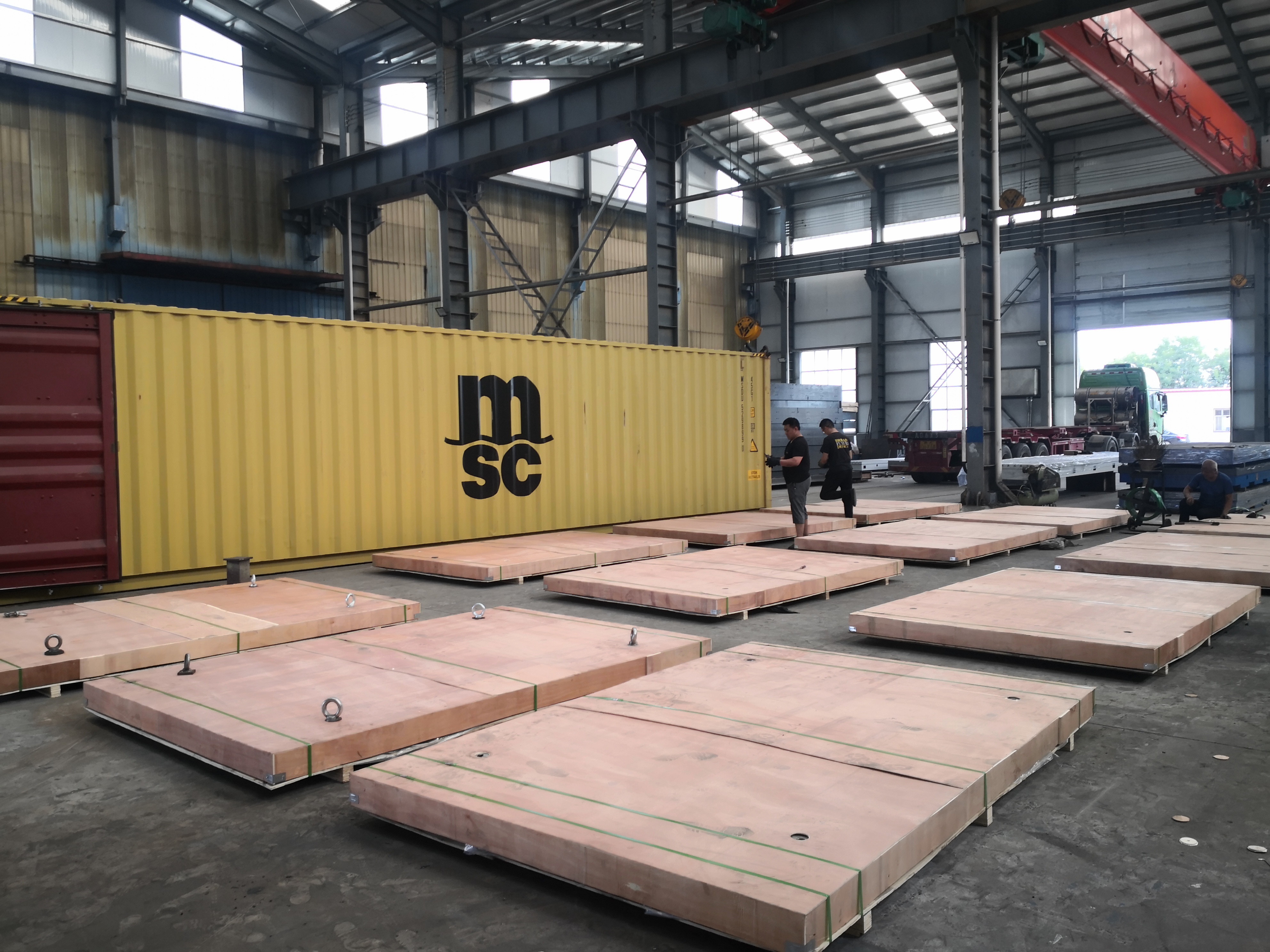

Loading and shipping

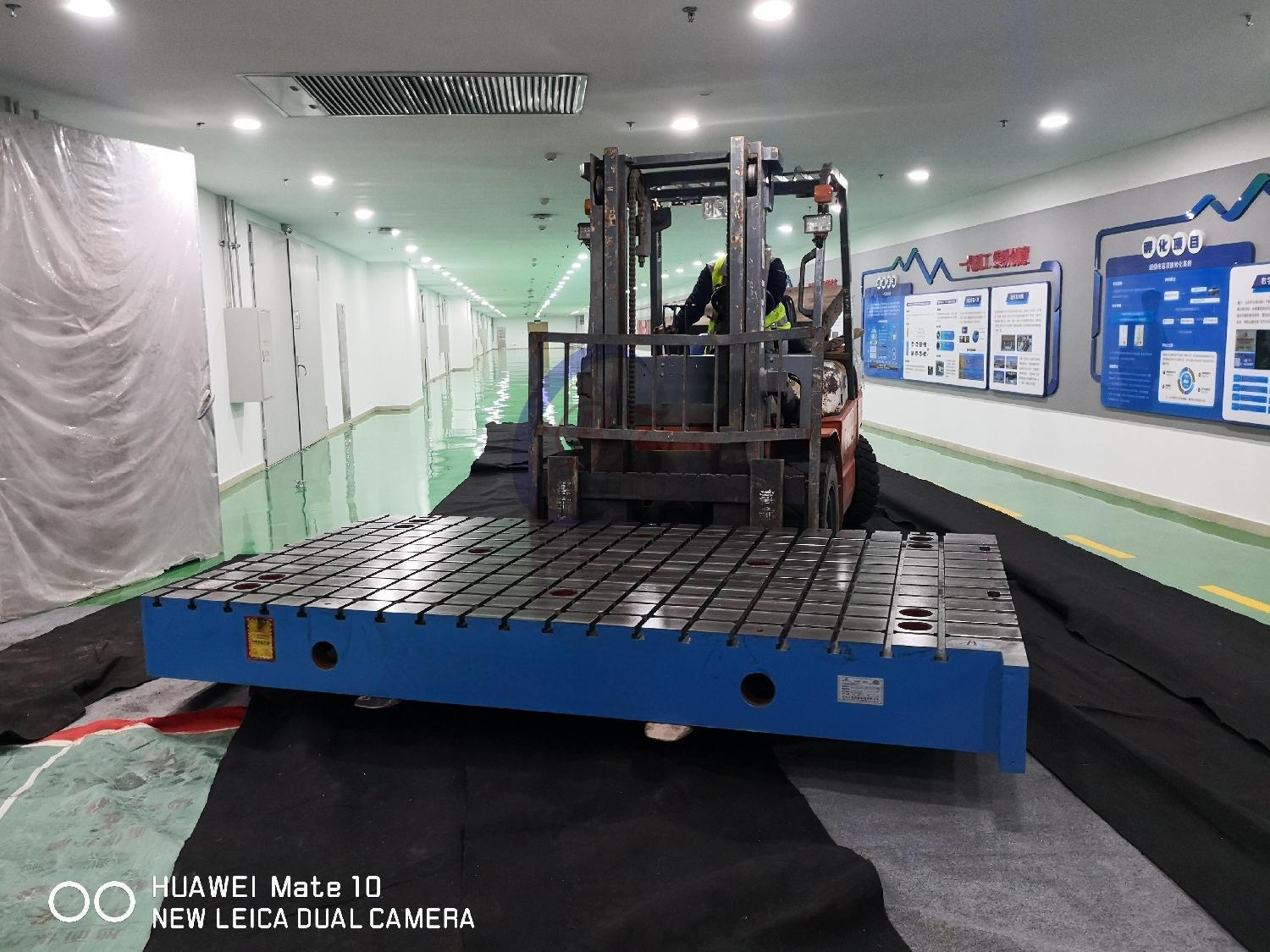

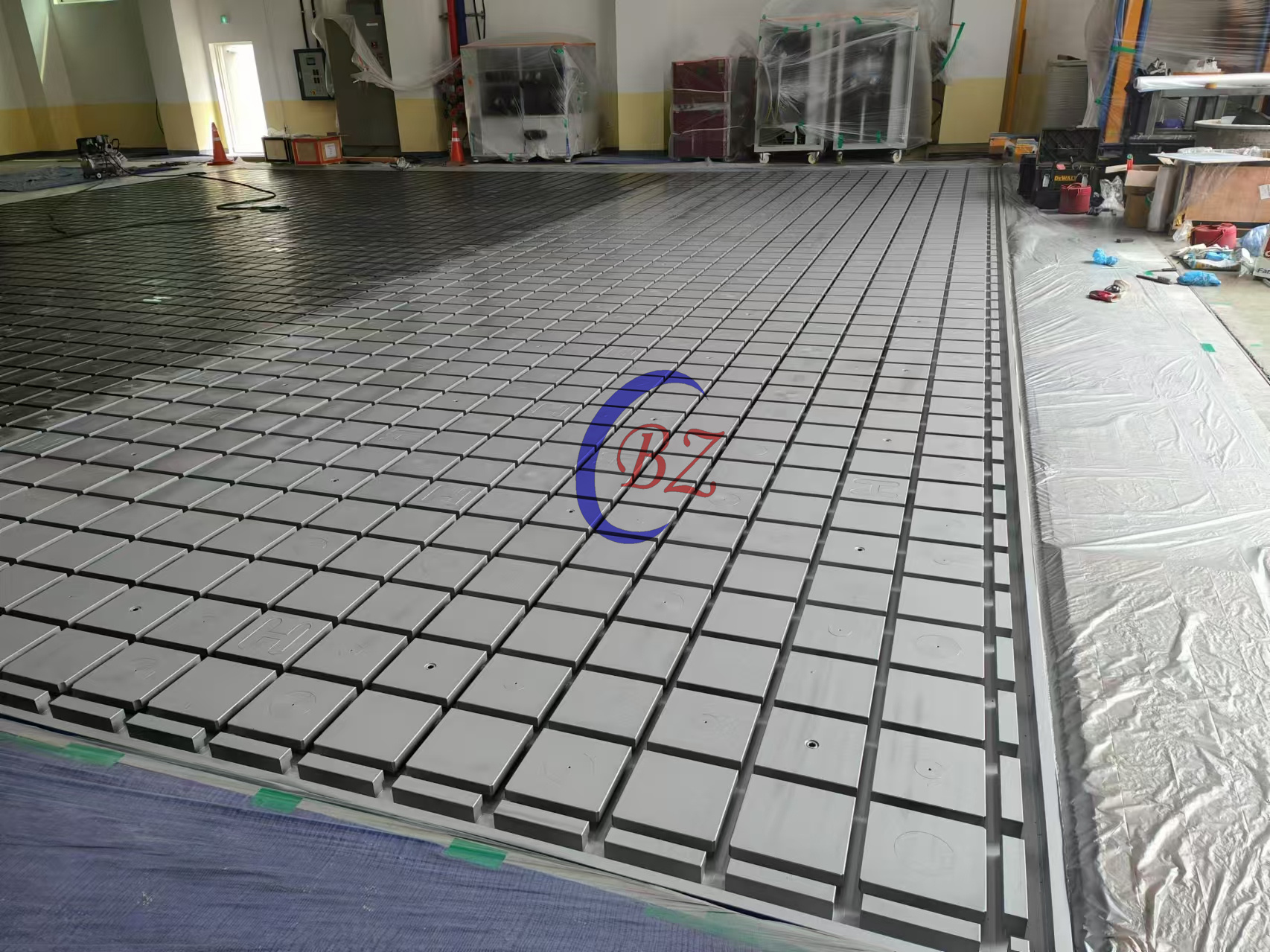

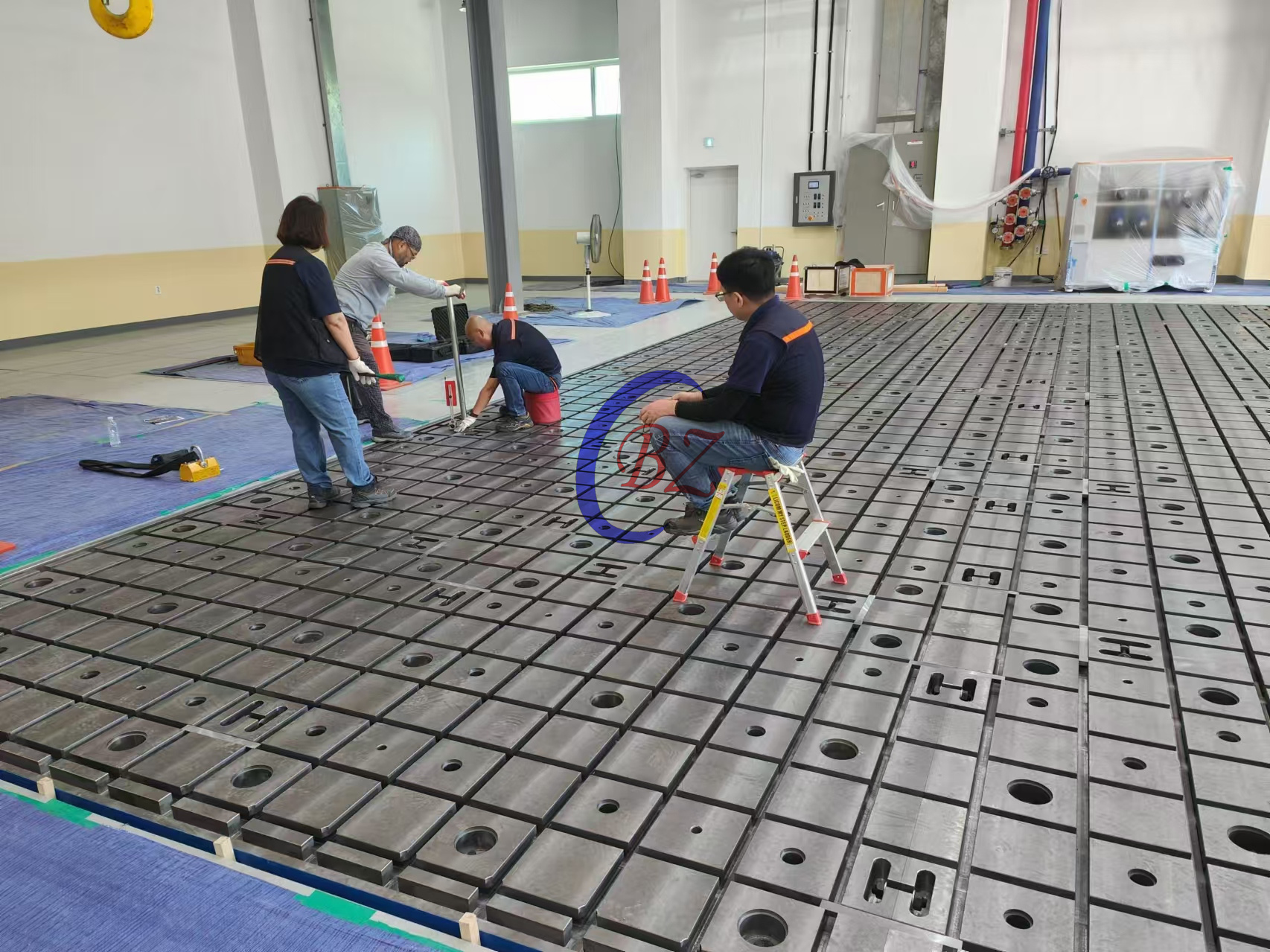

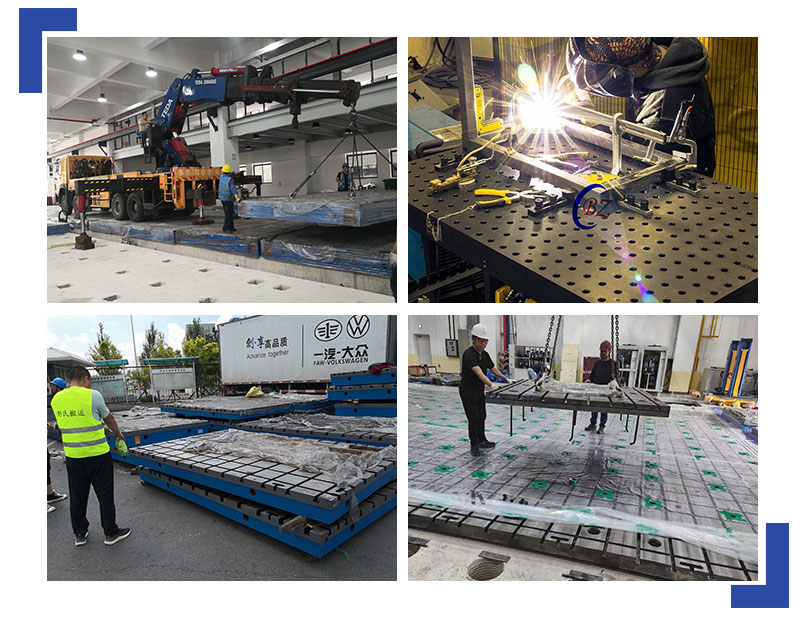

Customer on-site installation

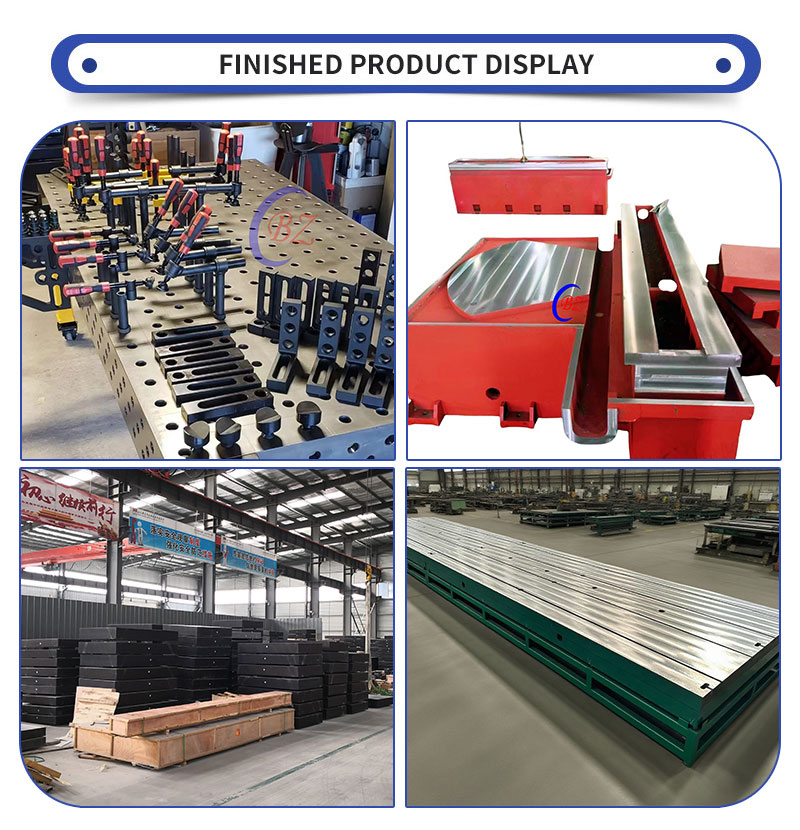

Quality Control & Inspection Galleries

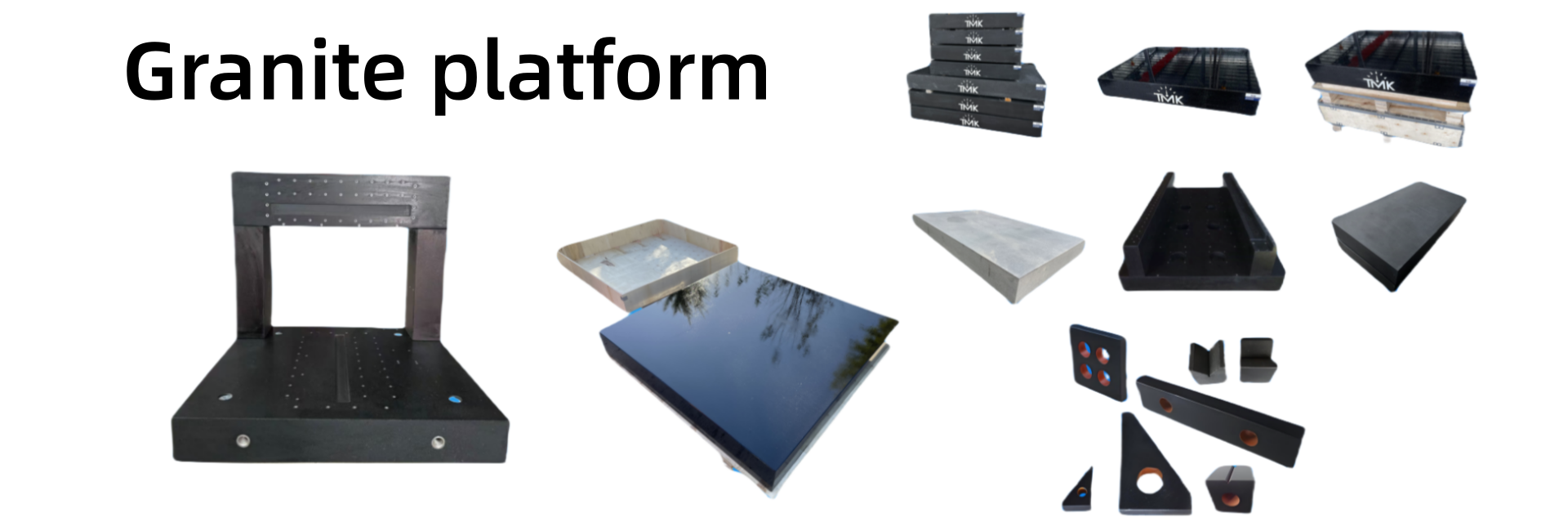

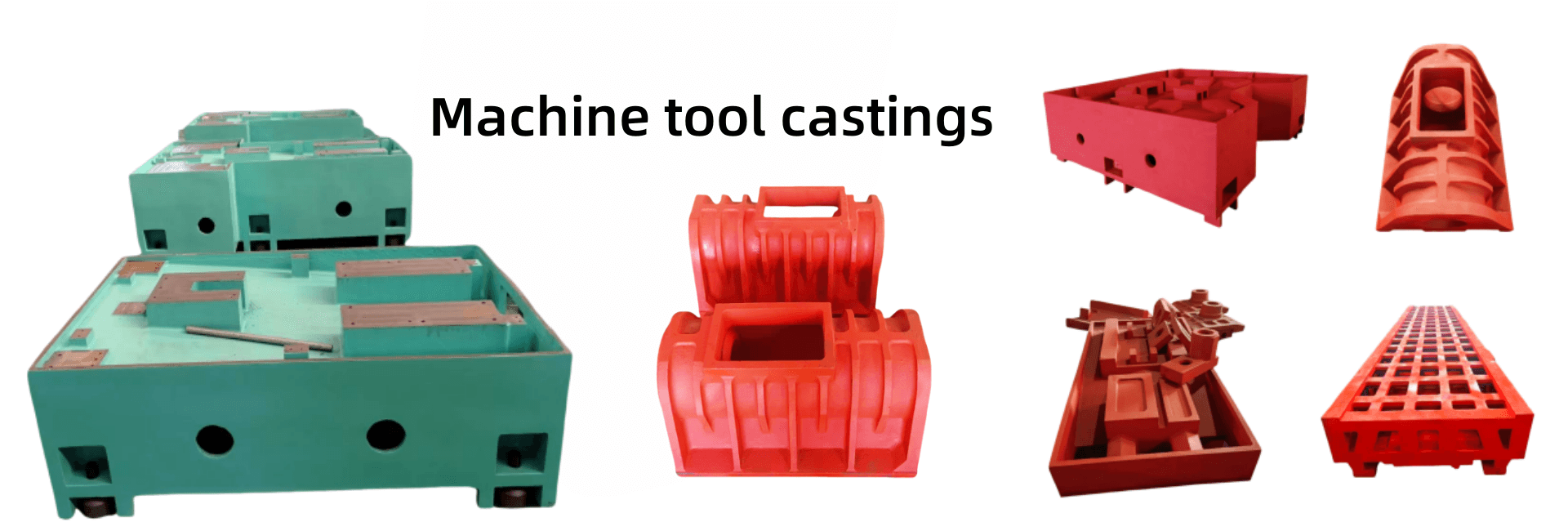

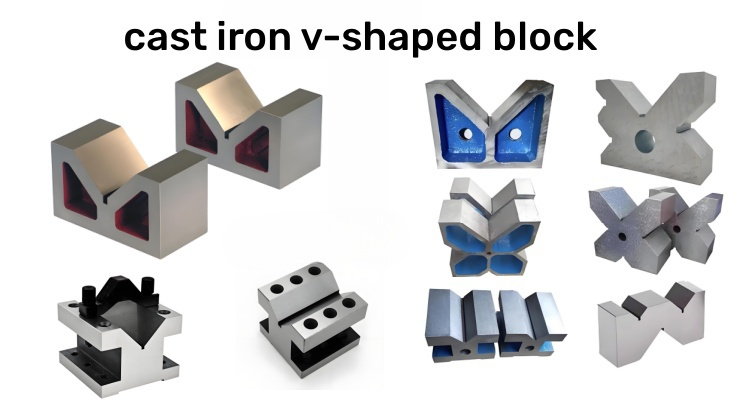

Other Series of Products

Frequently Asked Questions (FAQ)

What are the standard size specifications for cast iron platforms?

Standard sizes range from 300 × 300mm to 4000 × 2000mm. Customized platforms can be produced up to 6000 × 3000mm or even larger based on specific drawings and requirements.

Which accuracy standards do your cast iron platforms follow?

Our platforms conform to the GB/T22095-2008 standard and are classified into Level 00 (Flatness ≤ 2.5+L/1000 μm), Level 0 (Flatness ≤ 5+L/1000 μm), and Level 1 (Flatness ≤ 10+L/1000 μm), where L is the diagonal length in millimeters.

What materials are used for the manufacturing of these platforms?

We utilize premium gray cast iron series (specifically HT200 or HT250 with a hardness range of HB170-240) and ductile iron (QT series) to ensure excellent stability, high load capacity, and stress resistance.

What structural parameters can be adjusted?

We offer adjustable configurations including T-slot sizes (12/14/18/22/28/36/42mm series), T-slot spacing from 50 to 500mm, and reinforcement arrangement grids adjustable between 300 to 500mm intervals.

What experience do you have with large-scale projects?

With over 20 years of expertise in casting and installation, we have successfully delivered more than 100 large-scale cast iron platform installation projects worldwide, ensuring high precision and dependable technical support.
