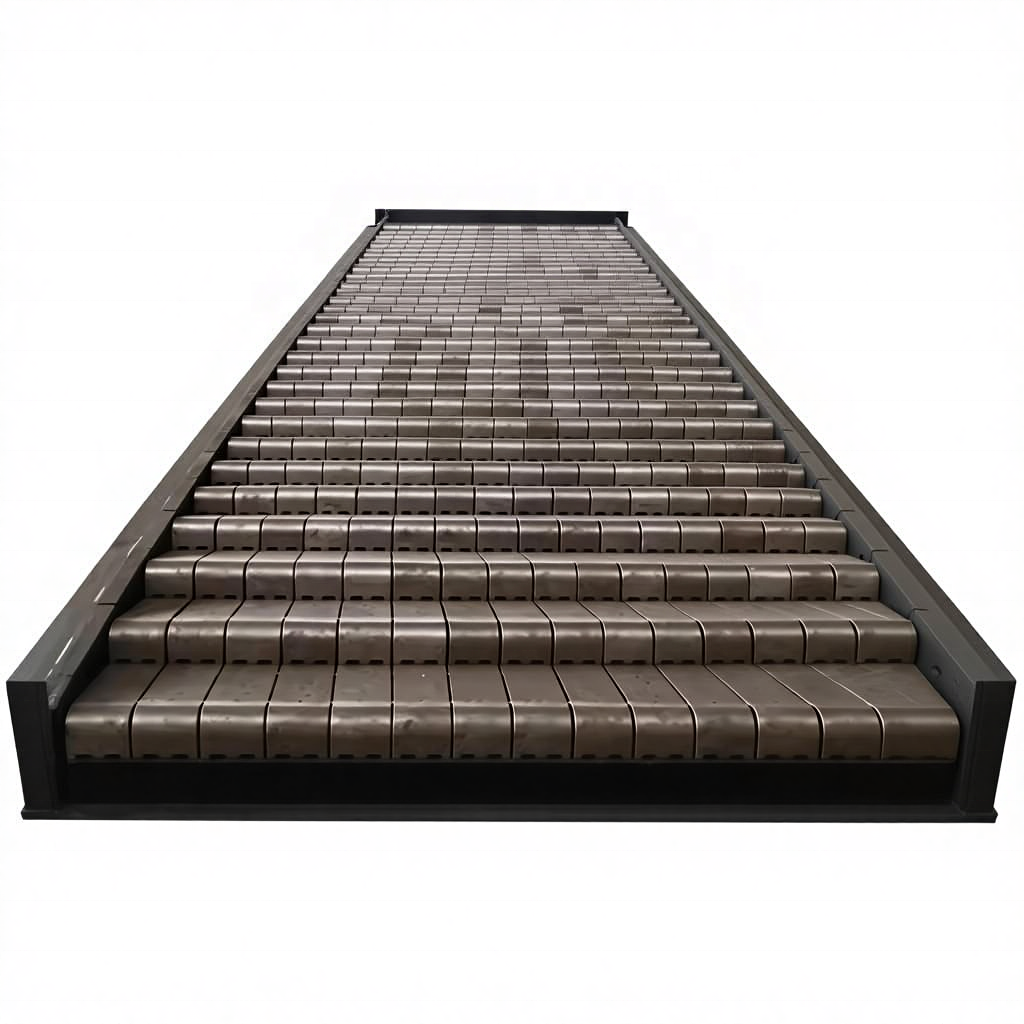

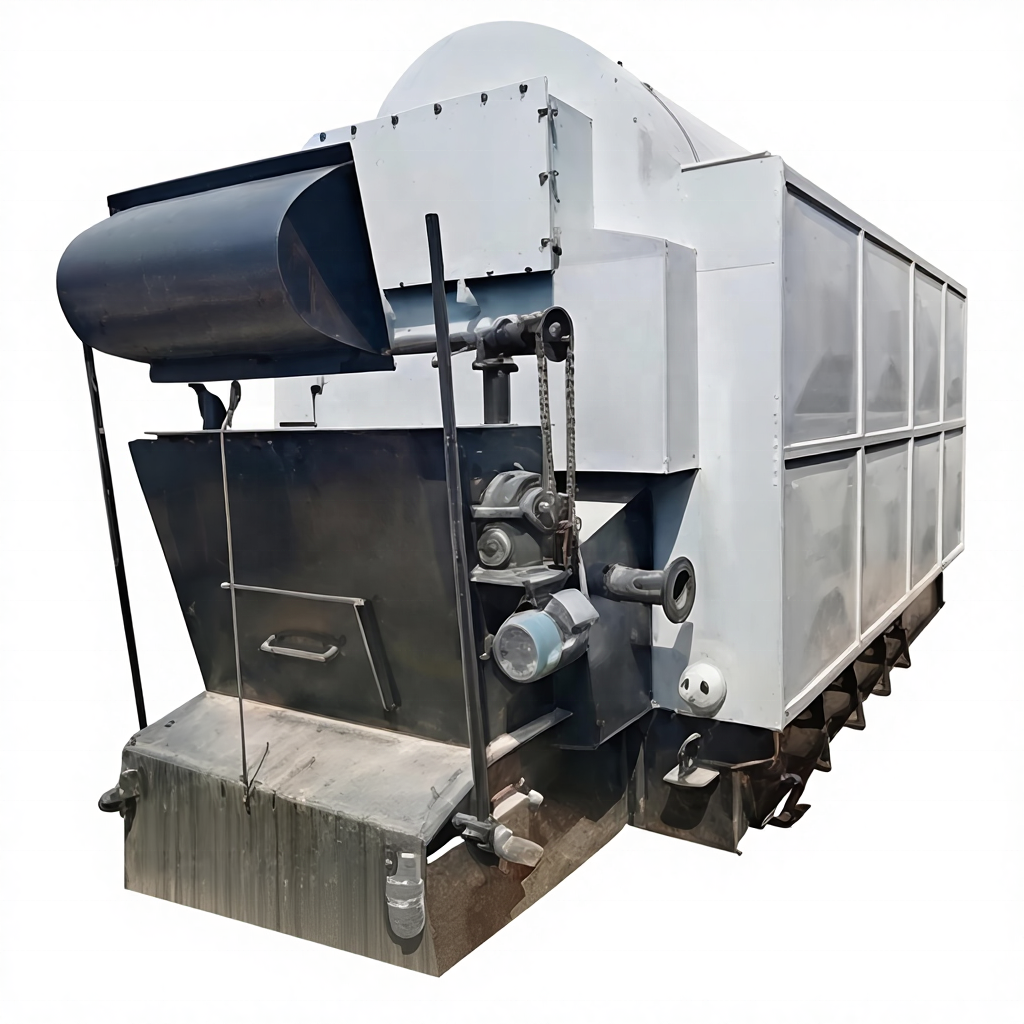

Heavy Gauge Carbon Steel Fabricated Boiler Chain Grate Base with Stiffening Ribs for Heavy Industrial Boiler Applications

Product Description

Product Description

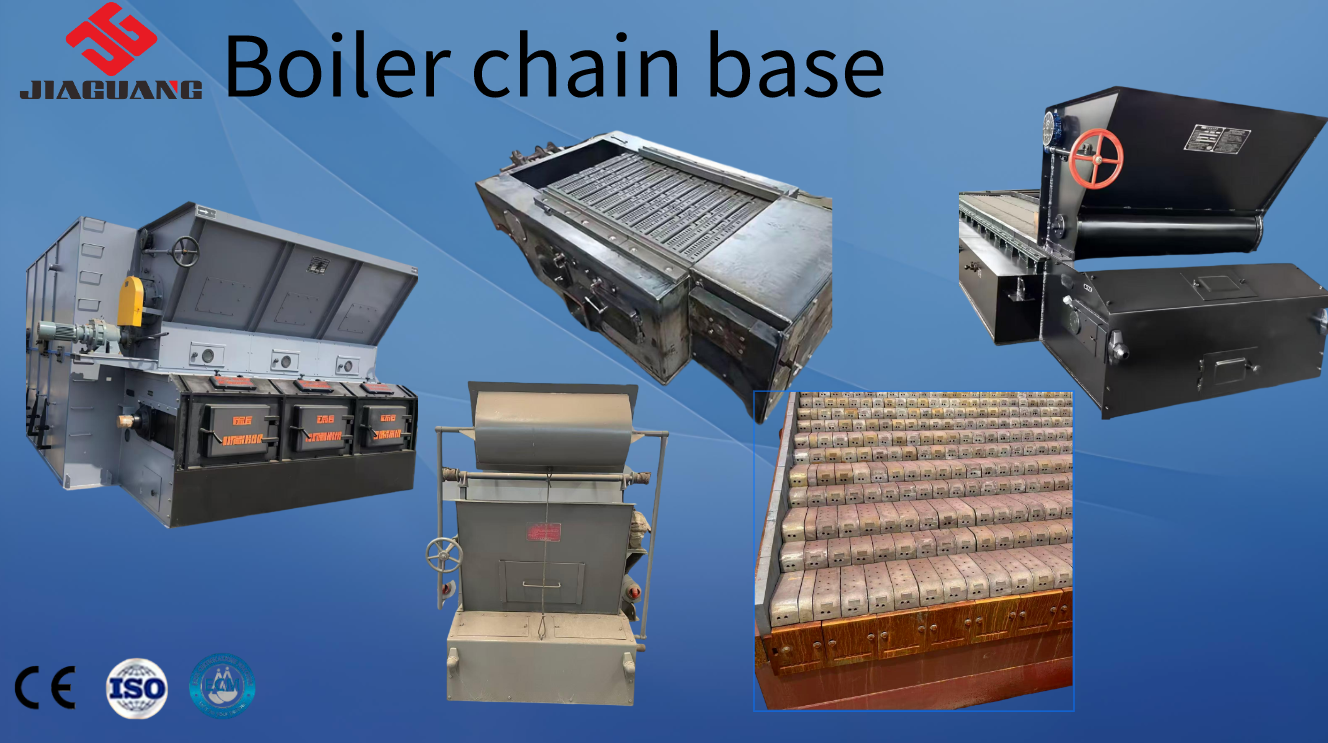

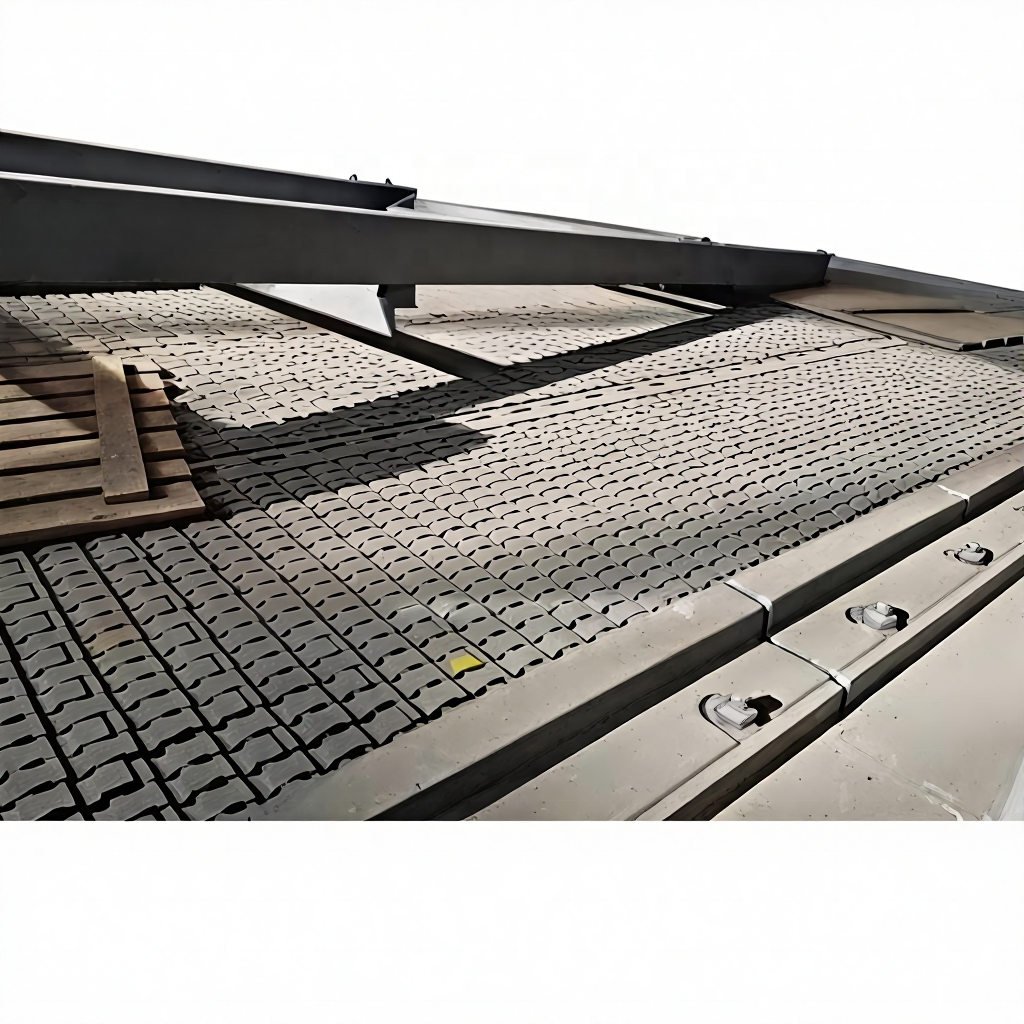

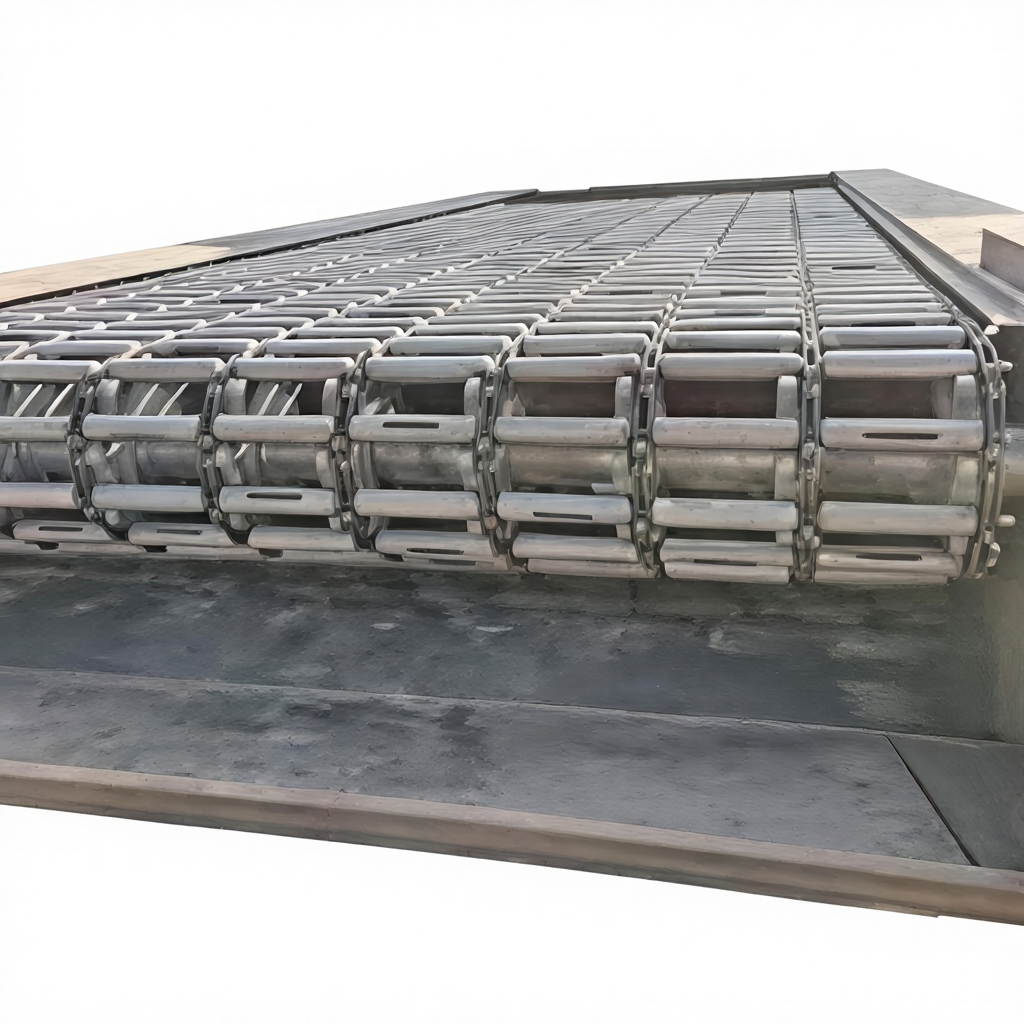

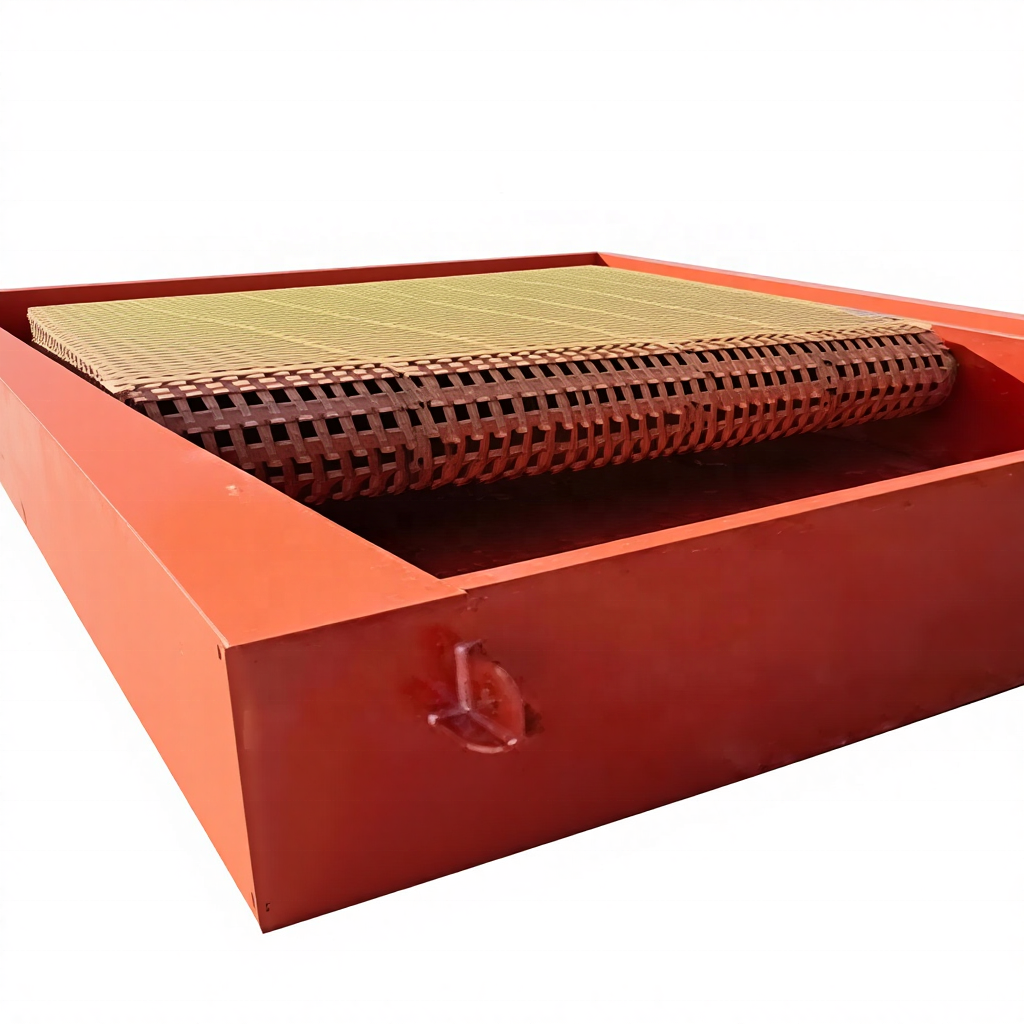

Boiler chain base design
The boiler chain base, professionally known as the grate bar clamp or boiler chain guide base plate, is not an isolated component, but a heavy-duty rigid frame system consisting of multiple longitudinal beams (side beams, middle beams) and cross beams connected by high-strength bolts and fixed to the boiler steel frame.
Component Name Materials and Processes Main Functions and Features
Edge beam (guide rail beam on both sides) Heavy duty I-beams, H-beams, or special cast/welded beams are often covered with wear-resistant guide plates on the surface. The main tracks on both sides of the grate directly guide the chain to travel, requiring extremely high straightness, parallelism, and wear resistance.
Middle beam (wind chamber partition beam) Box beams welded with channel steel, I-beams, or steel plates. Divide the space below the base into multiple independent air chambers to achieve segmented air supply. The top surface of the beam also serves as the intermediate support track for the chain.
Cross beam (connecting beam) Channel steel or I-beam. Connect all longitudinal beams horizontally to fasten the entire base structure as a whole, preventing deformation and enhancing rigidity.
Support and adjustment device Including adjustable supports, pads, and anchor bolts. The key part! Used for leveling, correcting the levelness and elevation of the base, and compensating for thermal expansion during operation to ensure long-term flatness of the track.
Sealed structure Asbestos packing, flexible graphite, metal sealing sheet, etc. Installed in the gaps between the side beams, furnace walls, and various beams to prevent air leakage from the air chamber and ensure air distribution efficiency.
Required Accessories
biomass grate, reciprocating grate, chain, auxiliary plate, active grate, crossbeam grate, clamp plate, gear, roller.

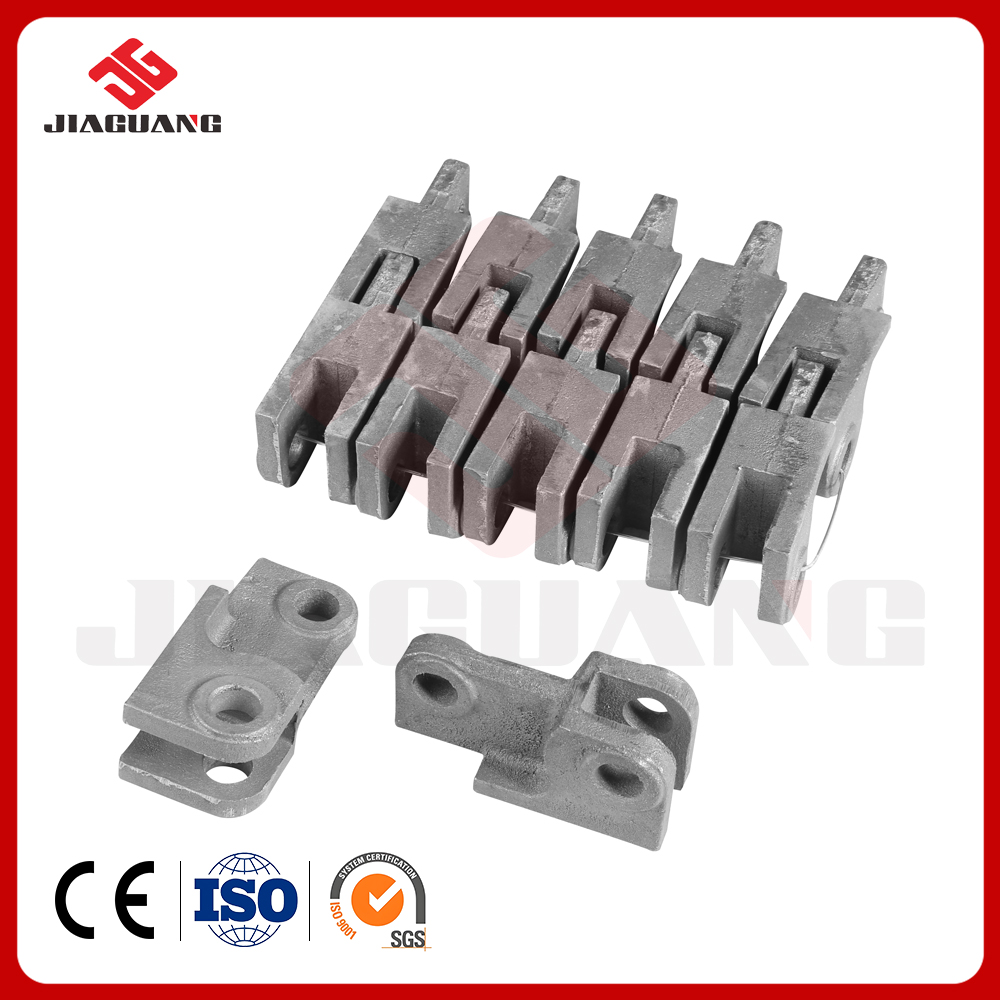

Grate Accessory Part 1

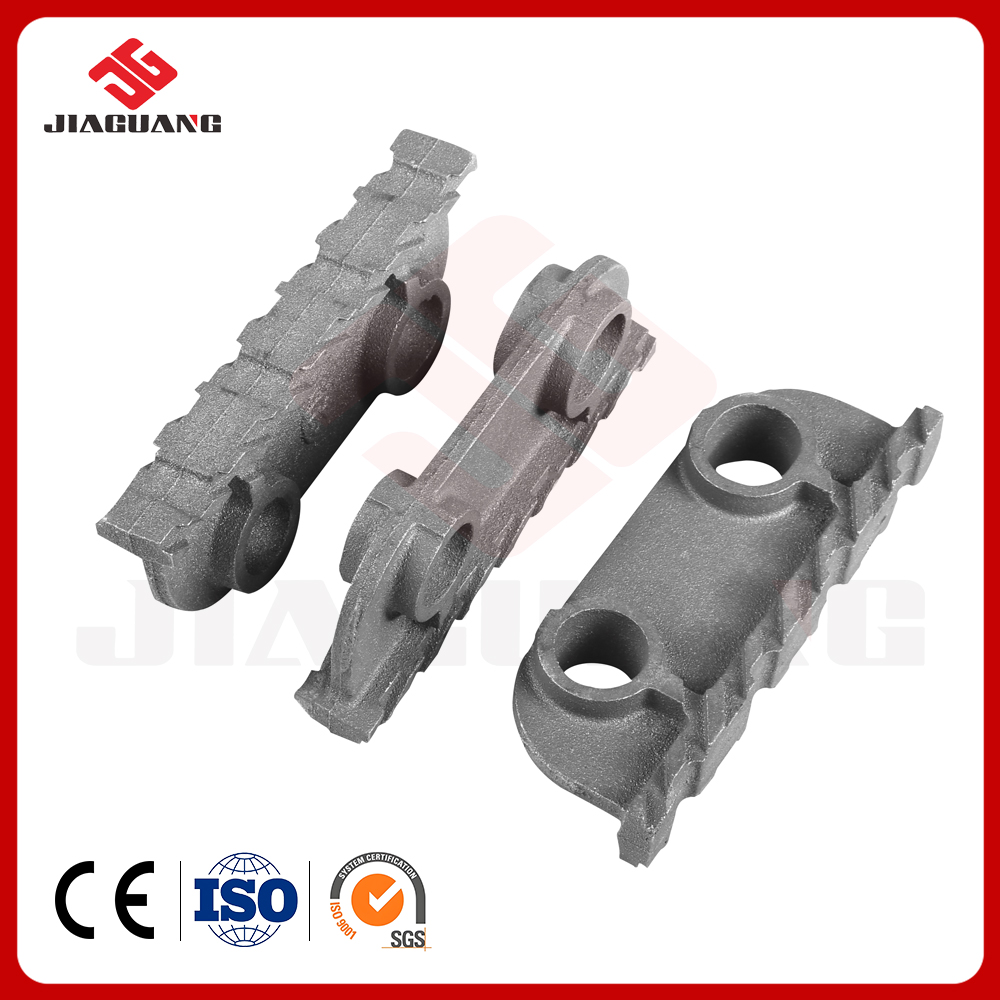

Grate Accessory Part 2

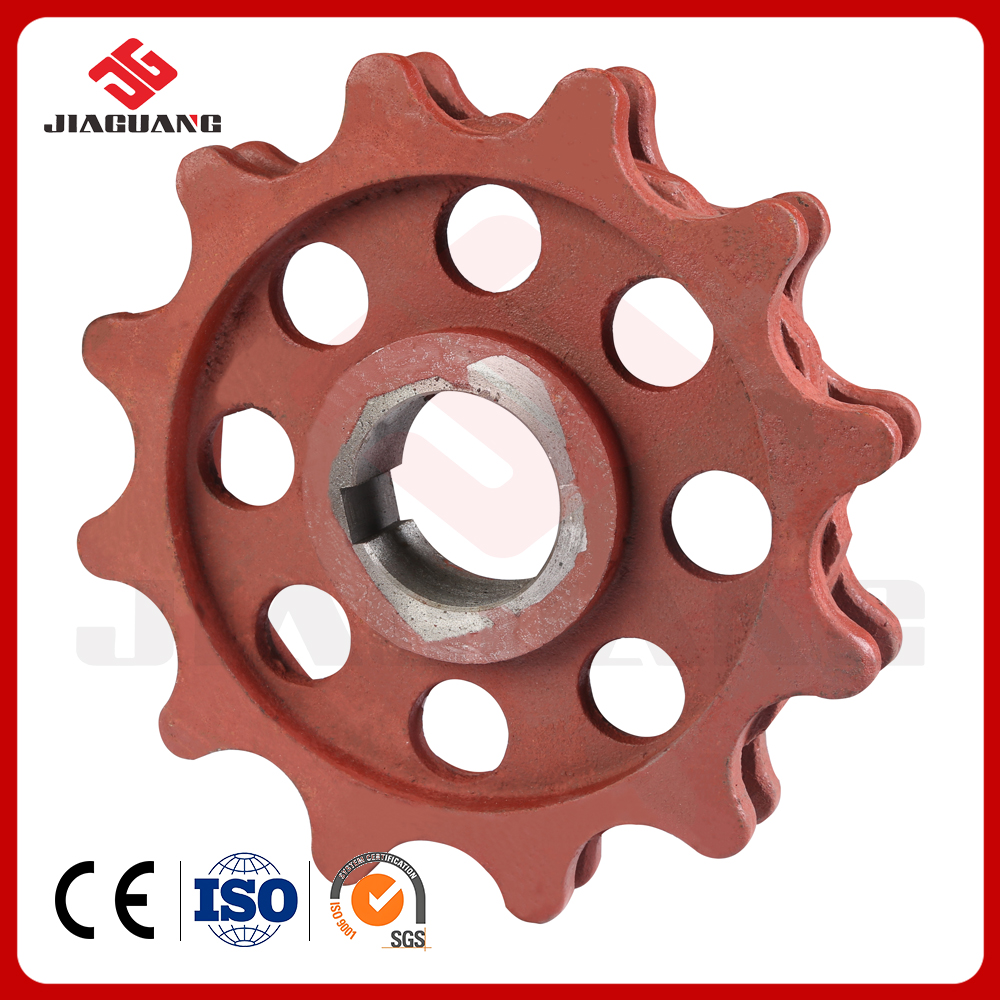

Grate Accessory Part 3

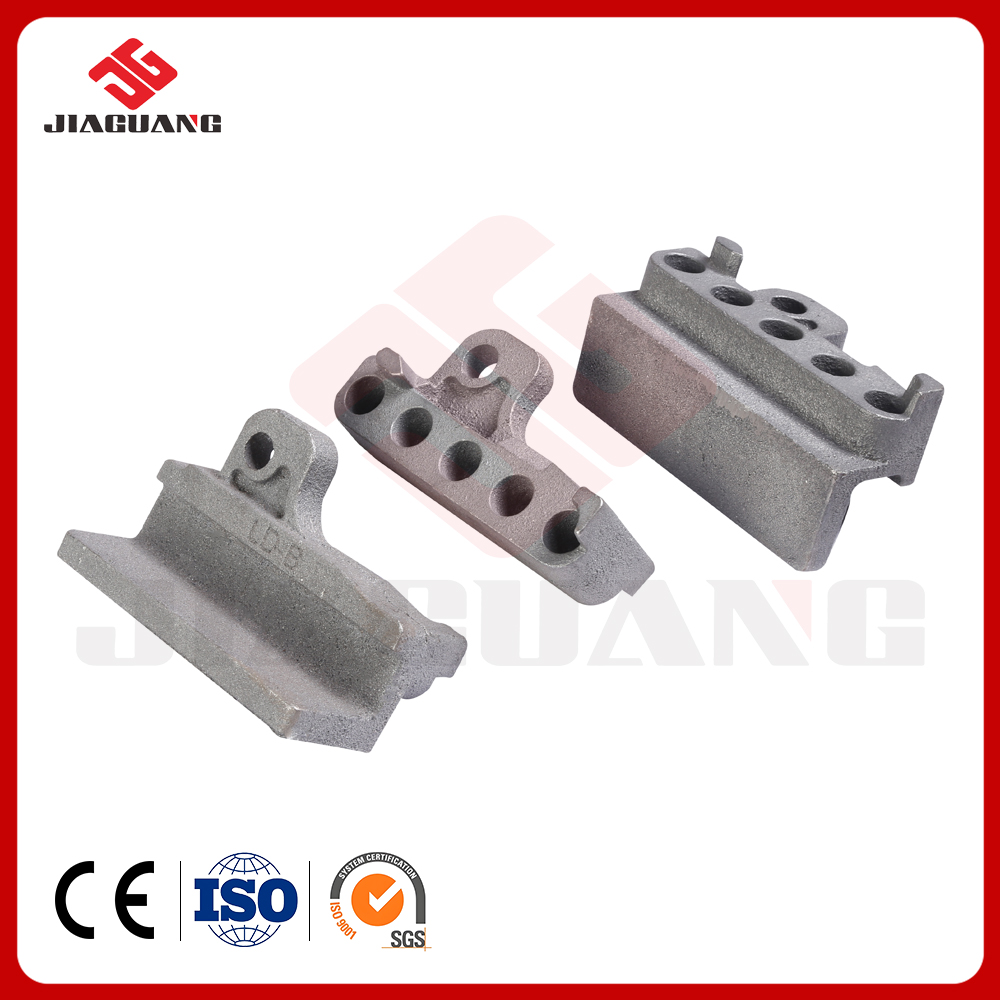

Grate Accessory Part 4

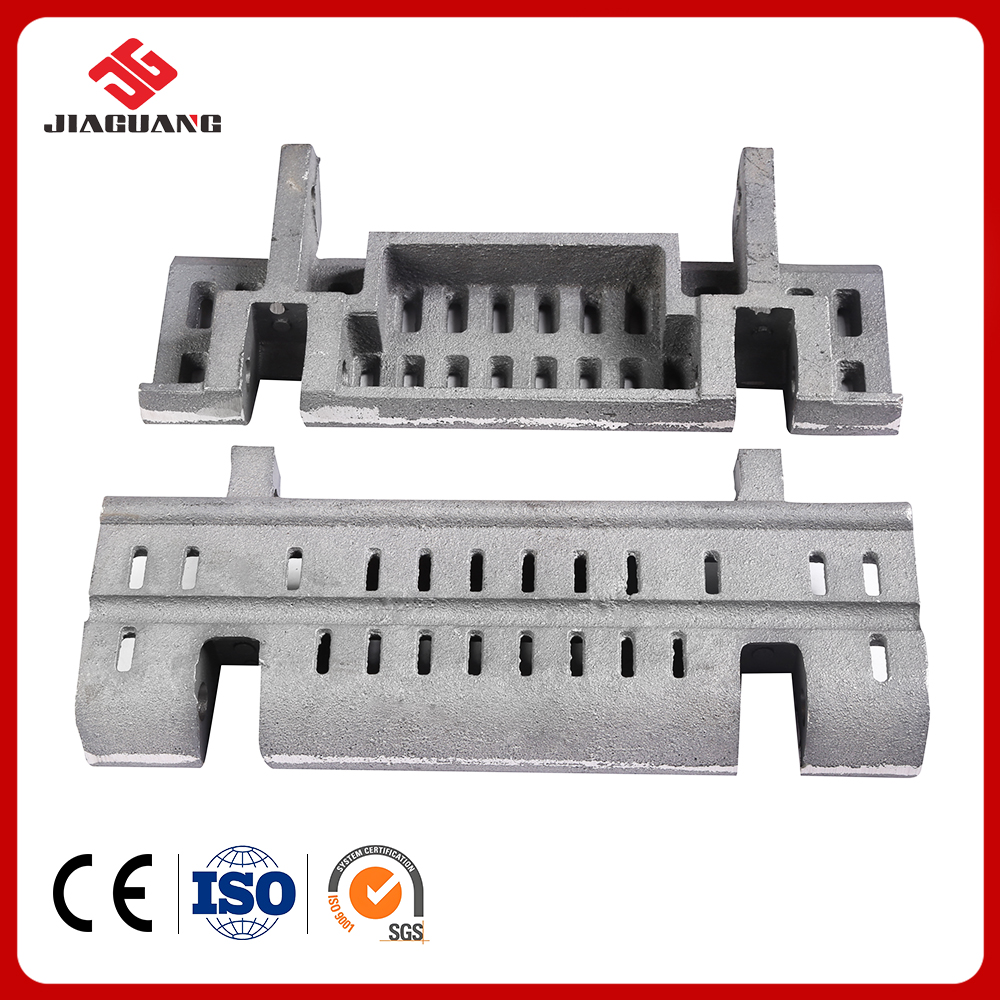

Production Process 1

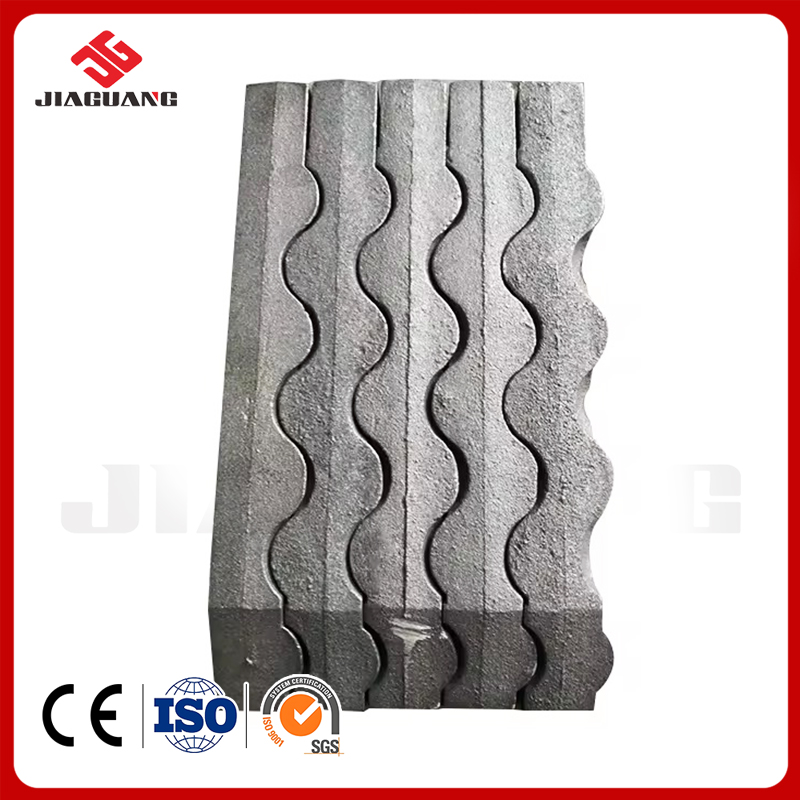

Production Process 2

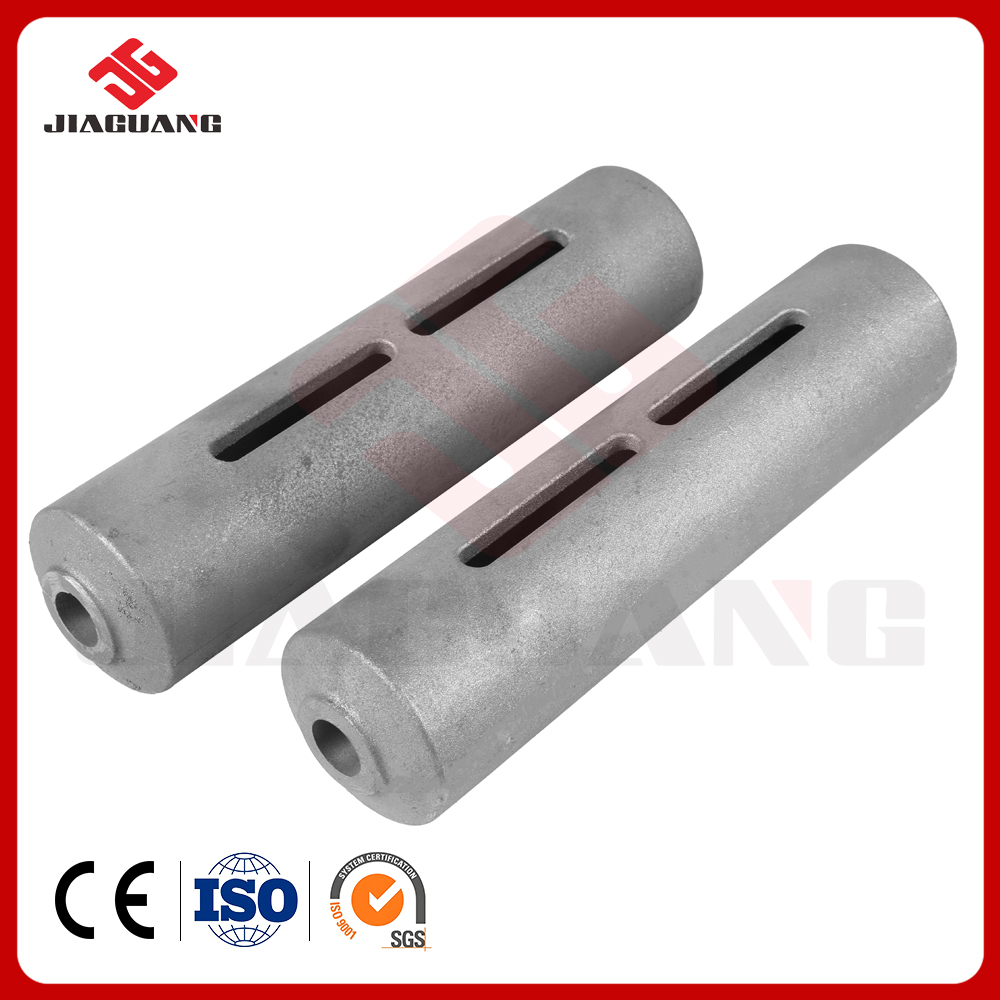

Production Process 3

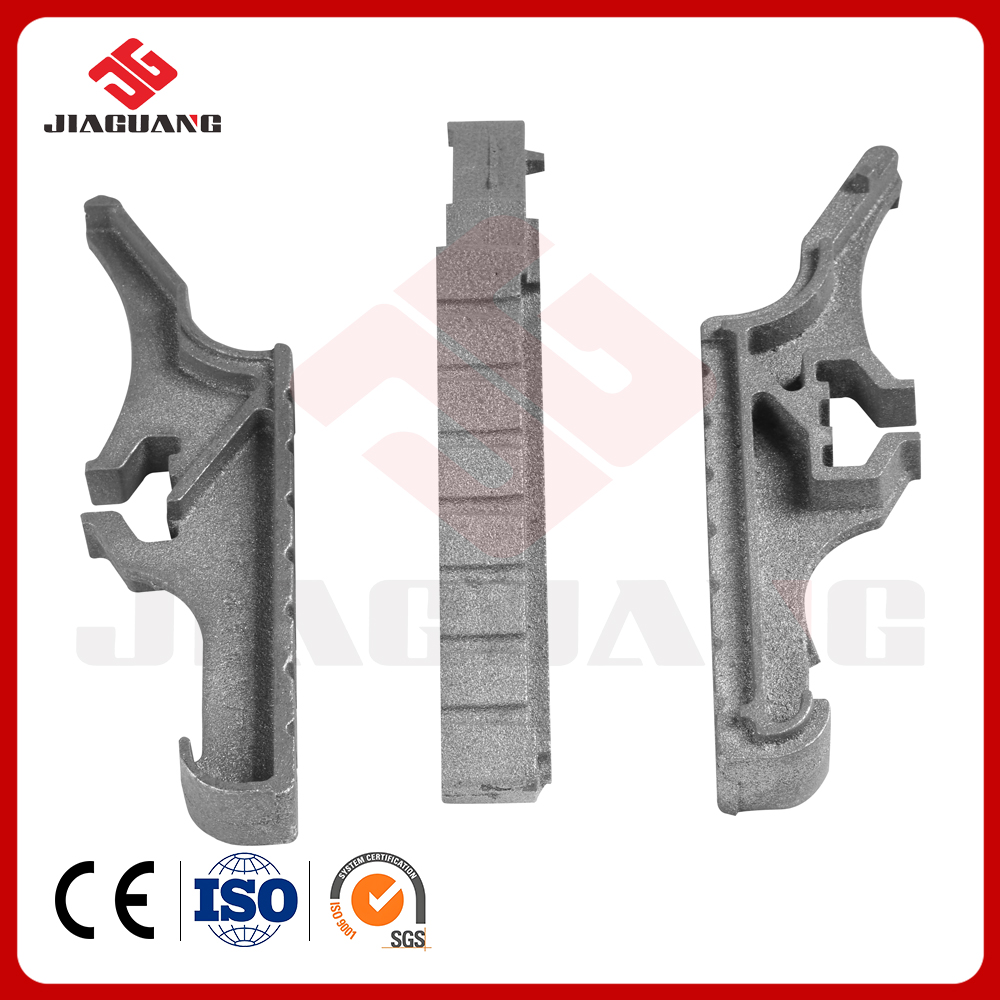

Production Process 4

Technical Profile & Capabilities

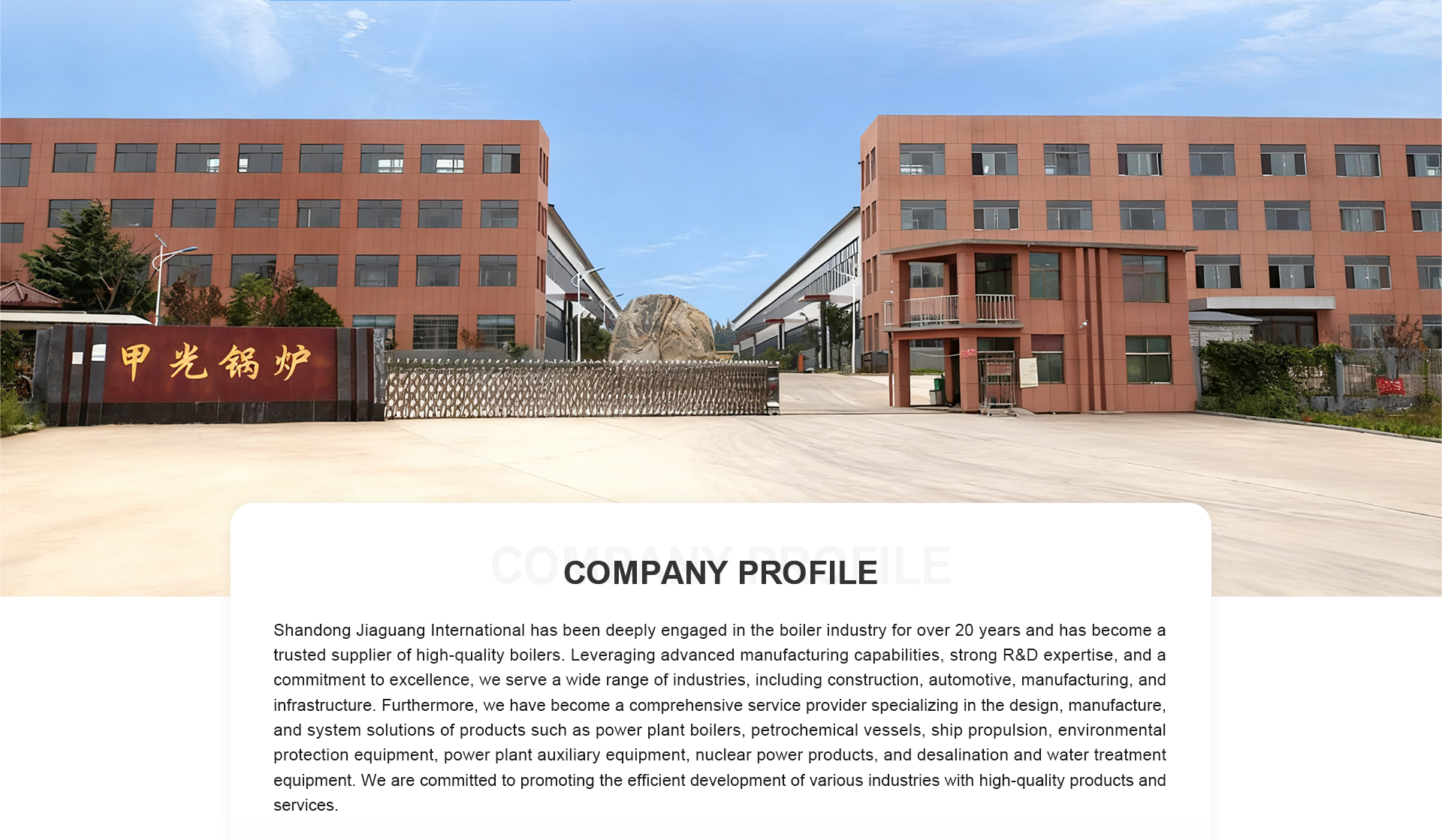

Manufacturing workshop profile

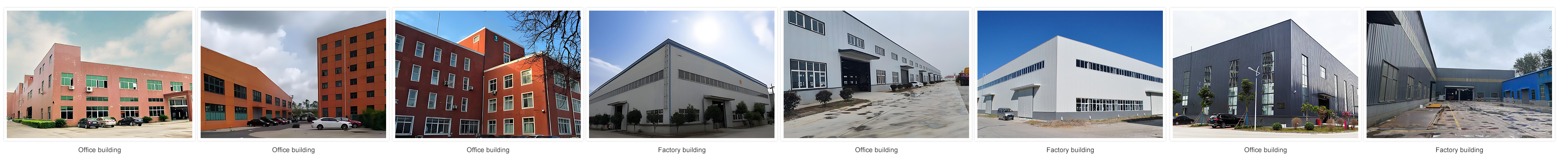

Technical processing line
As a leading enterprise in the boiler and energy equipment field, we have focused on the R&D, manufacturing, and global supply of high-quality boilers and related systems for over two decades. With advanced manufacturing capabilities, strong R&D strength, and a spirit of continuous innovation, we provide reliable products and system solutions to various industries including construction, automotive, manufacturing, and infrastructure. Currently, our business covers power plant boilers, petrochemical ship equipment, ship propulsion systems, environmental protection equipment, power plant auxiliary equipment, nuclear power supporting products, and seawater desalination and water treatment equipment, committed to promoting sustainable development across global industries through efficient and reliable equipment and technology.
  • 1. Advanced Manufacturing and Certification
    We hold a national Class A boiler manufacturing license and a Class III pressure vessel design and manufacturing license. Equipped with high-precision rolling mills, fully automated galvanizing production lines, and advanced color coating equipment, we ensure our products excel in strength, corrosion resistance, and service life. We have passed ISO 9001 quality management system certification, ISO 14001 environmental management system certification, and multiple international certifications such as CE and ASME, strictly adhering to national standards and complying with international norms.
  • 2. Professional R&D and Technological Innovation
    We have a research and development team of 286 engineers and technicians, including 52 senior engineers. The team continuously conducts research on key technologies such as combustion optimization, thermal efficiency improvement, and material and process refinement. We also collaborate with several leading research institutions, introducing advanced technologies such as CFD simulation and AI intelligent combustion control to drive continuous product upgrades and adapt to the technical standards and environmental requirements of different global markets.
  • 3. Comprehensive Quality Control System
    From raw material inspection upon arrival to process control and finished product performance testing, we implement quality management throughout the entire product lifecycle. All products strictly adhere to international and regional standards such as ASTM, JIS, EN, and GB, and rely on automated testing equipment and laboratory systems to ensure that every boiler and its supporting equipment possesses excellent consistency and reliability.
  • 4. Customized System Solutions
    We can provide customized services for steel and boiler components of different thicknesses, widths, materials, and surface treatments according to customer project requirements. Our professional technical team provides selection support, system integration design, and installation guidance for various application scenarios, helping customers achieve optimal energy system configuration.
  • 5. Global Market and Service Network
    Our products and services have been exported to over 50 countries and regions worldwide, covering key markets in Asia, Europe, North America, Latin America, and the Middle East. Leveraging an efficient international logistics system and localized service teams, we ensure timely delivery and provide customers with comprehensive services including installation, commissioning, technical training, and after-sales support.
  • 6. Green Manufacturing and Sustainable Development
    We actively fulfill our environmental responsibilities, promote energy-saving and low-carbon production technologies, implement waste heat recovery and waste recycling systems, and continuously develop low-NOx combustion technologies and environmentally friendly coating processes to effectively reduce the carbon footprint of our products.

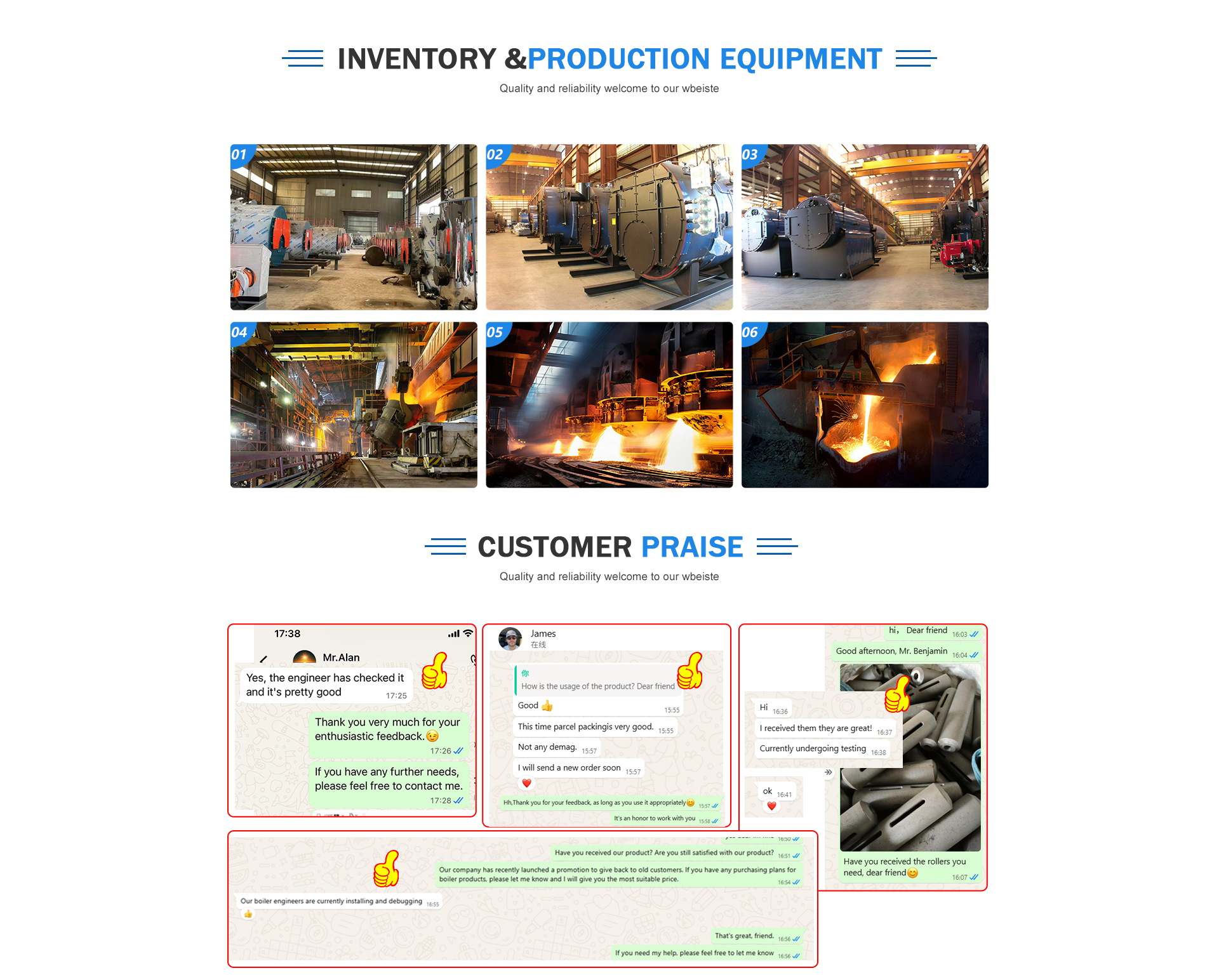

Technological facilities
We will continue to uphold the philosophy of "technology as the foundation, quality as the core, and serving the world," and work hand in hand with partners from all walks of life to contribute to the clean and efficient development of the world's energy system with innovative technologies and reliable equipment.

Certifications & Standards

Quality Certificate 1
Quality Certificate 2

Frequently Asked Questions

Q1Can you give us a quote now?
We can quote for standard grate components, but complete grate sets are custom-made. Please provide us with your required dimensions and grate capacity. We will then design and quote for you as soon as possible.
Q2What is your minimum order quantity?
Our minimum order quantity is 1 piece/set.
Q3Why should you buy from us instead of other suppliers?
We bring 30 years of specialized experience in manufacturing professional grate furnaces to ensure the highest standards of reliability and durability.
Q4Do you accept special orders?
Yes, we do. We can manufacture various casting products and grates according to your technical drawings and required materials.
Q5Can you provide us with technical drawings and data?
We will provide you with overall dimensional drawings of the plan and project. However, detailed technical drawings and data will be sent to you after we sign the contract and confidentiality agreement.
Q6Do you provide after-sales service?
Yes, we do. Our products have a one-year warranty on vulnerable parts to ensure continuous operational performance.
