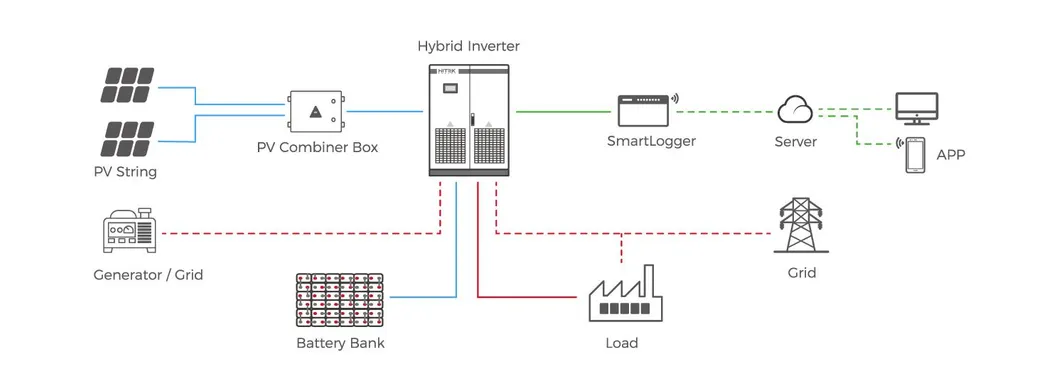

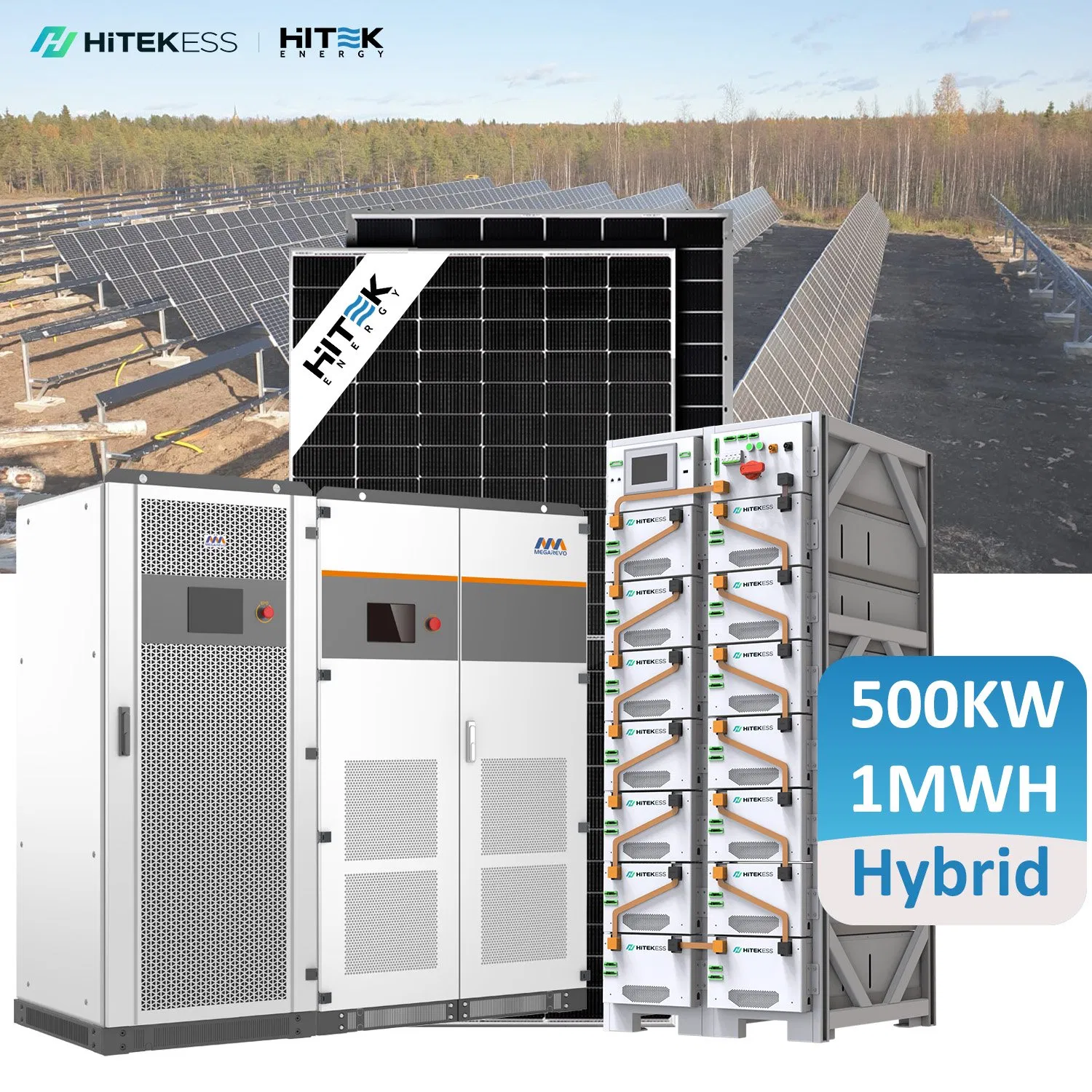

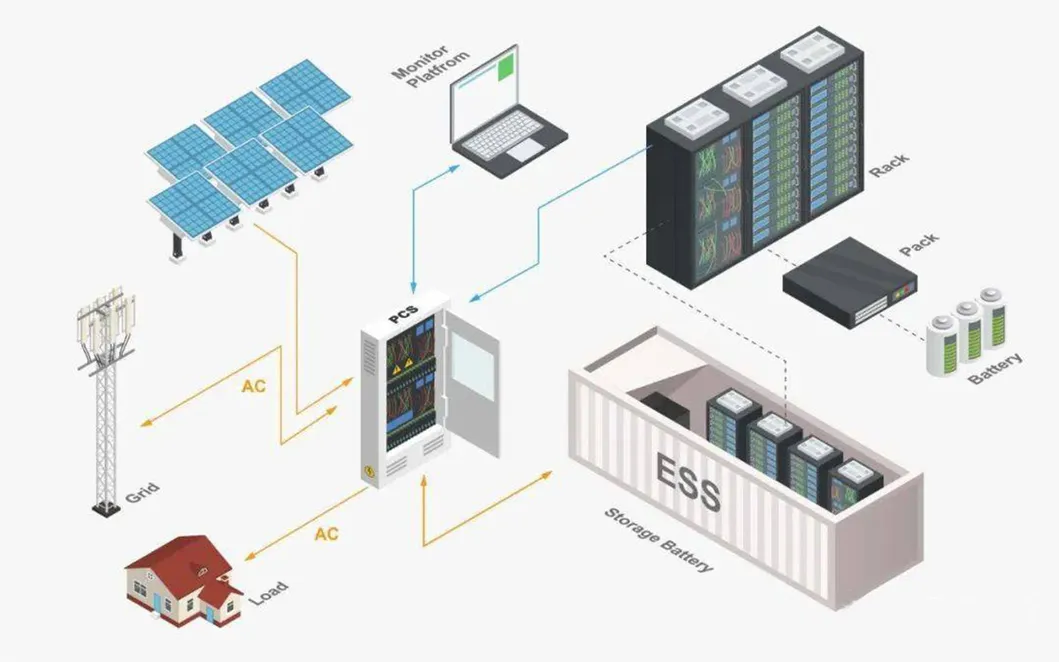

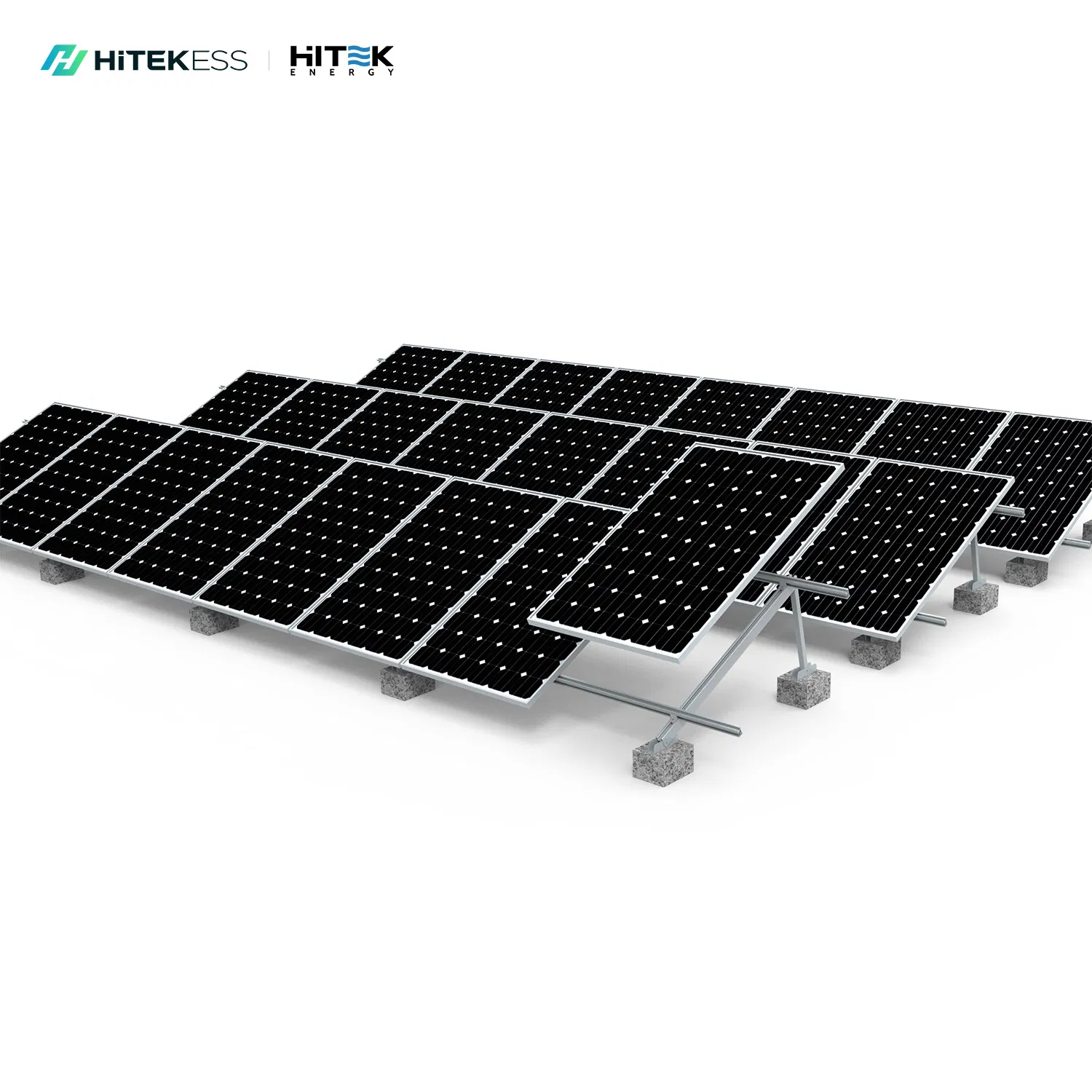

Our hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight.
Hybrid solar systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.
| Category | Parameter | HT30KW-HY | HT50KW-HY | HT100KW-HY | HT150KW-HY | HT250KW-HY | HT500KW-HY |
|---|---|---|---|---|---|---|---|
| System Parameter | AC Rated Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| Grid Voltage | 380/400VAC | ||||||
| Rated Grid Frequency | 50/60HZ | ||||||
| Max. Output (KVA) | 33 | 55 | 110 | 165 | 275 | 550 | |
| Solar Panel | Quantity | 68PCS | 102PCS | 204PCS | 289PCS | 510PCS | 1020PCS |
| Model | HT560M-72 | ||||||
| Power in Total | 38.08KW | 57.1KW | 114.24KW | 161.84KW | 285.6KW | 571.2KW | |

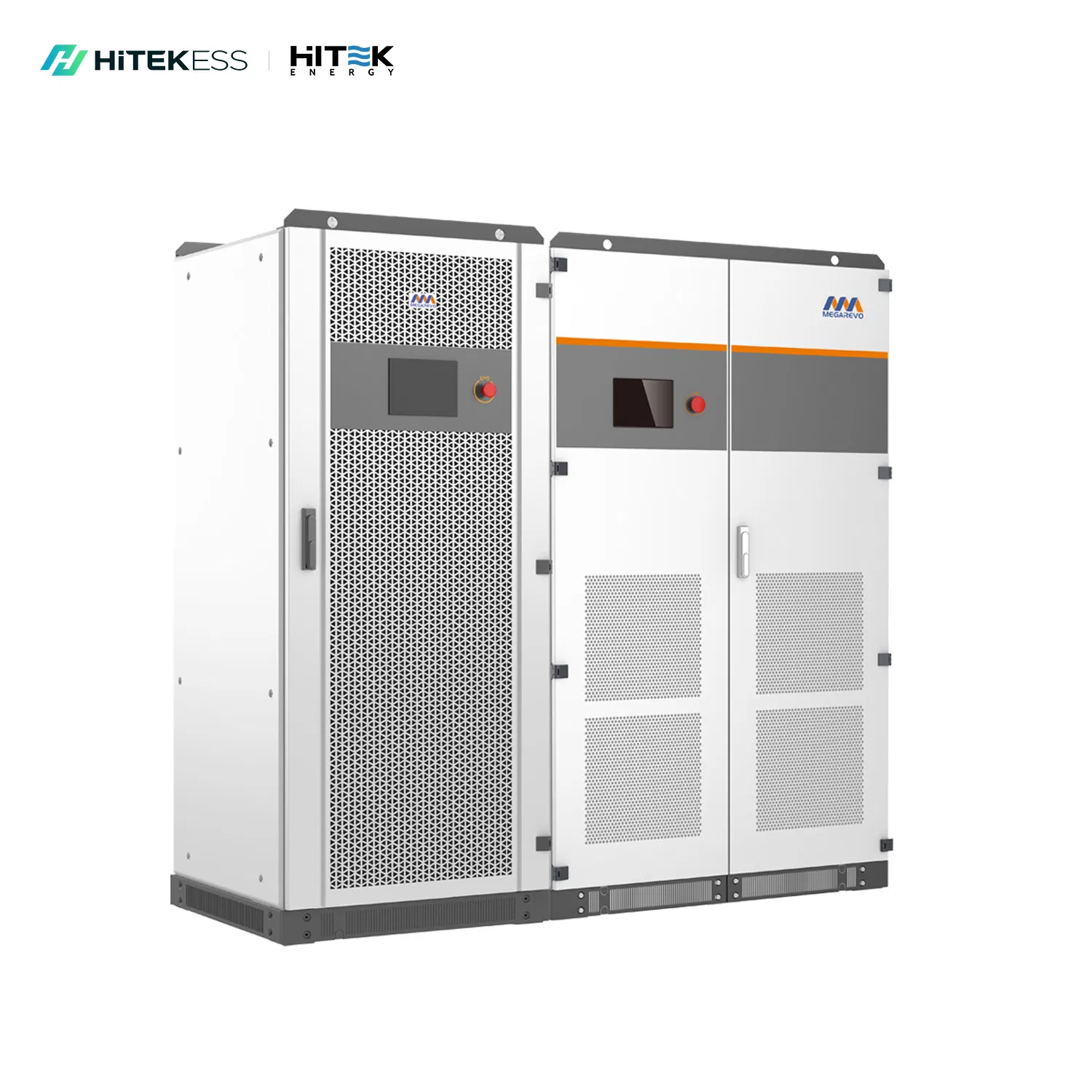

| Hybrid Inverter | Quantity | 1PC | 1PC | 1PC | 1PC | 1PC | 1PC |
| Model | HTMPS30 | HTMPS50 | HTMPS100 | HTMPS150 | HTMPS250 | HTMPS500 | |
| Rated Current (A) | 43A | 72A | 144A | 216A | 361A | 722A | |
| Rated Power (KW) | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW | |
| MPPT Voltage | 250-850VDC | ||||||

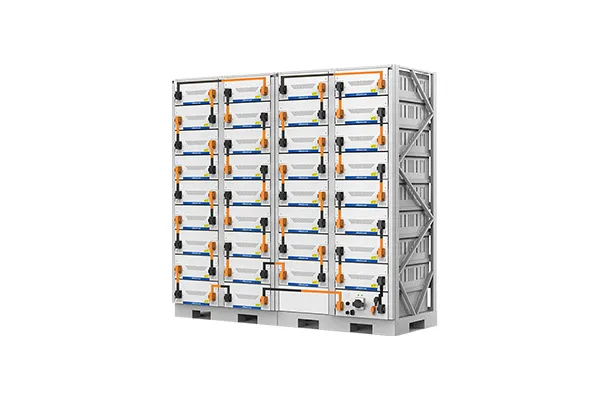

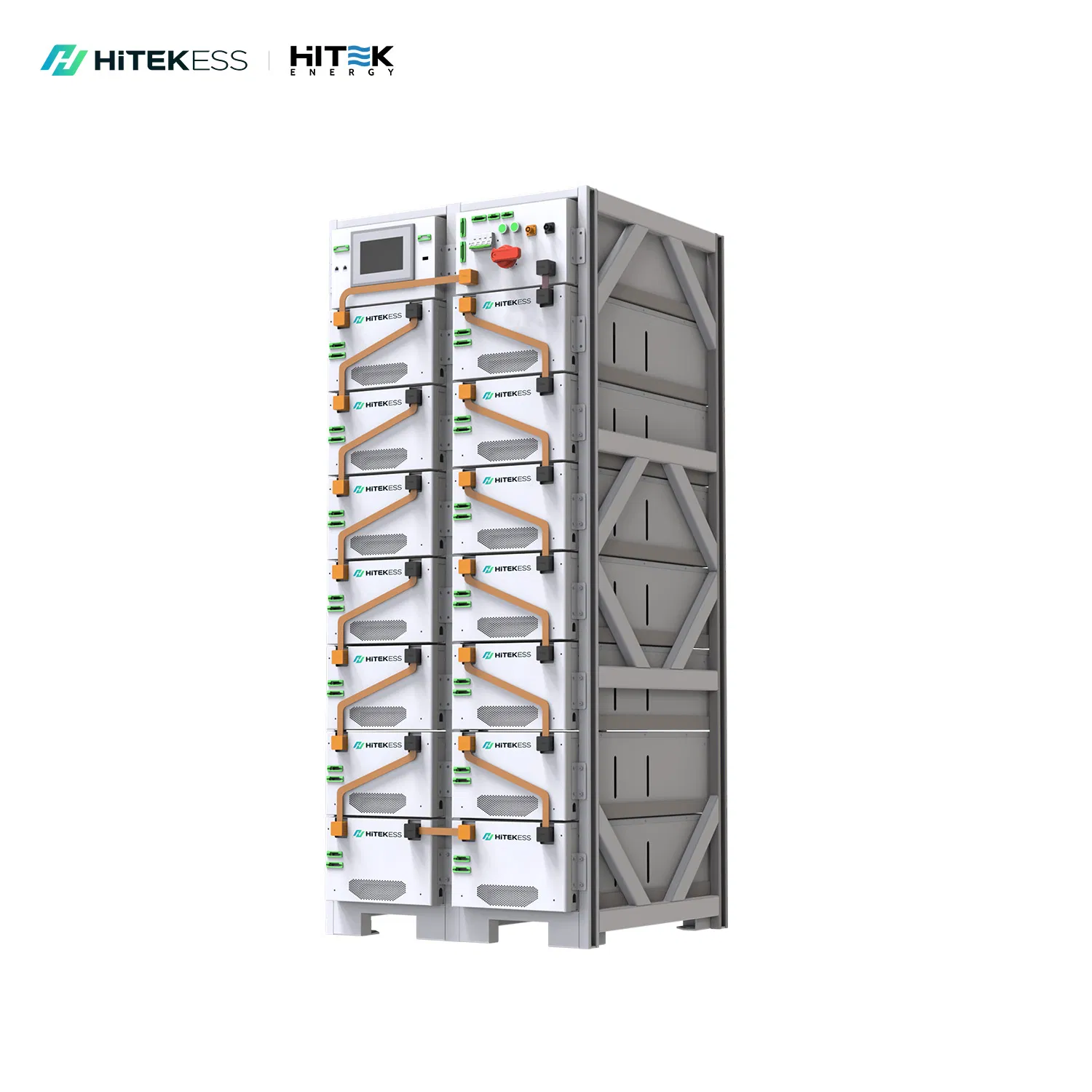

| Lithium Battery | Quantity | 8PCS | 7PCS | 14PCS | 22PCS | 33PCS | 66PCS |
| Model | HT48100 | HT48100 | HT48280 | HT48280 | HT48280 | HT48280 | |
| Nominal Voltage (Vdc) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2V | |
| Nominal Capacity (AH) | 100 | 280 | 280 | 280 | 280 | 280 | |
| Voltage Range (Vdc) | 44.8-57.6V | ||||||
| Battery Bank Capacity | 40.96KWH | 100.352KWH | 200.704KWH | 315.392KWH | 473.088KWH | 946.176KWH | |
| BOS | Battery Combiner Box | 0 set | 0 set | 1 set | 1 set | 1 set | 1 set |
| PV Combiner Box | 1 set | 1 set | 1 set | 1 set | 1 set | 1 set | |

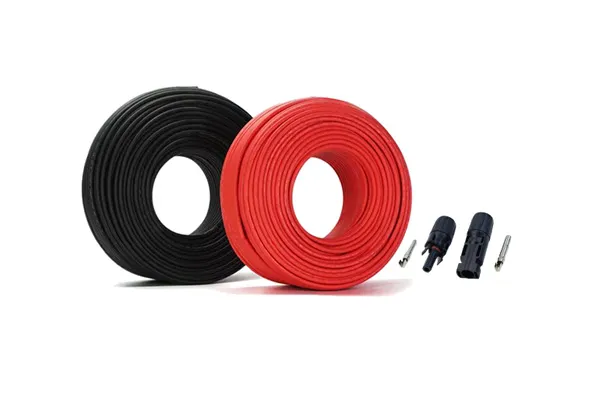

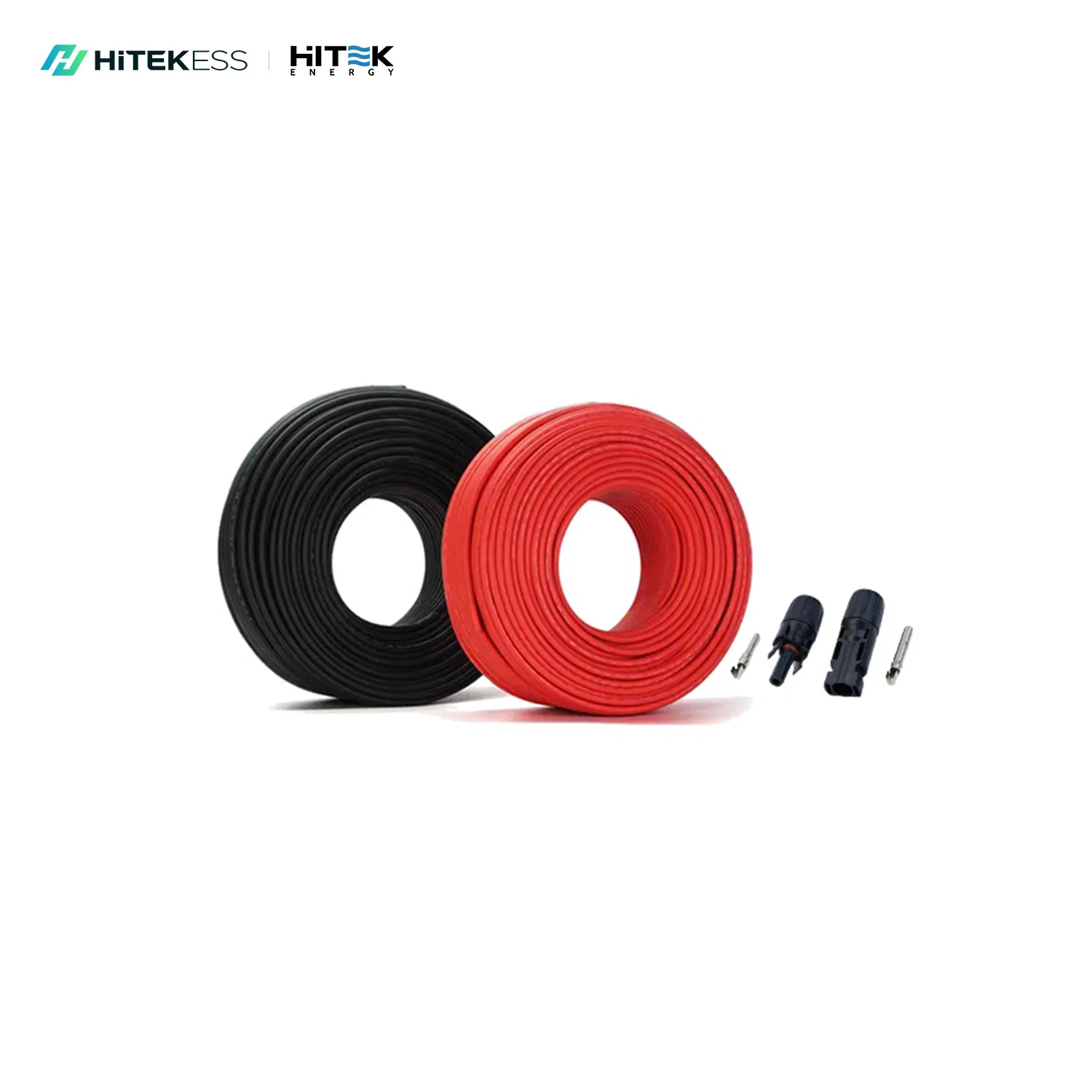

| PV Cable 4MM2 | 400m | 600m | 1200m | 1700m | 3000m | 6000m | |
| MC4 Connectors | 16 pairs | 24 pairs | 48 pairs | 68 pairs | 120 pairs | 240 pairs | |
| EMS | BR3000 (Optional) | BR3000 (Optional) | BR3000 (Optional) | BR3000 (Optional) | BR3000 (Optional) | BR3000 (Optional) | |
| ATS | ATS-30 (Optional) | ATS-50 (Optional) | ATS-100 (Optional) | ATS-150 (Optional) | ATS-250 (Optional) | ATS-500 (Optional) | |
| Container | / | / | 10ft (Optional) | 10ft (Optional) | 20ft (Optional) | 20ft (Optional) | |
| General Data | Operating Temp Range | -35~50ºC (>40ºC derating) | |||||
| Operating Humidity Range | 0~95% (no condensation) | ||||||
| Maximum Operating Altitude | 2000m | ||||||
Our Hybrid solar system is a great option for property owners who are not only looking to go solar to lower their electricity bill, but to ensure their facility is fully powered during a grid outage.

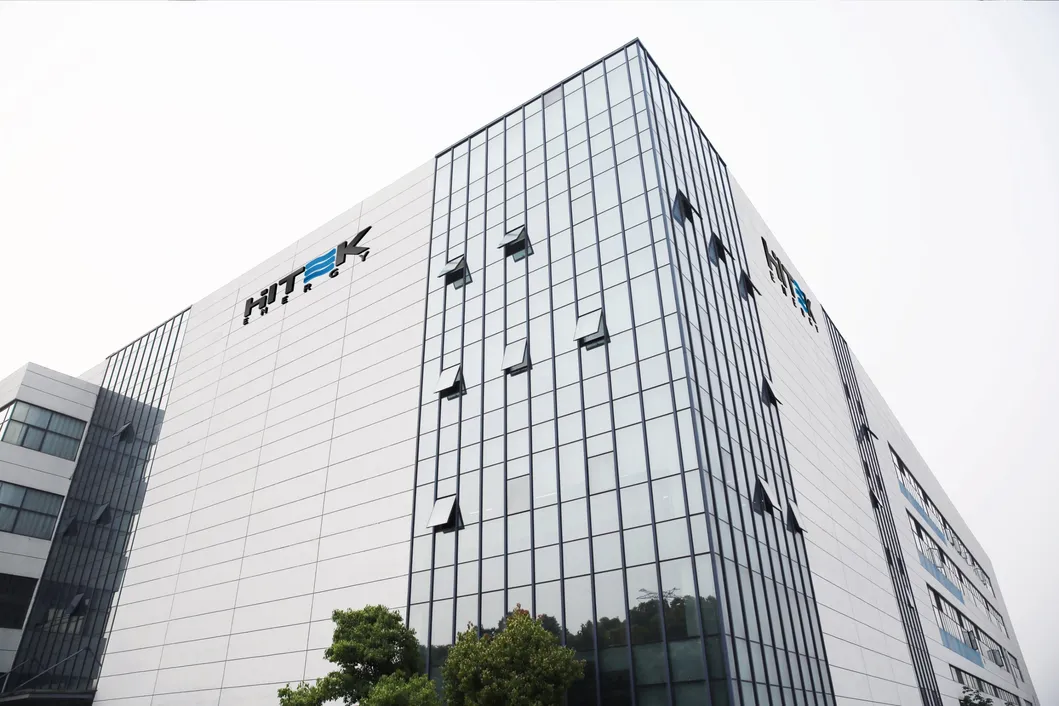

Established in 2018 as a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and industrial facilities.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
Your satisfaction is our top priority. We use only reliable, certified equipment to ensure safety and performance.
Helping you save money on utility bills is our main goal, and we take our responsibility to the environment seriously.
Let's work together for a better, brighter, and greener future.
