Sail Solar Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System with Growatt Deye Huawei Inverter

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Product Description
  • Specification
  • Product Parameters
  • Packaging & Shipping
  • Project
Overview
Basic Info.
Model NO. SAS3KW-12KW-ON
Condition New
Certification CE
Application Home
Specification Normal, solar panel, inverter, bracket, etc
Solar Panel Type Monocrystalline Silicon, Polycrystalline Silicon
Mounting Type Roof Mounting/ Mounting/Carport
Load Power (W) 3kw, 8kw, 6kw, 5kw, 10kw, Others
Work Time (H) 24 Hours
Function Power Support
Solar Panel Mono/Poly 158.75/166/182/210mm
Output Frequency 50Hz/60Hz
Transport Package Wodden Pallet and Carton Box
Production Capacity 1000 Piece/Pieces Per Month
Packaging & Delivery
Package Size 320.00cm * 280.00cm * 60.00cm
Package Gross Weight 1200.000kg
Product Description
Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System with Inverter
One Stop Solution For your Project

We are a whole solar system designer and supplier. We are a professional solar energy product production factory in china, support OEM integrated product solutions, our professional team provide 7*24h service.

System Connection

Residential Small Scale Home Use Grid-Tied 3kw 5kw 10kw 12kw on-Grid Solar Power System System Connection

What is the advantage of ongrid solar system?

  • Save more money with net metering: A grid-connection will allow you to save more money with solar panels through better efficiency rates, net metering, plus lower equipment and installation costs.
  • The utility grid is a virtual battery: An added benefit of grid tie solar system includes having backup power from the utility grid (in case your solar system stops generating power for any reason). Meanwhile, you help reduce the utility company's peak load. As a result, the efficiency of entire electrical system increases.
  • Get additional profits from selling the extra electricity to the local power company.
Specification

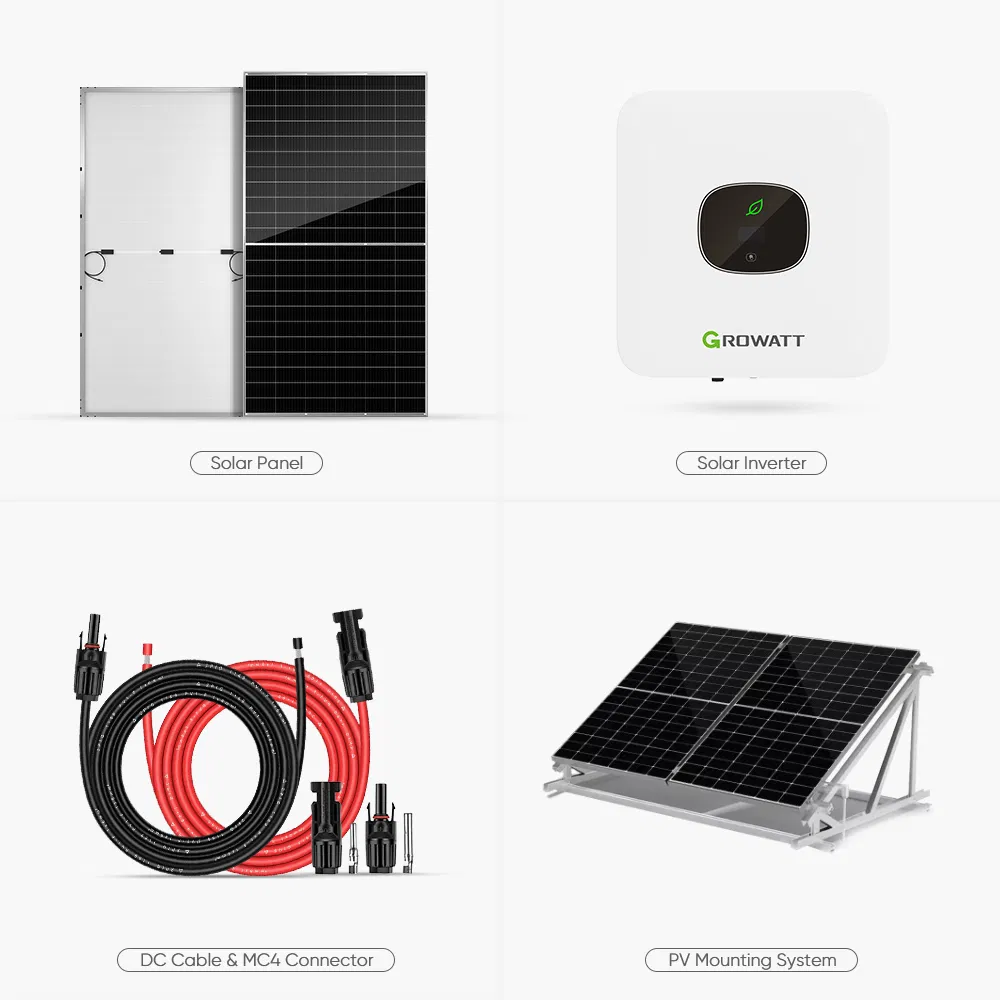

Residential Ongrid Solar System
Model SAS3KW-ON SAS5KW-ON SAS8KW-ON SASAS10KW-ON SAS12KW-ON
550W Solar Panel 6 pieces 9 pieces 18 pieces 20 pieces 22 pieces
Grid Tied Inverter 3KW 5KW 8KW 10KW 12KW
DC Cable 4mm2 100 Meters 100 Meters 200 Meters 200 Meters 200 Meters
MC4 Connector 10 Pairs 10 Pairs 10 Pairs 10 Pairs 10 Pairs
Mounting System Customized for Rooftop or Ground
Optional Accessories Lightning protection/grounding device | AC/DC Combiner box | AC Cable | Smart Meter
Product Parameters

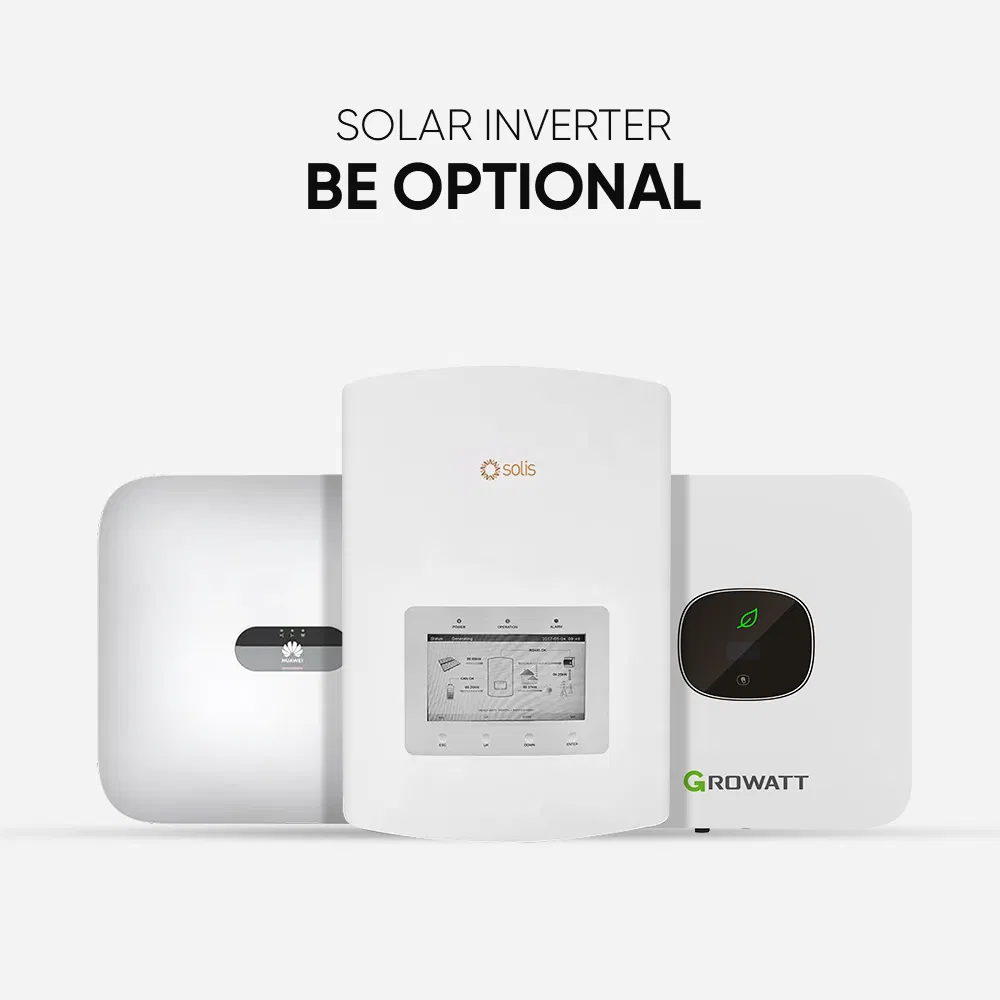

Various On Grid Inverter
Various On Grid Inverter
• 5 years standard warranty
• Max.Efficiency 99.6%, European efficiency 99%
• Integrated DC switch for added safety protection
• Power factor continuously adjustable
• Transformer-less design and high power density
• Flexible communication connection, support RF WIFI
PV Combiner Box
PV Combiner Box
• Customized pv combiner box for solar panels connection
• Anti-Reverse diode/ DC Circuit Breaker/ DC fuse/ Surge protection device Included
• Lighting Protection
• IP65 Waterproof
• Applicable for outdoor PV systems
Mounting Rackets
Mounting Rackets
• Residential Roof(Pitched Roof)
• Commercial Roof(Flat roof & workshop roof)
• Ground Solar Mounting system
• Vertical wall solar mounting system
• All aluminum structure solar mounting system
• Car parking solar mounting system

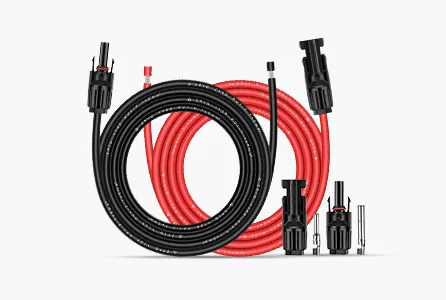

Accessories
Accessories
• PV DC Cable 4mm2 6mm2 10mm2, etc
• AC Cable
• MC4 solar compatible connectors
DC Isolating Switch
DC Isolating Switch
• Rated Voltage: 1000VDC to 1200VDC
• Rated Current: 10A/16A/20A/25A/32A
• IP66 Waterproof degree
• Certificates: CE/CB/TUV/IEC/SAA
Installation Tools
Installation Tools
• Whole set tools of Installing solar system, Crimping pv connector with cable.
• Solar Crimper
• Connector Wrench

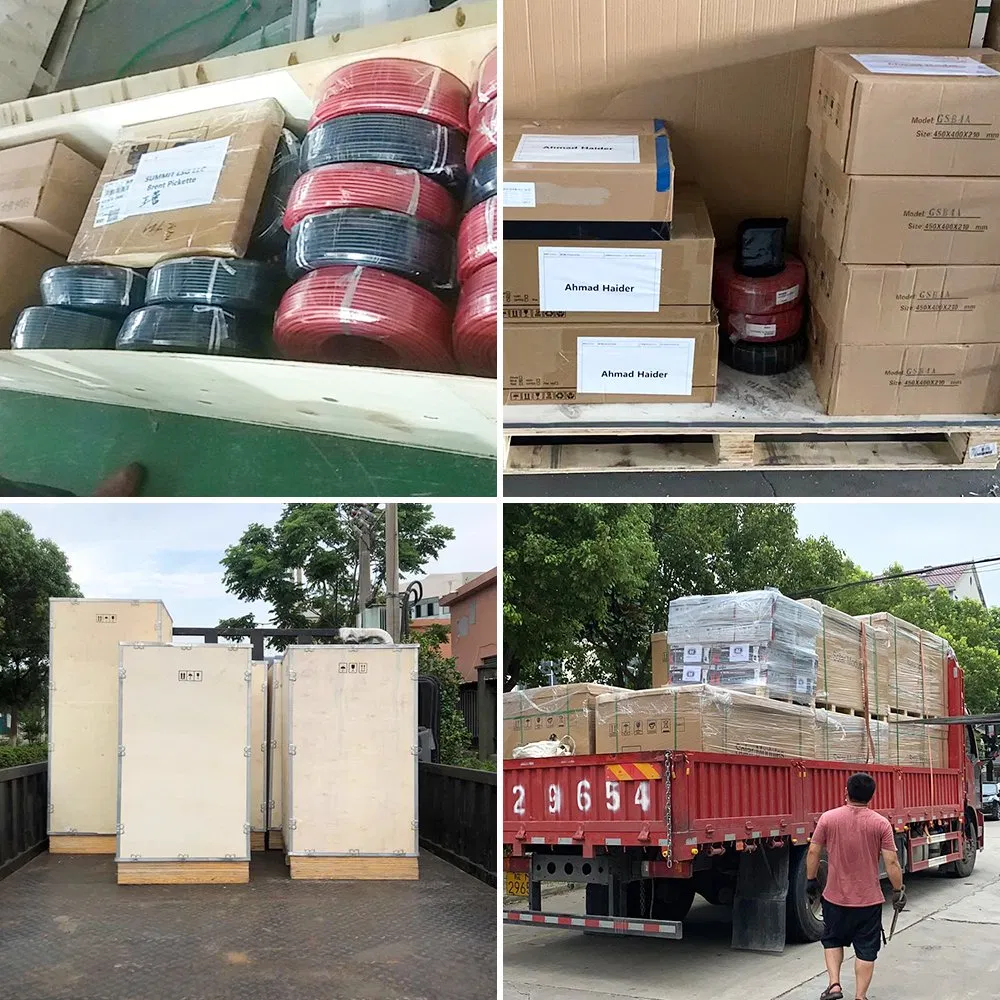

Packaging & Shipping

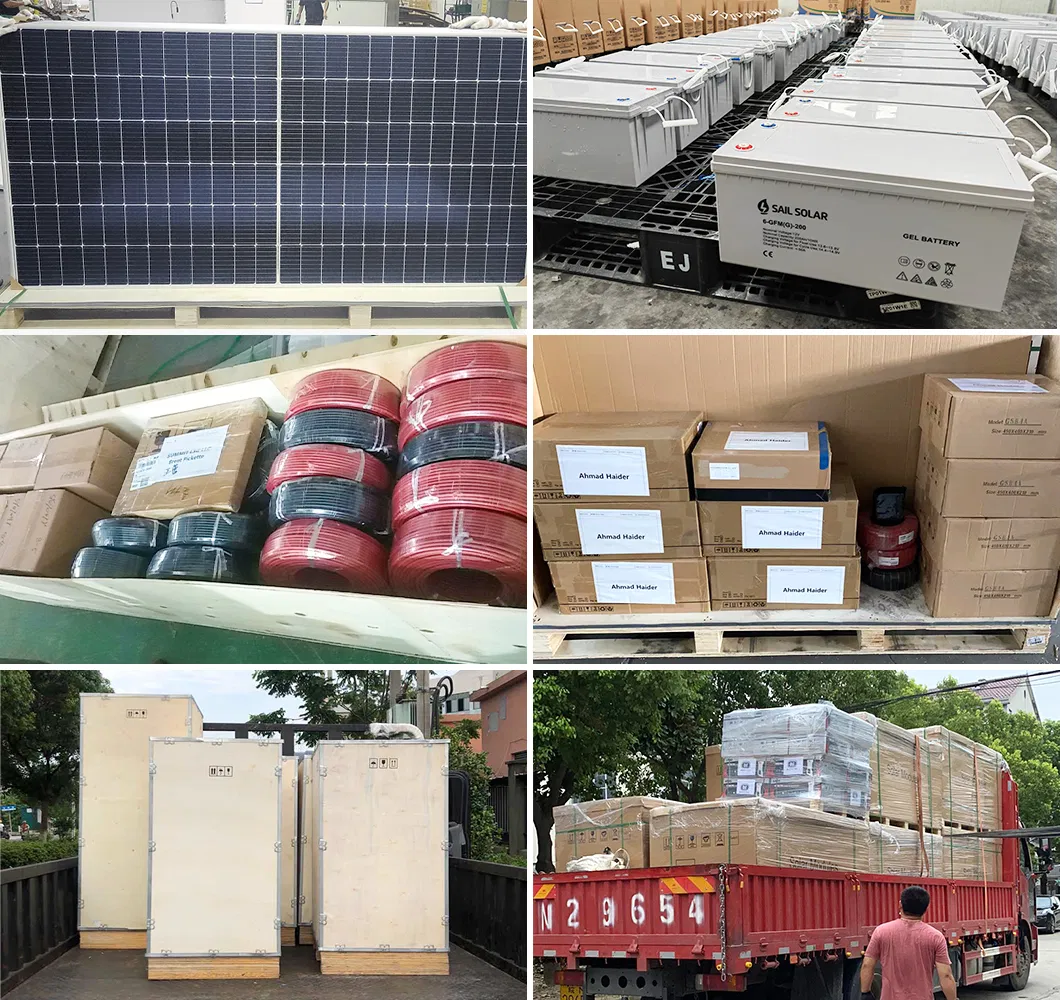

Packaging & Shipping Details for Residential Solar System

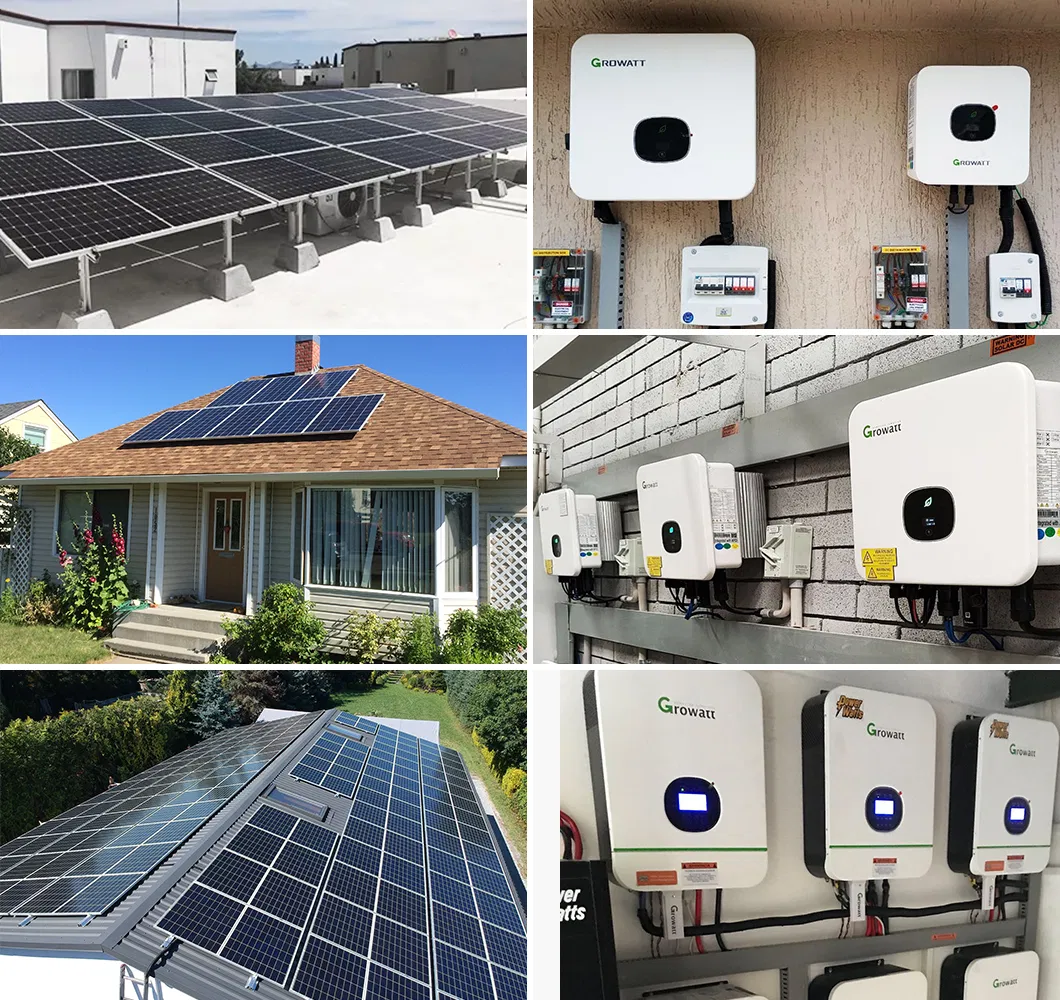

Project Cases
Residential Solar Power System Projects
Frequently Asked Questions
What are the primary benefits of an on-grid solar power system?
An on-grid solar system allows you to save money via net metering, operates with higher efficiency, and carries lower overall equipment and installation costs. It also enables you to sell excess generated power back to your local utility company for additional profits.
How does net metering work with this solar system?
Net metering allows excess power produced by your solar panels to be fed back into the local utility grid. Depending on local regulations, your utility company credits you for this power, lowering your net monthly electricity bill.
Is battery storage required for an on-grid solar system?
No, battery storage is not required. The utility grid functions as a virtual battery, supplying power when your solar panels do not produce enough electricity (e.g., at night or on heavily cloudy days).
What types of mounting systems are available?
The mounting structures can be customized based on your specific requirements. We support pitched residential rooftops, flat commercial roofs, ground-mounted arrays, vertical walls, carport integrations, and full aluminum support structures.
What certifications and safety features does this system carry?
The solar system is CE certified. The grid-tied inverters feature an integrated DC switch for safety protection, and the PV combiner box includes anti-reverse diodes, DC fuses, circuit breakers, surge protection devices, and lightning protection with an IP65 waterproof rating.
What capacities are available in this residential line?
This residential on-grid line offers output capacities ranging from 3kW to 12kW, including specific models like SAS3KW-ON, SAS5KW-ON, SAS8KW-ON, SAS10KW-ON, and SAS12KW-ON to match varying household energy demands.
