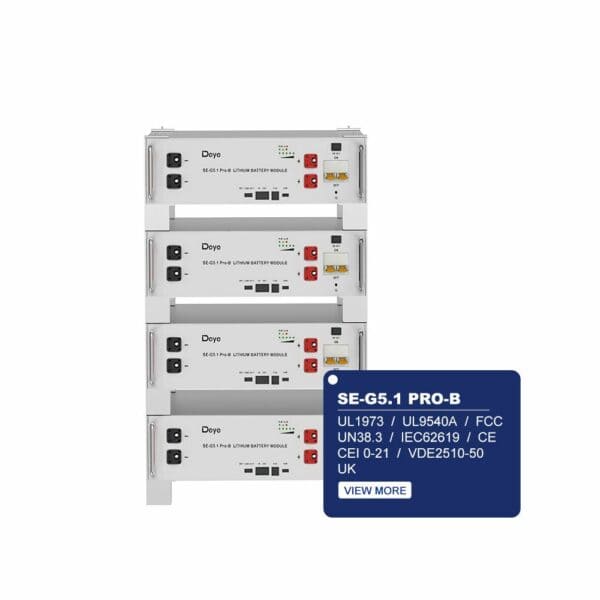

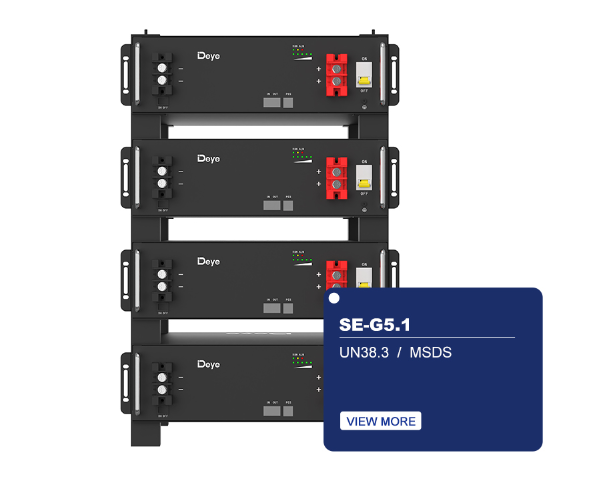

Deye SE-G5.1 5.12KWH Lithium Battery
51.2V 100AH Max. 64 pcs pack (327kWh) in parallel

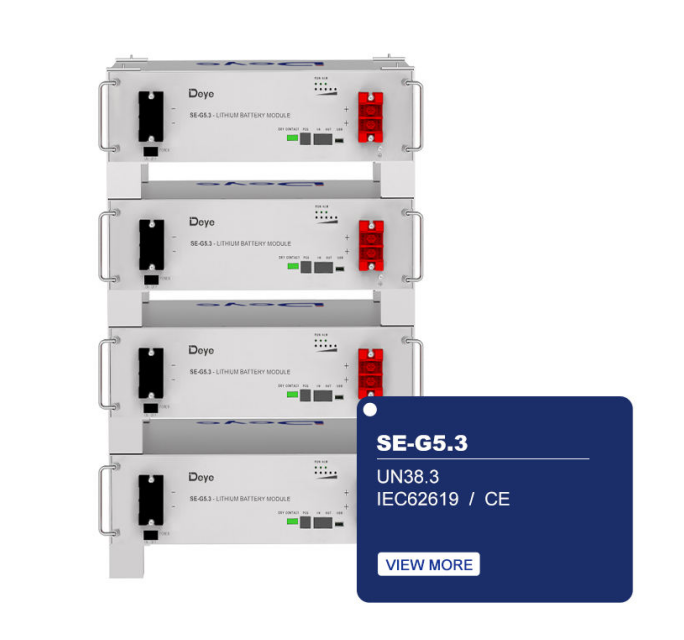

Deye SE-G5.3 Lithium Battery 5.3KWH
51.2V 104AH Modular design, easy to expand

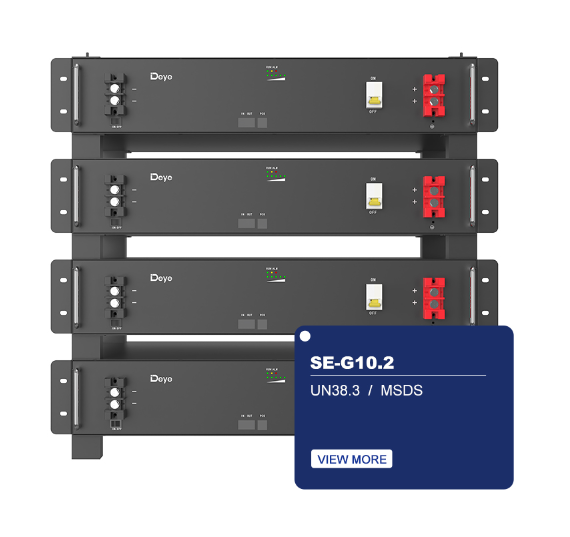

Deye SE-G10.2 Lithium Battery 10.24KWH
51.2V 200AH Max 64pcs pack (655kwh) in parallel

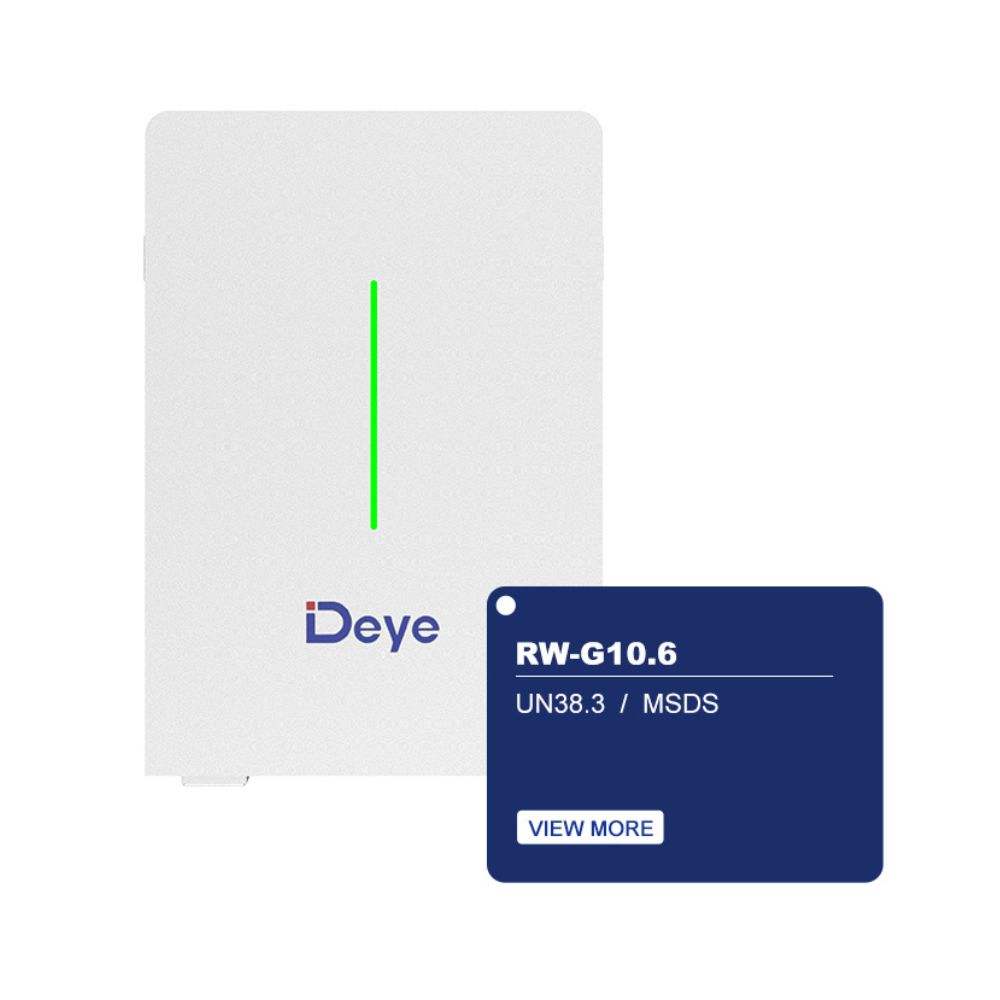

RW-G10.6 Detailed Technical Parameters
Model
RW-G10.6
Main Parameter
Battery Chemistry
LiFePO4
Built-in Circuit Breaker
125A 2P, 60Vdc
Capacity (Ah)
208
Scalability
Max. 32 pcs pack (Max.340kWh) in parallel
Nominal Voltage (V)
51.2
Operating Voltage (V)
43.2~57.6
Energy (kWh)
10.64
Usable Energy(kWh)
9.85
Charge/Discharge Current (A)
Max Continuous
100/100
Peak
200/200(10 sec)
Other Parameter
Recommend Depth of Discharge
90%

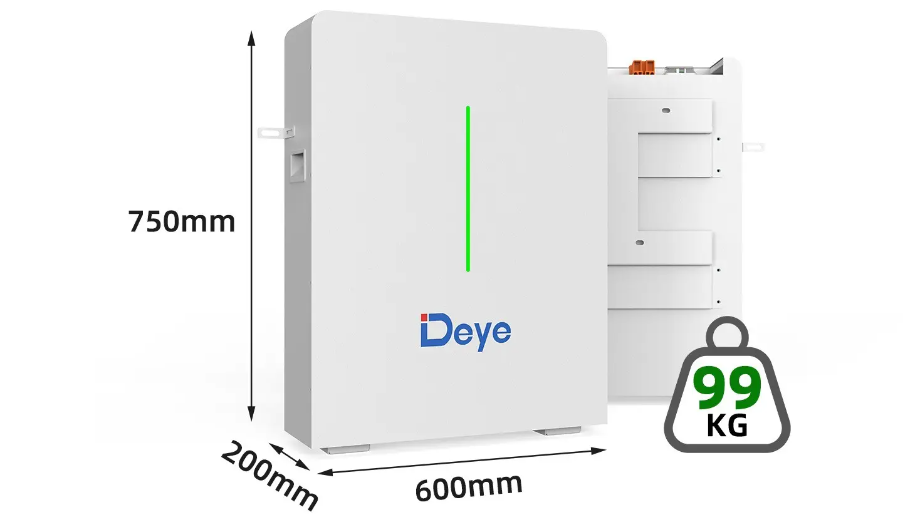

Dimension (W/H/D, mm)
600*750*200 (Without hanging board)
Weight Approximate (kg)
96
Master LED Indicator
LED (SOC:20%~SOC100% and working state)
IP Rating of Enclosure
IP20
Operating Temperature
Charge: 0°C~55°C / Discharge: -20°C~55°C
Storage Temperature
0°C~35°C
Humidity
5%~95%
Altitude
≤2000m
Cycle Life
≥6000 (25°C±2°C, 90%DOD, 0.5C/1C, 70%EOL)
Installation
Wall-Mounted, Floor-Mounted
Communication Port
CAN2.0, RS485
Warranty Period
5 years
Energy Throughput
16MWh (25°C, 0.5C/1C, 70%EOL)
Certification
UN38.3

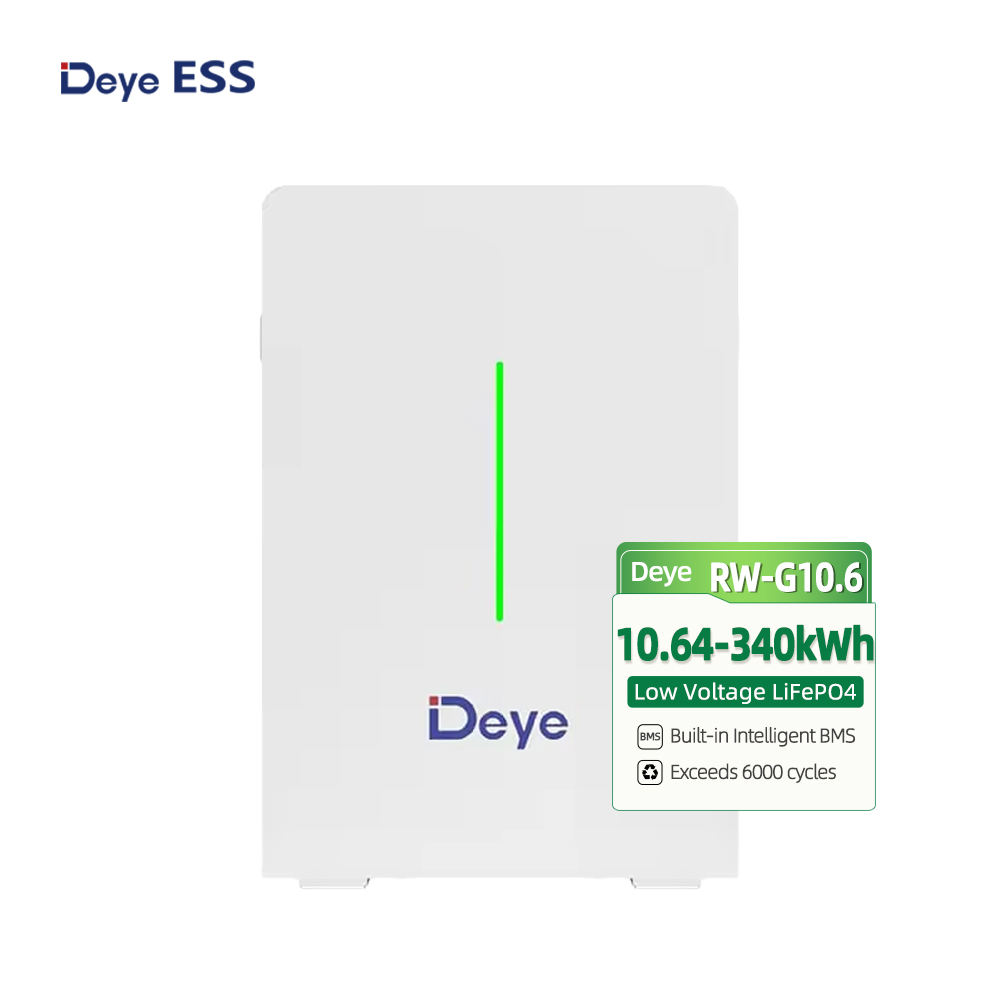

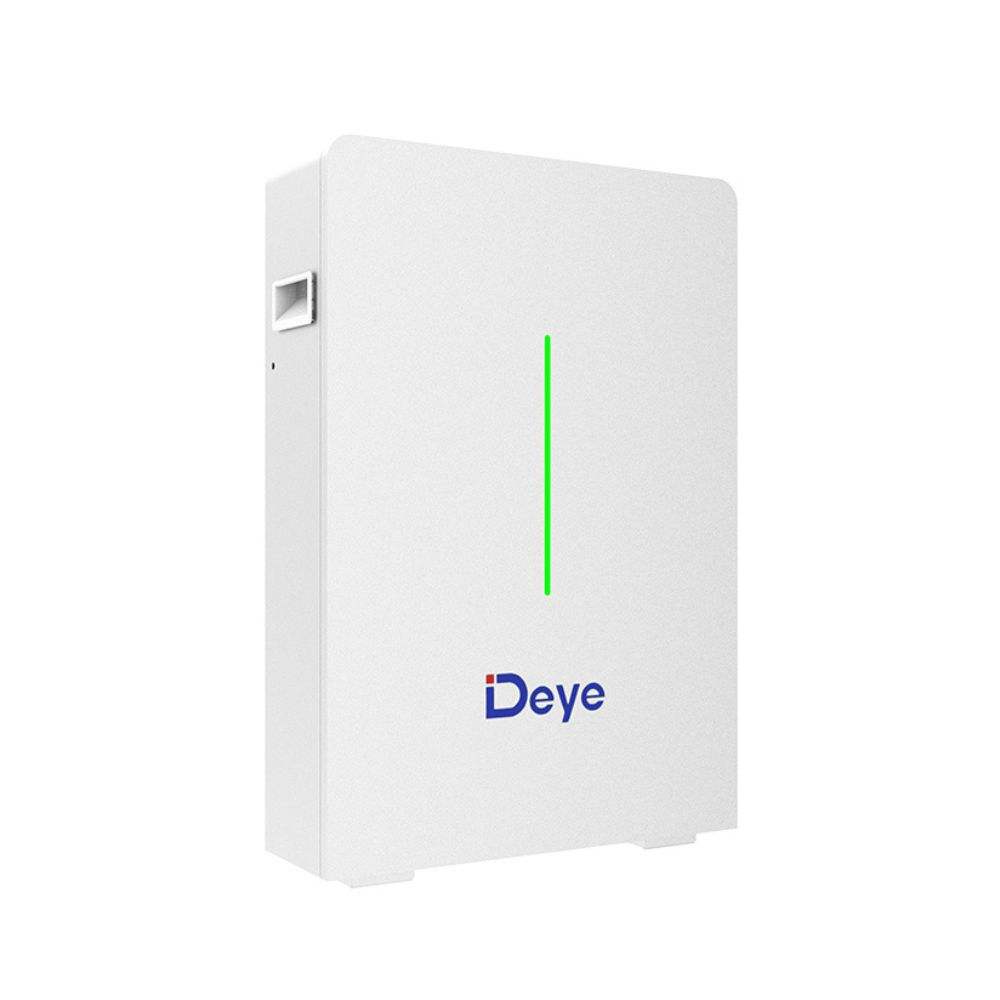

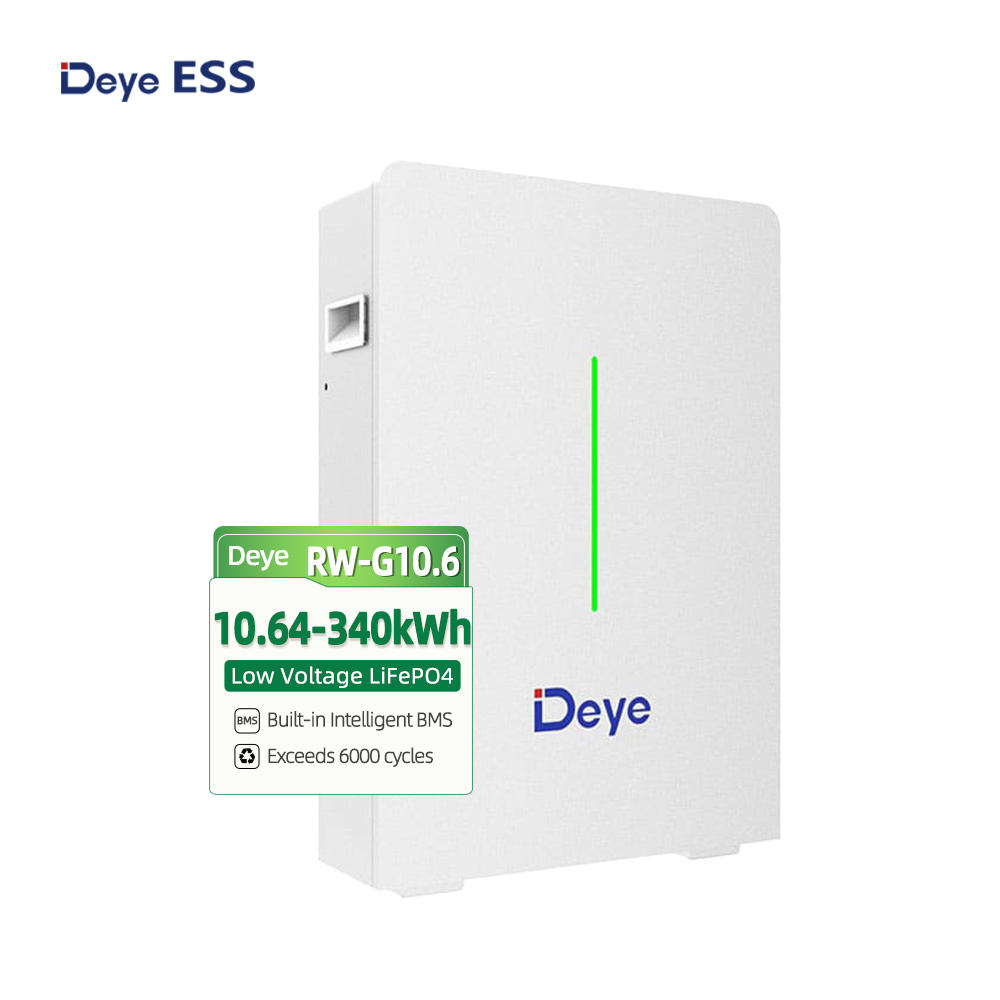

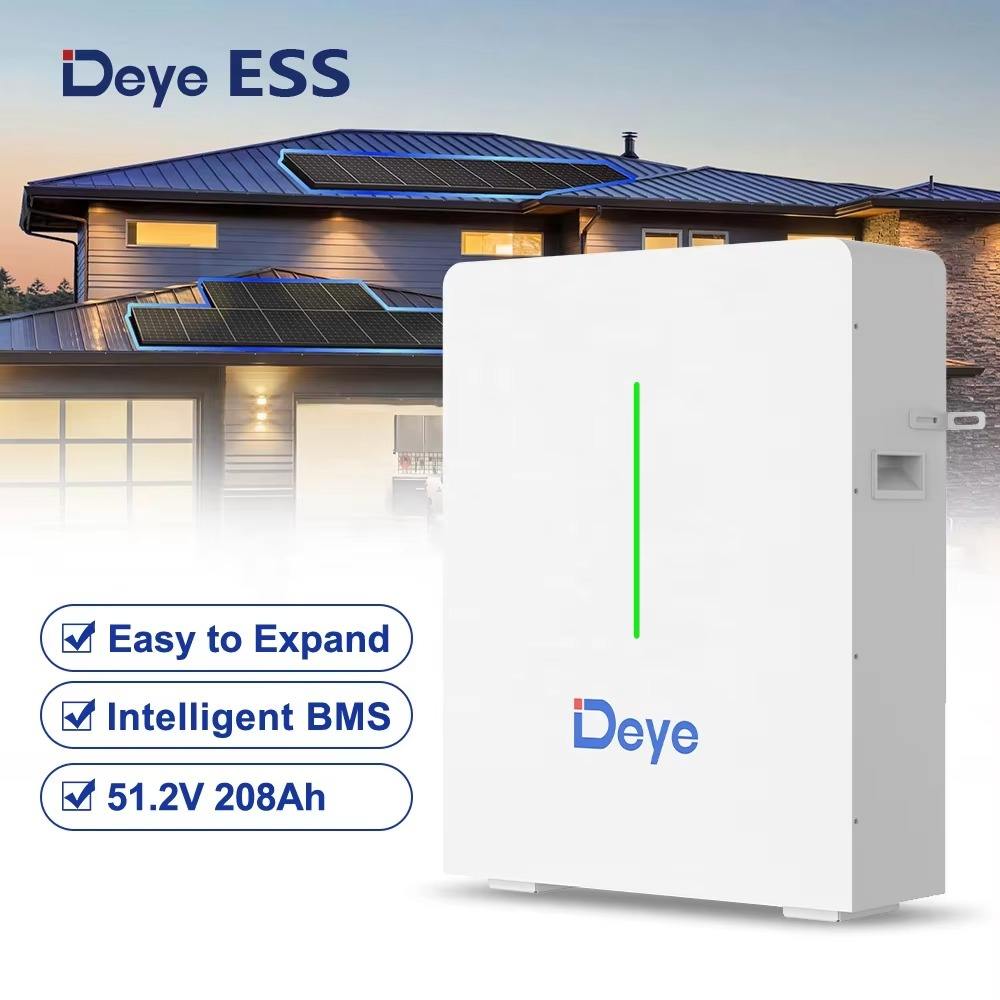

Deye RW-G10.6 Features
Safer: Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan and high-energy density. Low Voltage safety connection.
High Performance: Maximum support 1C charge and 1.2C discharge. Maximum 6000 cycles at 90% DOD, and 5 years standard warranty.
Reliable: Built-in Intelligent BMS, providing complete protection. Natural cooling, IP65, wide temperature range: -20°C to 55°C.
Flexible: Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 340kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
Convenient: Battery module auto networking (No DIP switch code), easy maintenance, support Deye remotely monitoring and upgrade.
Eco-Friendly: Use environmental protection materials, the whole module non-toxic, pollution-free.

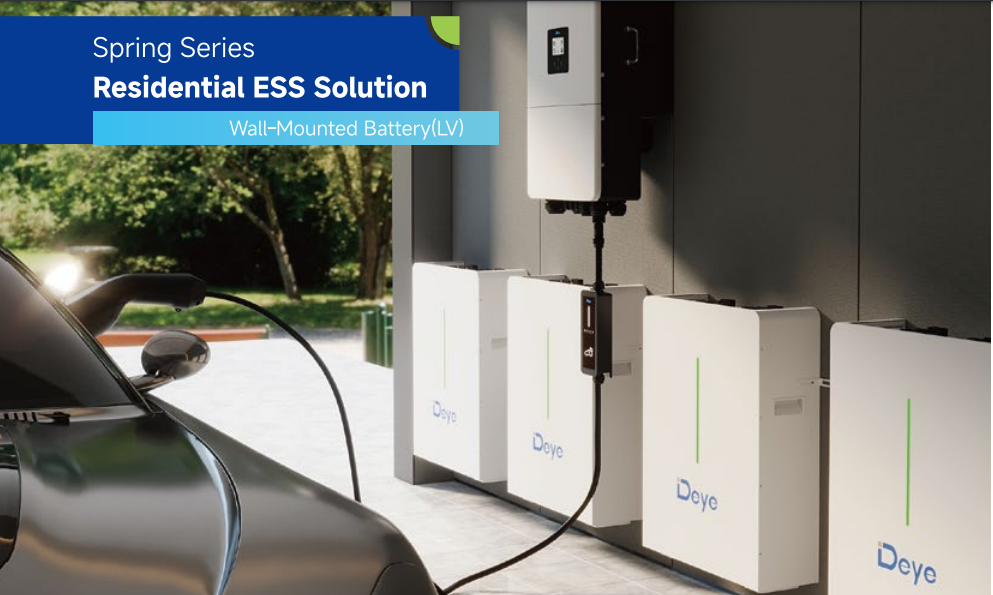

Two Mounting Methods: Flat design, Wall-mounted with Wall Bracket, Floor Stand with removable base, saving installation space.
Accessories Parts Description
RW-G10.6: 10.6kWh Battery Module
RW-G10.6 - Battery cable
RW-G10.6 Parallel Cable
Fixed support for Floor-Mounted

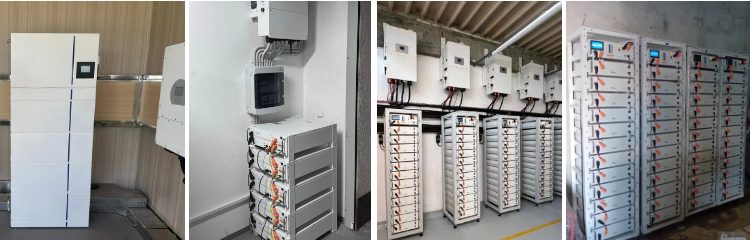

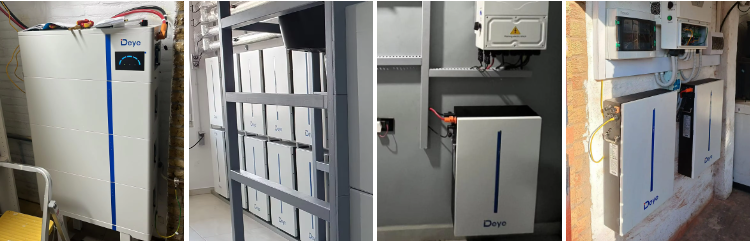

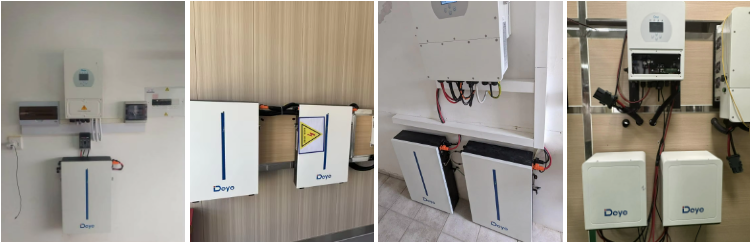

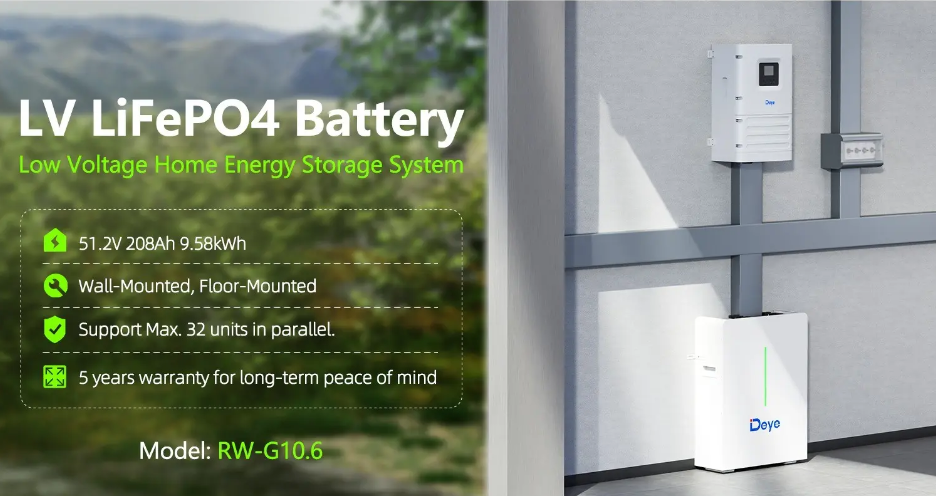

Product Showcase & Details
Frequently Asked Questions
What is the lifespan of Deye low voltage lithium batteries?
Deye low voltage lithium batteries offer a long service life with ≥6000 cycles at 25°C±2°C, 90% Depth of Discharge (DOD), 0.5C/1C charging/discharging rate, and 70% End of Life (EOL). They come with a 5-year standard warranty.

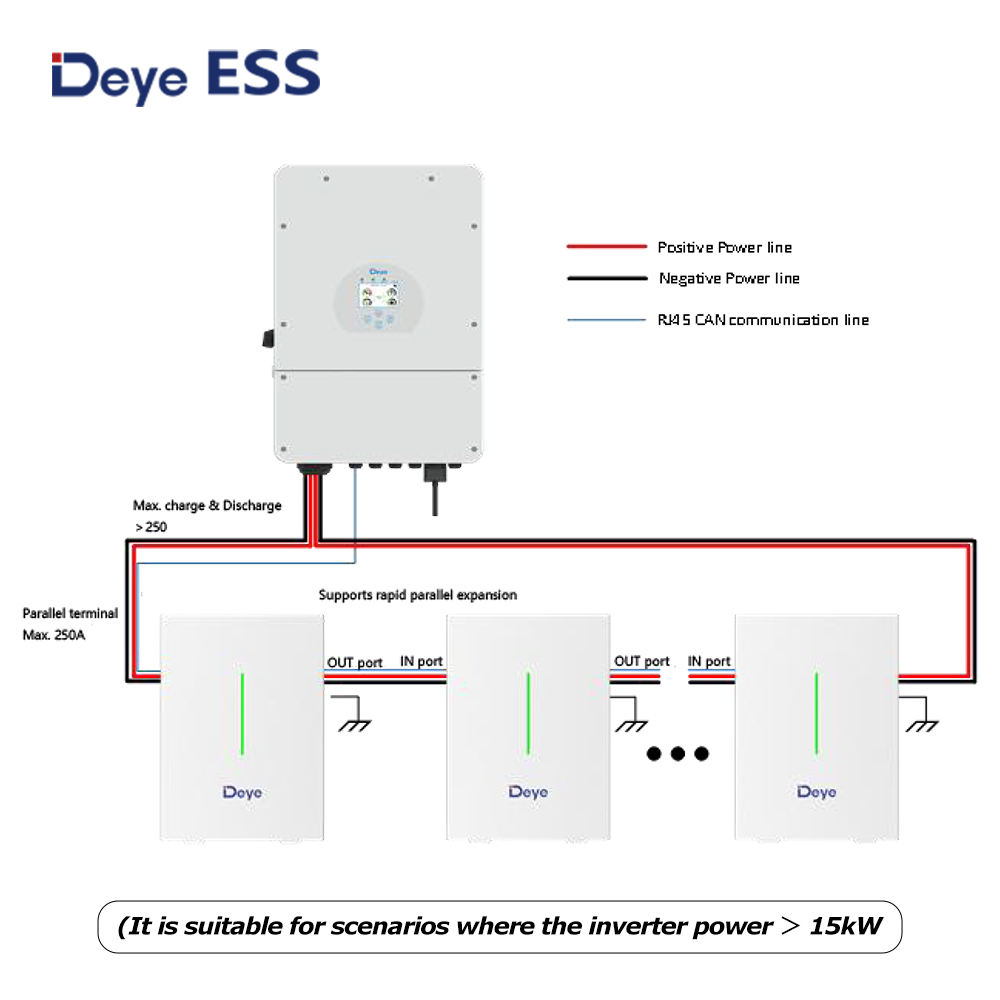

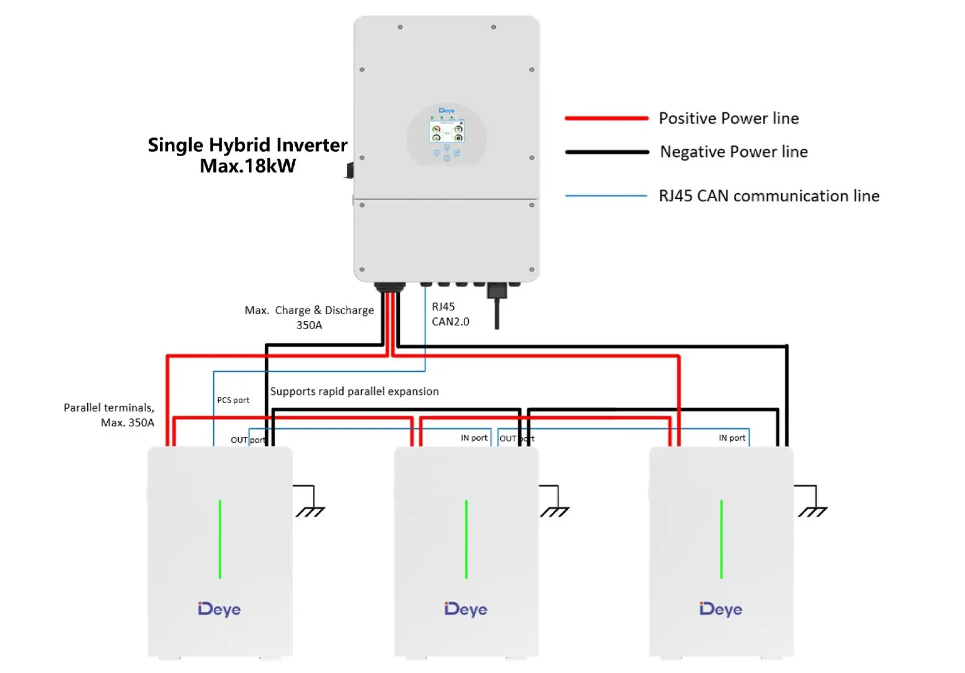

Can I connect multiple battery modules in parallel?
Yes, Deye batteries feature a flexible modular design with auto-networking (no DIP switch code required). Depending on the model, you can connect up to 32 units in parallel (such as the RW-G10.6 to reach 340kWh) or up to 64 units in parallel (such as the SE-G10.2 to reach 655kWh).
What type of chemistry is used in Deye batteries?
These batteries use Cobalt-Free Lithium Iron Phosphate (LFP) chemistry. LFP is highly recognized for its safety, thermal stability, long lifespan, and eco-friendly composition.
Do Deye batteries support remote monitoring and upgrading?
Yes. Built-in intelligent BMS allows auto networking, and the system fully supports Deye remote monitoring and online upgrades for easy maintenance and diagnostics.
What installation options are available for the RW-G10.6 battery?
The RW-G10.6 features a flat, space-saving design and supports two mounting methods: Wall-mounted (using a standard wall bracket) and Floor-mounted (using a floor stand with a removable base).
What communication interfaces do Deye batteries use to talk to inverters?
The batteries are equipped with standard CAN2.0 and RS485 communication ports, ensuring robust and seamless integration with Deye inverters and other compatible systems.
