| Parameter | Specification Details |
|---|---|
| Capacity (Ah) | 100 |
| Scalability | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 ~ 57.6 |
| Nominal Energy (kWh) | 5.12 |
| Charge/Discharge Current (A) | Recommend 50 |
| Recommend Depth of Discharge | 90% |
| Dimension (W/H/D, mm) | 440 * 133 * 540 |
| Weight Approximate (kg) | 45 |
| Operating Temperature | Charge: 0℃ ~ 55℃ (Optional heating: -20℃ ~ 55℃), Discharge: -20℃ ~ 55℃ |
| Cycle Life | ≥ 6000 (25℃ ± 2℃, 0.5C/0.5C, 90% DOD, 70% EOL) |
| Certification | UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A |

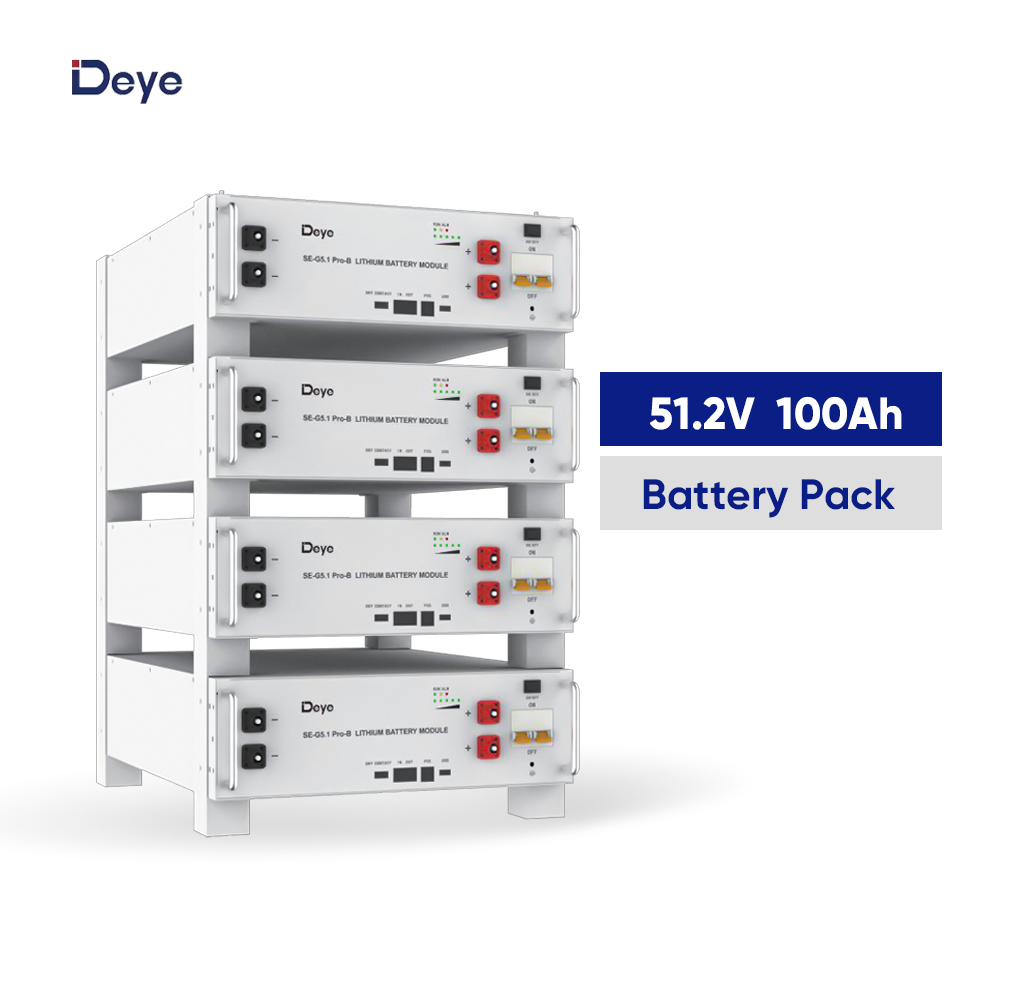

A1: The battery pack features a capacity of 100Ah with a nominal energy rating of 5.12 kWh at a nominal voltage of 51.2V.

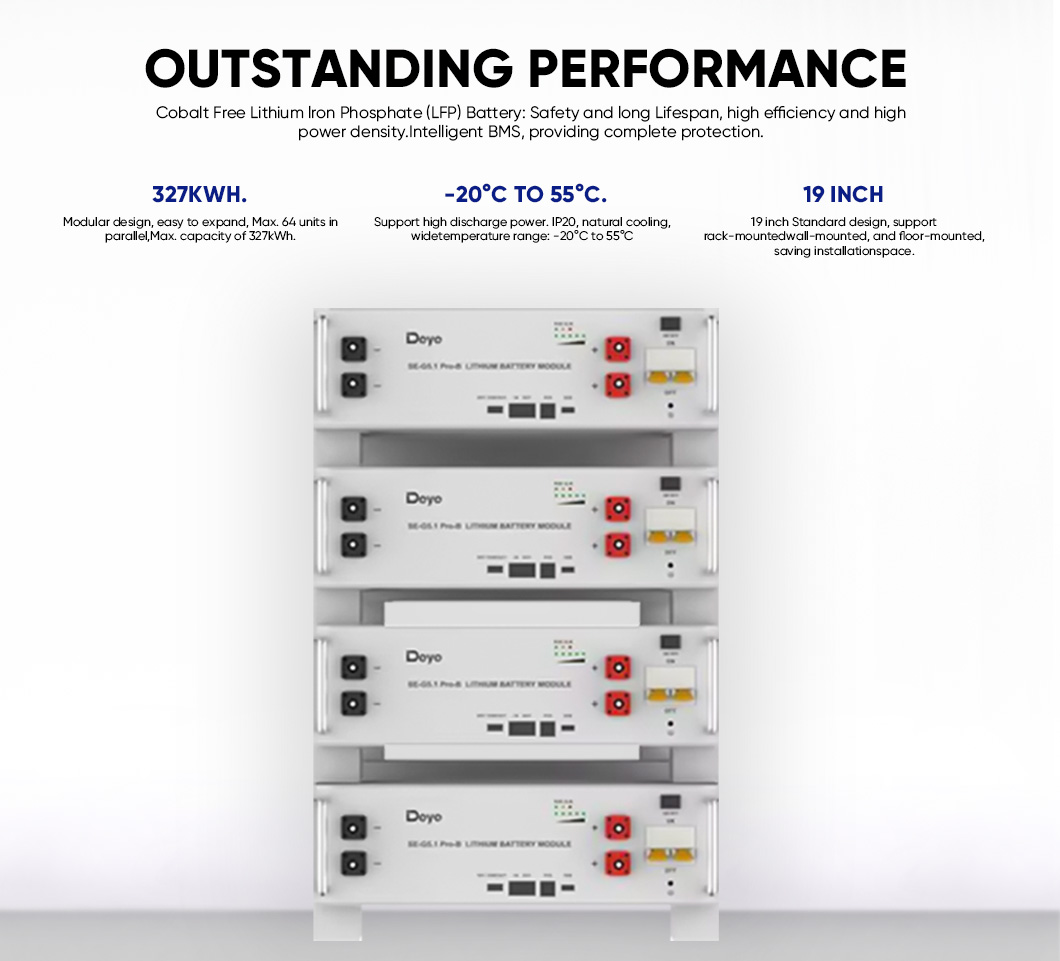

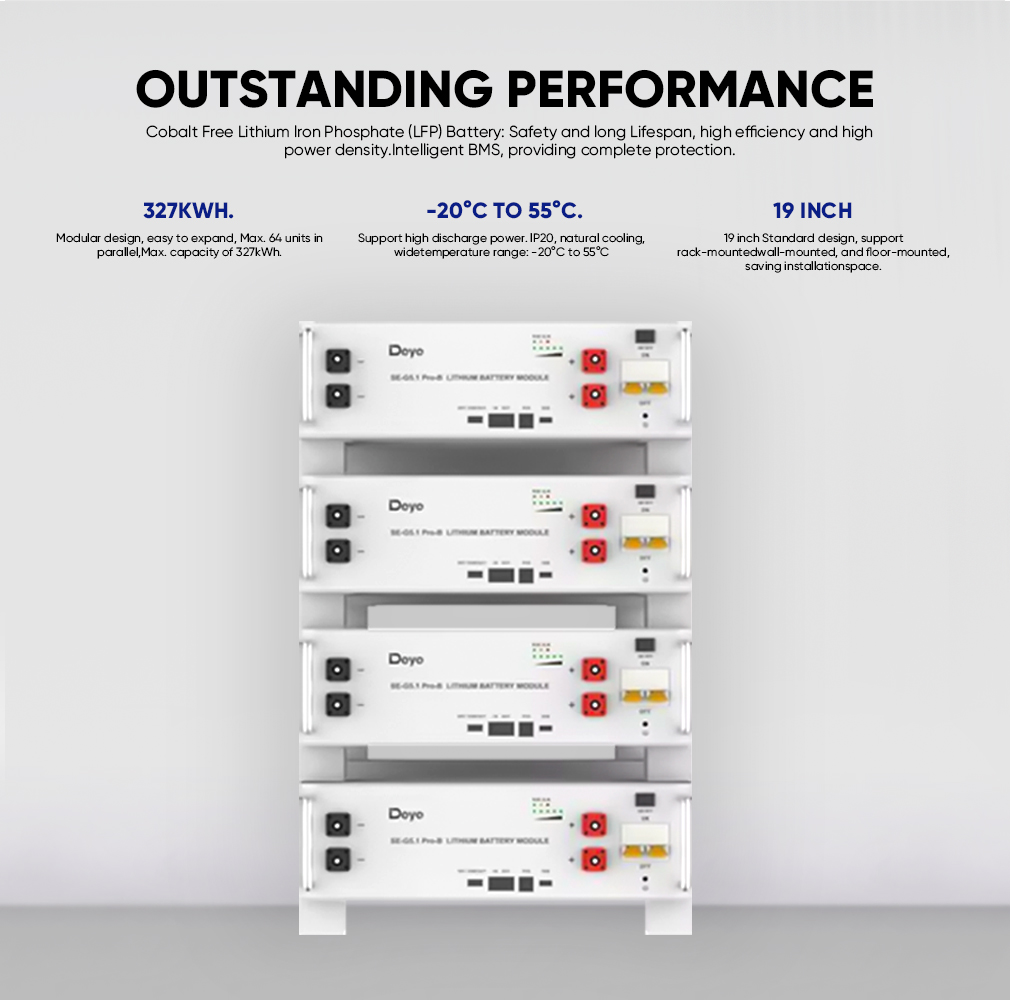

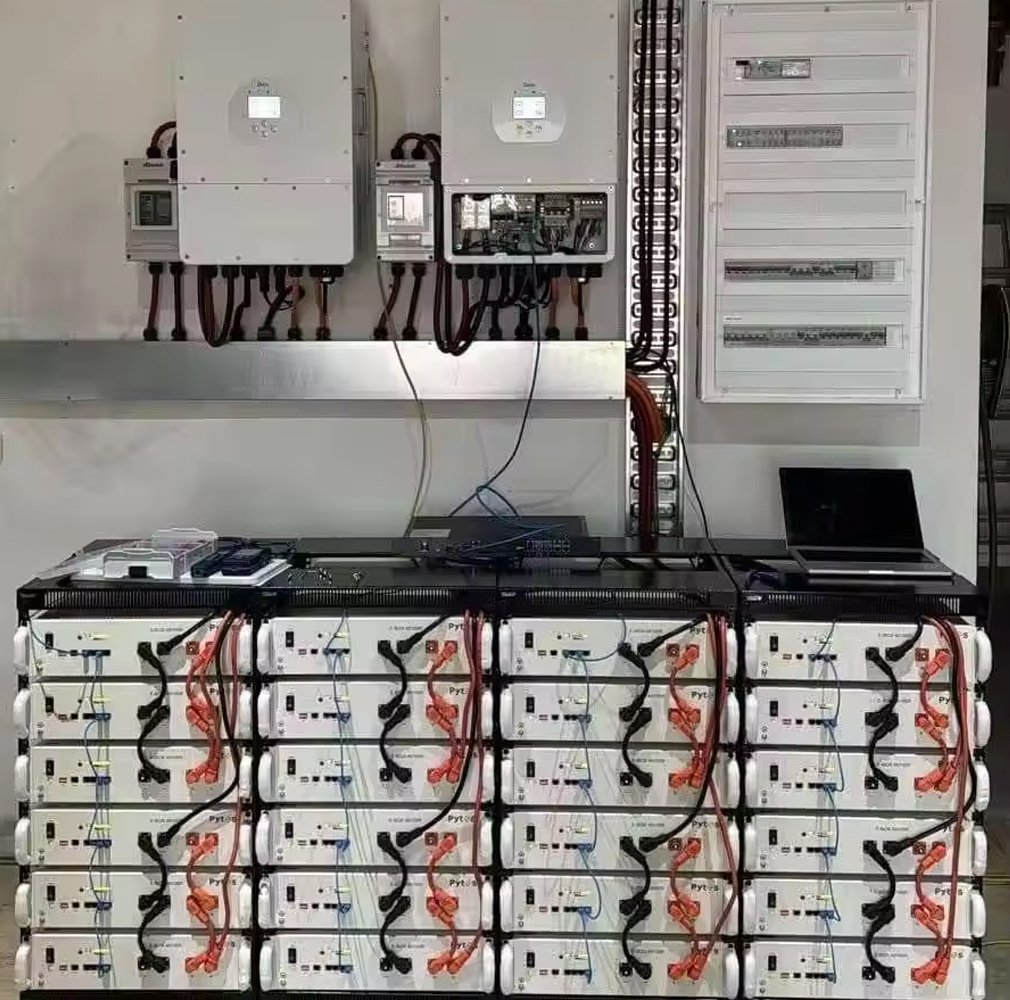

A2: The system supports scaling up to 64 packs in parallel, providing up to 327kWh. Up to 32 battery packs can be connected in parallel without requiring any external setup.
A3: It offers an exceptional cycle life of 6000 cycles or more under standard testing conditions (measured at 25℃±2℃, 0.5C/0.5C charge/discharge, 90% Depth of Discharge (DOD), and 70% End of Life (EOL)).

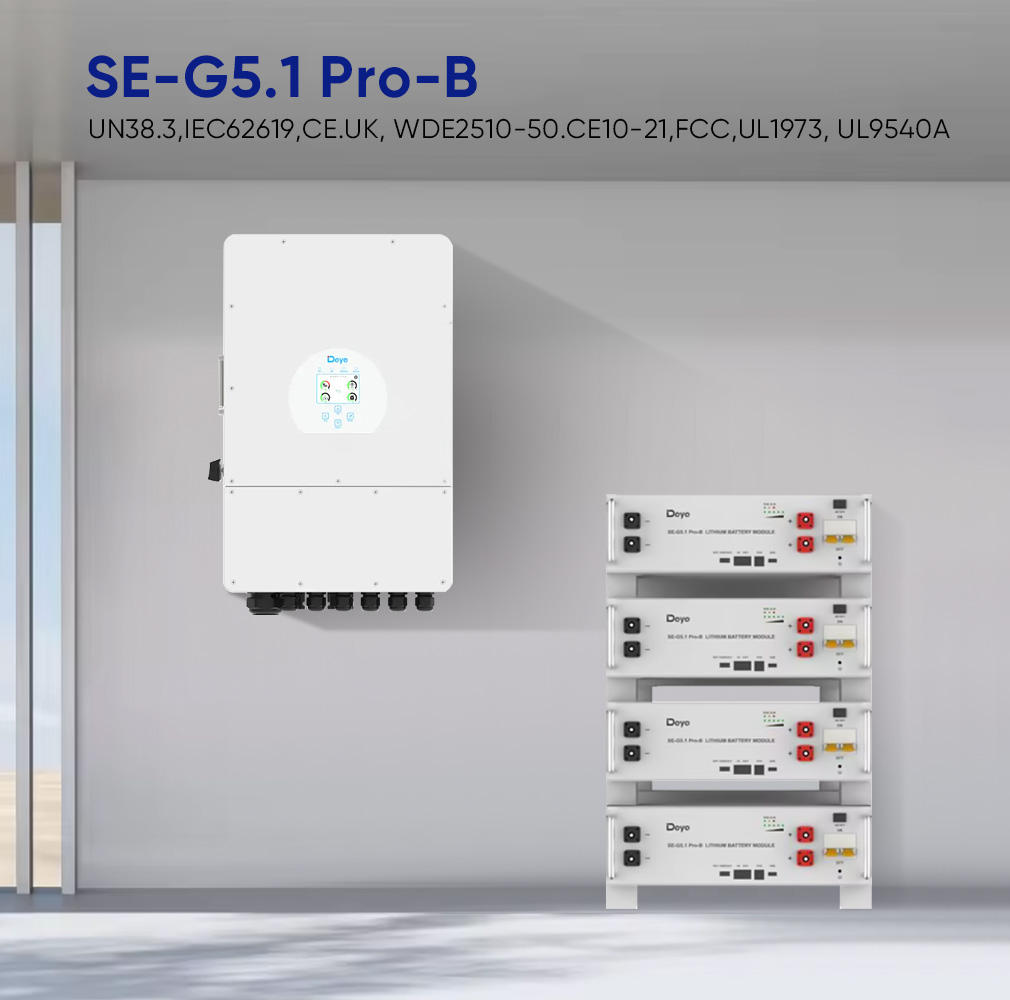

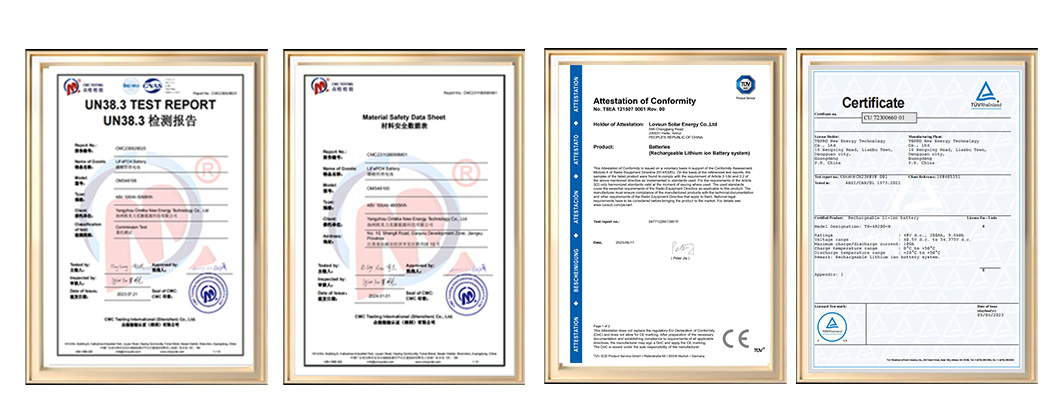

A4: The product has passed international standards including UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, and UL9540A, ensuring premium safety and compliance.
A5: Yes. While standard charging operates between 0℃ and 55℃, an optional built-in heating function enables low-temperature charging down to -20℃. The discharging range is between -20℃ and 55℃.
A6: To ensure optimal longevity and health of the cells, the recommended Depth of Discharge (DOD) is 90%.
