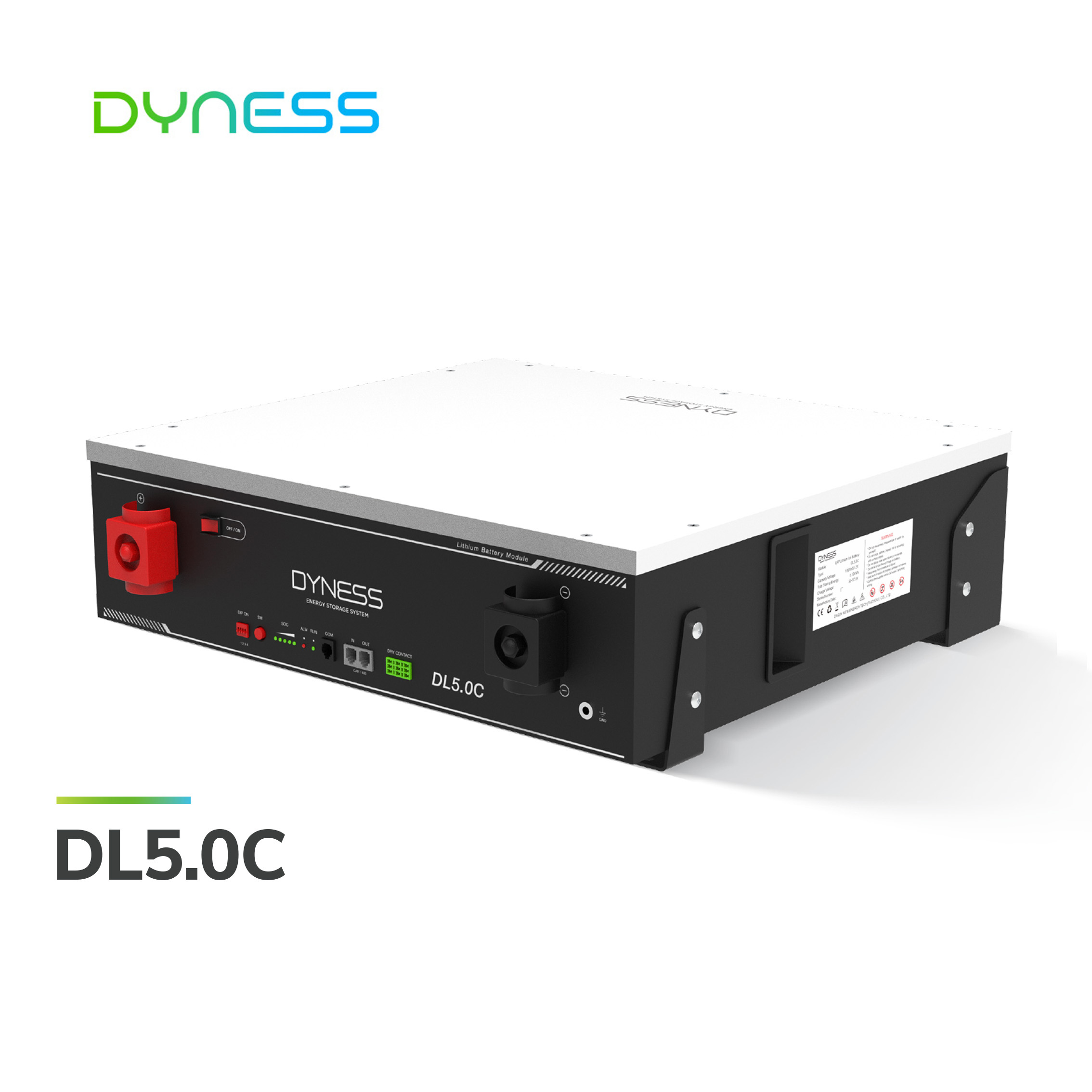

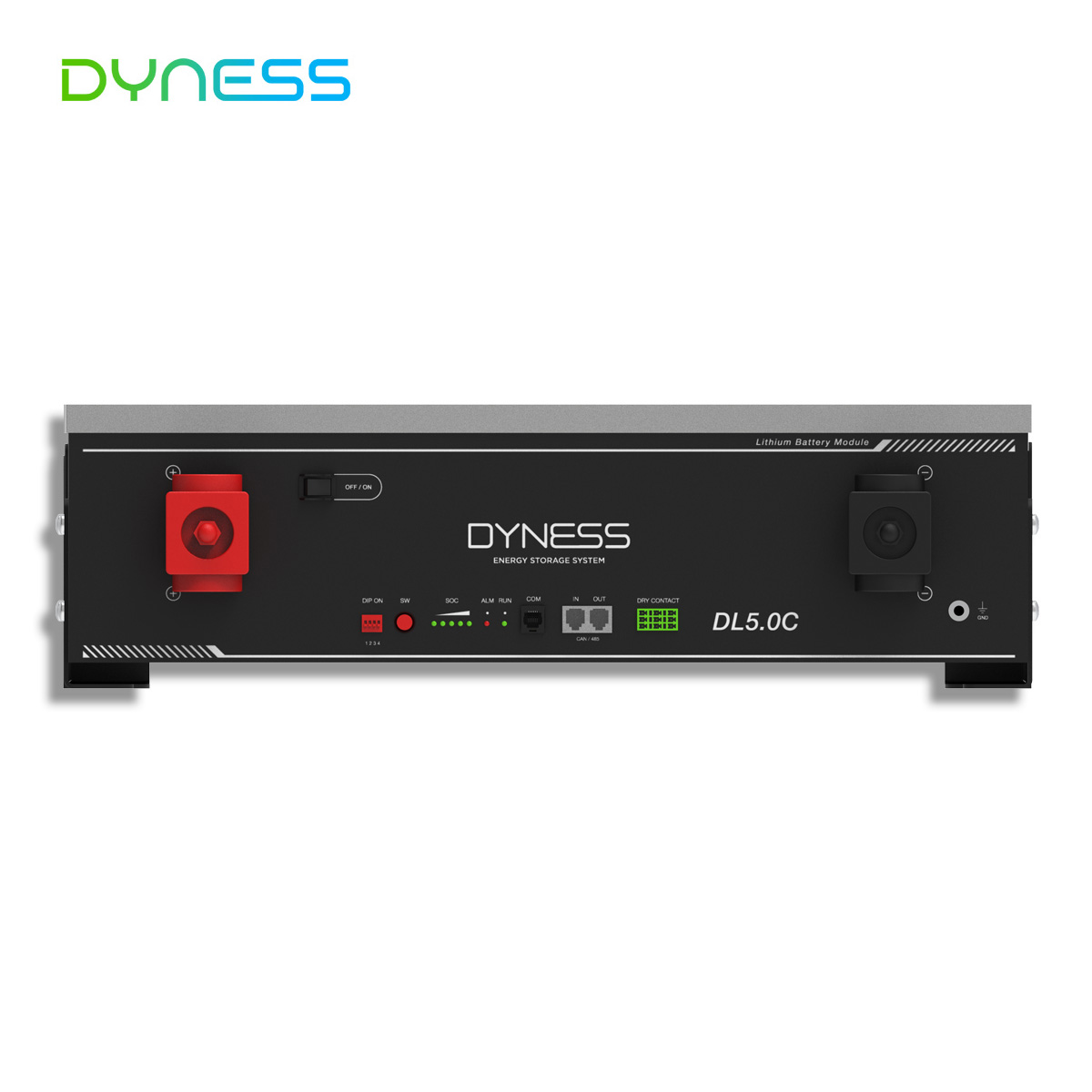

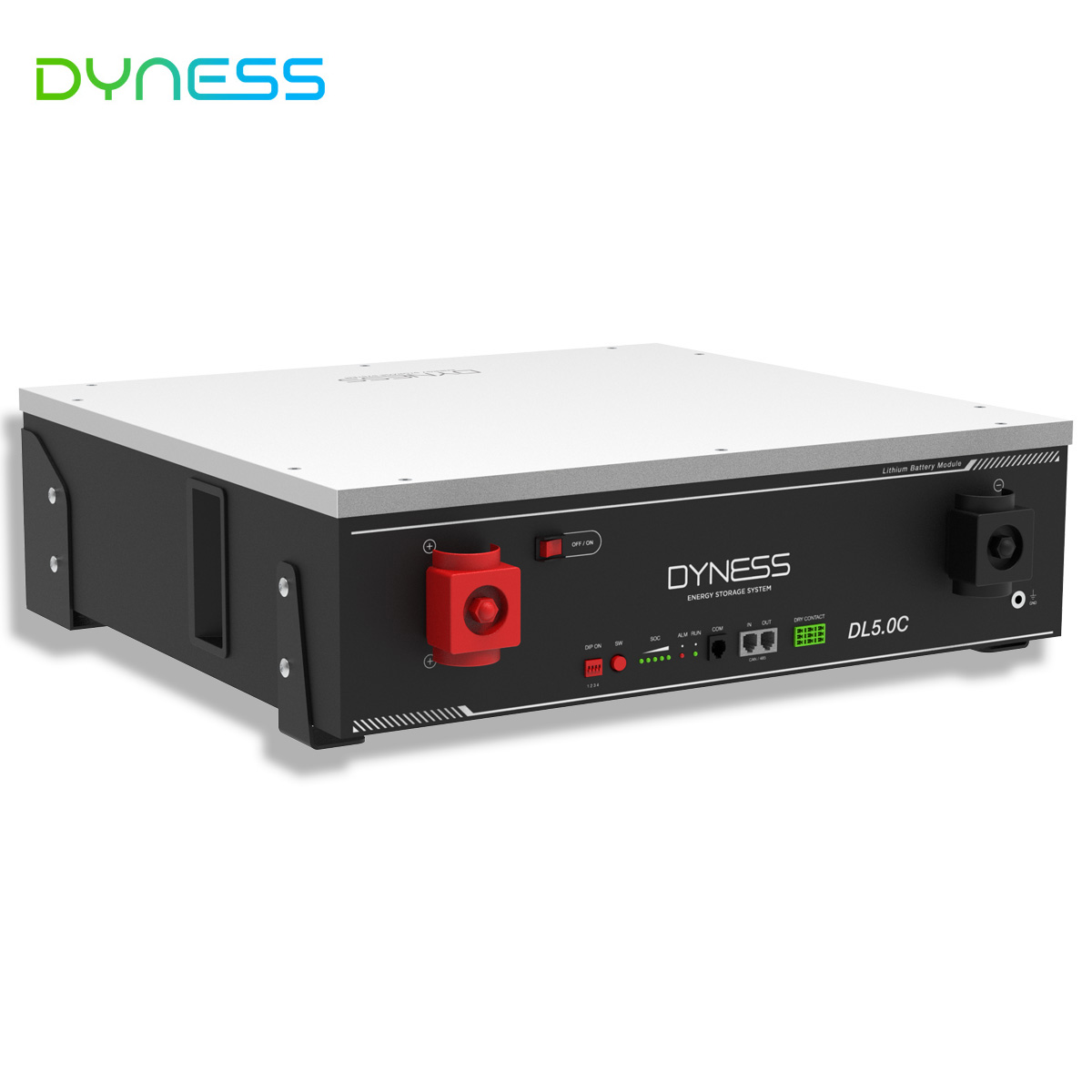

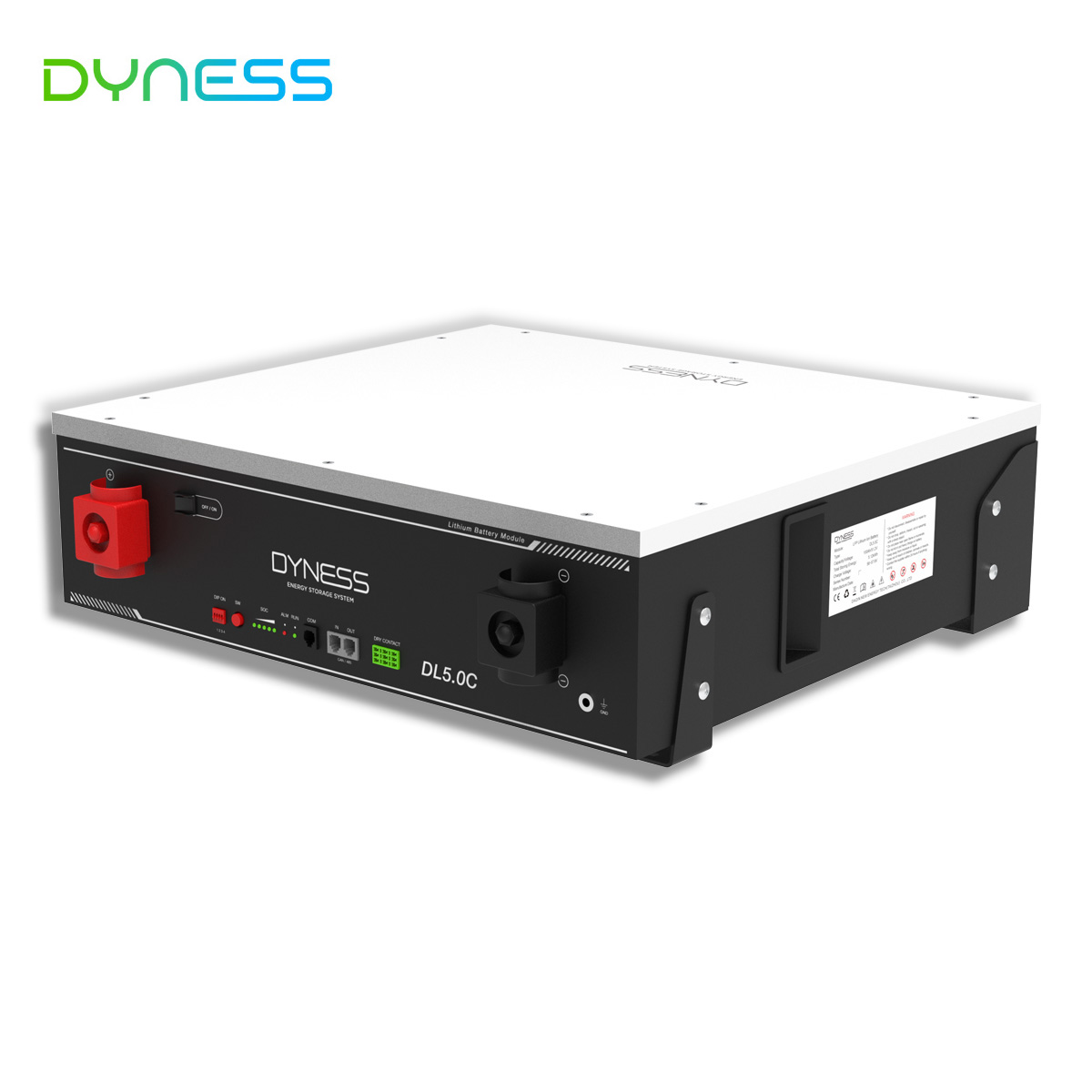

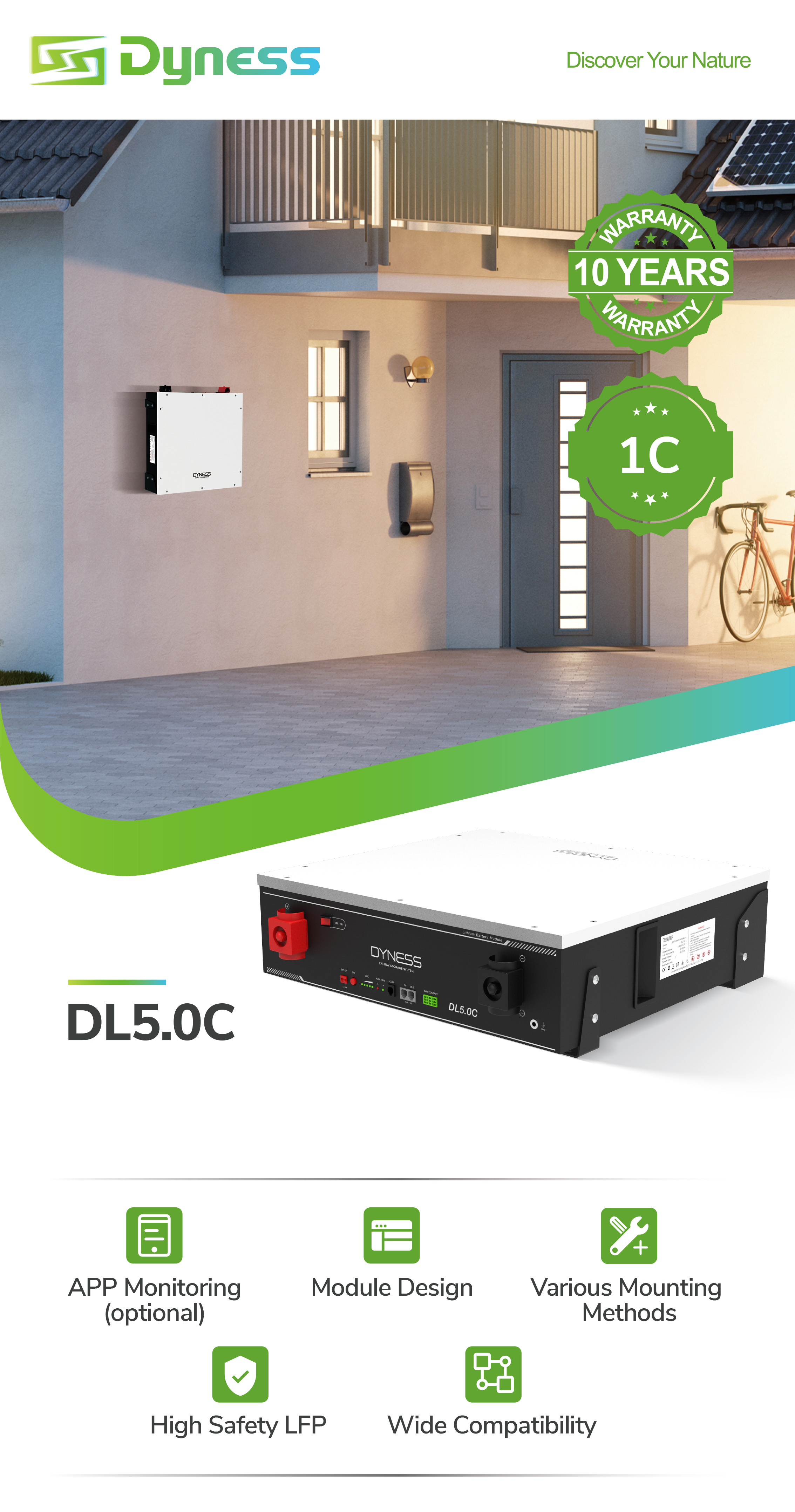

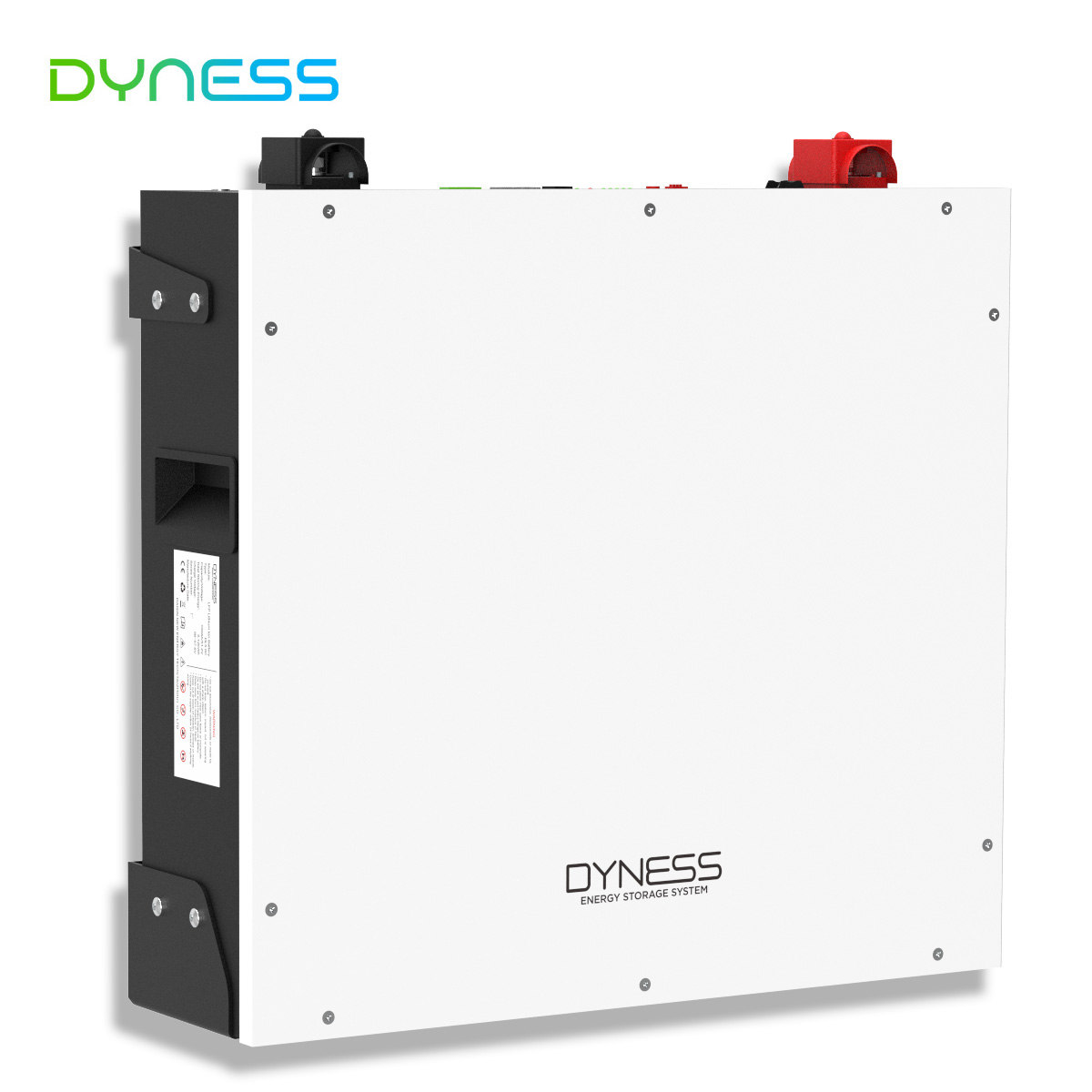

Dyness DL5.0C 10 Year Warranty 19 Inches 51.2V 100Ah 50pcs Parallel 5KWH-250KWH Rack Power Container Home Energy Storage

1 / 5

Dyness DL5.0C 10 Year Warranty 19 Inches 51.2V 100Ah 50pcs Parallel 5KWH-250KWH Rack Power Container Home Energy Storage

Send Inquiry

Product Description

Specification

LiFePO4 Chemistry

5.12kWh energy capacity, 100Ah nominal capacity, and 51.2V nominal voltage.

Scalable Design

Expansion support for up to 50 units in parallel for high-capacity applications.

Long Cycle Life

Engineered for endurance with ≥6000 cycles for dependable daily cycling.

Wide Compatibility

Compatible with SMA, Victron, Ingeteam, Delios, Goodwe, Solis, DEYE, and more.

Model	DL5.0C
Battery TYPE	LIFEPO4
Nominal Battery Energy	5.12kwh
Nominal Capacity	100Ah
Nominal Voltage	51.2V
Operating Voltage	44.8~57.6V
Recommended C Rate	0.5C
Maximum Discharge C Rate	1 C
Recommended Charge/Discharge Current	50A
Max. Power Charge/Discharge Current	75A
Peak Power Charge/Discharge Current	110A (15s)
Depth of Discharge (DOD)	90%
Net Weight	54kg

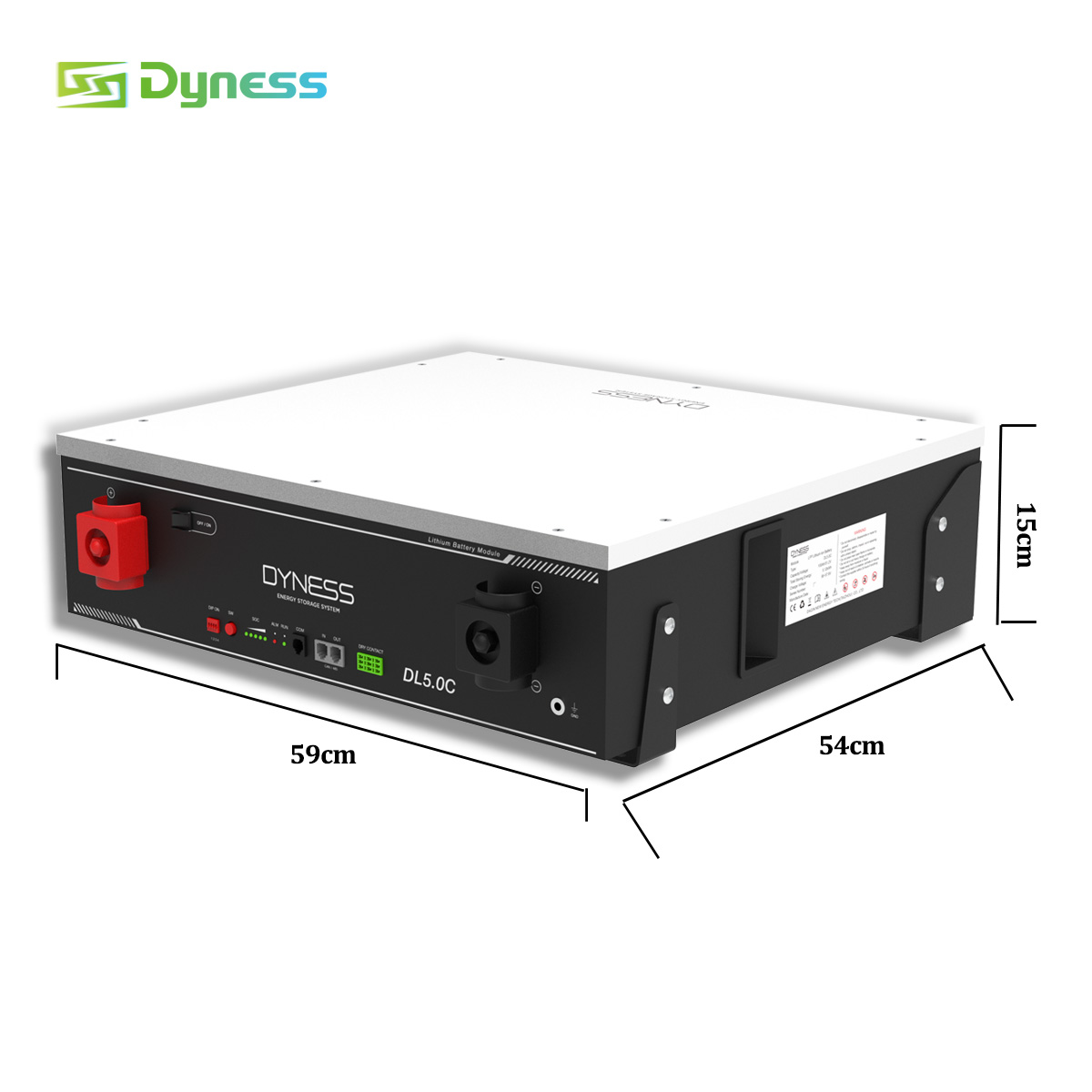

Dimension [WDH]	558545150mm

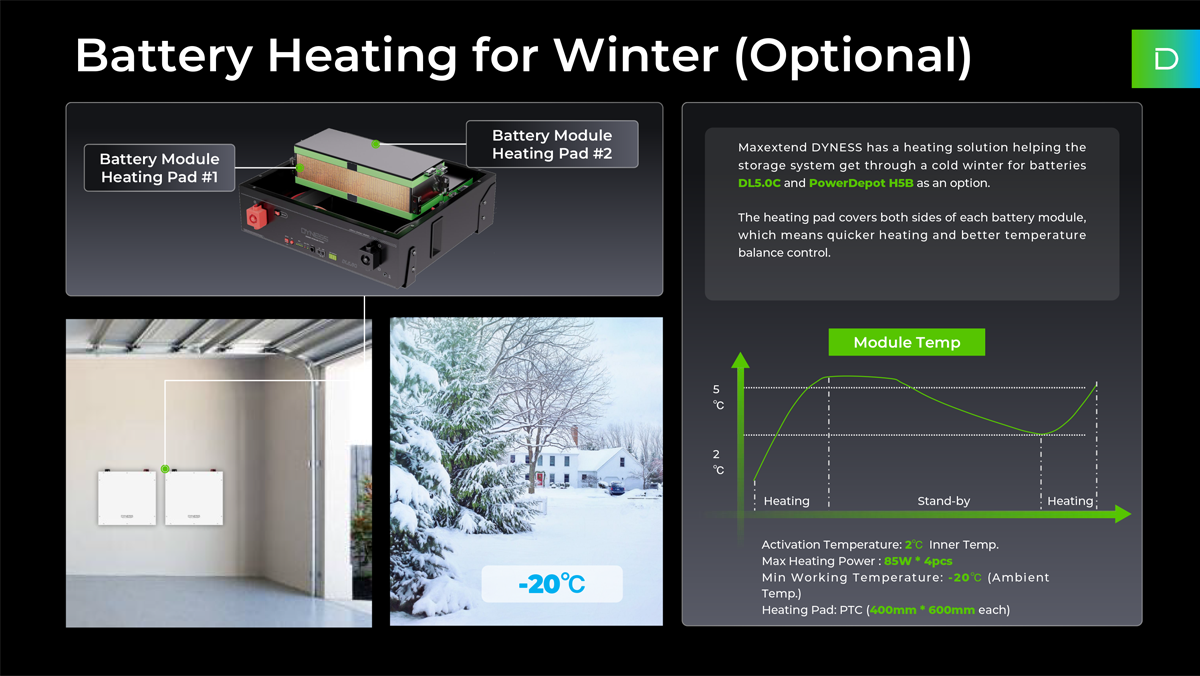

Charging Temp. Range	0~55°C
Discharging Temp. Range	-20~55°C

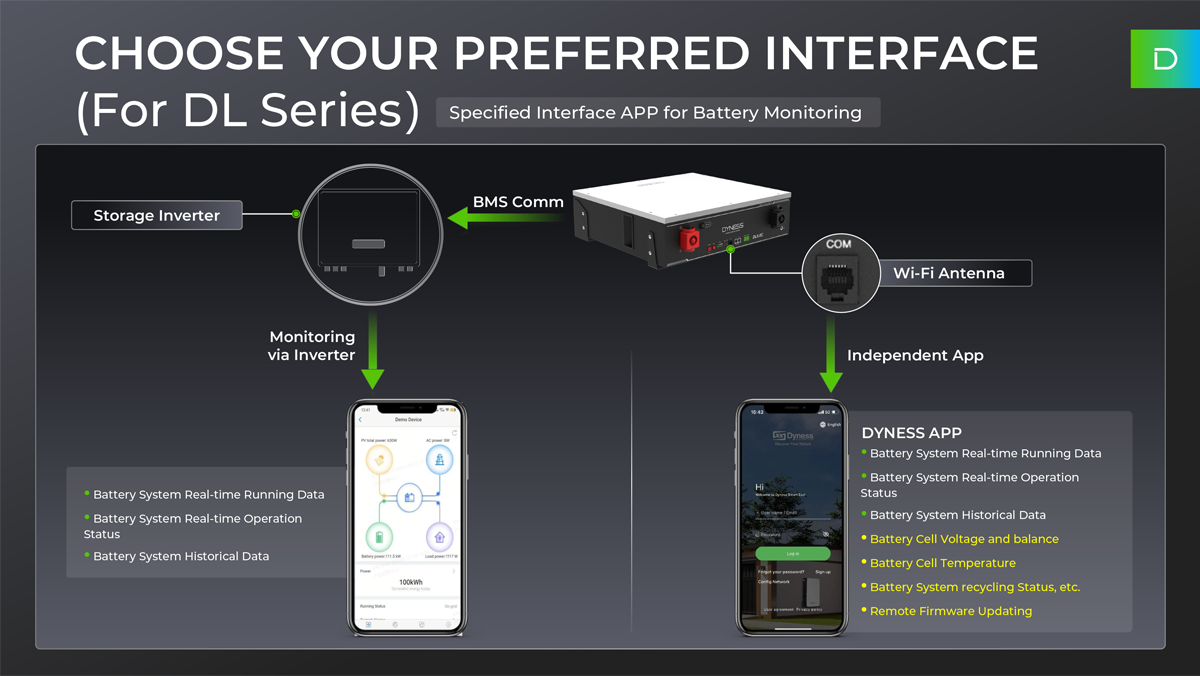

Communication	CAN/RS485/RS232
Cycle Life	≥6000 Cycles
Protection Level	IP20

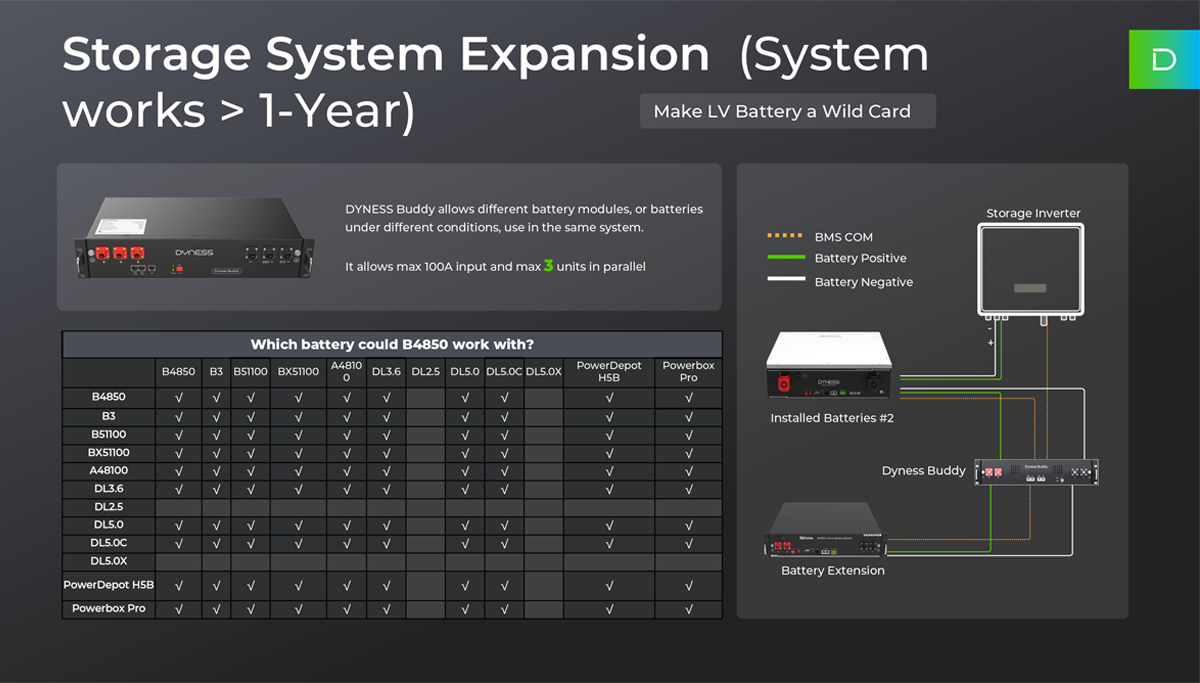

Expansion	up to 50 units in parallel
Pros	Can be used in both off-grid and hybrid setups, compact design

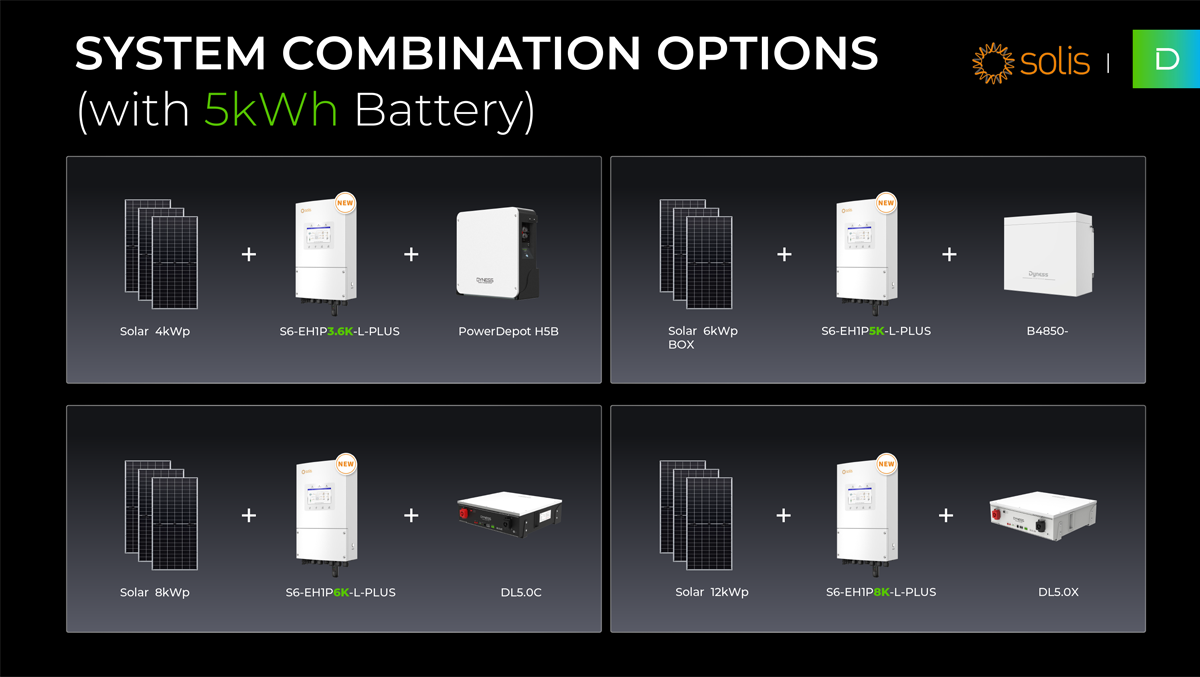

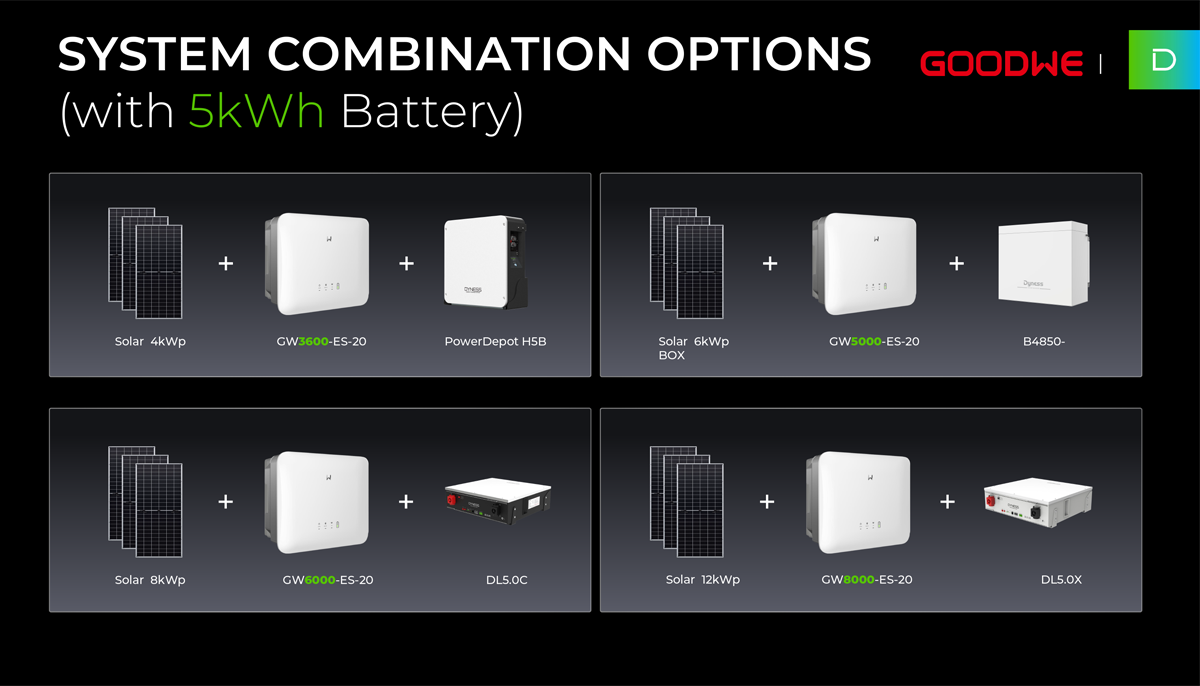

Compatible Inverters	SMA/Victron/Ingeteam/Delios/Goodwe/Solis/DEYE etc.
Certification & Safety Standard	UN38.3/CE-EMC/IEC62619/CE1-021

Frequently Asked Questions

QWhat is the storage capacity of the DL5.0C battery?

The DL5.0C battery features a nominal energy capacity of 5.12kWh with a nominal capacity of 100Ah, operating at a nominal voltage of 51.2V.

QHow long is the lifespan of this LiFePO4 battery?

This high-quality LiFePO4 battery is designed for durability, offering a cycle life of ≥6000 cycles for sustained, long-term energy storage.

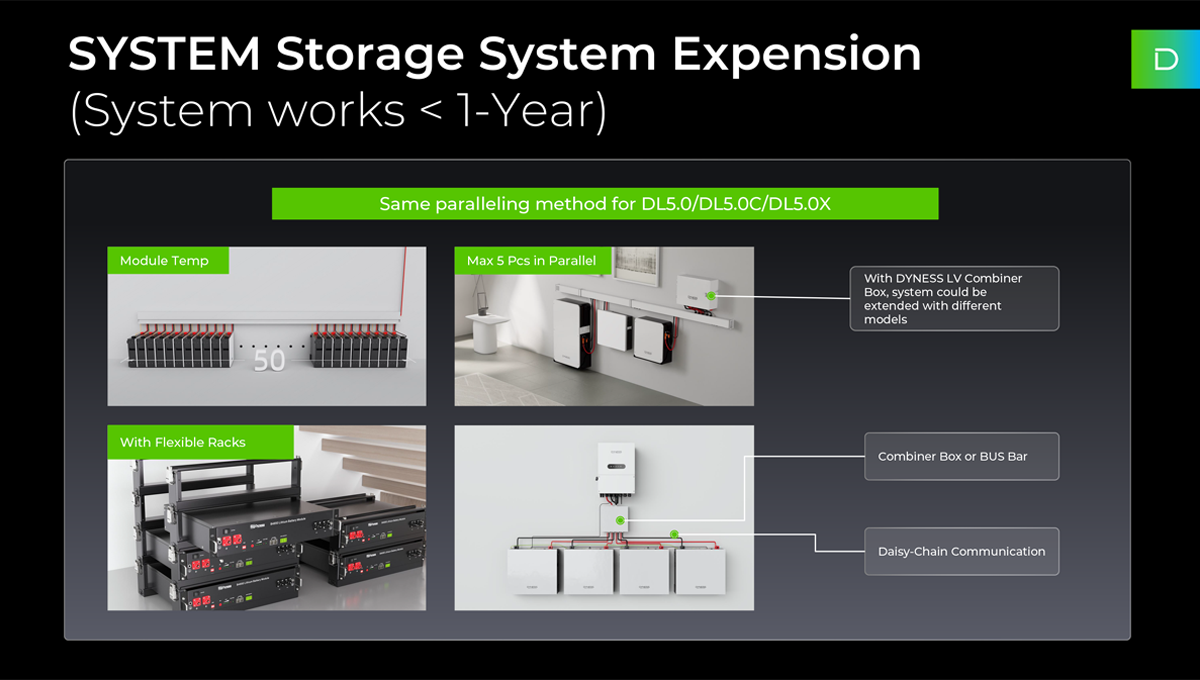

QCan I expand my energy system with this battery?

Yes, the DL5.0C battery is highly scalable, supporting expansion for up to 50 units in parallel to meet larger residential or commercial power requirements.

QWhich inverter brands are compatible with the DL5.0C?

It has wide compatibility and works seamlessly with leading inverters including SMA, Victron, Ingeteam, Delios, Goodwe, Solis, and DEYE, supporting both off-grid and hybrid setups.

QWhat is the operating temperature range for the battery?

The recommended charging temperature range is 0°C to 55°C, while the discharging temperature range is -20°C to 55°C, ensuring reliable operation across varying environments.

QWhat certifications does the DL5.0C battery hold?

The DL5.0C battery conforms to international safety and quality regulations, certified under UN38.3, CE-EMC, IEC62619, and CE1-021.
