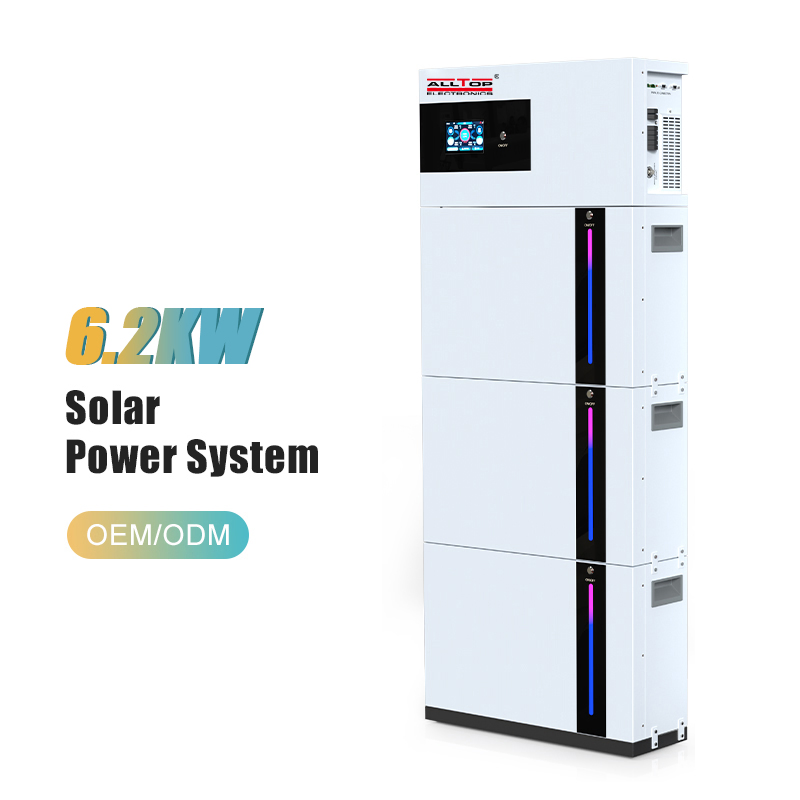

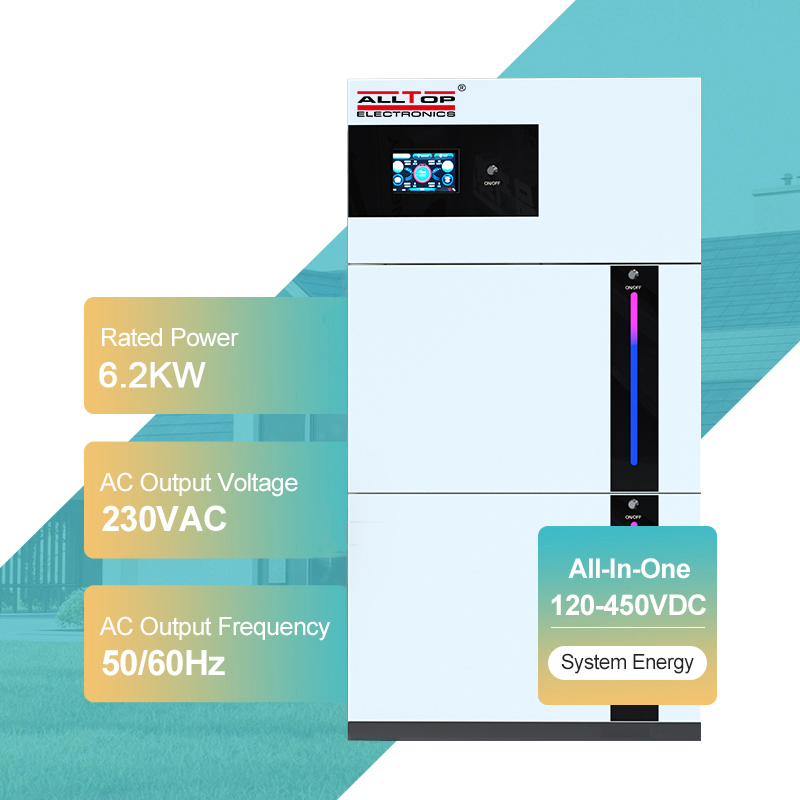

Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
1 / 5
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System

Advanced Grid-Tied Hybrid Solar Panel Energy Storage System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO. DQ1906
Condition New
Certification ISO, CB, CE, RoHS, CCC, IEC
Application Home, Industrial, Commercial
Specification Normal, 62*33*23.5mm
Product Name 6.2kw All-in-One Solar Power System
Battery Type Lithium Battery
AC Input Frequency 50/60Hz
System Type Stackable
Type All-in-One
Communication Port Can, RS232, RS485
Grid Connection off Grid, Hybrid Grid
MPPT Voltage Range 120-450VDC
PV Charge Current 100A
Maximum PV Voltage 500VDC
Temperature for Operation -20-+50℃
Temperature for Storage -30 -+70℃
Max. Number of Parallel 6 Sets
Lithium Battery Option 100ah/200ah/300ah
Transport Package Cartons with Foam
Origin China
HS Code 9405499000
Production Capacity 100000/Month
Packaging & Delivery
Package Size 64.50cm * 36.00cm * 23.50cm
Package Gross Weight 17.400kg
Product Description
Advanced Grid-Tied Hybrid Solar Panel Energy Storage System
Powering a Smarter World!

Providing residential, commercial and utility-scale PV inverters, dedicated to becoming a top global supplier of smart energy solutions. Featuring overseas warehouses, no tariff impact, lower costs, flexible supply, full compliance, fast customs clearance, and 1-3 days delivery.

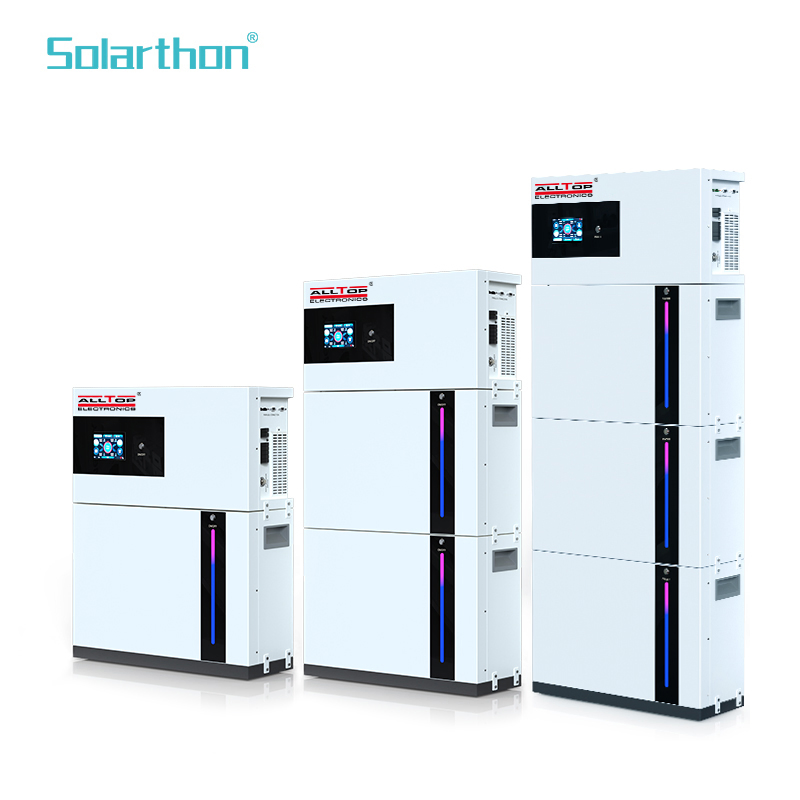

Model DQ1906B6K2-01 DQ1906C6K2-06 DQ1906D6K2-01
Rated Power 6.2KW 6.2KW 6.2KW
Lithium Battery 100Ah/51.2V 200Ah/51.2V 300Ah/51.2V
AC Output Voltage 230VAC 230VAC 230VAC
AC Output Frequency 50/60Hz 50/60Hz 50/60Hz
AC Input Voltage Range 230VAC 230VAC 230VAC
AC Input Frequency 50/60Hz 50/60Hz 50/60Hz
Max. AC Input/Charging Current 40A/80A 40A/80A 40A/80A
Maximum PV Voltage 500VDC 500VDC 500VDC
MPPT Voltage Range 120-450VDC 120-450VDC 120-450VDC
PV Charge Current 100A 100A 100A
Temperature For Operation -20-+50℃ -20-+50℃ -20-+50℃
Temperature For Storage -30 -+70℃ -30 -+70℃ -30 -+70℃
External Dimensions 590*196*700mm 590*196*1070mm 590*196*1440mm
Max. Number Of Parallel 6 sets 6 sets 6 sets
Warranty 3 years 3 years 3 years

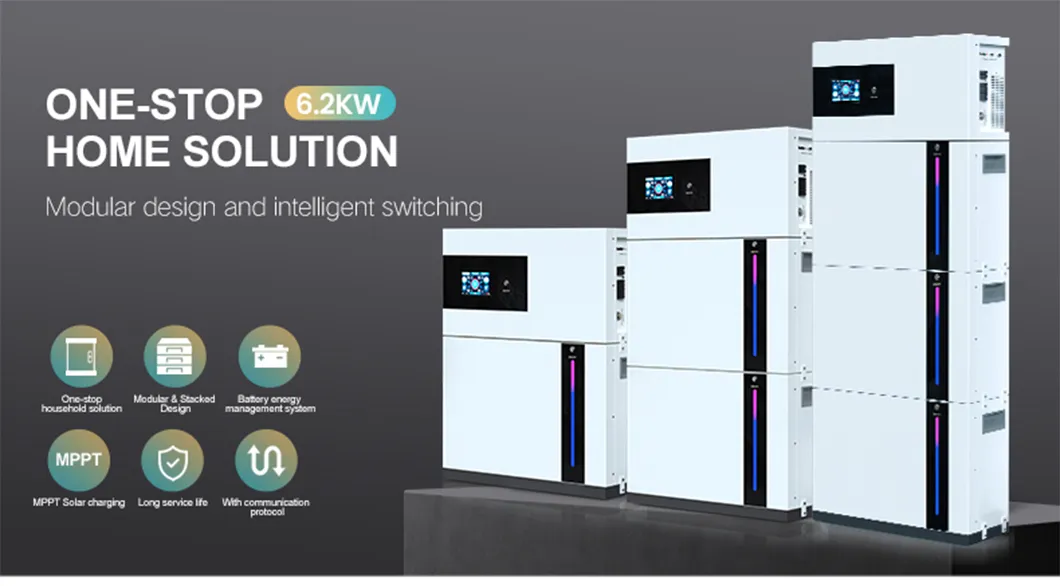

Advanced Grid-Tied Hybrid Solar Panel Energy Storage System Specifications

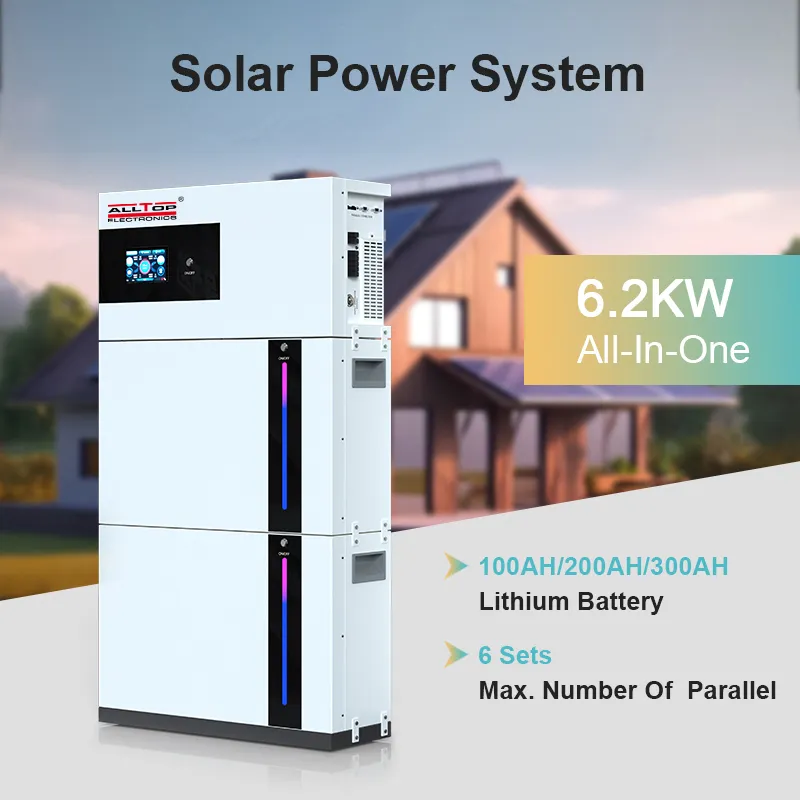

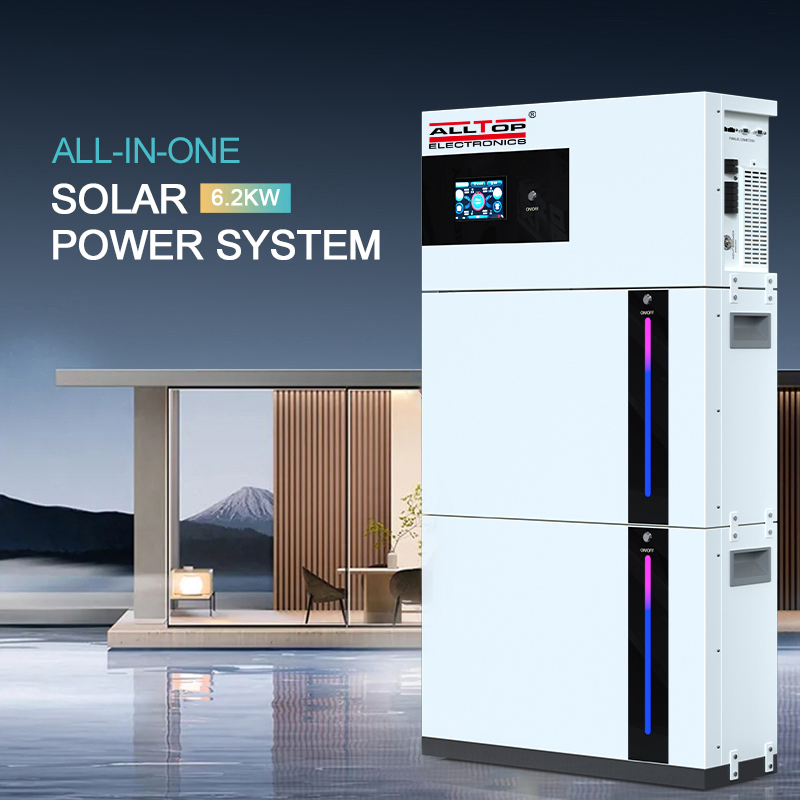

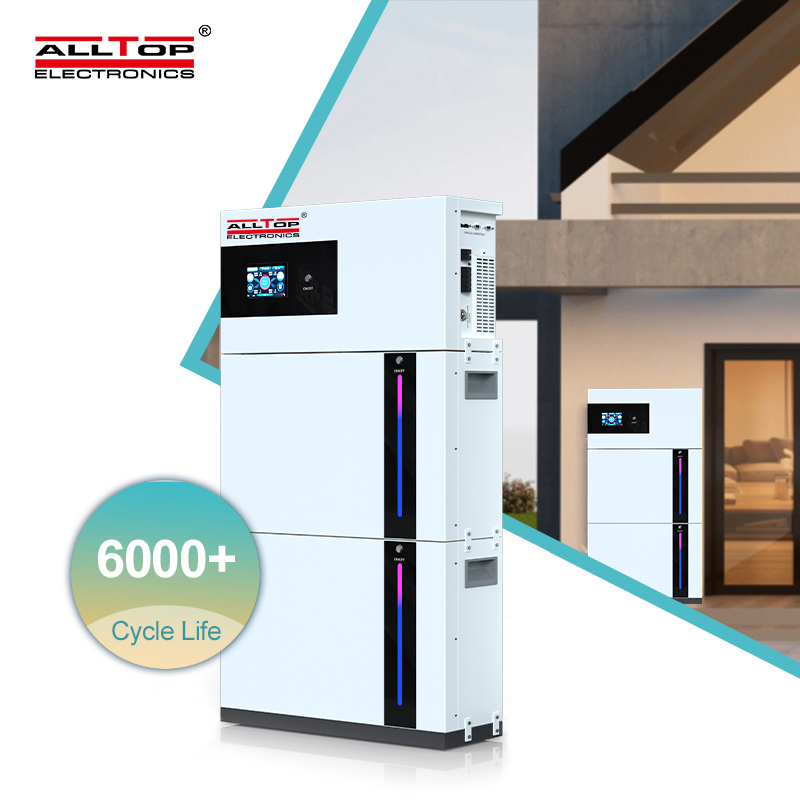

All-In-One Solar Power System
All-In-One Solar Power System
  • One-stop home solution
  • Modular design and intelligent switching
  • Each battery is equipped with an independent BMS battery energy management system
  • Support GPRS/WIFI/RS485, remote monitoring
  • Warranty 3 years, 10+ years life design
Functional Features
  • Pure sine wave inverters
  • Integrated MPPT controller/charger
  • Settable priority of utility and PV power supply
  • Wide PV input voltage
  • Settable battery type, supporting lead-acid and lithium batteries
  • Functions and parameters can be set via the LCD
  • With battery equalization function to optimize battery performance and extend battery life
System Schematic

A complete system includes the following components:

  • Photovoltaic module: Converts light energy into DC electric energy, charges the battery through the energy storage inverter, or directly inverts it into AC to power the load.
  • Utility or generator: Connected at the AC input, it can supply power to the load and charge the battery at the same time. If no utility or generator is connected, the system can also operate normally via the battery and PV module.
  • Battery: Ensures the normal use of power for the system load when solar energy is insufficient and utility power is unavailable.
  • Household load: Connects various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.
  • Energy Storage Controller Inverter Integrated Machine: The core energy conversion device of the entire system.

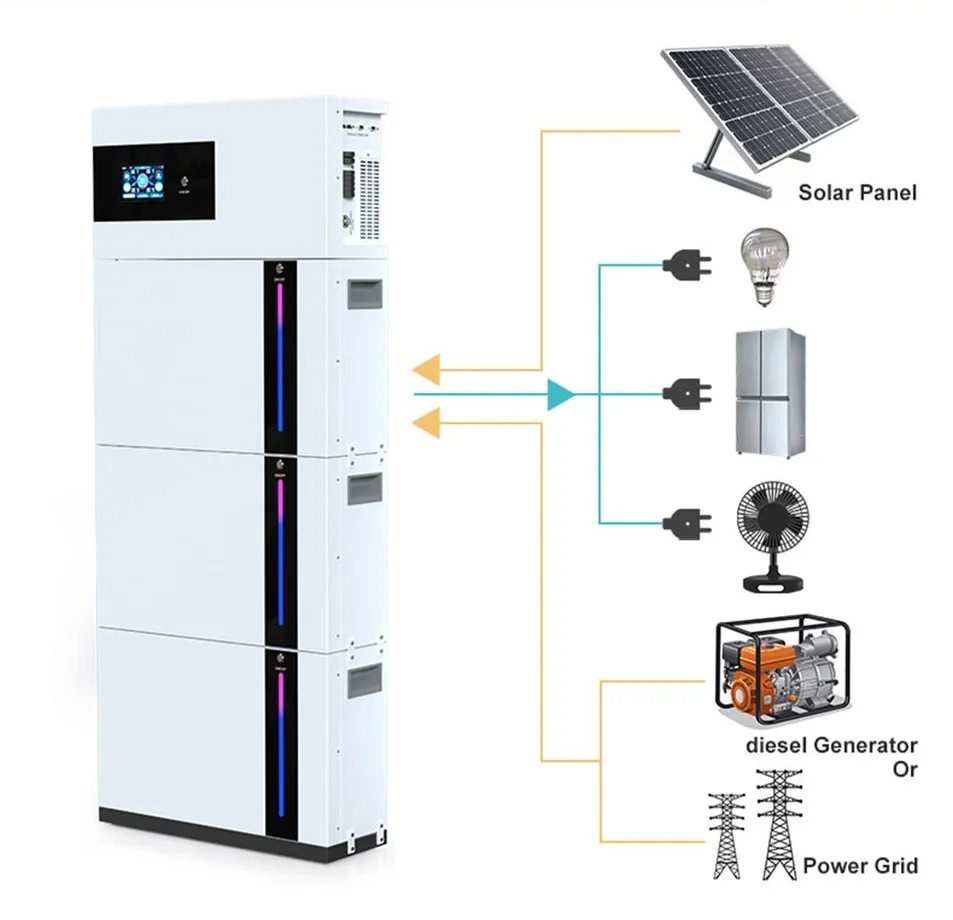

System Schematic Diagram
After Sales Service
  • Standard Warranty: 3 YEARS
  • Extended Warranty: Optional coverage up to 5 YEARS
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation and maintenance training
Production Line

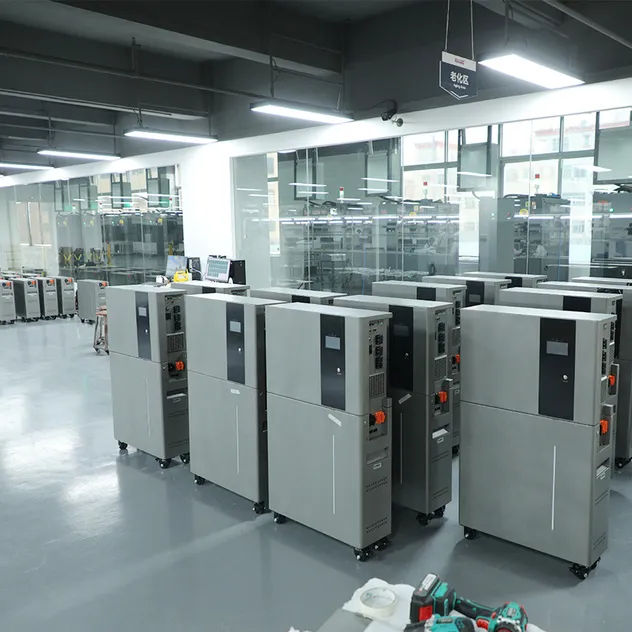

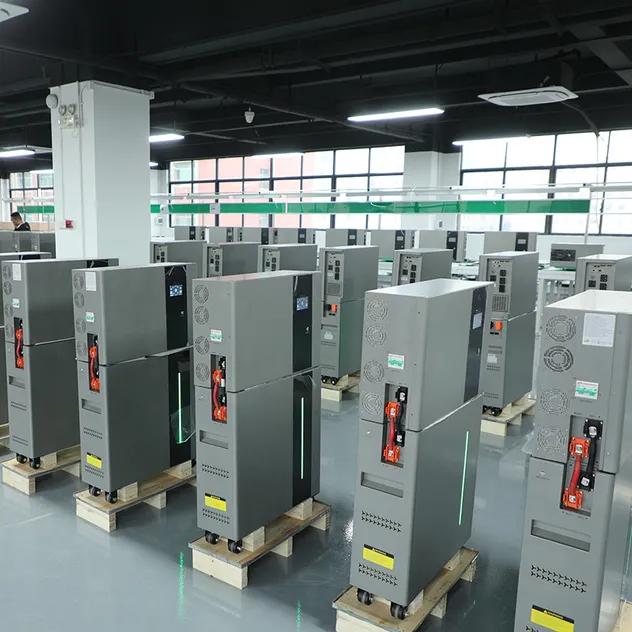

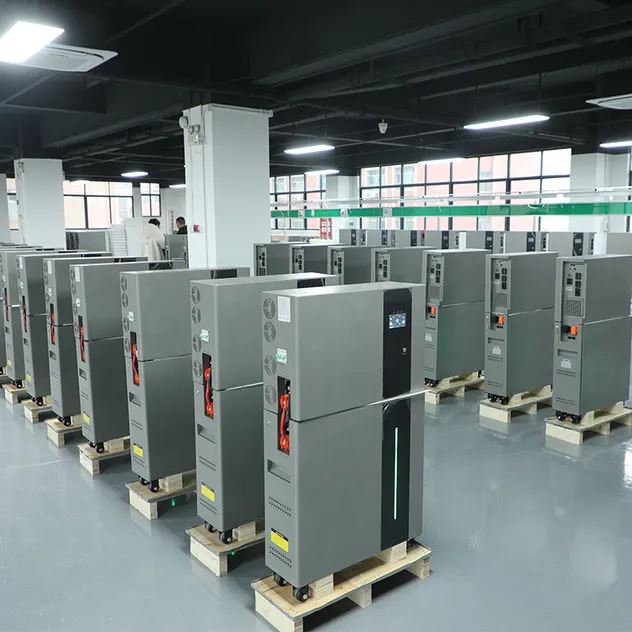

Production Process Line 1 Production Process Line 2 Production Process Line 3
Company Profile
Company Facility and Showroom
Certifications
Certificates Display 1 Certificates Display 2 Certificates Display 3 Certificates Display 4
Frequently Asked Questions
Q1. Are you a manufacturer or a trading company?
A: We are a manufacturer. You are welcome to inspect our factory at any time.
Q2. Do you have certifications like CE, RoHS, TUV, and other patents?
A: Yes, we have obtained over 100 patents for our self-developed products and hold ISO9001 quality management system certification, CB, CE, ROHS, TUV, IEC, and other international certificates.
Q3. Can you provide customized services?
A: Yes, we provide one-stop solutions including OEM/ODM options, customized lighting modes, logo printing, housing color changes, and packaging designs. Please inform us formally prior to production.
Q4. What are your terms of payment?
A: Generally, we accept T/T and irrevocable L/C at sight. For regular orders, terms are a 30% deposit with full payment before delivery.
Q5. What is the typical lead time?
A: 3 working days for samples, and 5-10 working days for batch orders.
Q6. Do you offer a guarantee for the products?
A: Yes, we provide professional after-sales service. While the standard industry warranty is 2 years, we offer a 3-5 year warranty on our products, during which related after-sales services are provided free of charge.
