Solar Batteries 3.2V Lifepo4 280Ah 300Ah 302Ah 304Ah 320AH EVE 3.2V Lifepo4 Battery Cells Fast Delivery

Product Description

Products Description

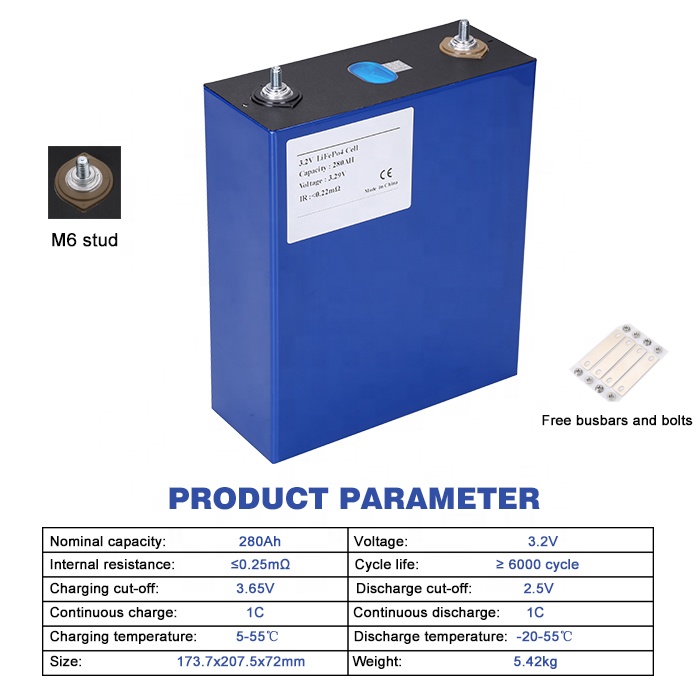

Battery Type Lithium Ion LiFePO4
Model Name LF280K
Warranty 5 YEARS
Max Charge Voltage(V) 3.65V
The charging ratio 1C (280A)
The discharge rate 1C (280A)
Certification UN 38.3 / MSDS
Cycle Life ≥ 8000 Times (80% DOD)
Weight 5.42kg

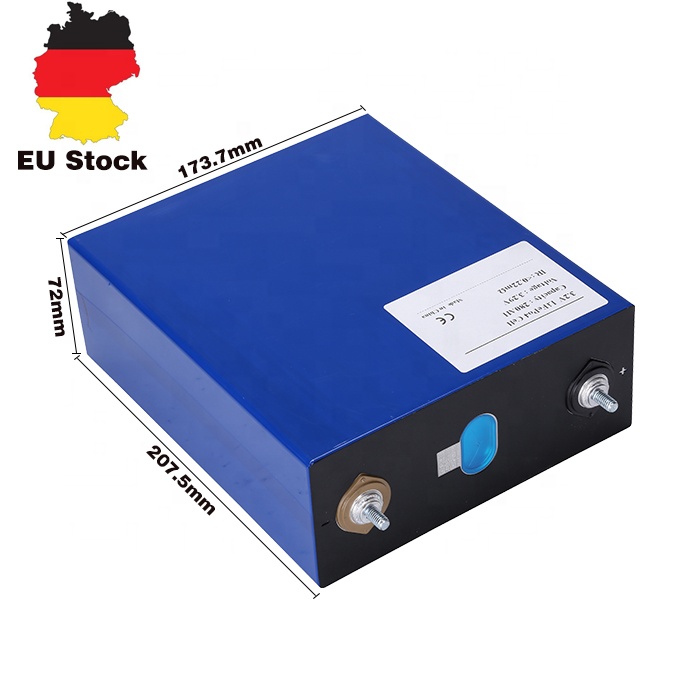

Dimension H200*W173*T72 (mm)
Internal Resistant ≤0.25 mΩ
AC-impedance(1000Hz) 0.12±0.05mΩ
Accessory Bus bars and bolts
End voltage(Cut off) 2.5 V
Discharge temperature -30~60°C
Suitable for EV, RV, solar power storing, e-bike, e-scooter, electric boat, golf cart, forklift, model aircraft, caravan, audio equipment, electric tools, power tools, sightseeing coaches, diy battery pack, inverters and others
Important Note
  • All of the LiFePO4 battery cells are Grade A, brand new with QR code.

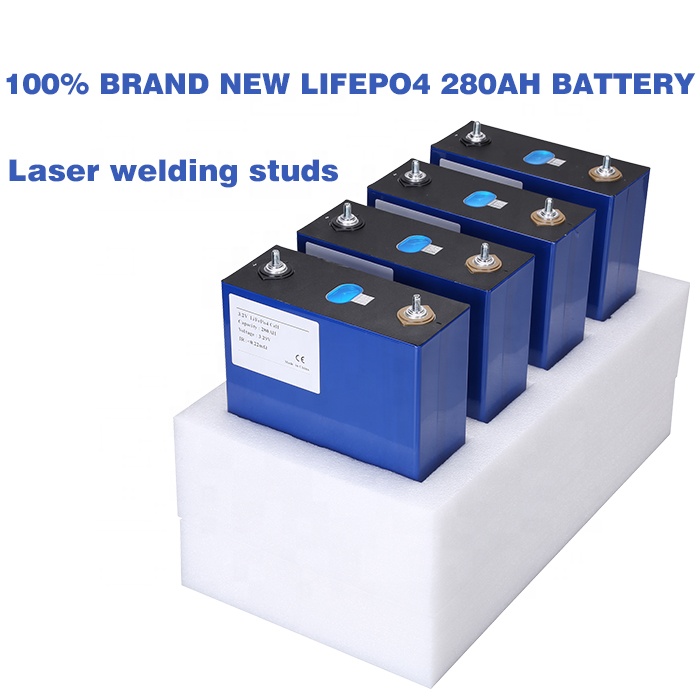

  • Come with laser welded studs, provide busbars, bolts and insulator plate for free.
  • The price come with bus bars and bolts, one battery will come with one set bus bar and bolt (e.g., If buy 4pcs battery, we will send 4pcs cells with 4 sets busbars and bolts).
  • The busbars size: 90*20*2mm (cooper plated with nickel) Screw size: M6.
  • Tested voltage, internal resistance and capacity before shipping.
  • 100% after-sales support. Refund if goods are damaged during transportation and affect the use.
  • OEM and ODM designs and lables are welcome.
Lifepo4 Benefits
  • Reduce reliance on natural gas
  • Save on monthly electricity bills
  • Environmental friendly
Easy to assemble, Longer life span, no maintenance, extremely safe, lightweight, improved discharge and charge efficiency. Due to a long life span and zero maintenance, it's the best investment you can make over time.

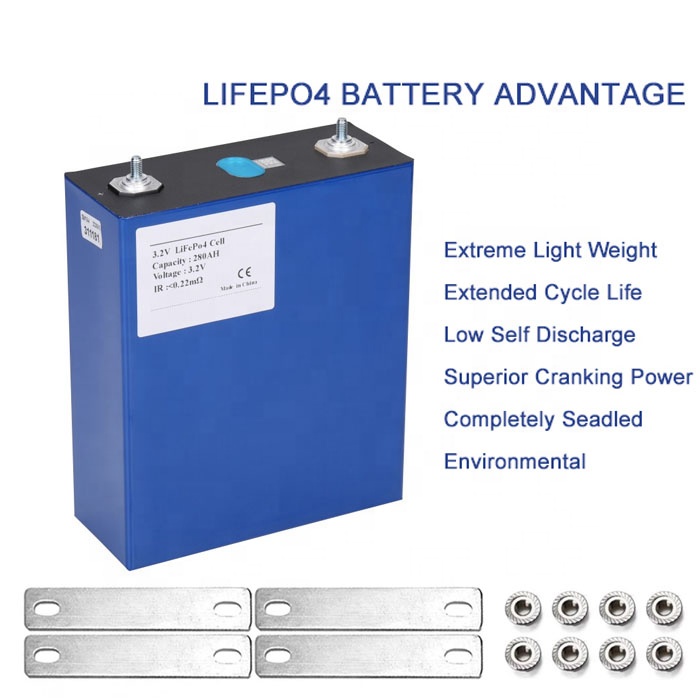

LiFePO4 Cell Detail 1

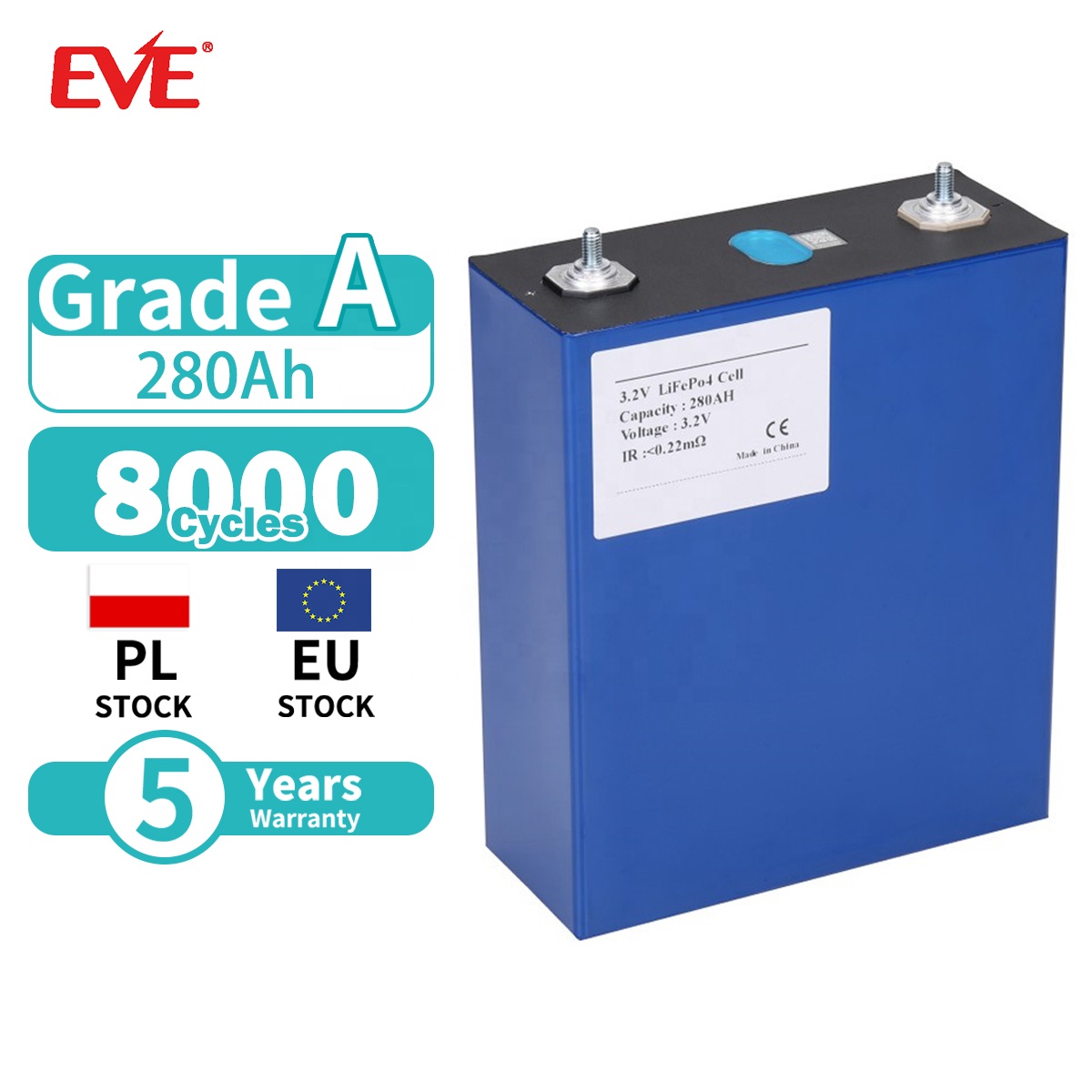

LiFePO4 Cell Detail 2
LiFePO4 Cell Detail 3
Attention: Regulations to Observe
  • 1) Do not remove the battery from its original packaging before use.
  • 2) Do not put the batteries together sporadically to avoid accidental short circuit.
  • 3) Do not heat the battery above 100°C or burn it.
  • 4) Do not charge the primary lithium battery.
  • 5) Do not weld directly on the surface of the battery. Use a battery with pre installed solder legs or leads.
  • 6) Do not mix new and used batteries, or batteries from different sources.
  • 7) It is strictly prohibited to short circuit between positive and negative and reverse connection between positive and negative electrodes.
  • 8) Do not disassemble or dissect the battery.
DIY Assembly Reminder

DIY battery pack must get the cells balanced (same voltage) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund.

Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can return or refund.

Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.

Applications
Applications Diagram
Widely Application:
  1. EV, e-scooter, electric golf car, electric vacuum sweeper.
  2. Electronic toy, model airplane, remote control.
  3. Communication equipment: Cordless telephone, inter-phone.
  4. Modality equipment and consumer electronics.
  5. Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply.
Packing & Shipping
Packing details
  • Use high hardness custom sponge to strengthen the battery.
  • 5 layers of dangerous goods export corrugated carton.
  • Positive and negative paste insulation tape.
  • We will label test data on each cell before delivery.
  • If customer have requirement, we can provide Wooden Packing for shipping.
Shipping pallet setup
About the Shipping and delivery
1 USA Delivery By Sea Freight + Express (DDP Service by UPS, DPD etc.)
Approximate time limit: 25-30 weekdays
2 EU Delivery By Sea Freight + Express (DDP Service by UPS, DPD etc.)
Approximate time limit: 40-45 weekdays
3 AU Delivery By Sea Freight + Express (DAP Service by UPS, DPD etc.)
Approximate time limit: 40-45 weekdays
Notes:
* The tracking will be update after pick up by local express. Please wait patiently.
* Countries that do not appear in the table, please consult for freight charges.
EU In Stock Fast DDP Delivery: 1-3 working days
How to Order?
Order process flow
Production & Facility Overview
Facility 1
Facility 2
Testing equipment
Warehouse storage
Customer Feedback
Review 1
Review 2
Frequently Asked Questions
Q Is the product original?
Yes, it is indeed 100% original and authentic. We never sell fake batteries, honesty is the best policy.
Q What kind of packaging is used for the cells?
We use strong packaging. Each cell is placed into thick PE foam or a bag, and then packed into 5-layer strong cartons.
Q What is your MOQ (minimum order quantity)?
There is no limit. Sample orders and trial orders are accepted.
Q What is your lead time?
The cargo will be shipped out within 1-3 days for small orders and 3-5 days for bulk orders.
Q What is your delivery time?
For China stock: 35-40 working days by sea/railway + DPD/GLS/UPS.
For overseas stock: 1-5 working days by DPD.
Q How are issues handled if client receives defective products?
We offer replacement. If there are some defective items, we usually credit our customers or replace them in the next shipment.
