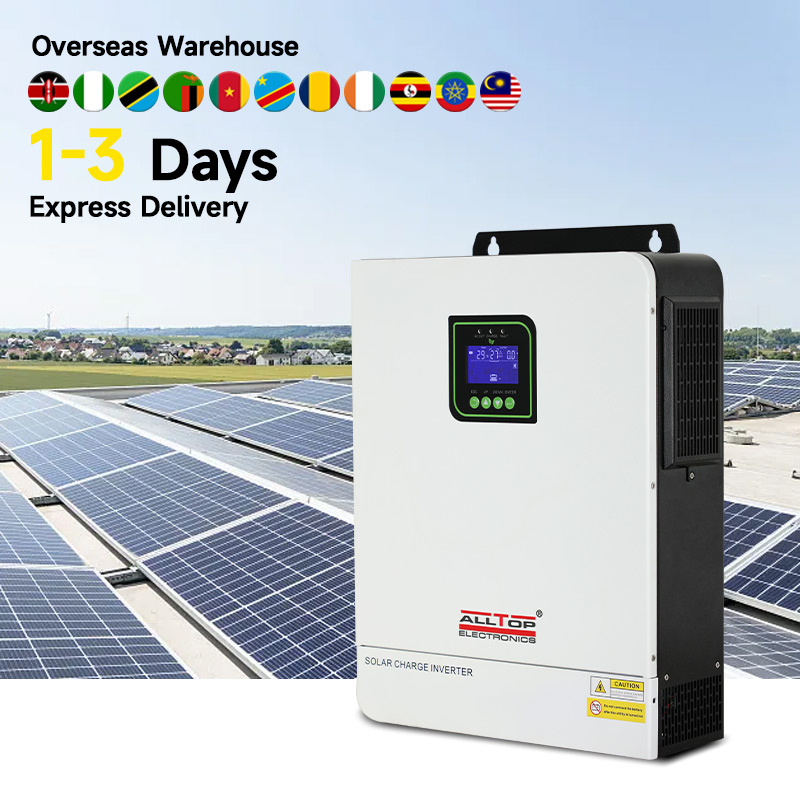

10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
1 / 5
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter
10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter

10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

  • Overview
  • Product Description
  • After Sales Service
  • Production Line
  • Gallery
  • FAQ
🛈 Basic Info.
Model NO.
THON-10
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power, Wind Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Rated Power
4.2kw/6.2kw
Nominal Operating Voltage
240VDC
Vmax PV
500VDC
PV Input Voltage Range
60-450VDC
Full Load MPPT Range
240-450VDC
Nominal Output Voltage
Nominal Output Voltage
Feed-in Grid Voltage Range
195-253VAC 49-51Hz
Nominal AC Input Voltage
230VAC, 50/60Hz
Maximum AC Charging Current
100A
Communication
RS232/GPRS/WiFi/Lithium Battery
Mounting Type
Roof Mounting
Controller Type
MPPT
Display
LCD Display
Keyword
Solar Energy Power Inverter
Transport Package
Cartons with Foam
Specification
475*400*170mm
Origin
China
HS Code
9405409000
Production Capacity
100000/Month
📦 Packaging & Delivery
Package Size
47.50cm * 40.00cm * 17.00cm
Package Gross Weight
8.800kg
Lead Time
7 days (1 - 1000 Pieces)
To be negotiated ( > 1000 Pieces)
📋 Product Description
Hybrid Solar Inverter System
Smart Energy Solutions

Residential, commercial, and utility-scale PV inverter technology designed for global demand. Featuring 11+ overseas warehouses for reliable supply, compliance clearance, and rapid delivery.

Model THON-6.2KW-10P THON-8KW-10P THON-10KW-10P THON-11KW-10P
Battery Voltage 51.2VDC 51.2VDC 51.2VDC 51.2VDC
Rated Power 6200W 8000W 10000W 11000W
Rated AC Output Voltage 230VAC 230VAC 230VAC 230VAC
Rated AC Output Current 26.9A 35A 43.5A 48A
Battery Input Voltage Range 40~60VDC 40~60VDC 40~60VDC 40~60VDC
Maximum Battery Current 135A 183A 230A 250A
Rated AC Input Voltage Range 170-280VAC, 50/60Hz 170-280VAC, 50Hz 170-280VAC, 50/60Hz 170-280VAC, 50Hz
Maximum AC Charging Current 80A 150A 150A 150A
Maximum PV Input Power 6000W 5500W+5500W 5500W+5500W 5500W+5500W
MPPT Input Voltage Range 120-450VDC 120-450VDC 120-450VDC 120-450VDC
Maximum PV Input Current 22A 22A+22A 22A+22A 22A+22A
Maximum PV Charge Current 100A 150A 150A 150A
IP Grade IP20 IP20 IP20 IP20
Max. Number Of Parallel 6 sets 6 sets 6 sets 6 sets
Product Size 446*326*117.5mm 576*388.5*133mm 576*388.5*133mm 576*388.5*133mm
Warranty 3 Years 3 Years 3 Years 3 Years
Net weight 9.5KG 18.10KG 18.10KG 18.10KG

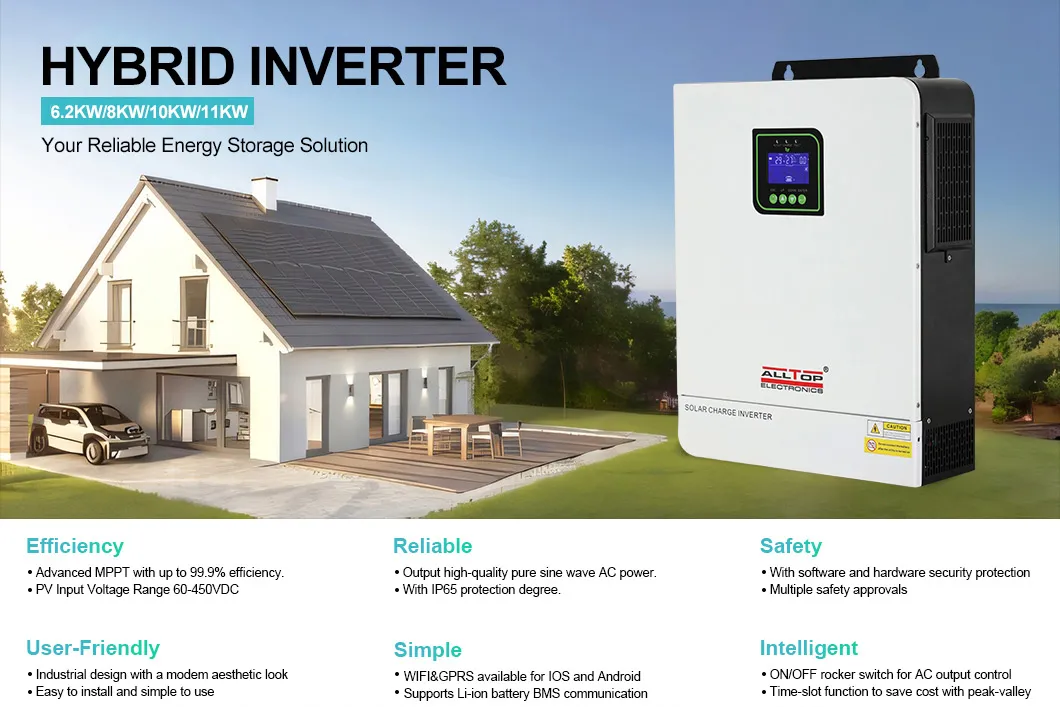

Inverter Features Details

Hybrid Inverter Performance Characteristics

  • Equipped with sectional charge and discharge capability.
  • Supports battery-less operations. Solar and grid can supply load simultaneously.
  • Dual activation feature for lithium batteries via mains or PV input.
  • Two output modes: utility bypass and inverter output, providing UPS function.
  • 360° protection structure: overvoltage, undervoltage, overload, and reverse polarity protections.
  • ON/OFF rocker switch designed for safe AC output control.
  • Digital dual closed-loop control of voltage and current using SPWM for pure sine wave.
  • Intelligent variable speed cooling fan to extend hardware service life.

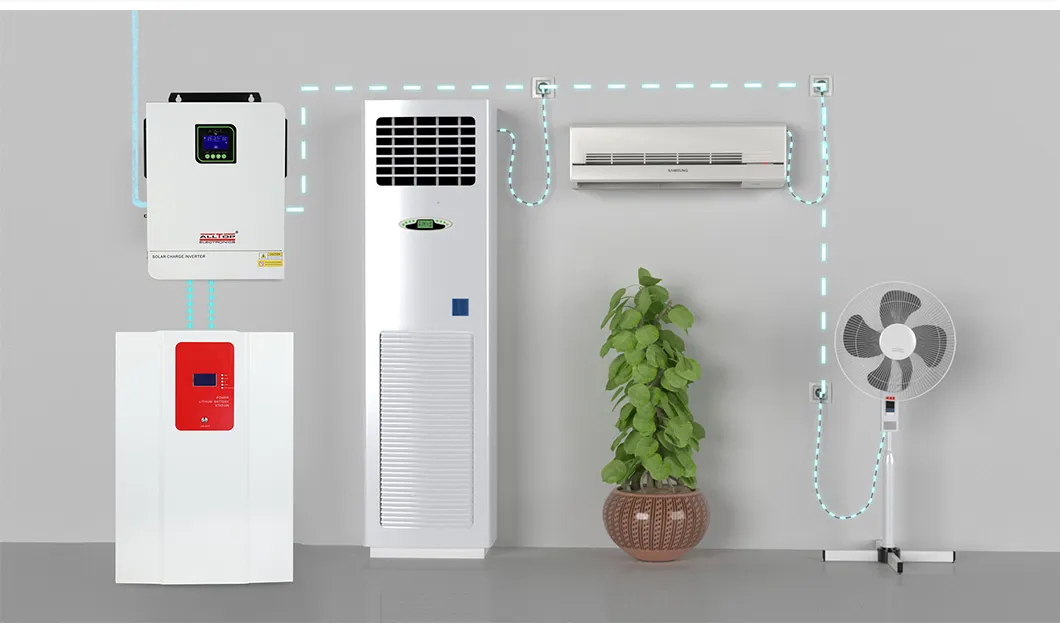

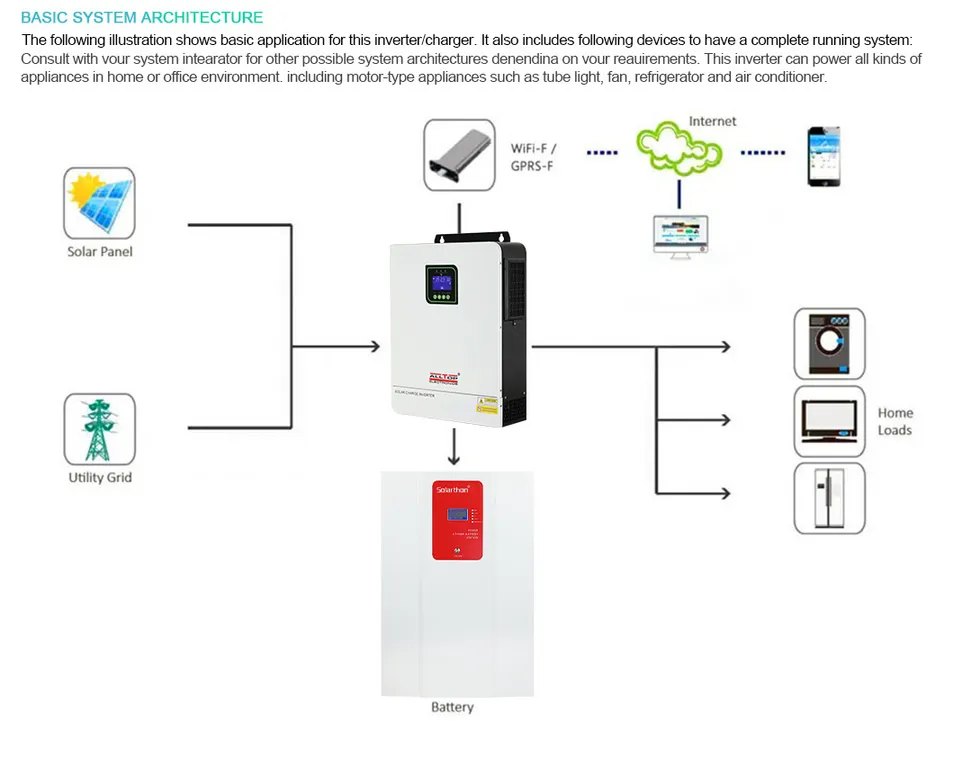

Hybrid Inverter Application Schematic
Inverter Technical Overview
⚙️ After Sales Service
Standard Warranty
12 months or 2,000 operating hours (whichever comes first)
Extended Warranty
Optional coverage up to 36 months
Global Support
24/7 technical assistance and spare parts supply
Training
On-site or remote operation/maintenance training sessions

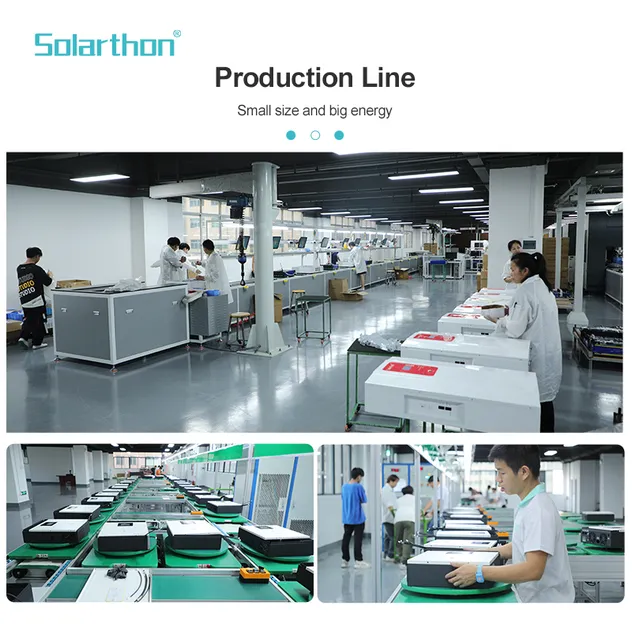

🏭 Production Line

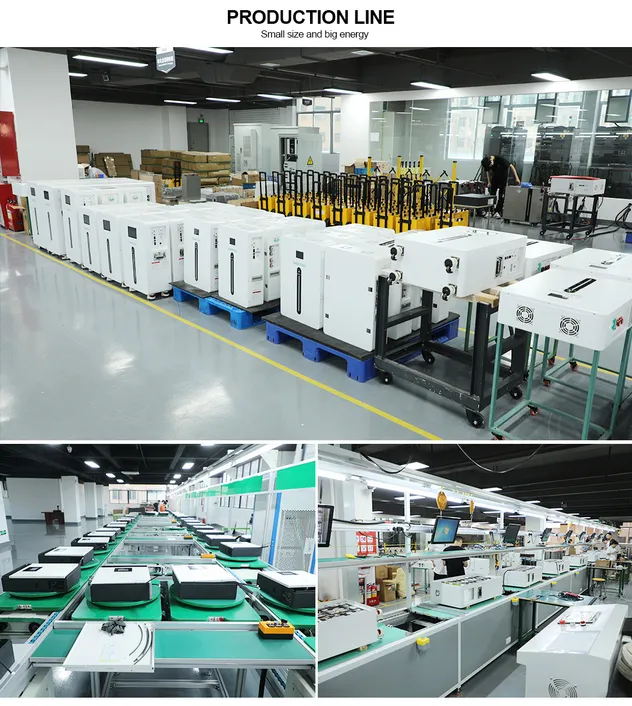

Production Process Step 1
Production Process Step 2

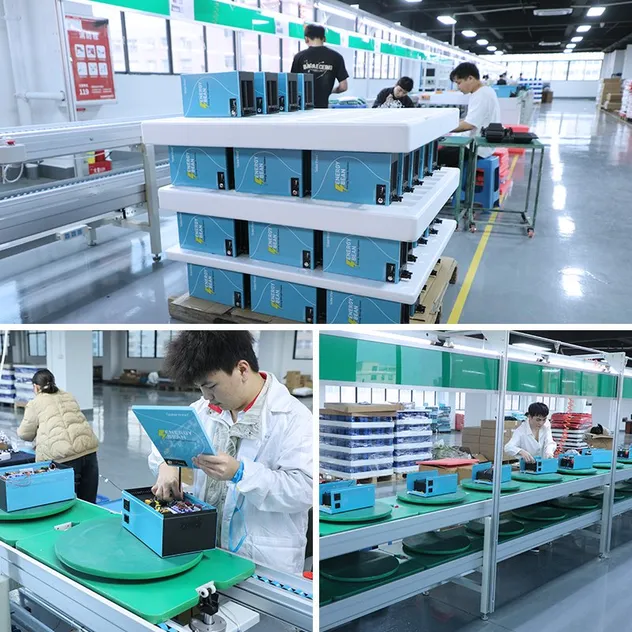

Production Process Step 3
🖼️ Factory & Exhibition Gallery

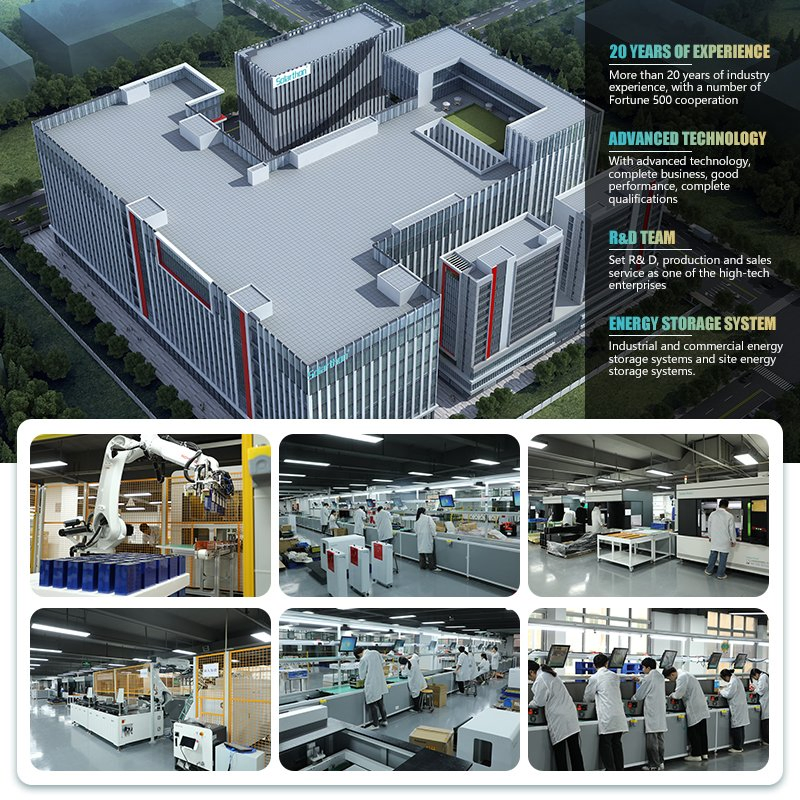

Production Environment
Manufacturing Center
Product Exhibition Showcase
Global Trade Event
❓ Frequently Asked Questions
Q1: Are the inverters pure sine wave output?
A: Yes, all our inverters deliver a true pure sine wave output.
Q2: What output voltages and frequencies are available?
A: Standard production includes 110V, 115V, 120V, 220V, 230V, and 240V with a self-adapting frequency of 50/60Hz. Special voltage requirements can be customized upon engineering consultation.
Q3: What is the difference between low frequency and high frequency inverters?
A: Low frequency inverters are equipped with a variety of integrated protections, possess a high capacity for environmental adaptability, and deliver stable voltage regulation with superior reliability.
Q4: How does a pure sine wave inverter differ from a modified sine wave inverter?
A: Pure sine wave inverters match or exceed utility grid quality with long lifespans, minimal harmonic distortion, and safe operation for all appliances. Modified sine wave outputs may cause performance drop or component damage to inductive loads like refrigerators, air conditioners, and specific motor controls.
Q5: Which household appliances can the inverters power?
A: Our systems handle household, office, and agricultural equipment, including complex inductive loads like air conditioning units, water pumps, and refrigeration systems.
Q6: What is the resolution path if a component fails?
A: In the event of a product issue, please provide photos or video documentation. We will supply free PCB board replacement components as part of our designated after-sales policy.
