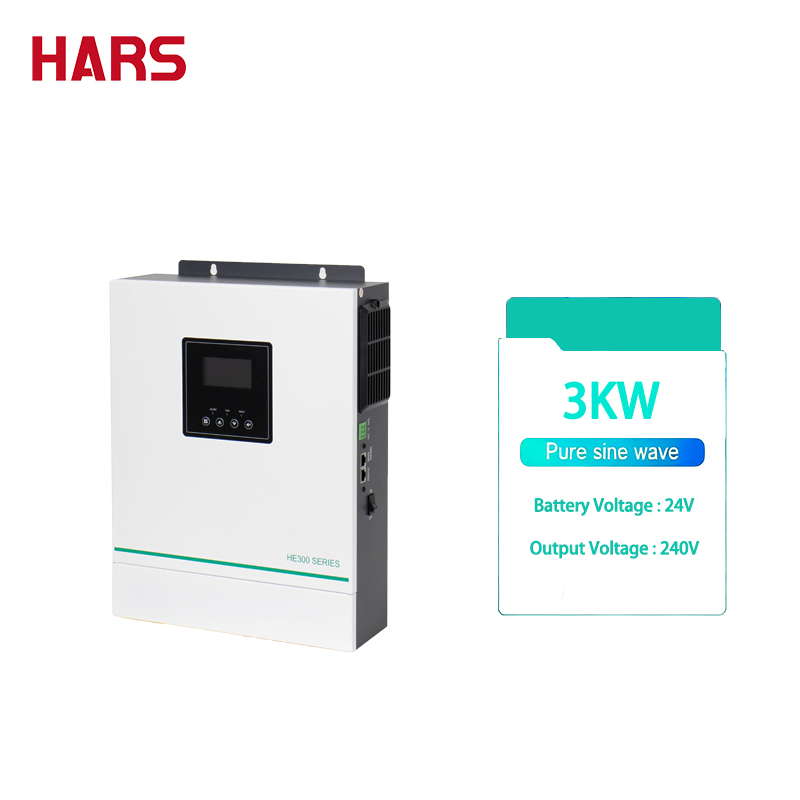

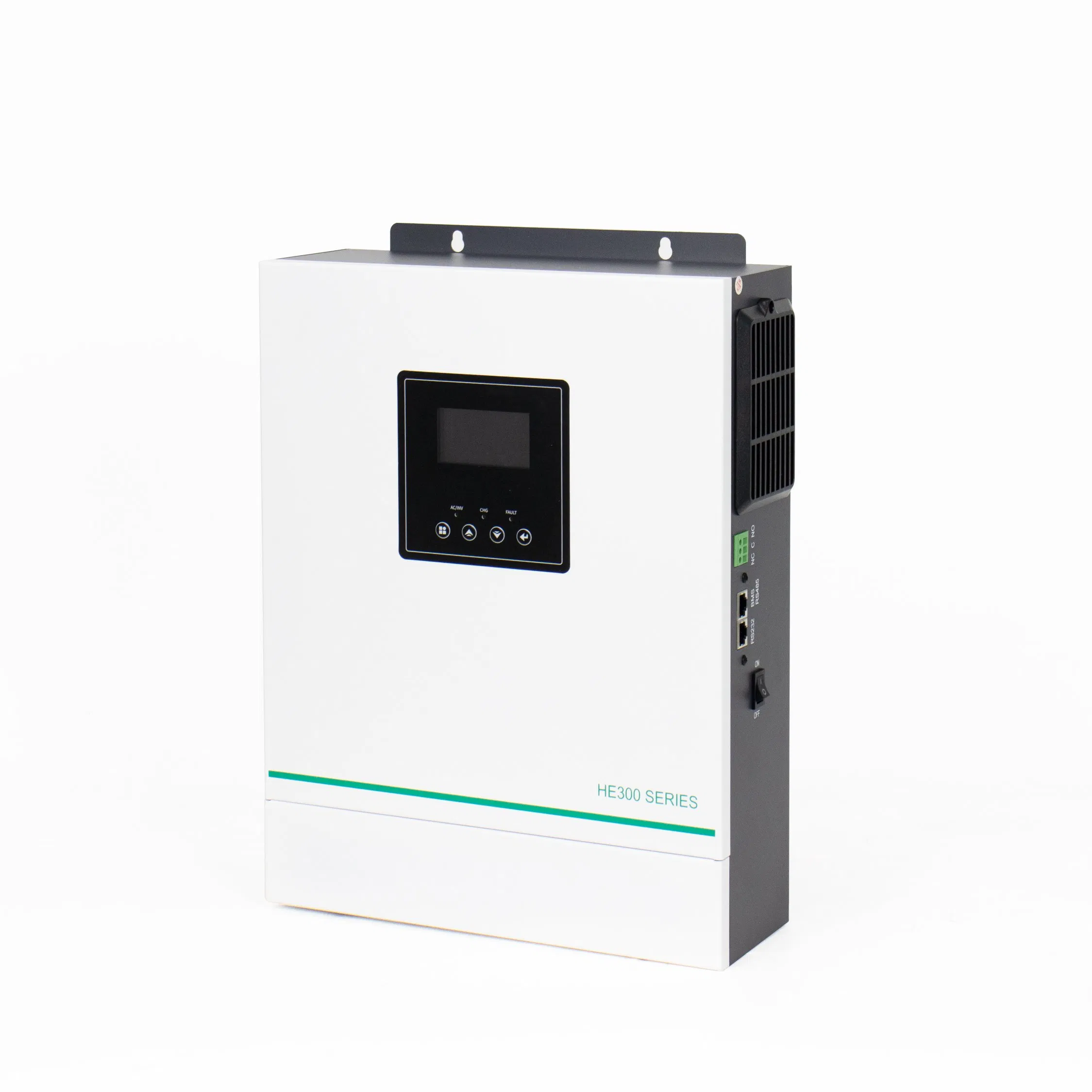

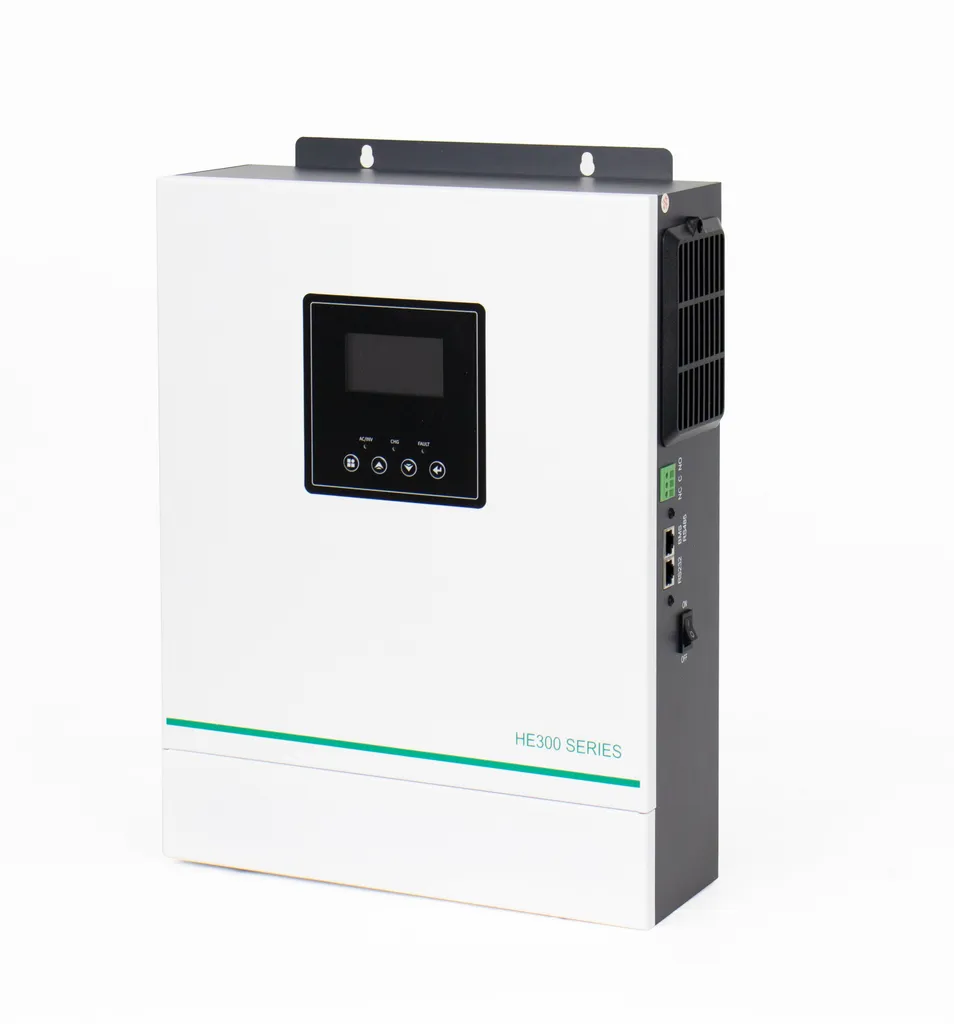

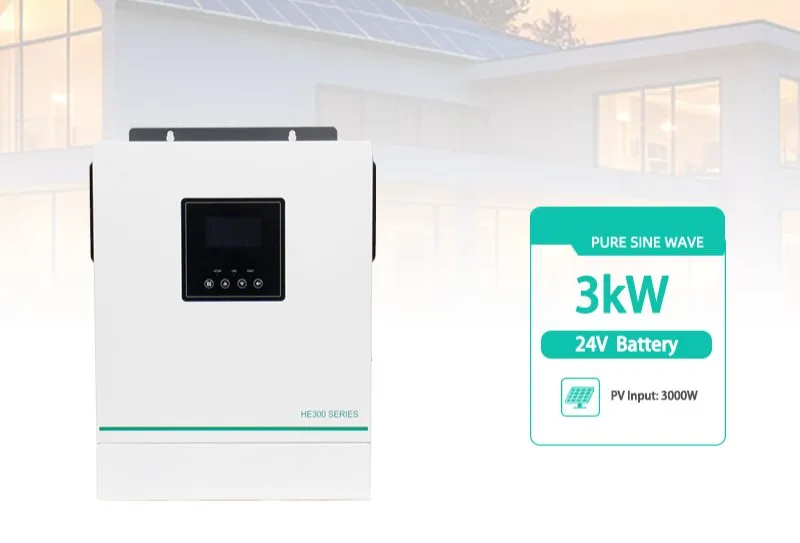

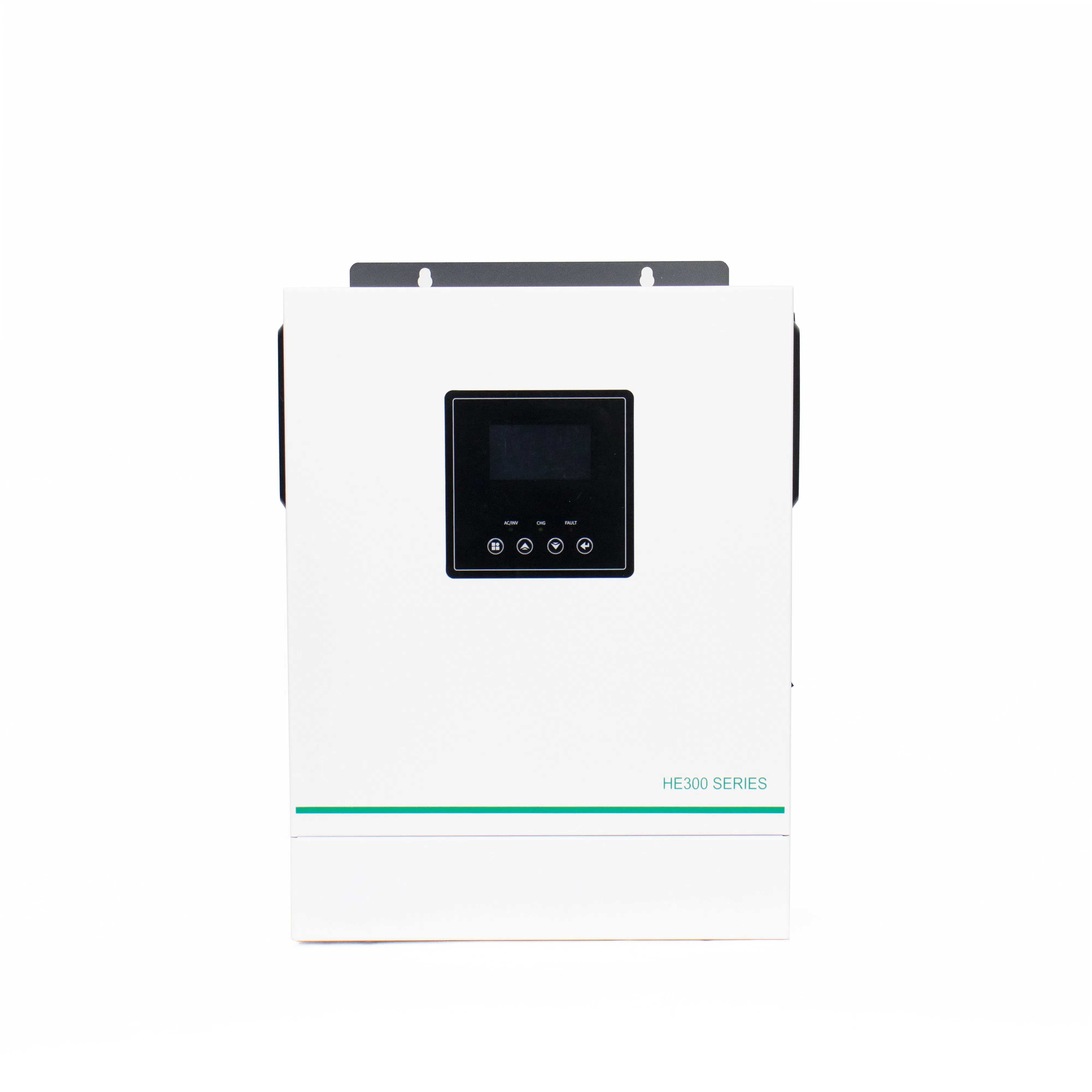

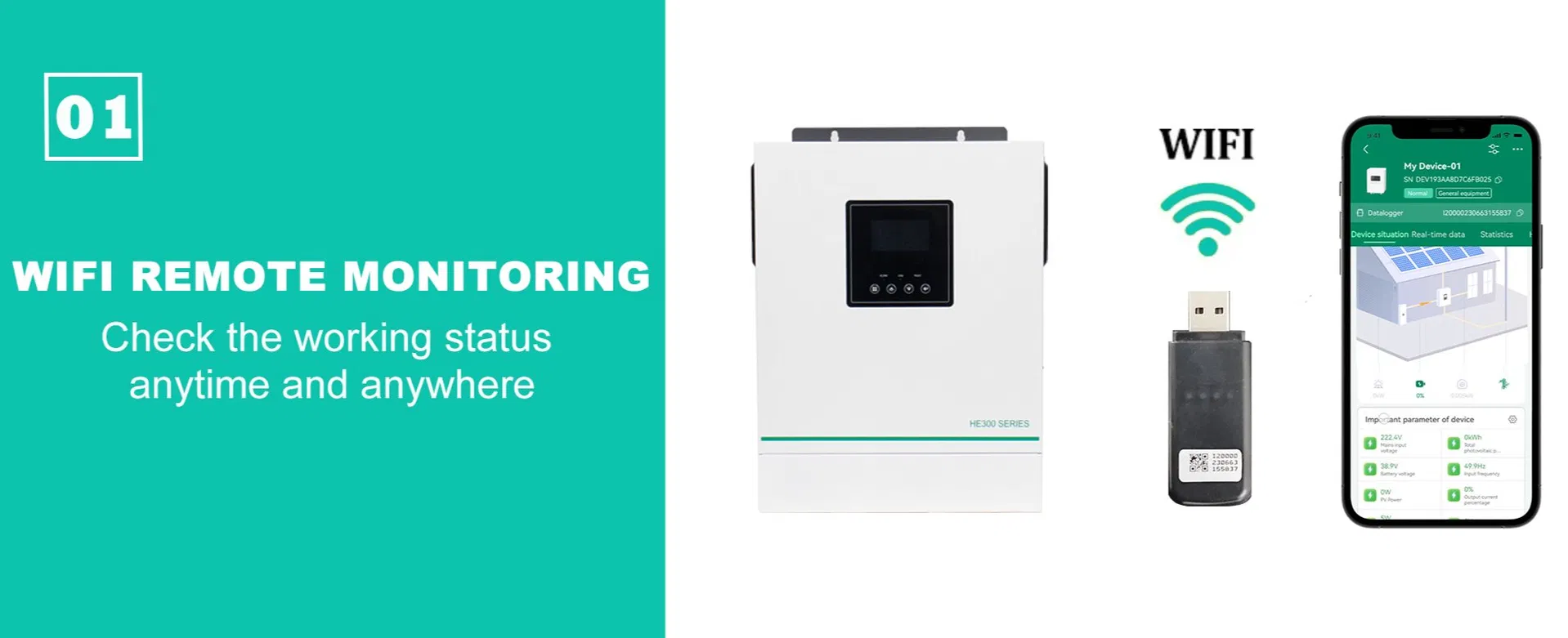

HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts portable size, supports uninterruptible power supply switching, has the function of setting battery charging voltage and current, multiple power input and output priority settings, output AC voltage and frequency can be set, suitable for different power grid environments, and has a mobile phone APP for online data monitoring.
| MODEL: HE300-4200-T | |
| Inverter Output | |
| Rated Output Power | 3000W |
| Rated Output Voltage | 240Vac±5% (single phase) |
| Rated Output Current | 13.63A |
| Rated Output Frequency | 50/60Hz+0.1% |
| Output Waveform | Pure Sine Wave |
| Battery | |
| Battery Type | Lead acid/Gel/lithium battery |
| Rated Battery Voltage | 24V |
| PV Charging Method | MPPT |
| Max PV Charging Current | 100A |
| PV Input | |
| MPPT Number | 1 |
| Max Input Power | 3000W |
| Max Open Circuit Voltage | 500Vdc |
| Max Input Current | 13A |
| Input Voltage Range | 30~450Vdc |
| AC/Generator Input | |
| Input Voltage Range | 90-280VAC (APL mode) / 170-280VAC ±3V (UPS mode) |
| Rated Input Voltage | 230VAC |
| Input Frequency | 50/60Hz |
| General Parameters | |
| Protection Level | IP21 |
| Operating Temperature | -10℃~50℃ |
| Humidity | 5%~95% |

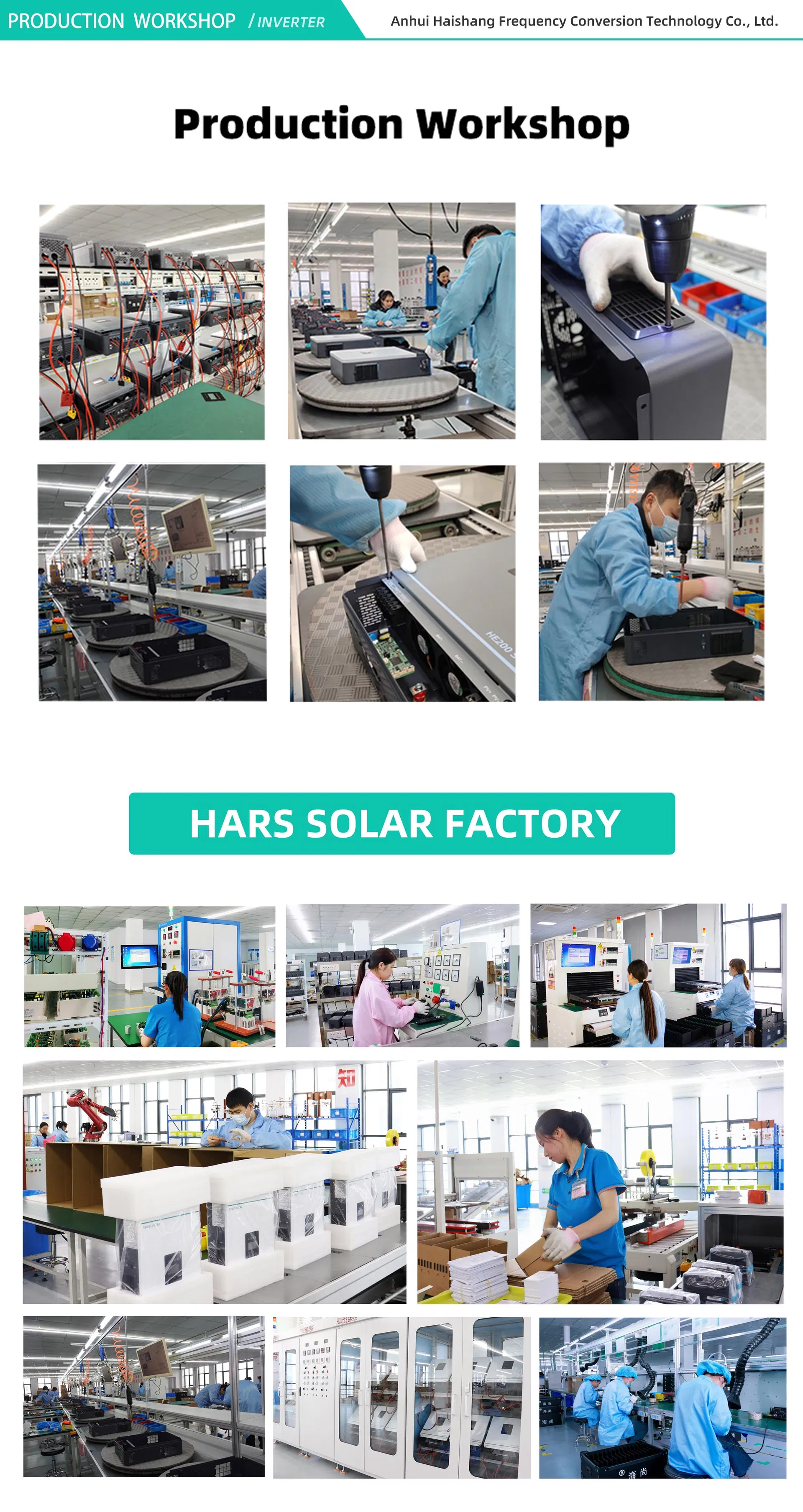

We are a high-tech enterprise integrating R&D, production, sales and technical services. The proportion of automated production is as high as 80%, and the product inventory is sufficient, so there is no need to worry about delivery time. We look forward to further cooperation with you and welcome you to become our global partner.
Established in 2018, the headquarters has a construction area of 30,000 square meters. In addition, it has a separate photovoltaic factory with a site area of 20,000 square meters. It has three technical centers, providing ODM, OEM and other services, and has strong technical support.
