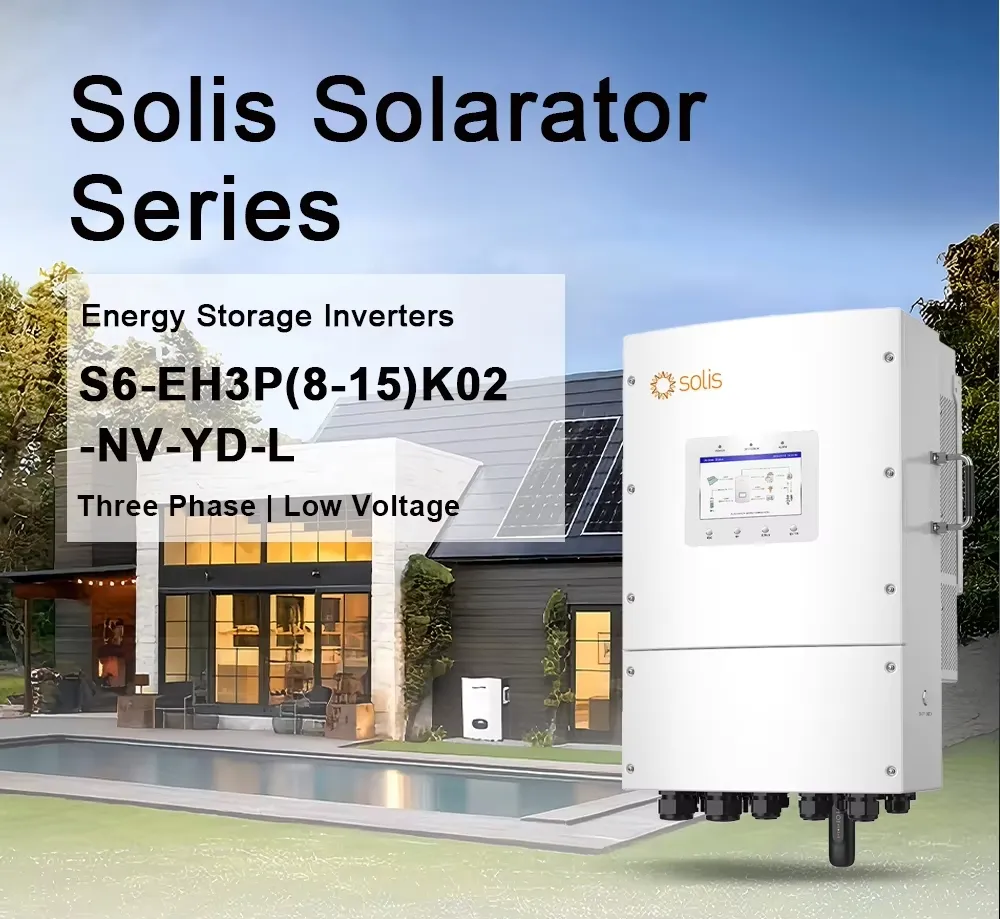

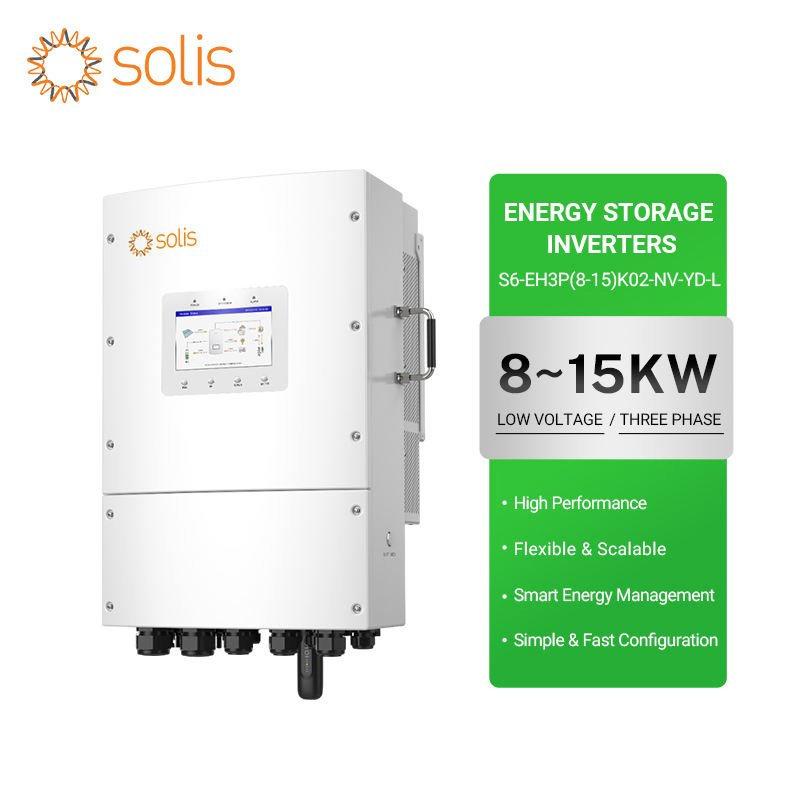

Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
1 / 5
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters

Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters

Send Inquiry

Product Description

Solis Hybrid Inverter 8kw 10kw 12kw 15kw Triple AC Output 400V 60Hz Solar Three Phase Inverters
Specification
Technical Parameter Details
Model S6-EH3P(8-15)K02-NV-YD-L
MPPT voltage range 200-850V
Max. short circuit current 30A / 50A
MPPT number / Max. input strings number 2 / 3
Battery voltage range 40-60V
Communication CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
Rated grid voltage/ Rated input voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Efficiency 98.5%
Dimensions (W × H × D) 430 × 660 × 305 mm
Weight 42kg
Ingress protection IP66

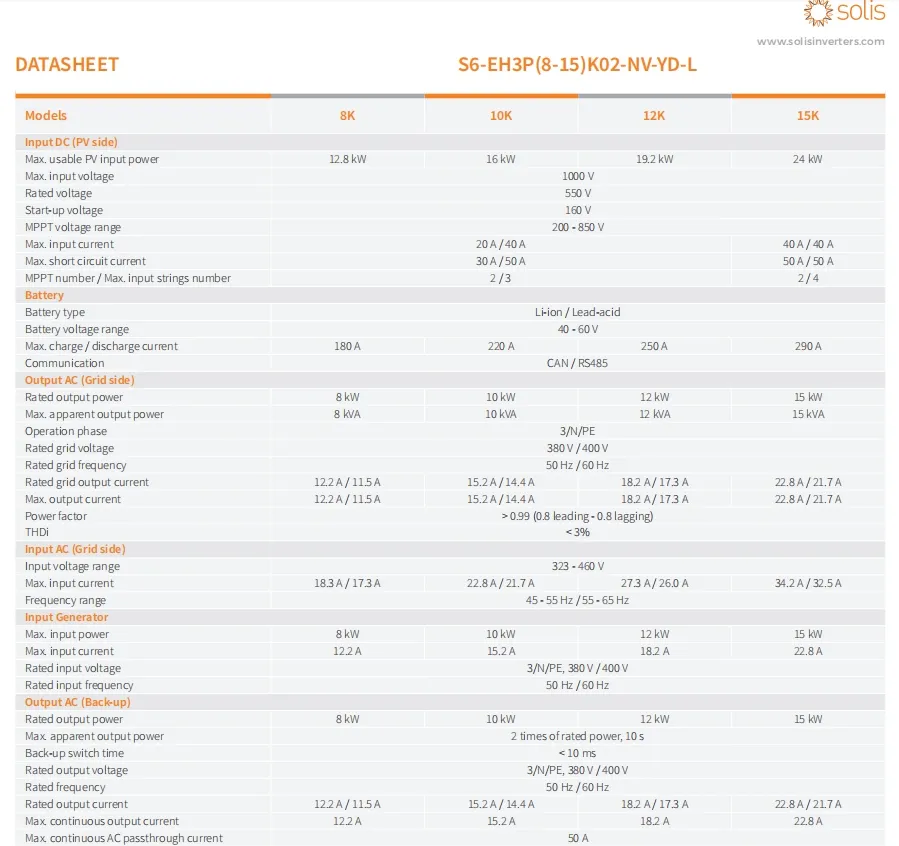

Solis Hybrid Inverter Product Details

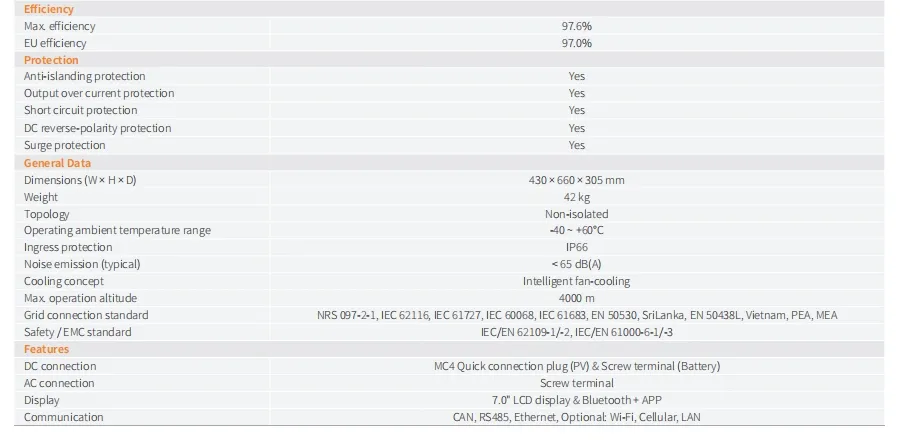

Solis Hybrid Inverter Application Diagram
Packing & Delivery

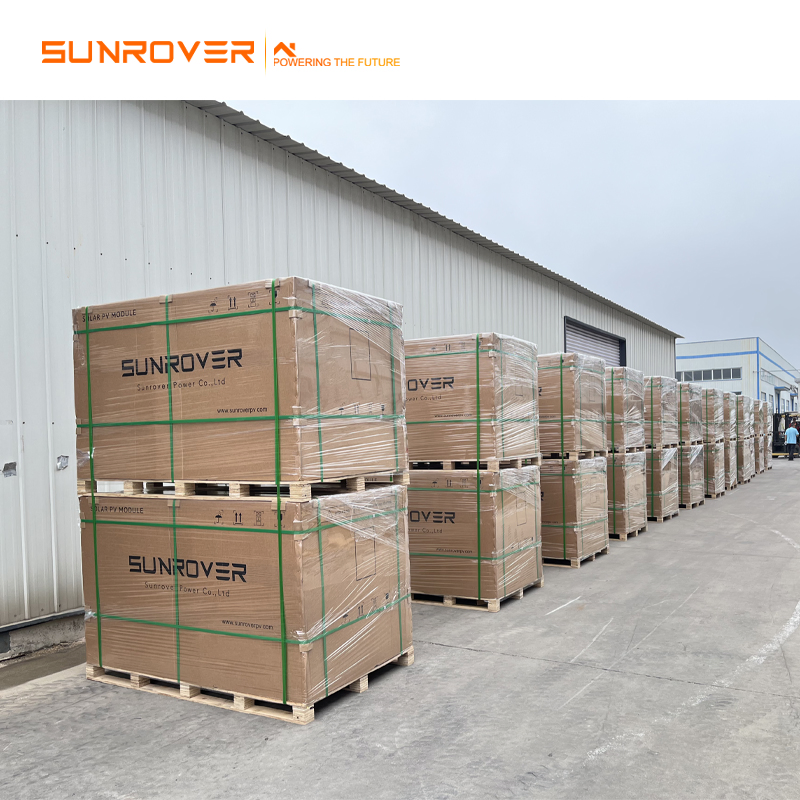

Solar Inverter Packaging Process

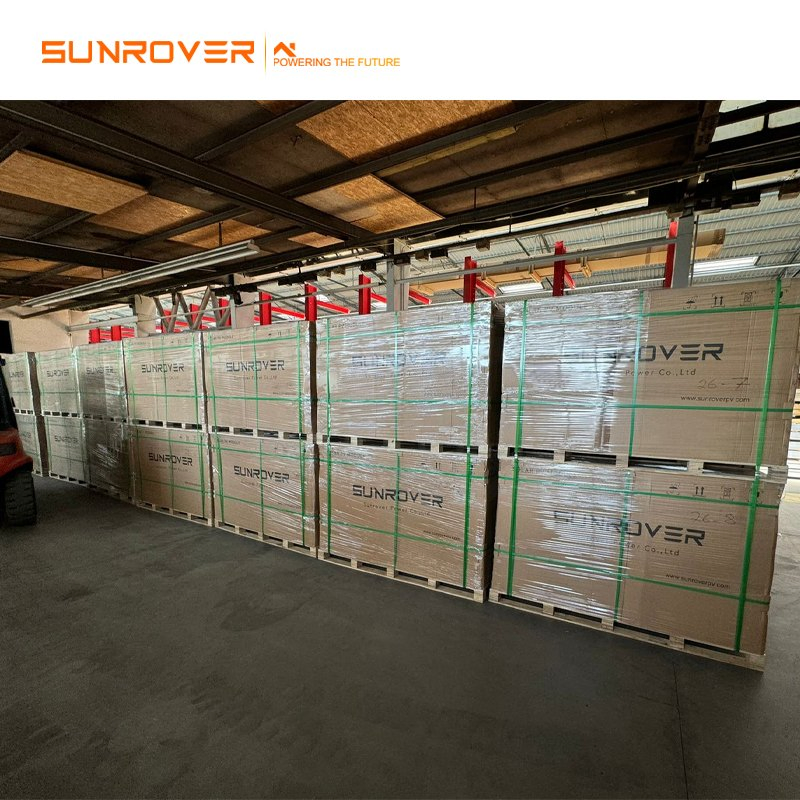

Solar Inverter Safe Shipping Preparation
Key Features & Benefits
✔
Triple Power Source Integration Intelligently manages solar, battery, and grid energy, ensuring uninterrupted power by seamlessly switching to battery backup in milliseconds during grid outages.
✔
Broad Battery Compatibility Compatible with high-voltage lithium and lead-acid batteries, offering flexibility and future-proofing. Easy connection and configuration enhance your energy storage system.
✔
Exceptional Efficiency & Yield Achieves over 98.5% efficiency with dual MPPT trackers, optimizing energy harvest even in suboptimal conditions for maximum return on investment.
✔
Smart Energy Management User-configurable modes like self-consumption, backup, and feed-in. Real-time monitoring and control via SolisCloud APP & web portal, with built-in WiFi/GPRS.
✔
Robust Design for Demanding Applications 3-phase output and high power (12kW, 15kW, 20kW) ideal for large homes, farms, workshops, and small to medium businesses.
✔
Generator Compatible Integrates with diesel/gas generators for secondary backup, ensuring peace of mind during prolonged bad weather or grid failures.
Manufacturing & Quality Control
Advanced Production Line
Product Quality Testing
Inverter Final Assembly
Certifications
International Quality Certifications
Frequently Asked Questions
What is the maximum efficiency of this hybrid inverter?
This hybrid inverter achieves an outstanding efficiency rating of up to 98.5% with dual MPPT trackers, optimizing solar energy harvest under various environmental conditions.
What types of batteries are compatible with this system?
The inverter supports a battery voltage range of 40V to 60V and is fully compatible with high-voltage lithium-ion and lead-acid battery storage systems.
Can this inverter run with external backup generators?
Yes, it is designed to integrate with diesel or gas generators to act as a secondary backup option, ensuring constant power during prolonged outages.
Is this system suitable for outdoor installation?
Absolutely. It features an IP66 ingress protection rating, meaning it is dust-tight and heavily protected against high-pressure water jets, making it suitable for tough outdoor conditions.
How can I monitor the energy yield of the inverter?
Real-time status tracking and configurations are accessible through the SolisCloud APP and web portal. The system supports WiFi, GPRS, CAN, RS485, and Ethernet connectivity.
What are the physical dimensions and weight of the unit?
The unit has overall dimensions of 430 × 660 × 305 mm and weighs 42 kg, allowing for secure wall-mounting setups.

Related Products

Smart Hybrid Solar Inverter for Enhanced Energy Efficiency and Savings

Smart Hybrid Solar Inverter for Enhanced Energy Efficiency and Savings

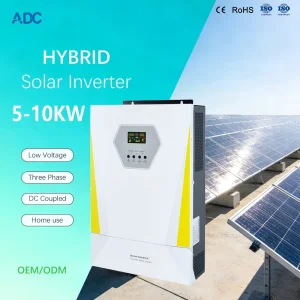

5kw/6kw/8kw/10kw 5000 Watt/6000 Watt/8000 Watt/10000 Watt Solar Hybrid Inverter
