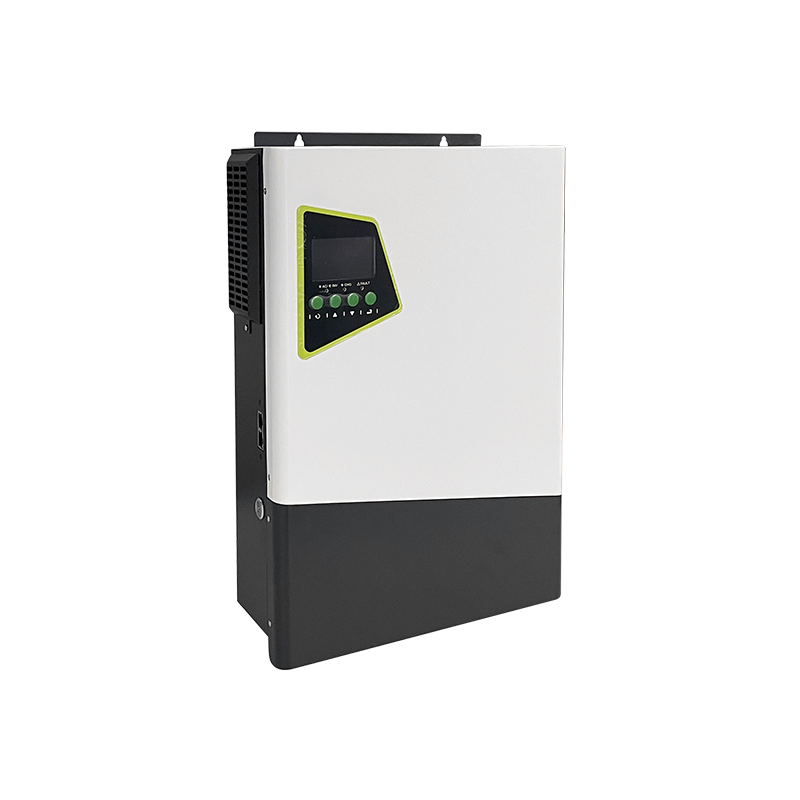

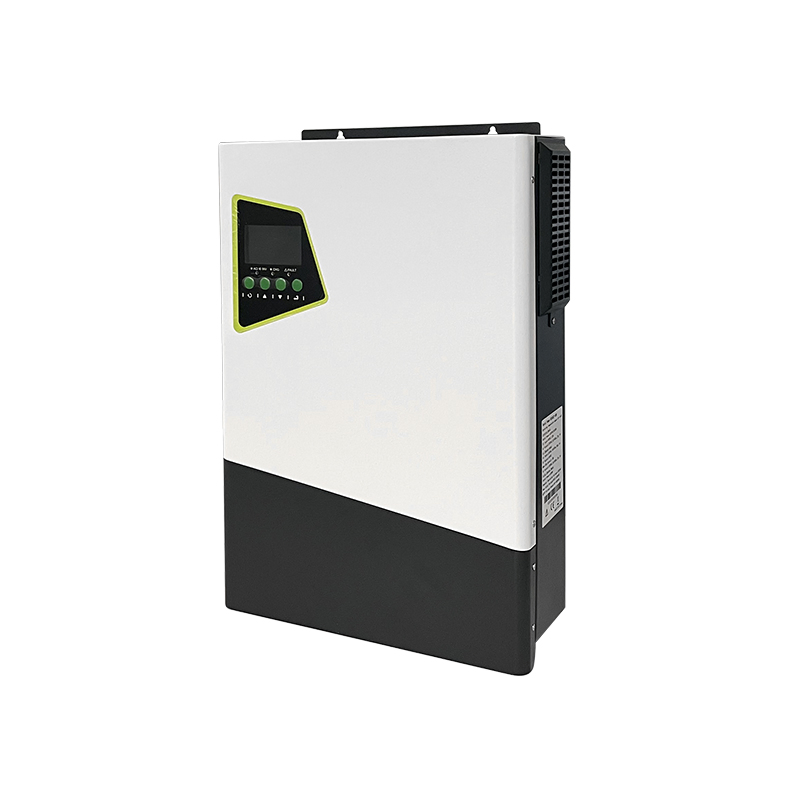

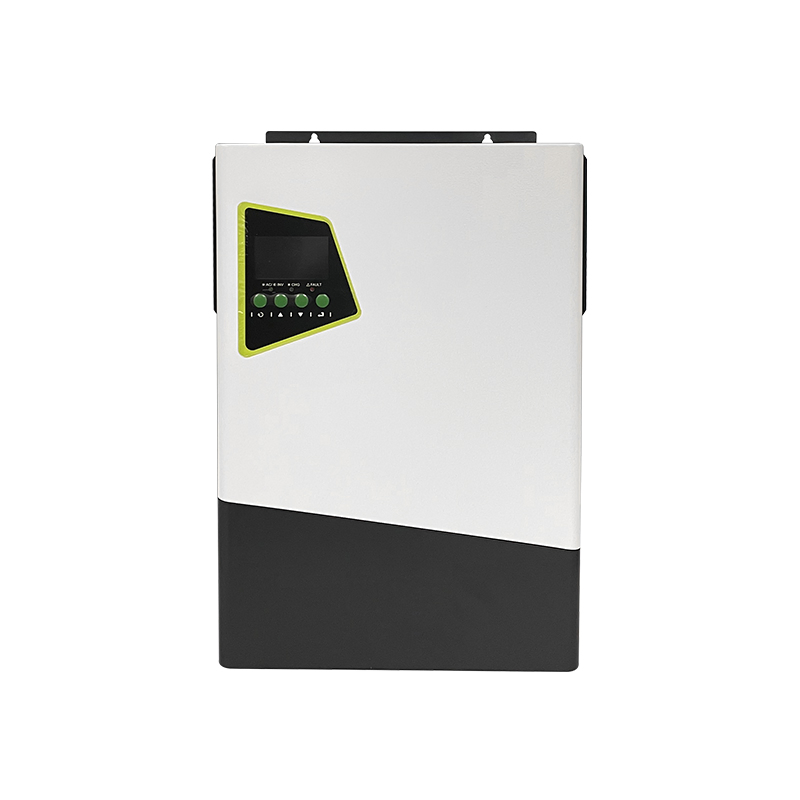

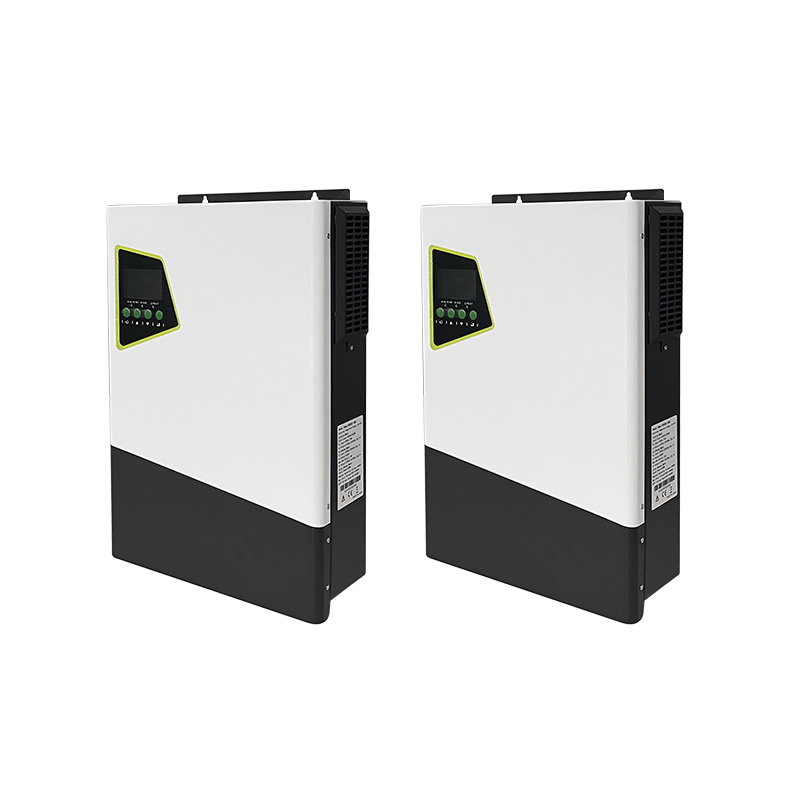

5kw 6.2kw off Grid Solar Hybrid Inverter 48V Pure Sine Wave Inverters

Basic Info

Model NO.

6248VMII

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

6.2kw

Certification

CE, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Product Name

Hybrid Inverter

Keywords

Solar Inverter

Parallel Function

No

AC Output Efficiency

93% (Peak)

Switchover Time

10ms (PC) ; 20ms (Home)

AC Output Wave

Pure Sine Wave

Battery Input Voltage

48VDC

Float Voltage

54VDC

Overvoltage Protection

63VDC

Solar Max. Input Voltage

320VDC/500VDC

AC Input Voltage

230VAC

AC Charger Frequency

50 Hz/60 Hz (Adaptive)

AC Charger Max Current

40A/80A

Weight

9.5kg

Communication Interface

RS485

Transport Package

Carton

Specification

Standard / Customized

HS Code

8504403090

Production Capacity

50000PCS/Year

Packaging & Delivery

Package Size

47.00cm * 35.00cm * 16.00cm

Package Gross Weight

10.800kg

Product Description

HYBRID INVERTER

A Hybrid Inverter integrates multiple power conversion functions in a single unit for comprehensive energy management solutions. This versatile system combines various power sources and automatically switches between different energy inputs to optimize performance.

The intelligent design provides reliable backup power and reduces energy costs through efficient power management. With automatic switching capabilities and comprehensive energy optimization, these systems deliver enhanced energy savings and reliable operation across diverse applications.

Multi-Source Integration

Combines different power sources in a single unit for comprehensive energy management, eliminating the need for separate components and reducing system complexity while providing a unified control solution.

Built-In Charge Control

Incorporates charge controller functionality to optimize energy harvesting from renewable sources, maximizing system efficiency and protecting batteries through intelligent charging management.

Dual Operation Modes

Supports both grid-connected and standalone operation for versatile installation options, providing flexibility for different applications and enabling energy independence in various environments.

Product Parameters

TECHNICAL PARAMETERS
Product Name	Hybrid Inverter
Keywords	Solar Inverter
Model		5048VMII	5548VMII	6248VMII
Rated Power		5KVA/5kW	5.5KVA/5.5kW	6.2KVA/6.2kW
Parallel Capability		No
AC Output
	Voltage (Battery Mode)	Single Phase 220VAC/230VAC/240VAC (Set adjustable, ±5%)
	Conversion Efficiency (Peak)	93%
	Switchover Time	10ms (PC) ; 20ms (Home)
	Waveform	Pure Sine Wave
Battery Input
	Battery Voltage	48VDC
	Float Voltage	54VDC
	Overvoltage Protection	63VDC
Solar Charger
	Max. Input Power	5kW	5.5kW	6.2kW
	MPPT Voltage Range	60~450VDC		60~500VDC
	Max. Input Voltage	320VDC/500VDC
	Max. Input Current	18A		27A
AC Charger
	AC Input Voltage	230VAC
	Voltage Range	90~280VAC (Home Appliance)/170~280VAC (PC)
	Frequency Range	50 Hz/60 Hz(Adaptive)
	Max. Charge Current	40A/80A
General Data
	Weight	9.5kg
	Communication Interface	RS485
	Appearance	With LCD Screen
	Max. Charge Current	100A/120A
Operating Environment
	Operating Temperature	0℃ ~+50℃
	Storage Temperature	-30℃ ~+70℃
	Humidity	5%~95% Relative Humidity (Non Condensing)
	Protection Level	IP20
Packaging Size		590×380×200mm

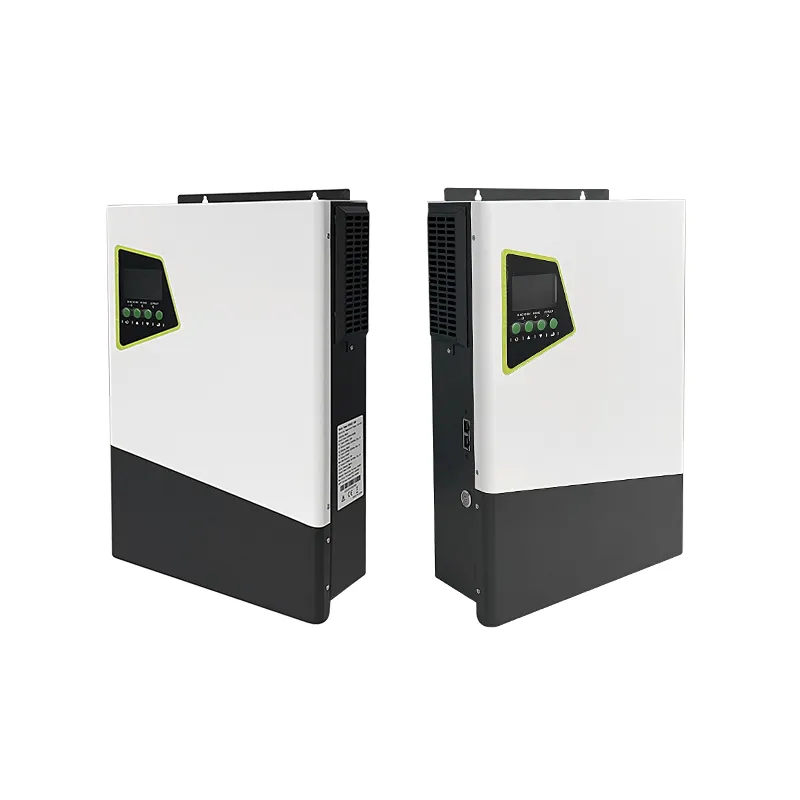

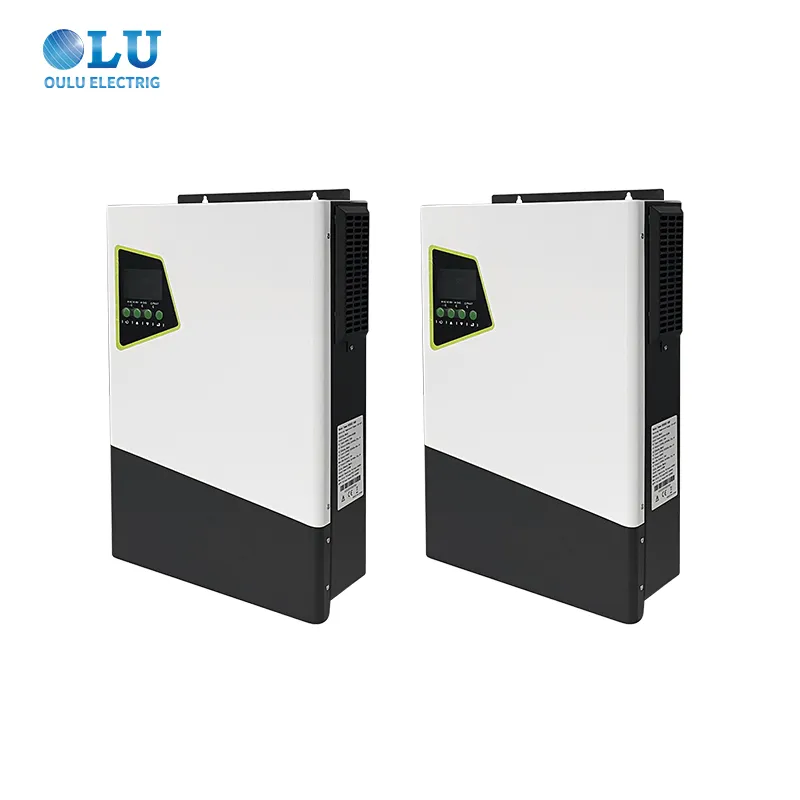

Detailed Photos

Energy Cost Savings

Reduces electricity expenses through intelligent load management and peak shaving capabilities, minimizing grid consumption during high-rate periods for enhanced economic benefits.

High Conversion Efficiency

Delivers superior power conversion performance with minimal energy loss, maximizing overall system output and ensuring optimal energy utilization across all operating conditions.

Wide Input Range

Accommodates various source configurations with flexible input specifications, ensuring compatibility with different system designs and component selections for versatile applications.

Comprehensive Safety

Incorporates multiple protection functions, including voltage, current, and temperature safeguards, ensuring reliable operation and protecting equipment from potential damage.

Frequently Asked Questions

Q: Are you a professional factory for these solar inverters?

Yes, we are a professional factory specializing in producing high-quality solar inverters and storage batteries.

Q: How can I select the right model for my power needs?

Please get in touch with us before purchasing to confirm the required model number and technical specifications. We will help you select the exact match to avoid any compatibility issues.

Q: What are your standard shipping and delivery methods?

We regularly ship goods via sea freight, air freight, and express couriers (such as DHL, UPS, FEDEX, or EMS). We also facilitate designated logistics appointments requested by customers.

Q: Can I request a sample to test performance before bulk ordering?

Yes, sample units are available and can be offered for evaluation and performance testing.

Q: Do you offer customized OEM or ODM options?

Yes, we feature an internal research and development department that actively supports customized OEM and ODM requests.

Q: What is the standard product warranty period?

Our solar hybrid inverters come with a comprehensive 12-month warranty, including full technical support to assist you with any operation or troubleshooting issues.
