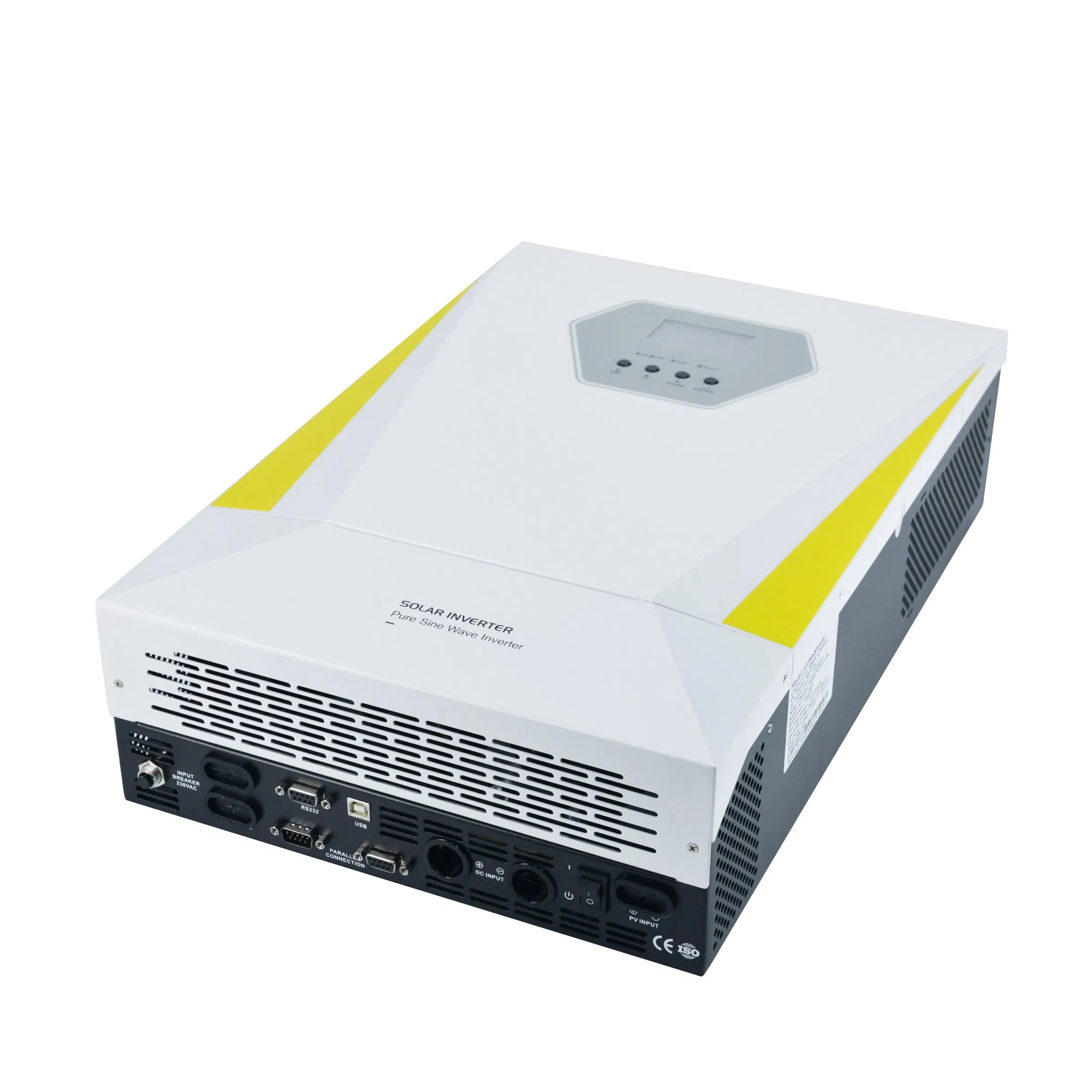

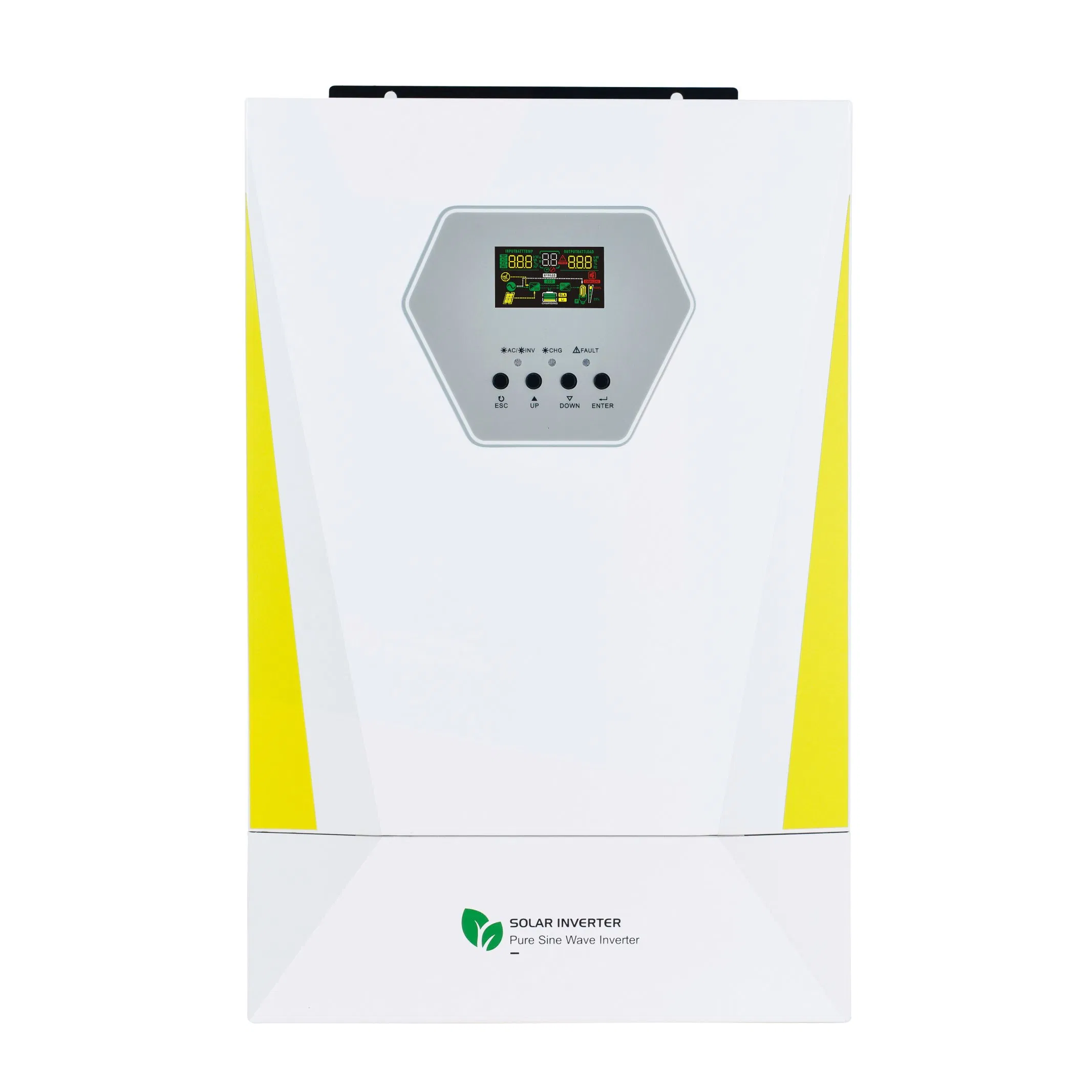

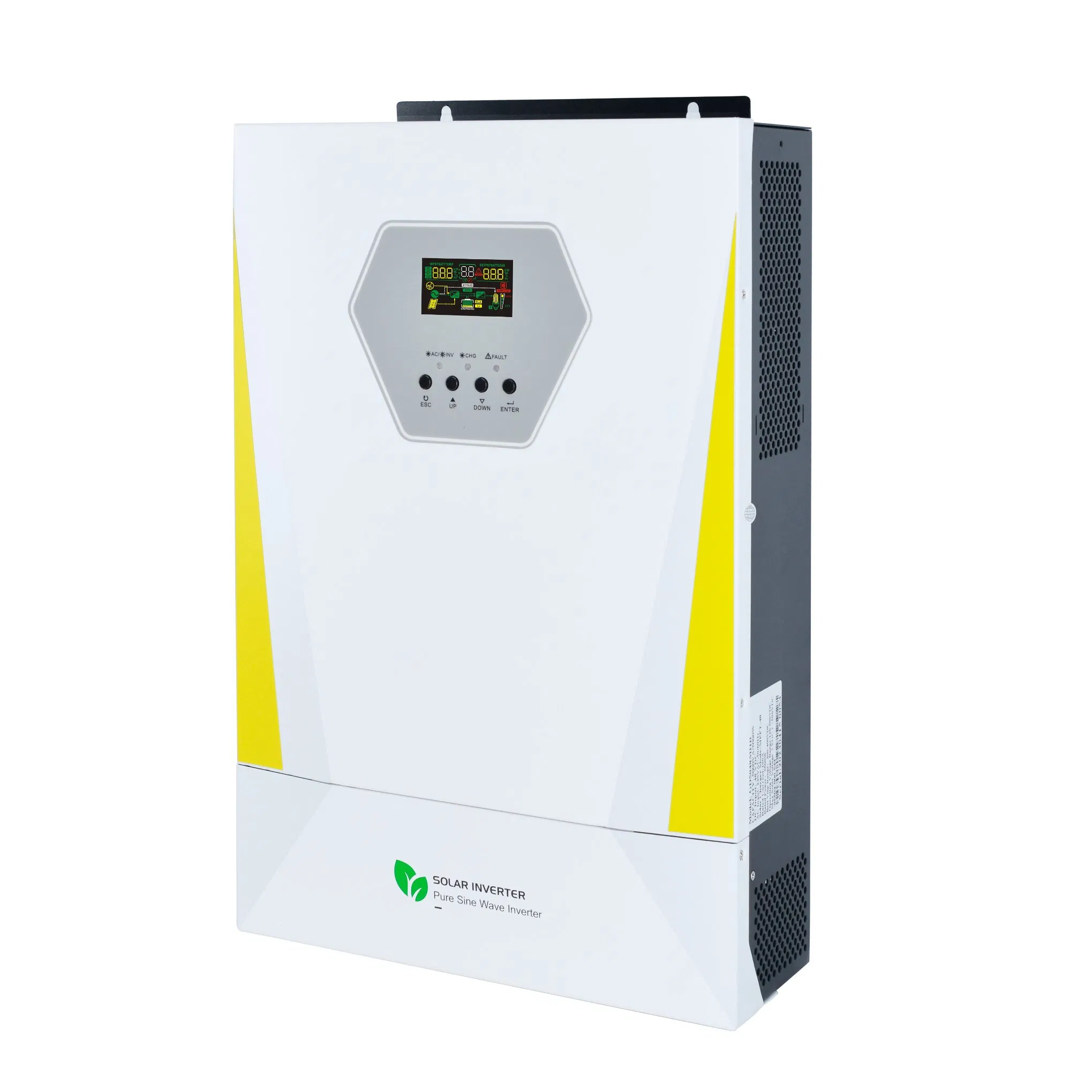

Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter

Basic Info.

Model NO. GD Series B

Nature of Source Flow Active Inverter

Phase Single

Output Power >1000W

Certification CE

Type DC/AC Inverters

Power Source Solar Power

Circuit Topologies Full-Bridge Type

Nature of Wave String Sine Wave Inverter

AC Input 220/230/240VAC

Input Formation L+N+PE

Input Frequency 50-60Hz (Adaptive)

Output Wave Pure Sine Wave

OEM&ODM Accept

Transport Package Carton

Specification 570*500*148mm

Origin China

Packaging & Delivery

Package Size 57.00cm * 50.00cm * 14.80cm

Package Gross Weight 10.000kg

Product Description

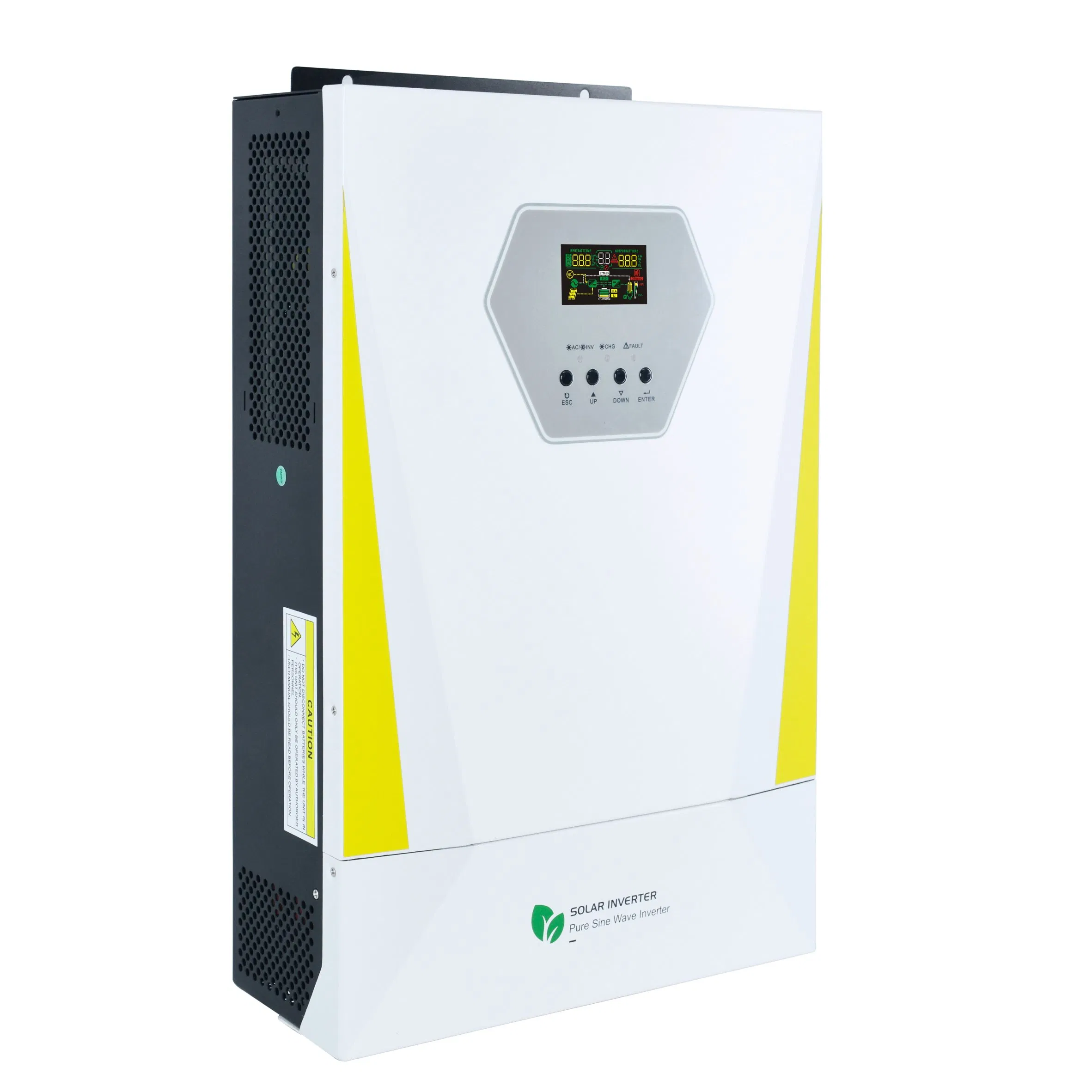

Custom Off Grid Hybrid Solar Inverter 11KW Home Energy Storage Solar Power Inverter

Product Features

Lithium battery self-starting, better match lithium battery charging.
Intelligent power supply mode, intelligent distribution of solar panels/mains/battery power ratio.
The mains charging voltage/PV charging voltage intelligently adjustable, to accurately match the charging requirements of various batteries.
Convenient for installation and transportation.

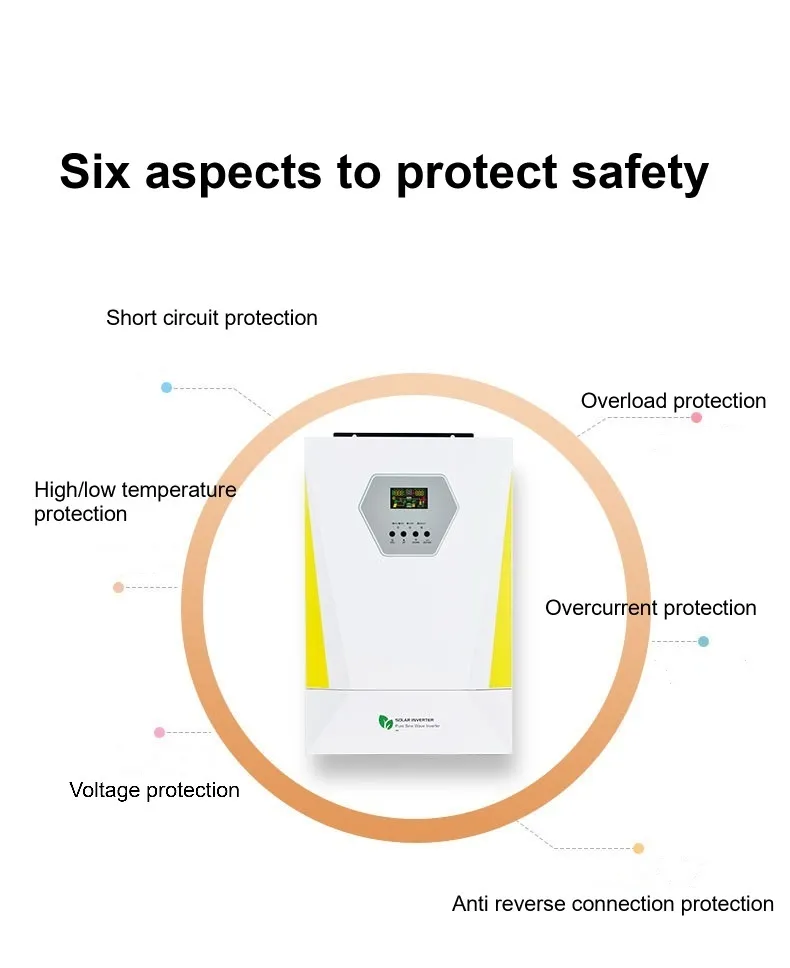

Battery reverse connection protection with fuse switch, safer installation.
PF1.0, high efficiency inverter, low loss energy saving/environmental protection/power saving/cost saving.
Support work without battery: Reduce system costs.

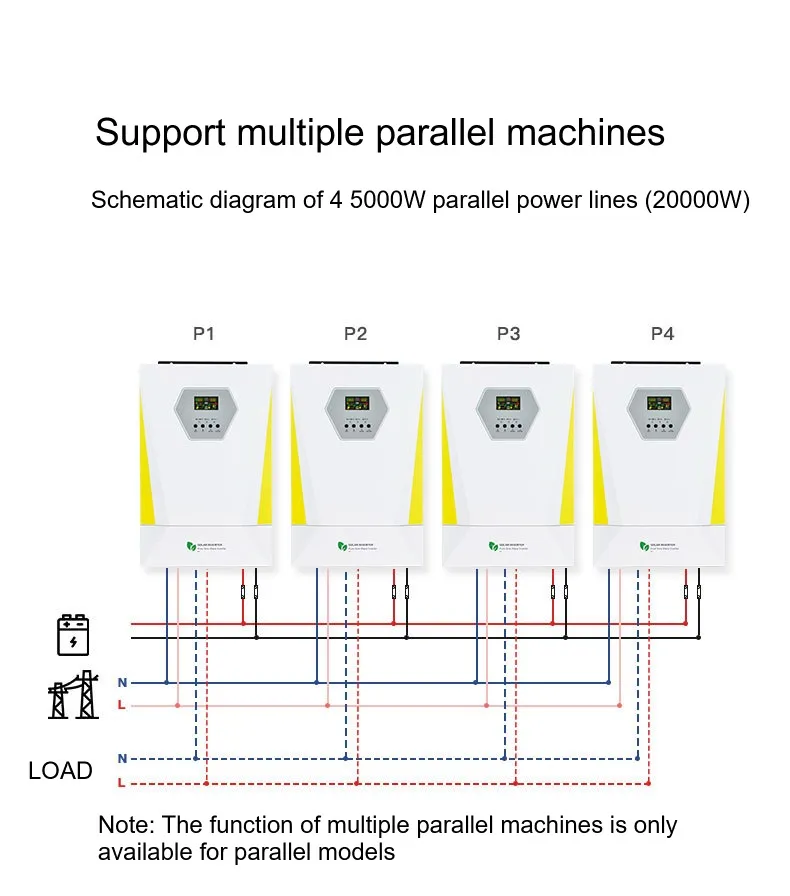

Up to nine parallel machines can support the load of larger capacity, and the expansion is simple.
Lithium battery BMS protocol.
Can be connected to external wifi, real-time data monitoring.

Product Parameters

Solar Inverter GD Series B (5500-11000W)
Model		GD5548JMHB	GD6248JMHB	GD8648MHB	GD11048MHB
Input voltage	Input formation	L+N+PE
	AC input	220/230/240VAC
	Input voltage range	90-280VAC±3V(Normal mode) 170-280VAC±3V(UPS mode)
	Frequency	50-60Hz (Adaptive)
Output	Rated power	5500W	6200W	8600W	11000W
	Output voltage	220/230/240VAC±5%
	Output frequency	50-60Hz±1%
	Output wave	Pure sine wave
	Transfer time	10ms for computer equipment, 20ms for household equipment
	Peak power	11000W	12400W	17200W	22000W
	Overload ability	Battery mode: 2s@105%-150% load, 1s@150%-200% load, 400ms@>200% load
Grid connected	Output voltage	220/230/240VAC
	Grid voltage range	195-253VAC
	Grid frequency range	49-51±1Hz/59-61±1Hz
	Output current	23.9A	26.9A	34.7A	47.8A
	Power factor range	>0.99
	DC/AC efficiency	98%
Battery	Rated voltage	48VDC
	Constant charging	56.4VDC
	Float charging	54VDC
Charger	PV charging method	MPPT	MPPT	MPPT*2	MPPT*2
	Max PV input	6200W	6200W	2*5500W	2*5500W
	MPPT tracking range	60-500VDC	60-500VDC	90-500VDC	90-500VDC
	Best VMP range	300-400VDC	300-400VDC	300-400VDC	300-400VDC
	MAX PV input voltage	500VDC	500VDC	500VDC	500VDC
	MAX PV input current	18A	18A	18A/18A	18A/18A
	MAX PV charge current	100A	120A	150A	150A
	MAX AC charge current	60A	100A	120A	150A
	MAX charge current	100A	120A	150A	150A
Display	LCD	Operating mode/load/input/output
Interface	RS232	5pin/2.54mm pitch, baud rate 2400
	Expansion slot	Lithium battery BMS card, WIFI, 2*5pin/2.54mm pitch
	Parallel interface	Support parallel
Environment	Operating temperature	-10°C to 50°C
	Storage temperature	-15°C to 60°C
	Work altitude	≤1000m (derated above 1000m, max 4000m ref to IEC62040)
	Humidity	20%-95% Non condensing
	Noise	≤50db
Dimension	LWH(mm)	495312146mm		570500148mm
Standards		EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1

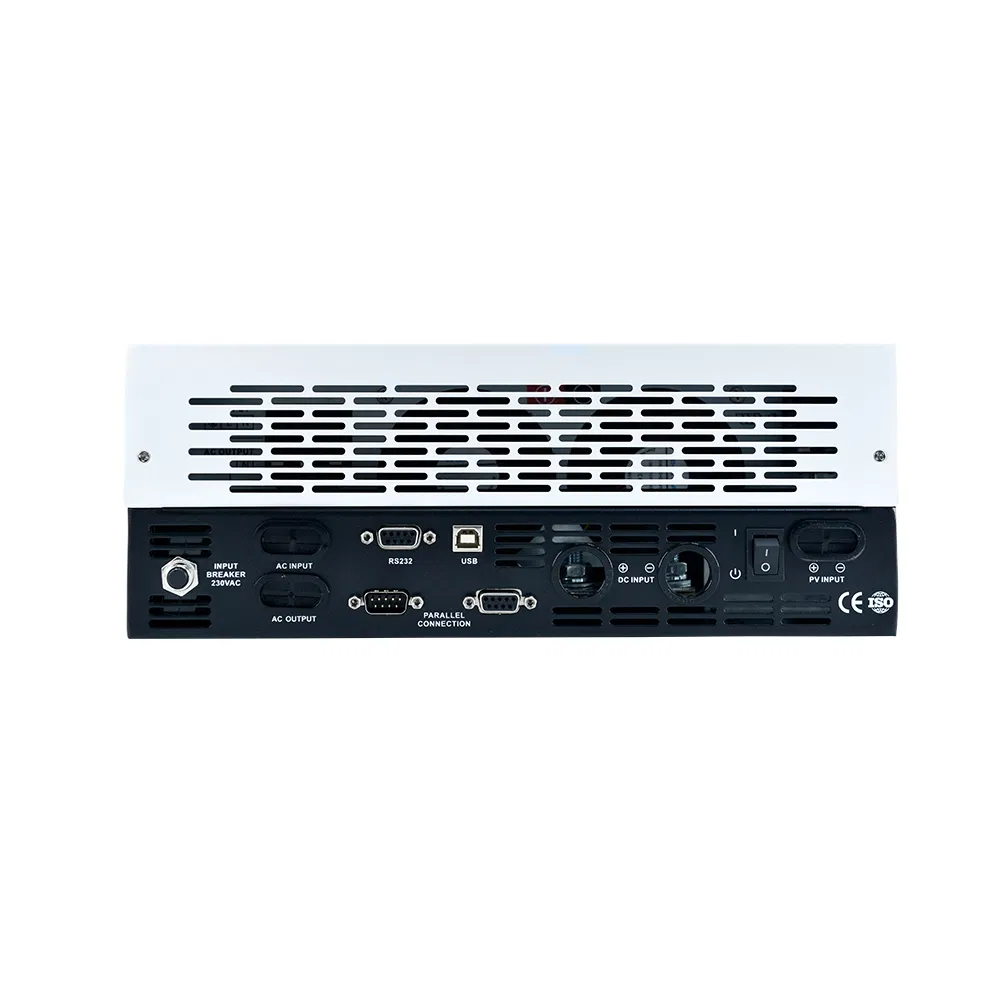

Detailed Photos

Company Profile

After more than 6 years of development, it has become a comprehensive integration of industry and trade company, which engaged in design, development and production of various pipeline system and connectors professionally. High-quality matched products and excellent services are provided for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, electrical installations etc.

The excellence of every detail is the root of excellent quality. Strong technical force, advanced technique of production and complete testing equipment support our operations. We maintain "Excellent quality, Exceeding customer needs" business purposes. A quality system according to the ISO9001 international standards has been established, which is applied in the whole process control of product design, manufacturing and service. All supply chains have obtained TUV Certification and the Quality Certification of ISO9001 international quality system. The products have passed EU CE Certification, conforming to the ROHS standards and SGS Environmental Protection Certification, exported in the Middle East, Southeast Asia, the European Union, the United States, Australia, South America and other countries and regions.

We are engaged in the supply of electrical products with the quality of "Safe, Reliable, Suitable and Steady", observing the commitment of "Leader in science and technology, Honest operation, Quality and Customer first", providing high quality and sincere services for new and old, domestic and foreign customers.

FAQ

Are you a factory or just a trading company?

Manufacturer, and we focus on the development and production of electrical industry for more than 10 years.

Is customized service available?

Of course, OEM & ODM both are available.

How can I get the quotation?

Leave us a message with your purchase requirements and we will reply to you within one hour during working hours. You may also contact us directly by Trade Manager.

Can I buy one as a sample?

Yes, of course.

How about your quality control?

Our professional QC team will check the quality during production and conduct strict quality tests before shipment. An inspection report goes along with every shipment.

What are the main output features of this hybrid solar inverter?

It features a pure sine wave output with high inverter efficiency (PF1.0), low loss energy-saving design, and supports connection configurations both with and without battery systems.
