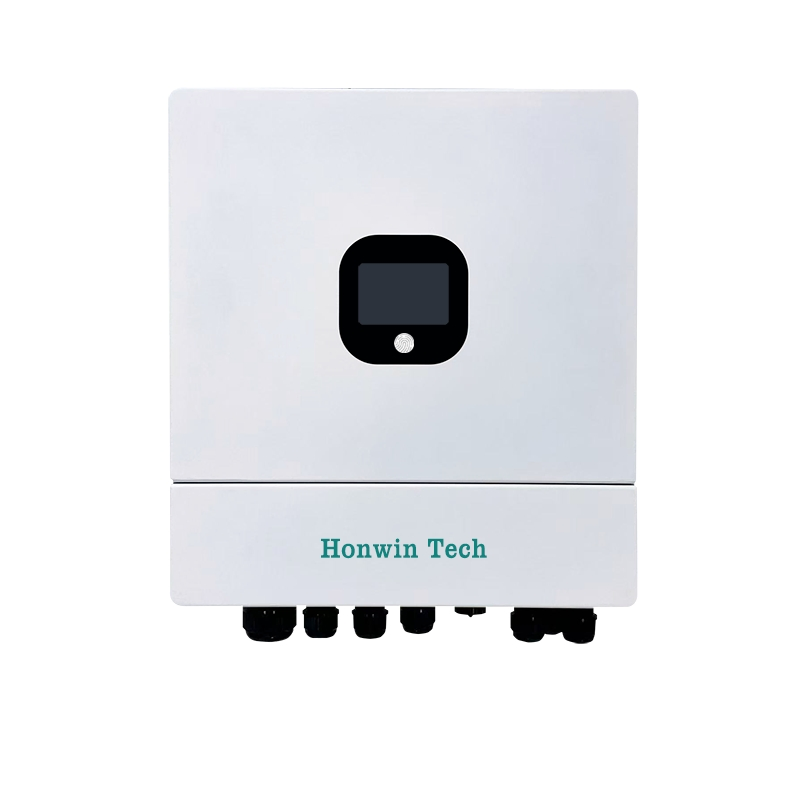

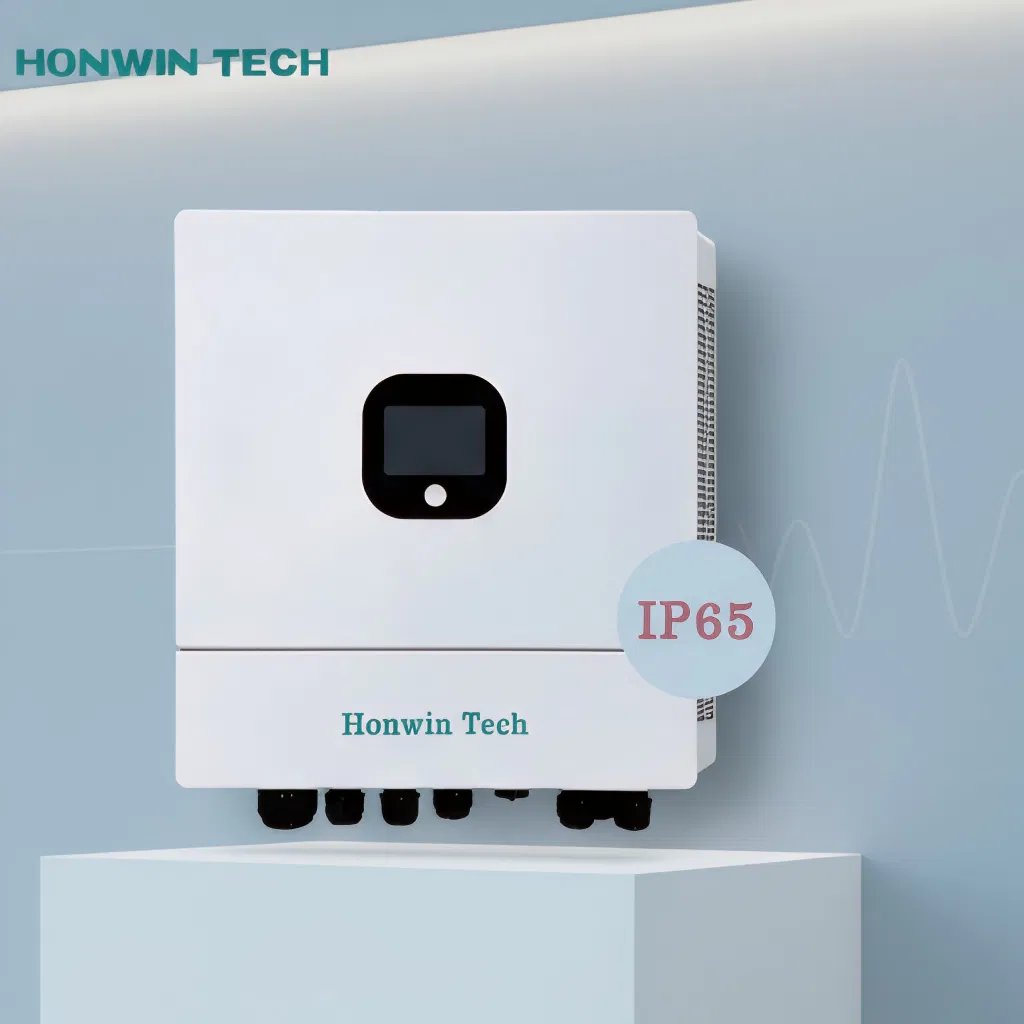

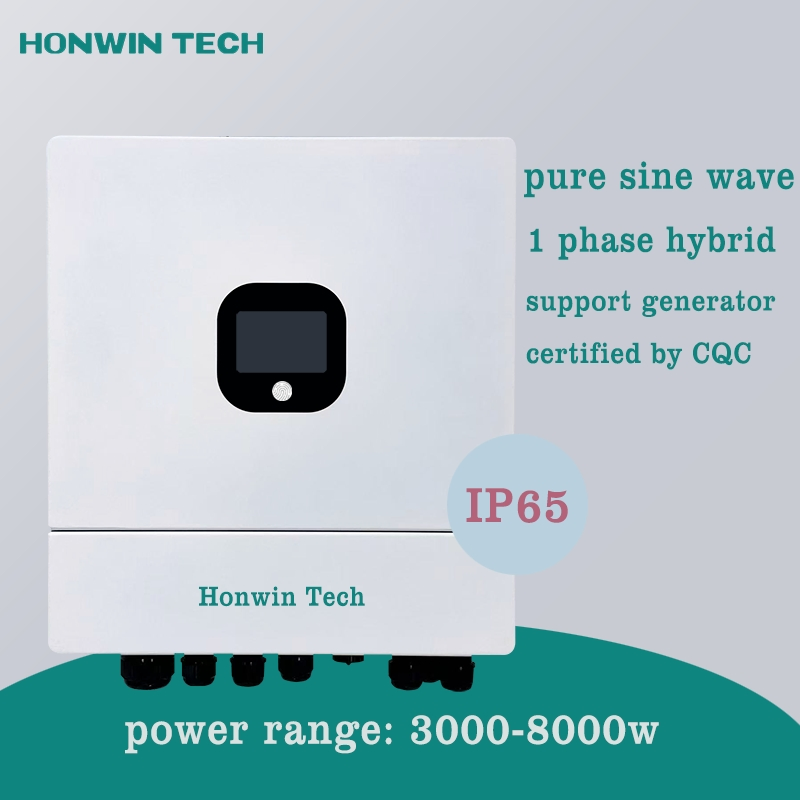

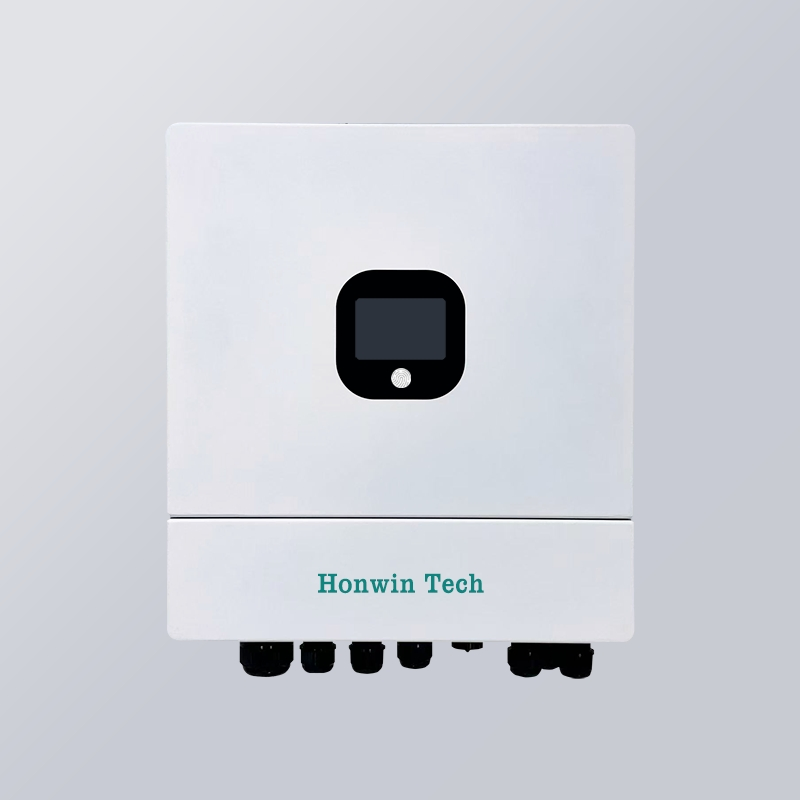

Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
1 / 5
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control
Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control

Customizable Hybrid Solar Inverter: 4-11HP, 3kw 3.38kw 4kw 5kw 6kw 8kw Energy Storage IP65 Water Proof, Generator Supported, with Batteries and APP Control

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview
Model Range
S5 Series 3-8kW
Output Power
>1000W
Protection Grade
IP65 Waterproof
Certification
CE Certified
Model NO.
S5 Series 3-8kW, 4-11HP
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Power Range
3kw, 3.68kw, 4kw, 5kw, 6kw, 8kw
Length
Normal, Lengthened
Power
3-8kw
Protection Grade
IP65 Dust and Water Resistant
Color
White
Volume
Small
Transport Package
Cartons
Specification
Medium size
HS Code
8507600090
Production Capacity
1000
Packaging & Delivery
Package Size
404.00cm * 367.00cm * 195.00cm
Package Gross Weight
22.000kg
Product Description

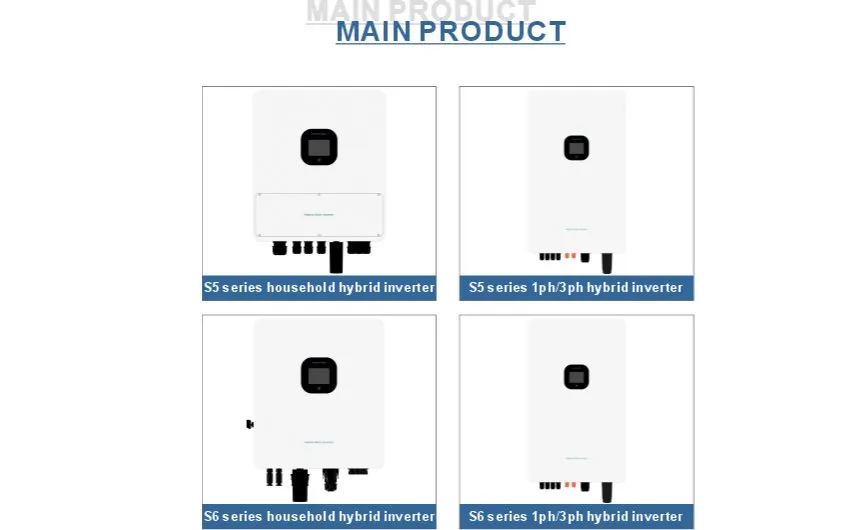

Hybrid Solar Inverter Overview
Household Energy Storage Inverter

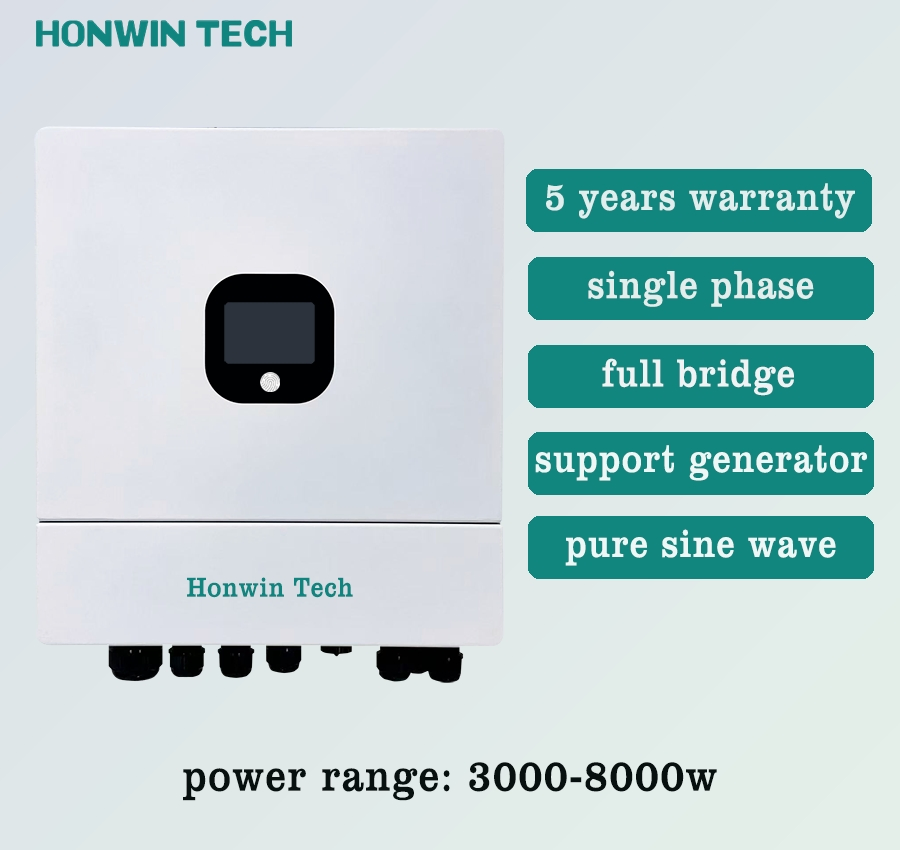

S5 Series Household Energy Storage Inverter
The S5 series household energy storage all-in-one machine is designed to provide you with an intelligent and convenient all-in-one photovoltaic energy storage solution. Based on advanced power conversion and energy storage technology, important components such as off-grid energy storage inverters, switch boxes, and batteries feature an elegant and unique appearance. They adopt a modular design, a simple internal wiring method, and are extremely convenient to install and use. With an intelligent and easy-to-operate working mode and a remote intelligent operating system, they can perfectly integrate into modern smart home life.
Technical Parameters S5-3K-S65 S5-3.68K-S65 S5-4K-S65 S5-5K-S65 S5-6K-S65 S5-8K-S65
Efficiency Efficiency Parameters
Max efficiency 97.60% 97.60% 97.60% 97.60% 97.60% 97.60%
Euro efficiency 97.00% 97.00% 97.00% 97.00% 97.00% 97.00%
MPPT efficiency 98.90% 98.90% 98.90% 98.90% 98.90% 98.90%
Max. charge and discharge efficiency 94.30% 94.30% 94.20% 94.20% 94.00% 94.00%
DC (PV) Input DC Input Parameters
Max. input power 4500W 5500W 6000W 7500W 9000W 12000W
Max. DC input voltage 550V
Start-up voltage 90V
MPPT voltage range 90V ~ 550V
Rated input voltage 360V
Max. Input current per MPPT 21A 27.8A
Max. Short-circuit current per MPPT 29A 38.8A
MPPT quantity 2
Number of input strings per MPPT 1
AC Input/Output (Power Grid) AC Grid Parameters
Rated output power 3000W 3680W 4000W 5000W 6000W 8000W
Max. Apparent power 3300VA 4048VA 4400VA 5500VA 6600VA 8800VA
Rated grid voltage 220V/230V, L+N+PE
Rated grid frequency/range 50Hz/60Hz,±5Hz
Max. Output current 13.6A 16.7A 18.4A 22.7A 27.2A 36.4A
Maximum Input Power of the Grid 9000W
Maximum input current of the grid 41A
Power factor ~ 1(0.8 lead, 0.8 lag)
Switch Time <10ms
Harmonic <3%
Generator Input Generator Parameters
Max. Input power 3000W 3680W 4000W 5000W 6000W 8000W
Rated input current 13.6A 16.7A 18.4A 22.7A 27.2A 36.4A
Rated input voltage 220V/230V
Rated input frequency 50Hz/60Hz
Battery Parameters Battery Specs
Battery type Lithium battery/Lead-acid battery
Battery voltage range 40V ~ 60V
Rated Battery Voltage 48V
Max. Charge/Discharge current 60A 80A 80A 120A 120A 160A
Max. Charge power 3000W 4000W 4000W 6000W 6000W 8000W
Max. Discharge power 3000W 4000W 4000W 6000W 6000W 8000W
Protection & Features Built-in Protections
Generator function Possess
DC/AC surge protection Class II
DC/AC lightning protection Class II
Battery over-voltage/under-voltage protection Possess
Grid over/under-frequency protection Possess
Prevent counter current protection Possess
AC output over-current protection Possess
AC output over-voltage protection Possess
Anti-islanding protection Possess
Overheat protection Possess
GFCI Protection Optional
Basic parameters Physical & Environment Parameters
Certification and Licensing CQC
Dimension (W*H*D) 365*415*191mm
Weight(without battery) 19kg 19kg 19kg 20kg 21kg 21kg
Installation mode Wall mounting
Operating temperature range -25℃~ +60℃(>45℃ derated)
Relative operating humidity 0%RH ~ 100%RH
Max. Operation altitude 4000m (>2000m derated)
Night self-consumption of electricity <10W
Topology Battery (low voltage) side isolation
Cooling mode Intelligent Air cooling
Human-Machine interaction LCD, APP/WIFI(optional)
Protection grade IP65
Communication method CAN(BMS); RS485(meter/CT); CAN (parallel); 2*DI; 2*DO
Inverter Wiring Design
Inverter Structure Detail 1 Inverter Structure Detail 2 Inverter Structure Detail 3 Inverter Structure Detail 4
FAQ
Q1 Can I use my own logo or design on the product?
Yes, we offer OEM/ODM services; Your logo and design can be made on the product.
Q2 Do you offer customization or OEM/ODM services?
Yes, we are a professional manufacturer, providing customers with customization and OEM/ODM services.
Q3 May I obtain the sample?
Yes, for sure.
Q4 How is the production capacity?
We have five production lines, capable of manufacturing approximately 3,000 pieces of equipment per month, and can reasonably handle large orders.
Q5 When will the goods be dispatched?
All of our products are in stock. Depending on the machine type, if the number of units is less than or equal to 100, we can ship them within 15 days.
Q6 What certifications do the products have?
Our products are certified with CE and CQC, ensuring adherence to strict quality and safety standards.
