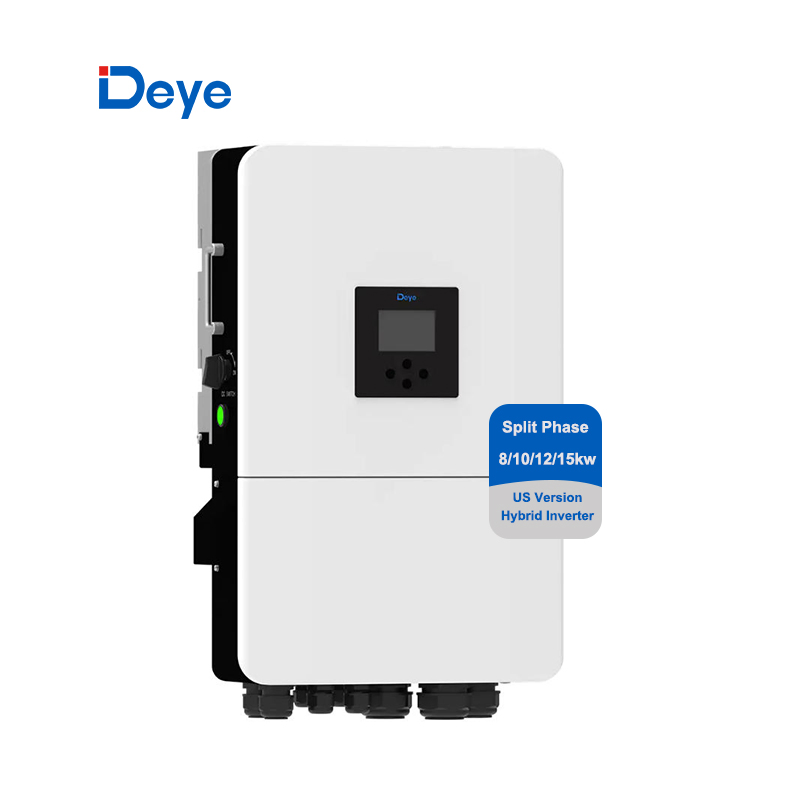

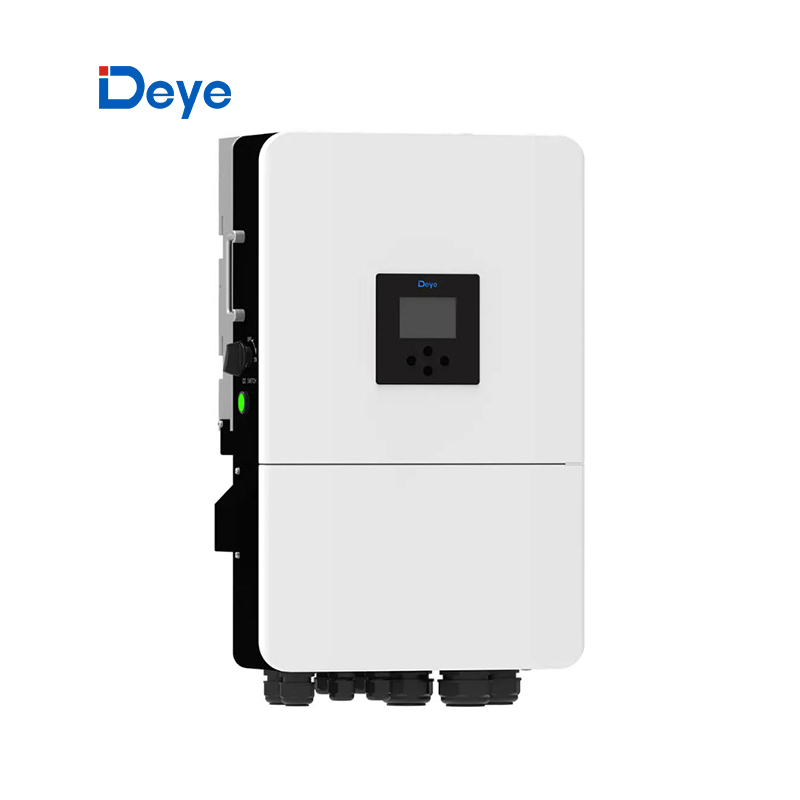

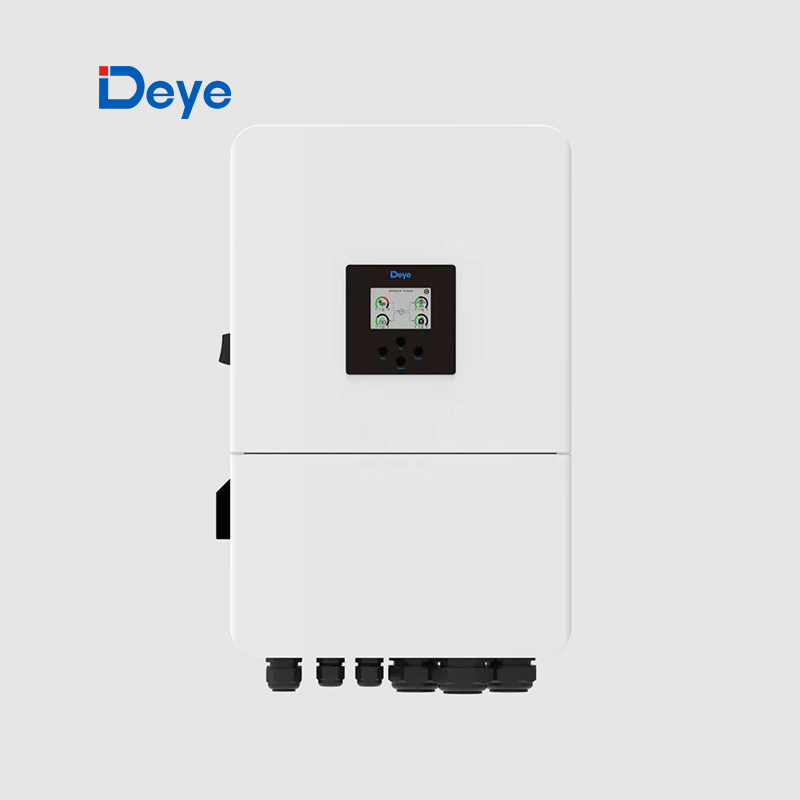

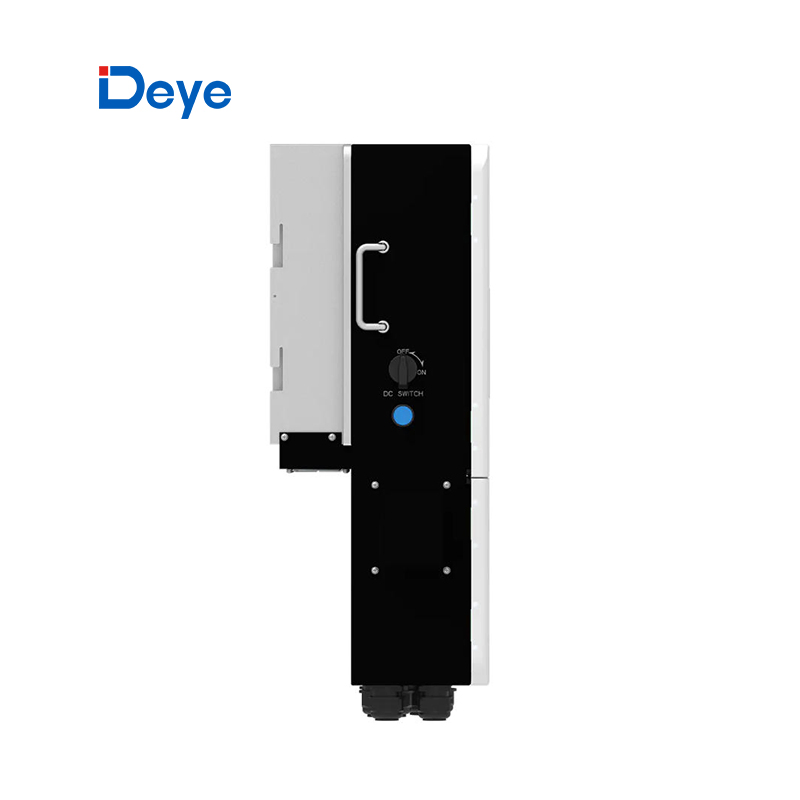

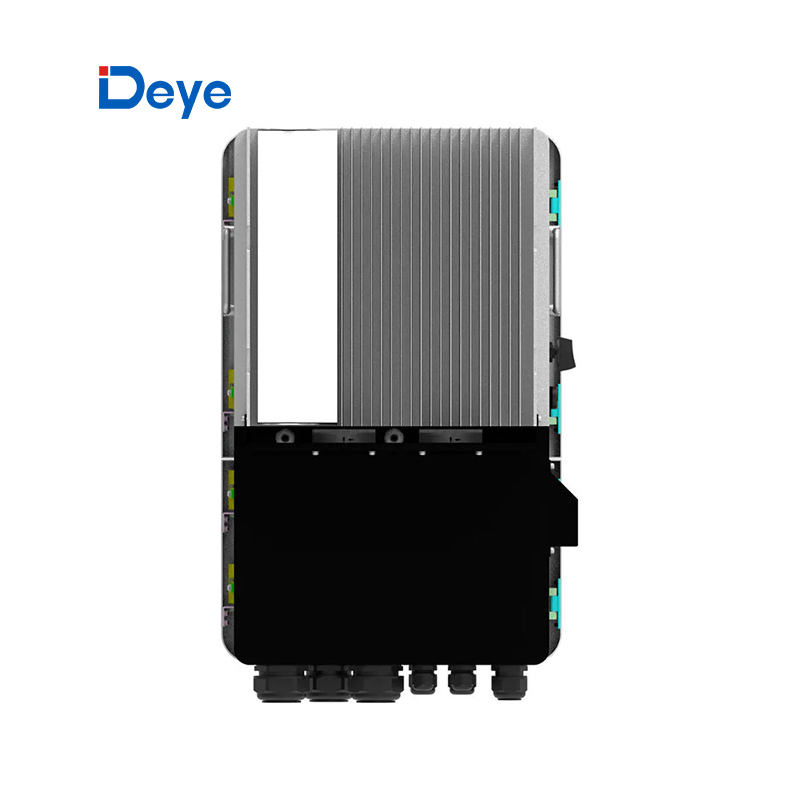

Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
1 / 5
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter
Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter

Deye Us Version Sun-8/10/12/15K-Sg01HP2-Us-Am2 Split Phase 120V/240V 8kw 10kw 12kw 15kw High Voltage Hybrid Solar Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview
Model NO.
SUN-8/10/12/15K-SG01HP2-US-AM2
Nature of Source Flow
Active Inverter
Phase
Split Phase
Output Power
8-15kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Inverter Efficiency
97.6%
Output Voltage
120/240V, 208V 0.85un-1.1un
Cooling
Intelligent Air Cooling
Battery Voltage
160-500V
Product Description

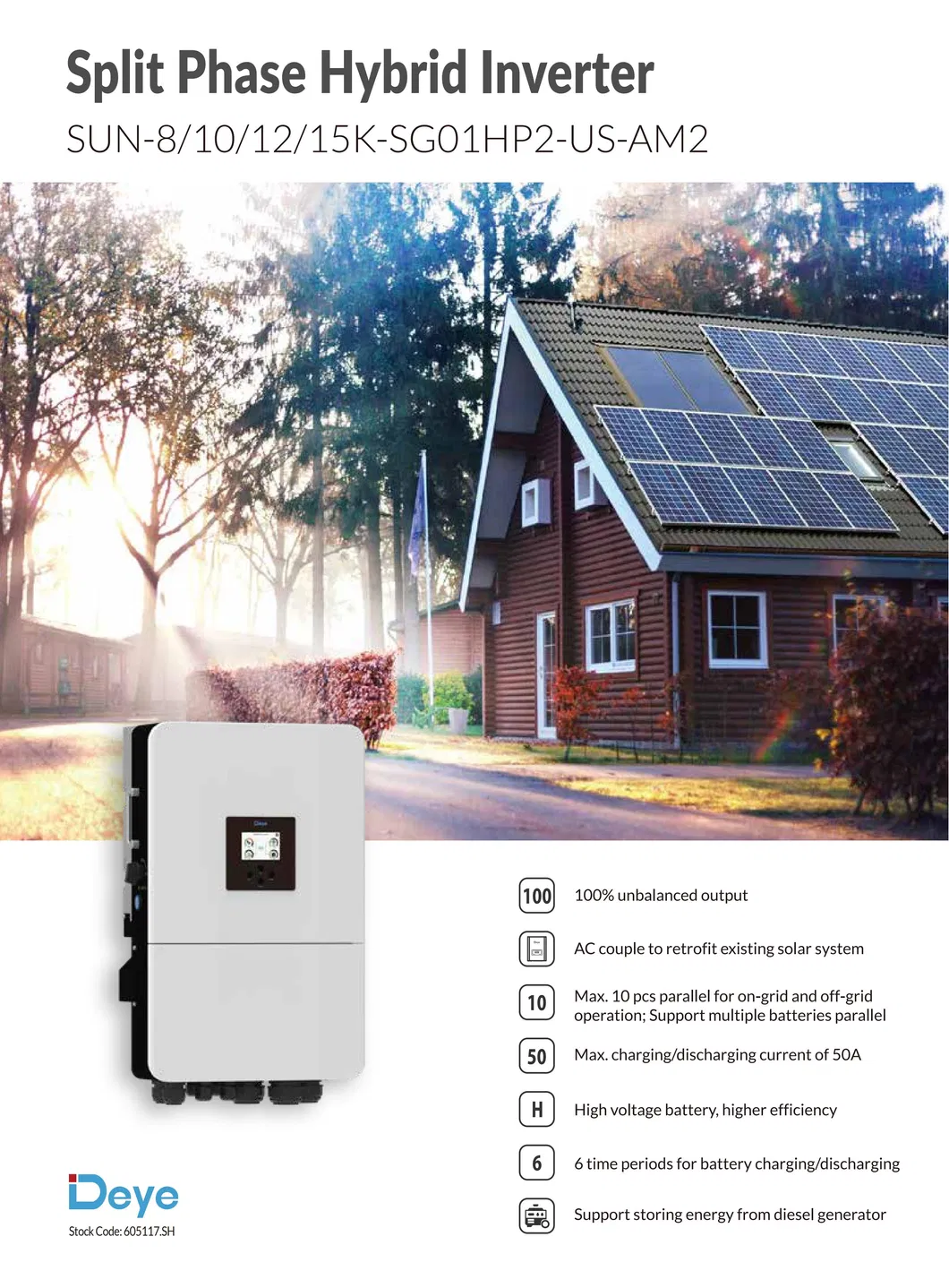

Split Phase 120V/240V 8kw-15kw High Voltage Hybrid Solar Inverter
Hybrid Solar Inverter
Product Parameters
Model SUN-8K-SG01HP2-US-AM2 SUN-10K-SG01HP2-US-AM2 SUN-12K-SG01HP2-US-AM2 SUN-15K-SG01HP2-US-AM2
Battery Type Lithium-ion
Battery Voltage Range (V) 160-500
Max. Charging/Discharging Current (A) 50
Max. PV Input Power (W) 12000 15000 18000 22500
Max. PV Input Voltage (V) 550
MPPT Voltage Range (V) 150-500
Rated Output Power (W) 8000 10000 12000 15000
Max. Efficiency 97.6%
Ingress Protection TYPE3R
Packaging & Shipping
Packaging Details
Package Size
50.00cm * 75.00cm * 35.00cm
Package Gross Weight
40.000kg

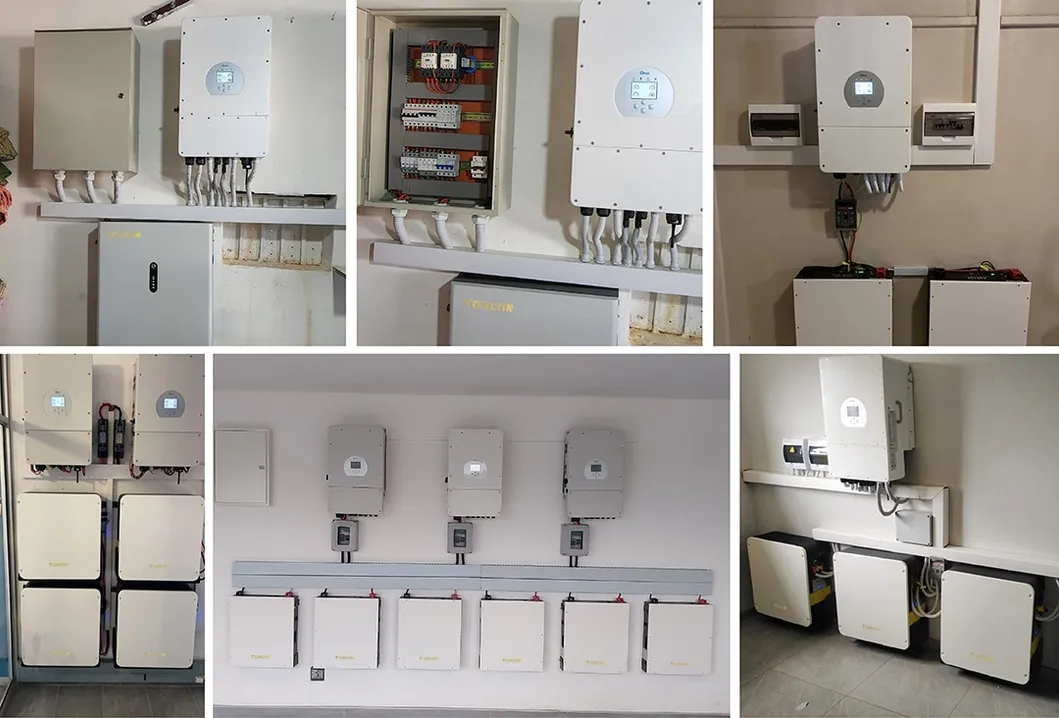

Project Case
Installation Project Case
Frequently Asked Questions
What is the compatible battery voltage range for this hybrid inverter?
This inverter supports a high voltage battery range of 160V to 500V, making it compatible with various lithium-ion battery systems.
Does the inverter support split-phase power systems?
Yes, it is designed for split-phase systems, supporting 120V/240V and 208V output, which is standard for the US market.
What is the maximum efficiency of this series?
The inverter achieves a maximum efficiency of 97.6% with an MPPT efficiency of over 99%.
What type of cooling system is integrated?
It uses an Intelligent Air Cooling system to maintain optimal operating temperatures even in demanding environments.
What is the maximum PV input power supported?
Depending on the model, the maximum PV input power ranges from 12,000W for the 8kW model up to 22,500W for the 15kW model.
Is the inverter protected against harsh weather?
Yes, the unit features a TYPE3R Ingress Protection rating and is designed to operate in temperatures ranging from -40 to +60ºC.
