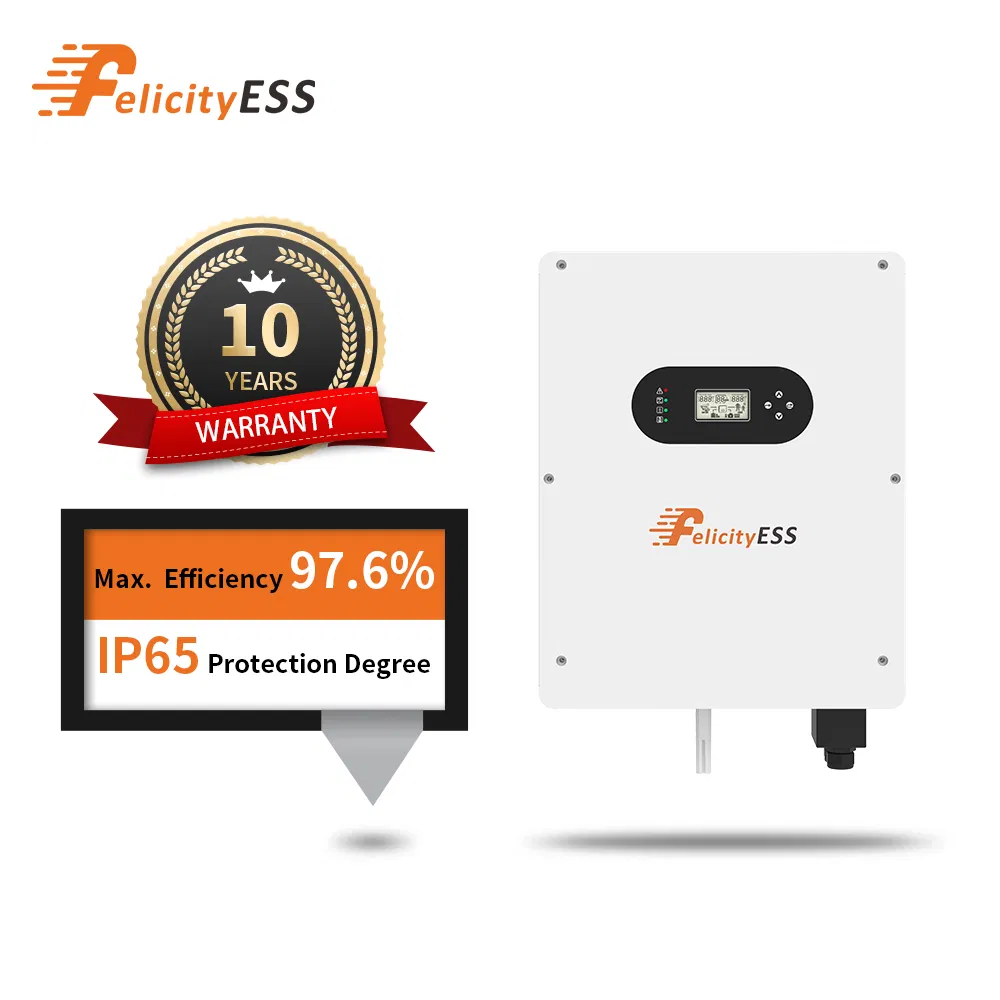

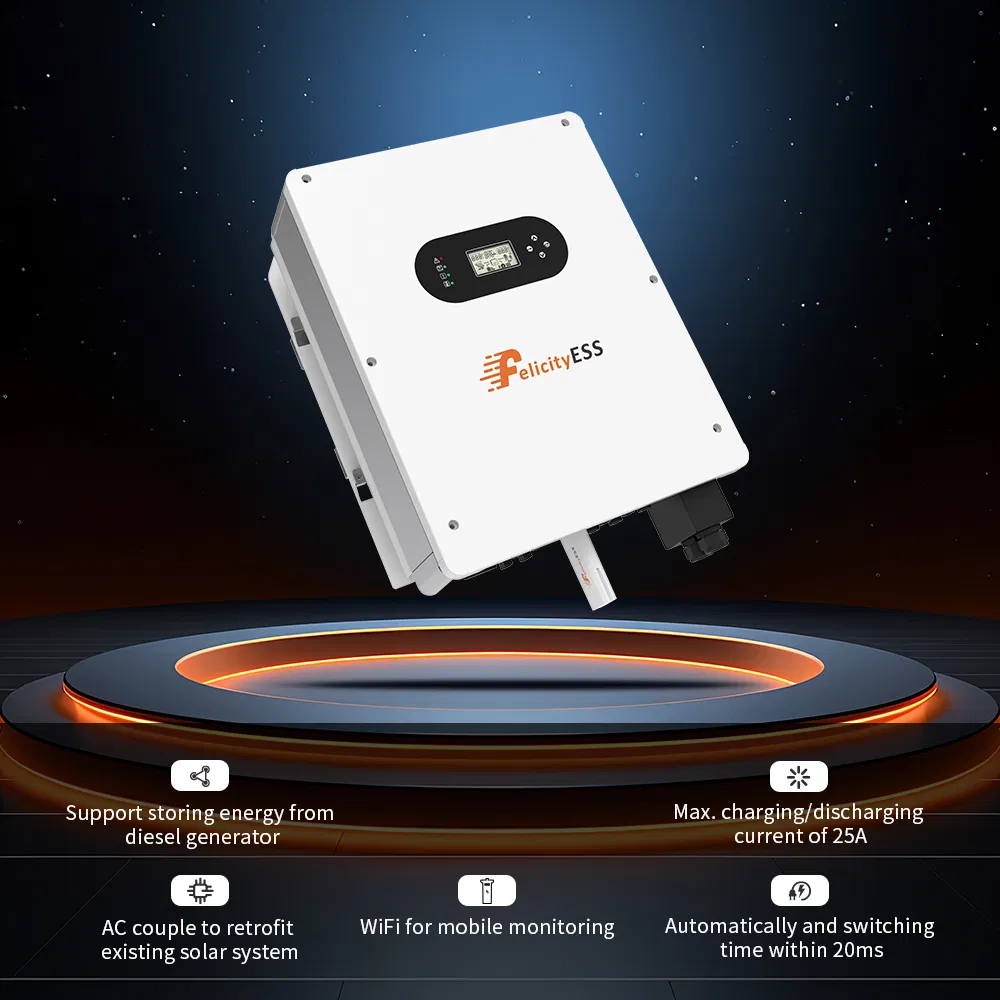

Felicity 10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter

Customization:	Available
After-sales Service:	10 Years
Warranty:	10 Years

Basic Info.

Model NO. IVGM10KHP3G1

Nature of Source Flow Active Inverter

Phase Three

Output Power 10kw

Certification CE, ROHS, ISO9001, IEC

Type DC/AC Inverters

Power Source Solar Power, Grid

Nature of Wave String Sine Wave Inverter

Battery Voltage Range 180V~580V

Max.Charging and Discharging Current 25A

Max.Charging and Discharging Power 10000W

Battery Type Li-Lon/Lead-Acid

Max.Recommended PV Power 13000W

Max.PV Voltage 900V

Max.Input Current 15A/15A

Input Voltage Range 184-264.5VAC*

Max.AC Output Power 10000W

Max.Output Current 18A

Max.Efficiency 97.6%

Euro Efficiency 97%

MPPT Efficiency 99.9%

Protection 6 Security Protections

Protection Degree P65

Transport Package 635*533*315mm

Specification 533*431*213MM

Origin China

HS Code 8503009090

Production Capacity 70,000pieces/Month

Packaging & Delivery

Package Size 63.50cm * 53.30cm * 31.50cm

Package Gross Weight 39.700kg

Product Description

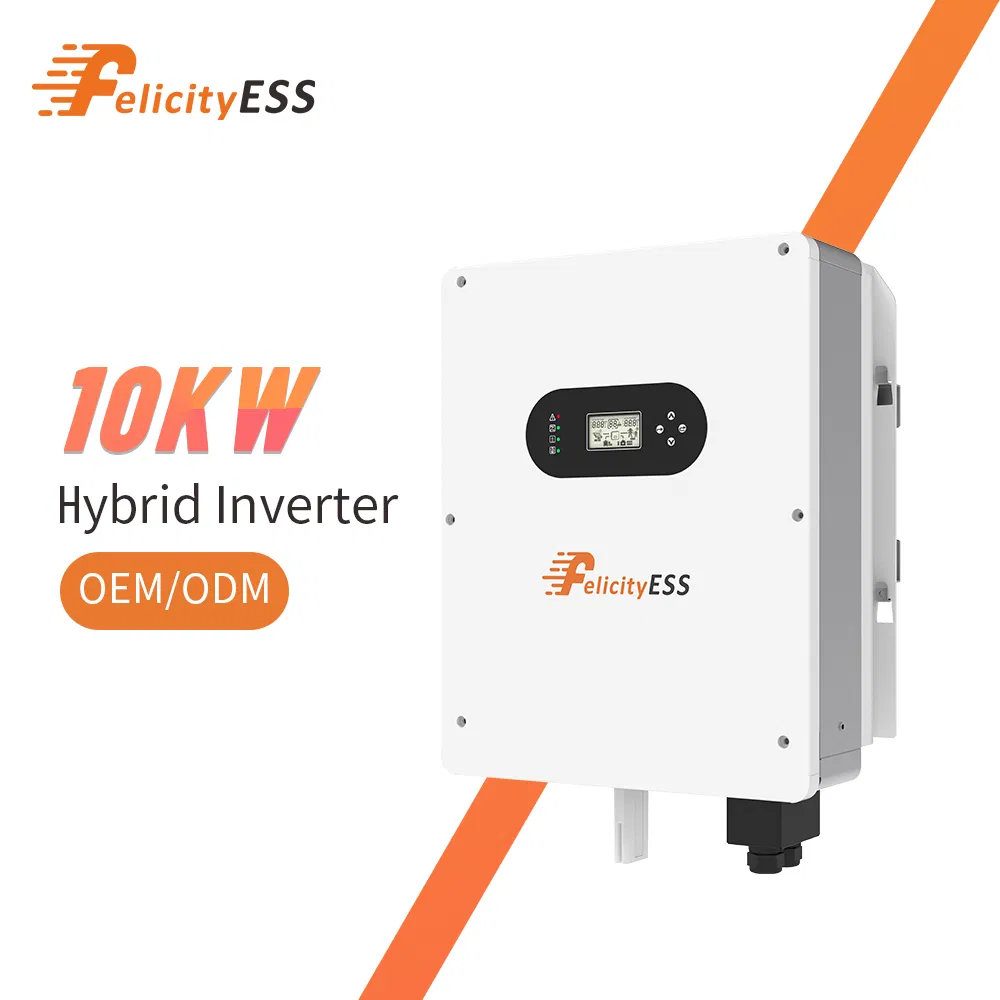

10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter

BECOME A NEW ENERGY DEALER

0

Inventory, Cost Investment, Risk

Top 100

Global Energy Storage Product Brands

1.4 Billion

Annual Output Value

100+

Global Patented Technologies

30+

Global Branches

100+

Senior Experts and Professional Technical Talents

10kw Hybrid Solar Inverter off-Grid Solar Energy Power System Split Phase Inverter

Product Parameters

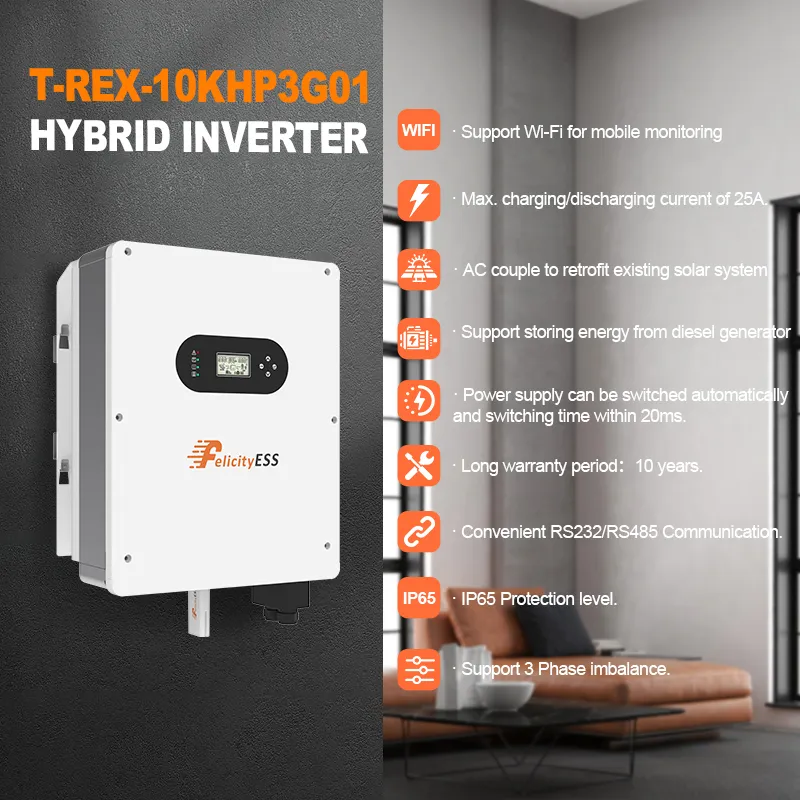

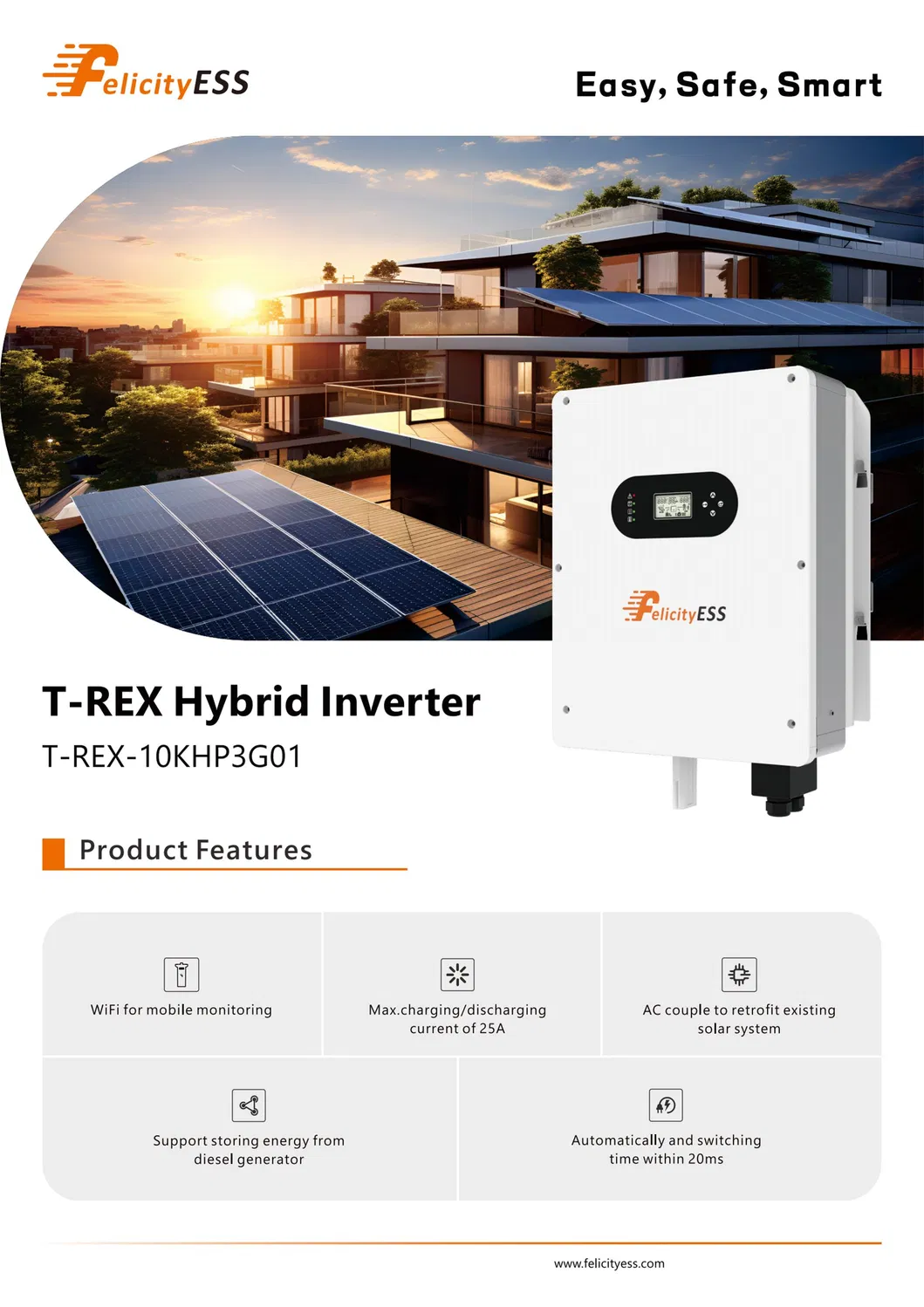

Model	T-REX-10KHP3G01
Battery Input Data
Battery Voltage Range	180V~580V
Max.charging and discharging current	25A
Max.charging and discharging power	10000W
Battery type	Li-lon/Lead-acid
DC Input Data(PV side)
Max.recommended pV power	13000W
Max.PV voltage	900V
Start voltage	160V
pV voltage range	160V-900V
MppTvoltage range	200V-850V
MppT Voltage Range forFullLoad	450V-850V
Nominalvoltage	720V
Maxinput current	15A/15A
Max.shorted current	18A/18A
Numberof MPP trackers/strings per MPPtracker	2/1
Grid Data
NominalInput Voltage	L1/L2/L3/N/PE,230/400Vac
Input Voltage Range	184-264.5Vac*
Nominalgrid frequency	50/60Hz
Max.input current	30A
Max.Charge Current	25A
Max.AC output power	10000W
AC Output Rated Current	14.5A
Max.Output current	18A
Max.Continuous AC Passthrough	30A
Power Factor	>0.99
Displacement power factor	0.8leading0.8lagging
THDI	<3%
AC Output Data(Back Up)
Rated output power	10000VA/10000W
Max.Output current	30A
Rated AC output voltage	L1/L2/L3/N/PE,230/400Vac
Rated AC output frequency	50/60Hz
Efficiency
Max.efficiency	97.6%
Euro efficiency	97.0%
MPPT efficiency	99.9%
Protection
Output over current protection	Integrated
Output over power protection	Integrated
Output shorted protection	Integrated
Anti-islanding protection	Integrated
GFCI Protection	Integrated
Insulation Resistor Detection	Integrated
General Data
Operating temperature range	-25°C~60°C,>45°CDerating
Protection degree	P65
Relative humidity	100%
Cooling concept	Nature
Altitude	2000m
Communication	RS232/RS485
BMS Communication	CAN/RS485

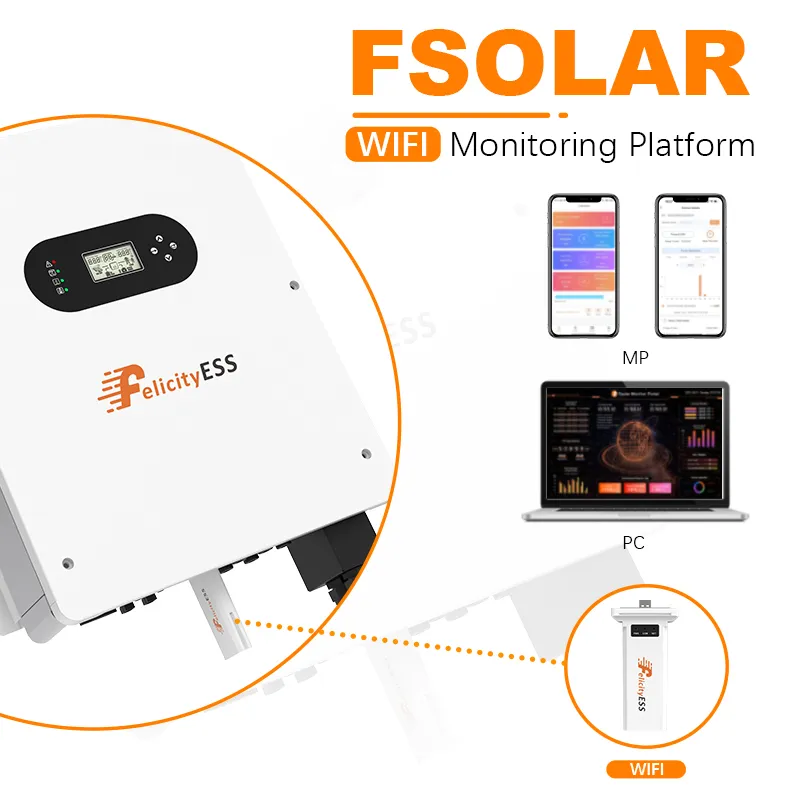

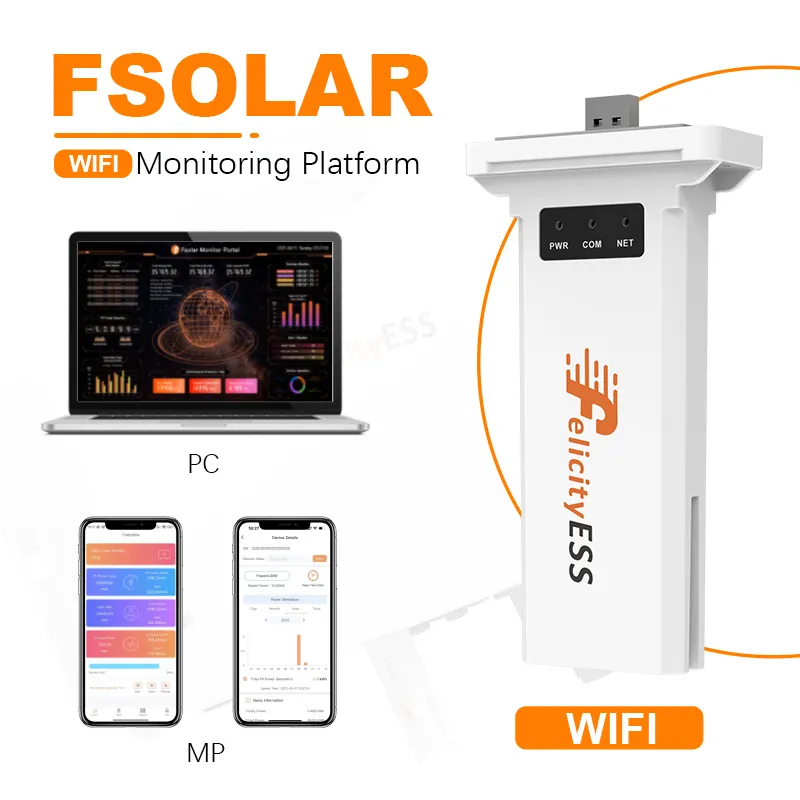

Monitor module	WiFi/GPRS
Display	LCD+LED
Installation Style	Wall-mounted
Warranty[1]	10years
Grid Regulation	VDE-AR-N4105;G99/1;EN50549-1;CEI-21;AS4777.2;NRS097-2-1;
Safety Regulation	IEC62109-1/2IEC62040-1
EMC	EN61000-6-1.EN61000-6-3
Net Weight(KG)	35.3KG
Gross Weight(KG)	39.7KG

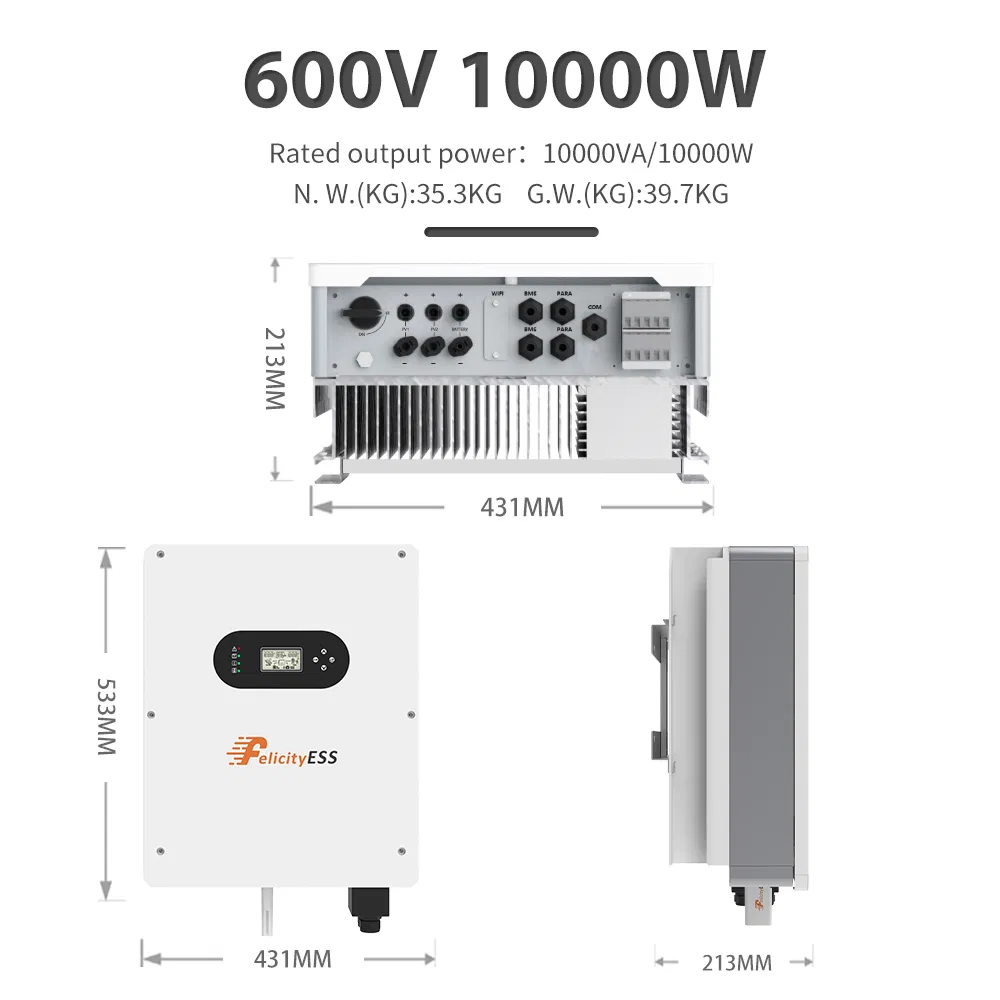

Product Dimension(MM)	533431213MM
Package Dimension(MM)	635533315MM

Certifications

Company Profile

We are a leading inverter manufacturer and energy system integrator with 17 years of experience. With a 40,000 square meter facility and more than 1,000 employees, the company has more than 30 offices globally. Our products include home energy storage batteries, all-in-one systems, and solar inverters. Our products offer flexible energy conversion and efficient storage solutions for homes and businesses.

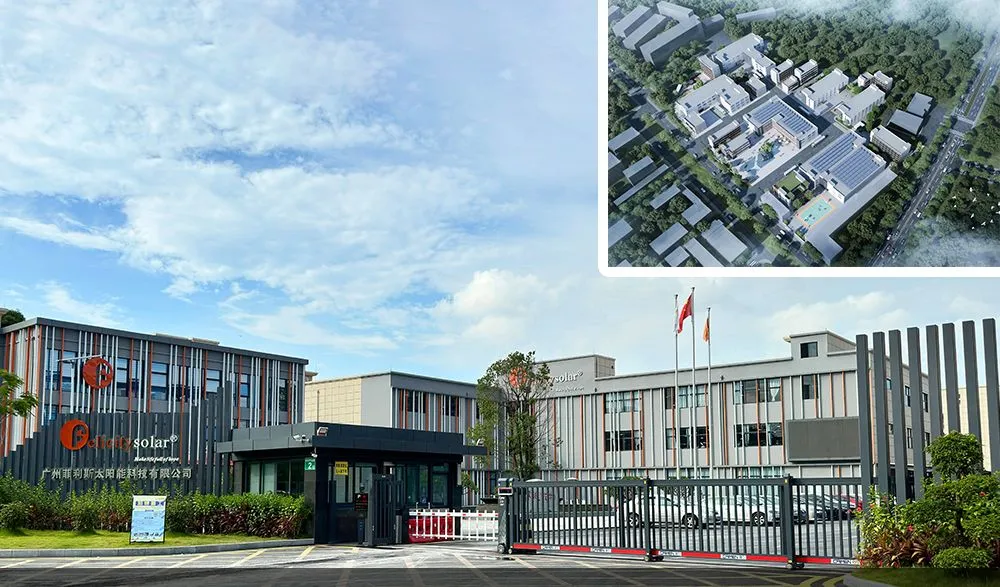

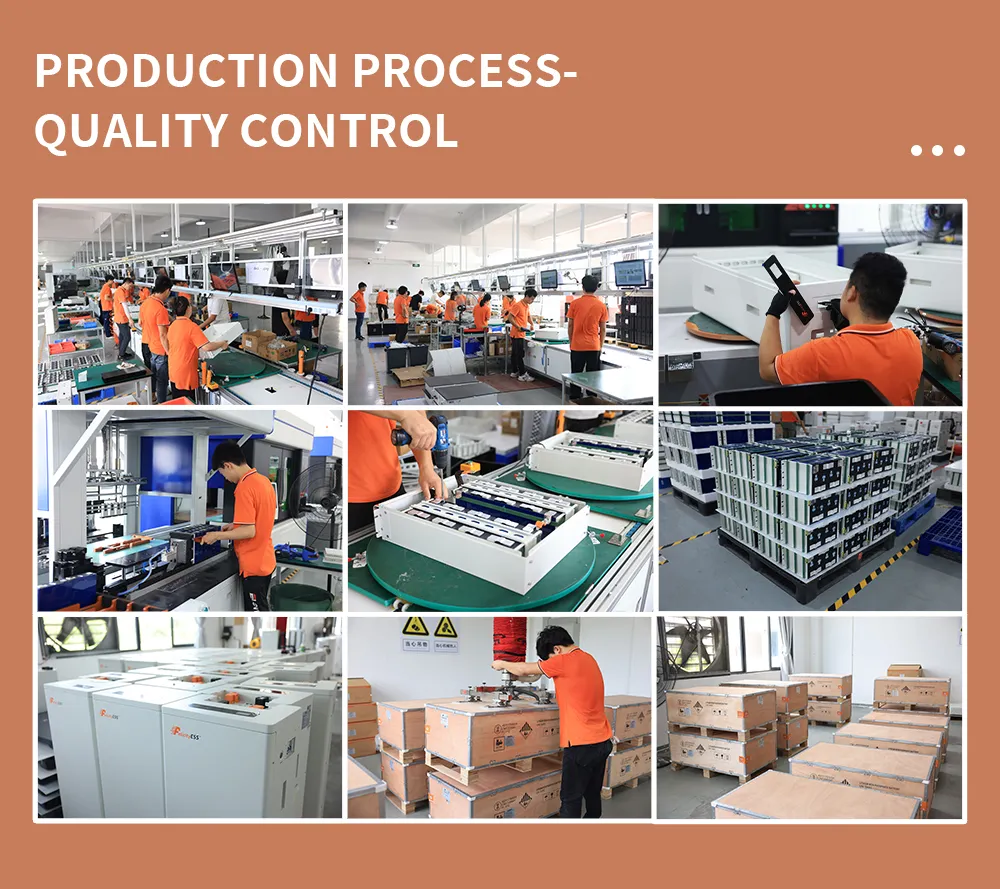

Our Factory

Packaging & Shipping

Our Exhibitions

FAQ

Q1: How to install and use the solar inverter?

A1: We provide an English manual and videos. All videos covering every step of machine disassembly, assembly, and operation will be sent to our customers.

Q2: What if I don't have export experience?

A2: We have over 30 overseas offices and warehouses that can ship items to you by sea, air, or express delivery. We will help you choose the most suitable shipping service.

Q3: How is your technical support?

A3: We have over 30 offices overseas with professional technical engineers and sales teams stationed year-round. They can address your pre-sales and post-sales issues. If any problem arises after delivery, we can send technical engineers to assist you. You can also contact our support team online.

Q4: Can you customize the solar inverter for us?

A4: Of course. We offer customization for product specifications, brand name, machine color, and unique design patterns.

Q5: How can I become your agent?

A5: Contact us, and we will provide details about our dealer program.

Q6: What is the warranty for the inverter?

A6: 10 years.
