| Indicator & Status | Operation Description |
|---|---|
| Green Power Indicator Flicker |
The DC Power Operation is not connected with solar panel, or the voltage/frequency from AC Operation is not within the allowed range. |
| Green Power Indicator Normally on |
AC power supply connected correctly, ready for grid-tied operation. |
| Blue MPPT Track Quench (Off) |
Input voltage is beyond the scope of MPPT tracking. |
| Blue MPPT Track Flicker |
System is attempting to track the Maximum Power Point (MPP) of solar panels. |
| Blue MPPT Track Normally on |
MPPT target locked successfully. |
| Red Temp/Stoppage Quench (Off) |
Temperature is normal (lower than 45°C). |
| Red Temp/Stoppage Flicker |
Startup anomaly detected. Please restart the unit. |
| Red Temp/Stoppage Normally on |
Over-temperature protection triggered (above 65°C). The unit will automatically resume operation once cooled down to 40°C. |
How is the product quality guaranteed?
Our products are distributed globally with excellent user feedback, combining superior build quality with competitive pricing. The majority of our range is certified by internationally recognized testing bodies such as TUV and CE. Additionally, production processes adhere strictly to ISO9001 quality management standards.
What are the available shipment methods?
We offer flexible shipping options including express courier, air freight, ocean freight, and rail transport. We evaluate and compare routes to recommend the most cost-effective and suitable delivery method for your location.
How can I place an order?
You can initiate your order by submitting an inquiry directly through this platform. Our support team will process your request and respond with detailed specifications and quotes within 24 hours.

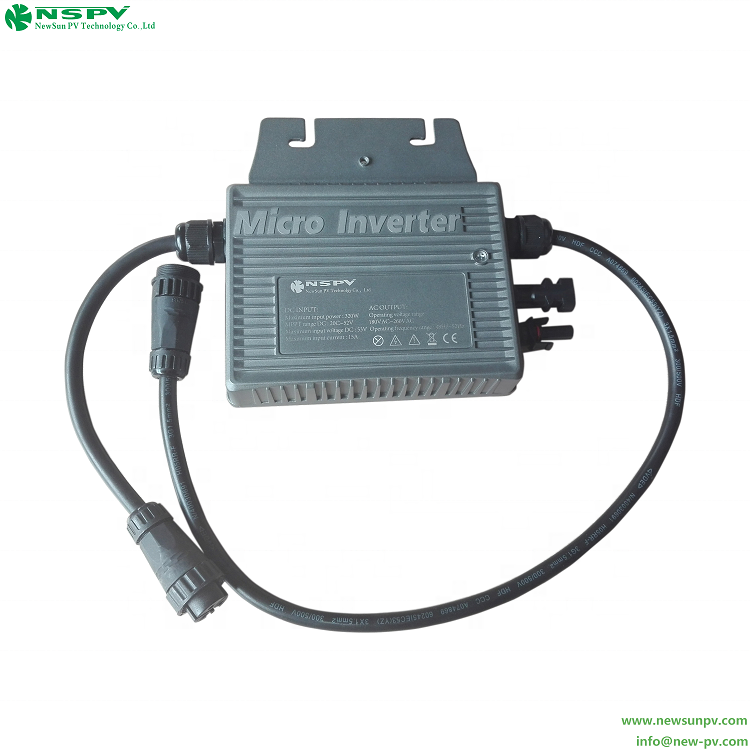

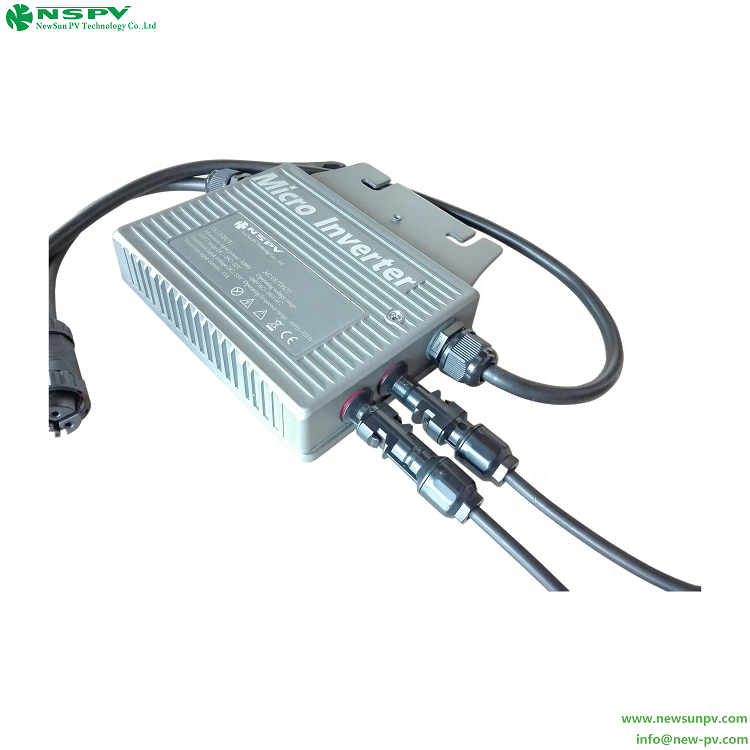

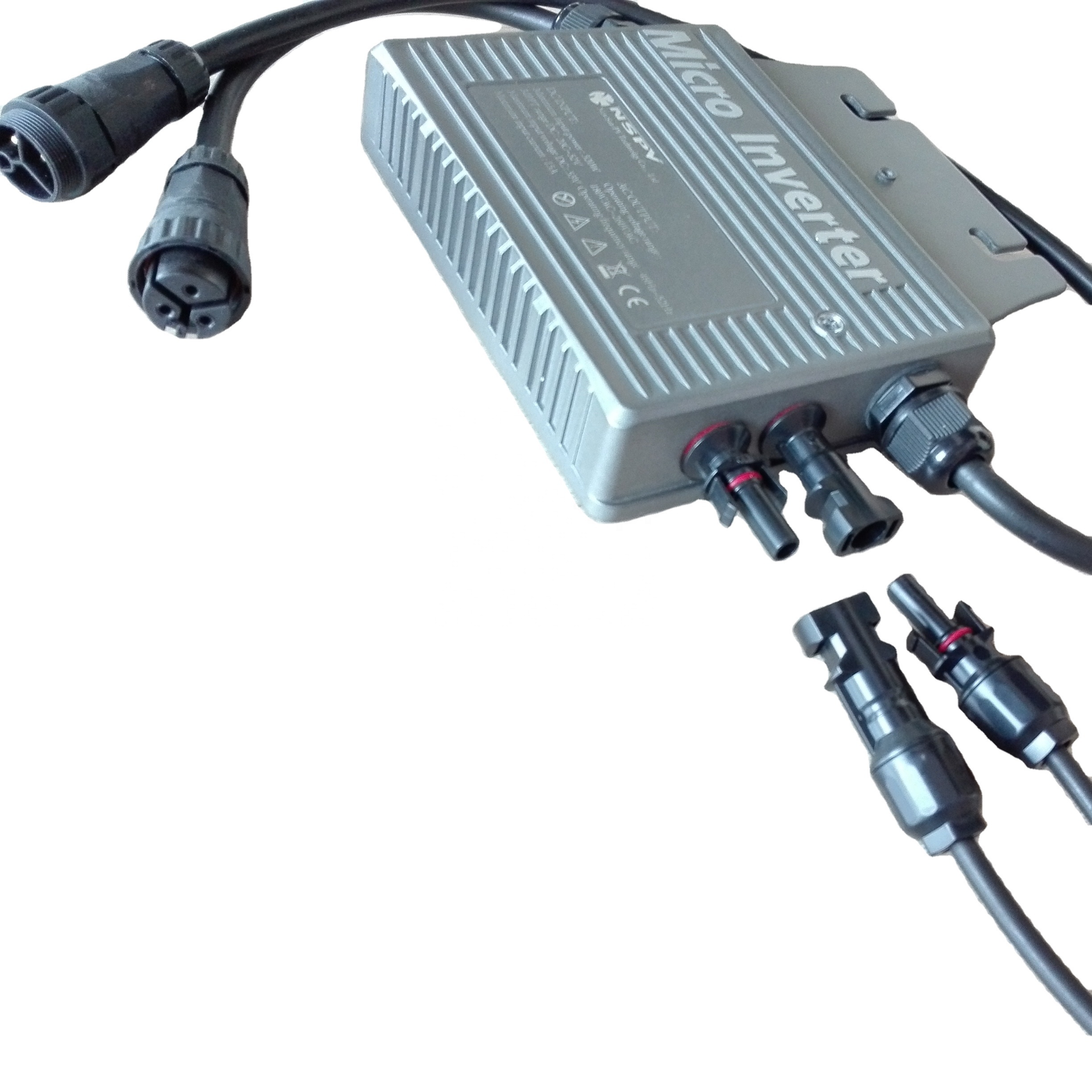

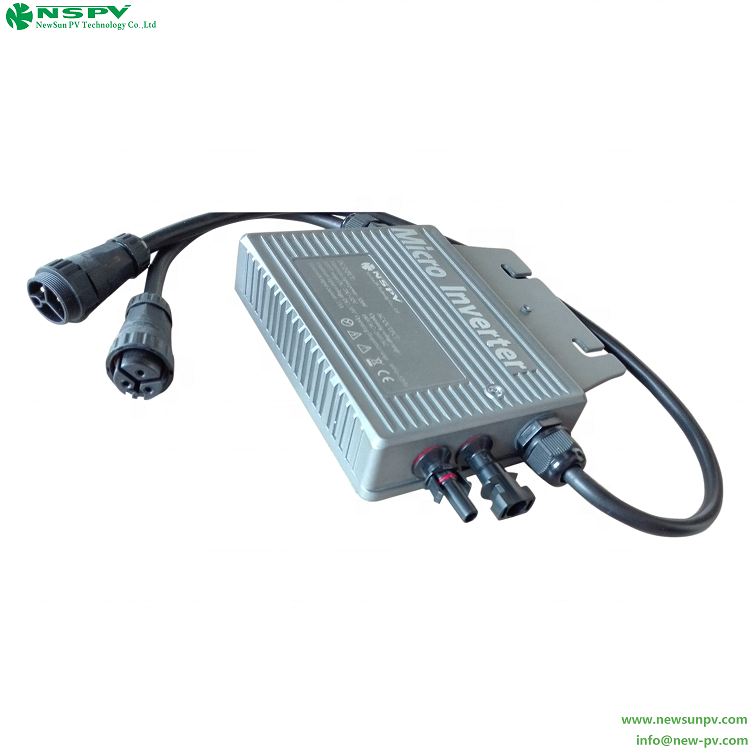

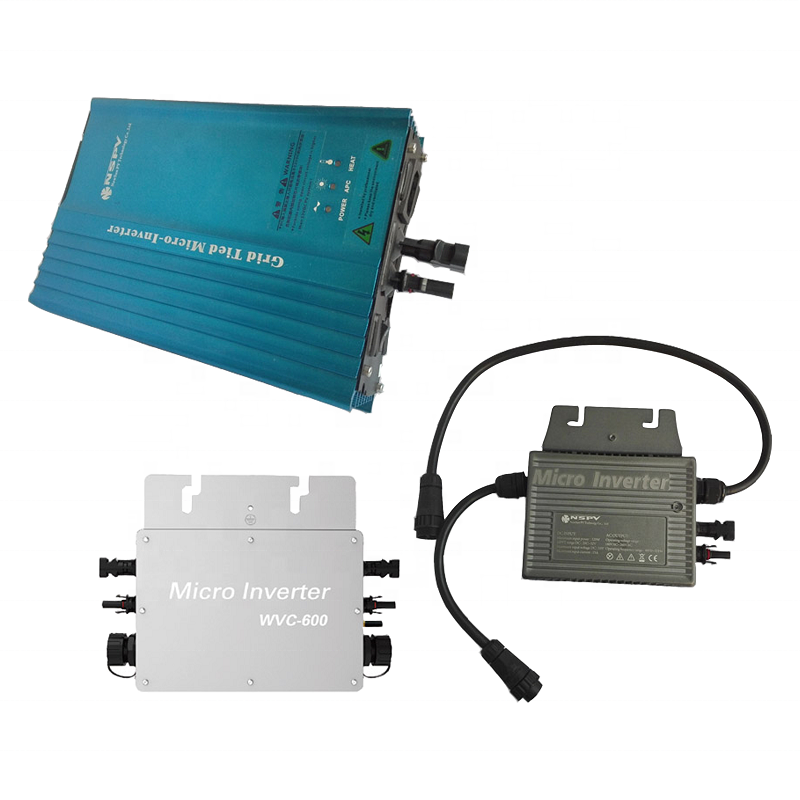

What is a grid-tied solar micro inverter?
A grid-tied solar micro inverter converts the Direct Current (DC) generated by individual solar panels into Alternating Current (AC) suitable for home use, with excess electricity fed directly into the municipal power grid.
How does the Dual Output MPPT Technology benefit the system?
Dual Maximum Power Point Tracking (MPPT) optimizes solar energy collection on an individual level. It ensures the panels consistently perform at peak efficiency, even under partial shade or mismatched angles.
What is the typical efficiency rating of this micro inverter?
The micro inverter features a maximum efficiency rate of 99%, ensuring minimal power loss during the conversion process and maximizing the overall return on your solar investment.
