Product Description

Solar Point Balcony Solar System Overview

Solar Point Balcony Solar System

Solar Point Balcony Solar System is a highly efficient on-grid system. Equipped with the self-developed anti-reverse flow meter, it can automatically match the real-time power of household electrical equipment and control the power output of solar panels.

Product Configuration

Component Specifications / Details
Microinverter RPMI-700/1000-2T / RPMI-2000/2300-4T
Solar Panel Double-Glass Full Black Solar Panel

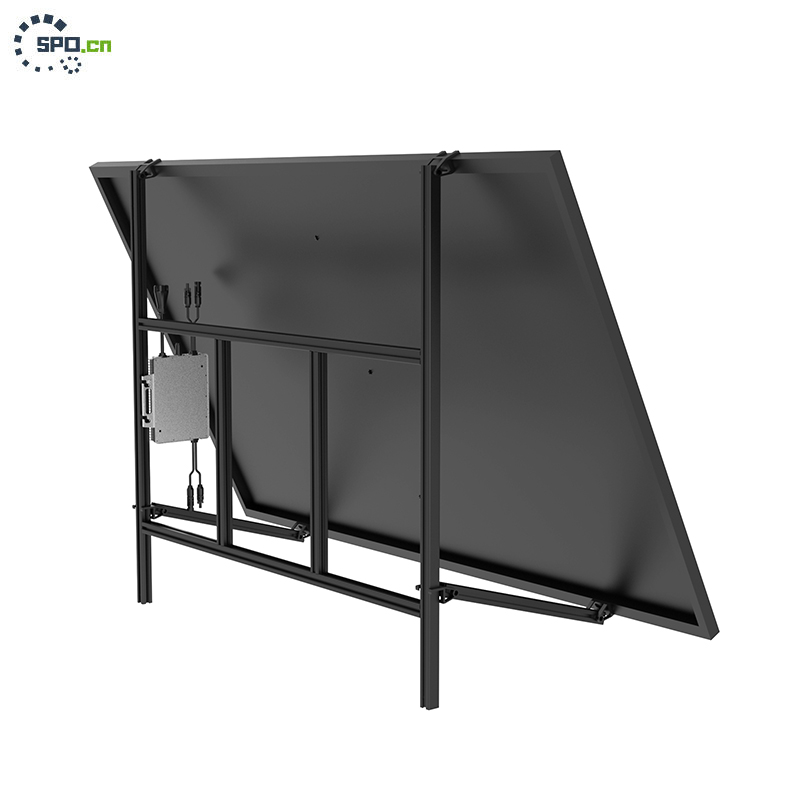

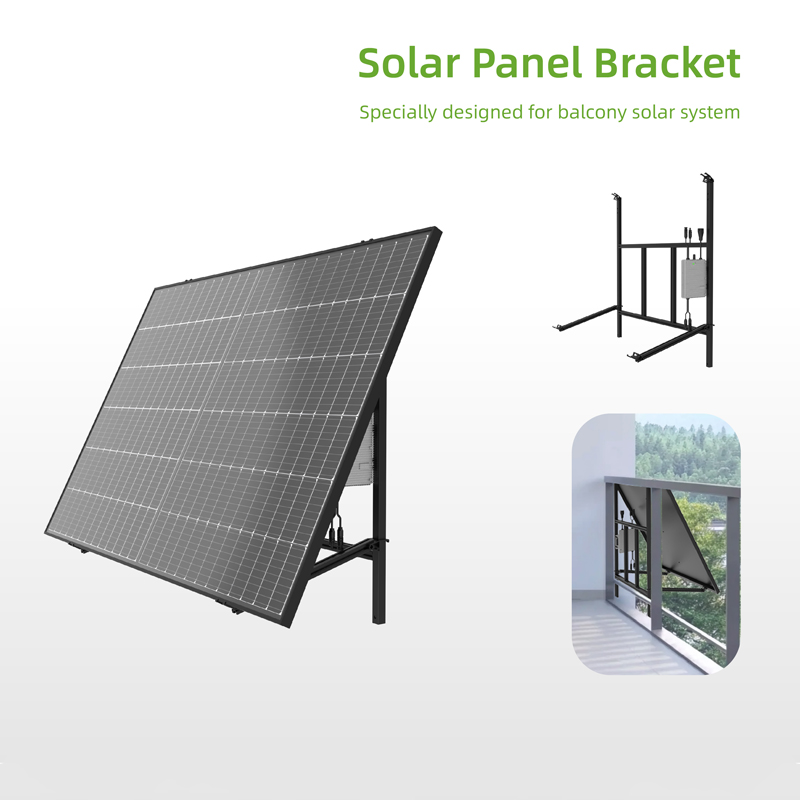

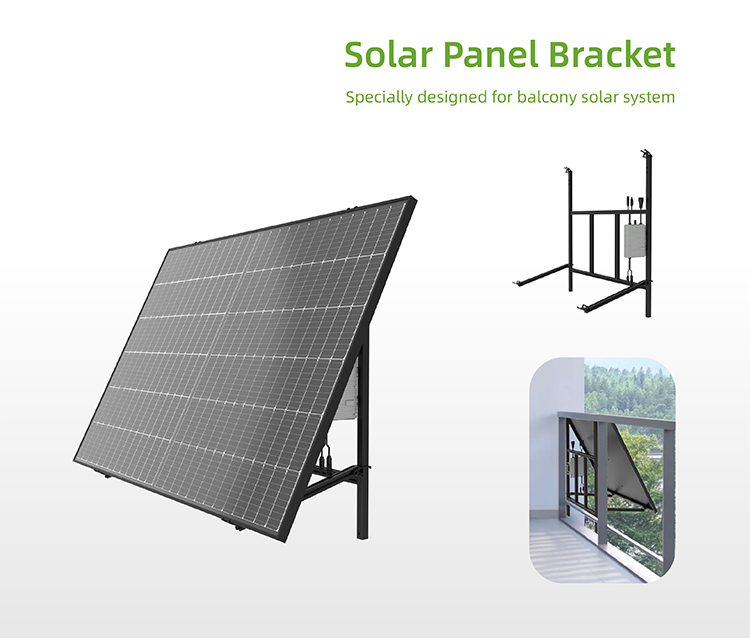

Bracket Full Black Aluminum Alloy Bracket
Zero-Export Meter Optional

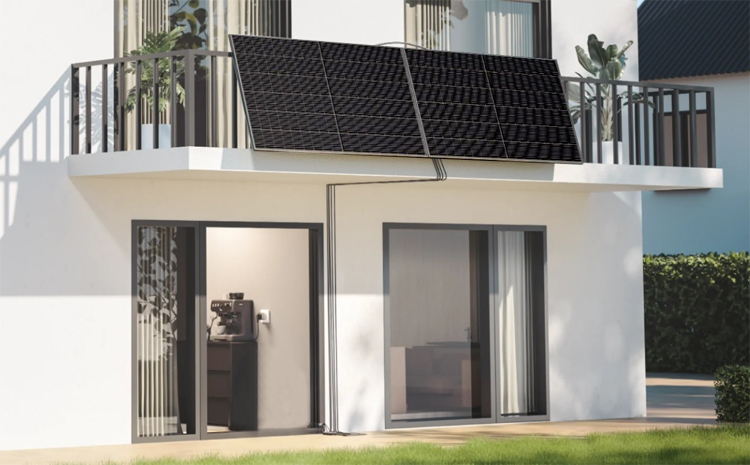

Solar Point Balcony Solar System Details 1

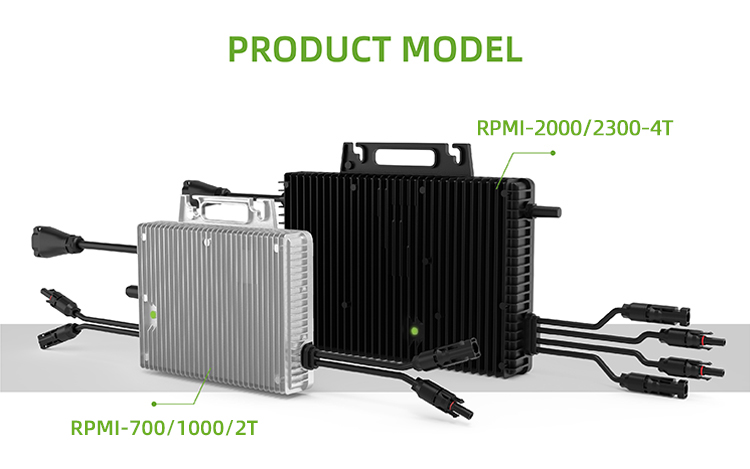

Solar Point Balcony Solar System Details 2

Technical Parameters

MODEL RPMI-700-2T RPMI-1000-2T RPMI-2000-4T RPMI-2300-4T
INPUT (DC)
Solar panel 300 ~ 730W 300 ~ 800W 400 ~ 670W 450 ~ 730W
Max. input voltage 60V
MPPT voltage range 18 ~ 48V
Starting voltage 16V
Max. input current 2*12A/20A 2*18A/20A 4*20A 4*20A
Max. input short-circuit current 25A 4*25A
Number of MPPTs 1 4
Max. number of input channels 2 4
OUTPUT (AC)
Rated output power 700W 1000W 2000W 2300W
Rated output current 3.18A 4.55A 9.09A 10.45A
Output voltage/Range 220V/187V~270V
Rated frequency 50/60Hz
Power factor (Adjustable) >0.99 Default
THD <3%
Max. microinverter per branch (10AWG) 8 6 3
Max. microinverter per branch (12AWG) 6 4 2
EFFICIENCY
Peak efficiency 96% 96%
MPPT efficiency 99.9%
COMMON PARAMETER
Function Zero-export, Data monitoring
Environmental temperature -40°C ~ +65°C
Size 226*198*36mm 326*252*42mm
Weight 2.5kg 5.4kg
Protection grade IP67
Max. altitude <2000m
Cooling method Natural cooling
Night power consumption <50mW
Communication method WiFi WiFi / PLC WiFi WiFi / PLC
Isolation method High frequency transformer electrical isolation
Monitoring platform Solar Point data monitoring platform
Grid connection standard NB/T 42142 - 2018
Certificate CEI/EN 62109-1/-2, CEI/EN 61000-6-1/-2/-3/-4, CEI/EN 61000-3-2/-3
SECURITY PROTECTION FUNCTION
Anti-islanding protection, input reverse protection, output short-circuit protection, output over-current protection, output over-voltage protection, 6000V surge protection
Solar Point Component 1

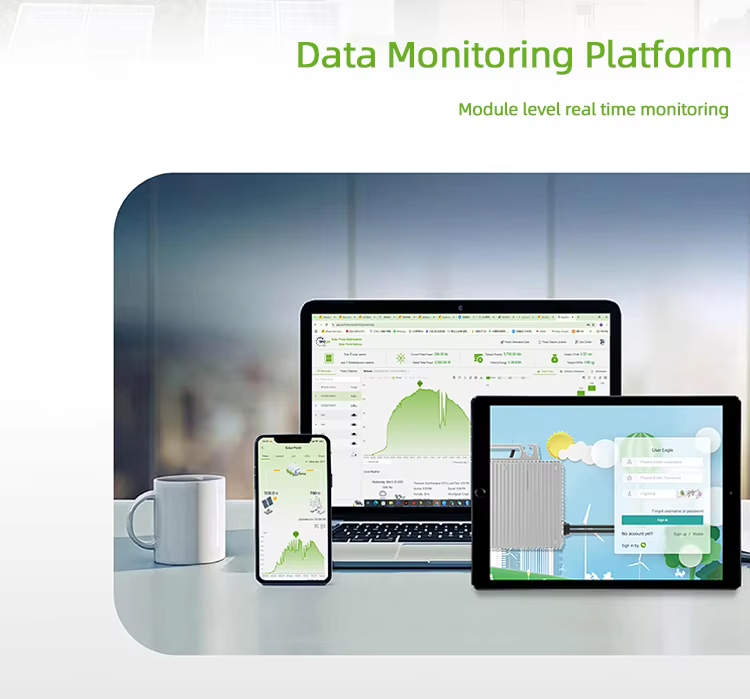

Solar Point Component 2
Solar Point Component 3

Single Phase Modular Energy Meter Features

Single phase 1 modular energy meter with WiFi module, RS485 interface 330mV CT AC input.

  • Bidirectional energy metering 1 DIN modules, 230VAC 50Hz/120VAC 60Hz.
  • Accuracy class B according to EN50470-3, Accuracy class 1 according to IEC62053-21.
  • Solid-core sensor & open-core sensor, 330mV AC input 100A.
  • Total energy usage can be calculated via 5 different modes.
  • Reactive power and reactive energy available through interface.
  • Built-in RS485 communication port, Modbus protocol.
  • S0 pulse output, transmission of measured values via pulses.
  • WiFi support 802.11b/g/n, Frequency range: 2.412GHz-2.484GHZ.
Energy Meter Detail 1
Energy Meter Detail 2
Energy Meter Detail 3

Frequently Asked Questions (FAQ)

What is a Balcony Solar System and how does it work?
A balcony solar system is a compact, highly efficient on-grid solar system designed for apartments and houses. It features solar panels, a microinverter, and mounts. It converts solar energy to household electricity and feeds it directly into your home grid.

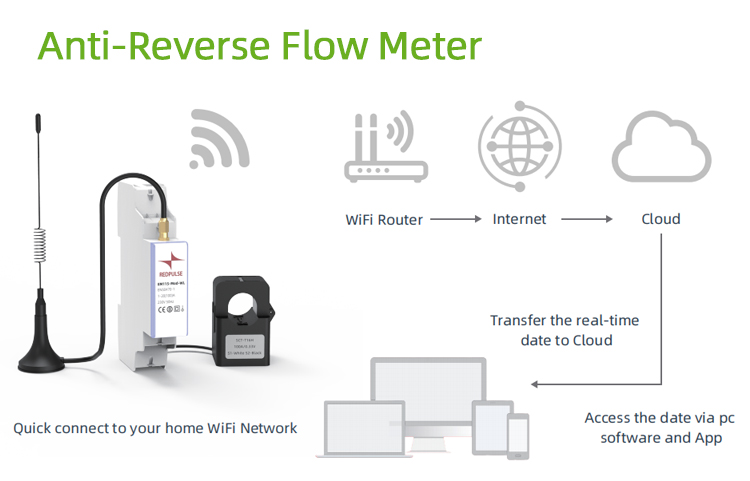

How does the zero-export meter work?
The optional zero-export meter is an anti-reverse flow meter. It monitors your household's real-time electricity consumption and coordinates with the microinverter to match the exact power output needed, preventing power from feeding back into the public grid.
What are the safety protection features of the microinverter?
The microinverter is equipped with extensive security protection functions including anti-islanding protection, input reverse protection, output short-circuit protection, output over-current/over-voltage protection, and 6000V surge protection.
How can I monitor the system performance?
The system features integrated WiFi (and optional PLC) communication that connects directly to the Solar Point data monitoring platform. This allows you to track real-time power generation and energy metrics through an easy-to-use interface.
Can the system be installed in harsh weather conditions?
Yes. The system uses high-durability Double-Glass Full Black Solar Panels and an IP67 protection-graded microinverter. It is designed to work reliably in environmental temperatures ranging from -40°C up to +65°C.
What are the metering accuracy standards for the energy meter?
The energy meter achieves Accuracy Class B according to EN50470-3 and Accuracy Class 1 according to IEC62053-21 standards. It supports bidirectional energy metering using solid-core or open-core sensors.
