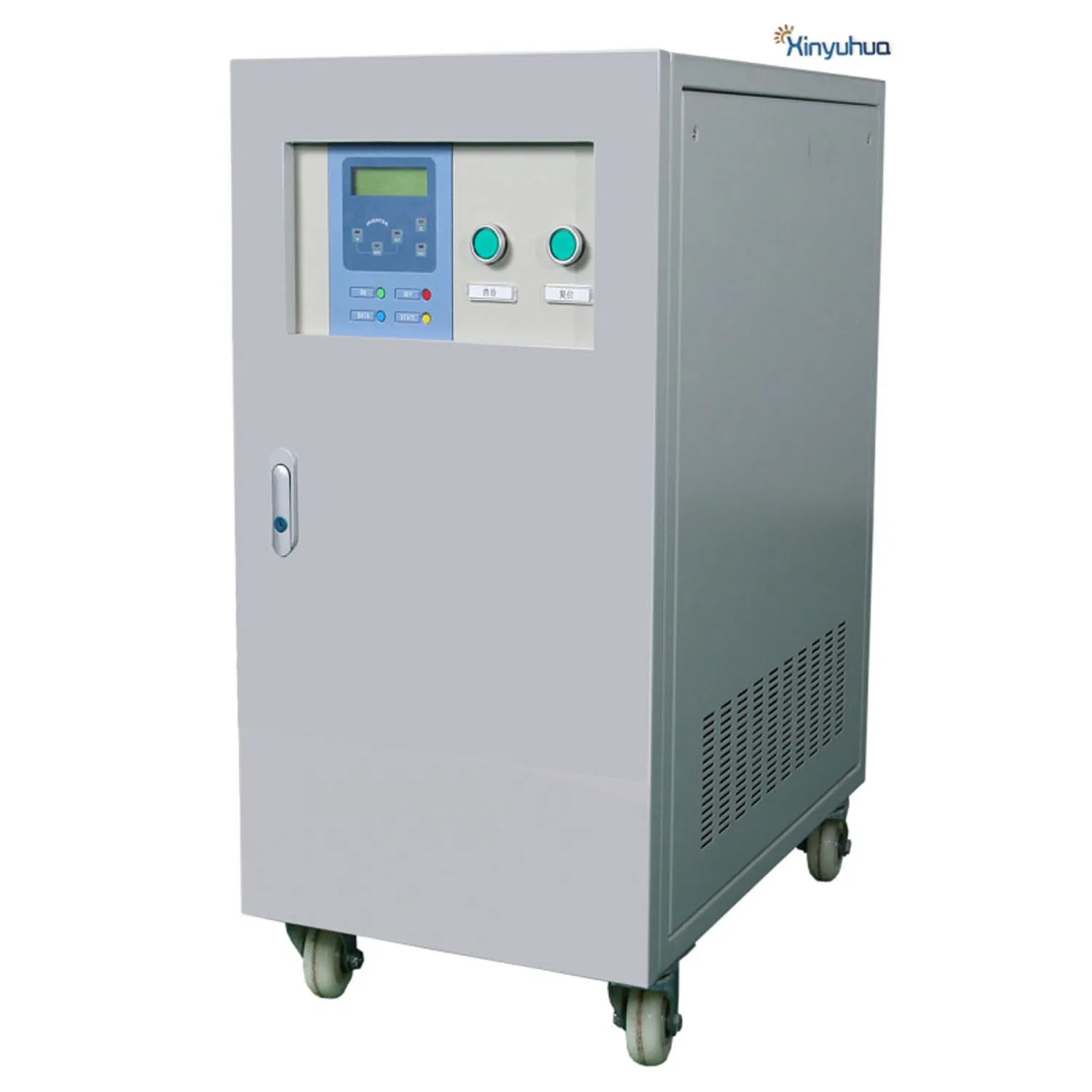

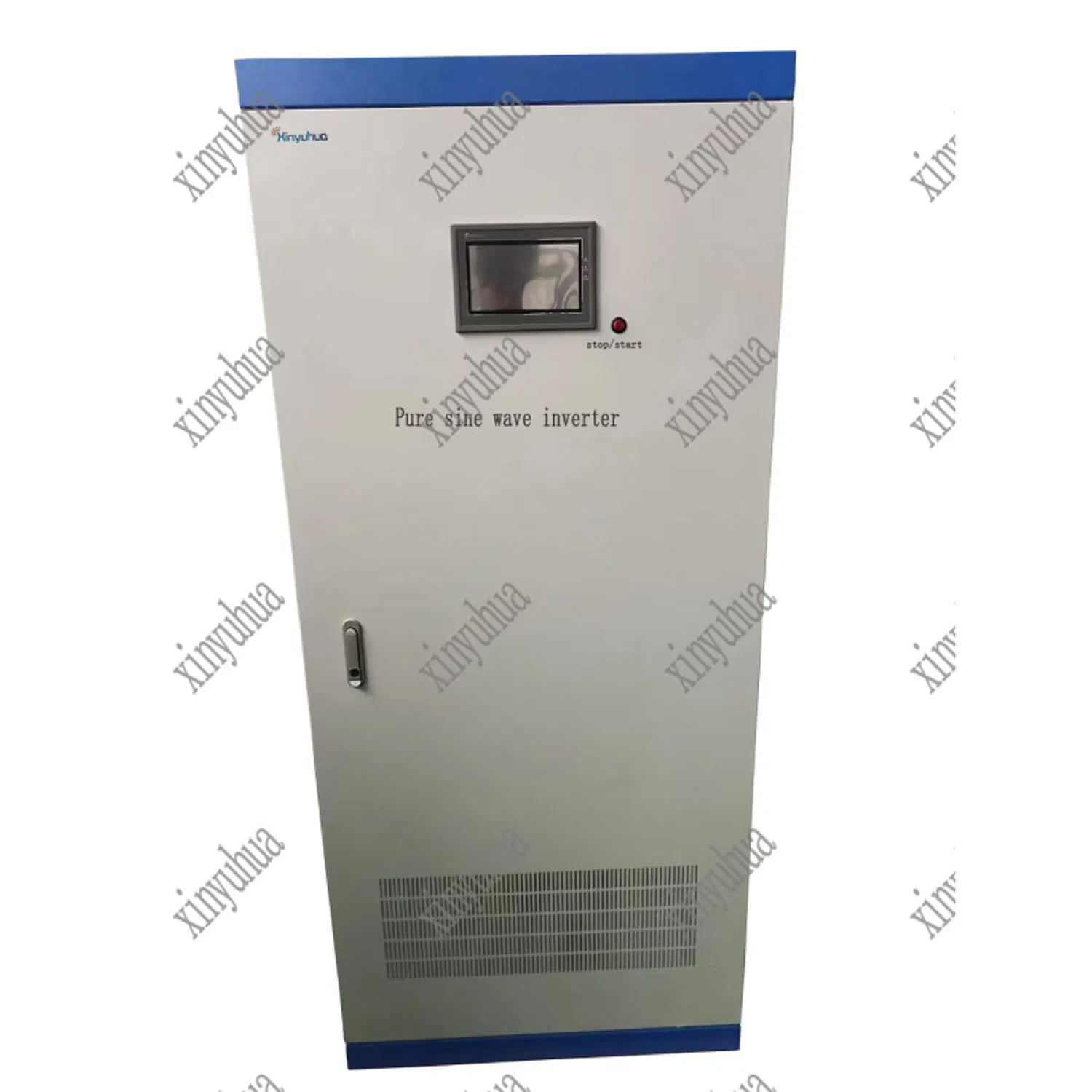

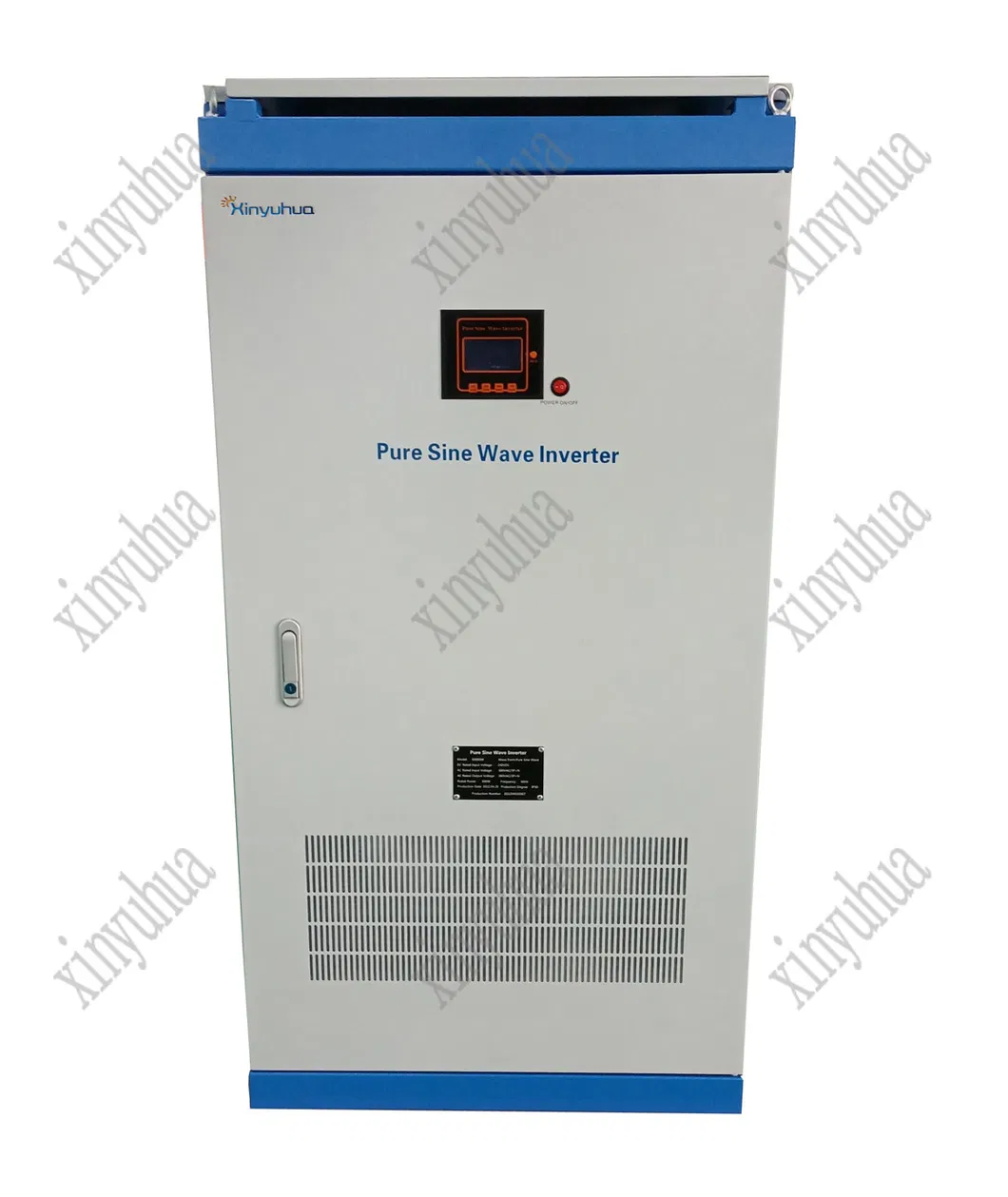

Key Features:

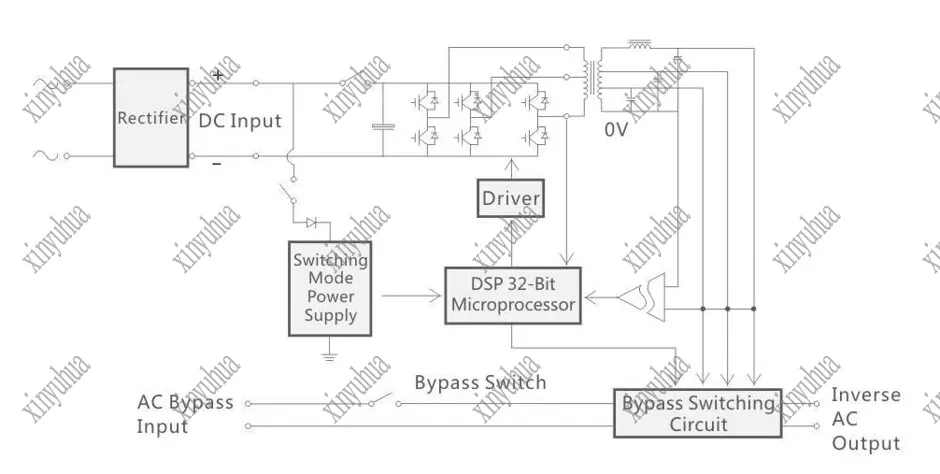

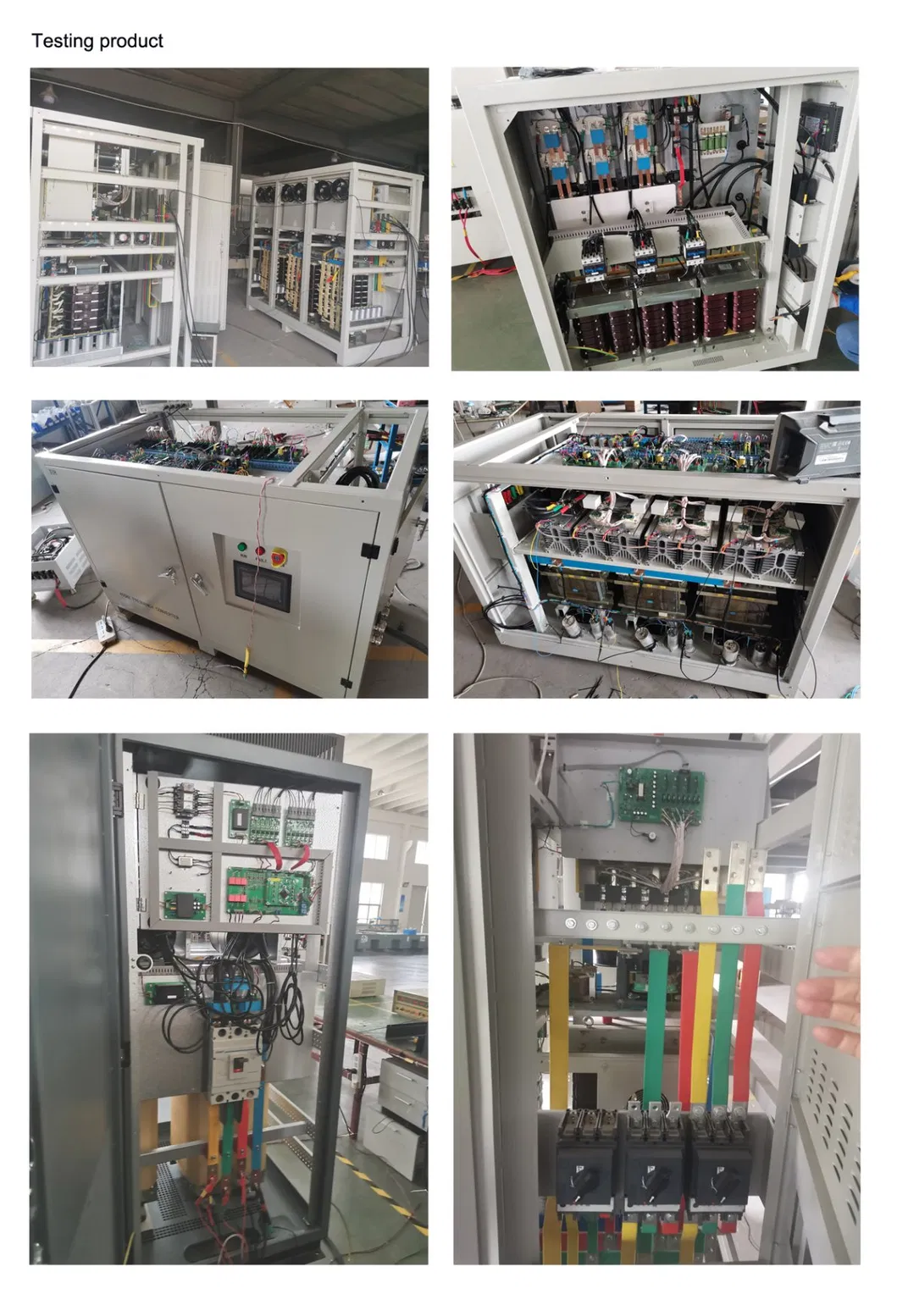

Bi-directional inverter can not only convert the DC power into AC power, but also can invert the AC power to DC power. Bi-directional inverter mainly controls the battery's charging and discharging, at the same time it is the core control equipment. It can apply in the grid-tied power system which has the requirement of power storage function. The power storage system is for the emerging load or important load charging. It can combine with the string inverter and then construct the separated PV power system.

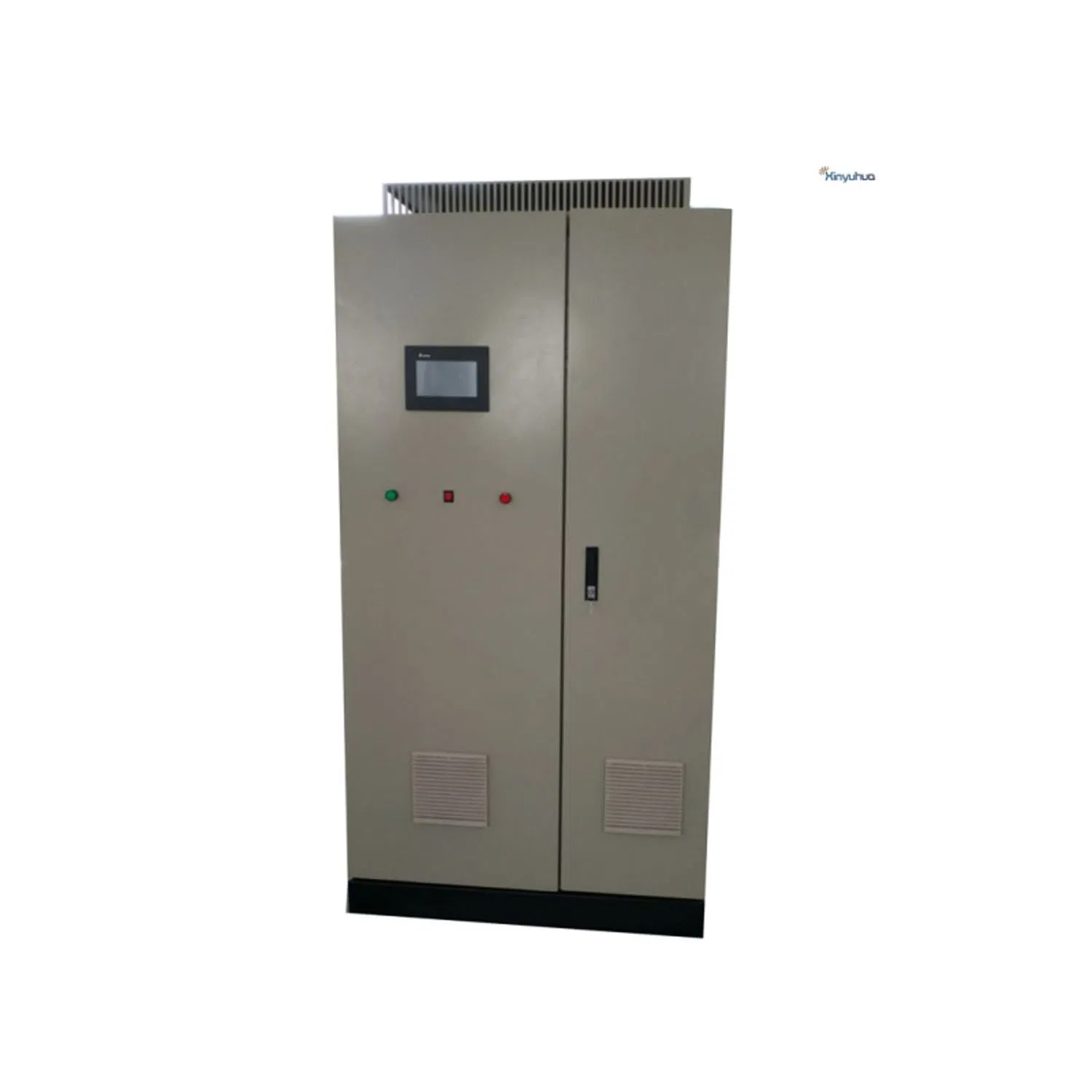

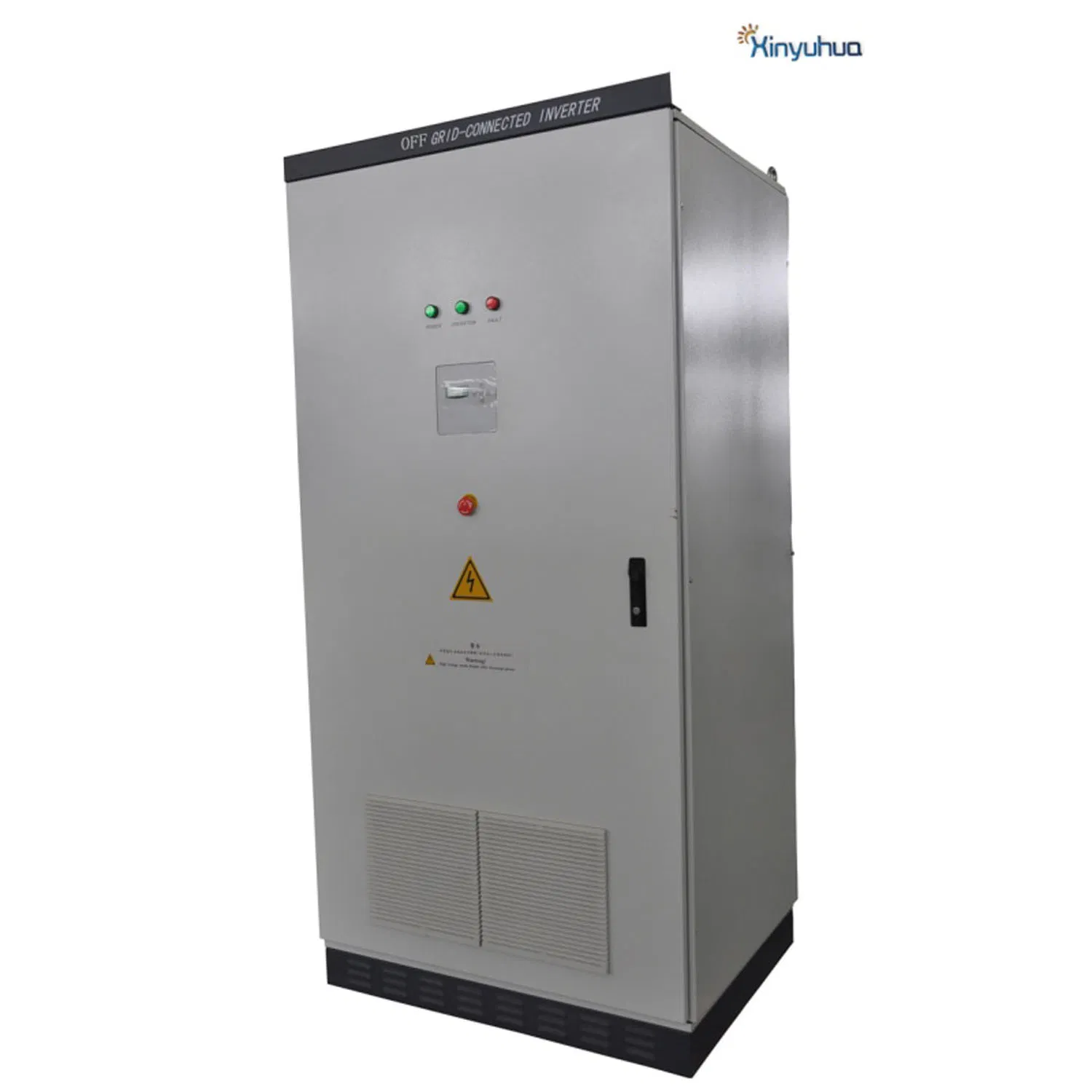

| Mode | XYH-3000T | XYH-5000T | XYH-6000T | XYH-8000T | XYH-10000T | XYH-15000T | XYH-20000T |
|---|---|---|---|---|---|---|---|
| Rated power | 3kw | 5kw | 6kw | 8kw | 10kw | 15kw | 20kw |
| Max. discharge current | 81.7A | 136A | 163A | 109A | 136A | 163A | 136A |
| Input Battery Voltage | 48V | 48V | 48V | 96V | 96V | 120V | 192V |
| Input grid AC voltage | 380/400/415Vac 50/60hz | ||||||
| Output AC voltage | Three-phase 380/400/415Vac | ||||||
| Output current | 4.5A*3 | 7.6A*3 | 9A*3 | 12A*3 | 15A*3 | 23A*3 | 30A*3 |
| Output frequency | 50/60hz | ||||||
| Size (W*L*H) mm | 350*600*650 | 350*600*650 | 350*600*650 | 400*700*740 | 400*700*740 | 400*700*740 | 400*700*850 |
| Weight (Kg) | 73 | 83 | 90 | 100 | 125 | 143 | 150 |
| General Data | |||||||
| Conversion time | 20ms~1s | ||||||
| Nominal voltage | ±1% (Steady state load), ±3% (Load fluctuation) | ||||||
| Output waveform | Pure sine wave | ||||||
| Current peak ratio | 3:1 MAX | ||||||
| THD | Linear load < 3%; nonlinear load < 5% | ||||||
| Standby power | <20W | ||||||
| Overload capacity | >120%10s; >150%:5ms | ||||||
| Protective function | <±5% | ||||||
| Inversion efficiency | >90% | ||||||
| Balance load voltage | <±1%; <±5% (Unbalanced load voltage) | ||||||
| Protect function | Undervoltage protection of battery, state grid over voltage and undervoltage, inverter overload, overvoltage, over temperature, short circuit, automatic recovery after over voltage and undervoltage changing to normal. | ||||||
| Communication interface | RS232, (485, Remote Control, Options) | ||||||
| Operating temperature | -10~60ºC | ||||||
| Relative humidity | 30%~90% (non condensing) | ||||||
| Operating altitude | <1000Meters (every increased 1000Meters decrease power 1%, highest 5000Meters) | ||||||
| Cooling method | Forced air cooling | ||||||
| Noise | ≤55dB (Depending on load and temperature, Distance to machine 1M) | ||||||
| Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
| Mode | XYH-30000T | XYH-50000T | XYH-60000T | XYH-80000T | XYH-100000T | XYH-150000T | XYH-200000T |
|---|---|---|---|---|---|---|---|
| Rated power | 30kw | 50kw | 60kw | 80kw | 100kw | 150kw | 200kw |
| Max. discharge current | 163A | 182A | 206A | 213A | 266A | 399A | 531A |
| Input Battery Voltage | 240V | 360V | 384V | 384V | 384V | 384V | 384V |
| Input grid AC voltage | 380/400/415Vac 50/60hz | ||||||
| Output AC voltage | Three-phase 380/400/415Vac | ||||||
| Output current | 45A*3 | 75A*3 | 91A*3 | 121A*3 | 151A*3 | 227A*3 | 303A*3 |
| Output frequency | 50/60hz | ||||||
| Size (W*L*H) mm | 600*700*1360 | 600*800*1800 | 600*800*1800 | 700*800*1960 | 700*800*1960 | 700*800*2200 | 800*1000*2200 |
| Weight (Kg) | 298 | 380 | 390 | 470 | 578 | 700 | 1400 |
| General Data | |||||||
| Conversion time | 20ms~1s | ||||||
| Nominal voltage | ±1% (Steady state load), ±3% (Load fluctuation) | ||||||
| Output waveform | Pure sine wave | ||||||
| Current peak ratio | 3:1 MAX | ||||||
| THD | Linear load < 3%; nonlinear load < 5% | ||||||
| Standby power | <20W | ||||||
| Overload capacity | >120%10s; >150%:5ms | ||||||
| Protective function | <±5% | ||||||
| Inversion efficiency | >90% | ||||||
| Balance load voltage | <±1%; <±5% (Unbalanced load voltage) | ||||||
| Protect function | Undervoltage protection of battery, state grid over voltage and undervoltage, inverter overload, overvoltage, over temperature, short circuit, automatic recovery after over voltage and undervoltage changing to normal. | ||||||
| Communication interface | RS232, (485, Remote Control, Options) | ||||||
| Operating temperature | -10~60ºC | ||||||
| Relative humidity | 30%~90% (non condensing) | ||||||
| Operating altitude | <1000Meters (every increased 1000Meters decrease power 1%, highest 5000Meters) | ||||||
| Cooling method | Forced air cooling | ||||||
| Noise | ≤55dB (Depending on load and temperature, Distance to machine 1M) | ||||||
| Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
| Model | XNSA480- 300KS | XNSA480- 500KS | XNSA480- 800KS | XNSA480- 1000KS | XNSA480- 1500KS | XNSA480- 3000KS |
|---|---|---|---|---|---|---|
| DC Input | ||||||
| Input rating voltage(Vdc) | 480 | |||||
| Input rating current(A) | 694 | 1157 | 1851 | 2314 | 3437 | 6875 |
| Input DC voltage range(Vdc) | 420~800 | |||||
| AC Output | ||||||
| Output rating capacity(KW) | 300 | 500 | 800 | 1000 | 1500 | 3000 |
| Output voltage & frequency | AC380V Vac, 50Hz (Three-phase four-wire) | |||||
| Output rating current(A) | 455.8 | 759.7 | 1215.5 | 1519.4 | 2279 | 4558 |
| Output voltage precision | AC380V±3% | |||||
| Output frequency precision | 50hz±0.05 | |||||
| Wave distortion (THD) | ≤1% | |||||
| Dynamic response | 3% | |||||
| Power factor (PF) | 0.8leading-1-0.8lagging, adjustable | |||||
| Overload ability | 150%, 10 seconds | |||||
| Crest factor (CF) | 3:1 | |||||
| Inverted efficiency | 95% | |||||
| Insulation strength | 1500 Vac, 1 minute | |||||
| Noise (1meter) | ≤55dB | |||||
| Temperature | -25ºC~+55ºC | |||||
| Humidity | 0-95%, non-condensing | |||||
| Altitude (m) | ≤6000 | |||||
| Protection function | Input reversing protection, input low-voltage protection, output over-load protection, output short-circuit protection, over-heat protection | |||||

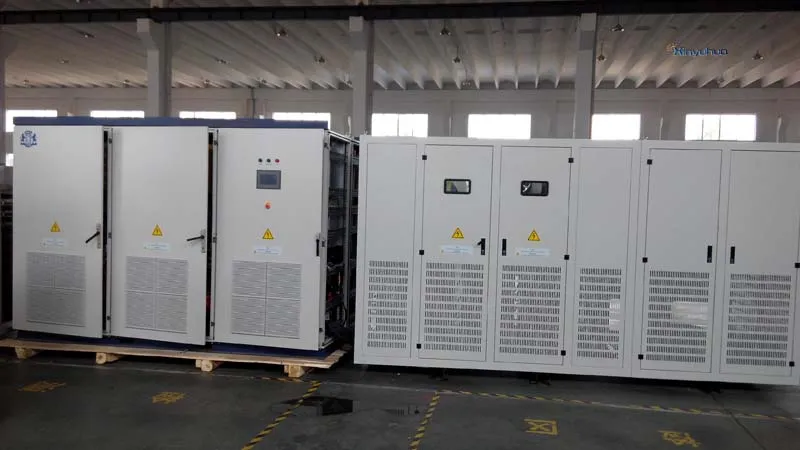

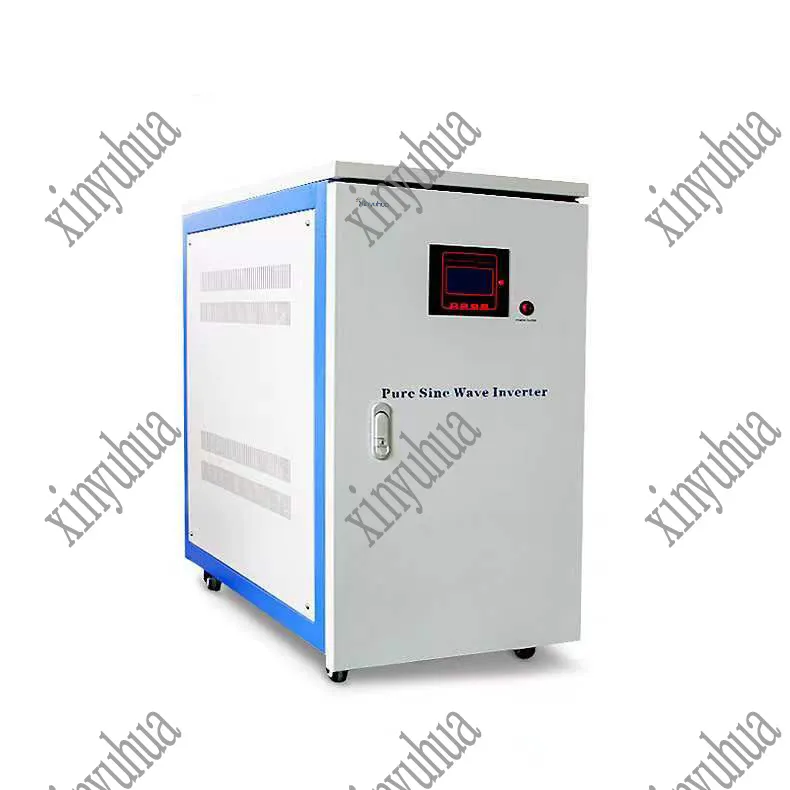

Bi-directional inverter can convert DC to AC power and invert AC to DC power. It controls battery charging/discharging and supports grid-tied system storage requirements, making it ideal for emerging or critical load support.

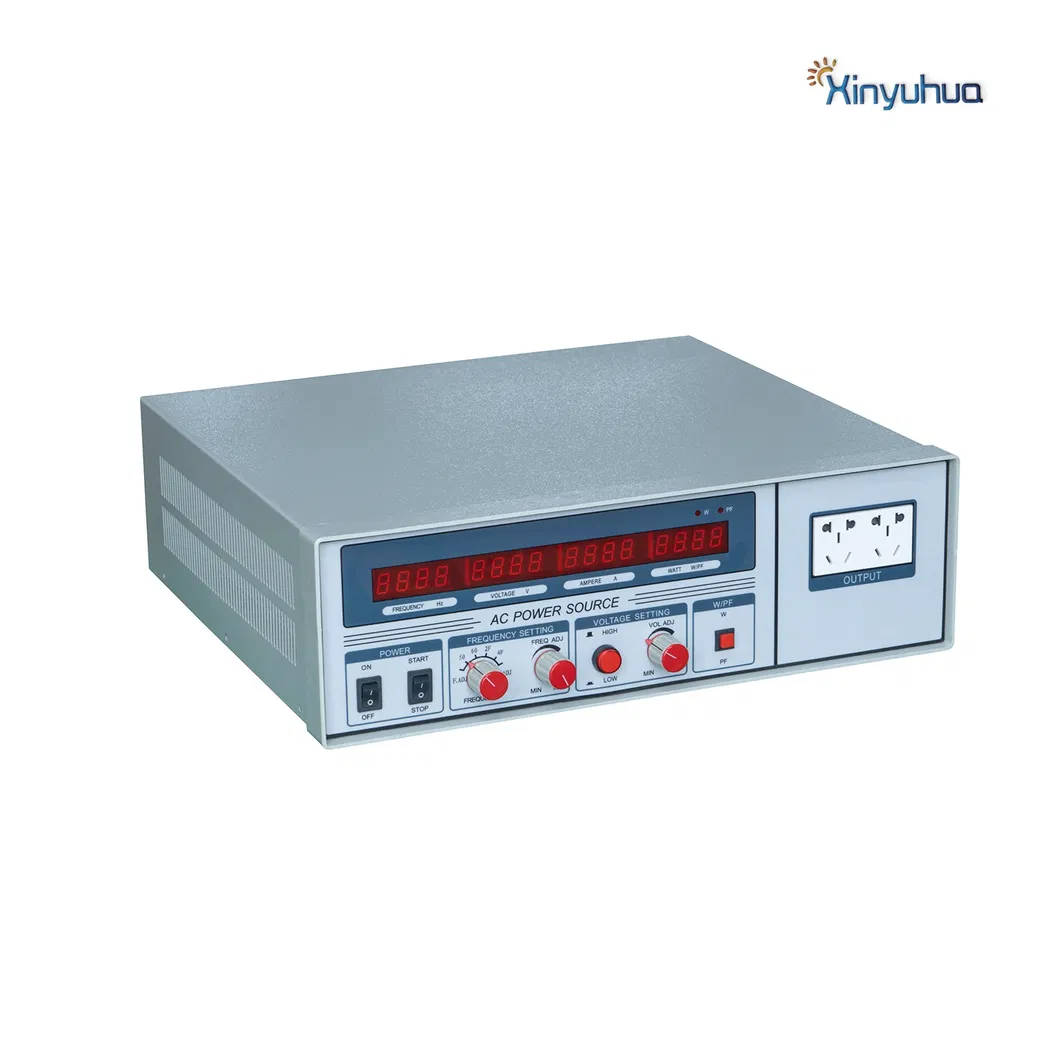

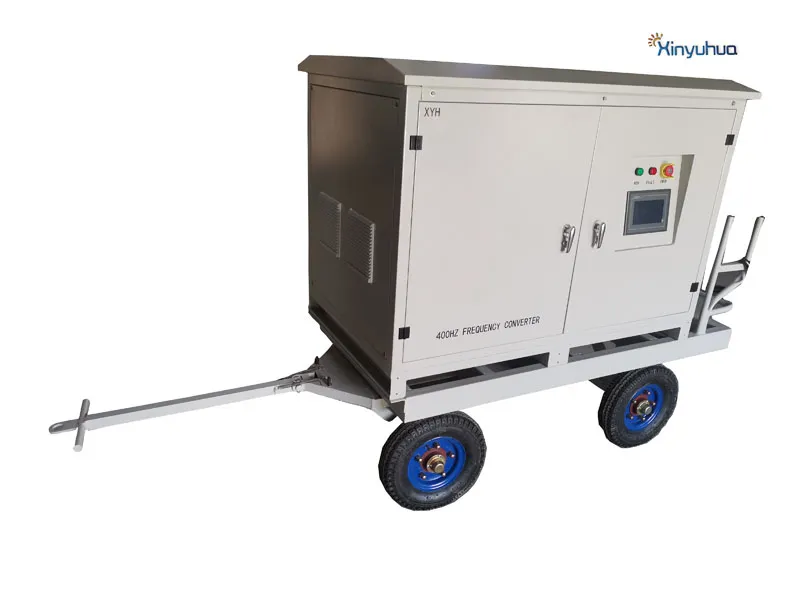

AC60 series power supply provides stable, pure sine wave output with low harmonic distortion. Ideal for test environments simulating global grids, including 400Hz aviation/military applications.

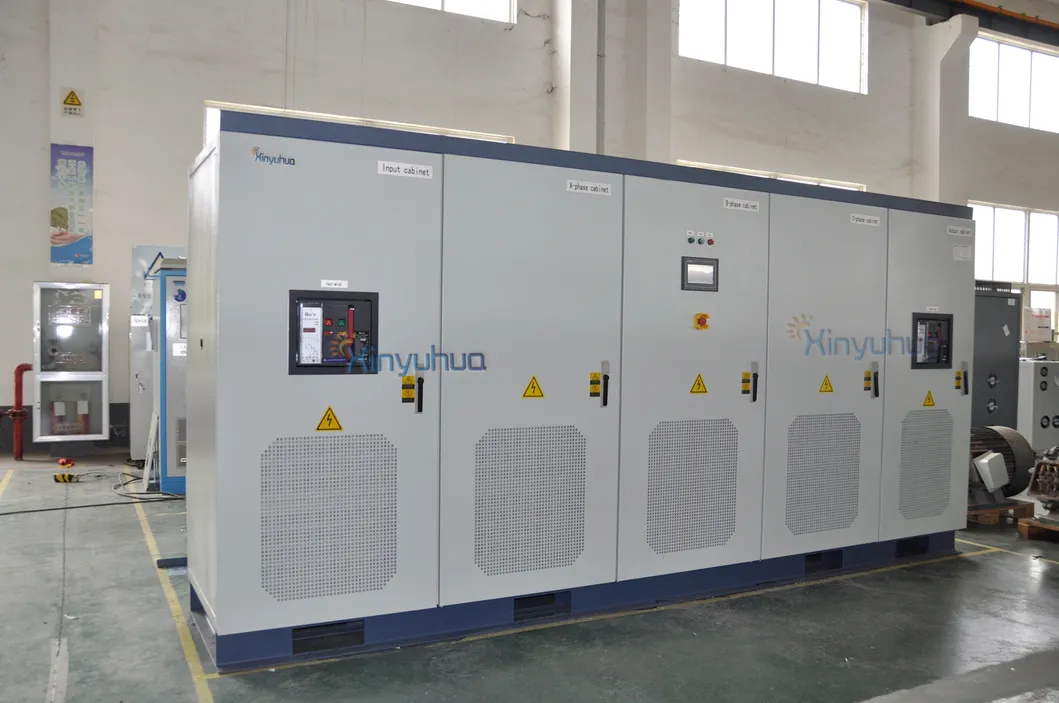

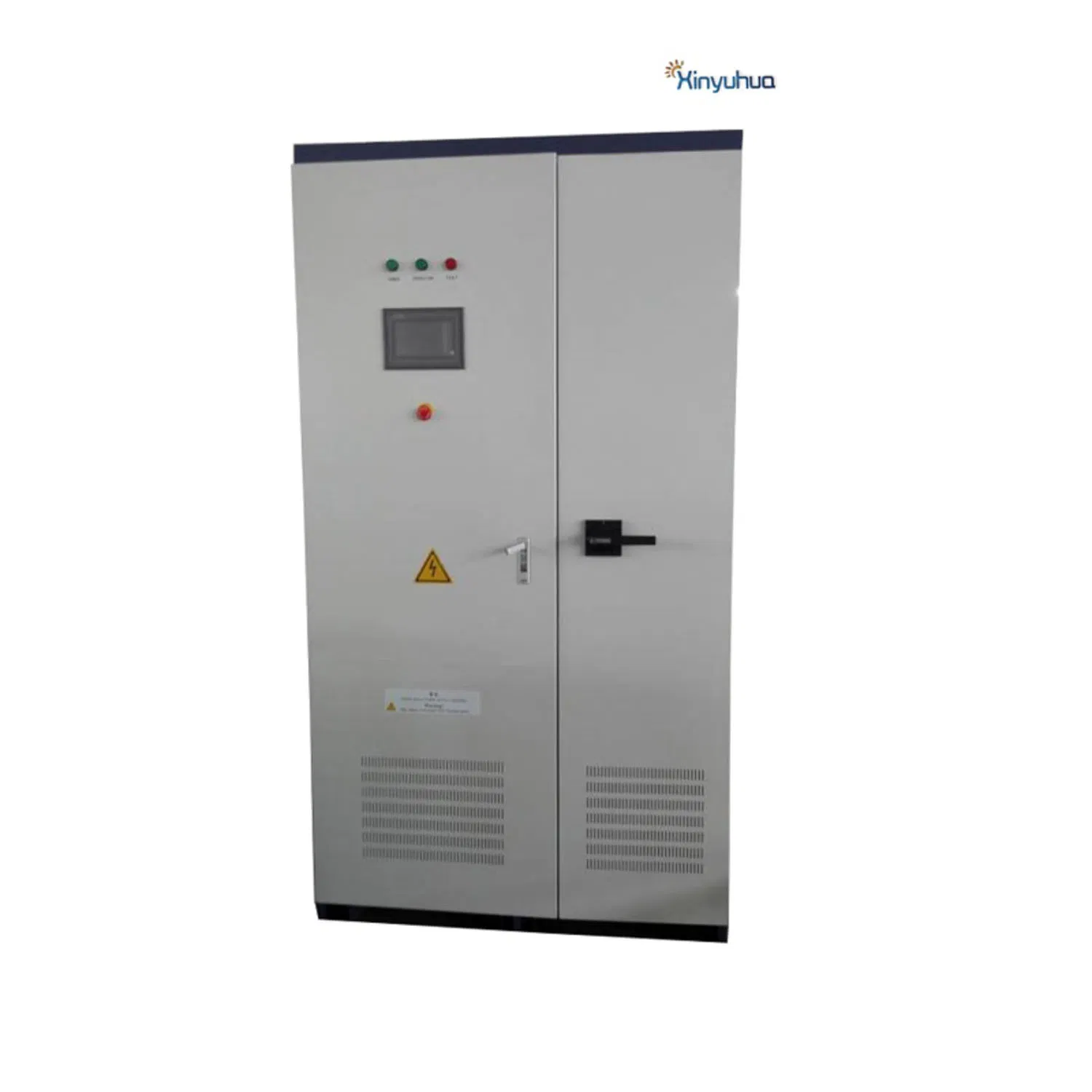

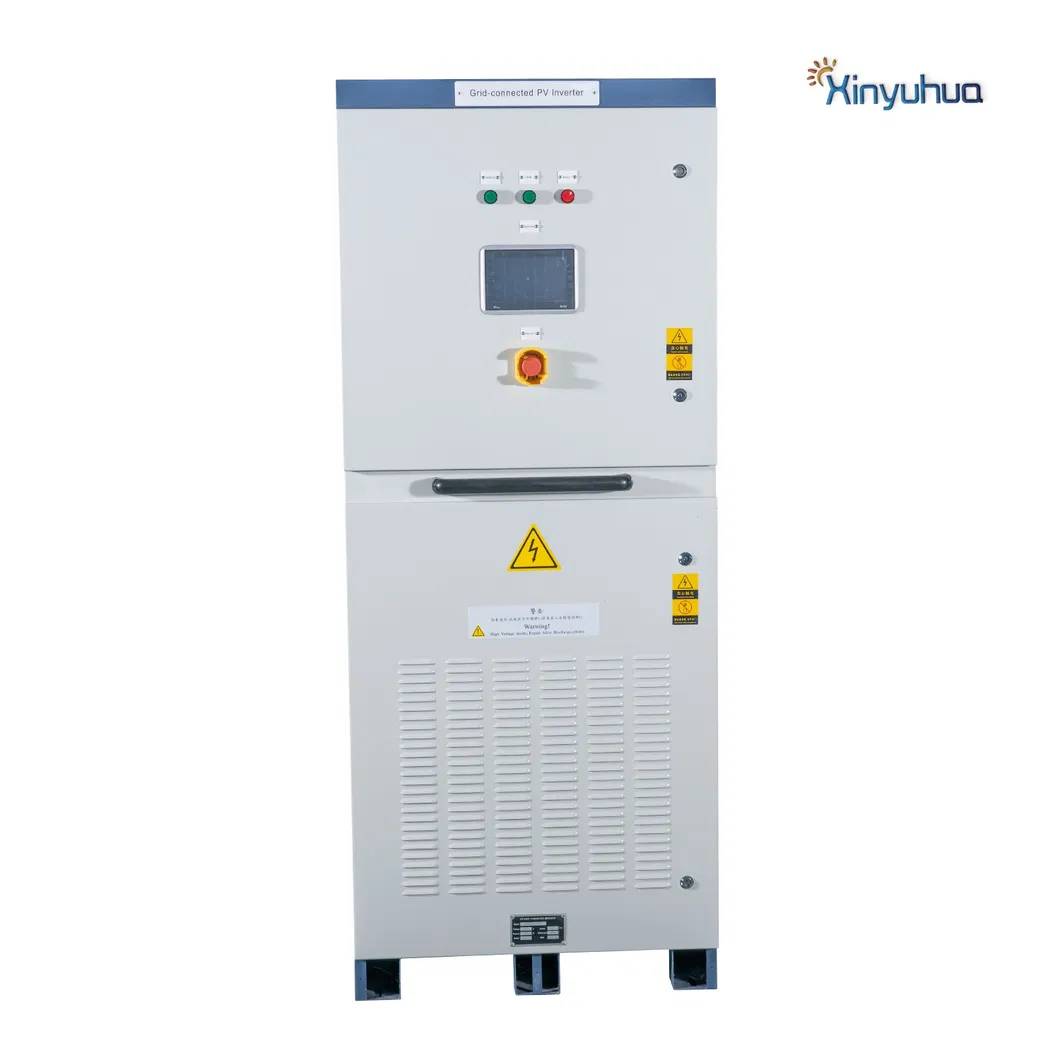

Combines grid feed-in and battery storage functions. Integrated with MPPT controller and comprehensive LCD display, allowing configured AC/solar priorities for seamless uninterruptible power.
Equipped with advanced DSP chips, Infineon IGBT modules, and isolation transformers. Employs SPWM pulse modulation for low current harmonics and features closed-loop network control.

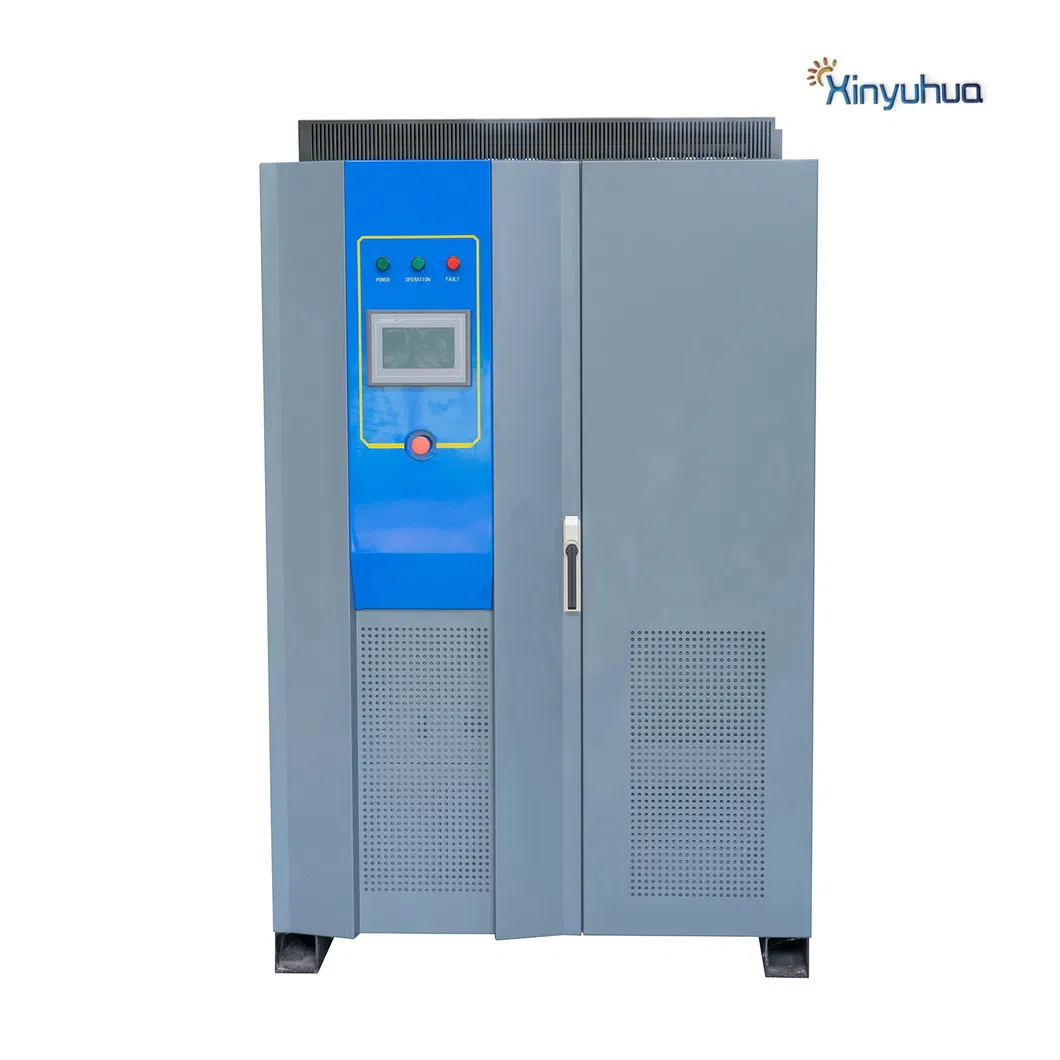

Utilizes full digital control for fast response and AFE technology for bidirectional energy conversion. Feeds regenerative energy back to the grid to avoid thermal loss during motor test operations.

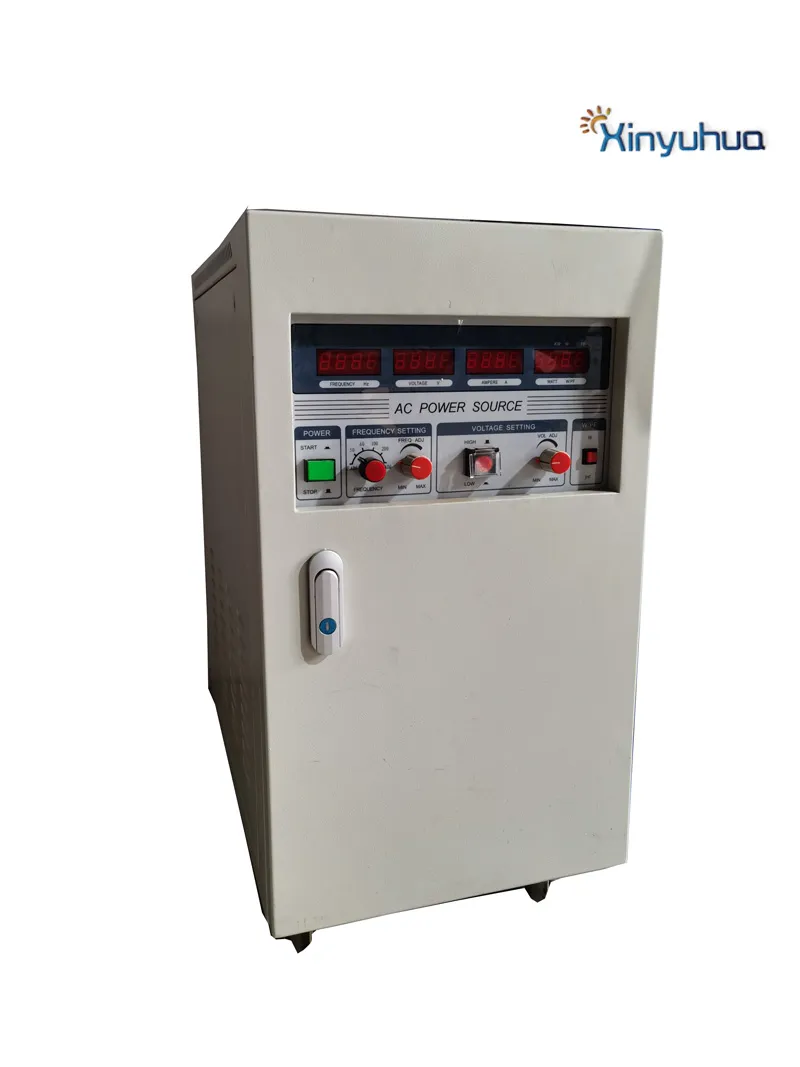

Utilizes SPWM IGBT AC-DC-AC frequency conversion technology to eliminate grid noise. Provides precise voltage/frequency control under 0-100% rapid load fluctuations.
Highly efficient high frequency switch-mode power supply designed for military, radar, and airport aircraft start-up applications demanding 28.5V or 24V DC.
