5kwh/10kwh/15kwh Residential Lithium Energy Storage System 51.2V 100ah/150ah/200ah Wall Mounted Solar Power LiFePO4 Cell Battery for Household Electric Backup

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	UPS, Electric Power, Lighting, Solar and Wind

Basic Info.

Model NO.RESS Series

Nominal Voltage51.2V

Discharge RateHigh Discharge Rate

ShapeSquare Battery

ElectrolyteLi-ion

InstallationFixed

RechargeableChargeable

ModelLiFePO4 Solar Battery

Voltage51.2V Energy Storage System

Capacity100ah 150ah 200ah Solar System

Battery Cellsa-Grade Cells

Cycle Life80%Dod@>6000 Cycles

Muliti-FunctionBluetooth, RS485, LCD Screen

Electrolyte SolutionLi-ion/LiFePO4

OEM/ODMYes

Design LifeOver 10years

ApplicationsSolar Energy Storage System, Power Supply Backup

CertificatesCE, IEC, ISO, MSDS

Delivery TimeDelivery Time

Warranty Time5 Years

Transport PackageCarton/ Pallet

Specification5kWh/ 10kWh/ 15kWh

TrademarkOEM

OriginChina

HS Code8507600000

Production Capacity1000000PCS/Month

Packaging & Delivery

Package Size1.00cm * 1.00cm * 1.00cm

Package Gross Weight50.000kg

Product Description

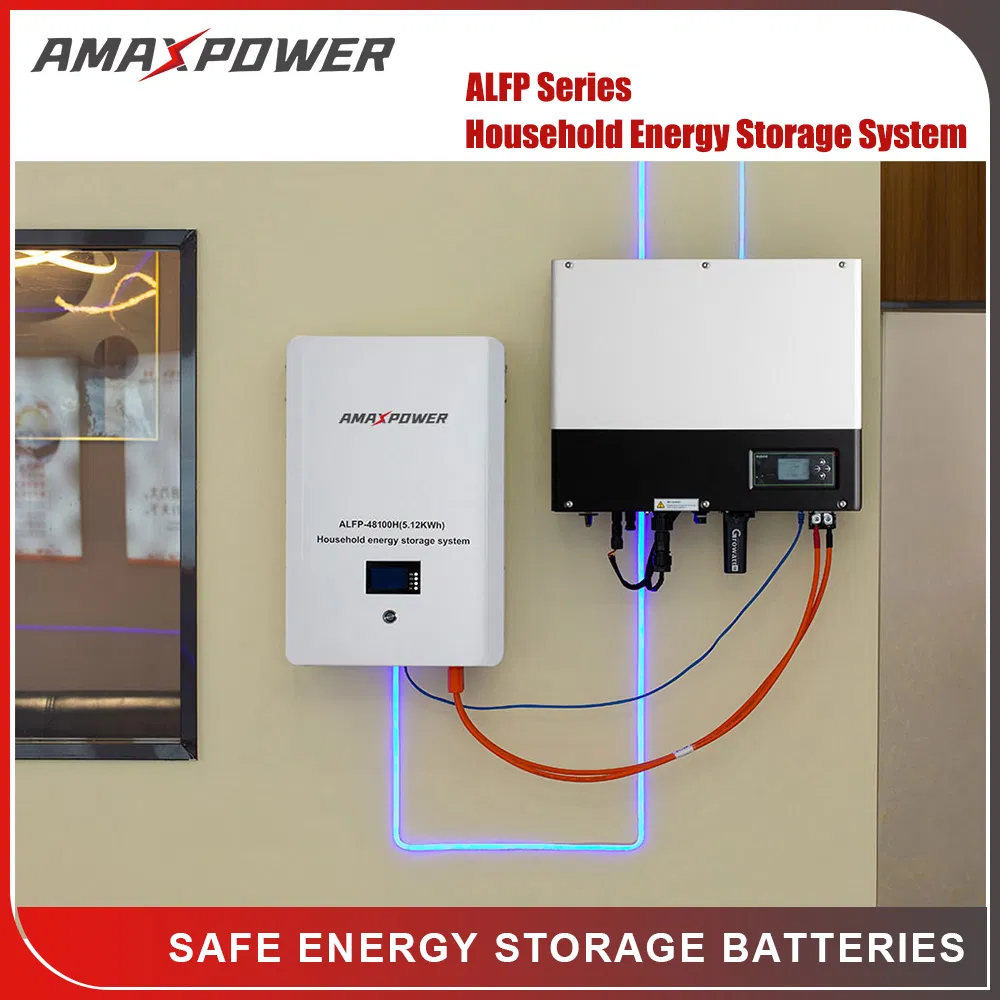

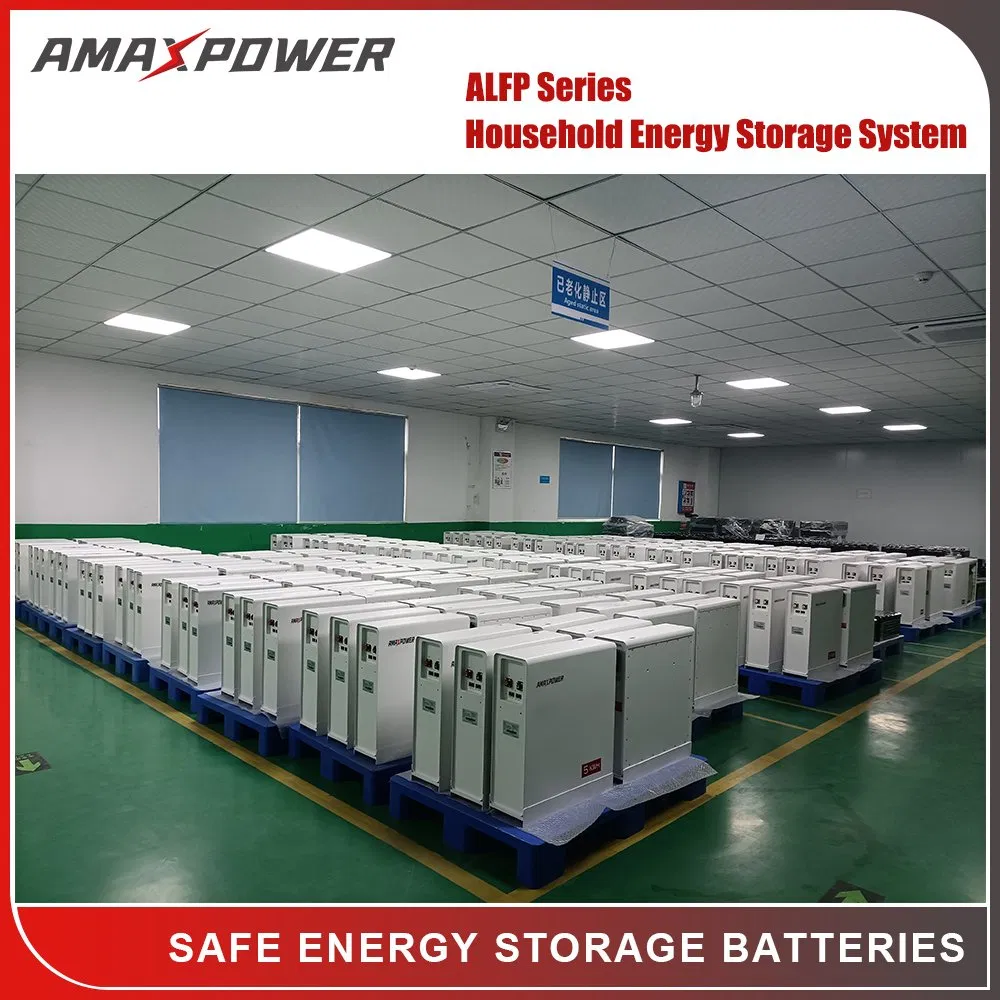

Residential Lithium Energy Storage System

Factory ODM&OEM LiFePO4 Lithium Battery Wall-Mounted Residential Energy Storage System

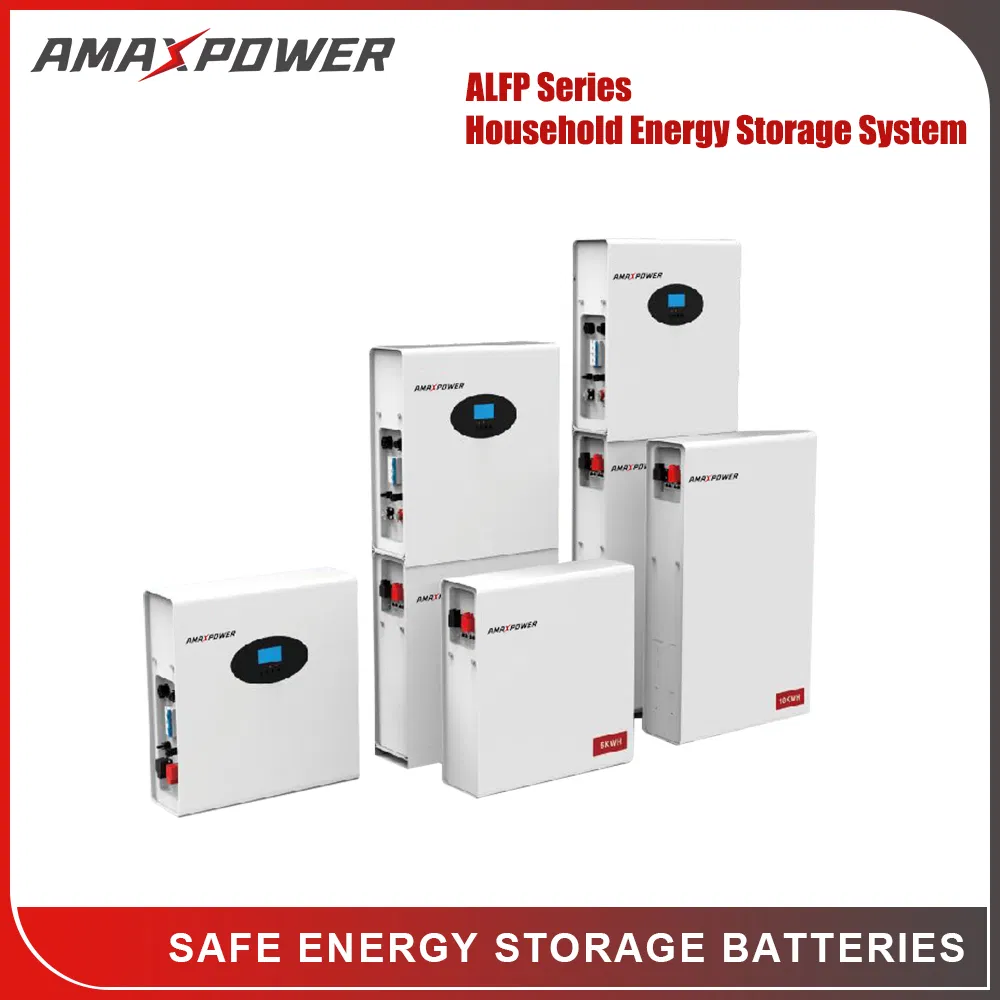

ALFP Series Household Energy Storage System for 5KWh/10KWh/15KWh RESS type LiFePO4(lithium iron phosphate) battery products, lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation, compatible to most leading inverters by more port options, Adopt high energy density and safetest lithium iron battery, the battery string supports high rate charge & discharge. and support leading inverter BMS communication protocol: Deye, Growatt, Voltronic, Goodwe, Victron, SMA.

Voltage: 51.2V
Capacity: 51.2V 100-200Ah;
Cyclic usage: 80%DOD, >6000 cycles
Wide operation temperature: -20ºC~60ºC;

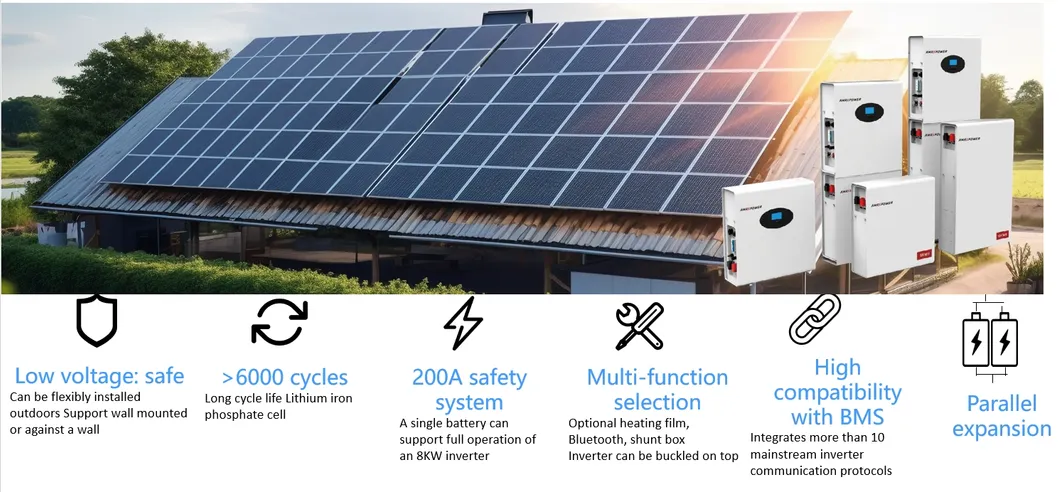

Features and Advantages

Factory Customized Li-ion 5KWH/10KWH/15KWH Wall Mounted Residential Lithium-Iron-Phosphate-Battery- (LiFePO4) Battery CE/Un38.3/IEC62133/MSDS Certificate Battery Pack for Household/UPS/Deep Cycle/Solar Energy Storage System

We offer A Grade Prismatic Lithium Ion LFP LiFePO4 Battery cell in different capacities of 51.2V 100AH/150AH/ 200AH 5Kwh/10Kwh/15Kwh OEM/ODM battery packs that are tailor-made to meet your needs.

SAFETY

Long life type prismatic LiFePO4 cells, suitable for energy storage application.
Low voltage system, safety for application.
Battery certification: UN38.3, MSDS, CE.

DESIGN

IP65 water-proof design, suitable for outdoor application.
Flexible and easily installation, support wall mounted.
-20~+55° C widely temperature range.
Maintenance free.
Cycle life >6000 cycles.

SCALABILITY

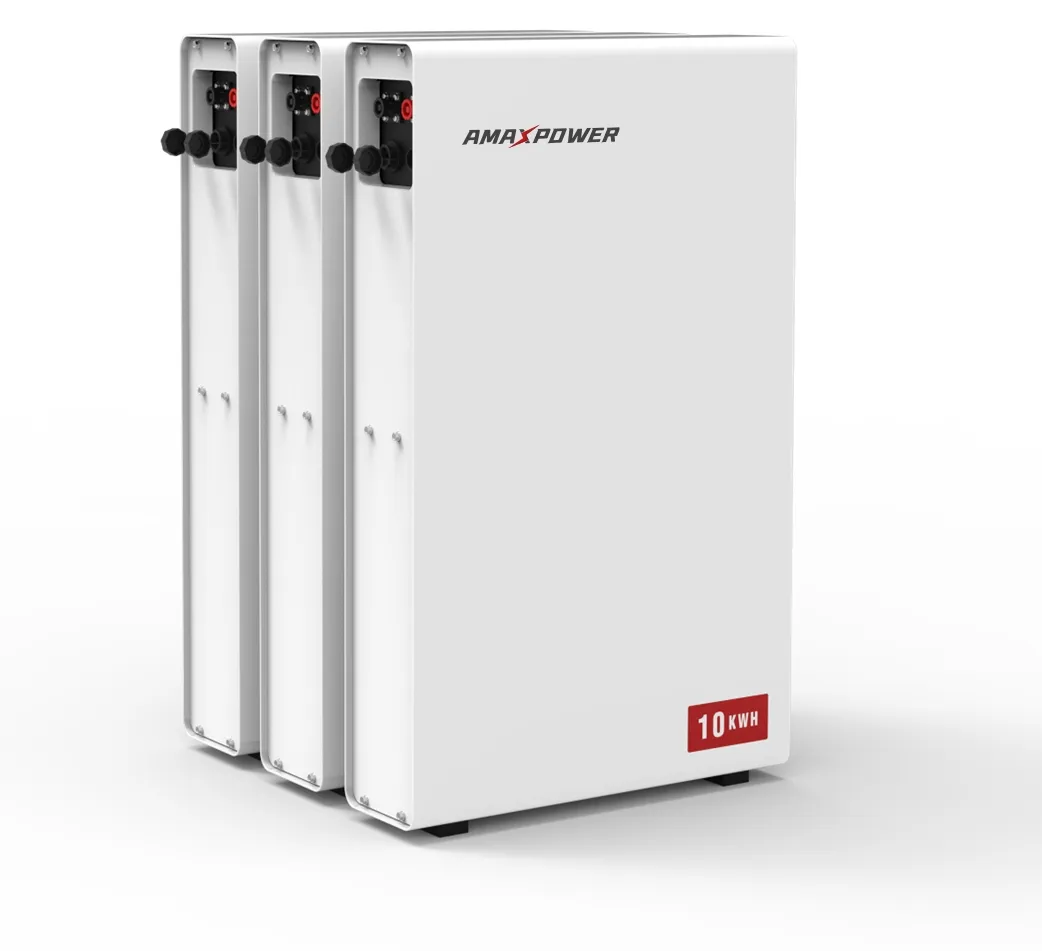

Parallel support for more energy.
Max. 200A larger current.
Communication compatible with the major inverter (SMA, Victron, Megarevo, Growatt, DEYE, Voltronic, Afore, Phocos, EPEVER, MUST, INHENERGY).

BATTERY MANAGEMENT SYSTEM

Integrated hardware BMS inside.
Independent protection for charge and discharge.
SOC, SOH display and PC software for detailed operation.
OVP, LVP, OCP, OTP, LTP protection.
RS485, CAN communication port for inverter.

Product Parameters

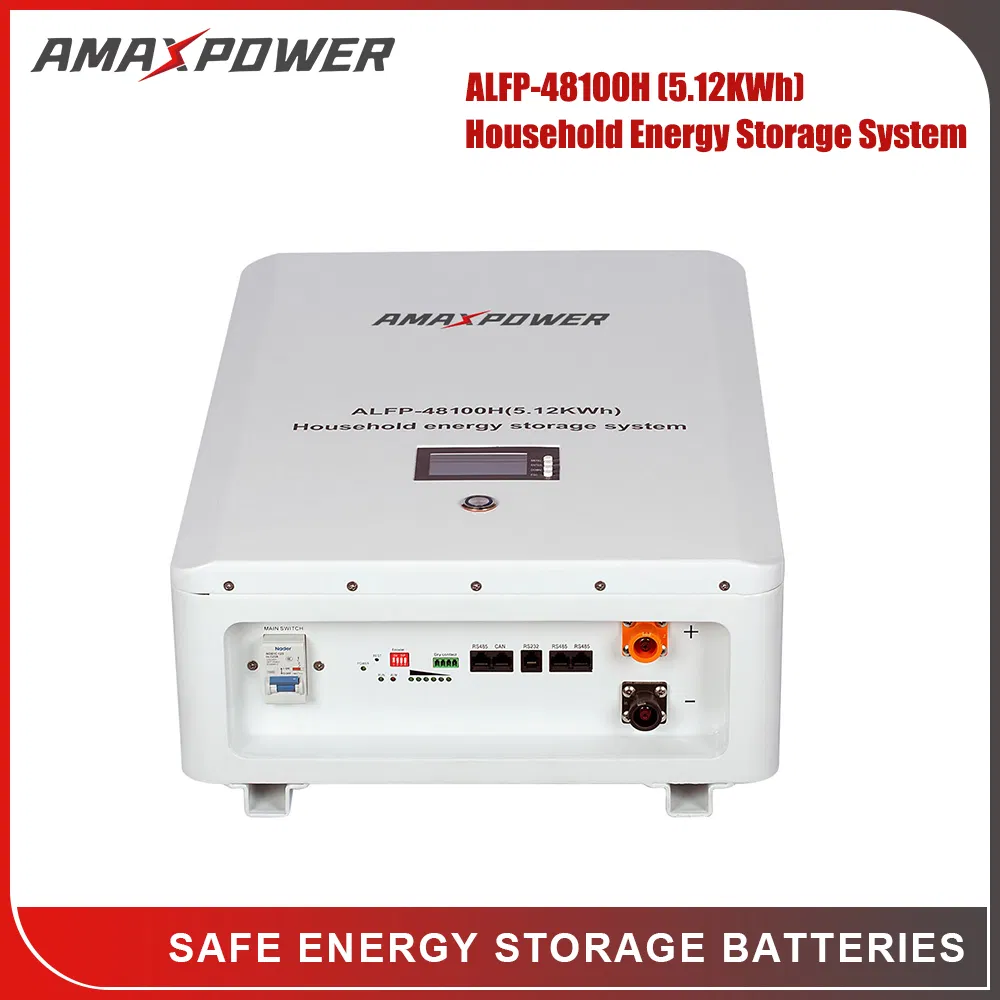

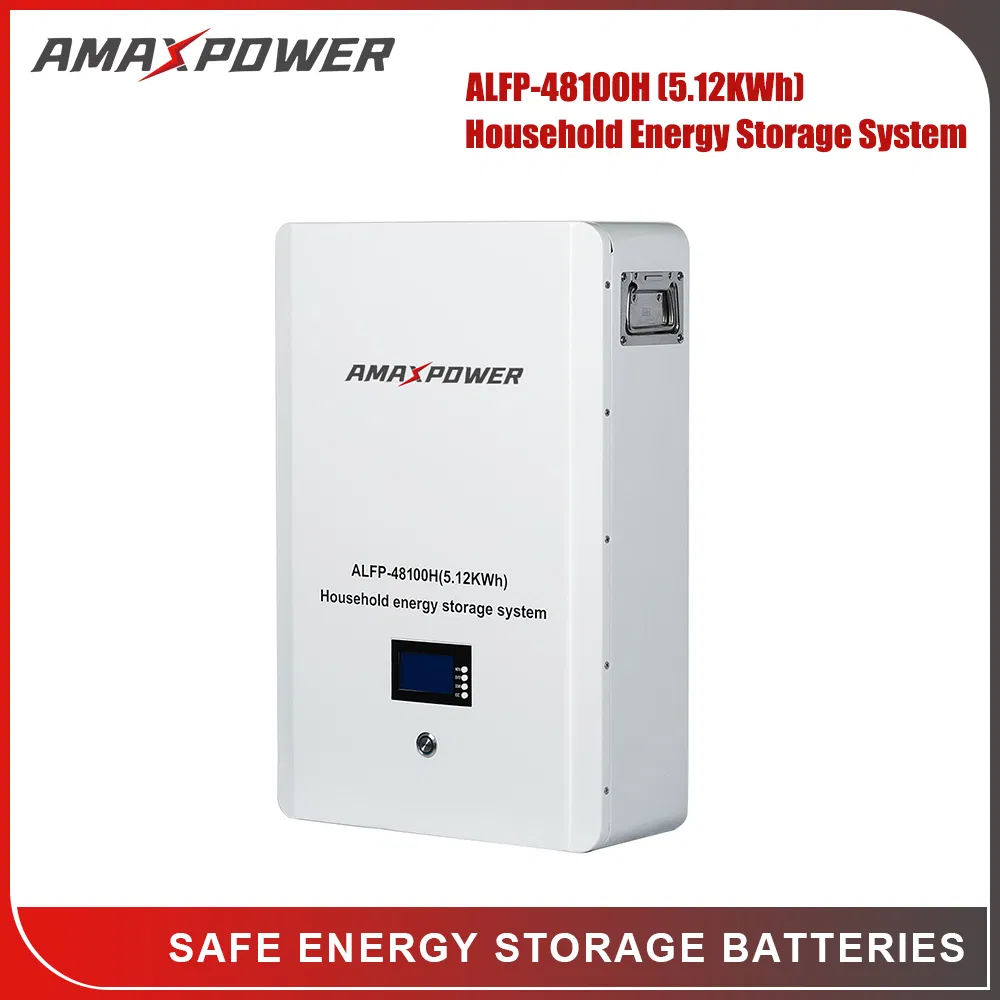

MODEL SPECIFICATION	ALFP-48100H (51.2V 100Ah)	ALFP-48150H (51.2V 150Ah)	ALFP-48200H (51.2V 200Ah)	ALFP-48200F (51.2V 200Ah)	ALFP-48300F (51.2V 300Ah)
Battery cell type	LiFePO4 battery
Battery Module	16pcs parallel connection max
Normal Capacity (25ºC, 0.2C)	5.12kWh	7.68kWh	10.24kWh	10.24kWh	15.36kWh
Normal Voltage (dc)	51.2V	51.2V	51.2V	51.2V	51.2V
Voltage window (dc)	51.2V~58.4V	51.2V~58.4V	51.2V~58.4V	51.2V~58.4V	51.2V~58.4V
Dimension (W/D/H)	600442170mm	600500150mm	630460180mm	740450260mm	880448260mm
Weight (NW Kg)	50	65	85	91	118
Normal charge/discharge current	50A	50A	50A	50A	60A
Max. charge/discharge current	100A	100A	100A	150A	200A
Cycle life (+35ºC 0.5C)	≥6000 times @80%DOD
Storage temperature	0~+40ºC
Safety standard	IEC 62109-1&-2, IEC 62477, CE-EMC
IP degree	IP54			IP32
Communication function	CANbus, Modbus
PROTECTION
Protection Features	Overcharge Protection, Overdischarge Protection, Overcurrent Protection, Shortcircuit Protection, Overtemperature Protection
AMBIENT LIMITS
Working Temperature	Charge: 0~55ºC; Discharge: -20~60ºC
Humidity	5%~95%

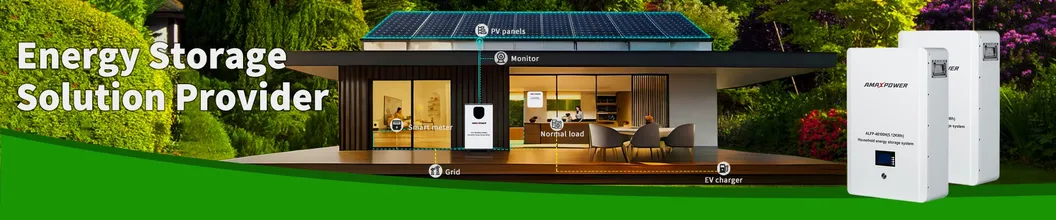

Application Scope

Products can be used for household solar energy, RV/Marine energy storage, low-speed vehicles/forklifts, solar street lights, communication base stations, UPS backup power supply, off-grid power generation, photovoltaic power plant energy storage, mobile energy storage and so on.

Company Profile

Founded in 2005, the manufacturer has steadily expanded to approximately 1,000 employees, including an experienced management team and manufacturing team that has been at the forefront of manufacturing technology in the battery field.

The production base is located in a 500,000-square-meter modern industrial park in Guangdong, China, with first-class production facilities and an annual production capacity of approximately 2,000,000kVAh.

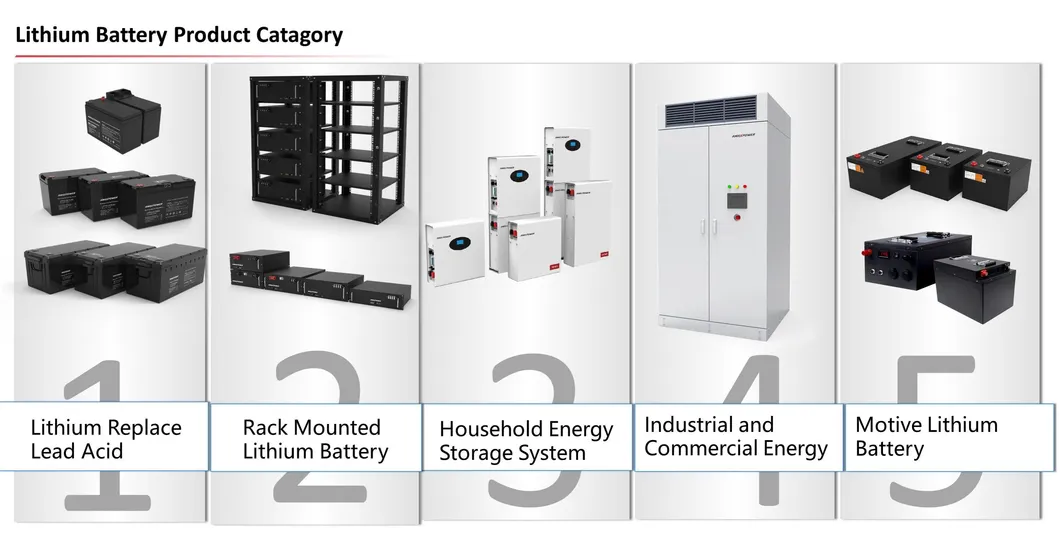

As a professional manufacturer and high-tech enterprise of storage battery in China, we produce a full range of valve regulated lead acid (VRLA) batteries and Lithium batteries, including AGM Batteries, Gel Batteries, Deep Cycle Batteries, Front Terminal Batteries, OPzV/OPzS Batteries, Motive Batteries, Traction batteries, LiFePO4 Batteries and so on. The products are widely used in communication electricity, lighting, UPS, telecom system, and other basic industries; Solar energy, wind energy, smart grid, electric vehicles, energy storage battery station, and other strategic emerging industries.

Our Advantages

17+ years industrial experience with advanced equipment and instruments and builds Automatic production line.
Strictly comply with ISO quality management system, products have passed CE, IEC, ROHS and other certifications.
We provide OEM & ODM and advanced customization services to over 100 countries. A professional marketing and technical team provides you thoughtful services.

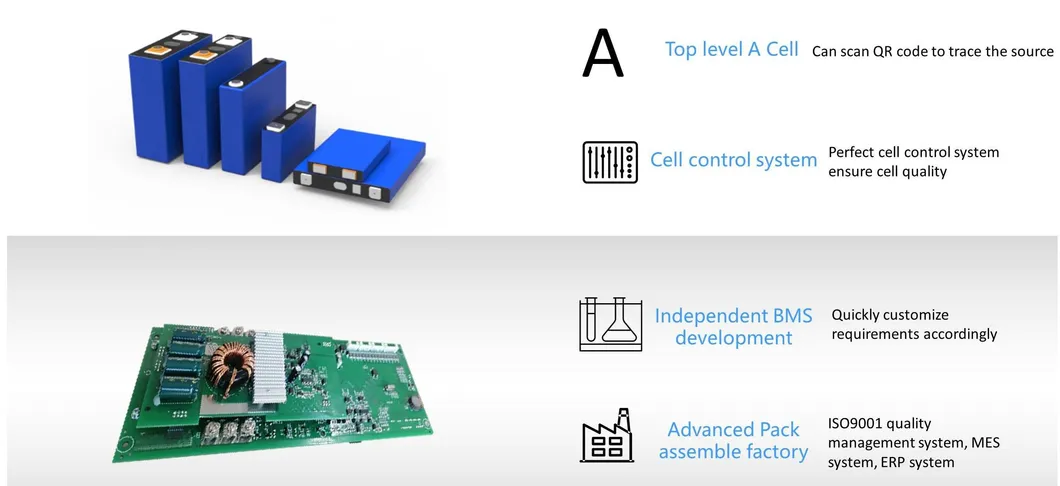

Top Level A Battery Cell
Independent BMS Development

Factory Tour

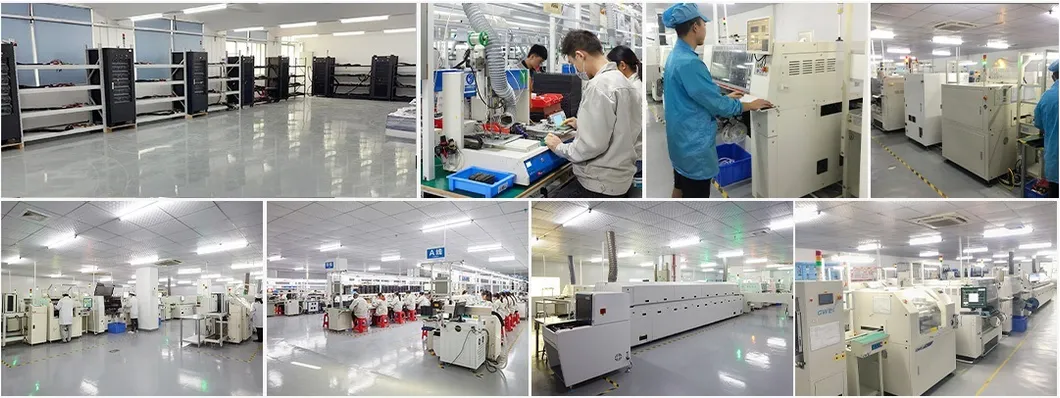

Battery Production

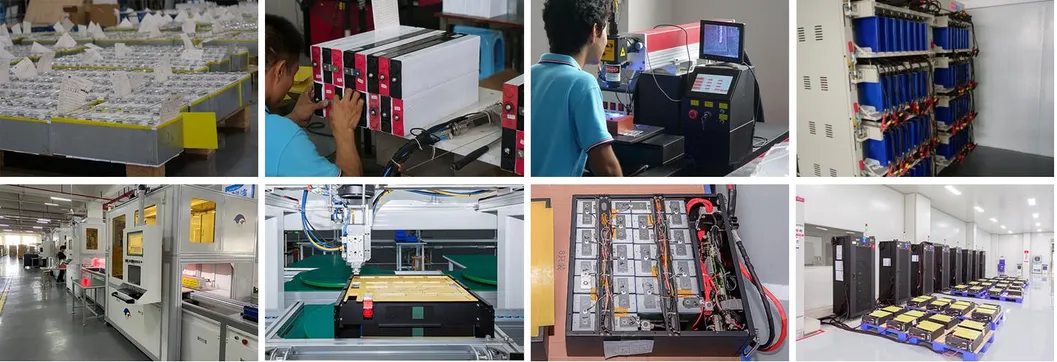

Quality Control

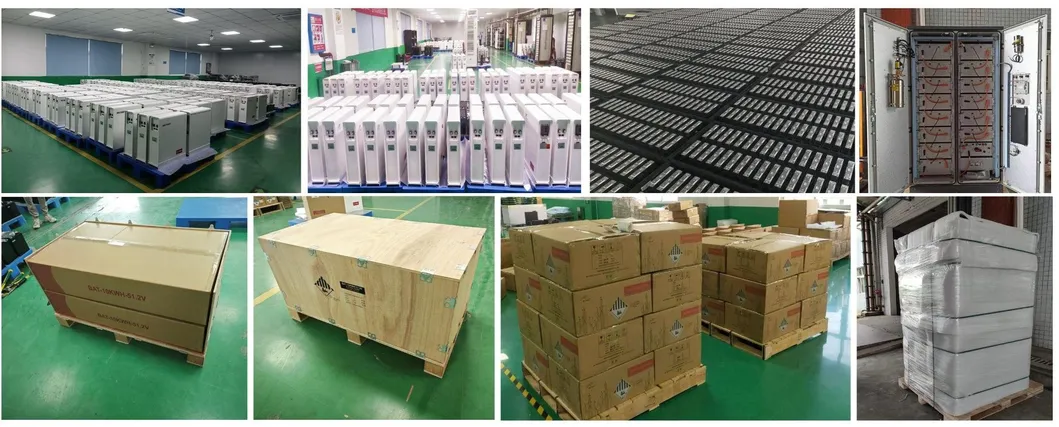

Packing and Shipping

Hard carton and foam packaging, safe for different shipment
100% full inspection before shipment to ensure quality control
MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
Customs on-site inspection to ensure the safety of the battery

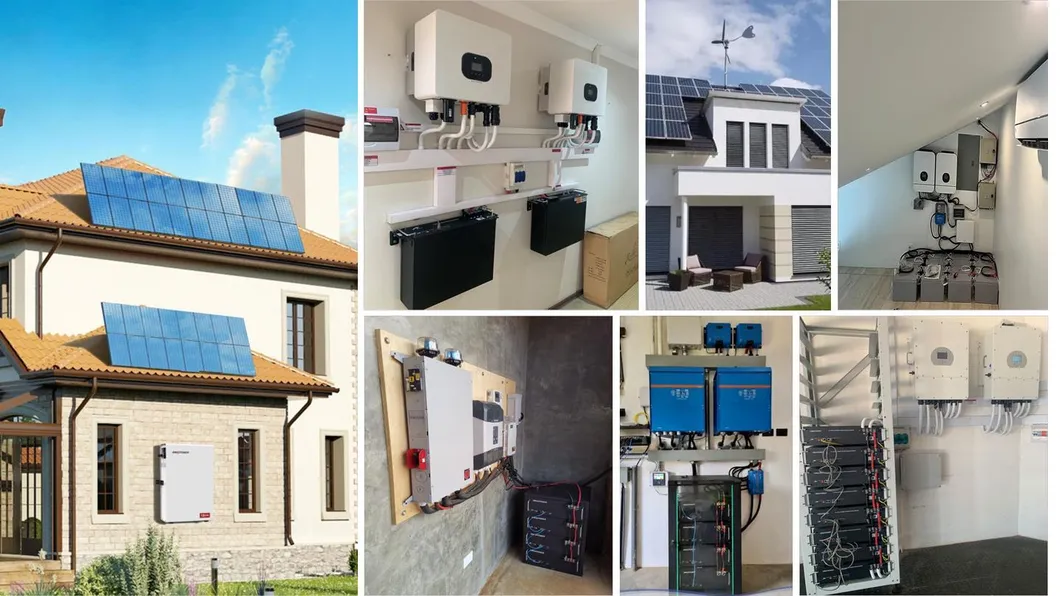

Our Project

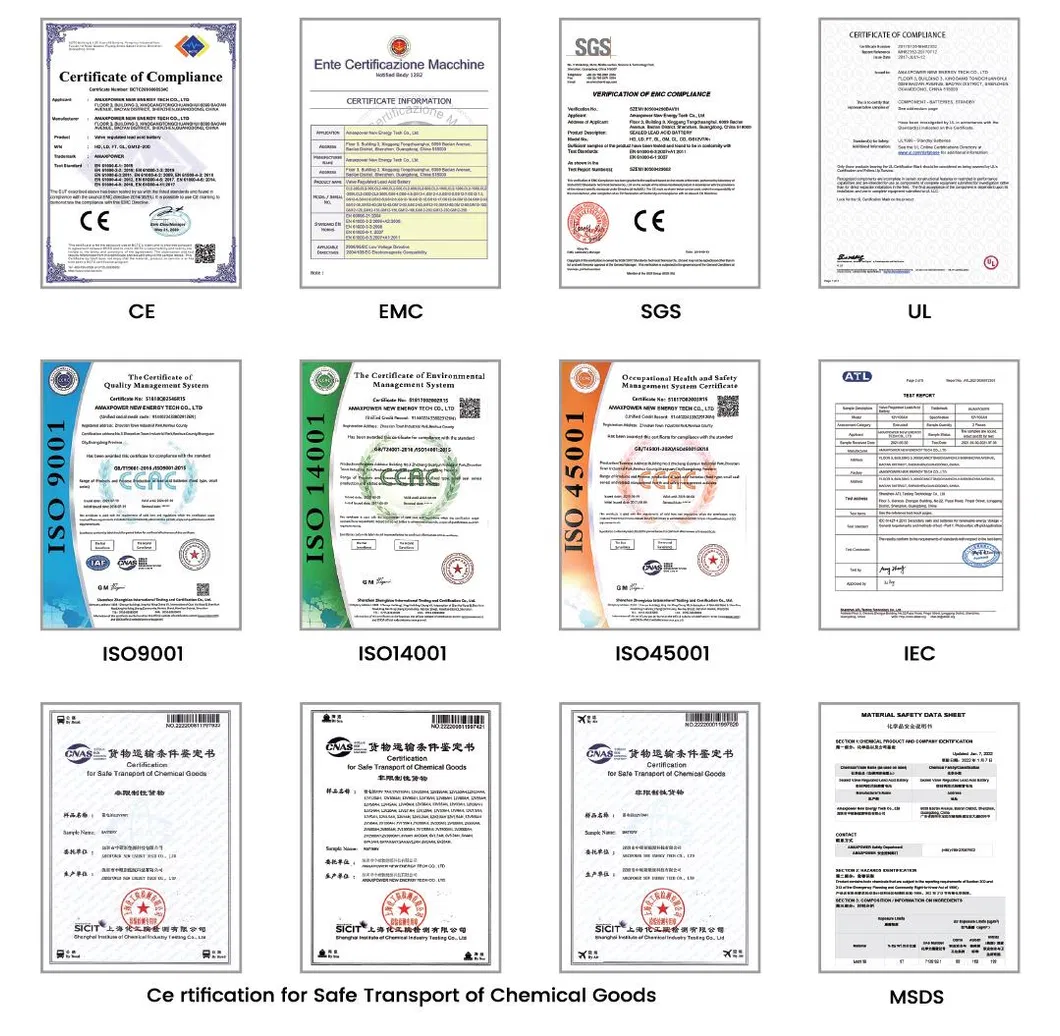

Certifications

Frequently Asked Questions

Q1. Are you a battery manufacturer?

A: Yes, we are a professional manufacturer for both Lithium BMS and battery pack with 17 years of experience in Guangdong Province, China. We provide all kinds of OEM/ODM services for clients, and can produce by your samples or technical drawings.

Q2: What's your sample MOQ?

A: We don't have a strict requirement on sample quantity, but it's recommended to test at least 2pcs to get a comprehensive understanding of our product performance.

Q3. How about the production lead time usually?

A: The sample takes about 7-12 days. The bulk order requires about 25-35 days depending on your order quantity.

Q4: Is an OEM/ODM battery pack available?

A: Yes, OEM/ODM battery packs are warmly welcomed. We have a professional R&D Team to provide you with comprehensive technical support.

Q5: Do you have the documents required for battery shipments?

A: Yes, we have MSDS, UN38.3 for single cells, and other special files needed for shipments to specific regions can also be applied for based on demand.

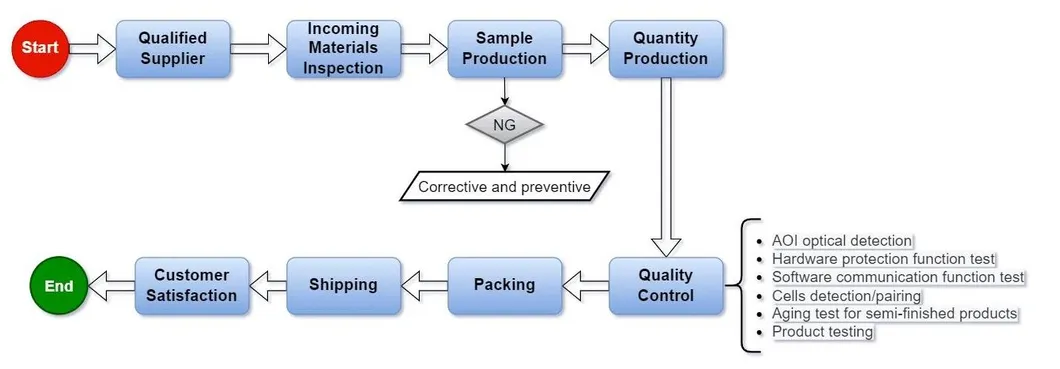

Q6. How does your factory control the quality?

A: We adopt the ISO 9001 quality system to control the quality. We have an Incoming Quality Control (IQC) department to test and confirm raw materials; a Production Quality Control (PQC) department conducting in-process inspections; and an Outgoing Quality Control (OQC) department confirming that no defective batteries leave the factory.
