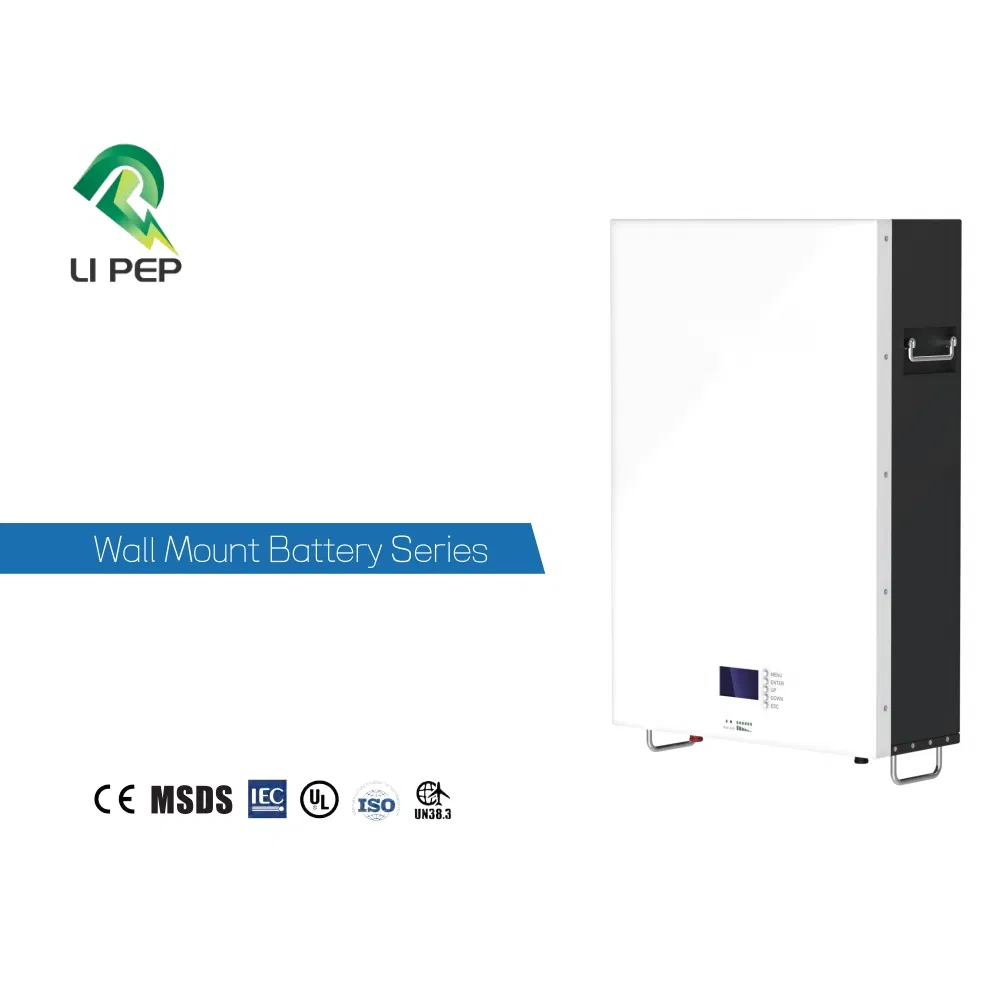

51.2V100/200/300ah Solar Generator Home Lithium Ion Battery off Grid System LiFePO4 Lithium Cell Power Station Wall Mounted Energy Storage Lithium Ion Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Model NO.
51.2V100/200/300AH
Nominal Capacity
100ah
Nominal Voltage
51.2V
BMS
100A
Structure
3.2V100ah 16s
Charge Current (a)
50A
Rated Energy Storage (Kwh)
5.12kwh
Operating Voltage Range
40V~58.4V
Communication Interface
RS485/RS23/Can
Array Mode
16s1p
Specification
482*400*170mm
Origin
China
HS Code
8507600090
Production Capacity
50000pieces/Month
Packaging & Delivery
Package Size
66.00cm * 51.00cm * 33.00cm
Package Gross Weight
43.000kg
Product Description
51.2V100ah Solar Generator Home Solar System LiFePO4 Lithium Cell Wall Mounted Solar Storage Lithium Ion Battery
The wall-mounted energy storage battery enhances the independence of the system's electricity consumption by storing solar energy, and can enjoy the clean energy generated by your own home at night. With solar energy, it can charge the home appliance with sunlight, which can continuously power the home appliance for several days. Ensure uninterrupted operation of the home appliance and all-round energy supply. Stylish appearance, easy installation, simple design, strong and durable, perfect fit for a variety of residential styles.

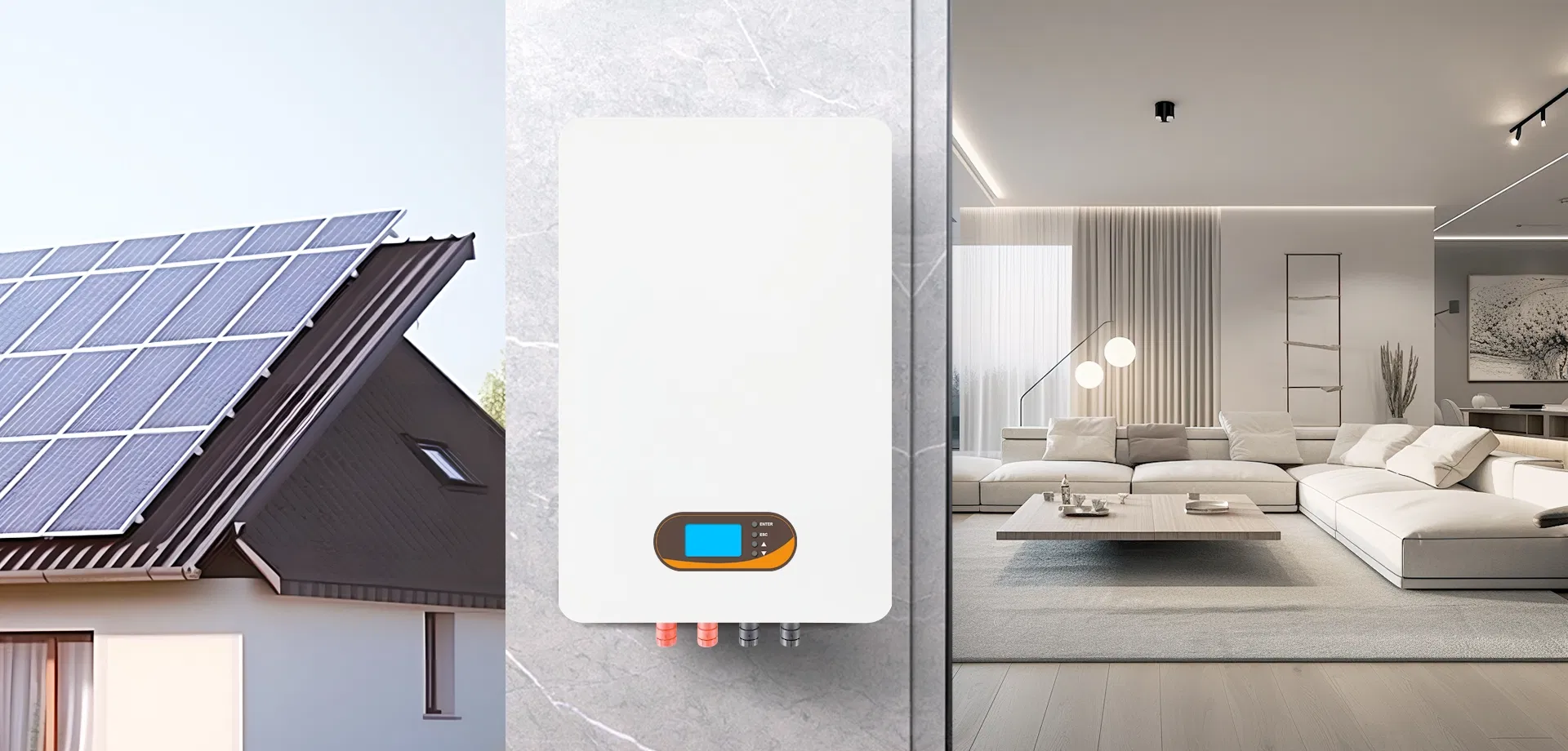

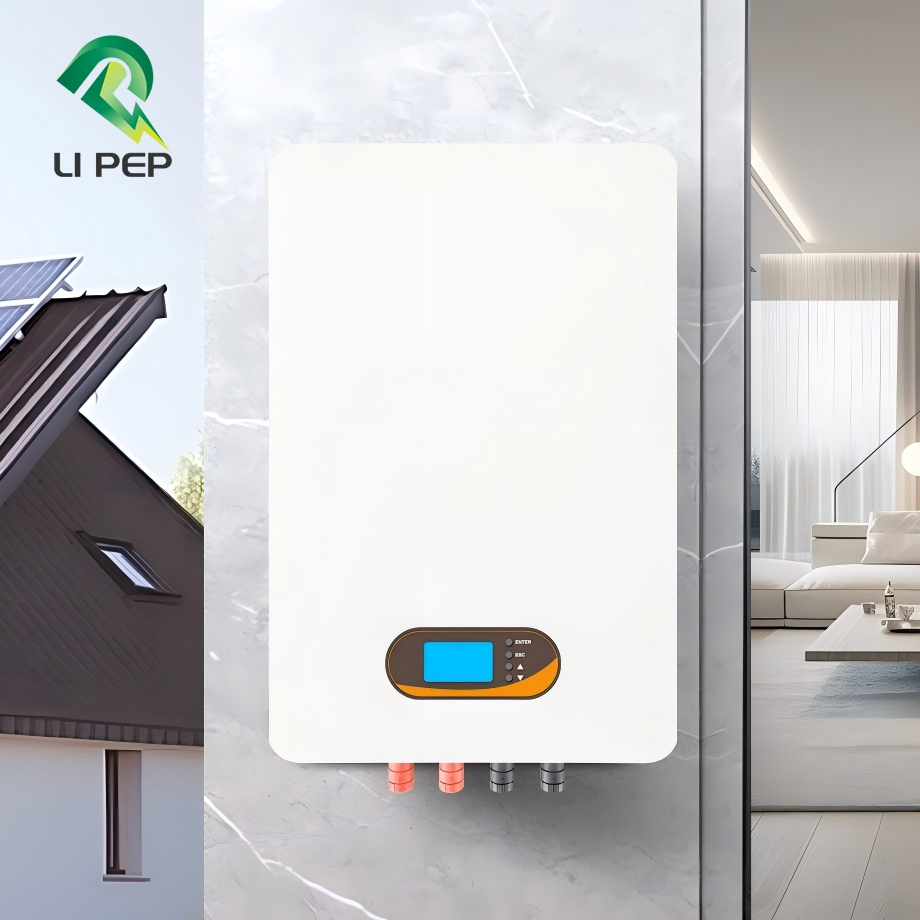

Wall Mounted Energy Storage Battery
Product Features
1
Rechargeable and deep cycle: more than 6000+ times cycles, up to 10 years.
2
High quality and high efficiency: brand A+ grade battery cell.
3
Wall-mounted installation, easy installation, simple external connection, small space occupation.
4
One-key switch machine, convenient operation, high efficiency and energy saving.
5
Battery manager system built-in: High compatibility BMS, compatible with various brands of energy storage inverters.
6
Multiple communication interfaces: RS232, RS485, CAN.
Product Parameters
Model LBP24-100W LBP24-200W LBP48-100W LBP48-200W LBP51.2-100W LBP51.2-200W
Nominal voltage (V) 25.6 48 51.2
Nominal capacity (Ah) 100 200 100 200 100 200
Nominal energy capacity (kWh) 2.56 5.12 4.8 9.6 5.12 10.24
Operating voltage range (V) 22.4~29.2 42~54.75 44.8~58.4
Recommended charging voltage (V) 27.6 51.75 55.2
Recommended discharge cut-off voltage (V) 24 45 48
Standard charging/discharging current (A) 0.5C
Maximum continuous charging/discharging current (A) 1C (Customizable)
Applicable temperature (℃) -30~60 (Recommended 10~35)
Permissible humidity range (%RH) <85
Storage temperature (℃) -20~65 (Recommended 10~35)
Protection level IP20
Cooling method Natural air cooling/intelligent fan
Maximum size (DWH) mm 687*450*186 682*465*276 687*450*186 682*465*276
Weight (kg) 28 49 46 89 49 93
Product Detail

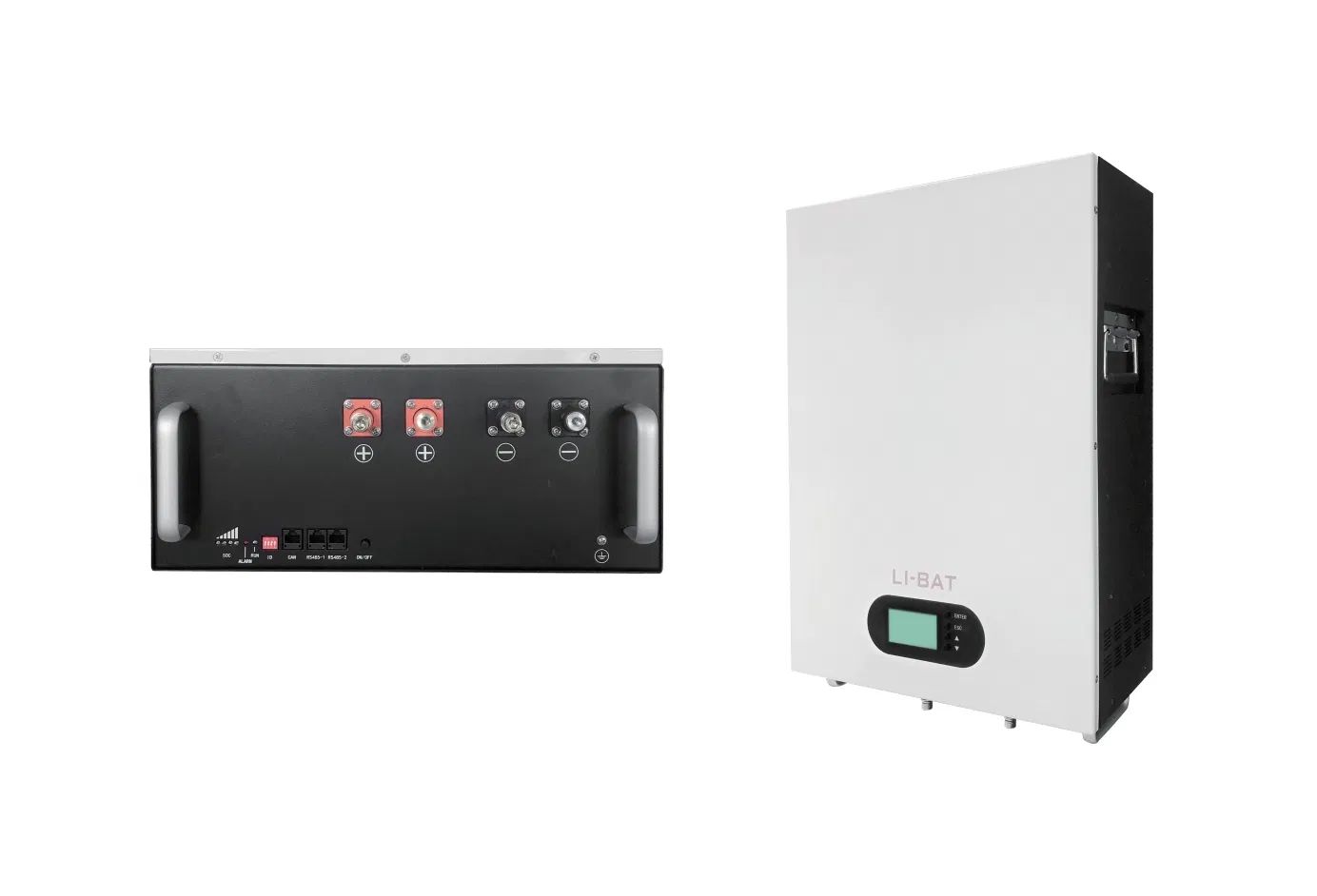

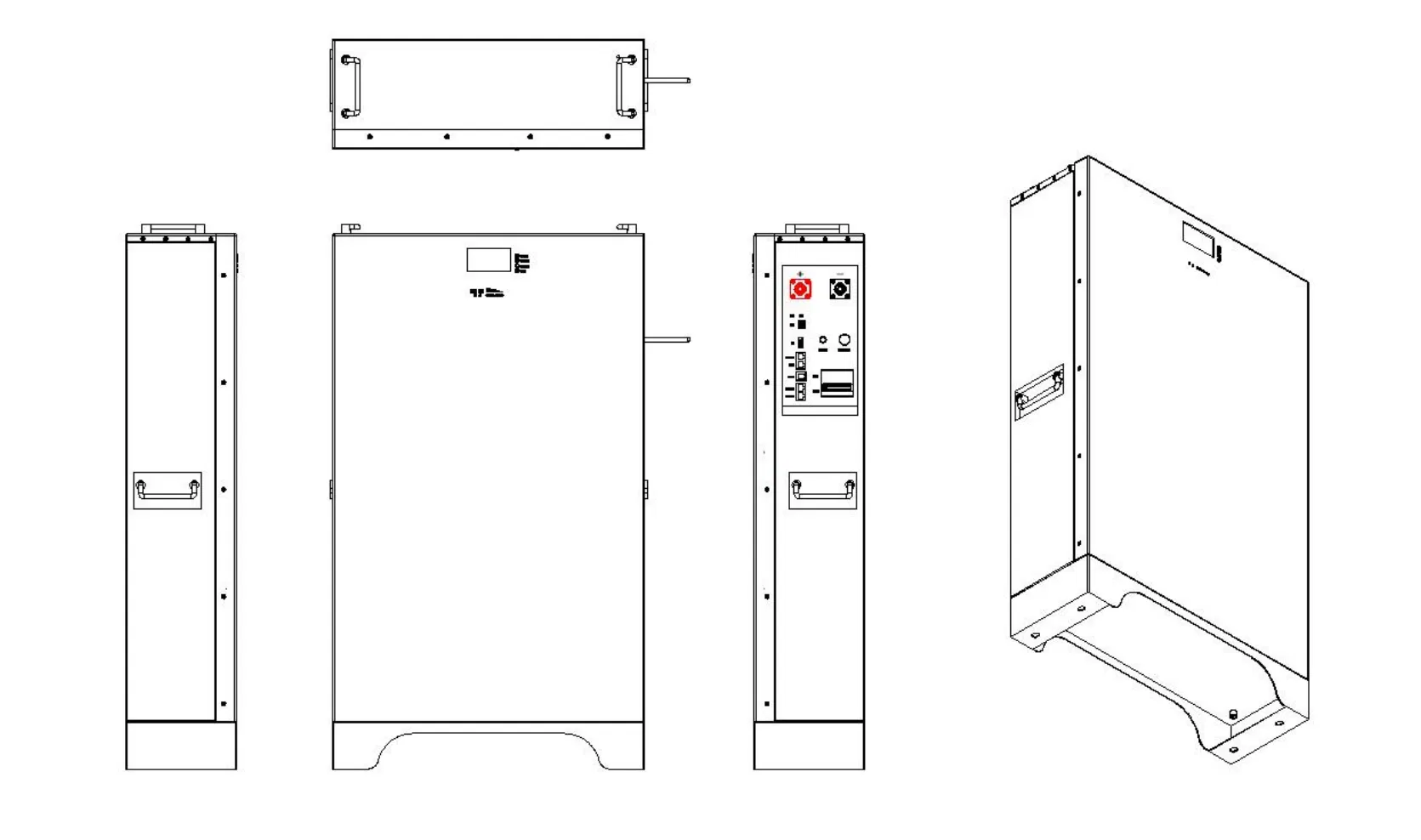

Battery Detail view 1 Battery Detail view 2 Battery Detail view 3 Battery Detail view 4 Battery Detail view 5 Battery Detail view 6
Packaging & Shipping
Product Packaging Box
Product Packaging
For standard shipments, we adopt high-quality corrugated cartons as our primary packaging option. These cartons are selected for their durability, shock resistance, and cost-effectiveness, keeping goods safe during storage and transportation. Beyond standard packaging, we offer flexible customization services tailored to your unique needs: whether you require alternative materials (such as wooden crates, bubble wrap, or moisture-proof bags), custom-sized containers, branding printing, or reinforced packaging for fragile items, our team can accommodate your specifications to ensure the safe and satisfactory delivery of your goods.
Company Profile

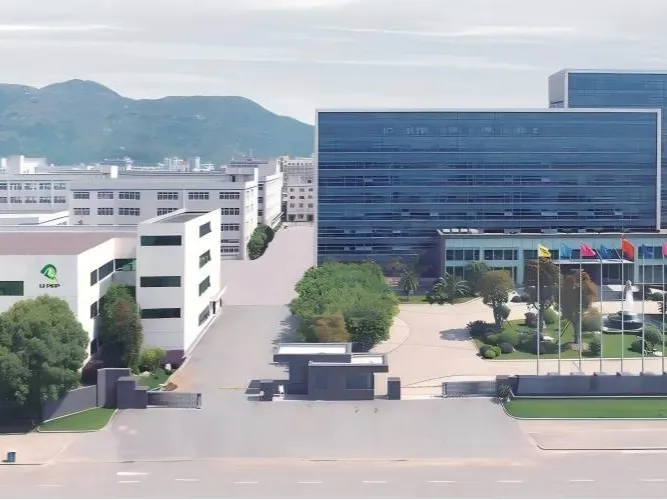

Production Facility Office
Our company was Established In 2018. We Have Three Production Bases, With An Annual Production Capacity Of More Than 2GW. We Are Mainly Engaged In R&D, Production And Sales Of PV Modules And Lithium Batteries, As Well As Providing Customers With Solutions For Solar Energy Projects. We Also Provide Professional OEM/ODM Services To Customers Around The World. Our Products Have Been Sold To More Than 100 Countries. The Main Markets Are Concentrated In America, EU And Southeast Asian Countries. 5KWH-15KWH Household Energy Storage Batteries And All Models Of PV Modules Have All Passed UL Certification. There Are Three PV Module And Solar Inverter Warehouses In EU.
Why Choose Us?
We are a company that upholds the original intention of "earn respect with quality". We always insist on using innovation to promote development; we achieve product innovation by constantly breaking through technological barriers; we are committed to the research and development, production, sales and marketing of energy storage systems and photovoltaic products. Our company is a leading provider of total battery energy solutions in the industry.
Technical Strength and Laboratory
Production Line
We have a modern production centre and battery laboratory with advanced production and testing equipment such as automatic battery sorting and welding equipment, battery performance testing equipment, and the advanced photovoltaic panel production line. We strictly follow the standards to execute every product for our customers!
The laboratory is equipped with advanced programmable constant temperature and humidity testers, high and low temperature testers, drop testers, squeeze testers and other equipment. Through complete battery performance testing, we provide our partners with safe and stable products.

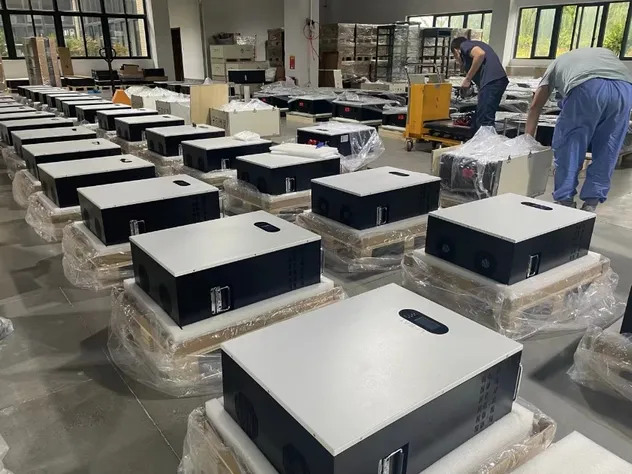

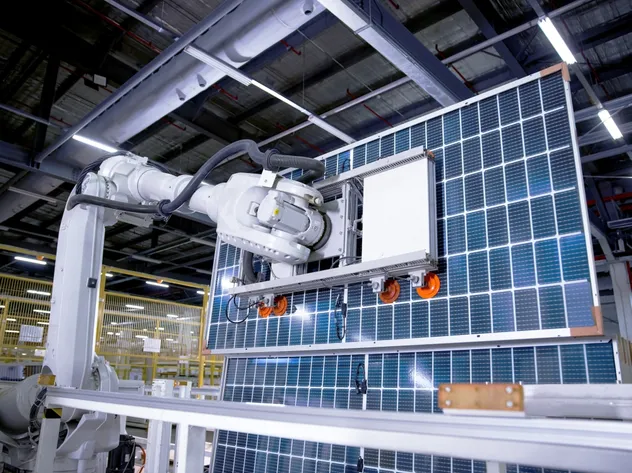

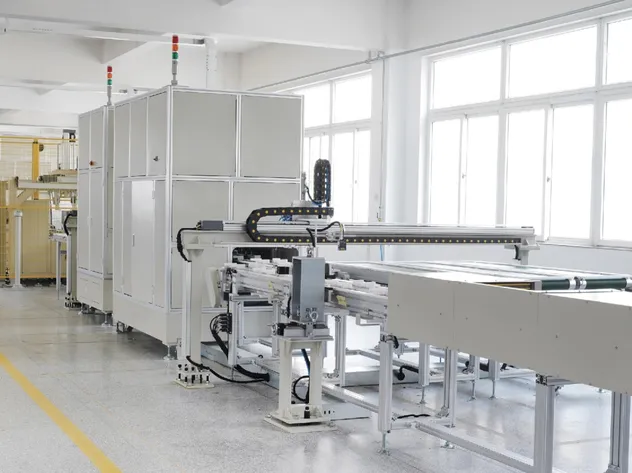

Production Facility Area 1 Production Facility Area 2 Production Facility Area 3
Certifications
Our products have received relevant certificates. Quality is our top priority and we strictly follow the certification requirements to provide our customers with quality products.

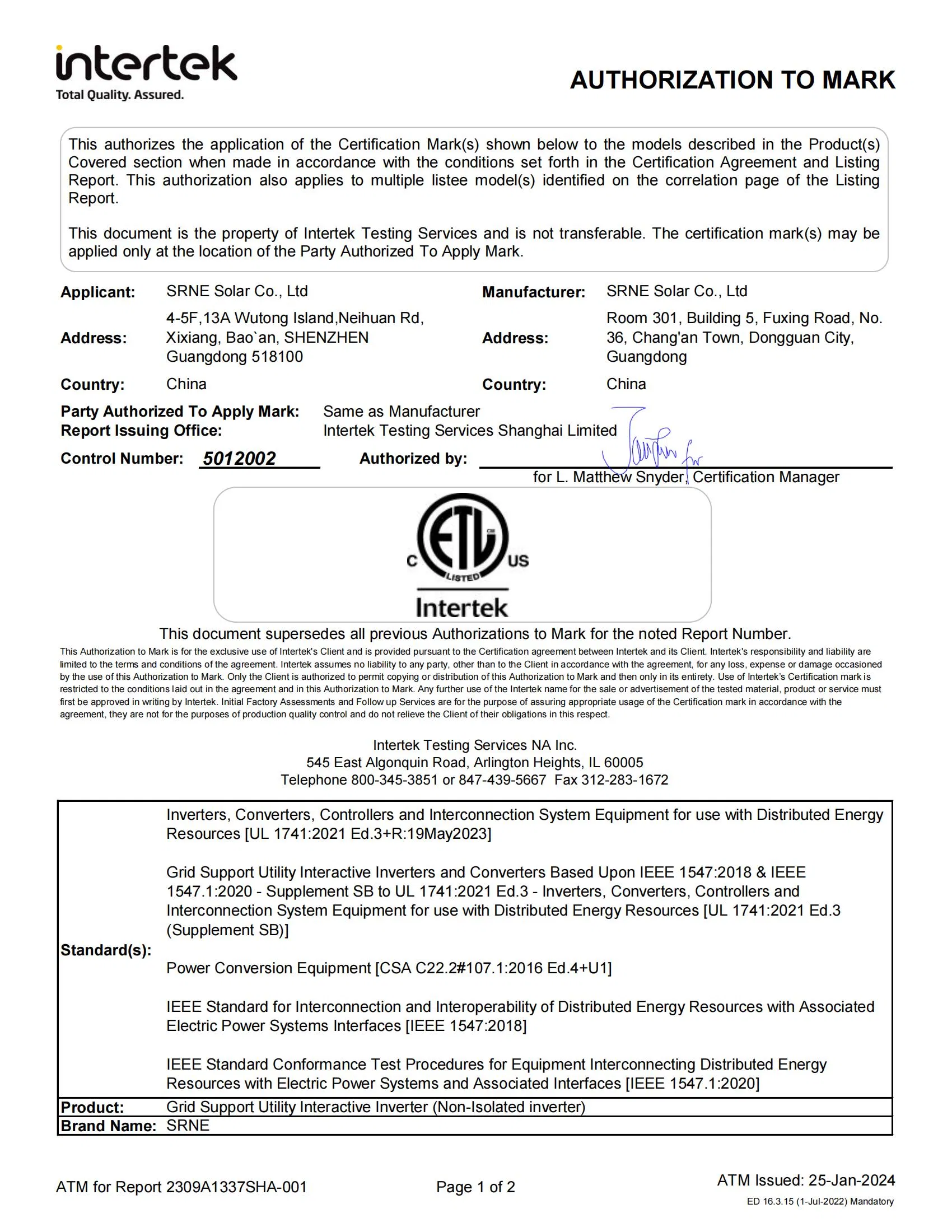

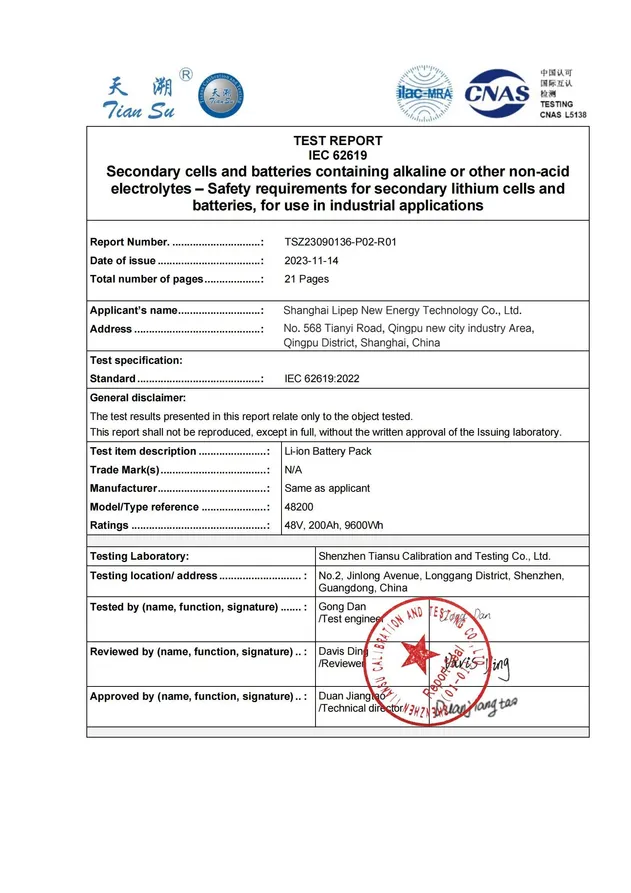

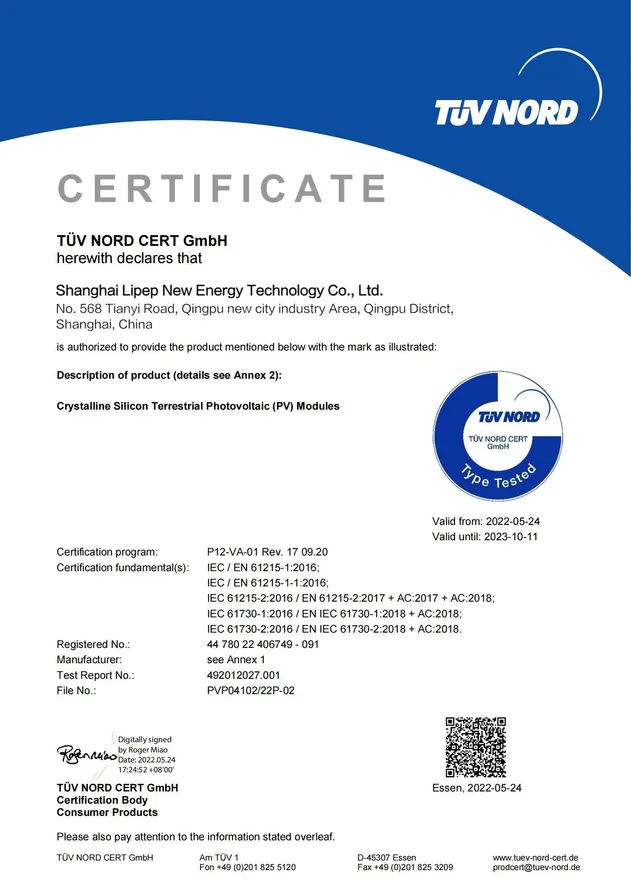

Product Certificate 1 Product Certificate 2 Product Certificate 3
Frequently Asked Questions (FAQ)
Q1. What's your MOQ?
A: No matter which models you choose, our MOQ of batteries is one unit.
Q2. What's the grade of battery cell you use?
A: For each power and model of our batteries, we choose A+/A grade battery cells. If you prioritize budget, we can also customize the best suitable model for you.
Q3. Do you have All-in-One machines? What's the max power it can reach?
A: Yes, we have wheeled All-in-One and stacked All-in-One models. Typically, the most popular configuration is a 20KWH battery capacity with a 5.5KW hybrid inverter. The maximum power capacity we can reach is 30-50KWH, depending on your specific requirements. We offer protection ratings from IP20, IP54, to IP65.
Q4. If I want to get a battery customized to my own needs, what info do I need to provide?
A: First, we need to evaluate the feasibility of your request. If viable, we will require the following information to proceed:
(1) The shape and size limits of the battery pack.
(2) Your target capacity and voltage.
(3) Preferred cable and connector types.
(4) Maximum discharge current requirements.
(5) Casing and terminal requirements.
(6) Any preferred protection circuit specifications.
Q5. What are your requirements for OEM/ODM service?
A: Usually, for OEM/ODM services, we require a minimum order quantity of one 20ft container. However, if your order volume is large enough, customization costs can be waived. We can adjust various parameters according to availability and your requirements.
Q6. What communication interfaces do your batteries support?
A: Our batteries support multiple communication interfaces, including RS232, RS485, and CAN. This ensures high compatibility with a wide range of energy storage inverters in the industry.
