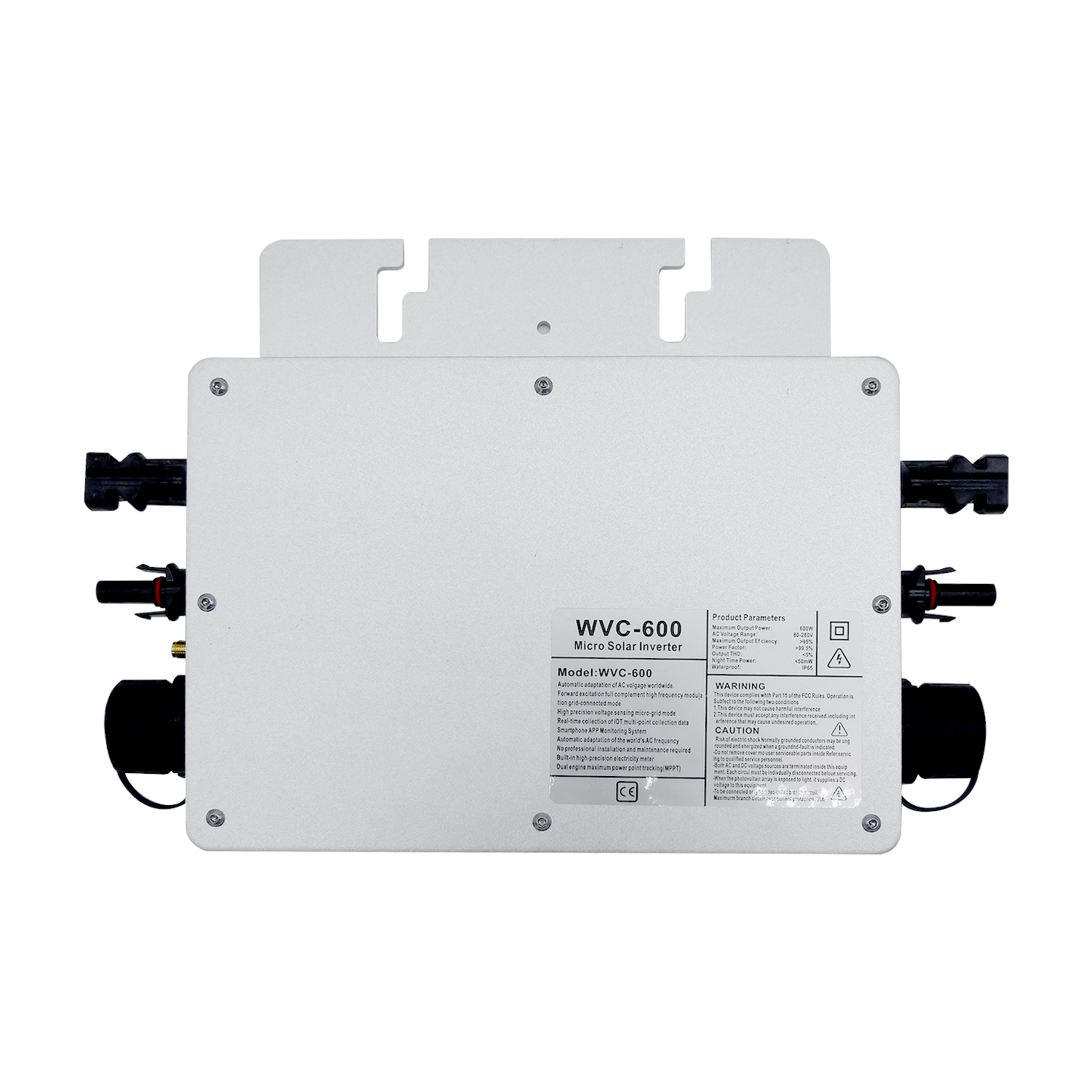

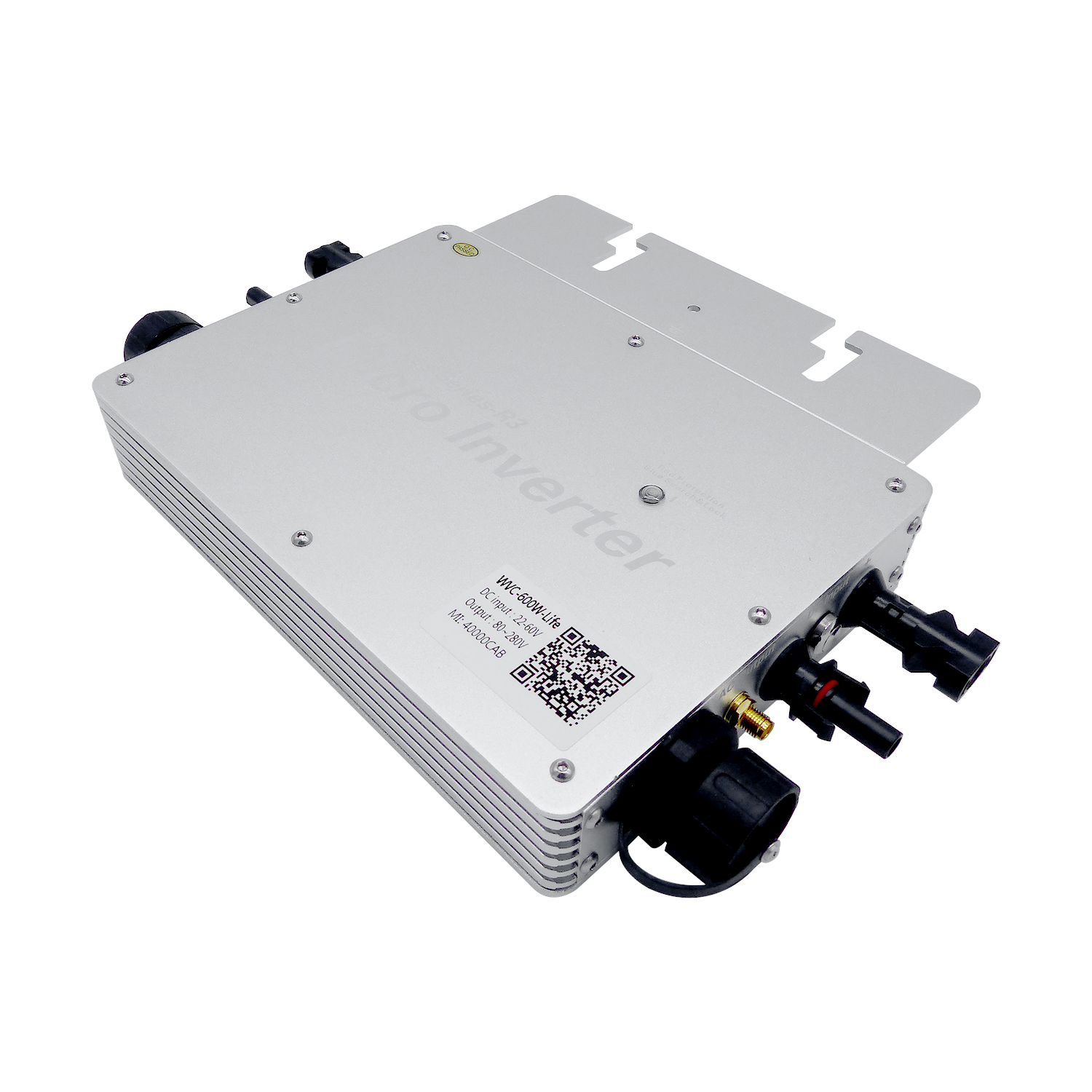

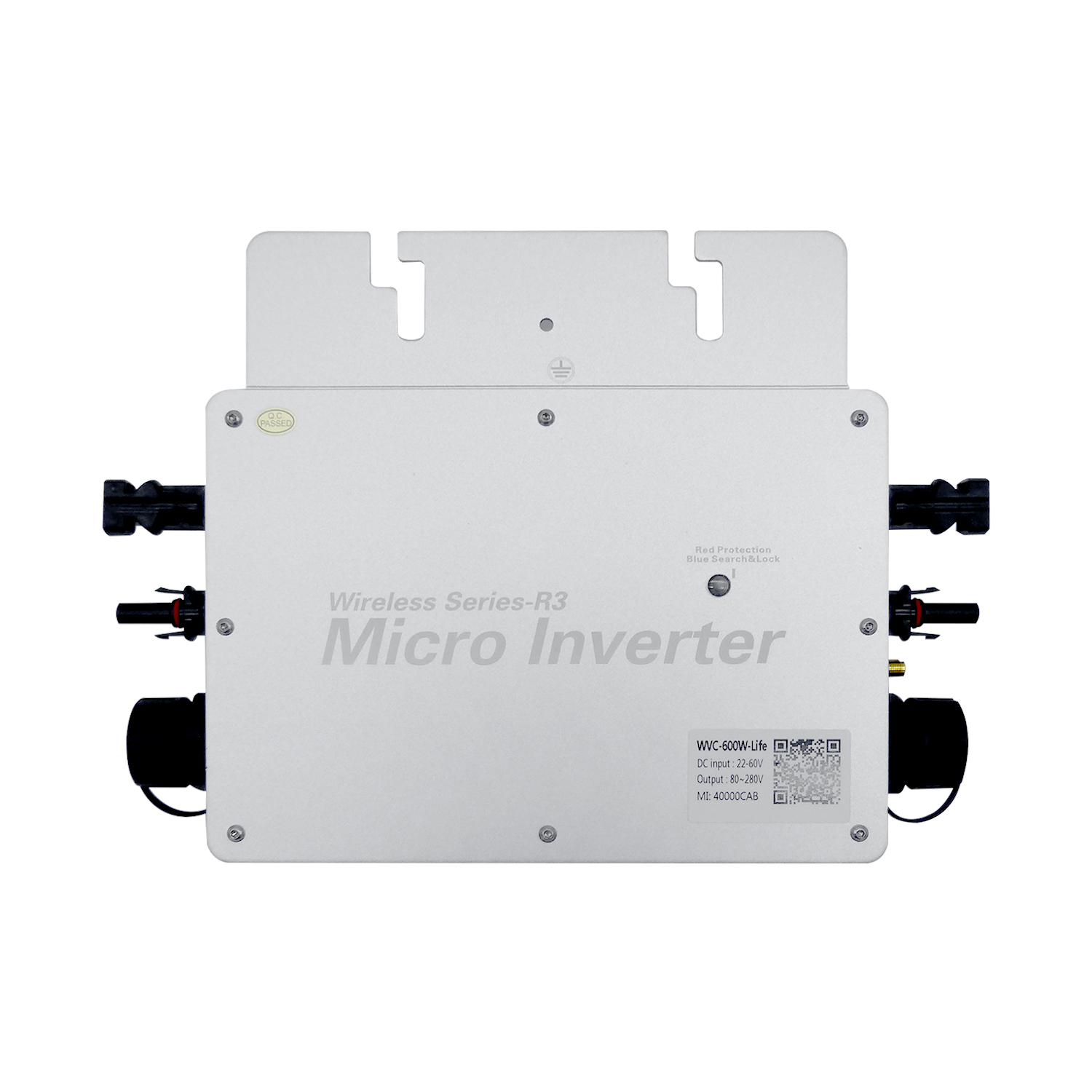

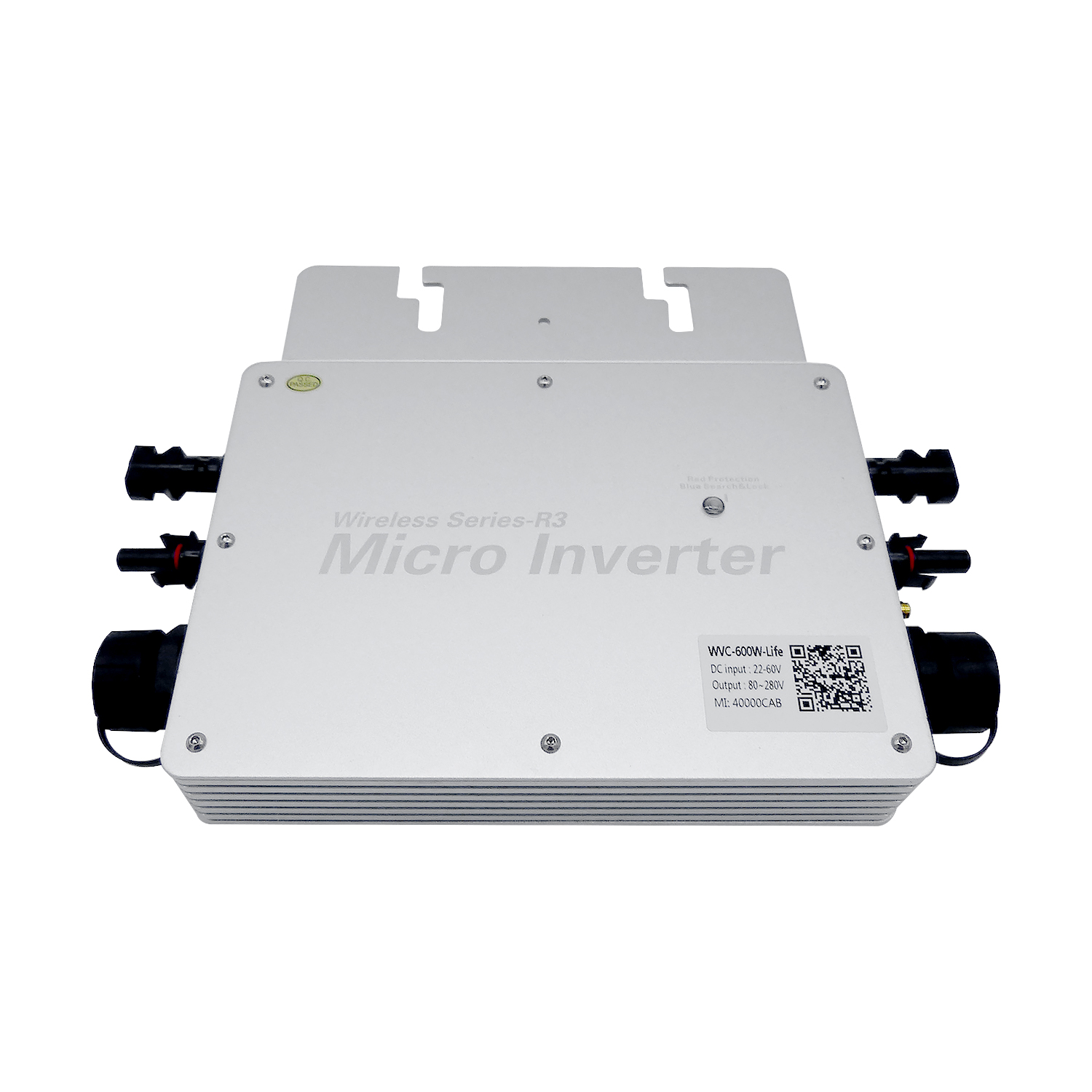

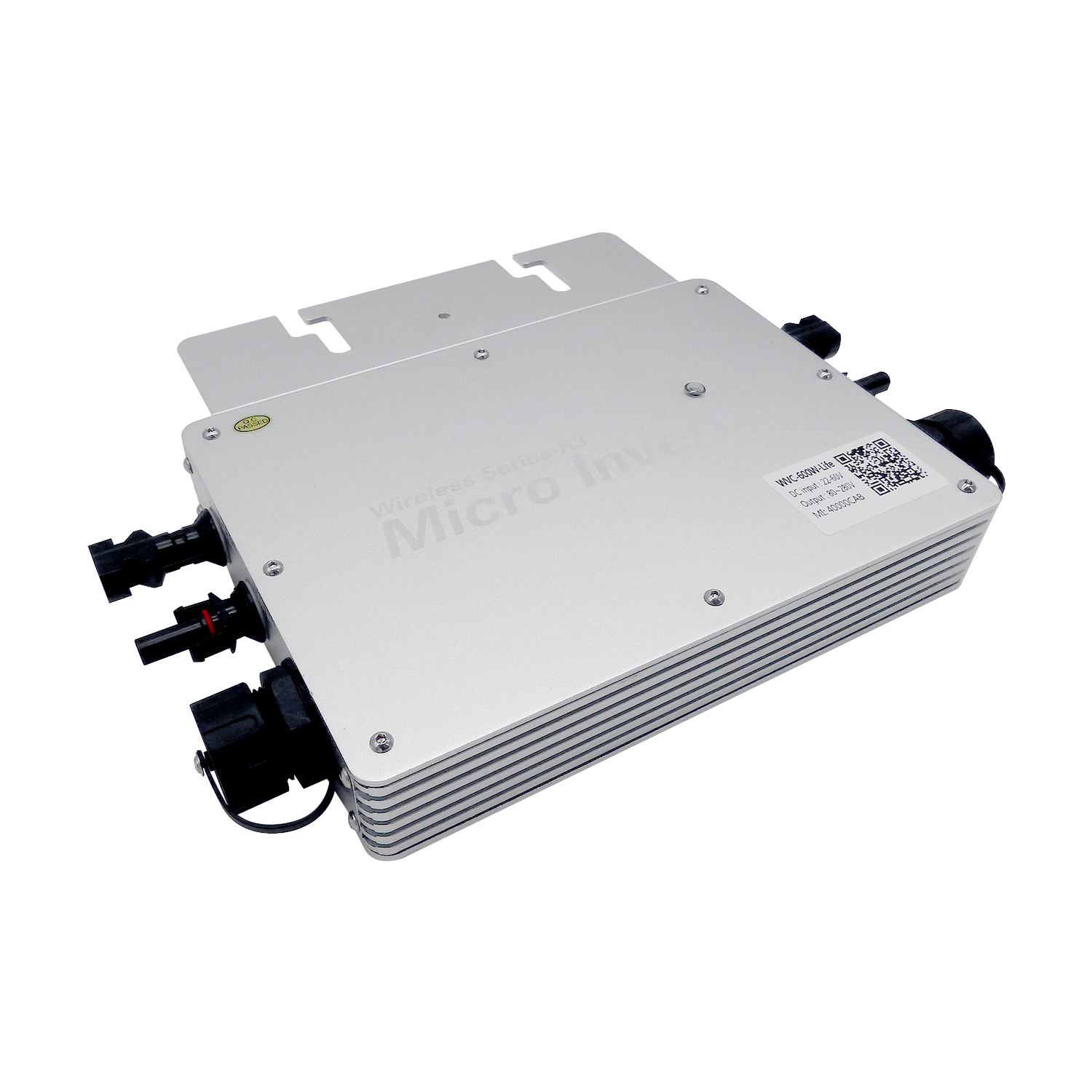

Highly efficient energy conversion system supporting dual solar modules.
NEMA3R rated robust protection design suitable for outdoor environments.
Real-time system monitoring and comprehensive performance tracking.

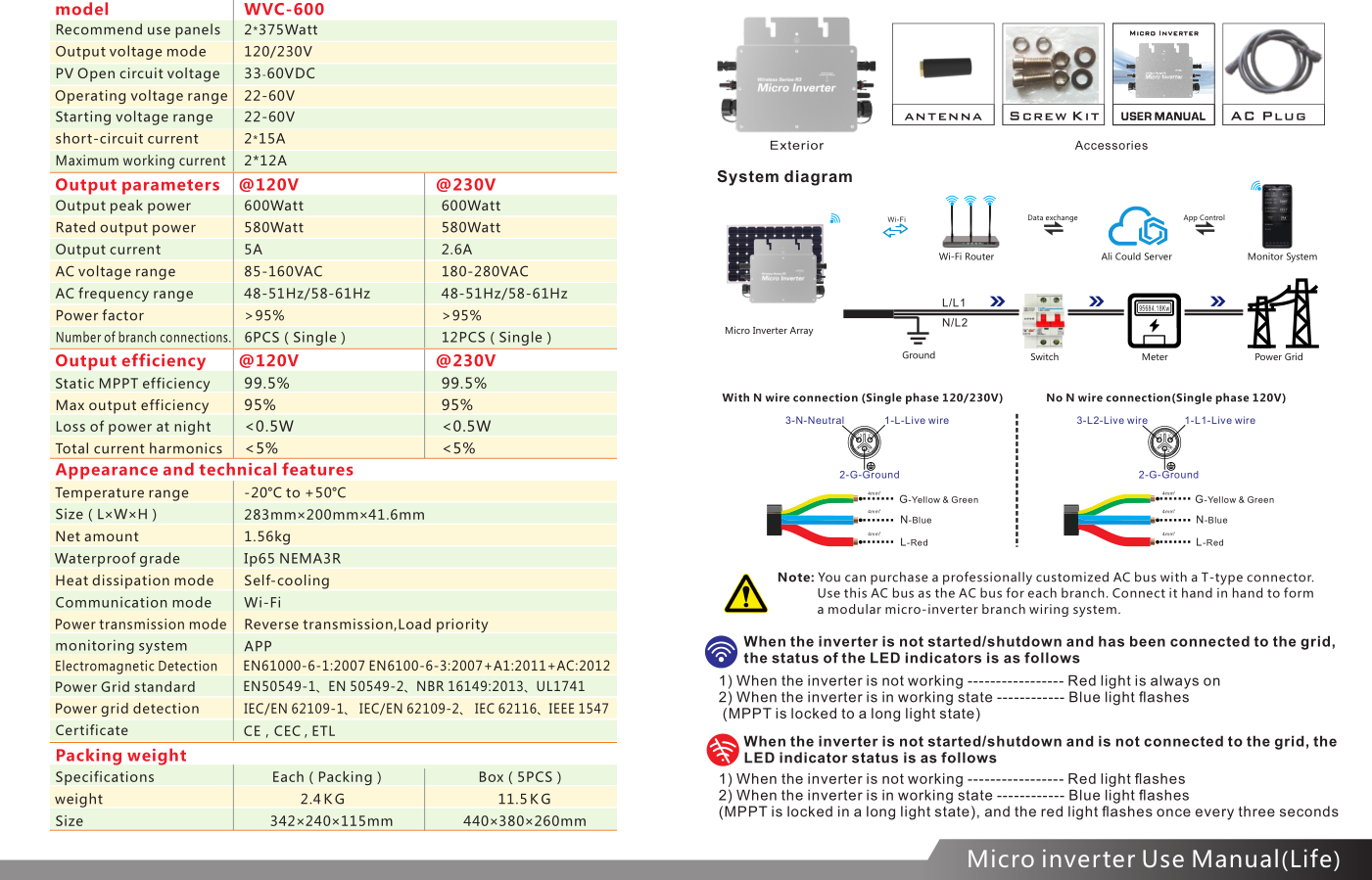

| Output Peak Power | 600Watt |
|---|---|
| Recommend Use Panels | 2*375Watt |
| Output Voltage Mode | 110/120/220/230V Auto switch |
| PV Open Circuit Voltage | 33 - 60VDC |
| Operating Voltage Range | 22-60V |
| Power Factor | >95% |
| Temperature Range | -20°C to +50°C |
| Size | 283mm × 200mm × 41.6mm |
| Weight | 2.4KG |
| Communication Mode | Wi-Fi |
| Waterproof Grade | IP65 NEMA3R |
| Heat Dissipation Mode | Self-cooling |
| Monitoring System | APP |
| Certificate | CE, CEC, ETL, INMETRO VDE4105 |
What is the peak output power of this microinverter?
The system delivers a peak output power of 600 Watt, making it ideal for residential and small commercial grid-tied systems.
What solar panel specifications are recommended?
We recommend matching the microinverter with two solar panels of 375 Watt each (totaling 2*375W) for optimized electrical conversion.
Does it support dynamic grid voltage adaptation?
Yes. It features an intelligent output voltage mode that automatically switches between 110V, 120V, 220V, and 230V systems.
What are the environmental ratings and operating limits?
The system operates reliably in temperatures from -20°C to +50°C. It is rated at IP65 NEMA3R dustproof and waterproof grade with passive self-cooling.

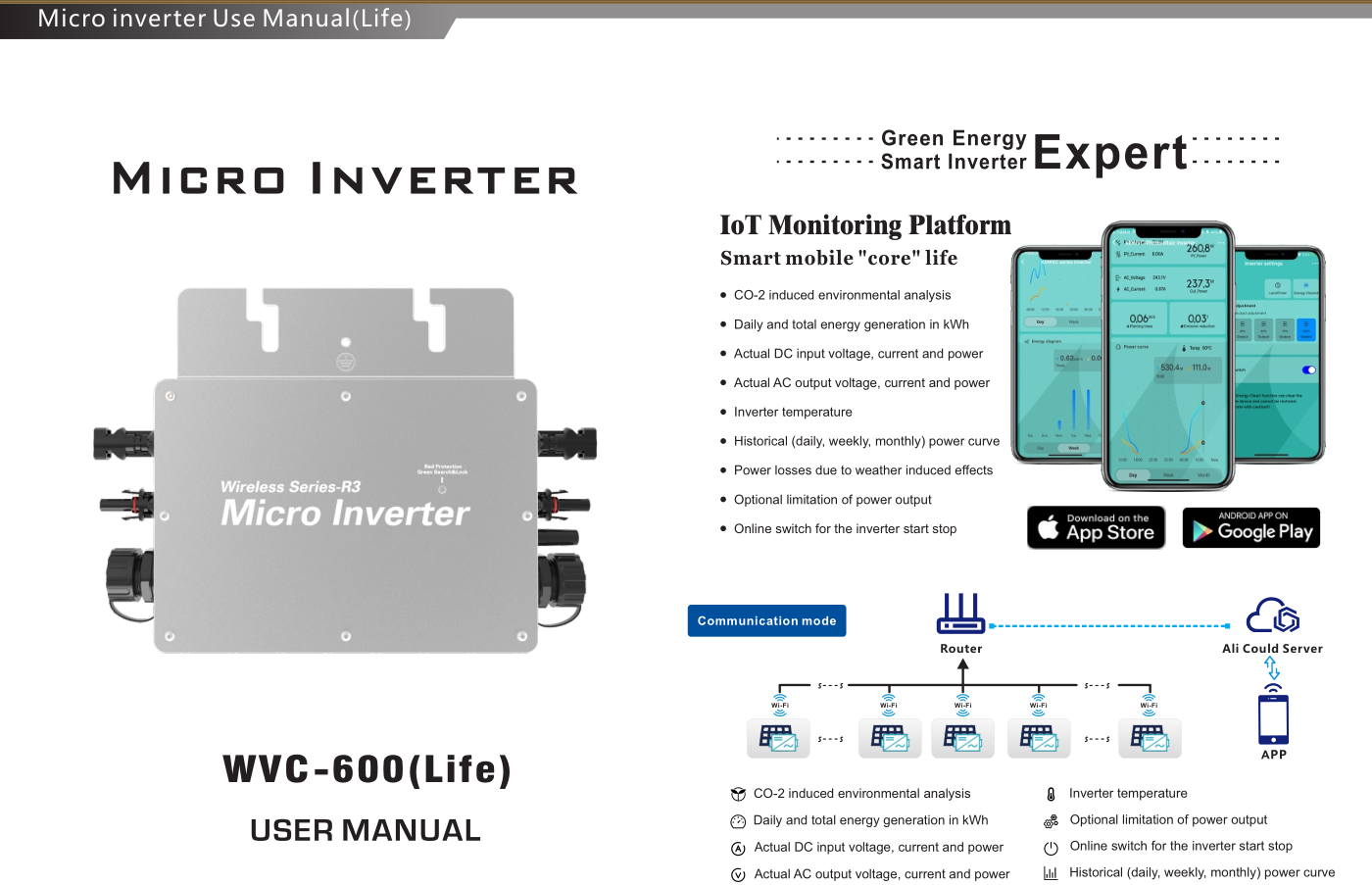

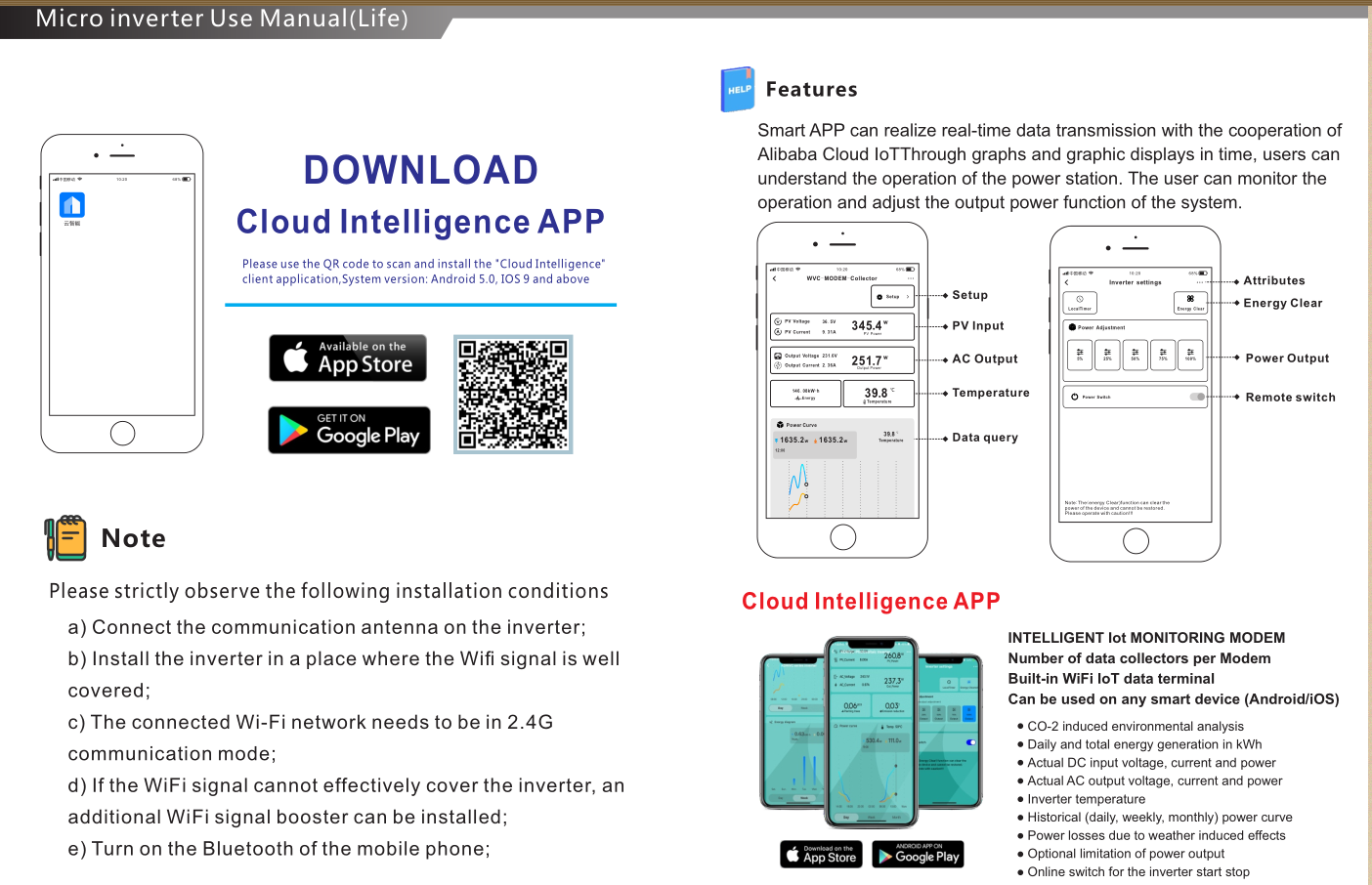

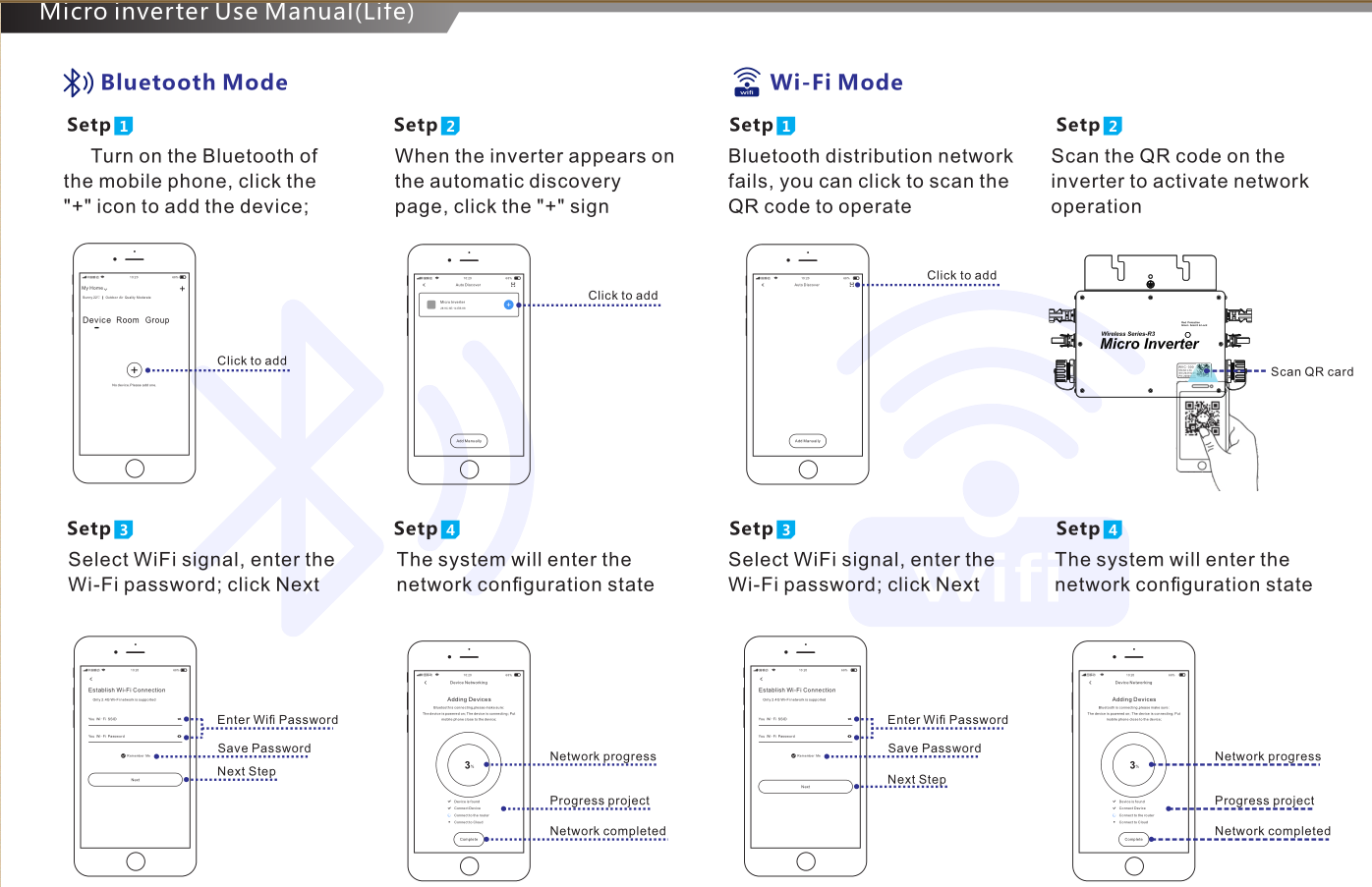

Can I monitor system performance remotely?
Yes. It features integrated Wi-Fi communication which transmits status details directly to a dedicated smart APP, allowing convenient remote monitoring.
What quality standards and safety certifications does it meet?
This microinverter holds comprehensive international certifications including CE, CEC, ETL, INMETRO, and VDE4105 compliance.
