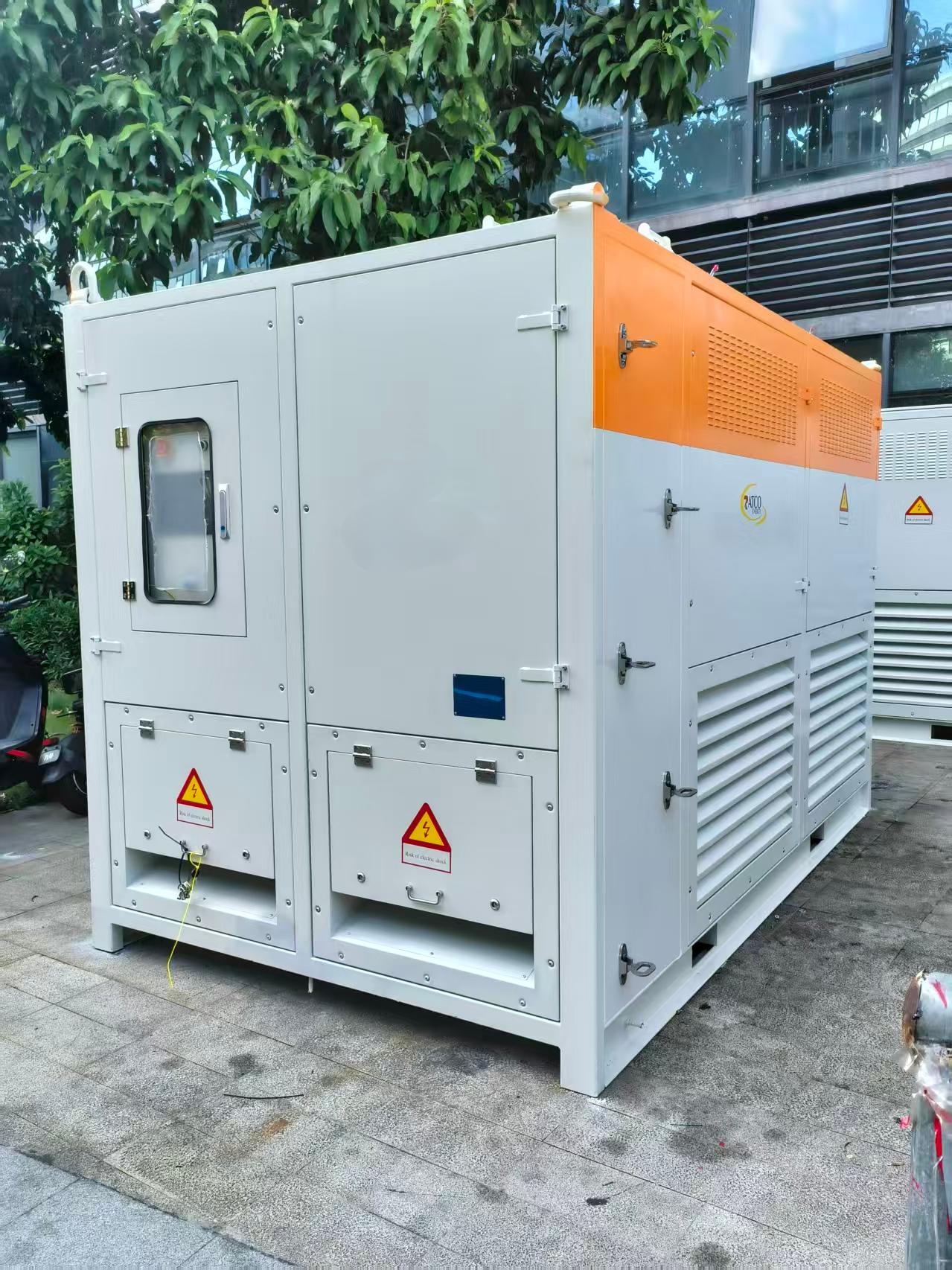

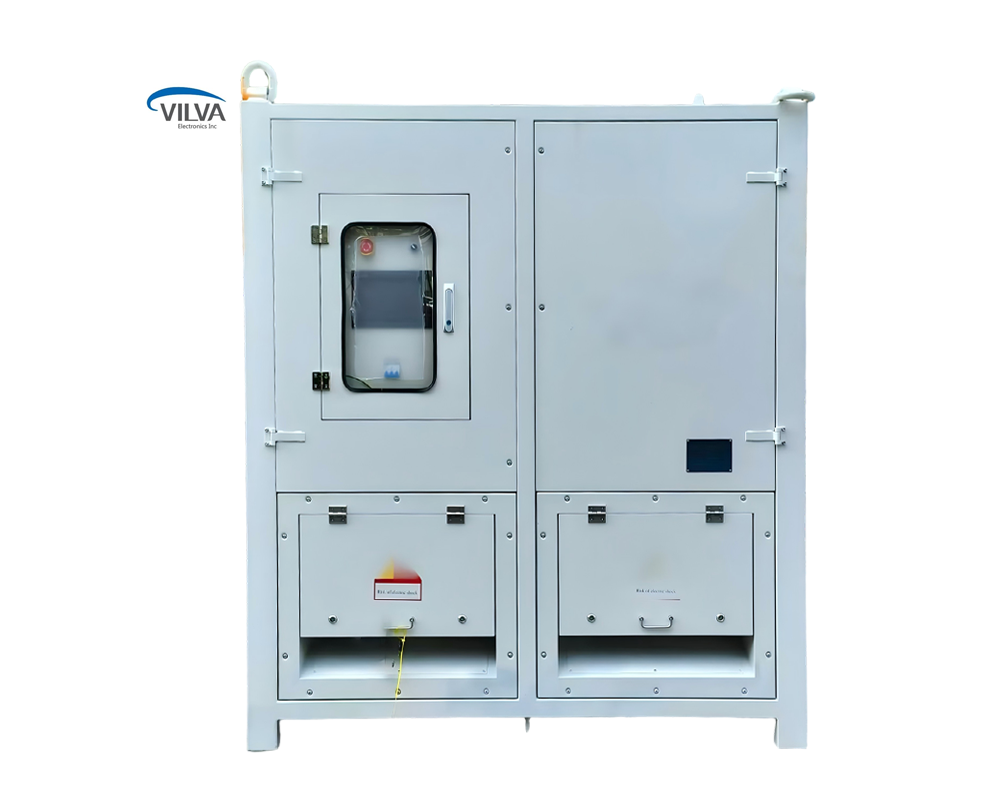

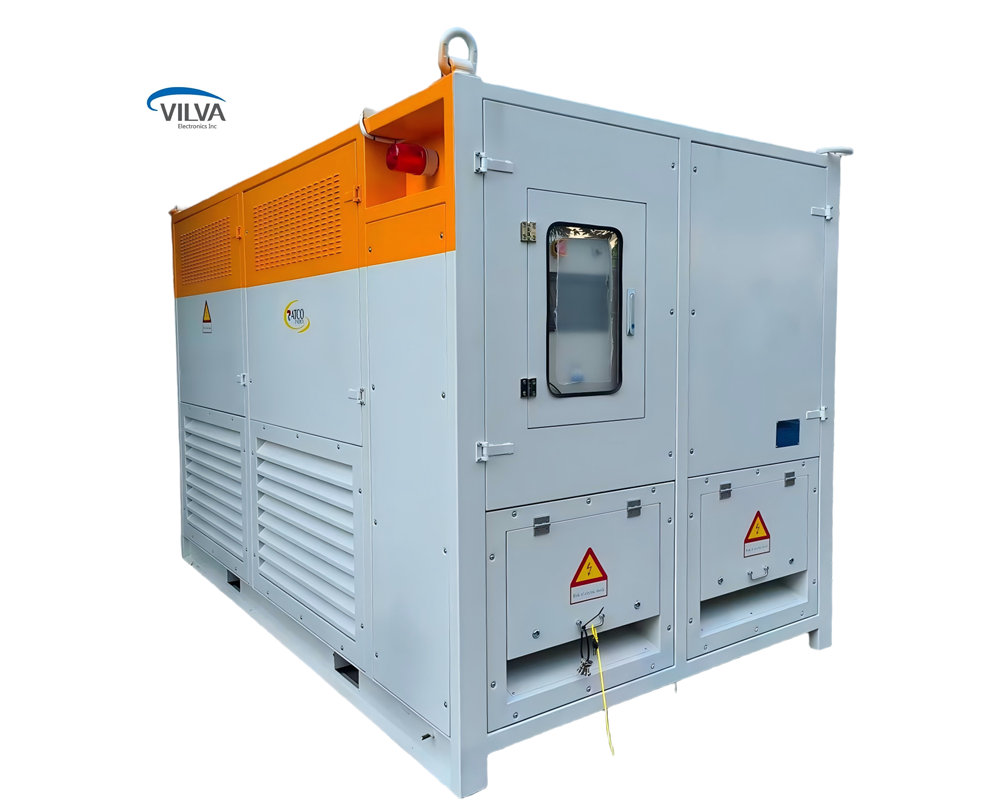

1.5MW 3-Phase AC Load Bank | 400Volt 1500kW Container Power Load Bank - Industrial Grade
1. High Mobility & All-in-One Integration

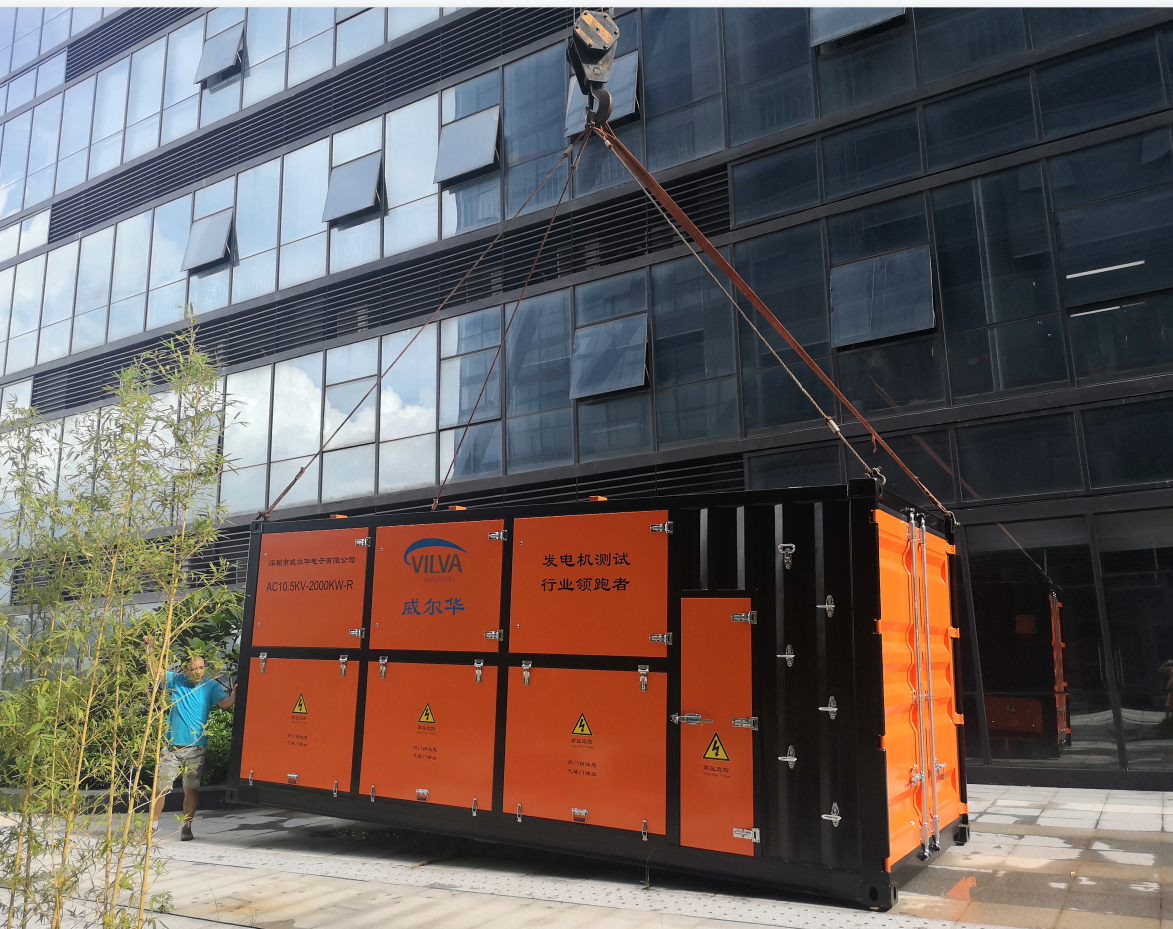

Built into 20ft/40ft standard containers, it consolidates load units, control panels, cooling systems, and cables into a weatherproof enclosure. This design enables easy transport via truck/ship/rail and "plug-and-play" deployment—no on-site assembly needed, ideal for remote projects (e.g., offshore wind farms, construction sites).
2. Flexible Load Capacity & Precise Adjustment
- Scalable range: Single units cover 100kW–5MW; multi-container parallel operation extends to 10MW+, matching small diesel generators to large industrial UPS.
- Stepped control: Supports 1%–5% incremental load adjustments (manual/remote/PLC) to test power system responses (e.g., no-load to full-load) and verify voltage/frequency stability.
3. Multi-Mode Testing for AC Power Systems
It simulates real-world operating conditions with diverse modes:
- Resistive/reactive load testing: Adjustable power factor (0.8 lagging–1.0) to mimic loads like motors (reactive) or heaters (resistive).
- Commissioning & maintenance: Validates new system performance (e.g., generator overload capacity) and detects aging issues (e.g., efficiency degradation).
4. Intelligent Monitoring & Remote Control
Equipped with PLC+HMI systems and IoT connectivity:
- Real-time tracking of key parameters (current, voltage, power factor, temperature, THD).
- Remote operation via PC/mobile app/SCADA—critical for unmanned sites (e.g., rural microgrids).
- Automatic protection (overvoltage/overcurrent/overtemperature) to prevent equipment damage.
5. Harsh-Environment Durability
Engineered for tough working conditions:
- IP54/IP55 rating: Dust-tight and water-resistant, suitable for rain, dust, or extreme temps (-20°C–50°C).
- Structural reinforcement: Shock/vibration-resistant brackets secure internal components during transport over rough terrain.
- Optional sound attenuation: Reduces noise for urban/residential testing scenarios.
6. Safety Compliance & Energy Efficiency
- Global certifications: Meets IEC 60950 (electrical safety), NFPA 110 (generator testing), and CE/UL standards for global markets.
- Efficient heat management: Resistive loads convert energy to heat, dissipated via forced-air/water cooling; some models add heat recovery (e.g., for on-site space heating) to cut waste.

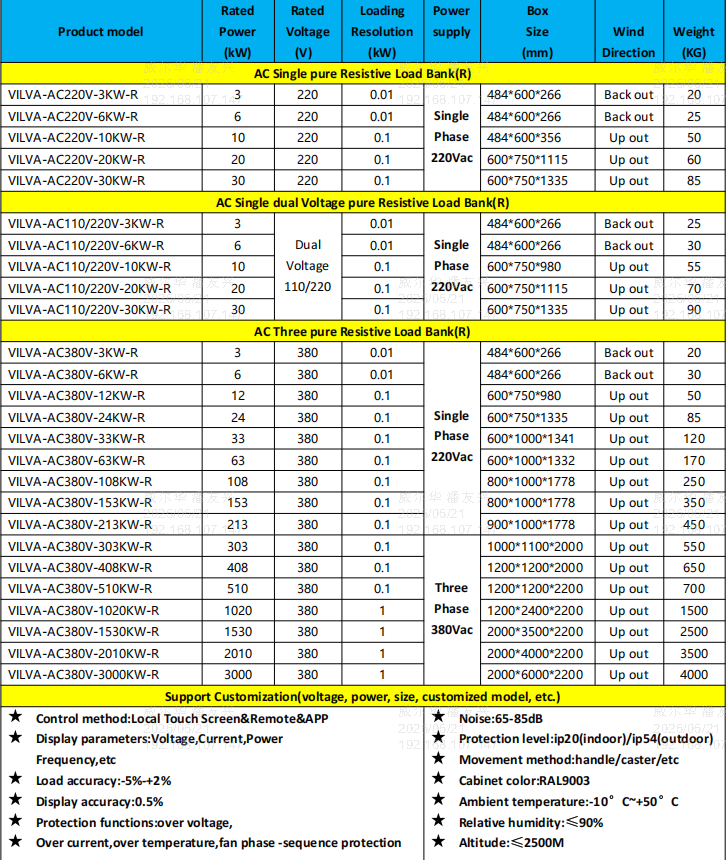

| Product Name |
AC 400V 1500kW Pure Resistive Load Bank for Generator/UPS/Invert Testing |
| Rated Power |
1.5MW/1500kW |
| Ambient Temperature |
-10°C~+50°C |
| Power Factor |
0.8~1 (Adjustable) |
| Control Method |
Local touch screen/ Remote control/ APP |
| Display Parameters |
Voltage/ Current/ Active power/ Frequency ETC |
| Load Accuracy |
-5%~+2% |
| Display Accuracy |
0.5% |
| Protection Functions |
Overvoltage/ Overcurrent/ Overtemperature/ Beep warning |
| Noise Level |
65dB~86dB |
| Protect Level |
IP20 (Indoor) / IP54 (Outdoor) |
| Move Method |
Handle/caster/hanger ring |
| Color |
RAL 9003 |

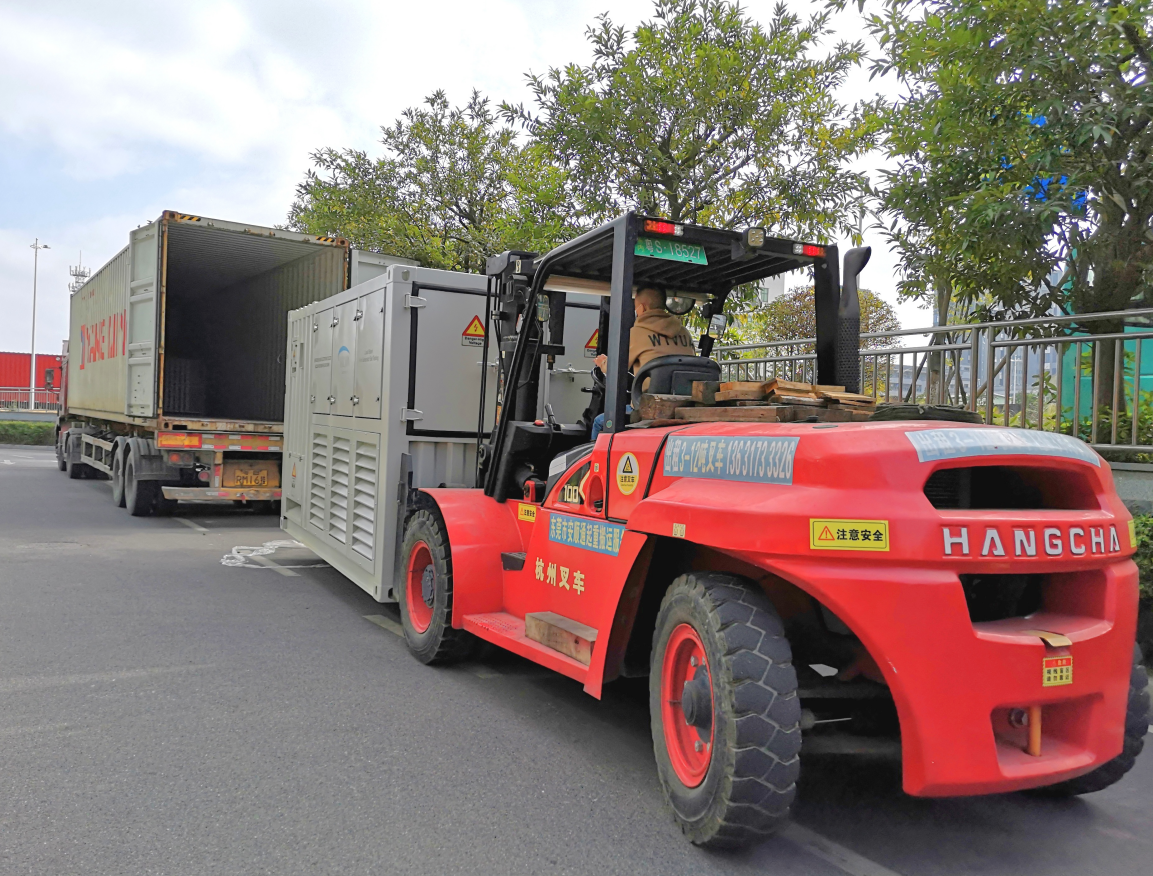

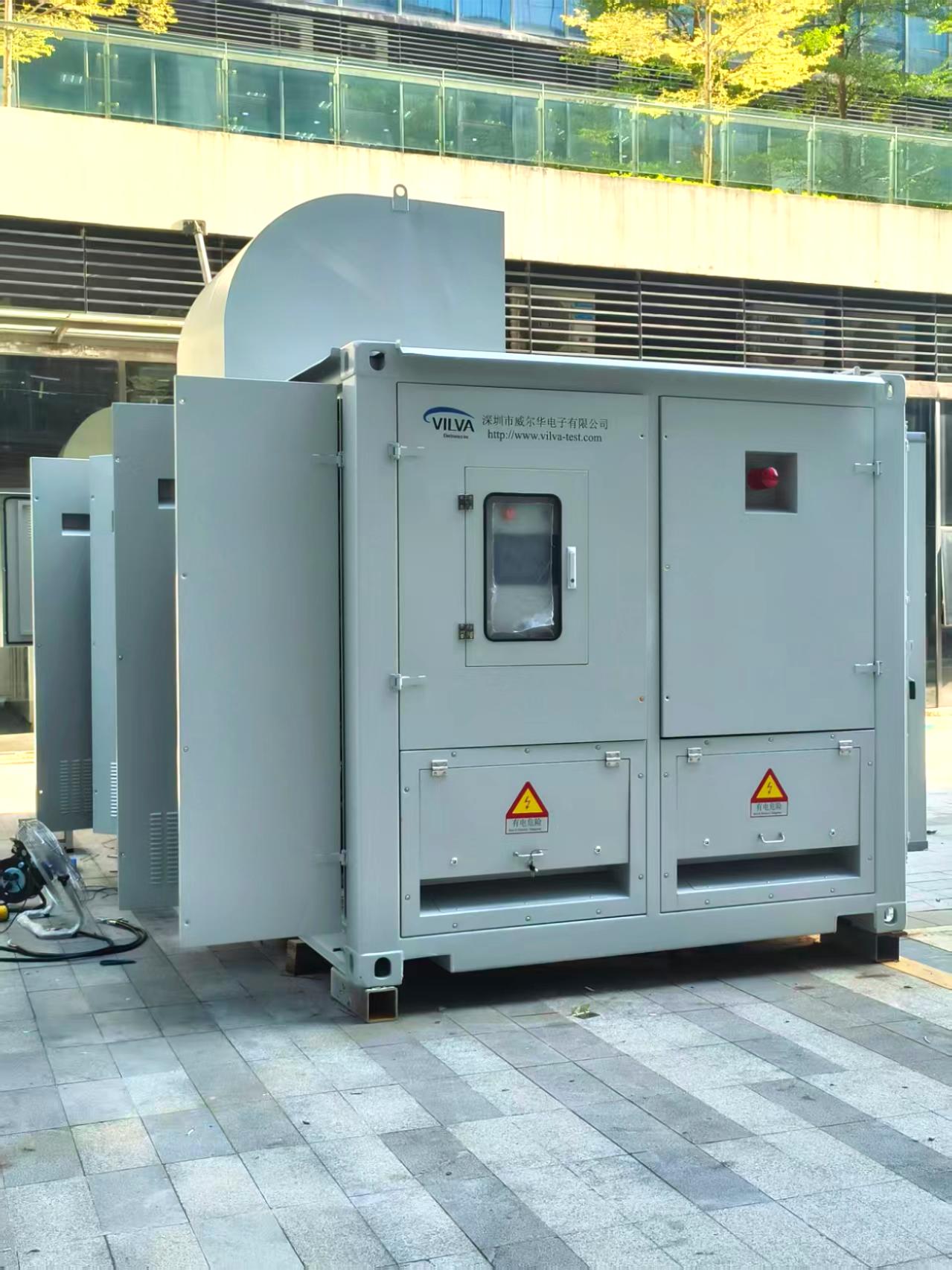

1500KW Load bank shipping to Brune

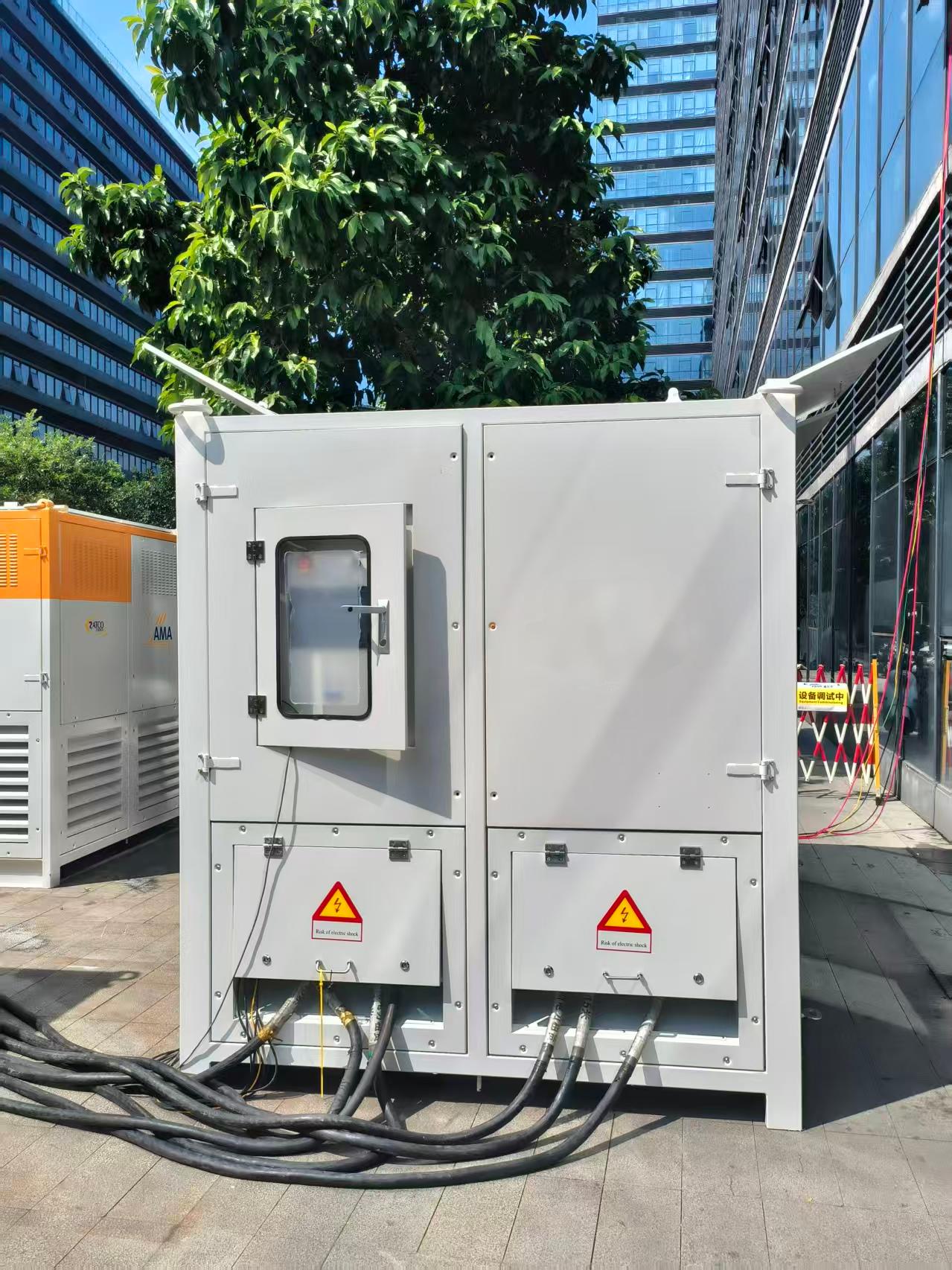

Yuchai 2*500KW Load Bank for Generator test

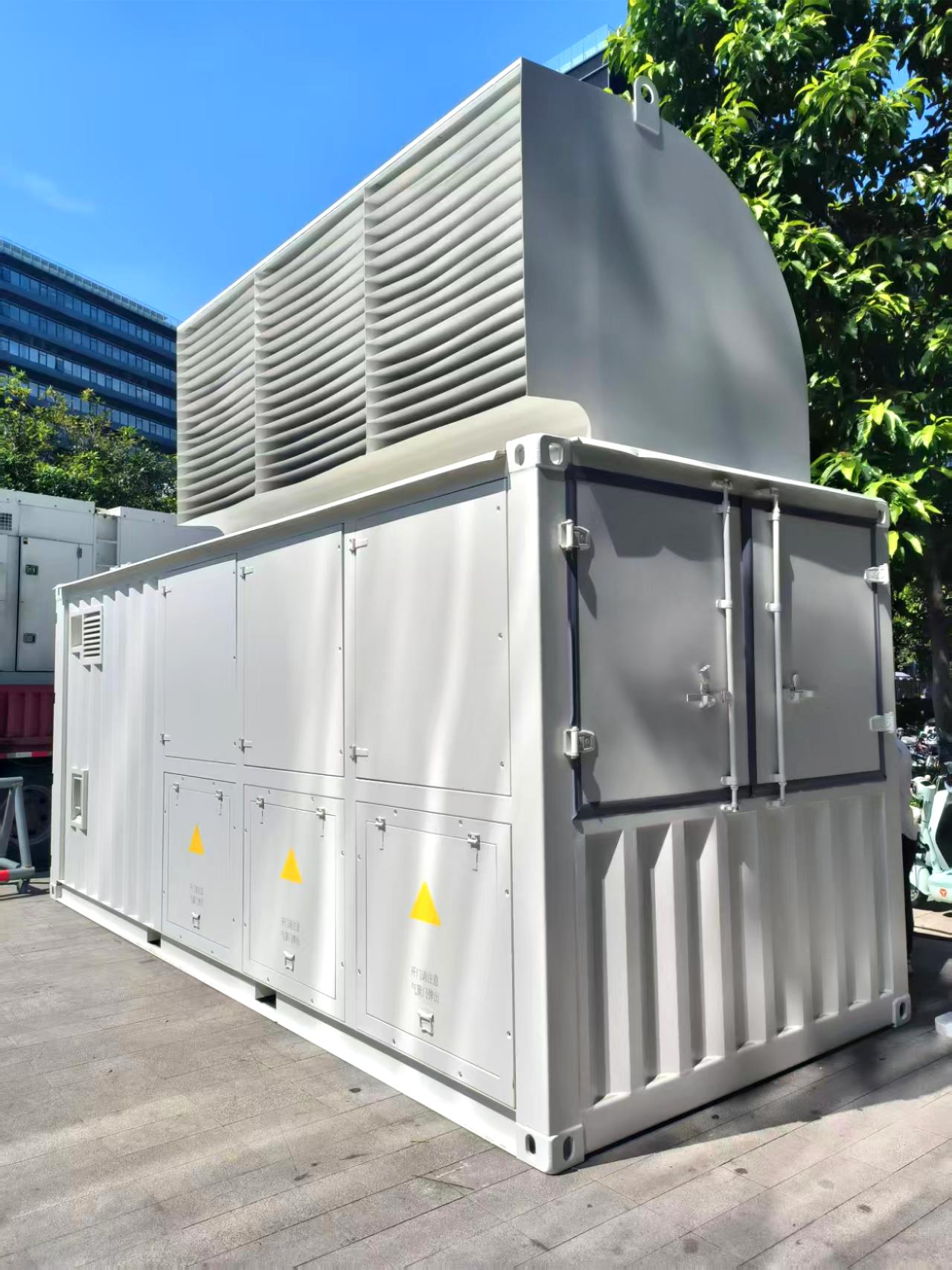

Huawei AC10.5KV 2600KW Load bank
May the load bank be customized?
Yes, all products may be customized to meet your specific technical and spatial requirements.
Are you a factory or a trading company?

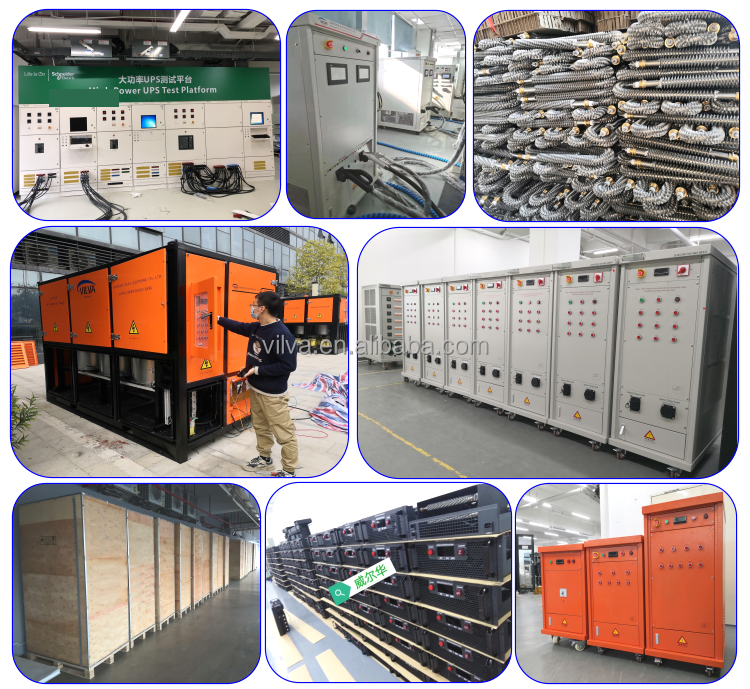

We are a professional factory specializing in the R&D, manufacturing, and servicing of load banks for over 10 years.
Do you have this load bank in stock?
Usually, all load banks are built-to-order based on customer customizations. However, we do keep some standard models in stock. Please contact us to check availability.
How about the lead time?
The typical lead time is about 30 to 58 days, depending on custom design elements and system complexity.
What kind of load elements are built into the load bank?
Our load banks typically feature a configurable combination of Resistive, Inductive, and Capacitive load elements.
Can the load bank be used for indoor or outdoor installations?
The standard indoor type is not weatherproof. However, we offer an optional outdoor container variant equipped with a protective air duct to ensure full weatherproof reliability.
