| Time | Delivery From Overseas Warehouse | Transportation from China |
|---|---|---|
| ETD | 1-3 working days | 3-7 working days |
| ETA | 5-7 working days | 35-40 working days |
| Transportation | Express | By rail/sea + DDP/DHL/UPS (DDP TAX FREE) |

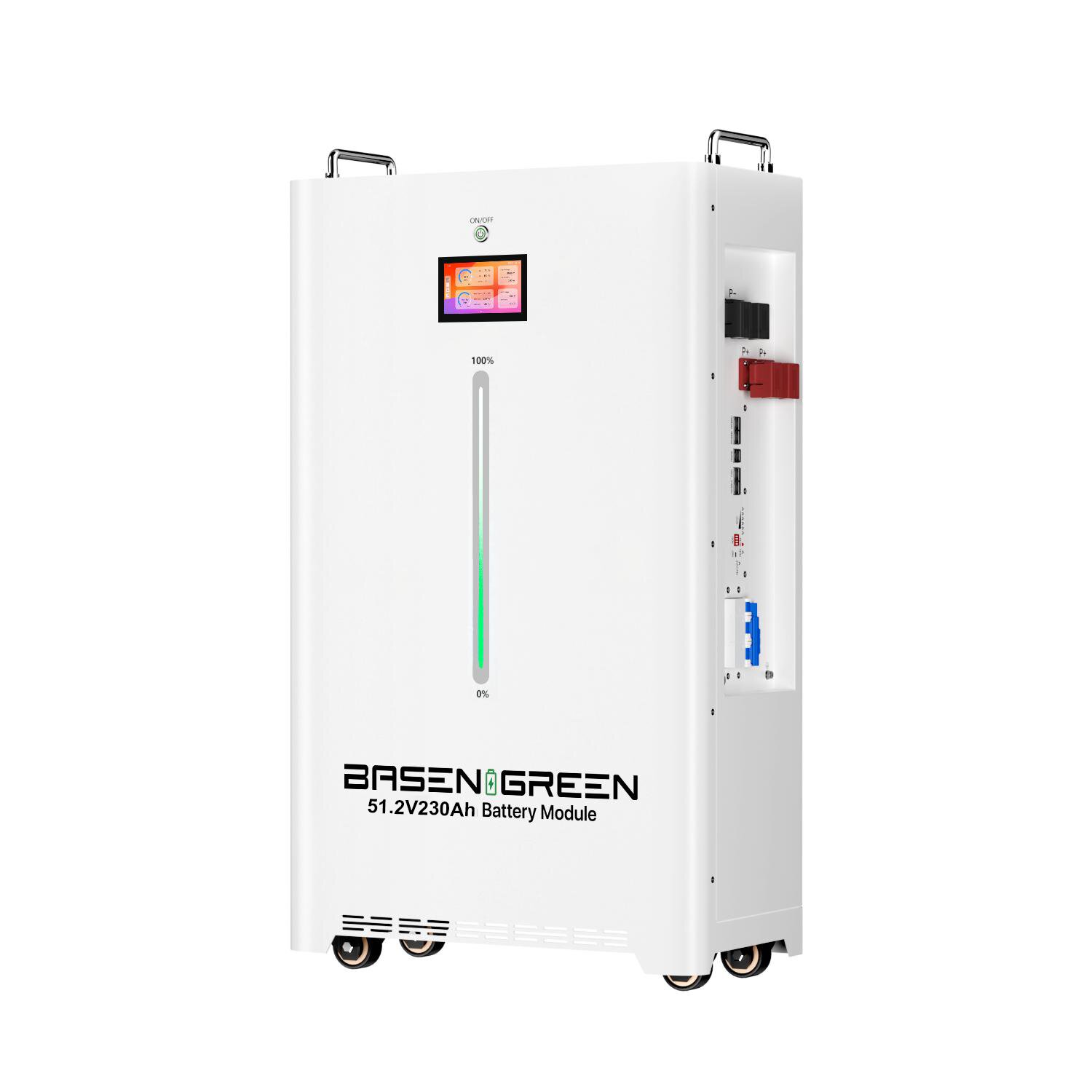

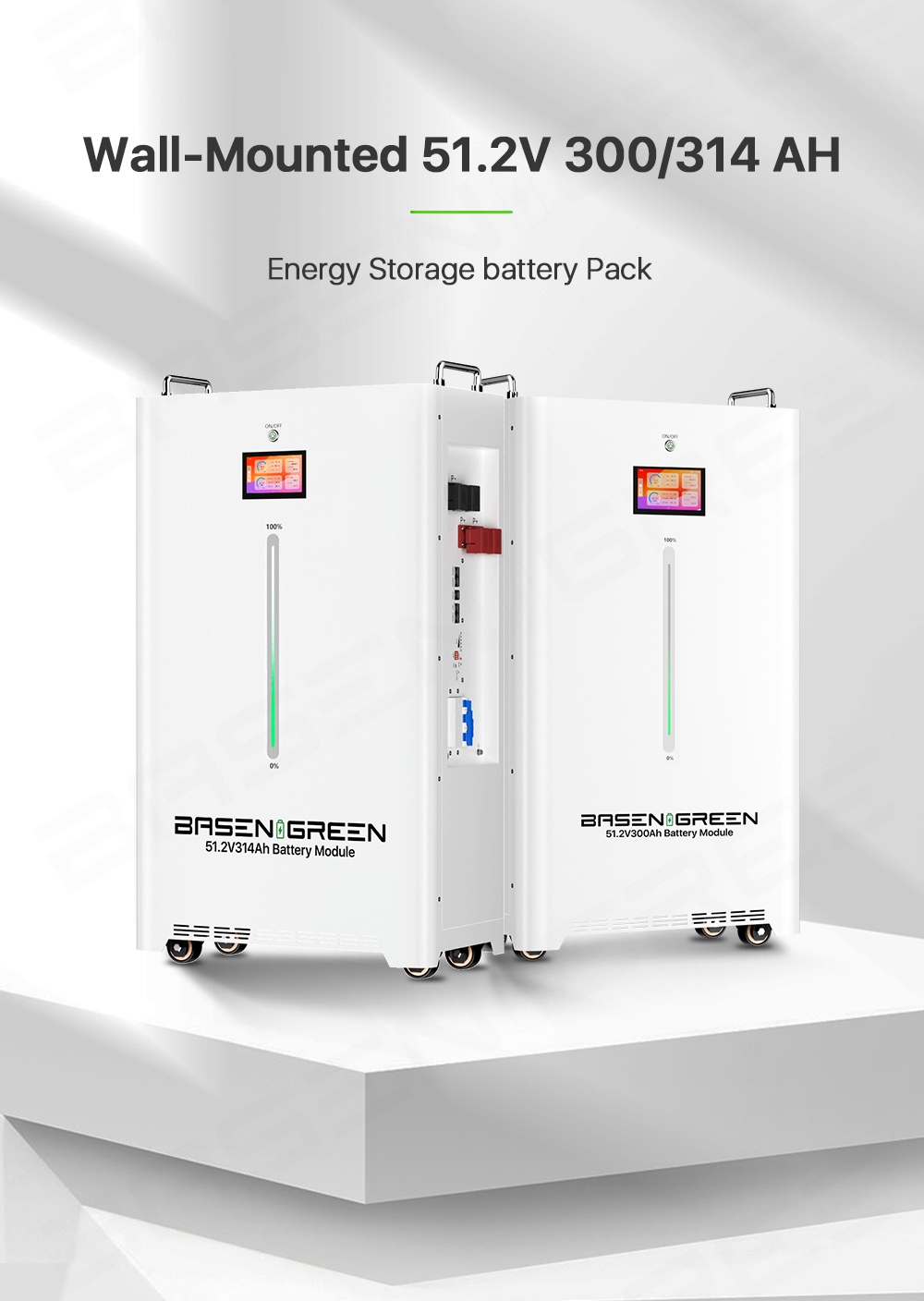

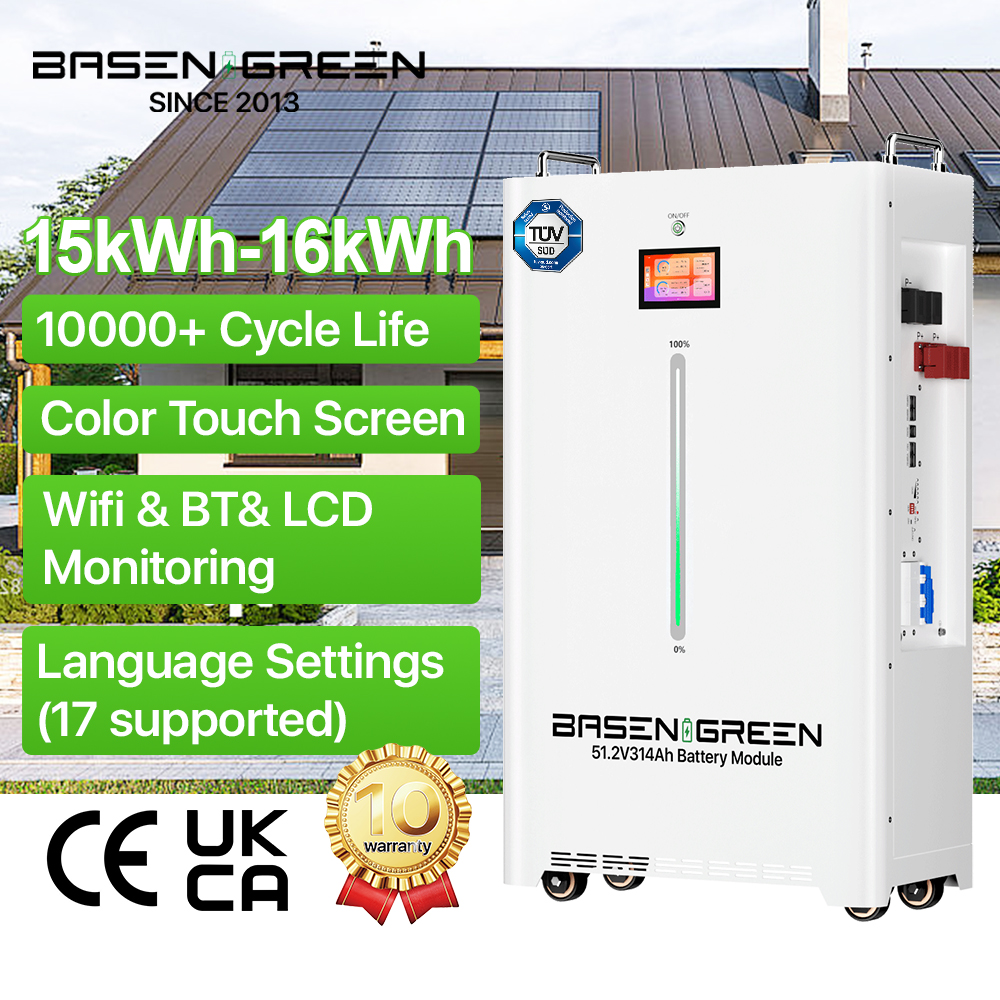

| Model | BR-OW-LV 14.3KWH | BR-OW-LV 15KWH | BR-OW-LV 16KWH |
|---|---|---|---|
| Main Parameters | |||
| Cell Technology | Lithium-iron Phosphate (LiFePO4) | ||
| Capacity | 280Ah | 300Ah | 314Ah |
| Nominal Energy | 14.336kWh | 15kWh | 16kWh |
| Round-Trip Efficiency | 98% | ||
| Scalability | Max. 15 Modules in Parallel | ||

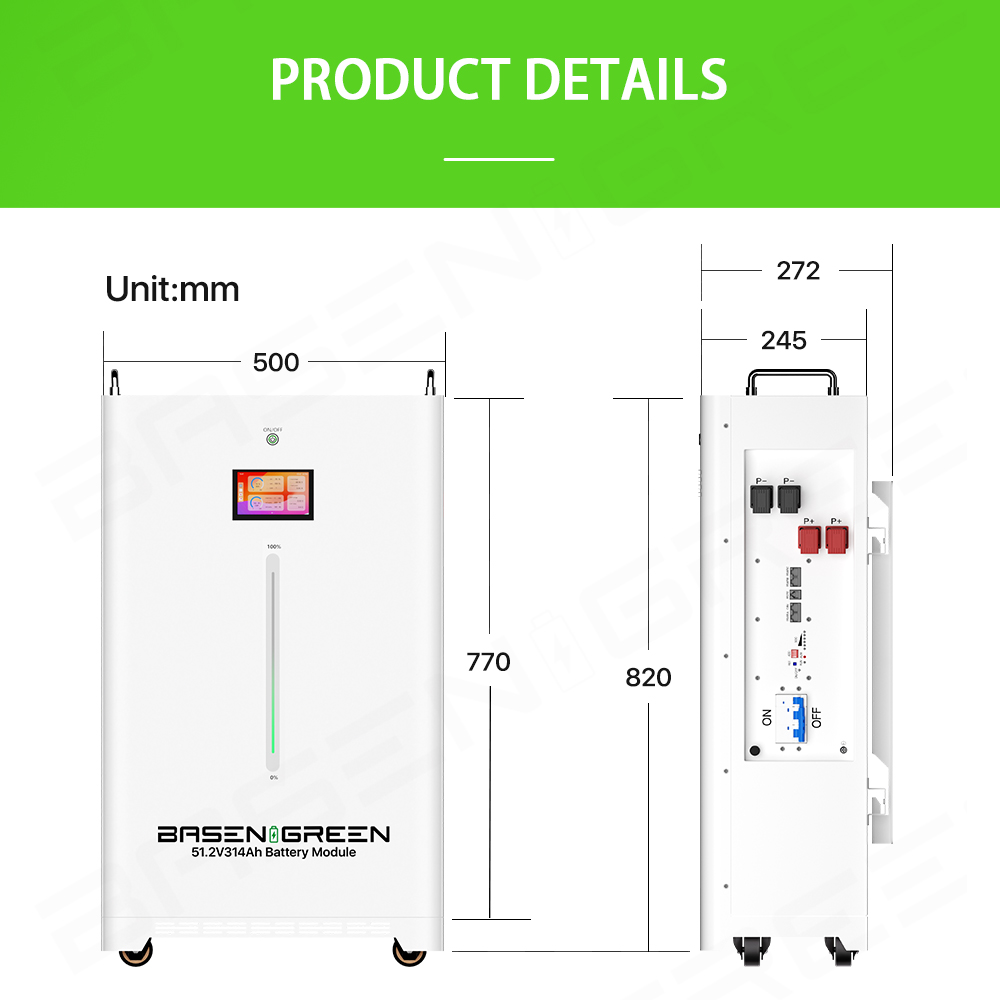

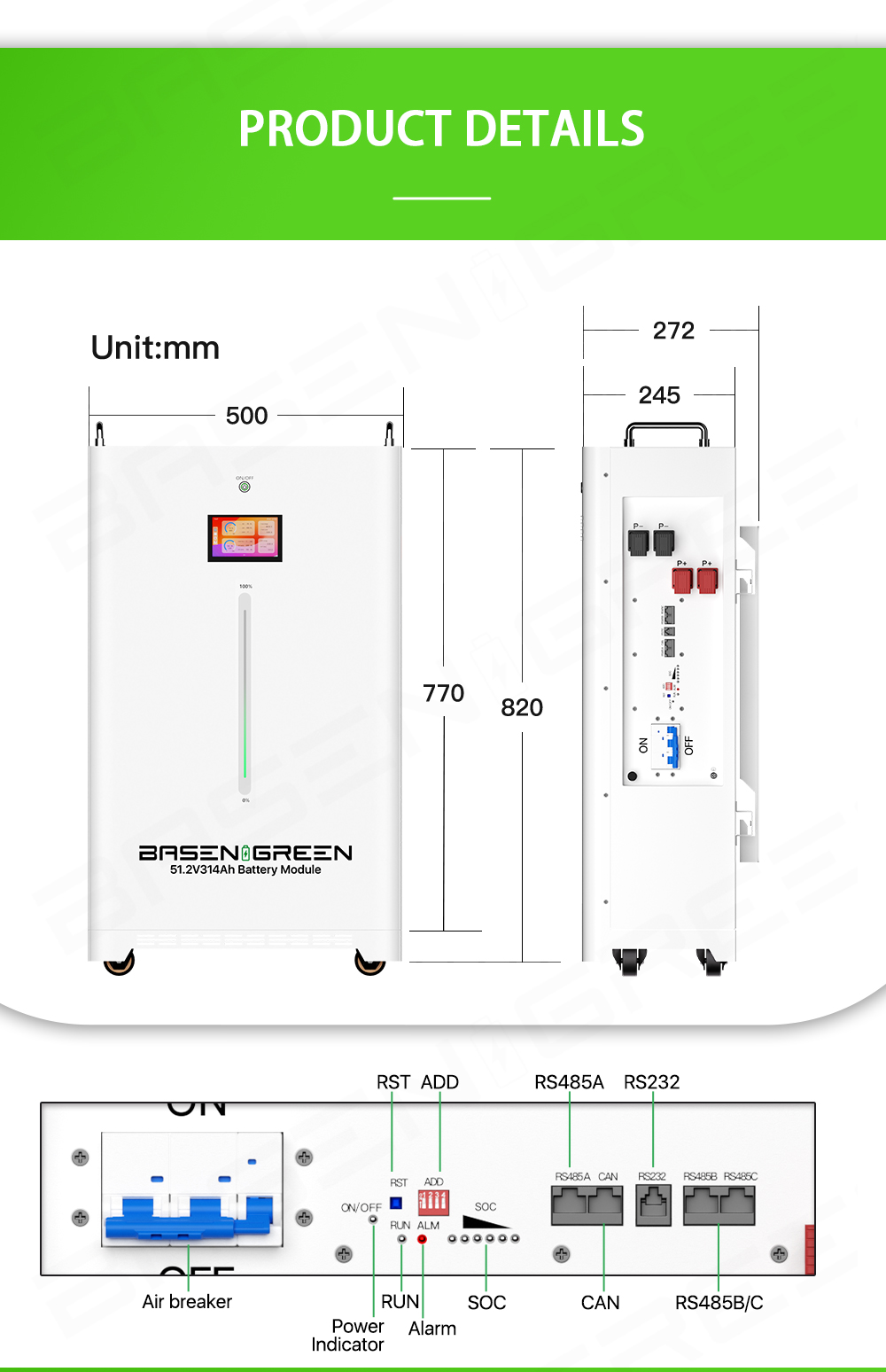

| Dimensions (L/W/H) | 475*255*770mm | ||
| Weight | 150kg | ||
| Installation | Indoor | ||
| Warranty | 10 Years Product Warranty | ||
| Service Life | 15 Years | ||
| Electrical Parameters | |||
| Nominal Voltage | 51.2V | ||
| Max Charge Current | 200A | ||
| Max. Cont. Charge Current | 200A | ||
| Max Discharge Current | 200A | ||
| Max. Cont. Discharge Current | 200A | ||
| Operating Voltage Range | 43.2V-57.6V | ||
| Charge Cut-off Voltage | 58.4V | ||
| Discharge Cut-Off Voltage | 43.2V | ||
| General Parameters | |||
| Cycle Life | ≥8000 Times (80%DoD) | ||
| Protection Rating | IP55 | ||

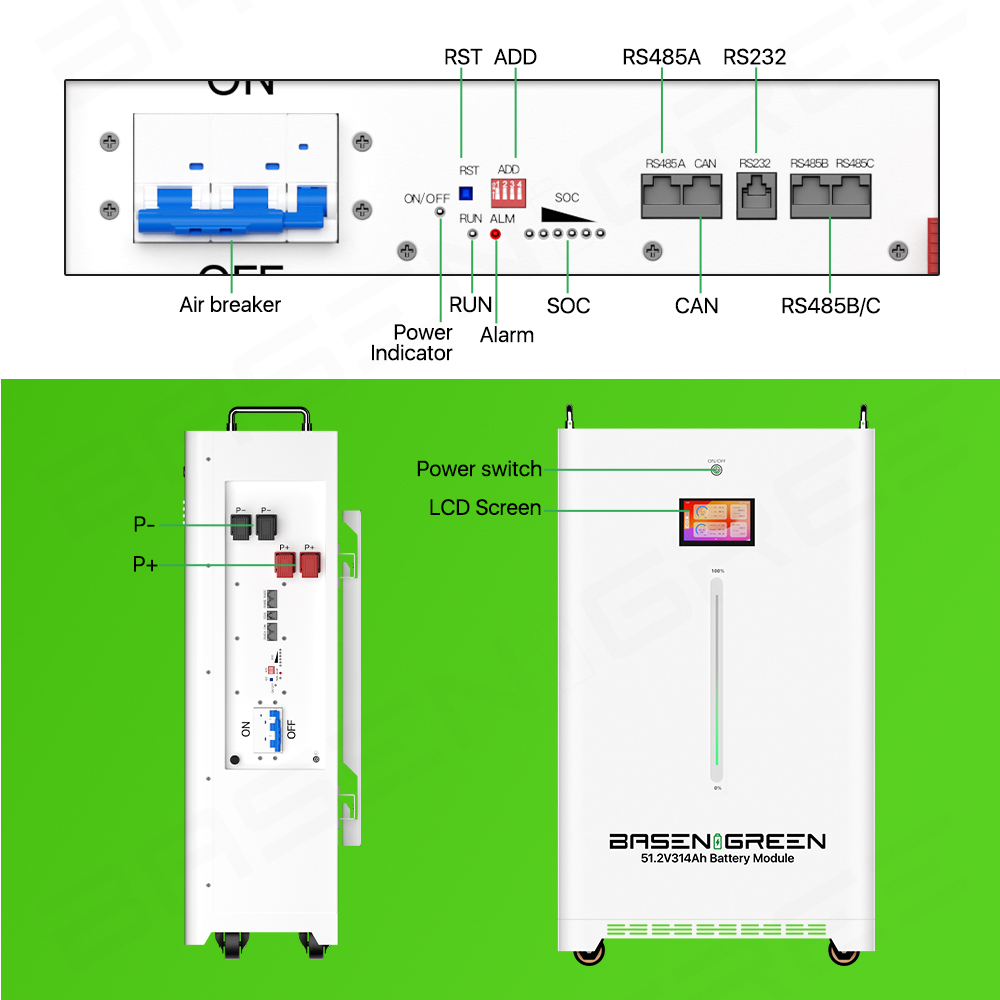

| Display | SOC Status Indicator (optional), LED Indicator | ||

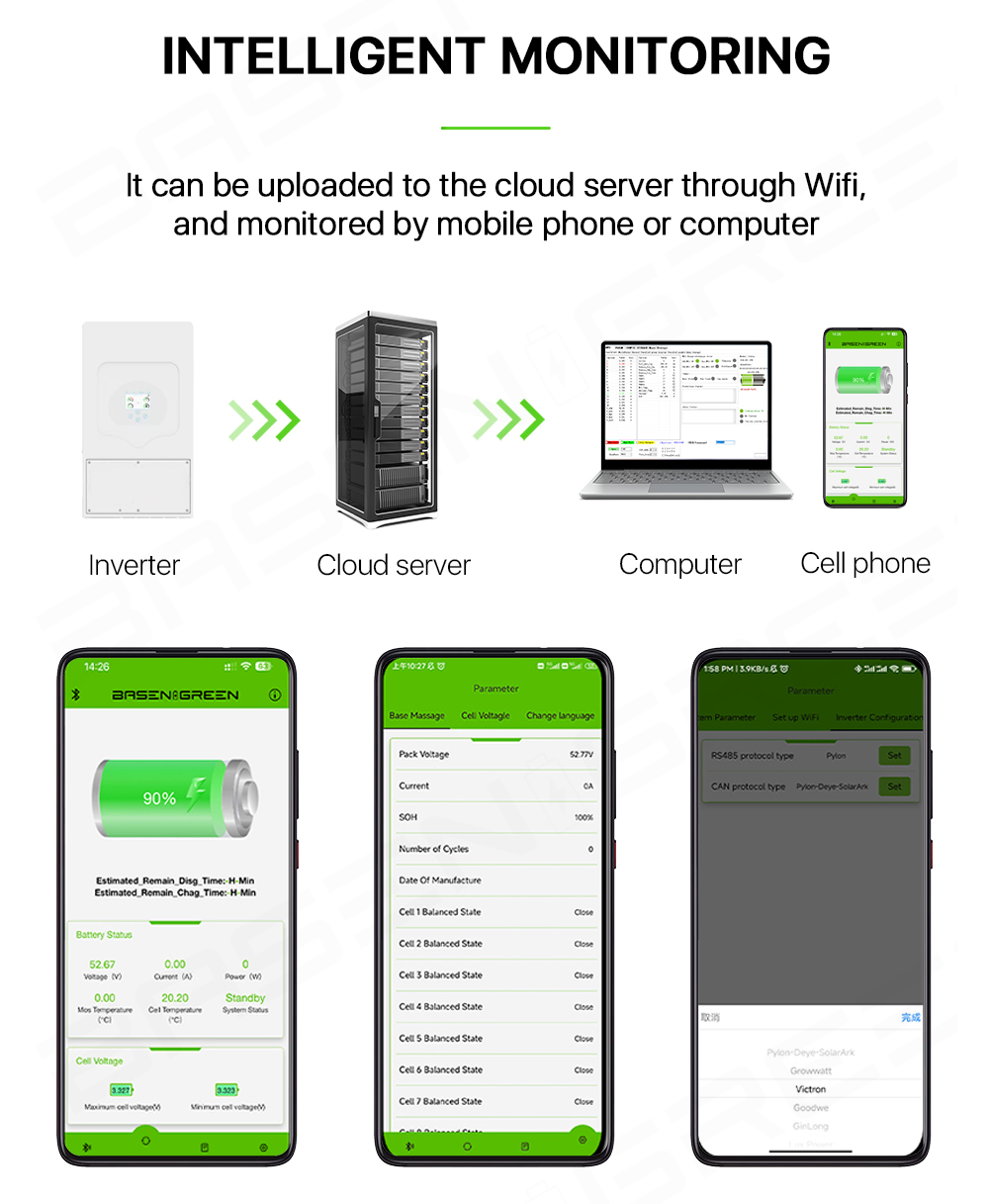

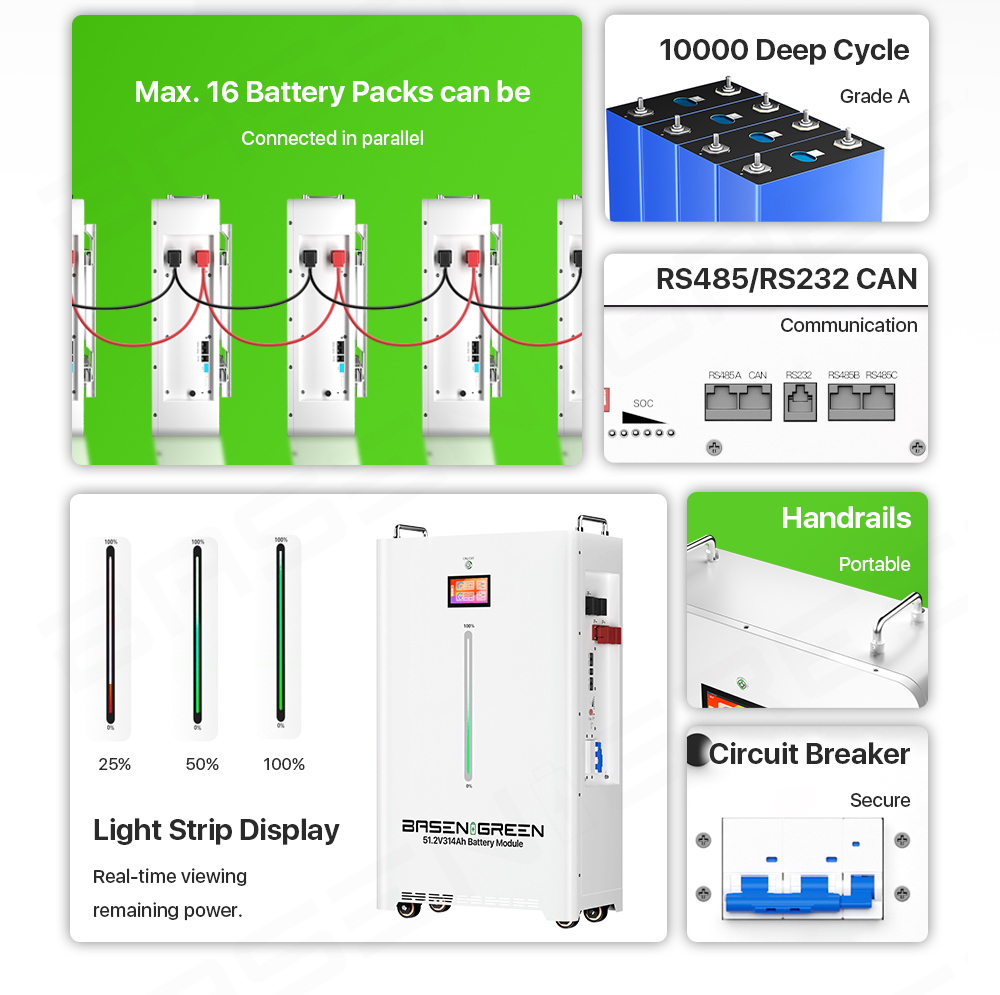

| Communication | RS485, RS232, CAN | ||
| Charge Temp Range | 0°C~60°C (Under 0°C extra heating mechanism) | ||
| Discharge Temp Range | -20°C~60°C (Under 0°C work with reduced capacity) | ||
| Storage Temp Range | -40°C~55°C @ 60% ± 25% relative humidity | ||
| Compatible Inverters | SMA, Victron Energy, Deye, Goodwe, Growatt, Sermatec, etc. | ||
