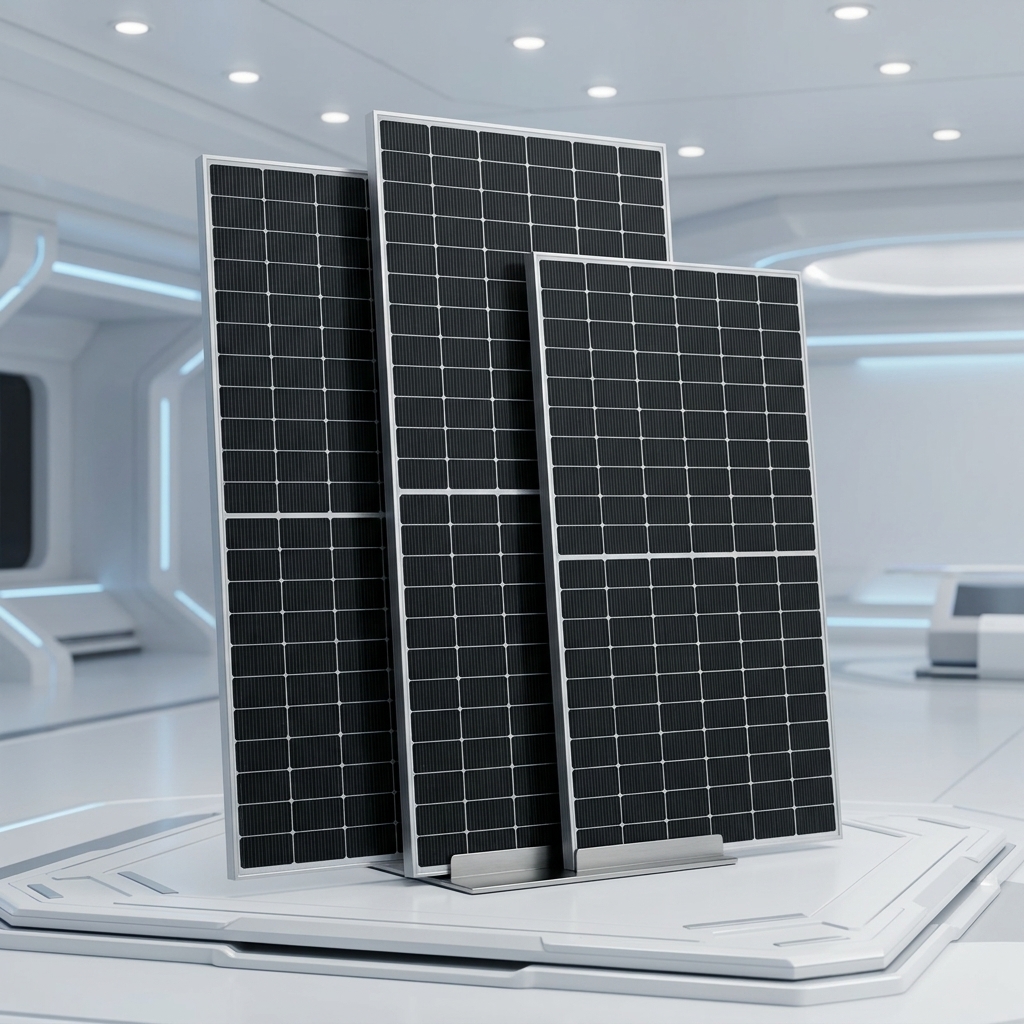

CE MPPT 10KW 20KW 30KW Offgrid Lithium Solar Battery House System Power Solar System for Residential House Whole

Product Description

Solar system presentation image
Solar components diagram
System panel view
Inverter display unit
Wind turbine unit
Turbine installation view
System Technical Specifications
OFF GRID SOLAR SYSTEM 10kW Specifications Horizontal-Axis Wind Turbine Specifications
Solar Panels 560W/PC * 18PCS (Mono optional) Rated Power 3kW
Batteries Free maintenance Gel batteries (Lithium batteries optional) Max Power 4.5kW
Inverter VDC96V (Other voltage optional) 10kW off grid Output Voltage 48/96/220V
Controller PWM or MPPT 96V 110A Start-up Wind Speed 3 m/s
Mounting Brackets Roof, ground, or wall style optional Work Speed 3-30 m/s
Rated Power 10kW Security Wind Speed 80 m/s
Space Required 50 M² Tower Height 8 m
Cable 50M or customized to requirements Top Weight (excl. tower) 150 kg
Work Time All day and all night Tower Steel Tube Model Φ200 mm
Speed Regulation Leaning tail + electric brake
Off-grid solar design configuration

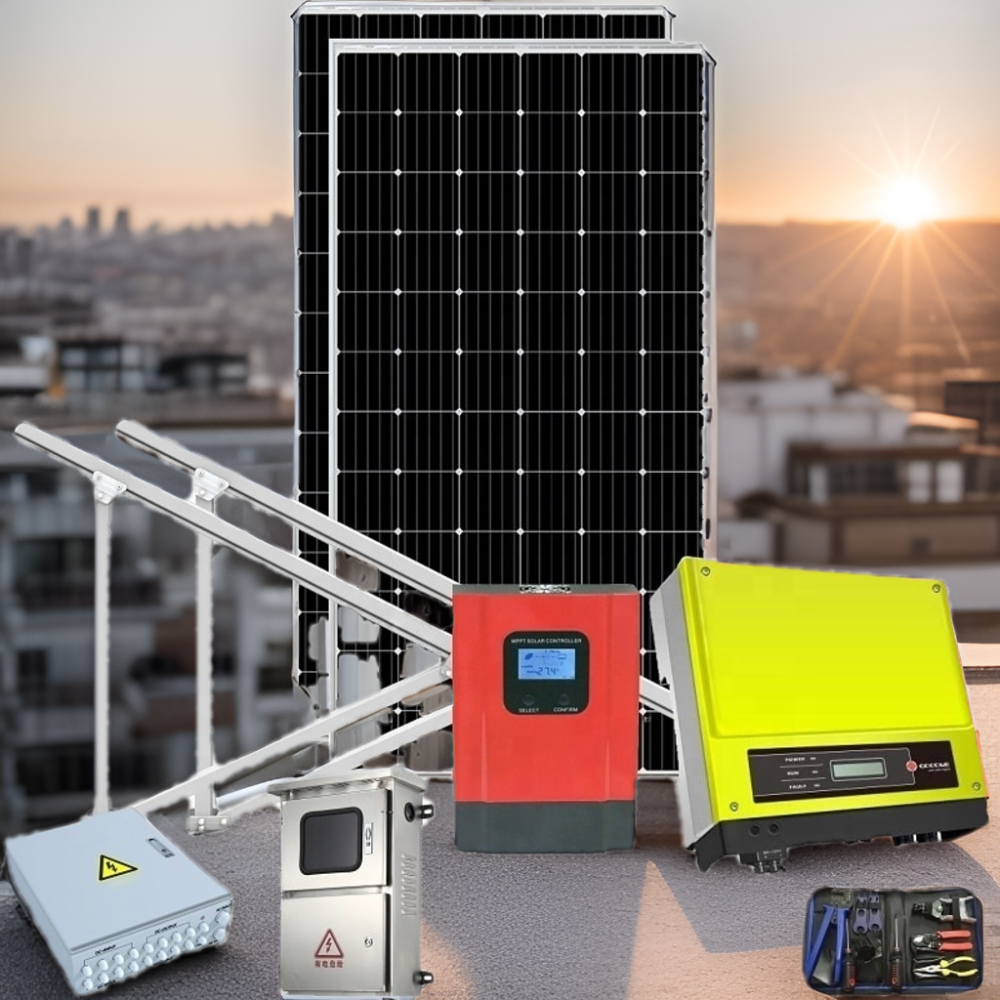

Wind and solar system structure layout
Key Components Detail
Solar panels detailed presentation

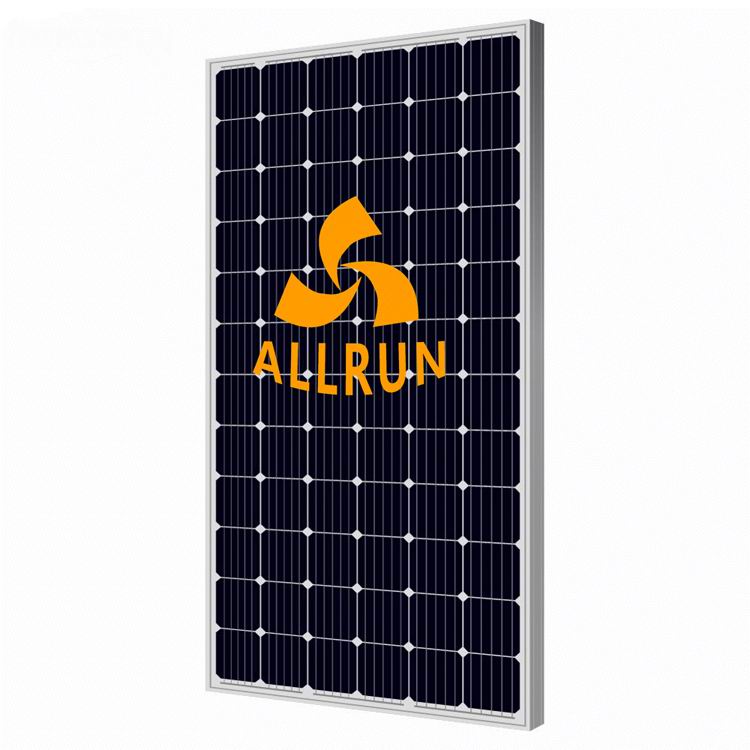

1. The Solar Panel
All panels are A-grade, featuring high efficiency and full power output. Comes complete with MC4 connectors, output cables, junction box, and durable aluminum frames. Different solar panel capacities ranging from 100W to 550W in poly or mono styles are available, with a 30-year warranty.
Mounting brackets detailed presentation
2. Mounting Brackets
Supports roof style, wall style, or ground installation based on site requirements. Manufactured from high-class anodized extruded aluminum section (Material: Al6005-T5). Engineered to bear high wind speeds and backed by a 30-year warranty.
Controller detailed presentation

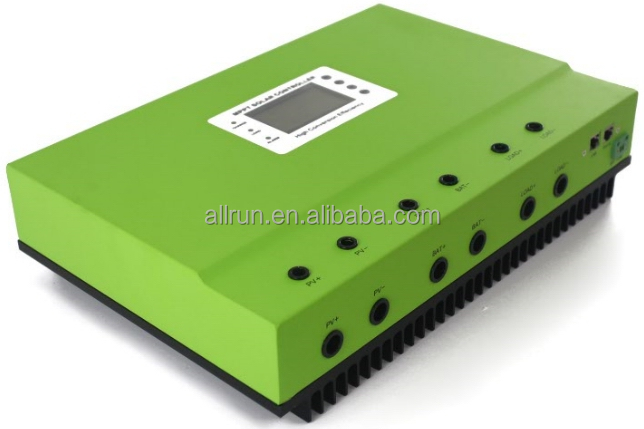

3. Controller
Capacity of 110A with a 96V DC input (customizable setup). Provides over-charge protection voltage of 300V, rated charging current of 120A, and supports PV input power up to 23kW. Offers PWM or MPPT options to suit configuration needs.

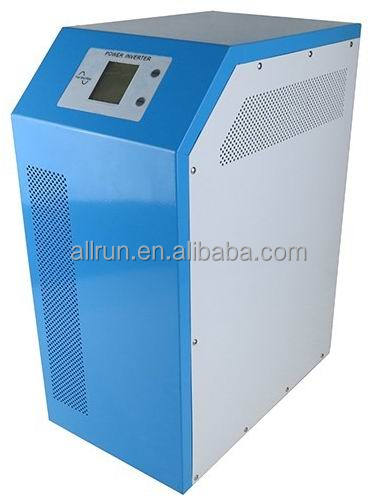

Inverter detailed presentation
4. Inverter
Capacity of 10kW with DC input options of 48V or 96V (customizable). Outputs pure sine wave power at 100/115/125VAC or 220/230/240VAC ±3% at 50Hz/60Hz ±1% frequency. Offers single or three-phase settings, optional WIFI monitoring, and a 5-year warranty.
Solar Wind System diagram description
System Architectures

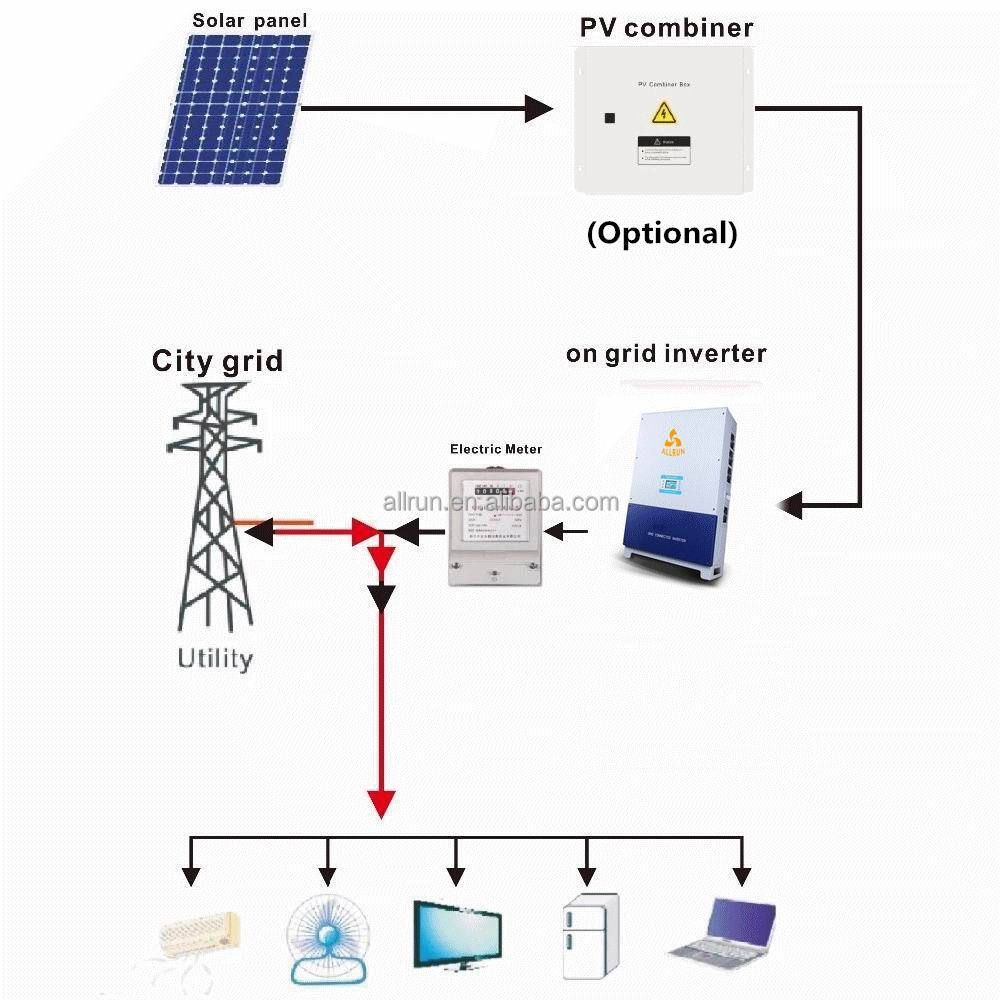

A: Grid TIE System
Grid TIE System schematic diagram

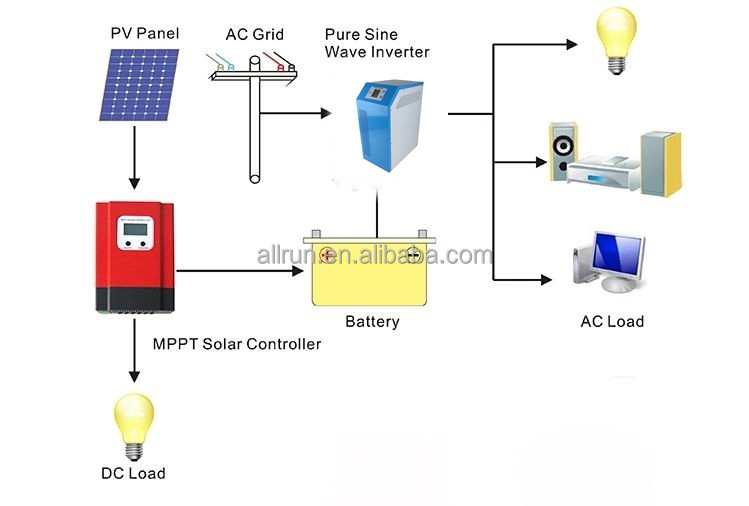

B: Off Grid System
Off Grid System schematic diagram

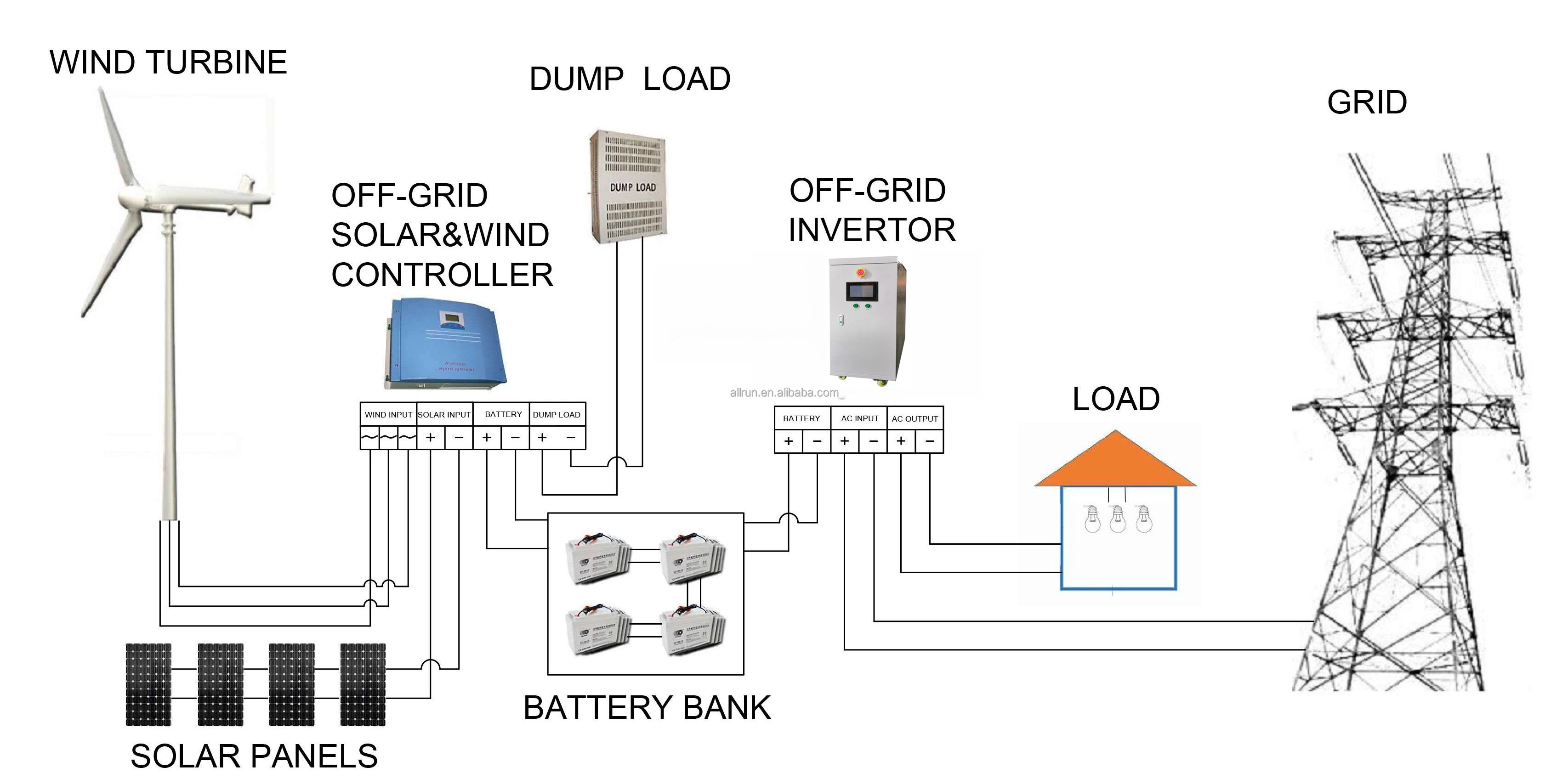

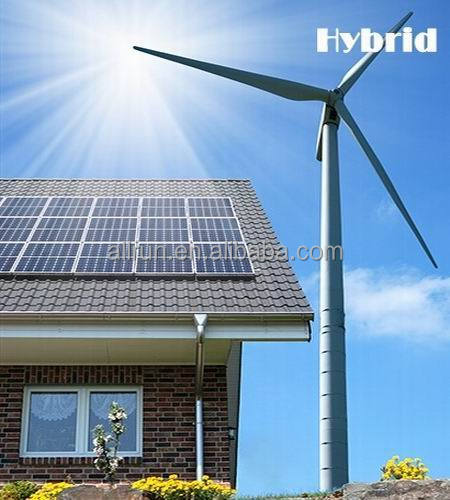

C: Hybrid Wind Solar System
Hybrid wind solar system schematic diagram
Production details overview
Manufacturing detail 1

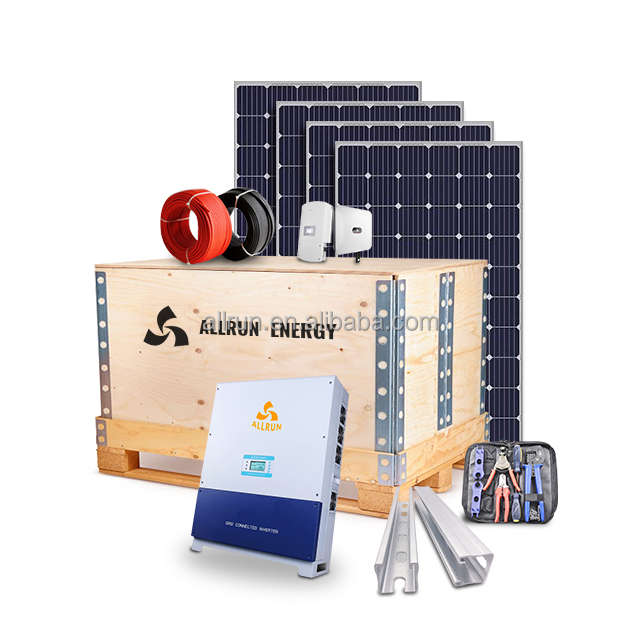

Manufacturing detail 2
Manufacturing detail 3
Manufacturing detail 4

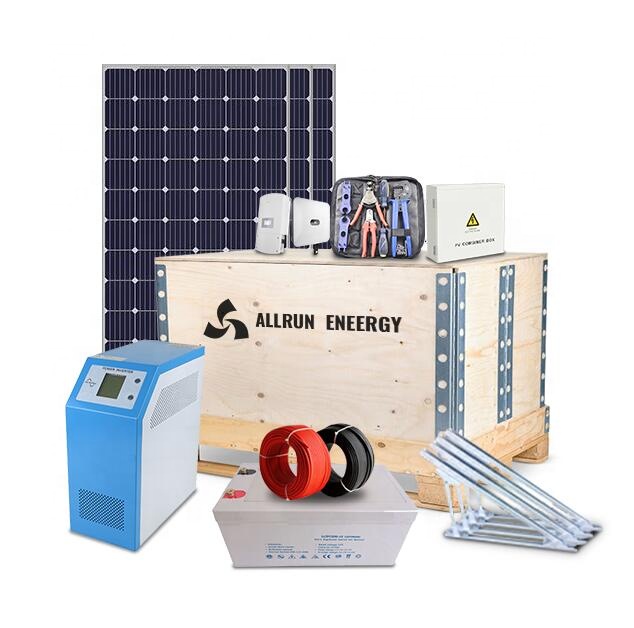

System packaging layout
Features overview graphic
Key Features
  • All-in-one Design: Integrated components, ready for immediate installation.
  • Flexible Installation: Adaptable setups for wall, ground, roof, or pole mounting.
  • Versatile Styles: Available in on-grid, off-grid, and hybrid styles, with optional Gel or Lithium batteries.
  • High Wind Resistance: Lightweight, robust structural brackets capable of bearing high wind loads.
  • A-Grade Solar Panels: Available in Mono or Poly styles with various dimensions and output ratings.
  • Customizable Voltages: Configurable voltages including 96V/110V DC and 110V/220V/380V AC based on your power requirements.
  • Intelligent Protection: Built-in self-protection systems built to operate safely under extreme weather conditions.
  • Reliable Support: Responsive after-sales service and extended warranty protections.
  • WIFI Connectivity: Optional WIFI application functionality for remote system monitoring.
Case studies banner
Real-world Project Cases

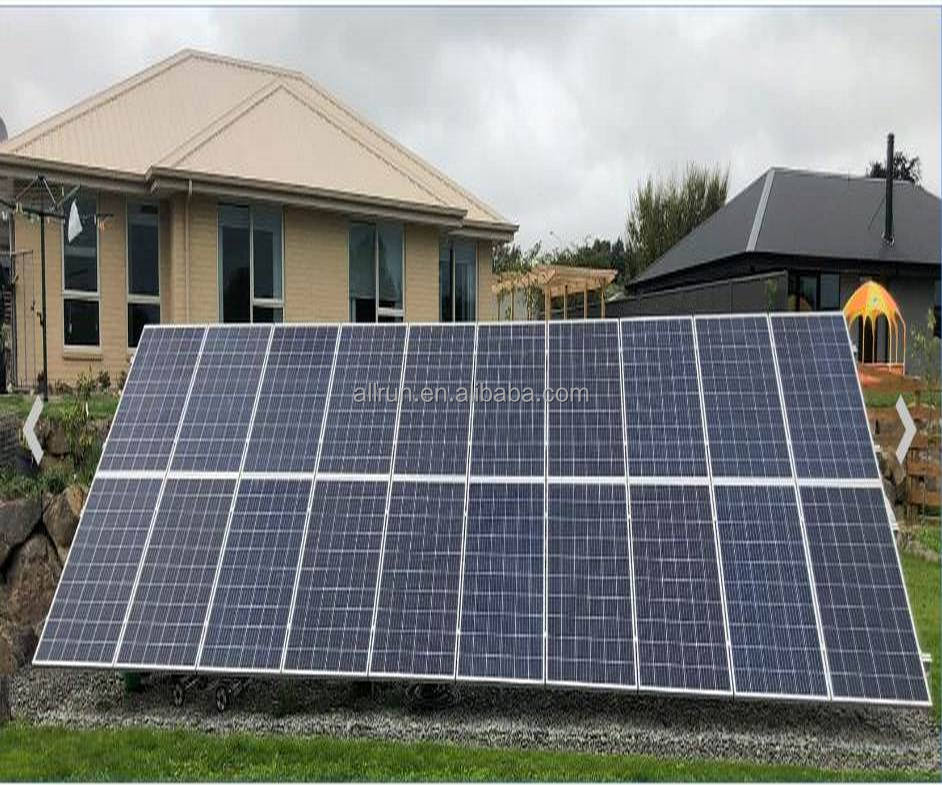

Villa installation in New Zealand
1. Villa Installation in New Zealand

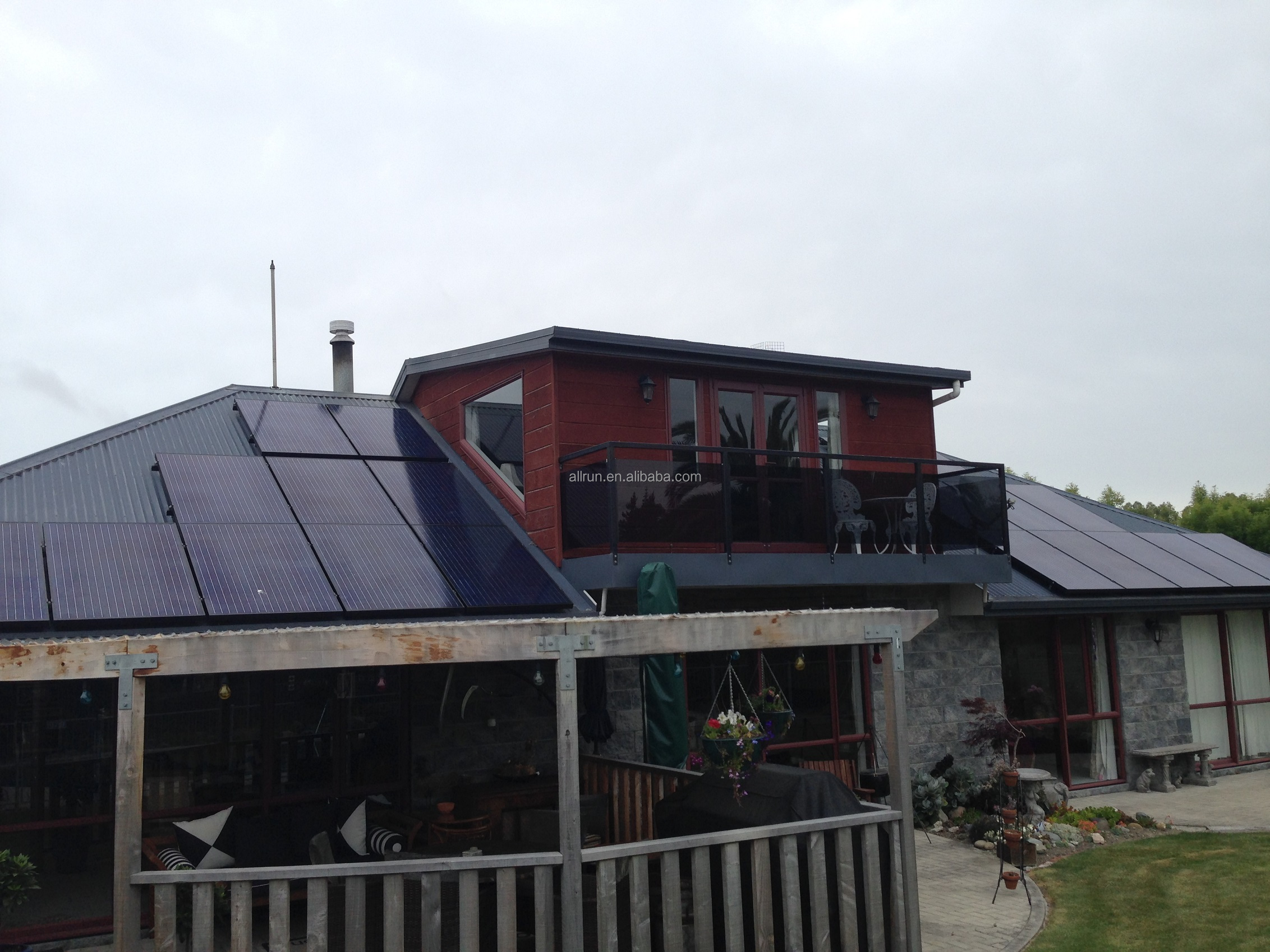

Residential system in Australia
2. Residential Installation in Australia

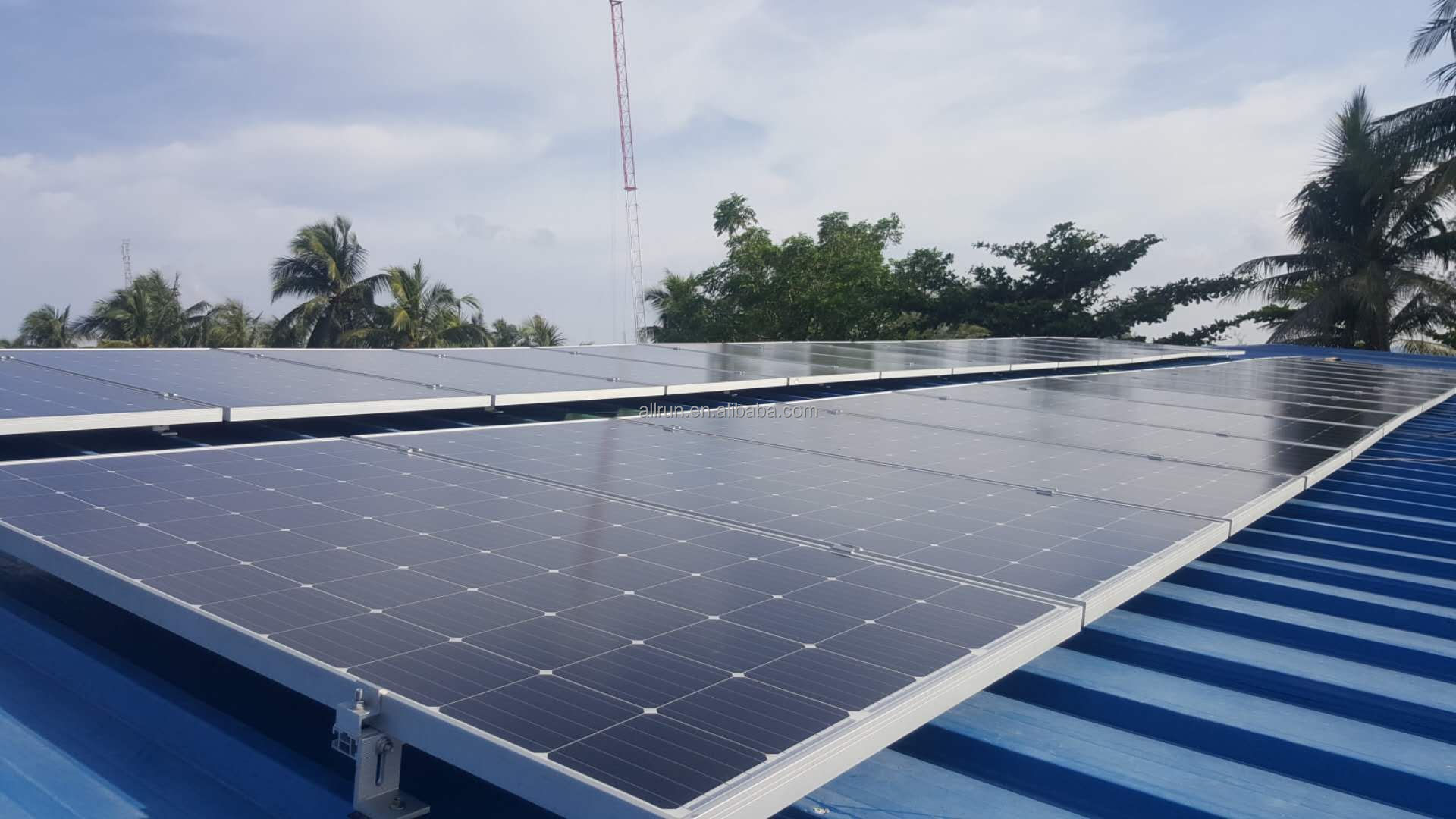

Factory roof setup in Indonesia
3. Factory Roof Project in Indonesia
Grassland Wind Turbine installation
4. Grassland Wind Turbine Setup

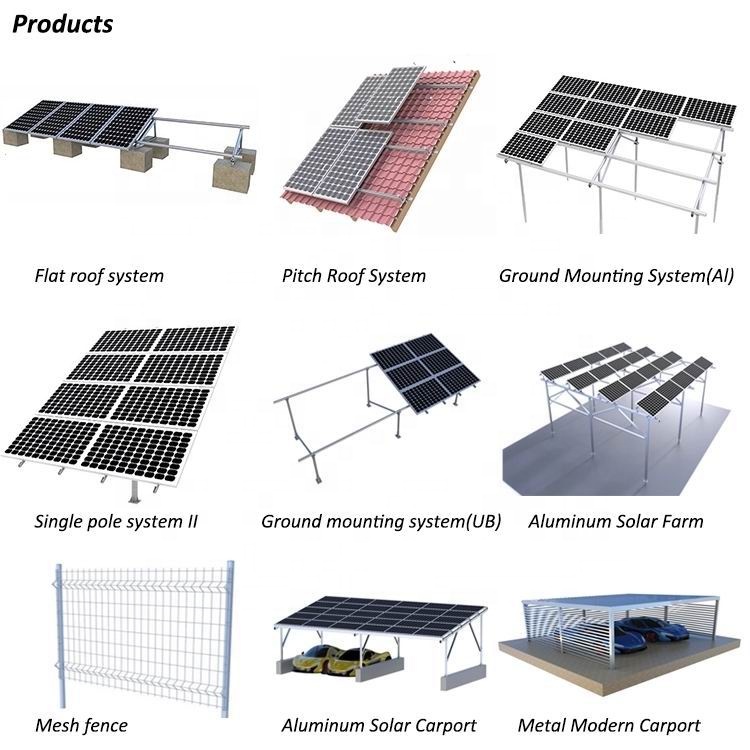

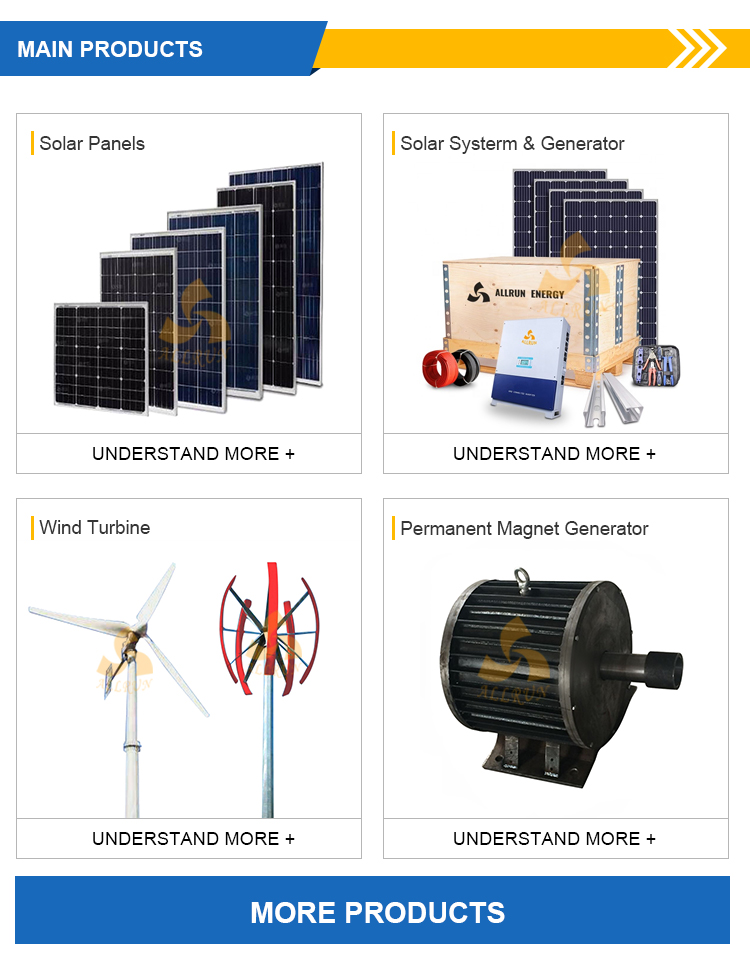

Product selection overview
Product quality parameters
Solar configuration specifications
Professional Engineering & Customization
Our team is specialized in producing wind and solar energy systems, including wind power setups, solar panels, and associated high-performance accessories. We support independent research on wind energy systems across multiple power levels ranging from 150W to 500kW. Our configurations are designed for independent off-grid installations, grid-tied architectures, wind-solar hybrid street light systems, wind-solar hybrid home setups, and wind-diesel hybrid operations.
With a strong decade-long track record in this sector, we not only offer standard components but also construct custom-tailored system configurations optimized for client-specific parameters. Backed by a dedicated 10-person R&D team, we continuously evolve our systems to address dynamic market conditions. Our solutions have established trusted collaborative partnerships across Europe, North America, Australia, New Zealand, South Africa, and Asia, built upon reliable delivery, transparent technical communication, robust build quality, and competitive cost efficiency.
Testing and laboratory quality control
Frequently Asked Questions (FAQ)
Q1: What capacity options do you produce?
We can manufacture and configure solar power systems ranging from 150W up to 5MW. We supply complete turn-key units as well as individual component parts according to your needs.
Q2: Which system configurations do you support?
We support both grid-tied (on-grid) and off-grid system architectures. Every setup is highly customizable to match the requirements of your application.
Q3: What is the typical product warranty?
We provide a comprehensive warranty structure, including up to 20 years warranty for complete systems and up to 30 years warranty for individual solar panels and mounting structures.
Q4: What are your shipping and delivery capabilities?
We standardly arrange for system dispatch within 7 days of cleared payment and facilitate reliable shipping and forwarding logistics to delivery locations globally.
Q5: What battery options are available for the off-grid setup?
Standard configurations feature maintenance-free Gel batteries. Alternatively, advanced lithium battery options are also available depending on requirements.
Q6: Are the mounting brackets suitable for extreme weather installations?
Yes, our mounting brackets are fabricated from structural anodized aluminum (Al6005-T5) designed to safely withstand high wind speeds and harsh weather conditions.
