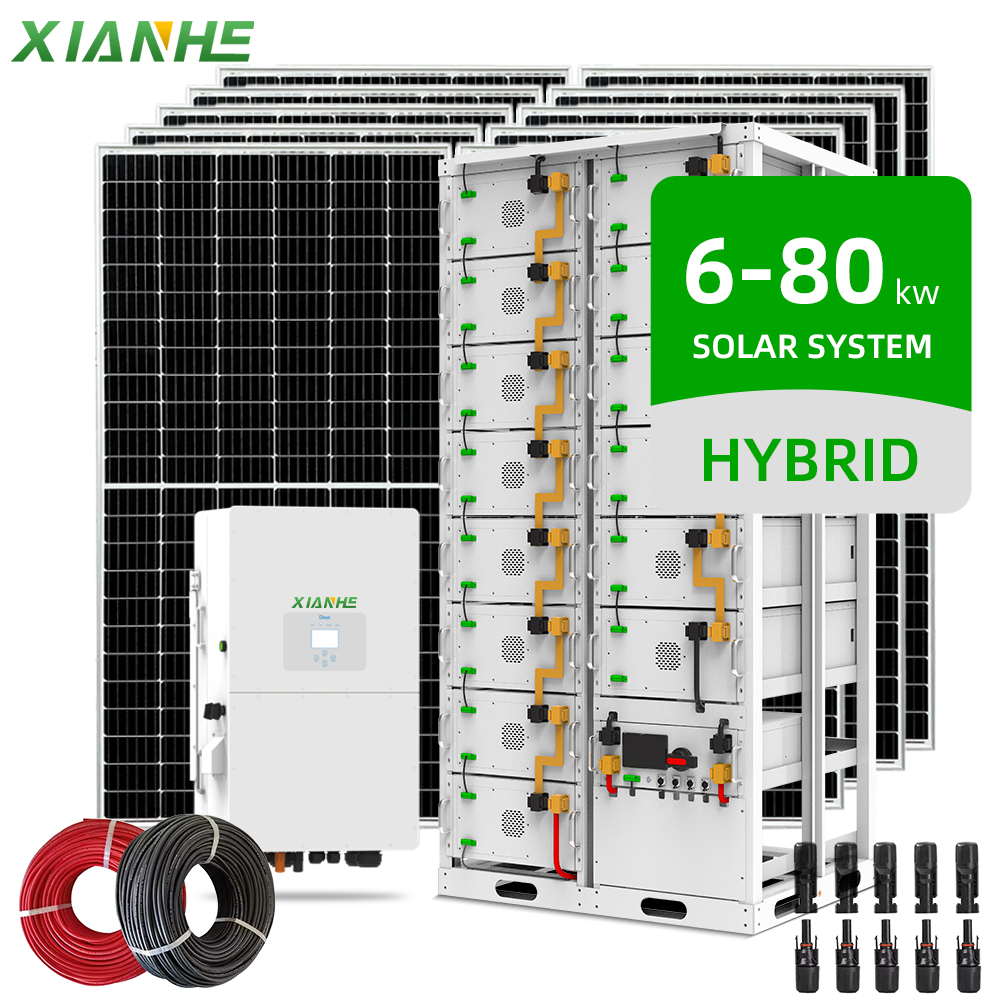

Complete 20kw Hybrid off Grid System Solar Kit 30kw 40kw 50kw 80kw Residential Commercial Complete Package Solar Energy System

1 / 5

Complete 20kw Hybrid off Grid System Solar Kit 30kw 40kw 50kw 80kw Residential Commercial Complete Package Solar Energy System

Send Inquiry

Product Description

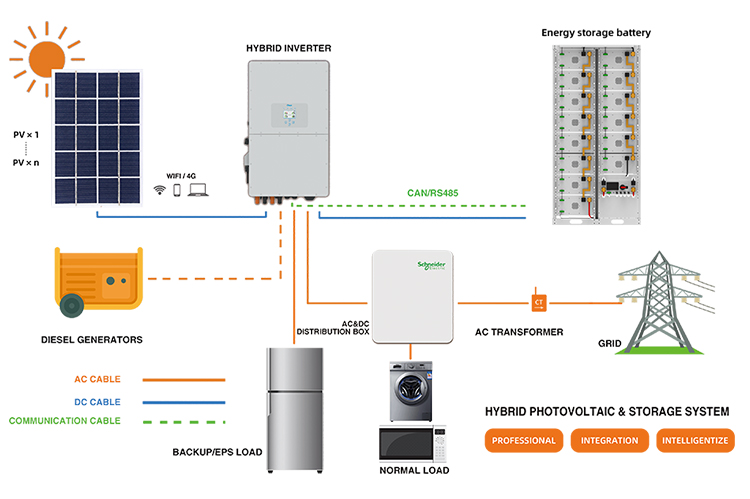

Hybrid Solar System Overview

Solar Panels: Convert the solar energy into DC electricity.
Hybrid/Off grid Inverter: Convert DC electricity into AC electricity, same quality as utility electricity, and regulates the AC charge to batteries.
Lithium Ion/Lifepo4 Battery: Solar energy storage, high voltage systems available (e.g., 200kwh).
Professional Solutions: Customized solar system solutions according to your specific needs.

Technical Specification

Residential/C&I Hybrid Solar System 3KW-80KW
MODEL	20KW	25KW	30KW	35KW	40KW	45KW	50KW	80KW
AC Voltage	EU Version (Three Phase)
Solar Panels	20KW	25KW	30KW	35KW	40KW	45KW	50KW	80KW
Lithium LFP Battery	40KWH	50KWH	57KWH	72KWH	86KWH	100KWH	100KWH	160KWH
Hybrid Inverter	20KW	25KW	30KW	35KW	40KW	45KW	50KW	80KW
PV Cable 4MM2	200m	200m	300m	300m	400m	400m	400m	500m
MC4 Connector	28Pairs	36Pairs	40Pairs	48Pairs	60Pairs	62Pairs	70Pairs	110Pairs
Mounting Bracket	Customized: Roof/Ground type or Carport (Aluminum or Steel)

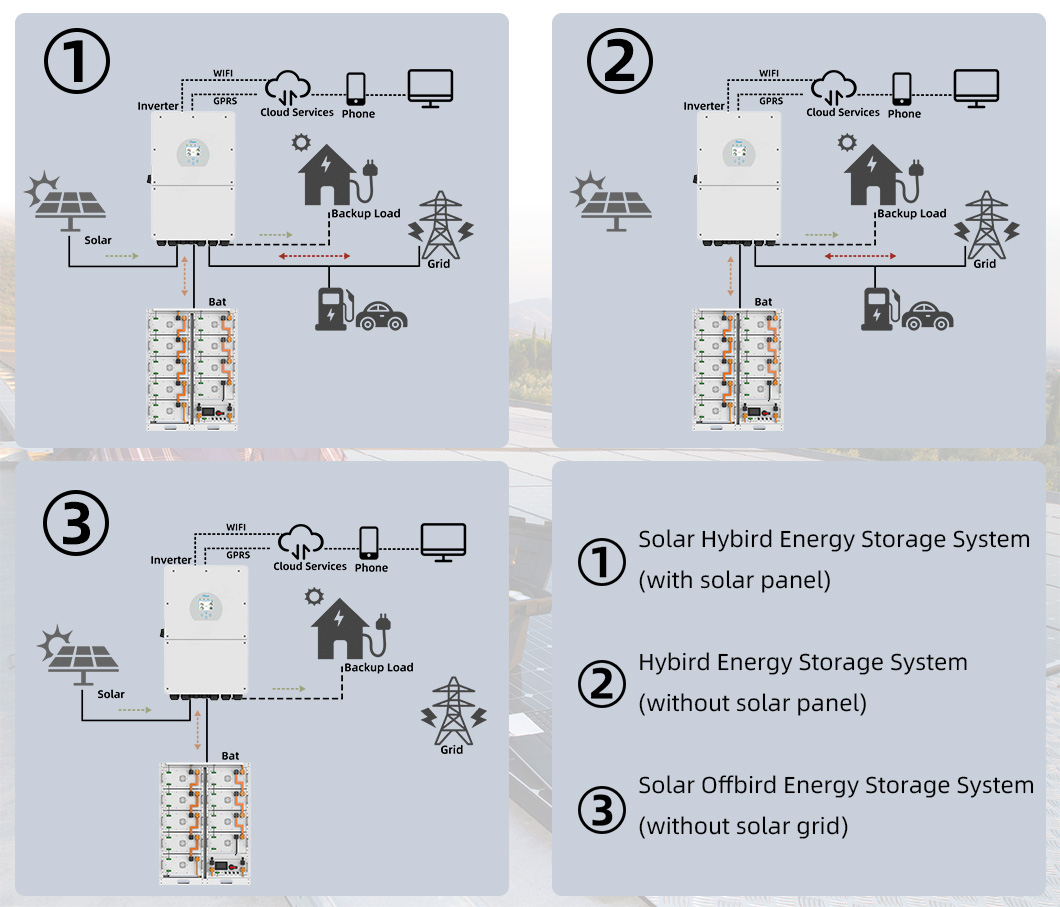

Working Modes

1. Self consume: Photovoltaic gives priority to power the user load, and excess solar energy charges the batteries. Excess power can flow to the grid. This is the most popular choice.

2. Battery first: Photovoltaic gives priority to charging batteries. Grid supplements when PV power is insufficient. Batteries are used as backup power.

3. Mixed mode (Economic Mode): Divided into peak, normal, and valley periods. Working modes are set based on electricity prices to achieve maximum cost savings.

Main Components

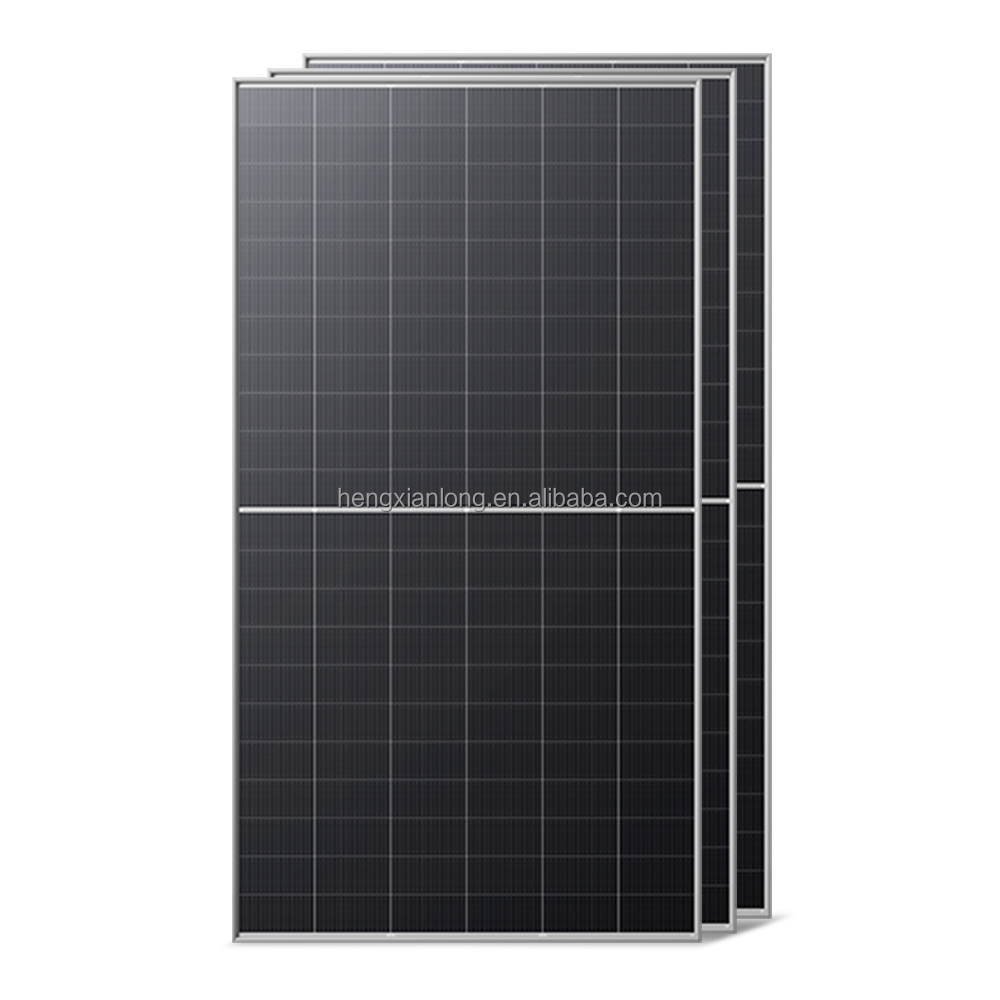

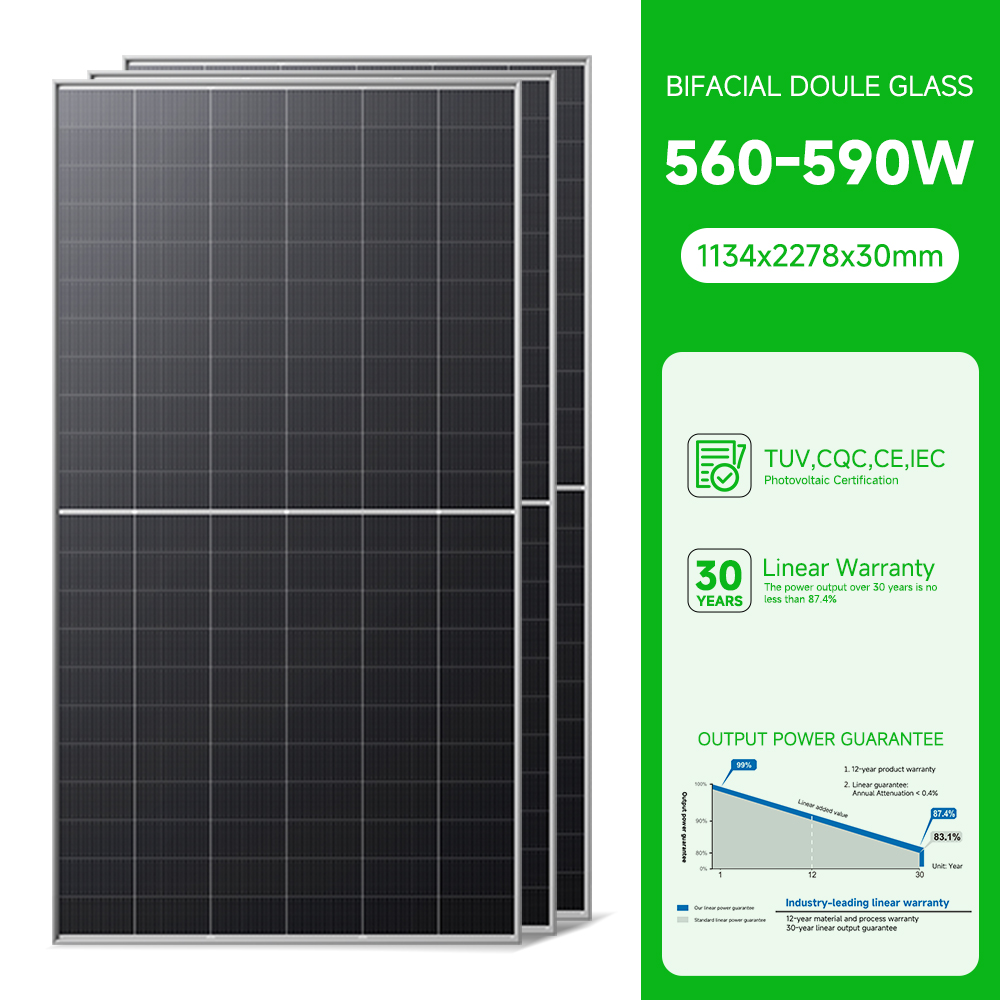

High Quality Solar Panel

N Type TOPCon solar panel, Power Range: 580-600W, 30 years warranty.

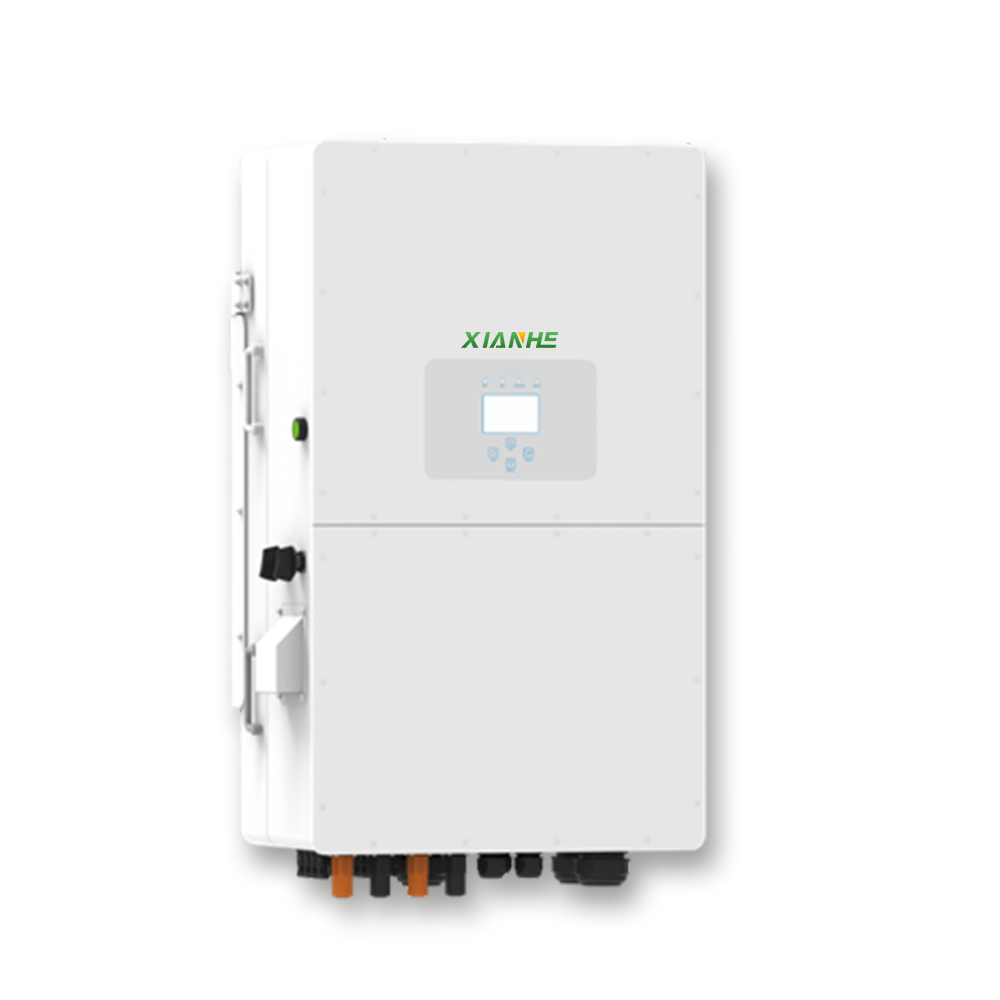

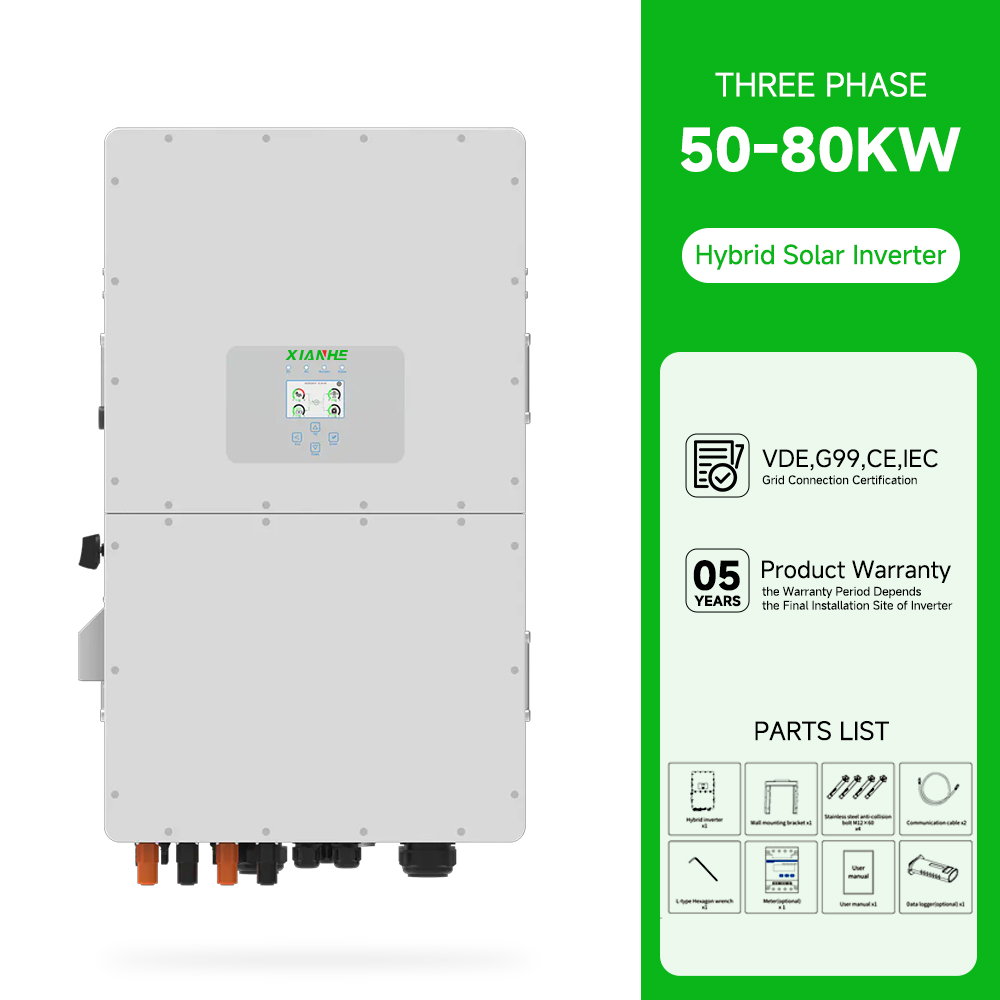

Hybrid Storage Inverter

US/EU Version, Single/Three Phase Optional, 10KW-100KW, IP65 rated.

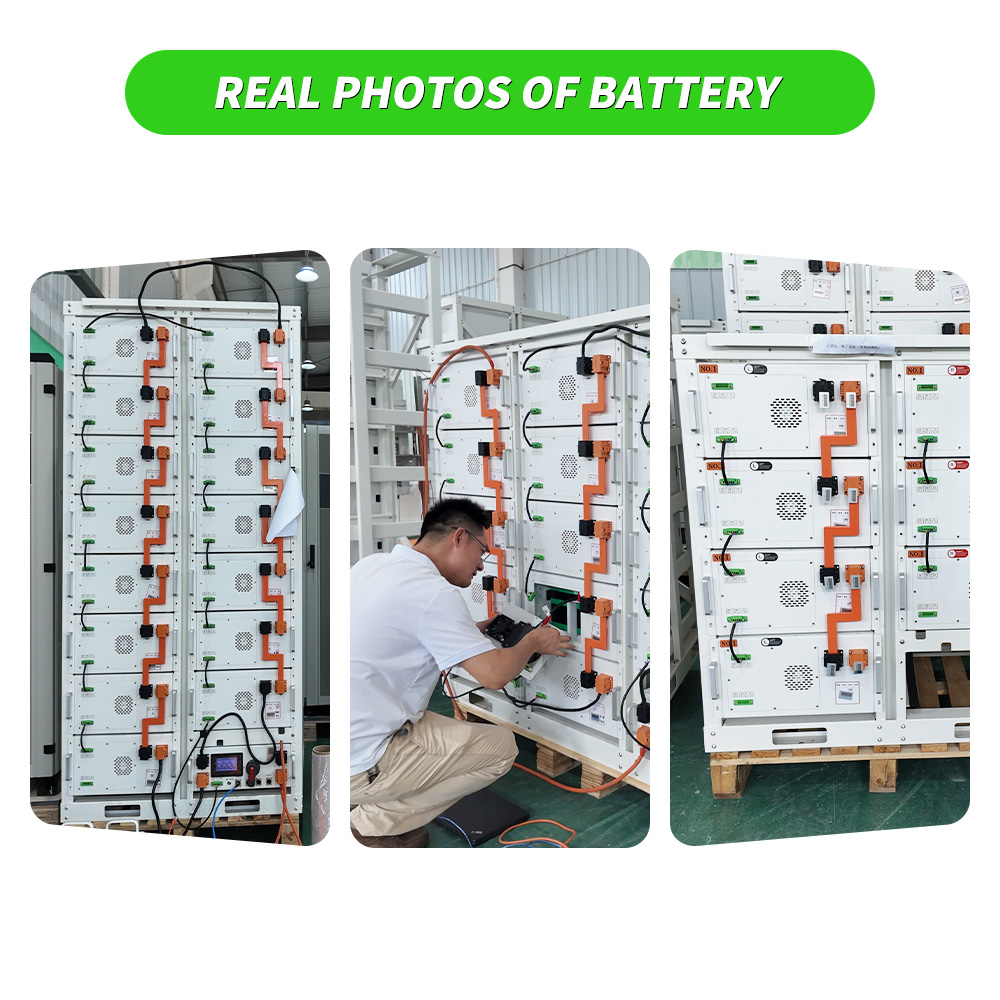

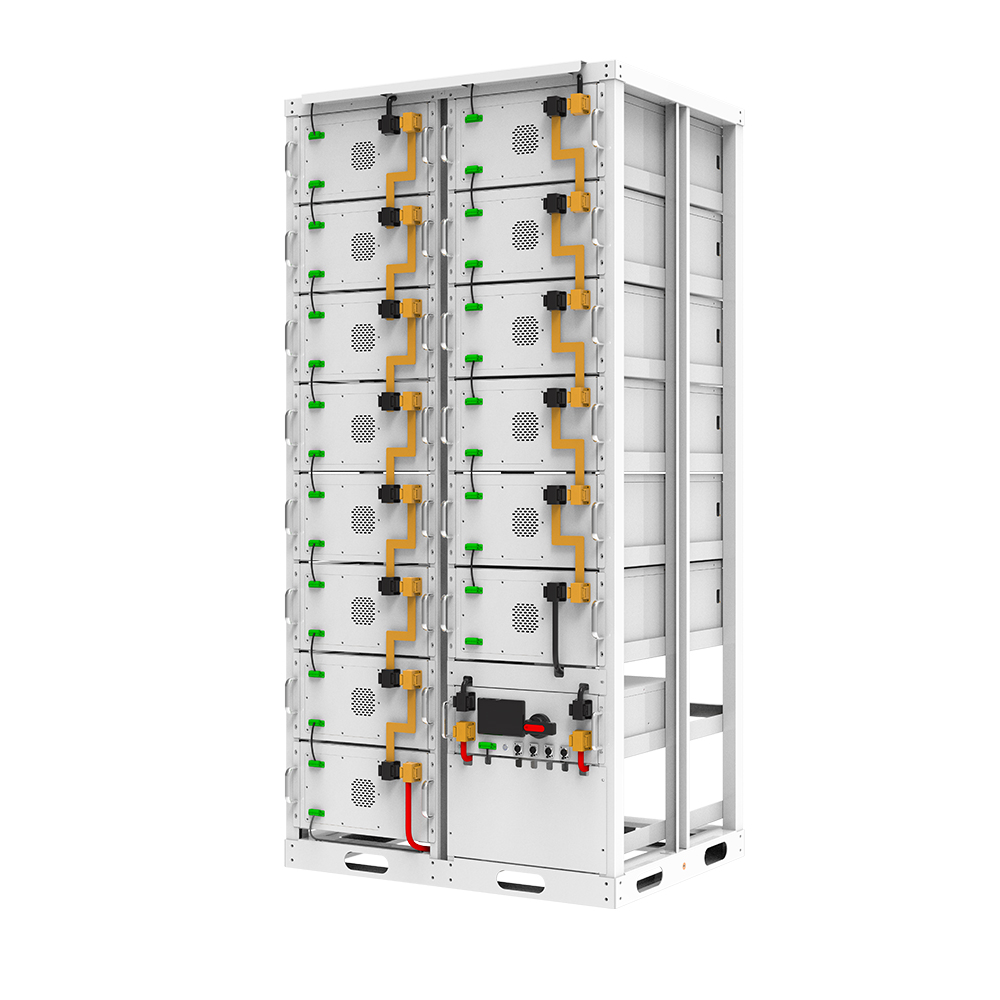

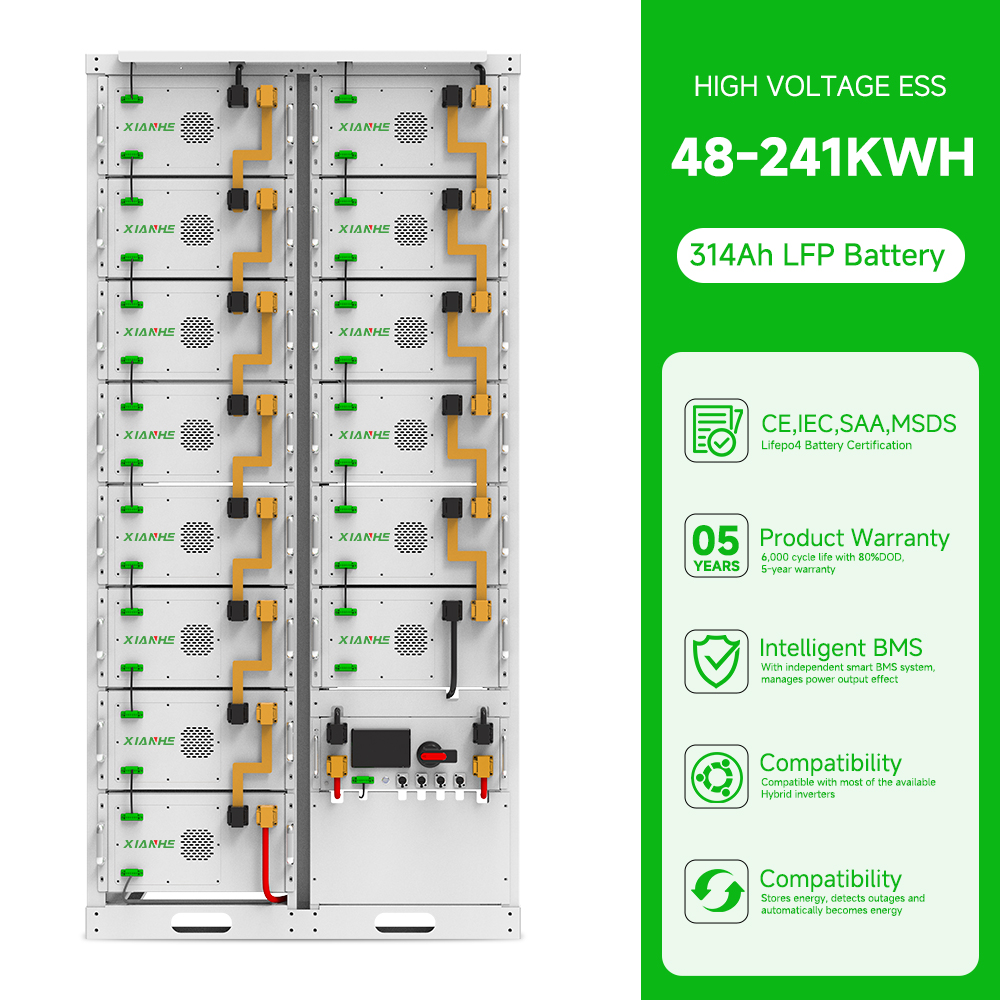

Grade A LiFePO4 Battery

New Grade A cells, Rack-Mounted Type, LV/HV storage options, longer service life.

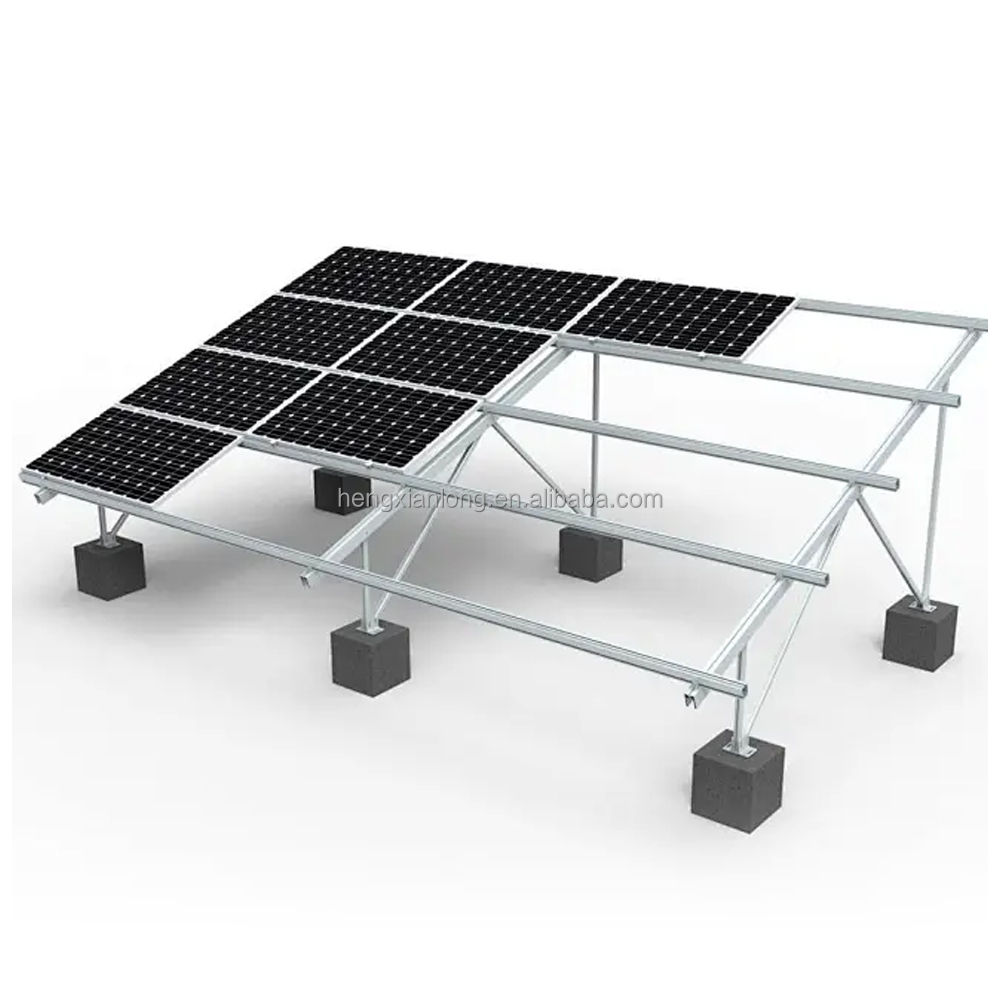

Mounting Brackets

Pitched/Flat roof, Ground, or Carport structures. Lifetime: 25 years.

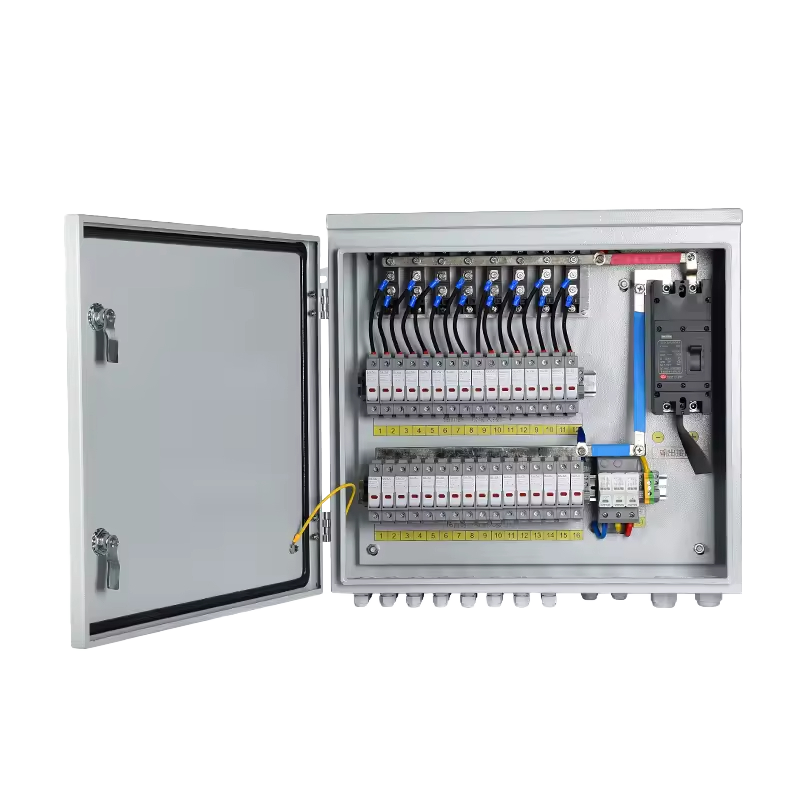

PV Combiner Box

Rated Voltage: 600V-1000V, integrated lightning protection and circuit breakers.

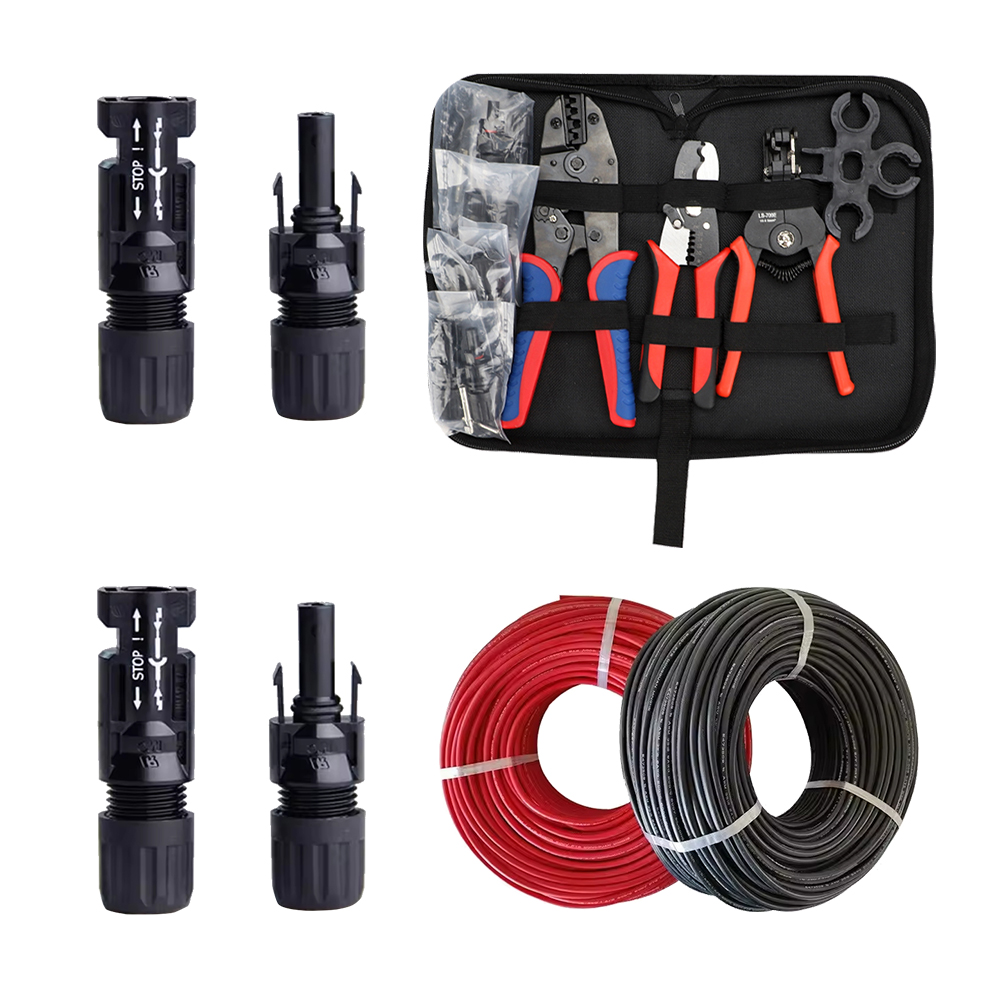

Related Accessories

MC4 Connectors, 4mm2 PV Cable, and professional PV crimping toolkit.

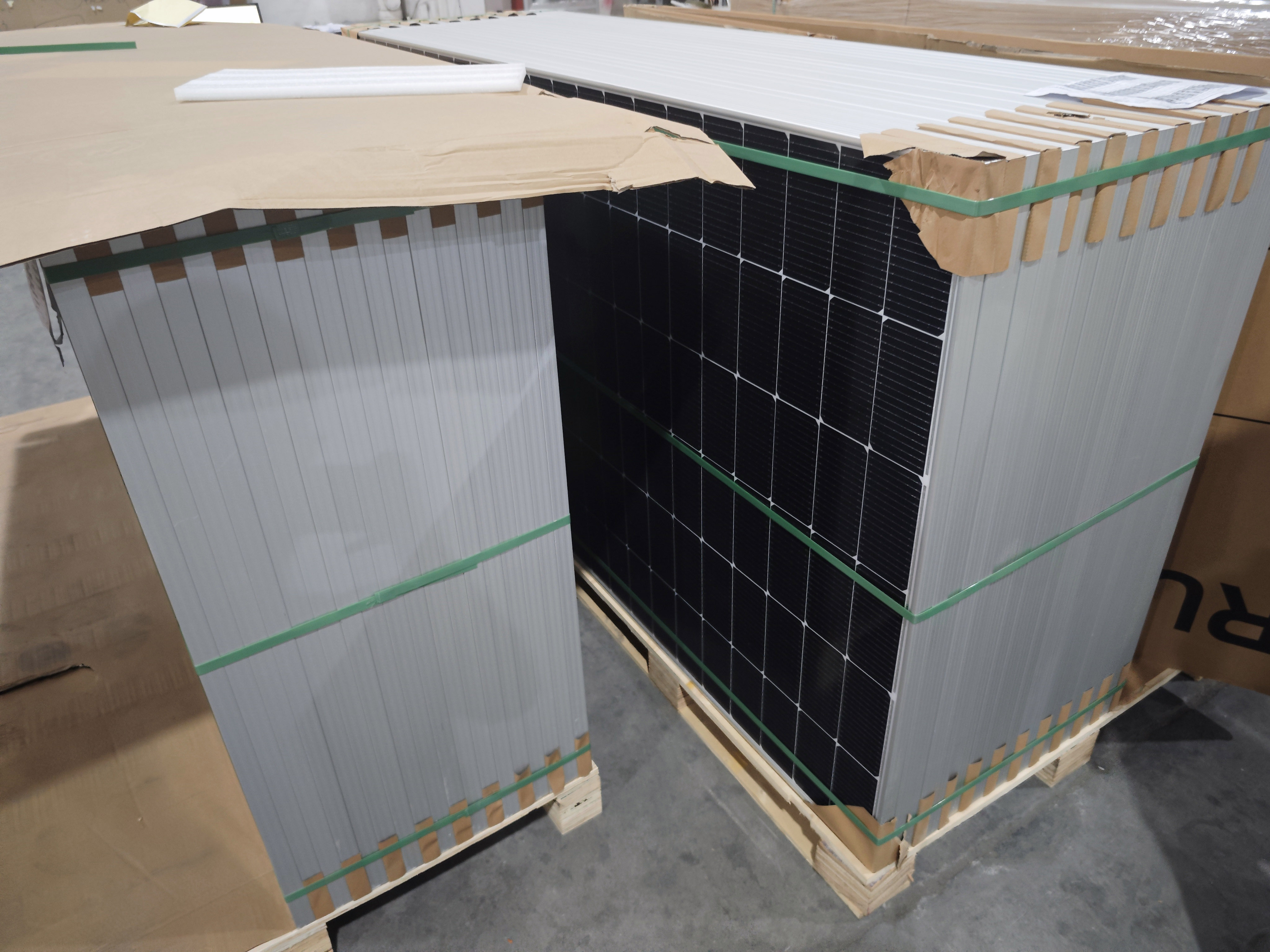

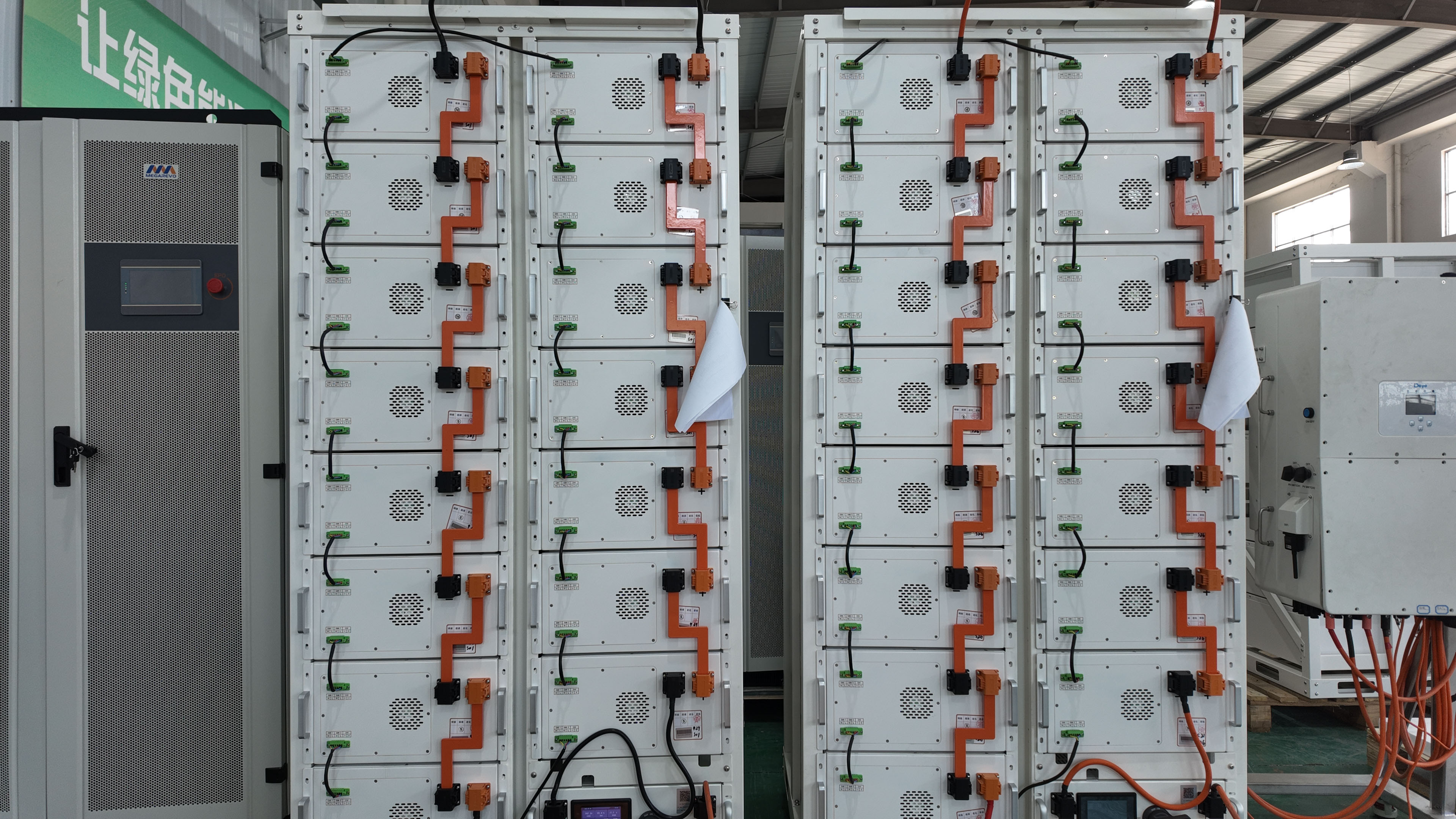

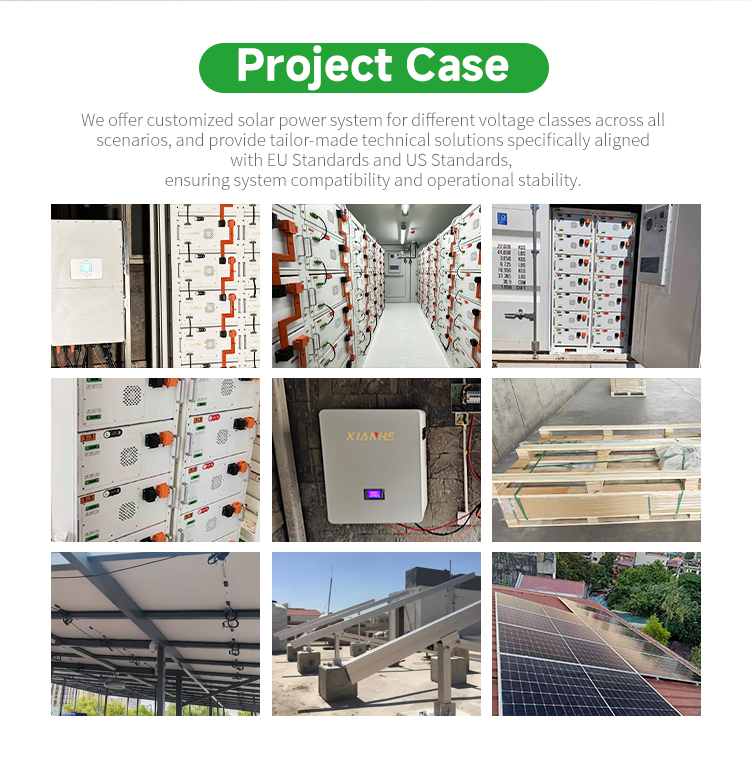

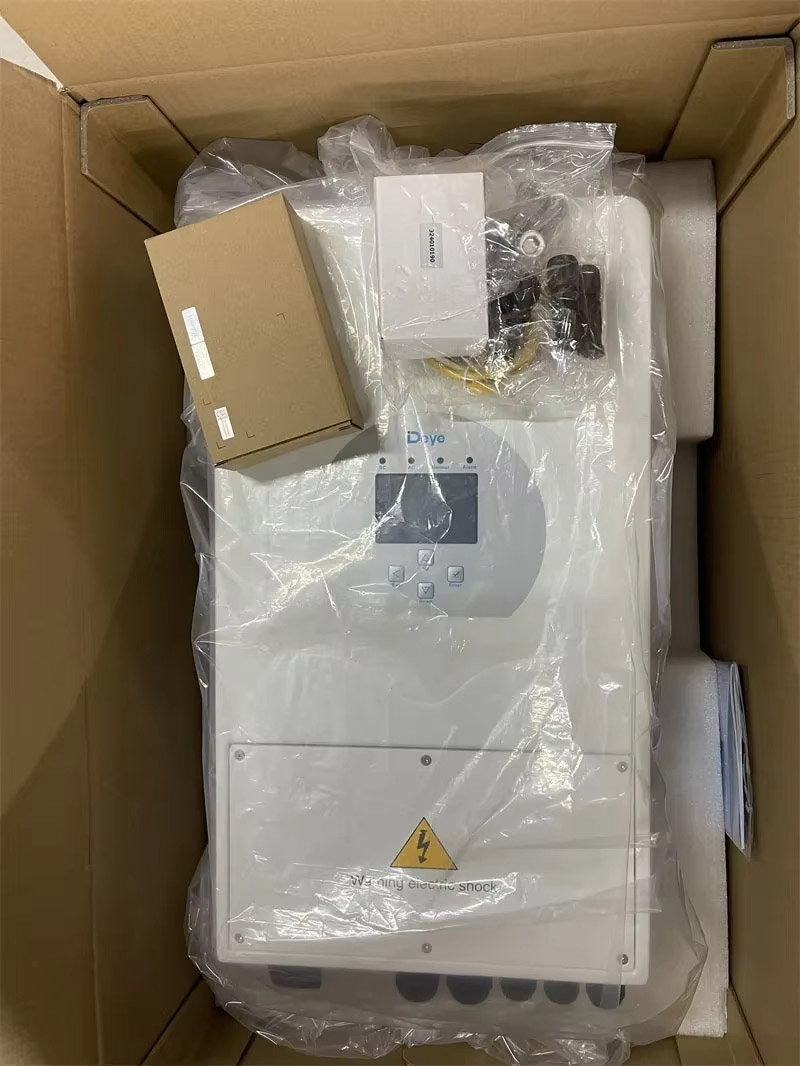

Packaging & Real Photos

Products are packaged using cartons, wooden crates, and pallets providing comprehensive protection for safe transportation.

Why Choose Us

Frequently Asked Questions

Q: How much roof area is required for a Rooftop Solar PV System? A: The area depends on the system capacity. Generally, PET plastic container production logic applies to manufacturing, but for solar, the area is determined by the total wattage of panels and the installation angle.

Q: How much money will I save by installing a grid-connected solar system? A: You can save 50% to 90% of your electricity bill. Exact savings depend on location latitude, house area, and solar panel installation angle.

Q: What is the typical service life of the system components? A: Solar modules have a 30-year linear guarantee; Batteries offer 6,000 cycles (approx. 10-15 years); Inverters come with a 5-year warranty; and Mounting structures last 25 years.

Q: Can the battery capacity be customized? A: Yes, Lithium LFP battery capacity can be customized from 40KWH up to 160KWH or more to meet specific residential or commercial storage requirements.

Q: What working mode is best for reducing costs? A: The Mixed Mode (Economic Mode) is ideal for cost reduction as it allows you to set operation based on peak and valley electricity prices in your region.

Q: Are the systems compatible with different power grids? A: Yes, we provide EU and US versions, with options for Single Phase, Split Phase, or Three Phase configurations to match your local utility requirements.
