Sunpal Hybrid Solar Energy System Off Grid 5Kw 10Kw 20Kw 30Kw Off-Grid Complete Solar Power Panel System Kit for Home Power

Product Description

Warranty

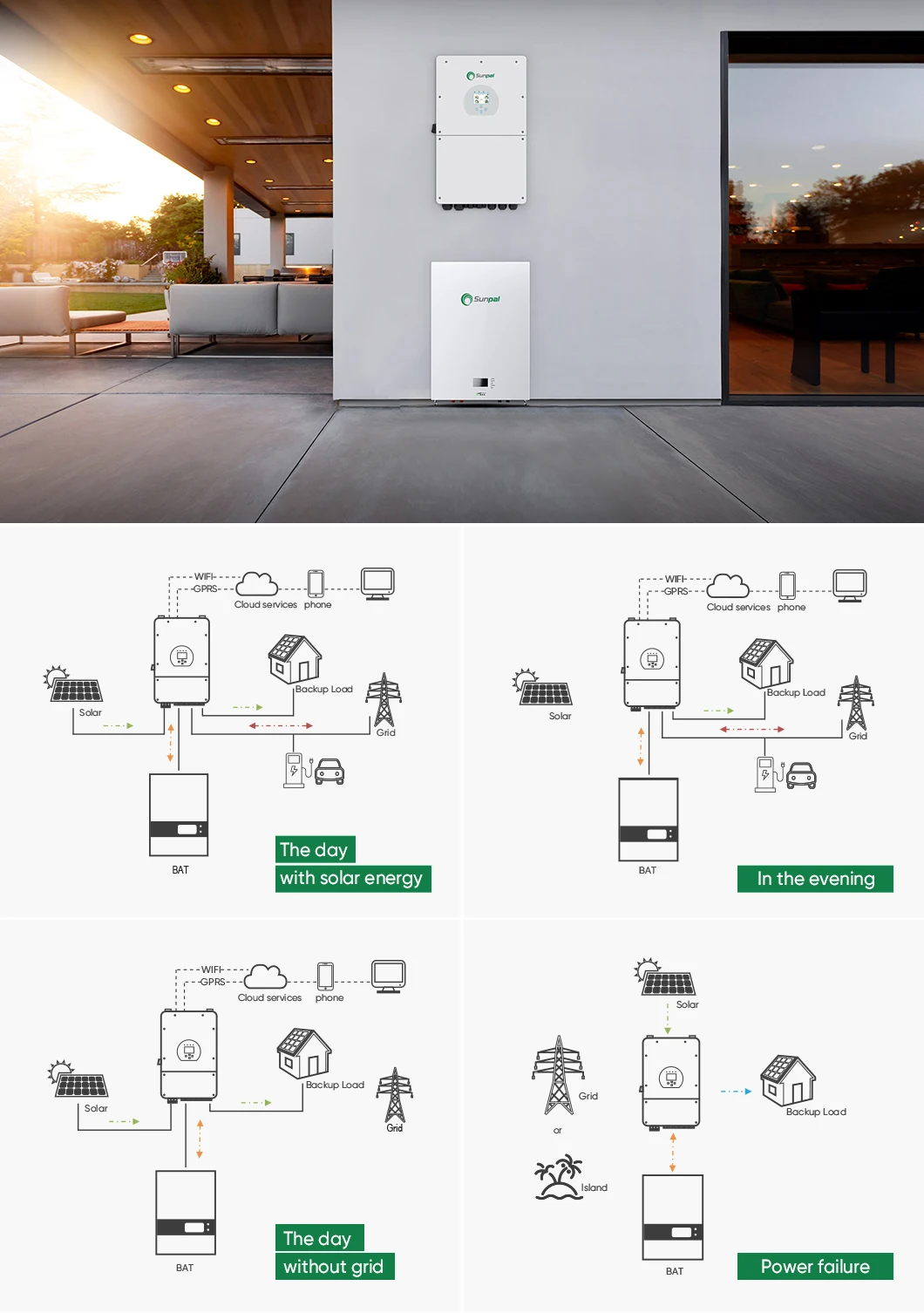

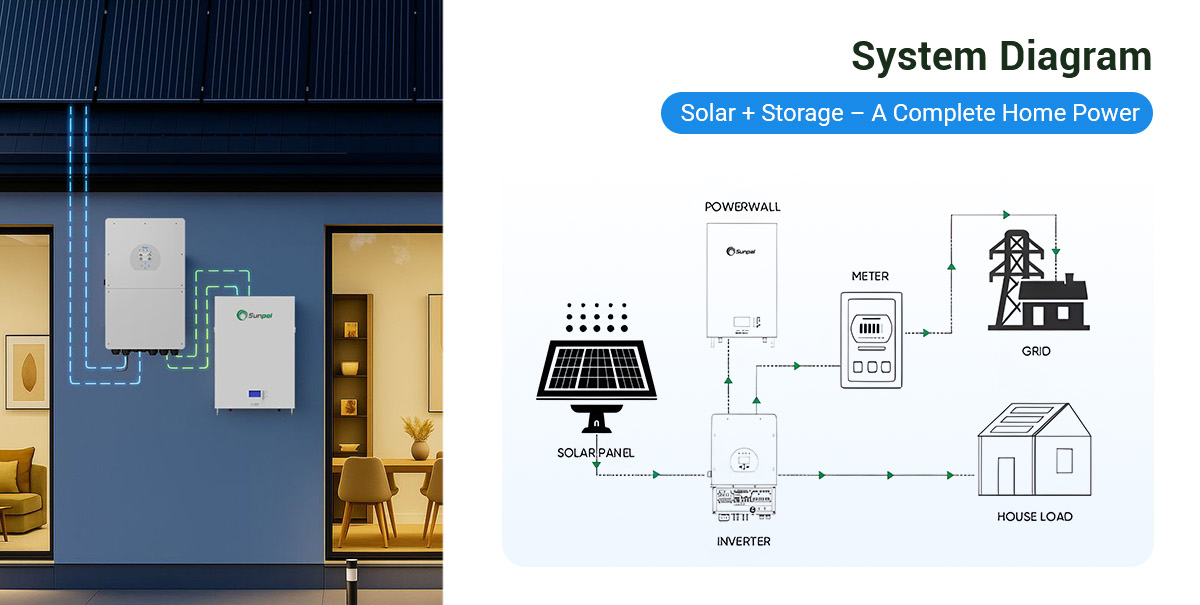

How It Works

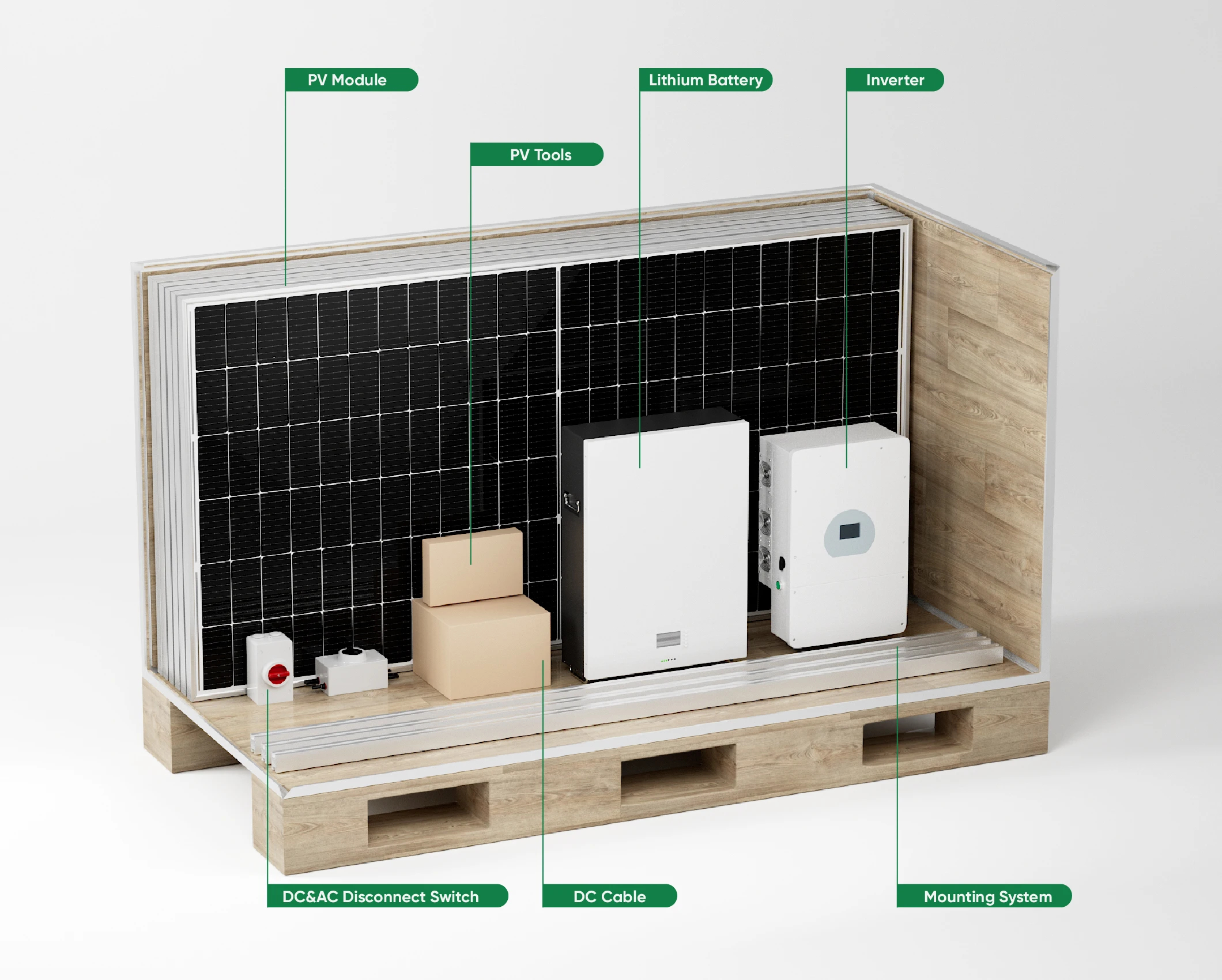

What's Included:

Model	SP-10KW-HY	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Half Cut Mono 550W Solar Panel	20 Pieces	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	3 Pieces	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-10K-SG04LP3-EU	SUN-5K-SG03LP1-EU (3 Pieces)	SUN-10K-SG03LP1-EU (2 Pieces)	SUN-10K-SG04LP3-EU (3 Pieces)
Wall Mounted LiFePo4 Battery	10Kwh	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	400 meter	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

System Components

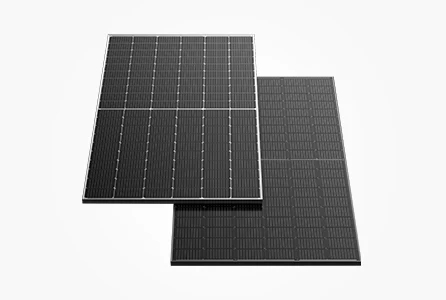

Solar Panel

BiMAX 5N 580-590W / BiMAX 6R 610-630W, 16BB SMBB Half Cut N-type Bifacial Double Glass

Max efficiency: 22.84% (5N) / 23.30% (6R)
Max system voltage: 1500Vdc (IEC), IP68 rated junction box
Warranty: 25-year material / 30-year linear power guarantee

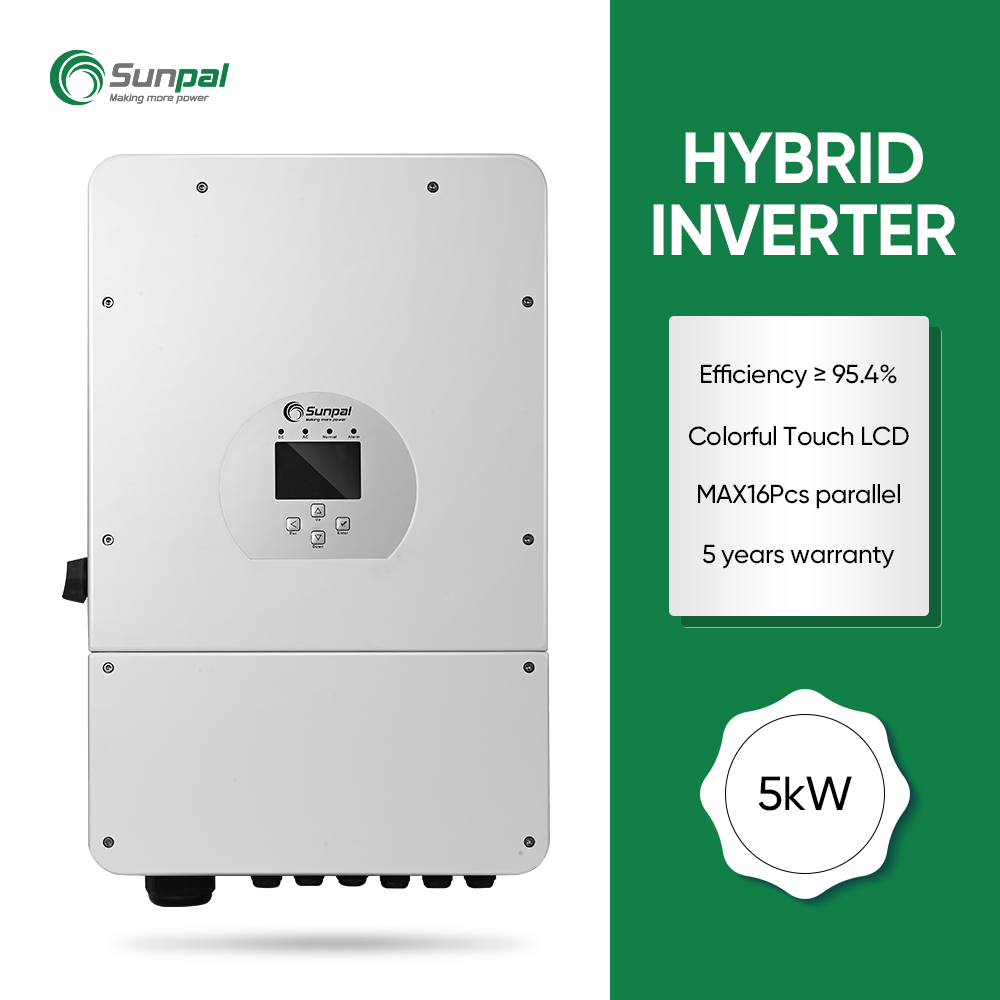

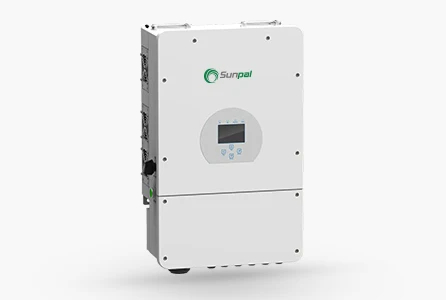

Hybrid Solar Inverter

Deye 5-18KW , >99% MPPT Efficiency

Max charging/discharging current: 190A (3.6-8KW) / 250A (10-12KW) / 350A (18KW)
Supports up to 16 units parallel operation, 6 time periods for battery charging/discharging
Protection grade: IP65 outdoor rated, 5-year standard warranty (10-year optional)

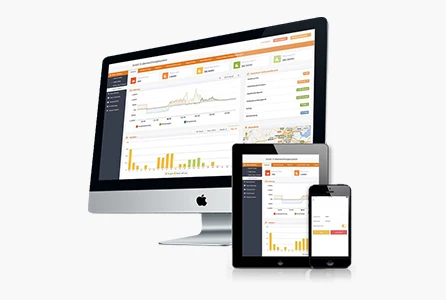

Monitoring System

Open station supports one-click installation and registration. Problem support one-click dispatch and navigation.

Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

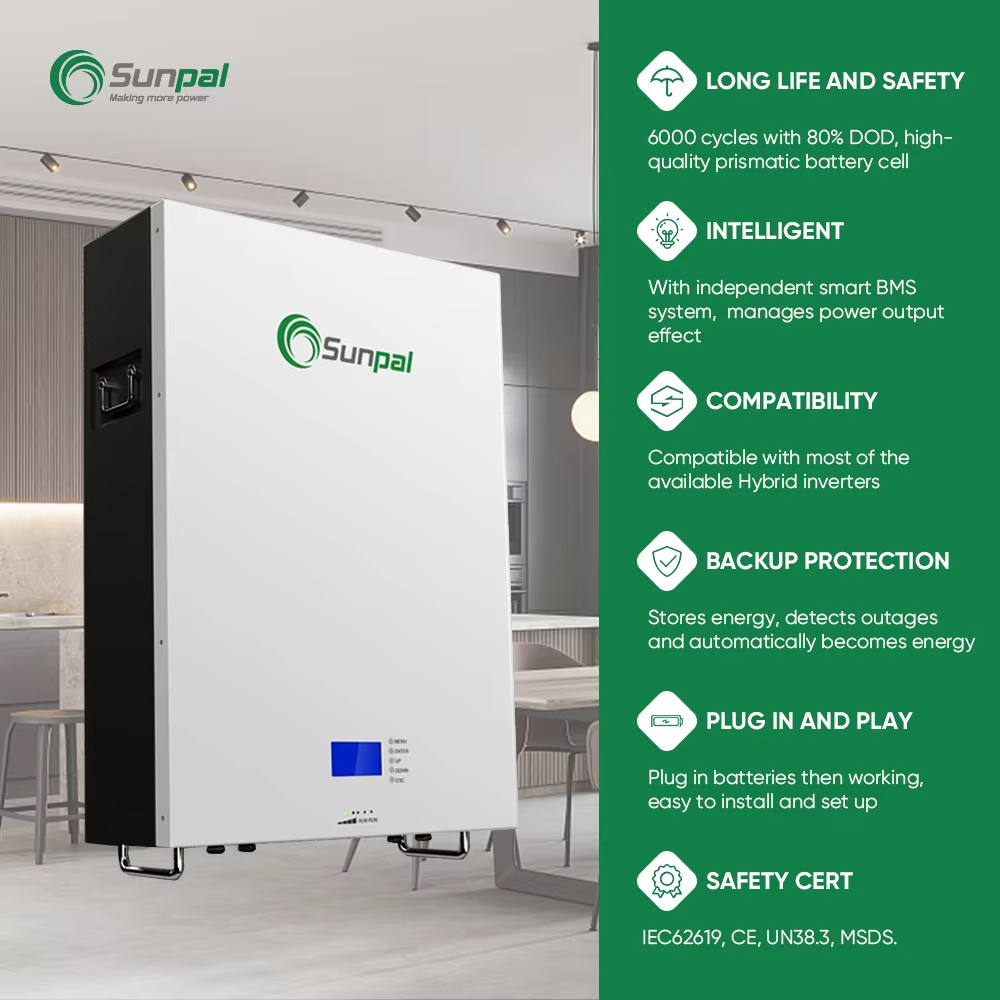

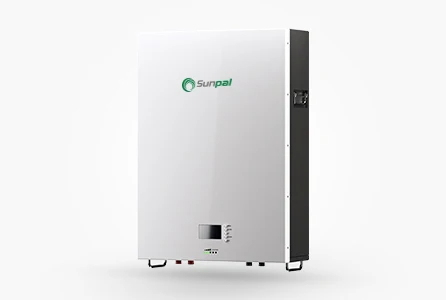

Wall Mounted LiFePo4 Battery

15-20 years design life. Up to 6000 + cycle life.

Wall-mounted: 5kWh/10kWh, plug-and-play installation
Floor-mounted: 16kWh, supports up to 15 units parallel expansion
Battery module is scalable for any larger storage system with high quality BMS
Certifications: IEC62619/CE/UN38.3, built-in intelligent BMS

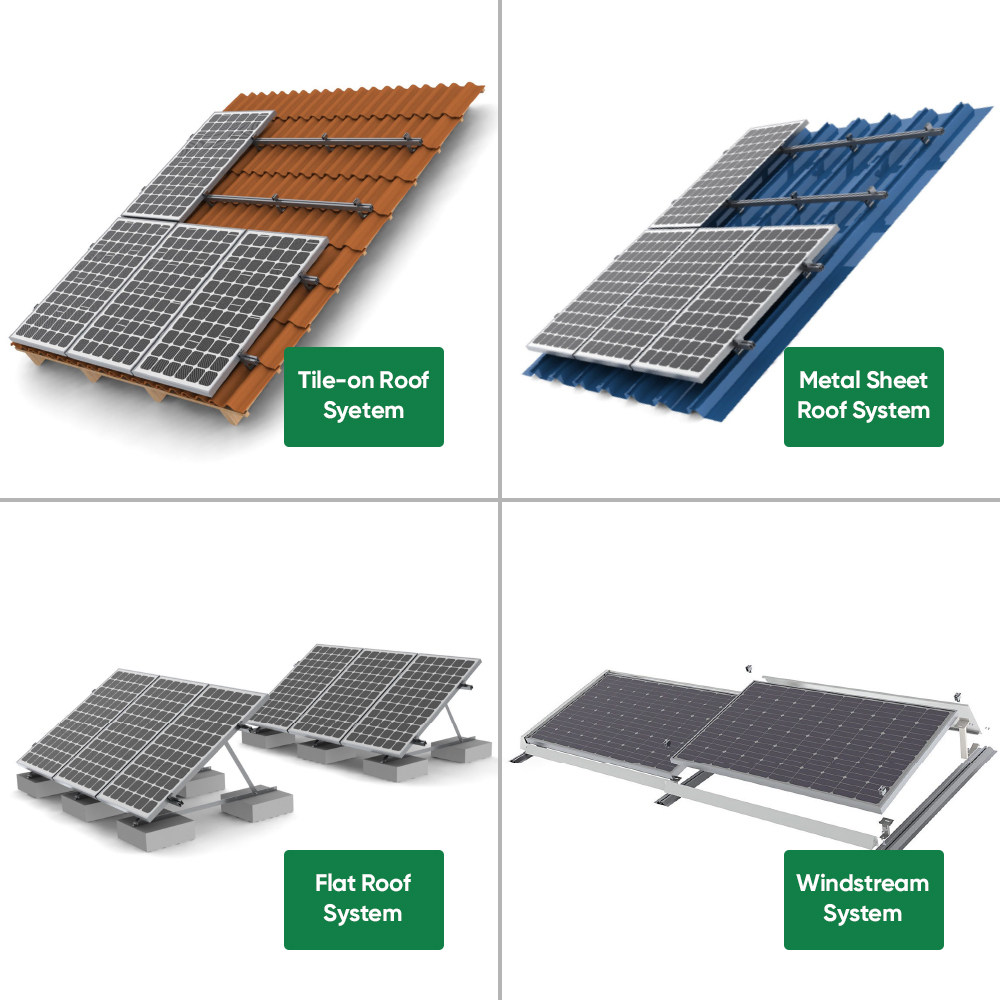

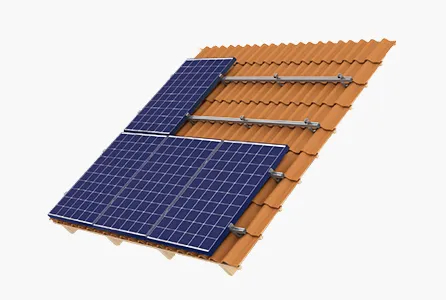

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie / Ground Clip & Lugs Optional

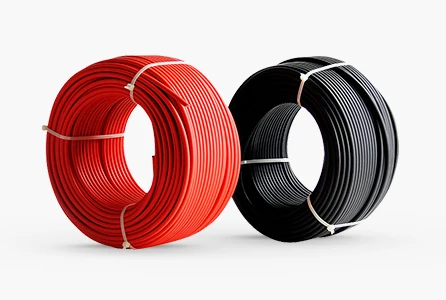

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2
Optional Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black for standard, Red optional. Life Time: ≤25 Years

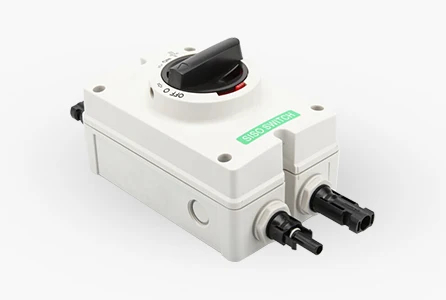

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

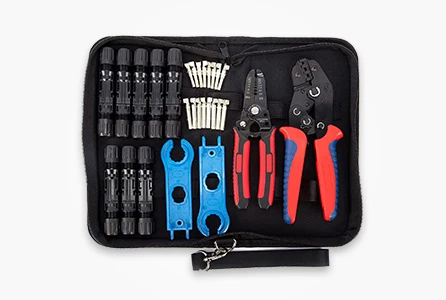

PV Tools

Wire Cable Cutter & Stripper
MC3 MC4 Crimper
MC4 Connectors Assembly & Disassembly Tool

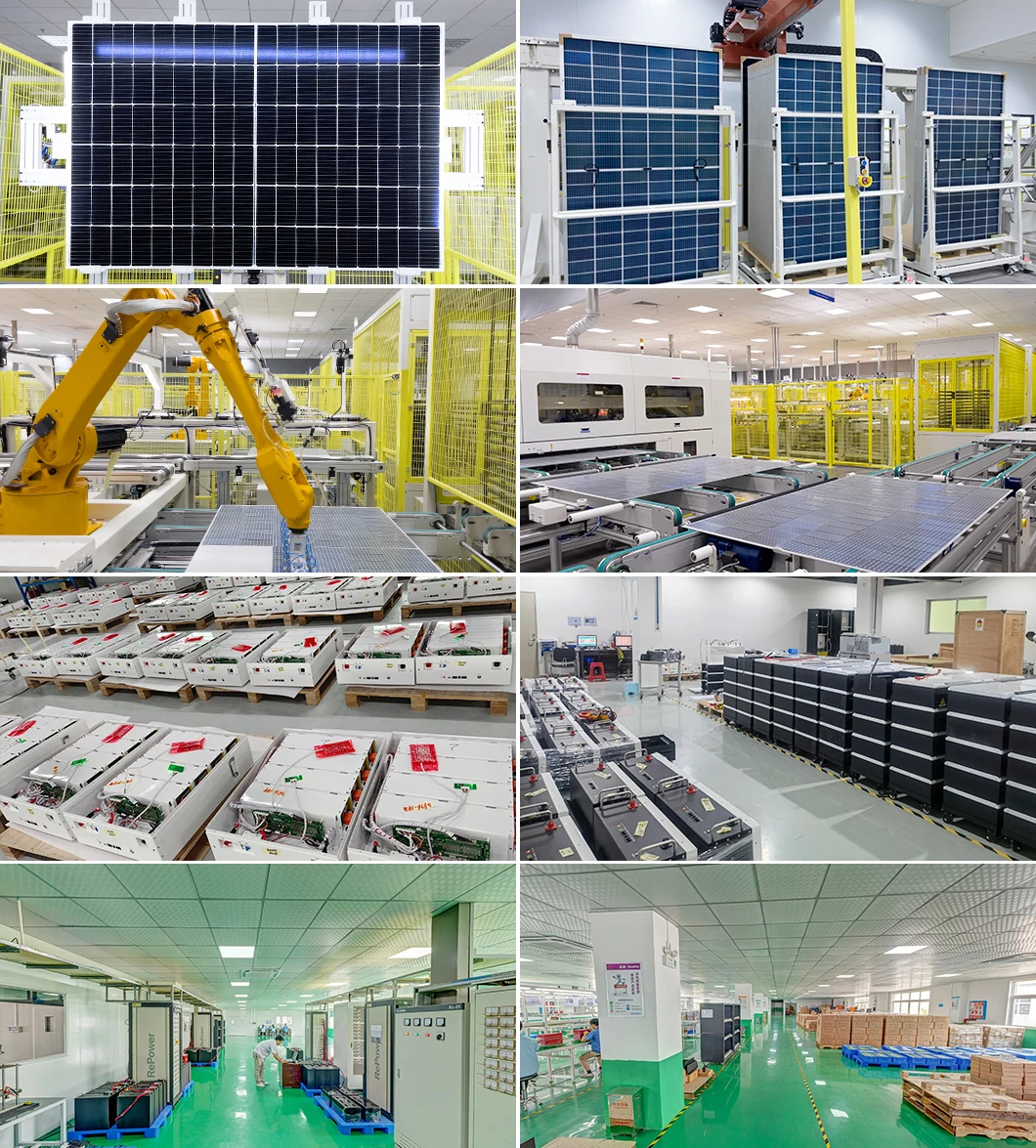

Our Factory

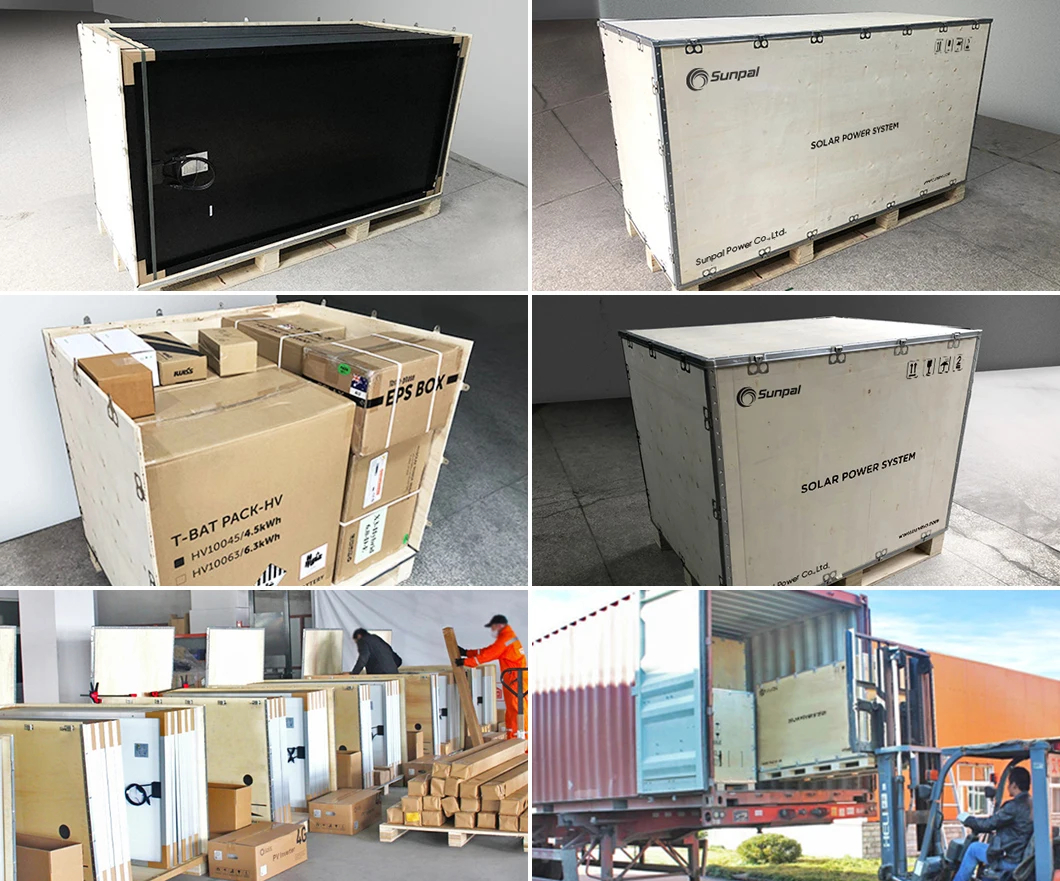

Product Packing

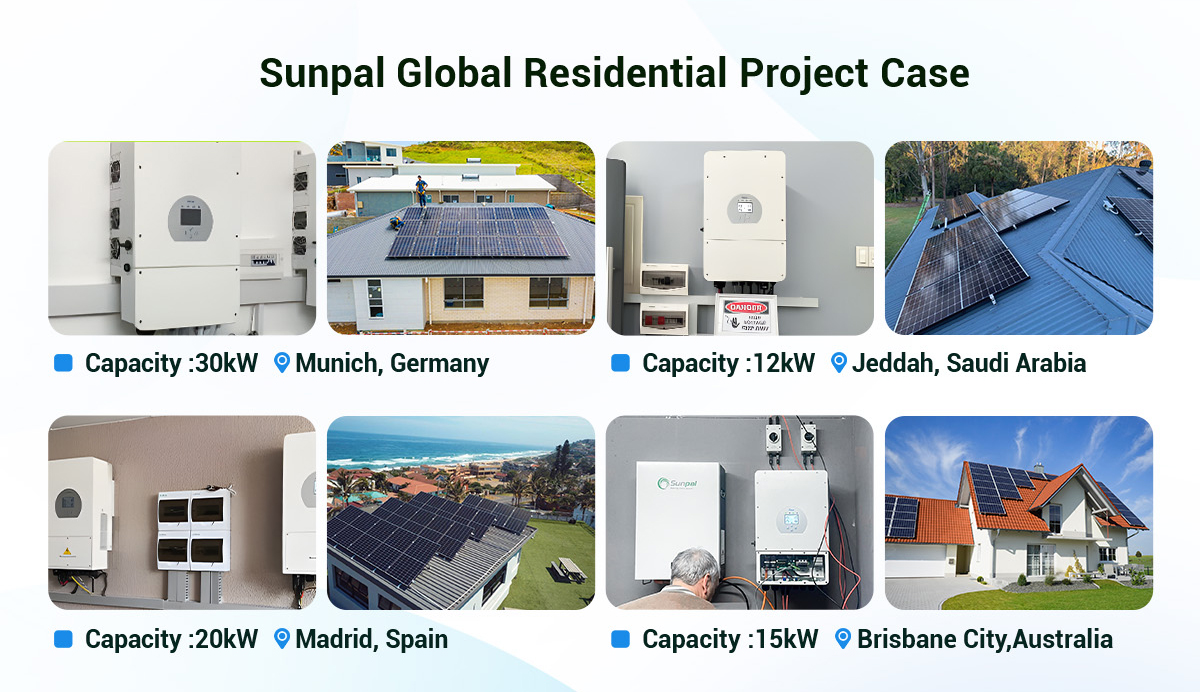

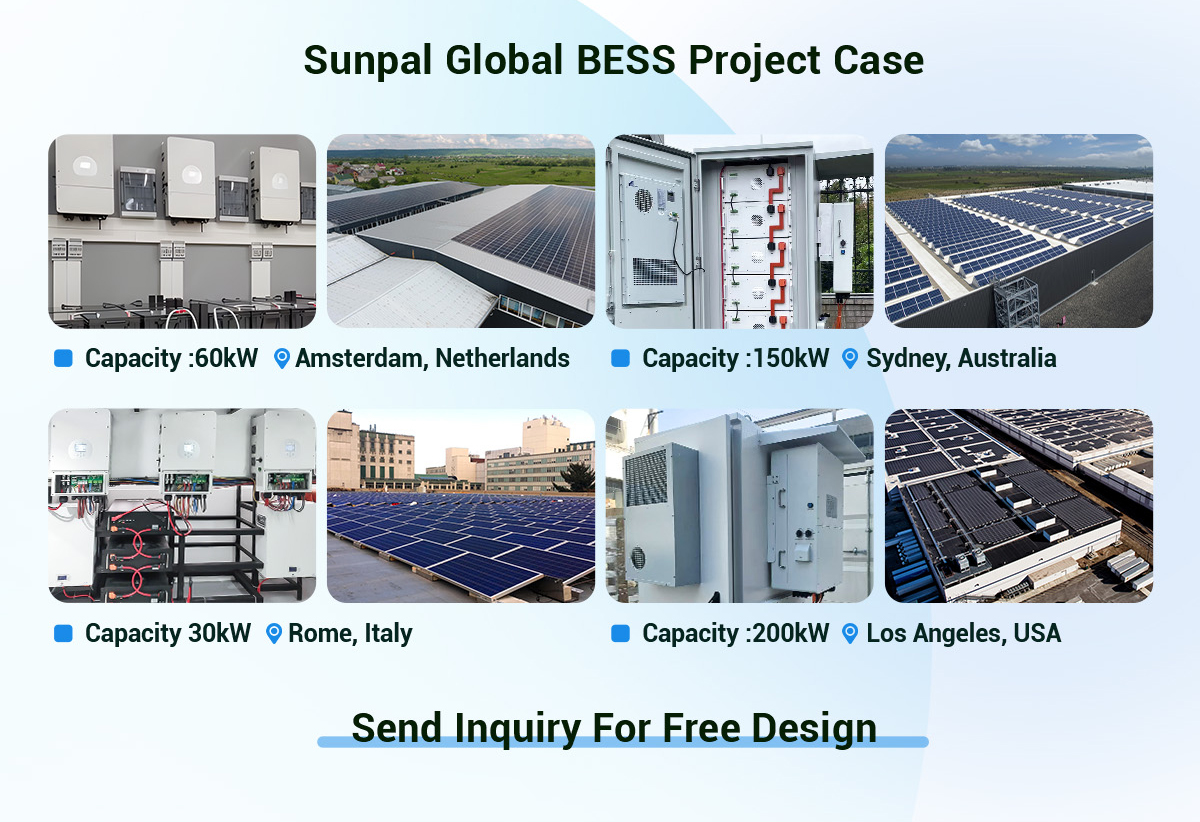

Project Cases

Customer Photo

Our Exhibition

FAQ

Q: What is your minimum order quantity (MOQ)?

A: Our MOQ is 1 set, formal bulk order is based on FCL (20GP/40HQ). Mixed loading of full system products is supported.

Q: What is the lead time for bulk orders?

A: 7-15 days for in-stock bulk orders; 15-30 days for large customized orders (negotiable by volume), with fixed global shipping schedules.

Q: What certifications do the products have, and can you provide relevant documents?

A: All products have full CE/IEC/TUV/UN38.3 certification. We provide a full set of certification, customs and tender documents for free.

Q: Can you provide custom system design for our projects?

A: Yes. Our in-house engineer team provides free custom system design, load calculation, construction drawings and revenue simulation according to your project requirements.

Q: What shipping terms do you support?

A: We support full international trade terms including EXW, FOB, CIF, DDP door-to-door delivery, with a complete global supply chain and logistics system.

Q: How do you handle after-sales and warranty claims?

A: We have a dedicated after-sales team, which will provide a solution within 48 hours. We will fully assist you to complete the warranty claim with the original factory.
