Most Popular Solar System Hybrid Off Grid 10kW 20kW 30kW Power Backup System for Industrial

Product Description

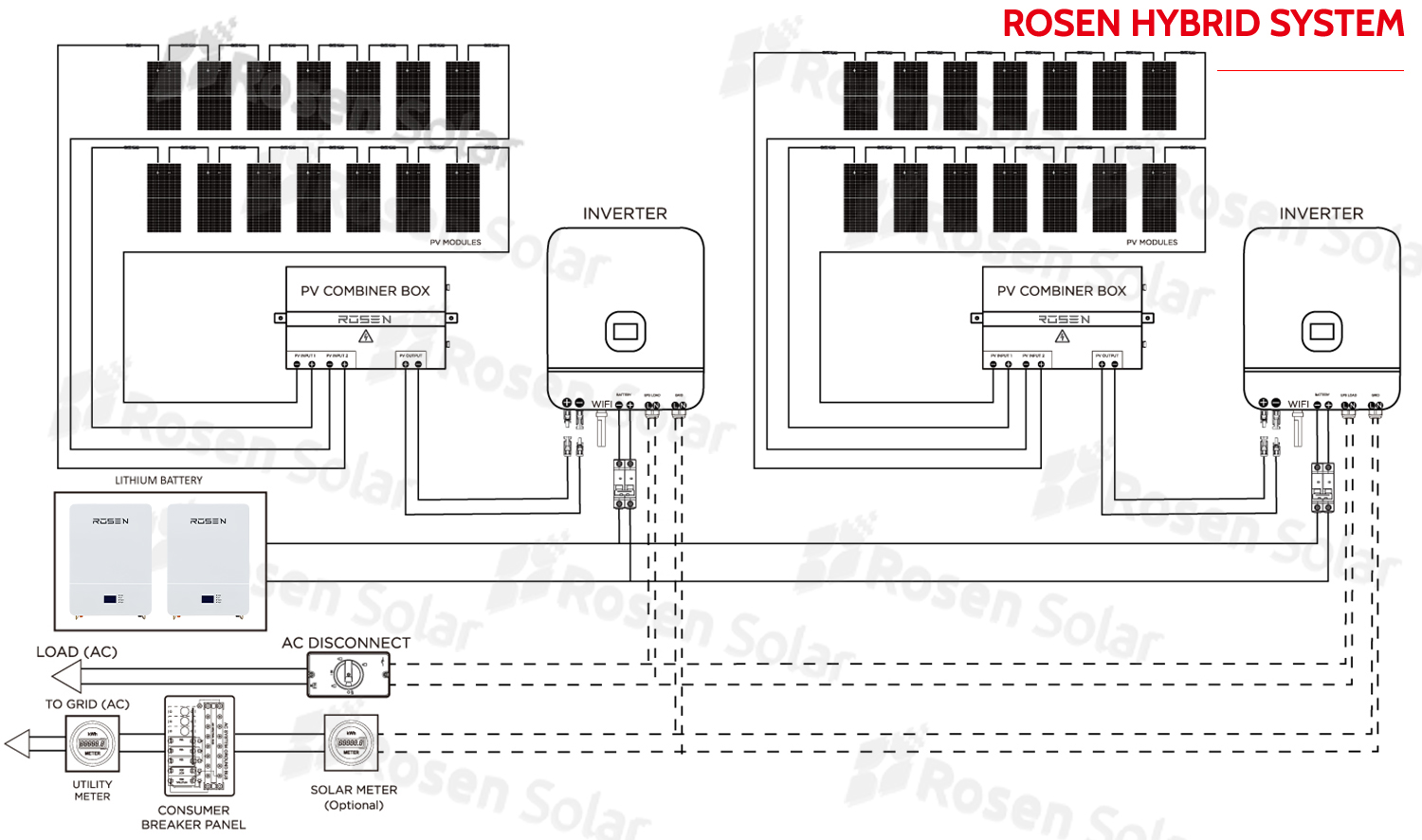

System Configuration

Item	3KW	5KW	10KW
Half Cell Solar Panel	8 pieces	12 pieces	24 pieces
PV Combiner Box	1 input 1output	1 input 1output	2 inputs 2 outputs
Hybrid Inverter (On and Off Grid)	3kw	5kw	10kw
WIFI Module Monitor	1 set	1 set	1 set
Solar Battery	GEL/Lithium Powerwall with BMS	GEL/Lithium Powerwall with BMS	GEL/Lithium Powerwall with BMS
PV Cable	6mm2	6mm2	6mm2
Mounting Bracket	Tile Roof/Ground	Tile Roof/Ground	Tile Roof/Ground
MC4 Connector	8pcs	12pcs	24pcs
Installation Tool Box	1set	1set	1set
Installation Manual	Yes	Yes	Yes

Technical Specification

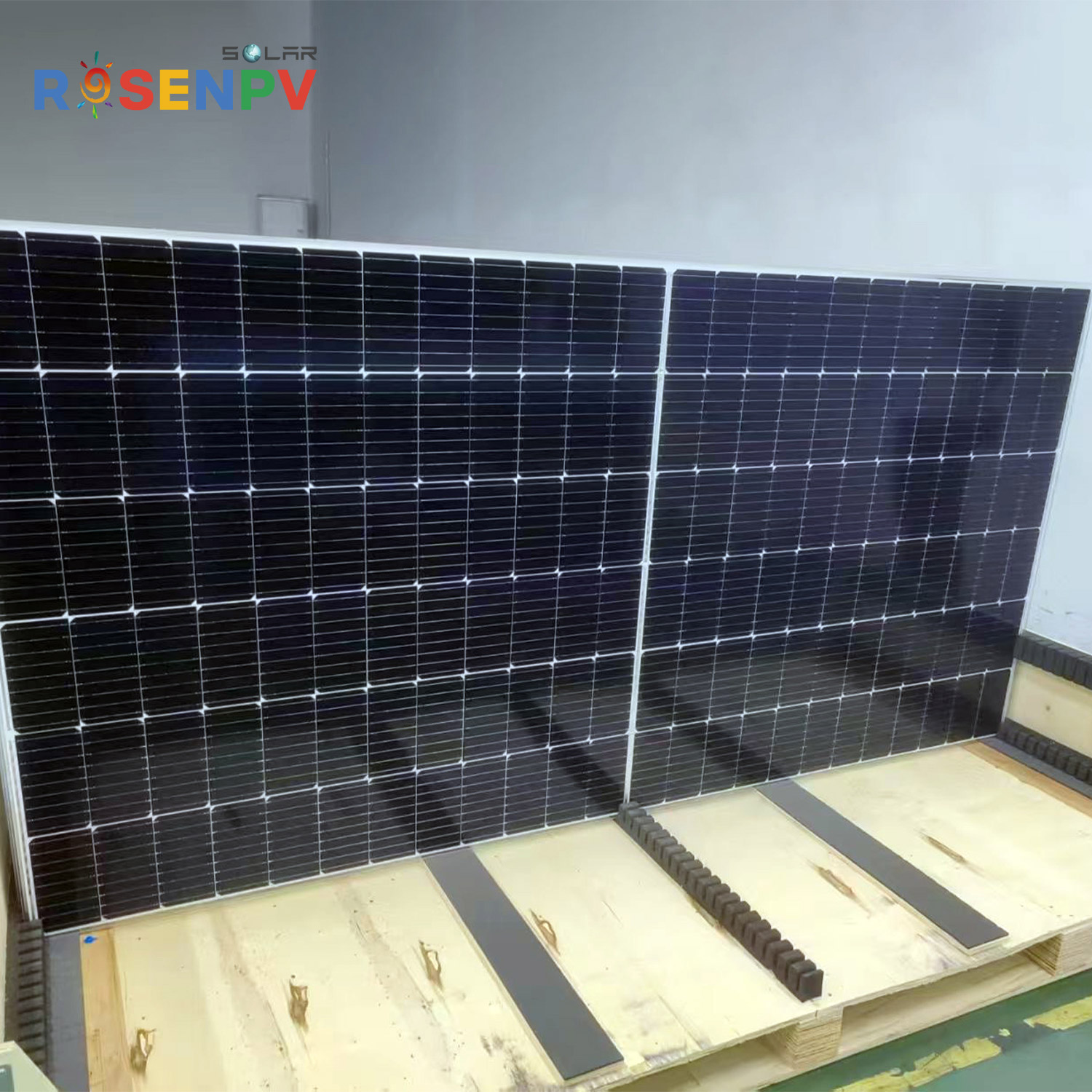

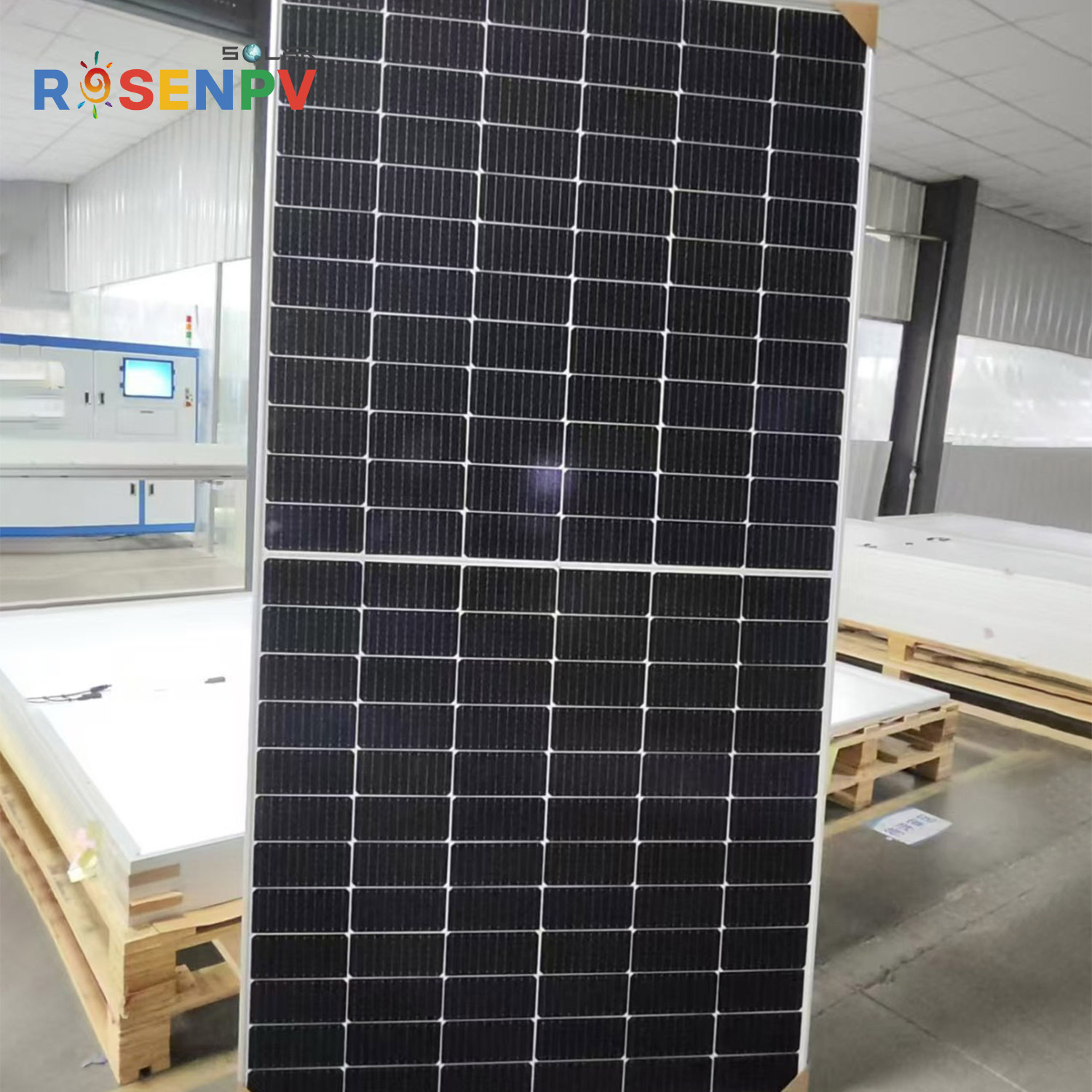

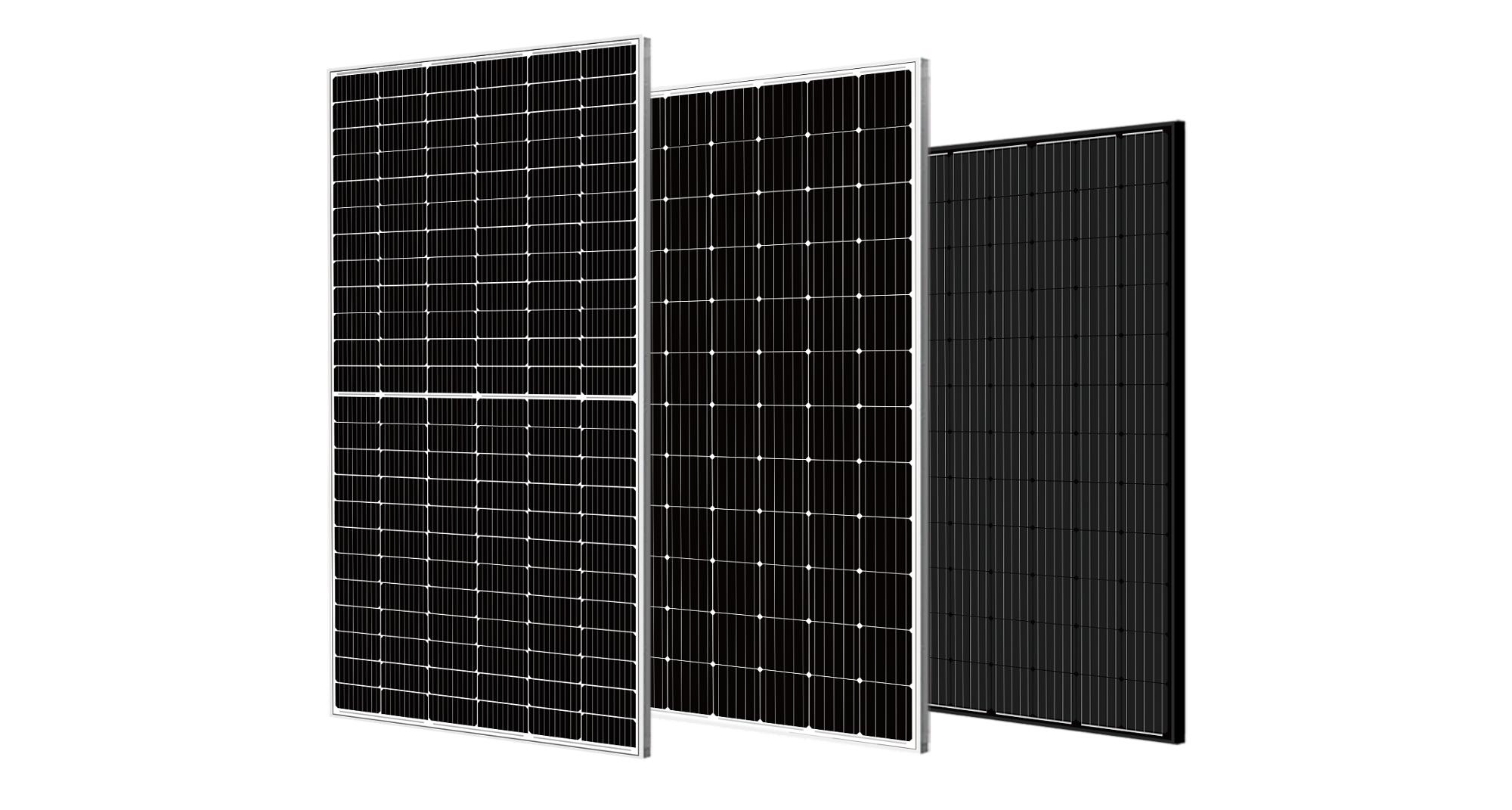

Solar Panels

Optional Mono/Poly Blue/Black Panels
High Efficiency with Half Cell PERC panels available
5BB/6BB/9BB PV cell Mono 158.75mm/166mm/182mm
Anti-PID performance

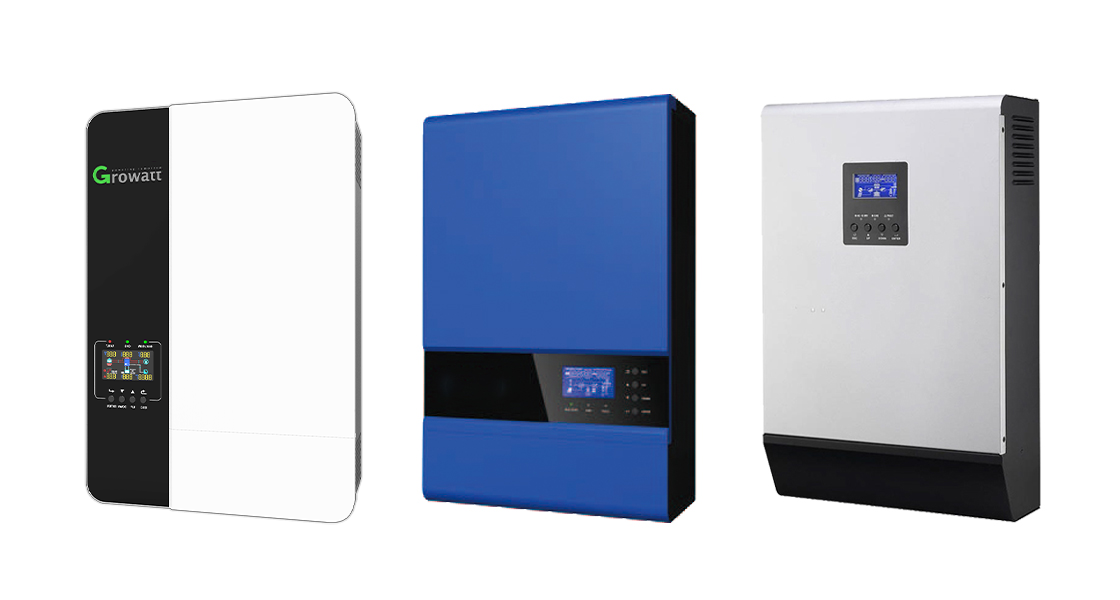

Hybrid Off Grid Inverter

Single Phase/Three Phase AC Voltage support
Intelligent cloud platform monitoring with real-time APP access
Support RS485, GPRS, WIFI and other communication methods

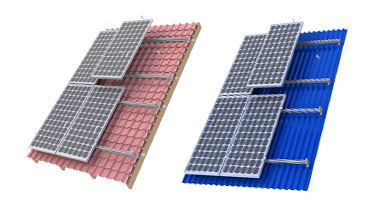

Mounting Brackets

Tile or color steel roof tile/ground installation
Customized design with CAD auto drawing support
Complete set of Rail, Splice, Mid & End clamps, L feet, Hanger Bolt, earth clamp etc.

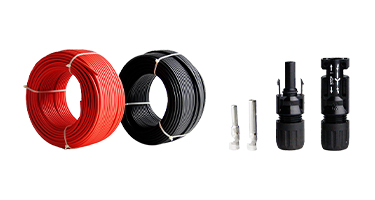

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Colors: Black for STD, Red Optional
Lifetime: Designed to exceed 25 Years

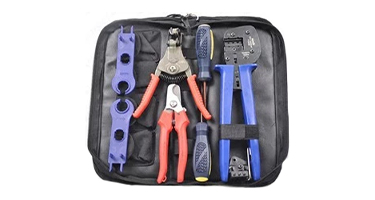

Installation Tool Box

Wire Cable Cutter & Stripper
MC3/MC4 Crimper
MC4 Connectors Assembly & Disassembly Tool

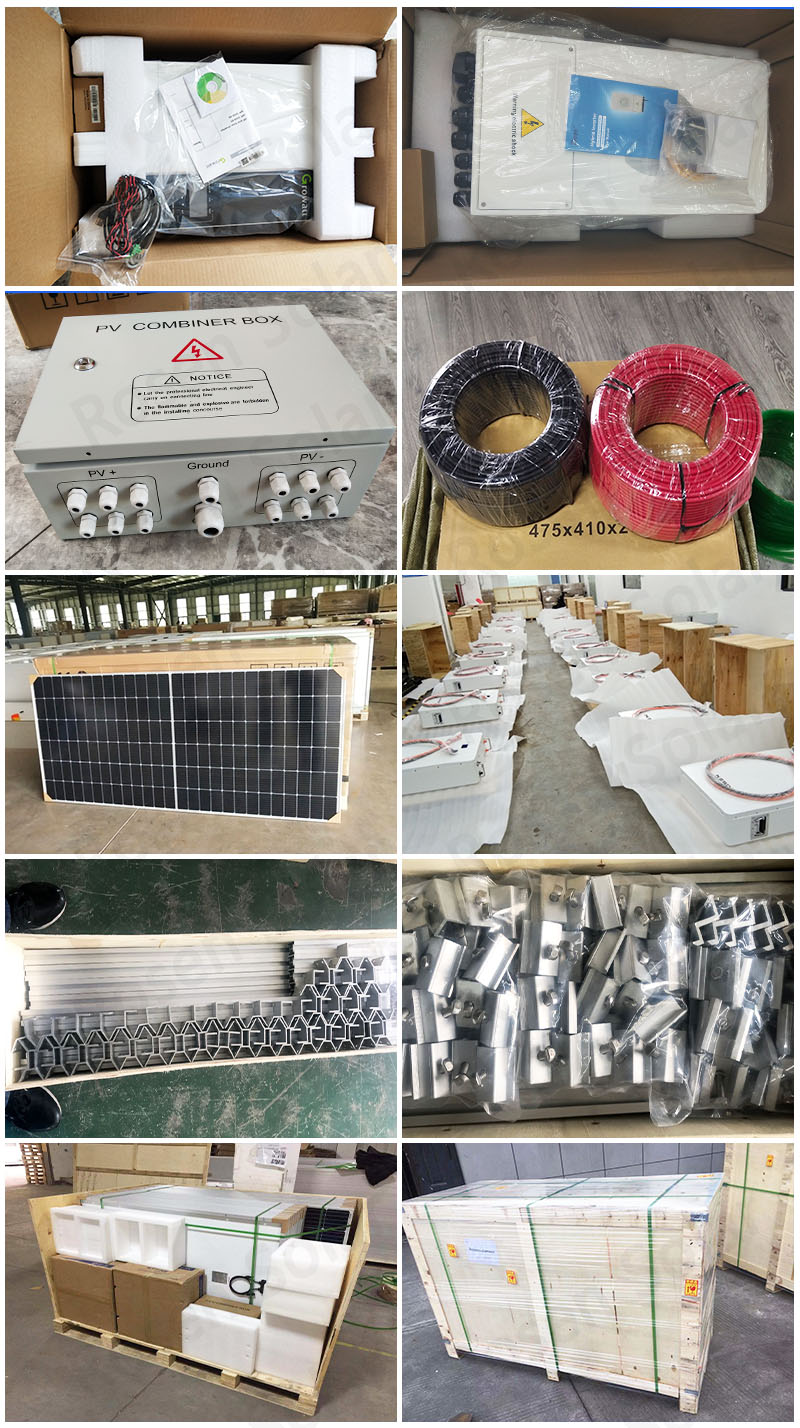

Packing & Delivery

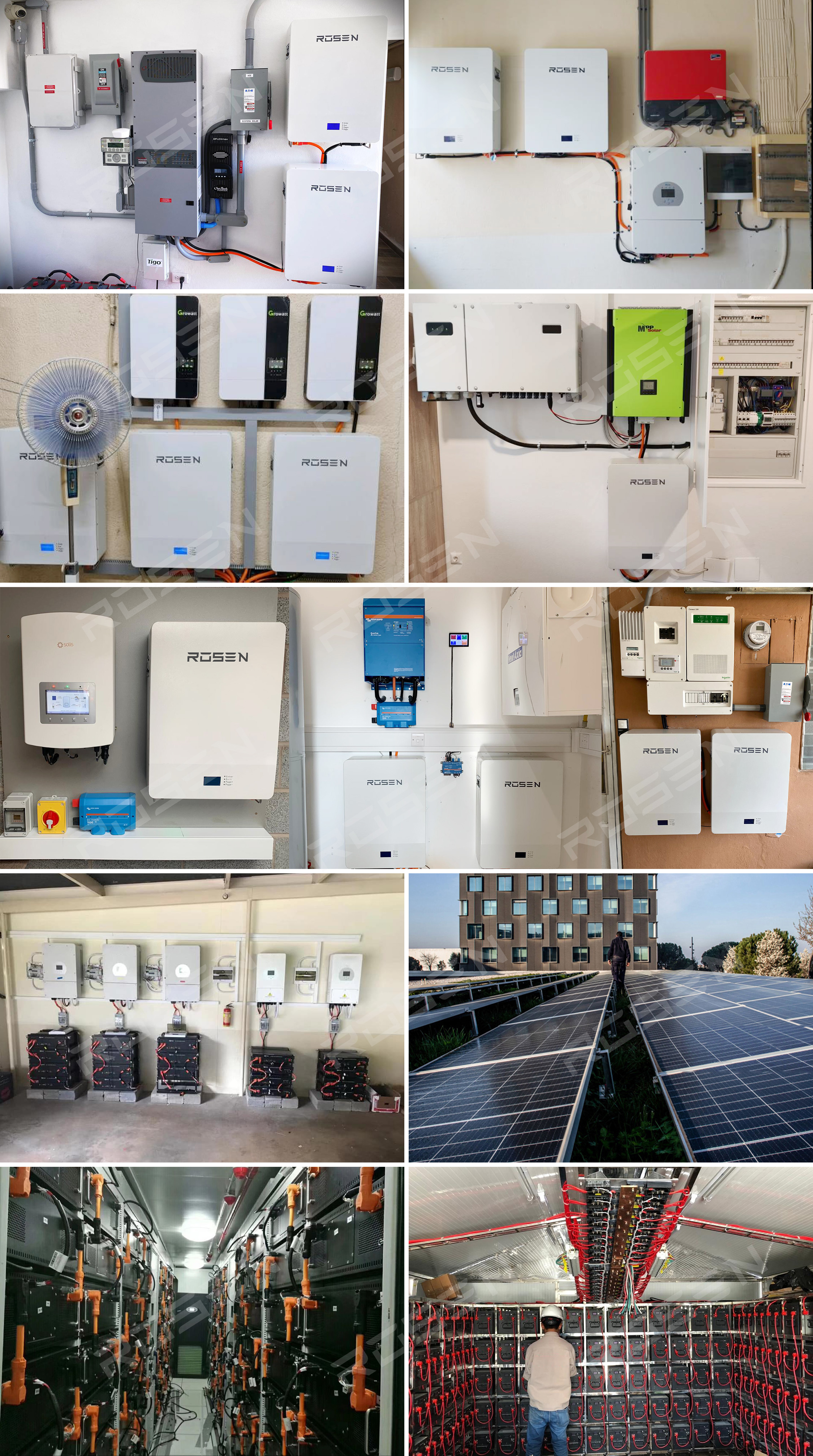

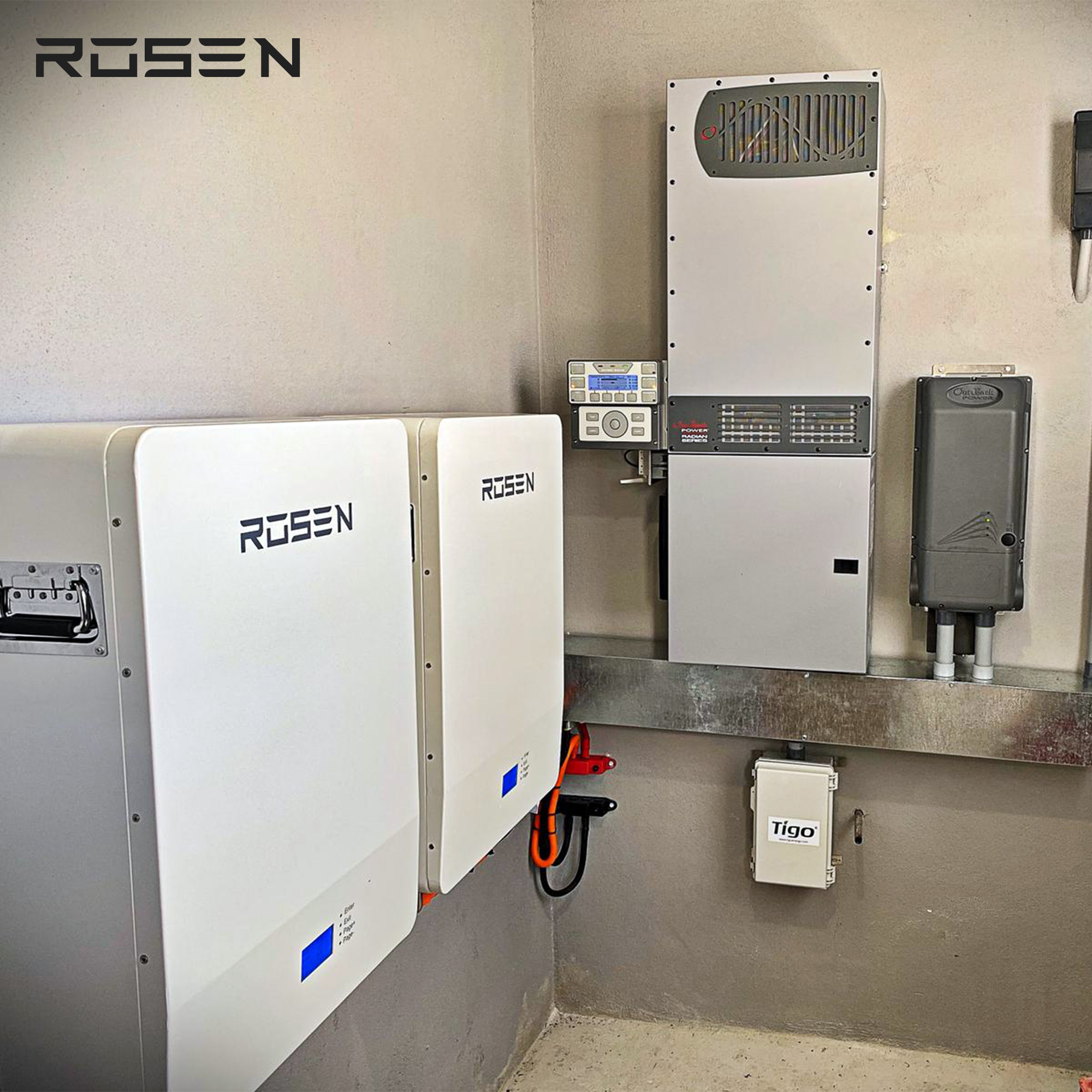

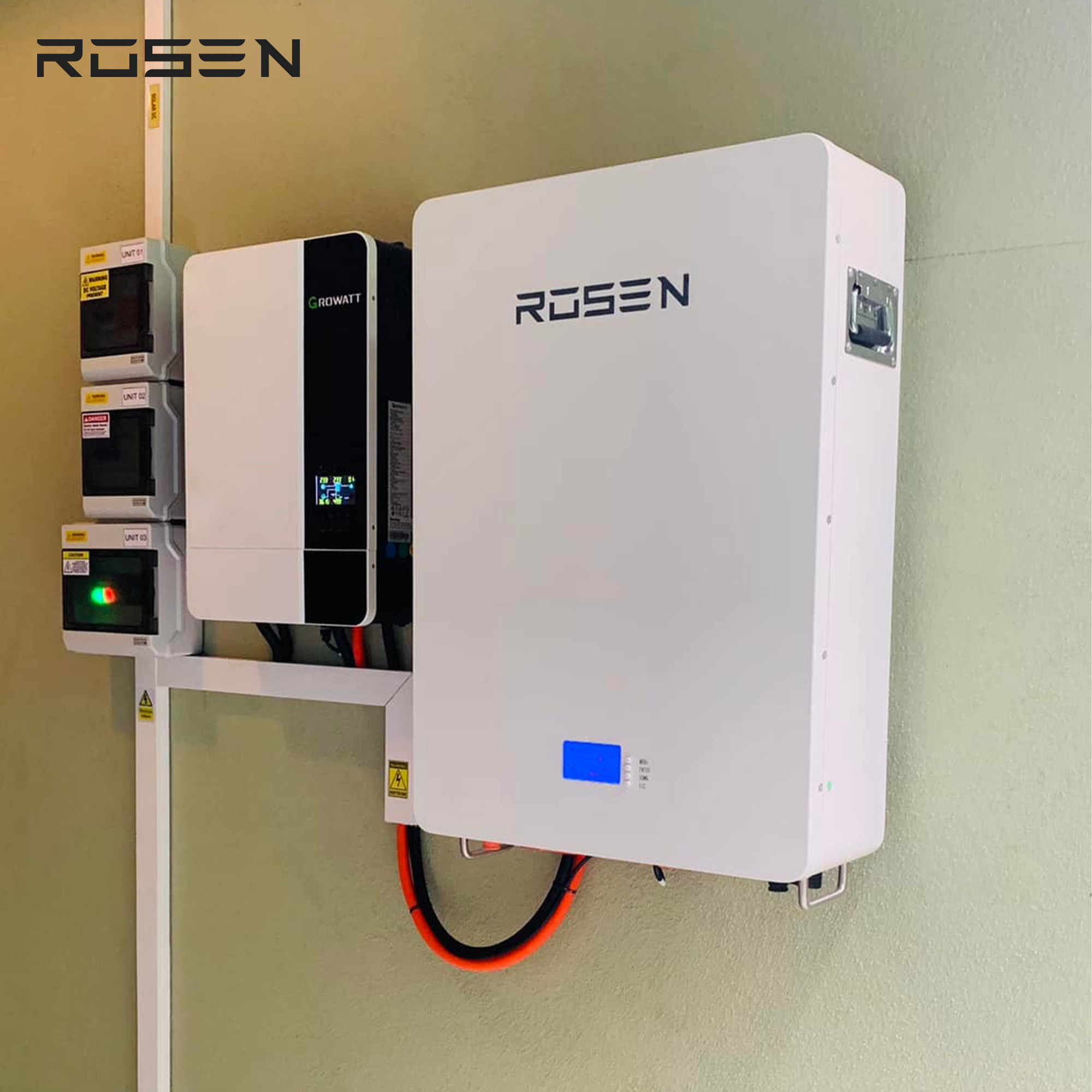

Solar Projects

Frequently Asked Questions

How do I choose the right system size (3KW, 5KW, or 10KW) for my home?

The correct size depends on your daily electricity consumption and the key appliances you want to power. A 3KW system is suitable for small households, a 5KW system satisfies average family home requirements, and a 10KW system is recommended for larger homes with high energy usage or commercial setups.

Does this hybrid system support both on-grid and off-grid operations?

Yes, our hybrid inverter is designed to function both on-grid and off-grid. You can run on solar and battery power independently, but also connect to the utility grid to supply power when battery reserves run low or sell excess energy back to the grid.

What types of batteries can be used with this solar energy system?

This system supports both high-performance GEL batteries and Lithium Powerwall batteries equipped with an integrated Battery Management System (BMS) for enhanced safety, lifespan, and efficiency.

How does the WIFI Module Monitor work?

The WIFI Module Monitor connects directly to your hybrid inverter. It links with your local internet connection, enabling you to track real-time power generation, system health, and battery capacity via a mobile app or online cloud platform.

Is the solar mounting system customizable for different roof structures?

Yes, our mounting brackets can be fully configured for various installations, including flat or pitched tile roofs, color steel roofs, and ground mounting. Custom designs are supported with CAD auto drawings.

What tools are included in the installation toolkit?

The installation toolkit comes with high-quality tools essential for setup, including a wire cable cutter and stripper, MC3/MC4 crimping tools, and assembly/disassembly wrenches for MC4 connectors.
