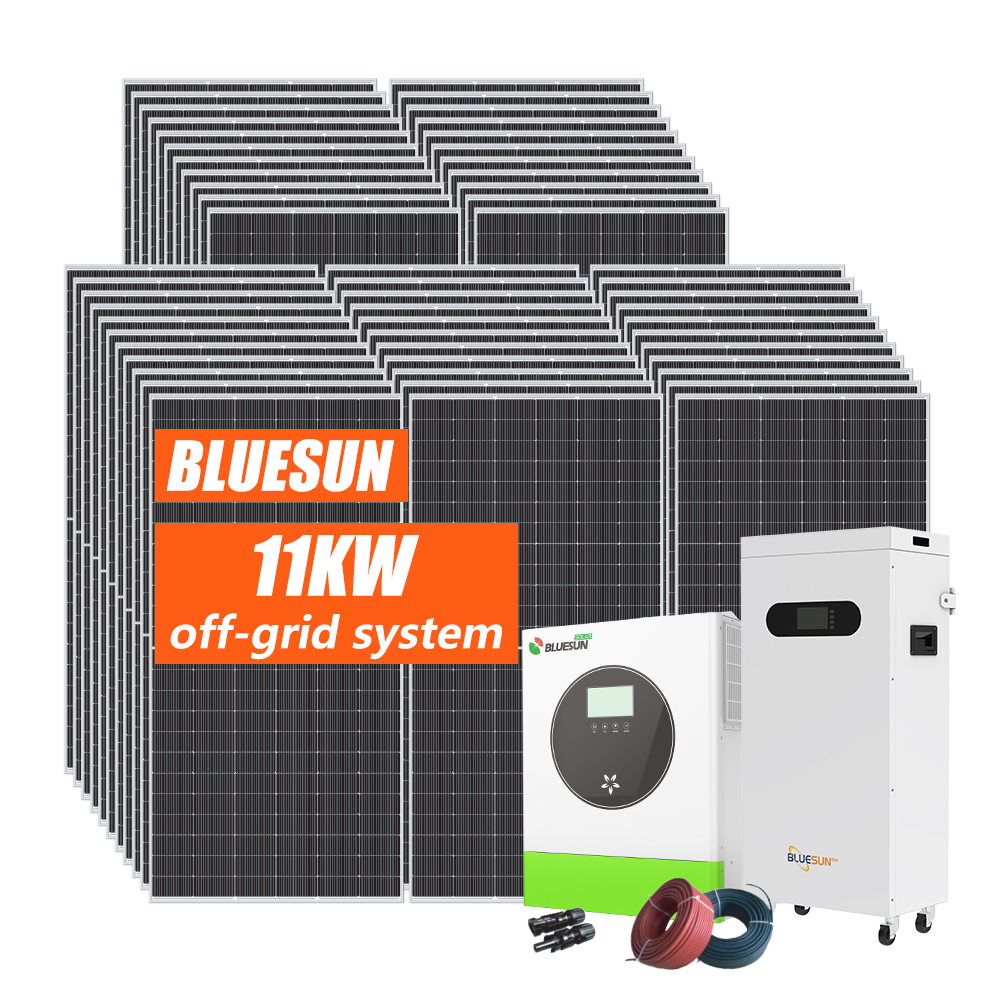

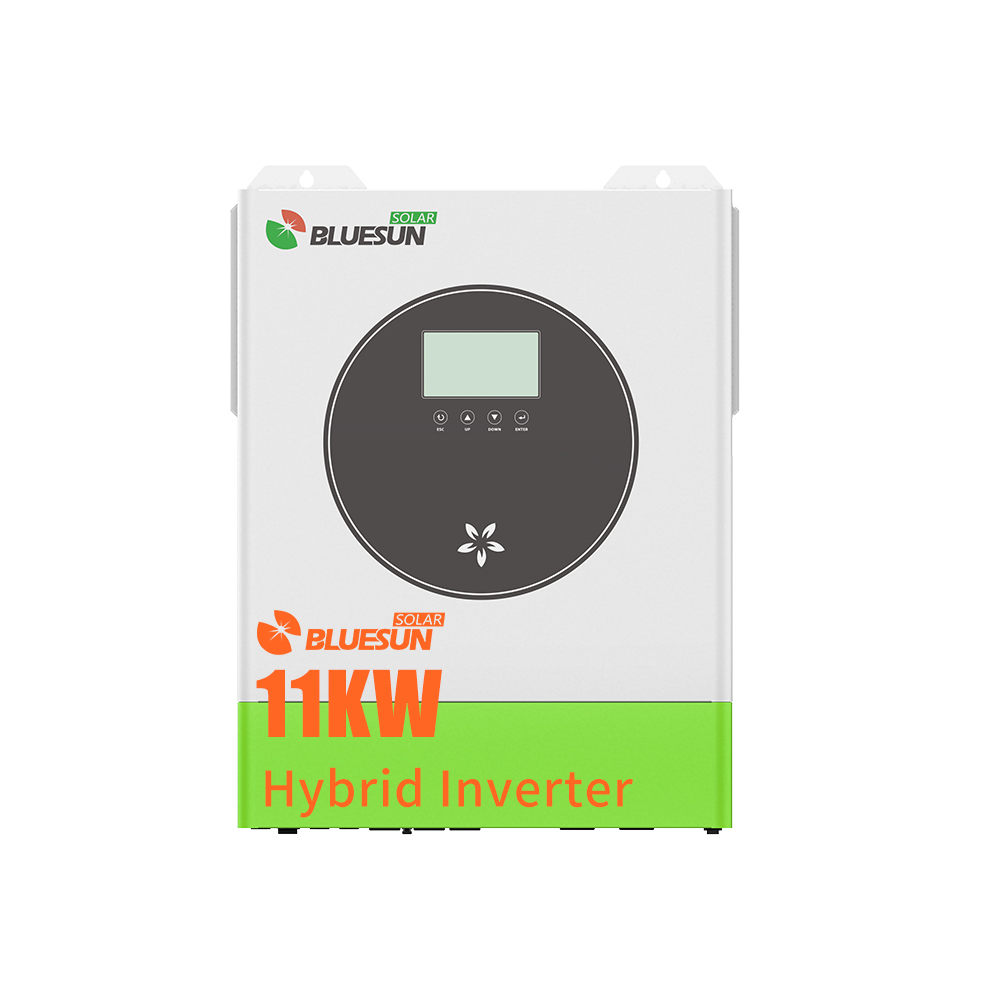

11kw off Grid Solar Inverter MPPT Controller Low Voltage Hybrid Solar Inverter Pure Sine Wave for Solar PV System

Send Inquiry

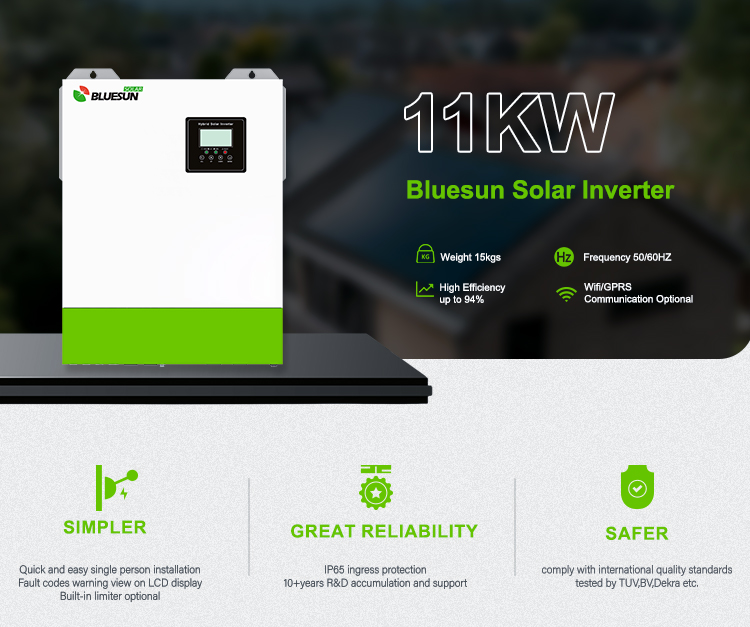

Product Description

Products Description

Inverter Parameter
Model	BSM-11000LV-48
Rated power	11KW
Frequency	50/60Hz
Nominal Voltage	220/230VAC
Peak Efficiency(PV to INV)	>94%
Max.PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60-500VDC
Max Solar Input Current	18A*2
Max.Charge Current	160A
Dimensions, DxWxH(mm)	540415122
Weight (Kgs)	15

Global Exhibitions

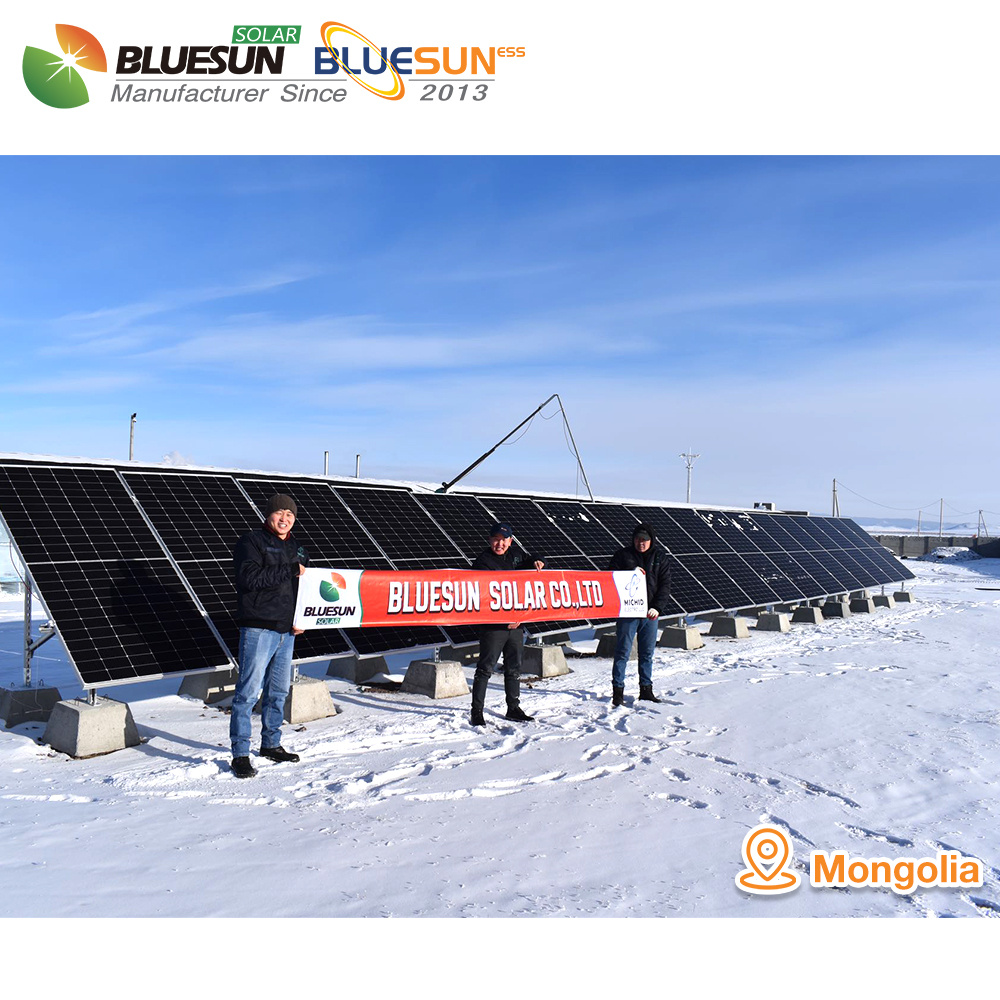

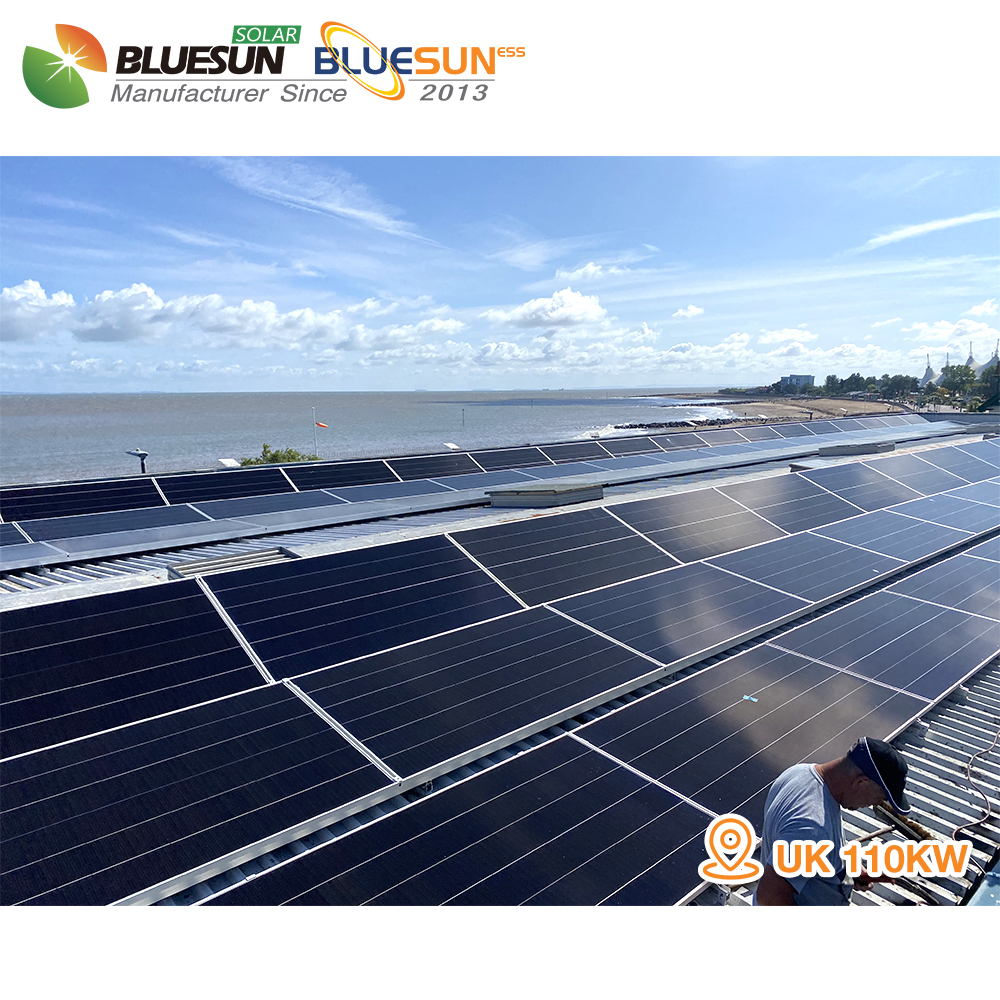

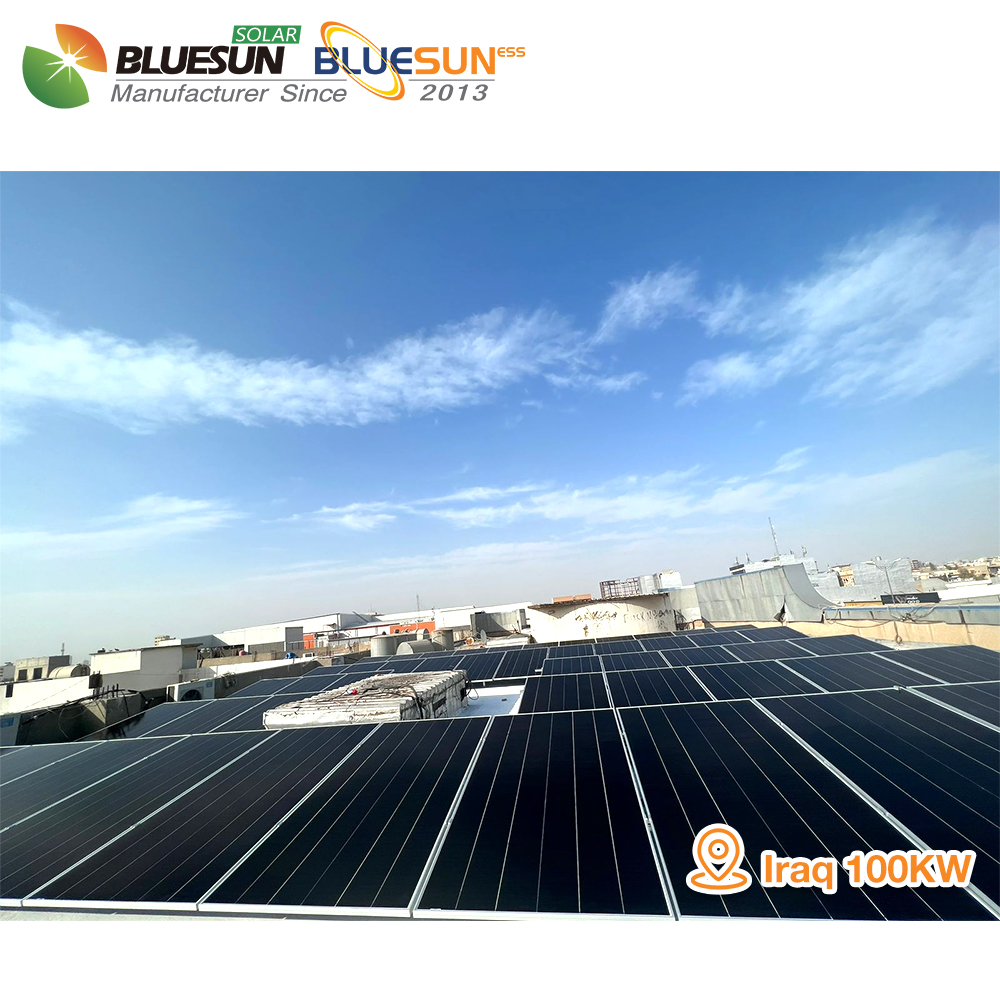

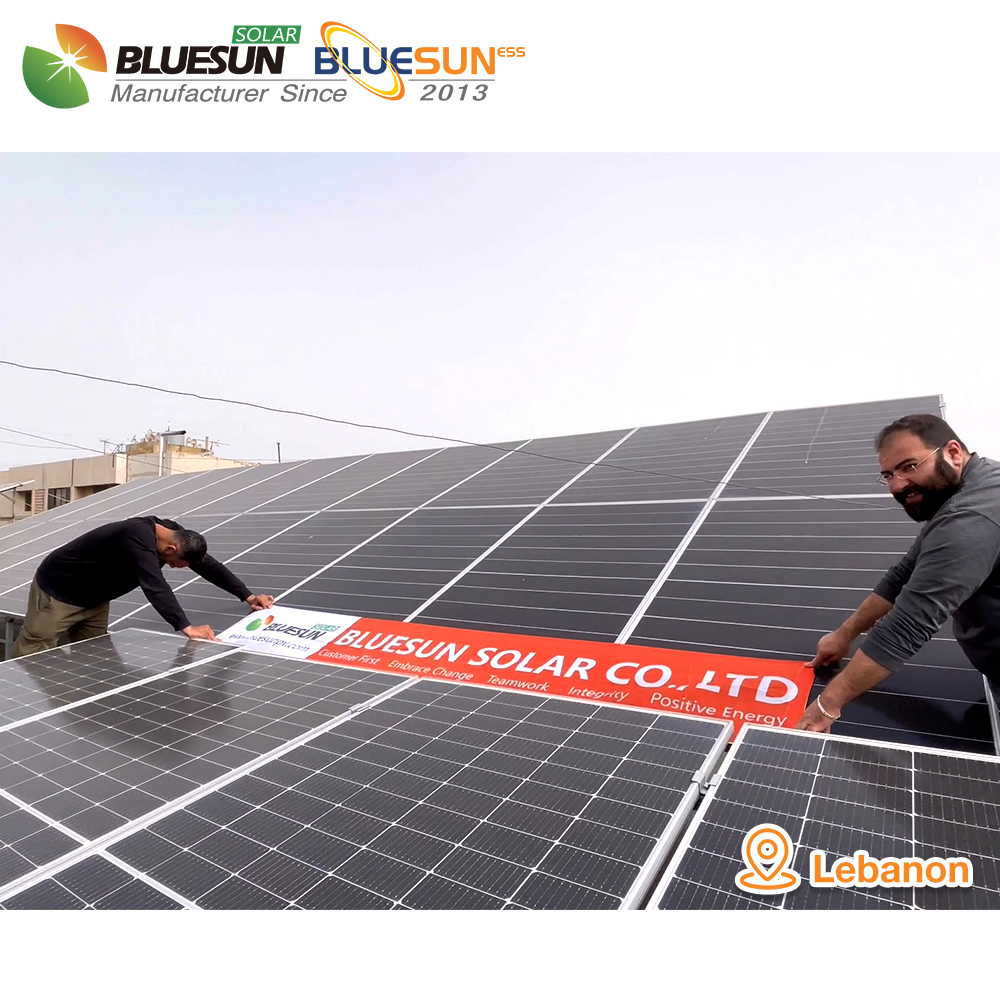

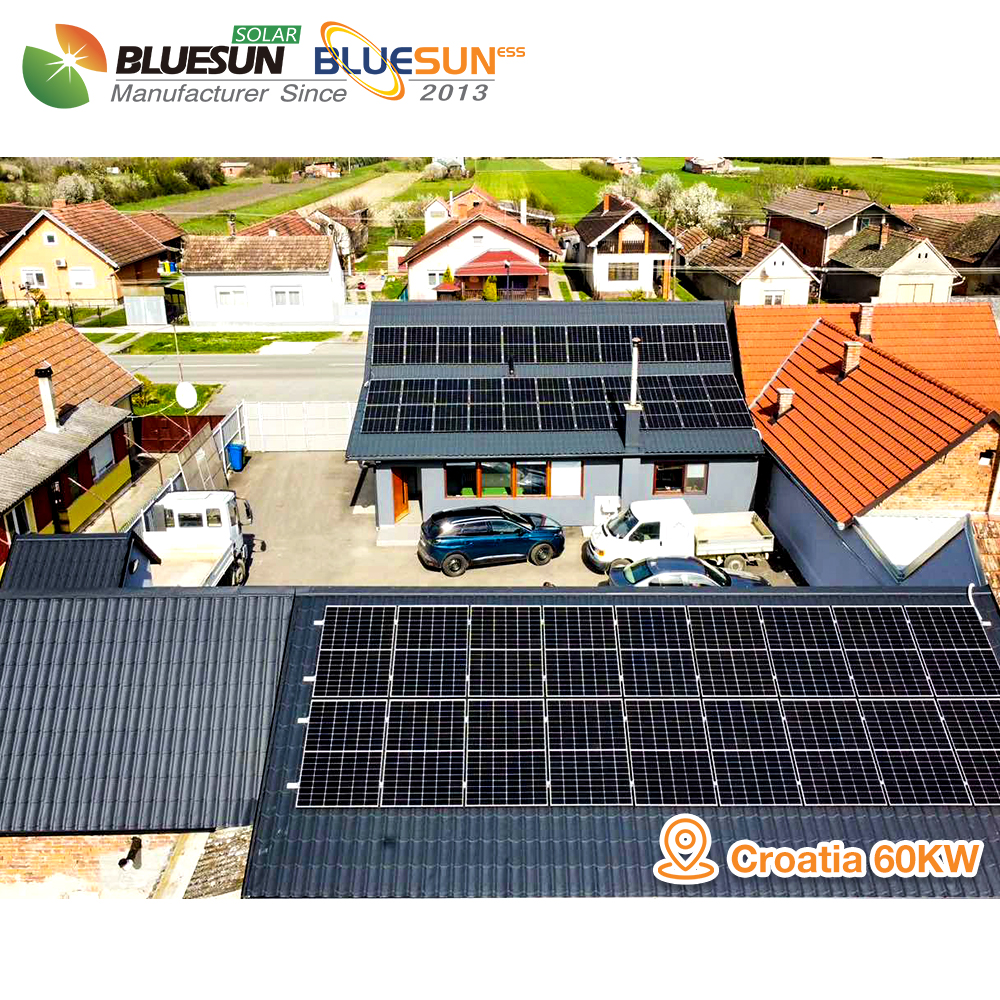

Project & Technical Service Team

Frequently Asked Questions

Q1: What is the rated power output of the BSM-11000LV-48 inverter?

A1: The inverter features a high-performance rated power of 11KW, suitable for robust residential and commercial solar applications.

Q2: What is the MPPT voltage range and the maximum open-circuit voltage?

A2: The PV array MPPT voltage ranges from 60VDC to 500VDC, with a maximum PV array open circuit voltage limit of 500VDC.

Q3: How efficient is the energy conversion process of this inverter?

A3: The inverter achieves a peak efficiency of over 94% during PV to INV (Photovoltaic to Inverter) power conversion.

Q4: Does the inverter support both 50Hz and 60Hz grid frequencies?

A4: Yes, it is fully compatible with both 50Hz and 60Hz frequencies, operating dynamically within 220/230VAC nominal voltage ranges.

Q5: What is the maximum charge current supported by the unit?

A5: It supports a maximum charge current of up to 160A, facilitating rapid battery charging and optimization.

Q6: What are the physical dimensions and net weight of this system?

A6: The inverter has dimensions of 540*415*122 mm and has a net weight of approximately 15 kilograms.
