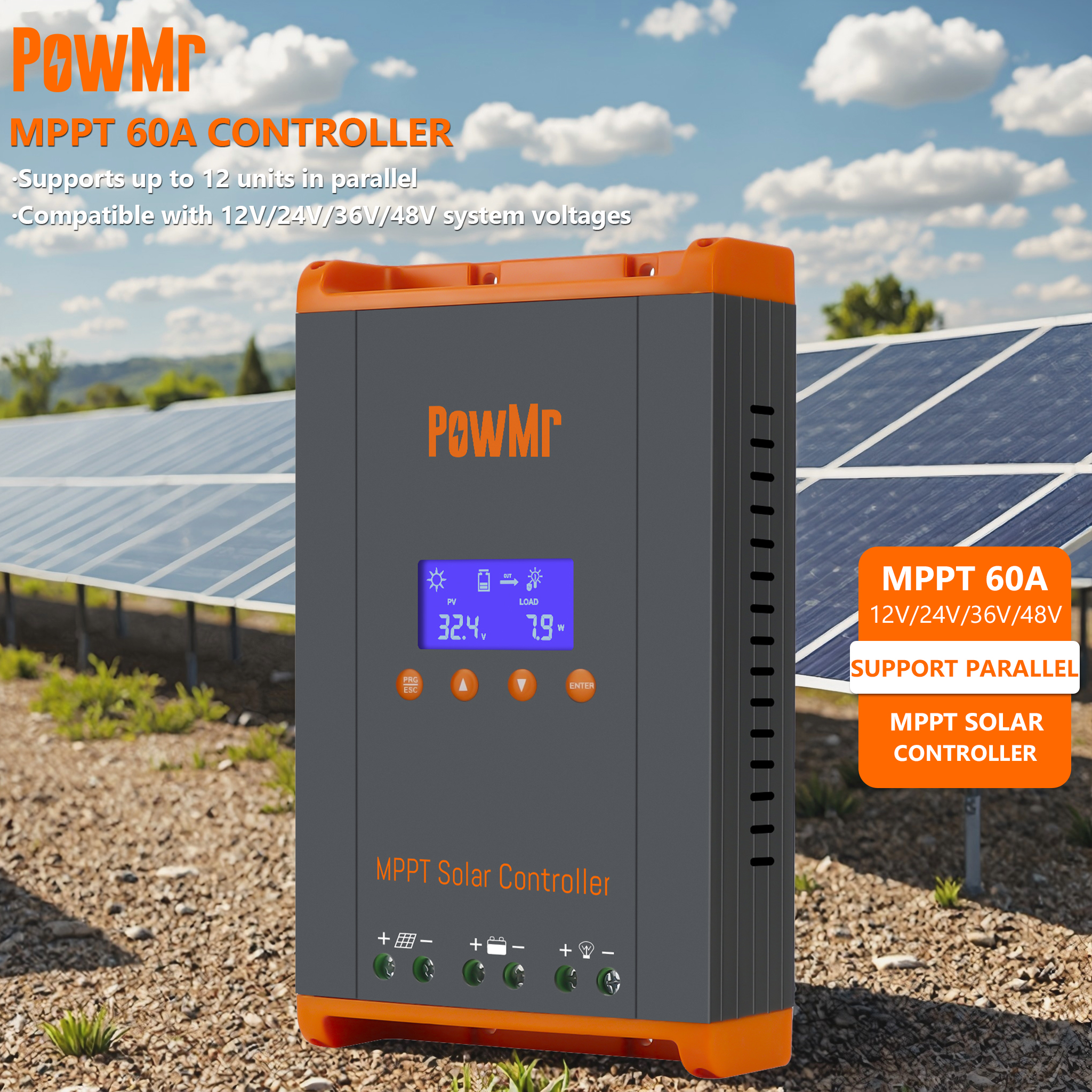

PowMr New 60A Solar PV Panel Battery Charger Controller 12V/24V/36V/48V Support Parallel MPPT Solar Charge Controller

1 / 5

PowMr New 60A Solar PV Panel Battery Charger Controller 12V/24V/36V/48V Support Parallel MPPT Solar Charge Controller

Send Inquiry

Product Description

Products Description

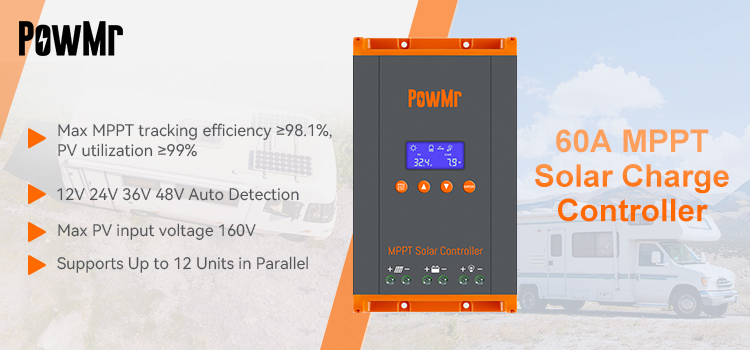

High-Efficiency Charging

Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 98%, reducing power consumption, minimizing heat generation, and lowering operating temperatures. MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.

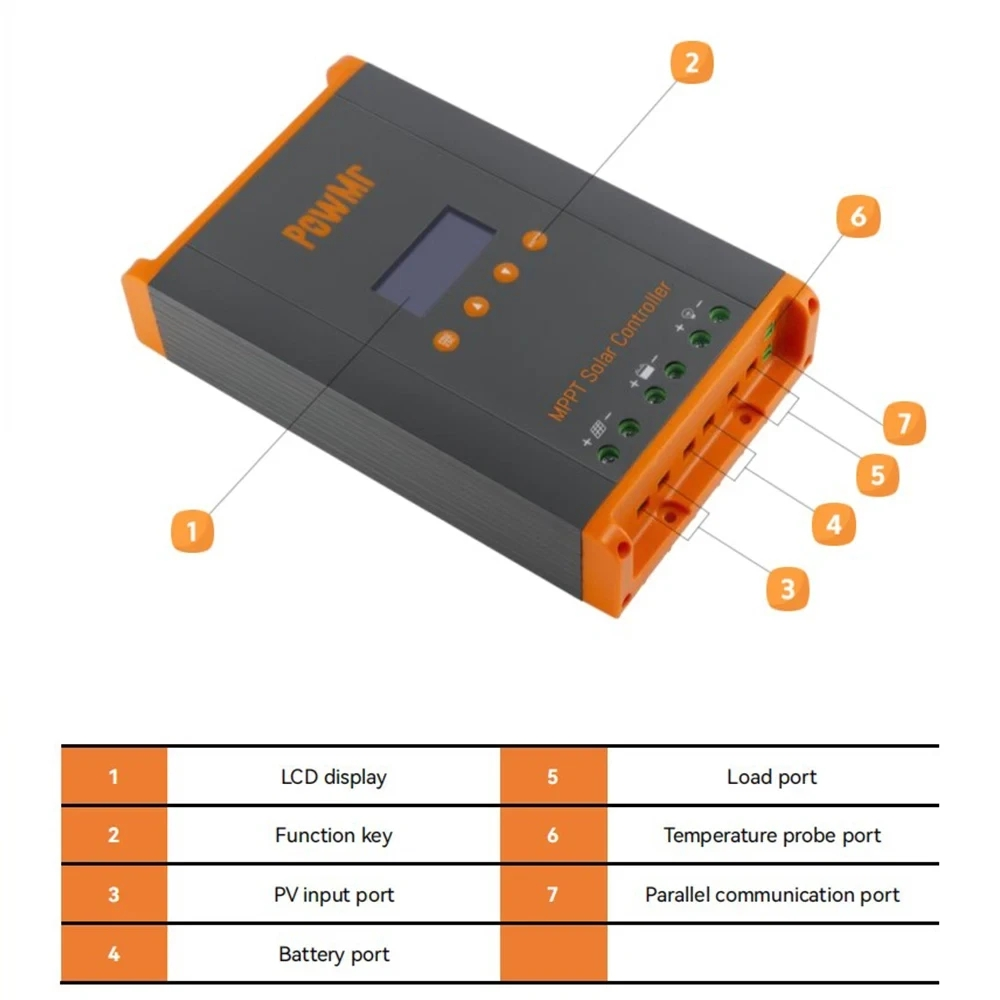

Full System Protection

Features a backlight LCD displaying PV voltage, output power, battery voltage, charging current, working mode, and temperature. Includes a troubleshooting function to monitor system data, identify faults, and adjust parameters for optimal performance.

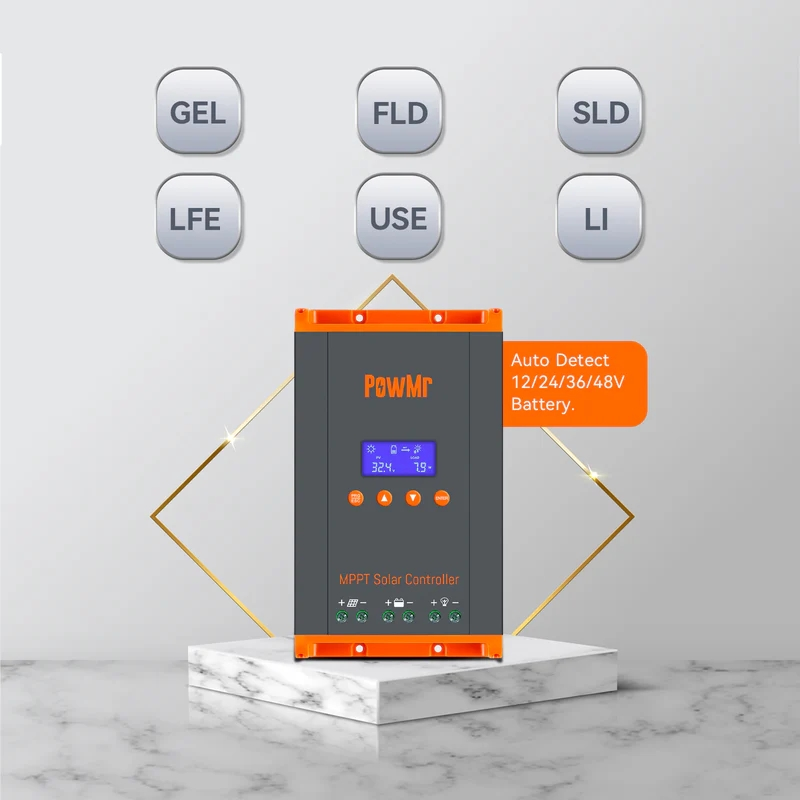

Versatile Application

The built-in DSP controller, coupled with high-performance capabilities, automatically detects 12V, 24V, 36V, and 48V solar battery voltages. It offers compatibility with a wide range of Deep Cycle battery options, including Lithium, LiFePO4, Li(NiCoMn)O2, Flooded, Sealed, Gel, and User-Defined batteries.

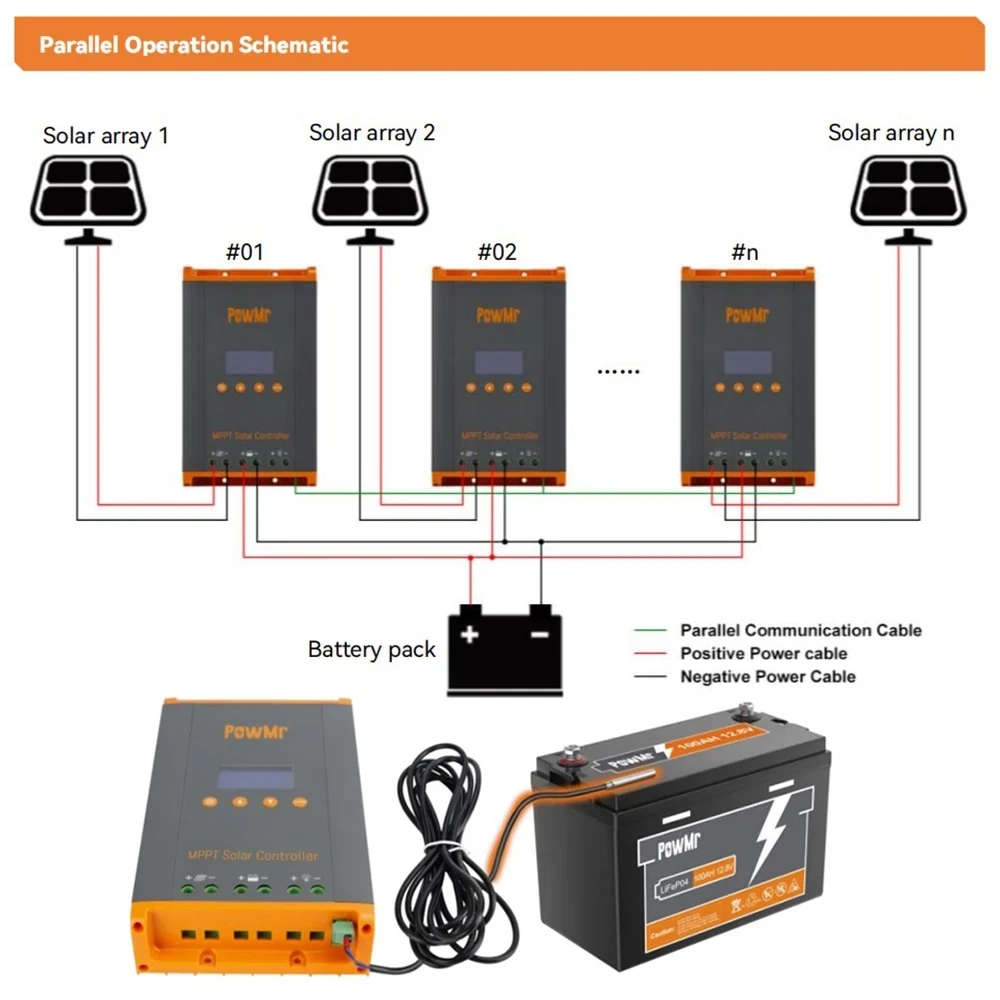

Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage.

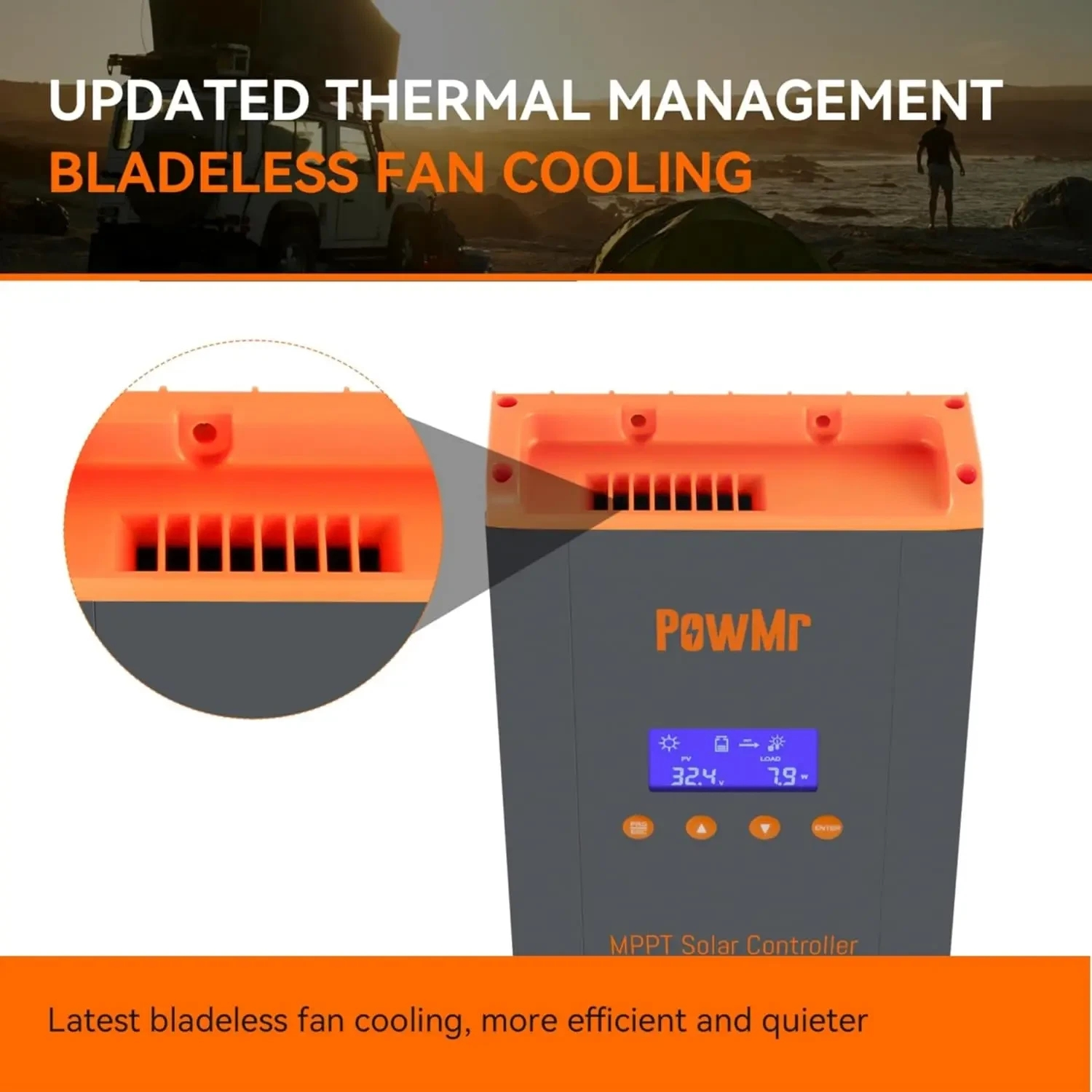

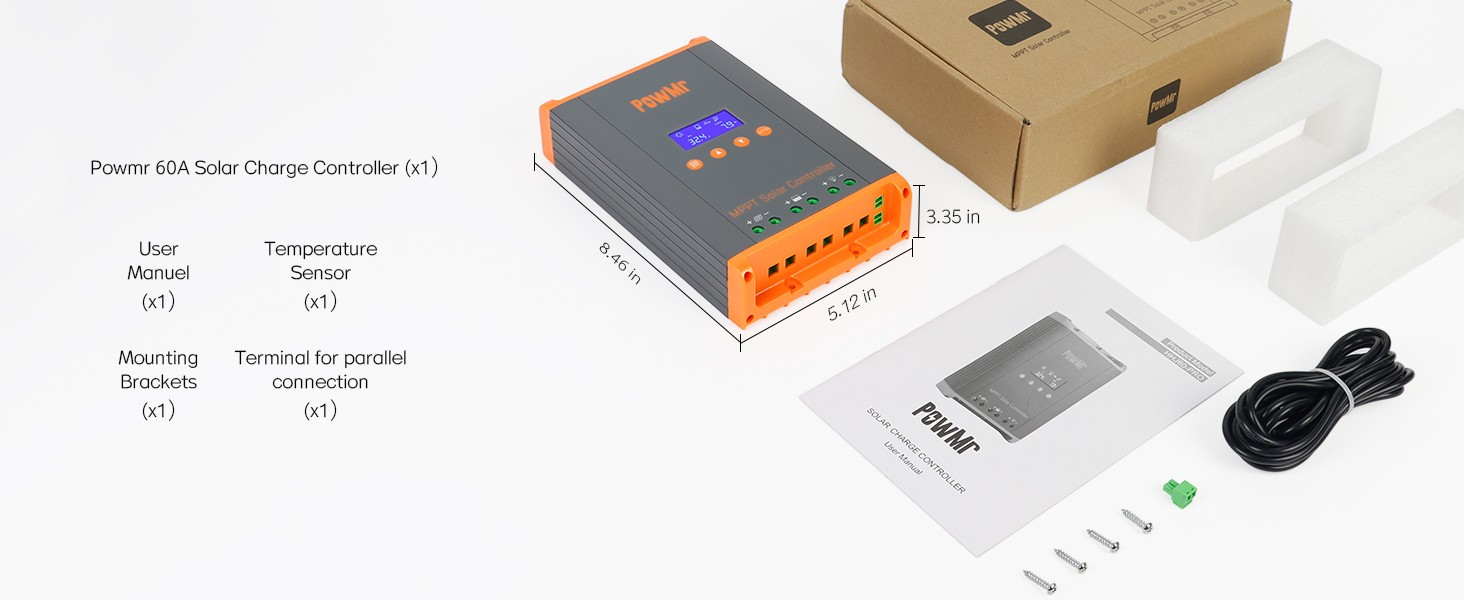

Updated Bladeless Fan & Plug-and-Play Temperature Sensor

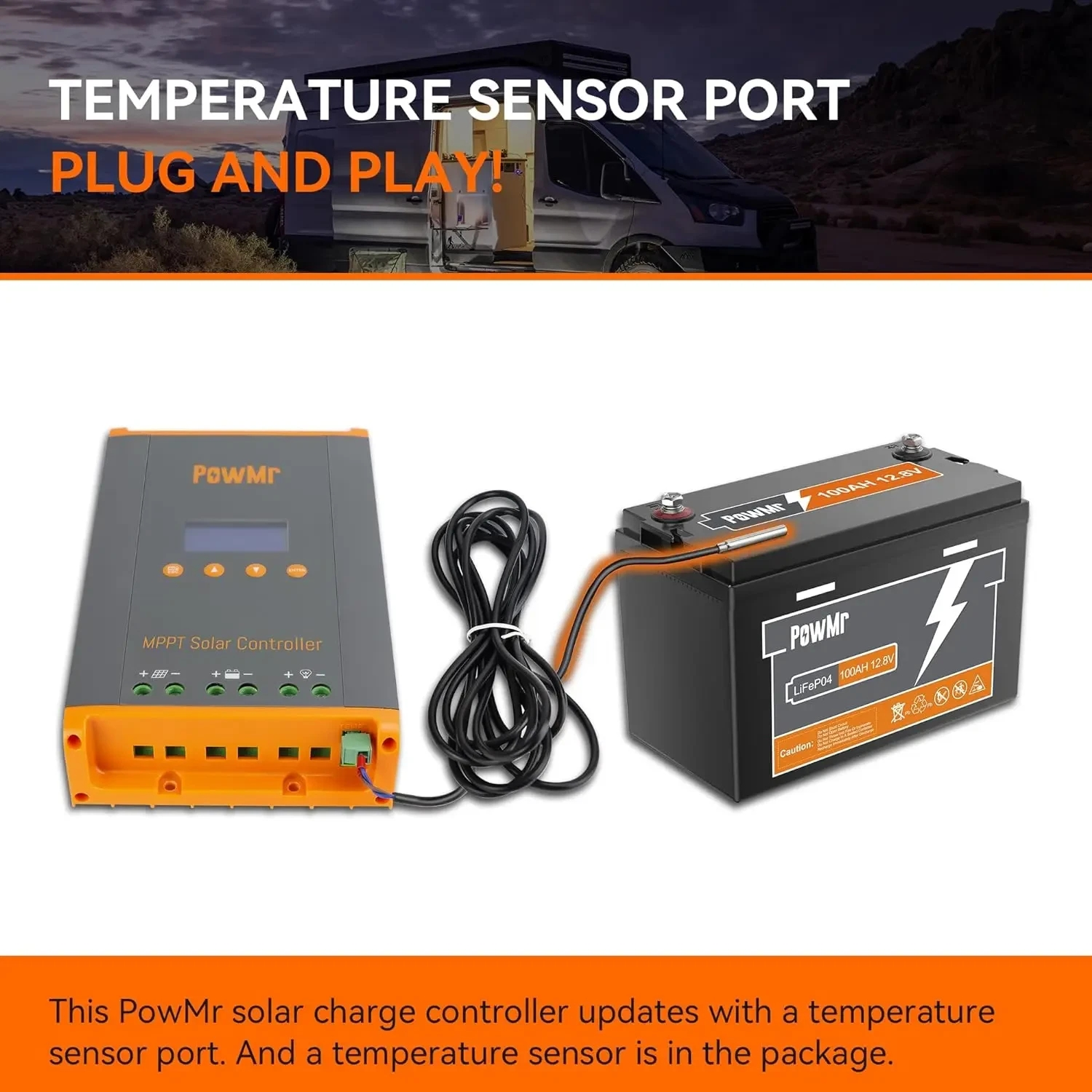

The upgraded bladeless fan system activates at >45℃ and turns off at <40℃, offering quieter and more efficient heat dissipation. Additionally, the controller features a plug-and-play temperature sensor port, with a sensor included for effortless installation and optimal performance.

Features

✔

Integrated Charging Presets

Integrated charging modes include adaptive charging logic, suitable for most battery types such as flooded lead-acid batteries, gel-sealed lead-acid batteries, and lithium batteries.
✔

Versatile Application

Compatible with 12V/24V/36V/48V system voltages.
✔

Multi-Stage Charging Algorithm

The multi-stage charging algorithm is designed to optimize each charging cycle. After the batteries are fully charged, it maintains battery capacity by applying preset charging parameters in specific charging stages.
✔

Maximum Power Point Tracking (MPPT) Technology

MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.
✔

High-Efficiency Charging

Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 97%, reducing power consumption, minimizing heat generation, and lowering operating temperatures.
✔

Supports Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage.
✔

Durable and Secure

Provides dynamic system safeguards:
a. Photovoltaic input overcurrent
b. Photovoltaic array short circuit
c. Reversed photovoltaic polarity

Product Parameter

Model	HHJ60-PRO
Solar Input Parameters
Maximum Input Power (12V)	720W
Maximum Input Power (24V)	1440W
Maximum Input Power (36V)	2100W
Maximum Input Power (48V)	2800W
Input Voltage Range (12V)	20V~80V
Input Voltage Range (24V)	37V~105V
Input Voltage Range (36V)	50V~160V
Input Voltage Range (48V)	72V~160V
Battery Charging Parameters
Charging Technology	MPPT
Charging Algorithm	3 stages
Battery Voltage Auto-Detection
12V System	DC9V~DC15V
24V System	DC18V~DC29V
36V System	DC30V~DC39V
48V System	DC40V~DC60V
Overcharge Protection Voltage	60V
Charging Limit Current	61A
Maximum Efficiency	≥98.1%
Solar Utilization Rate	≥99%
General Specification

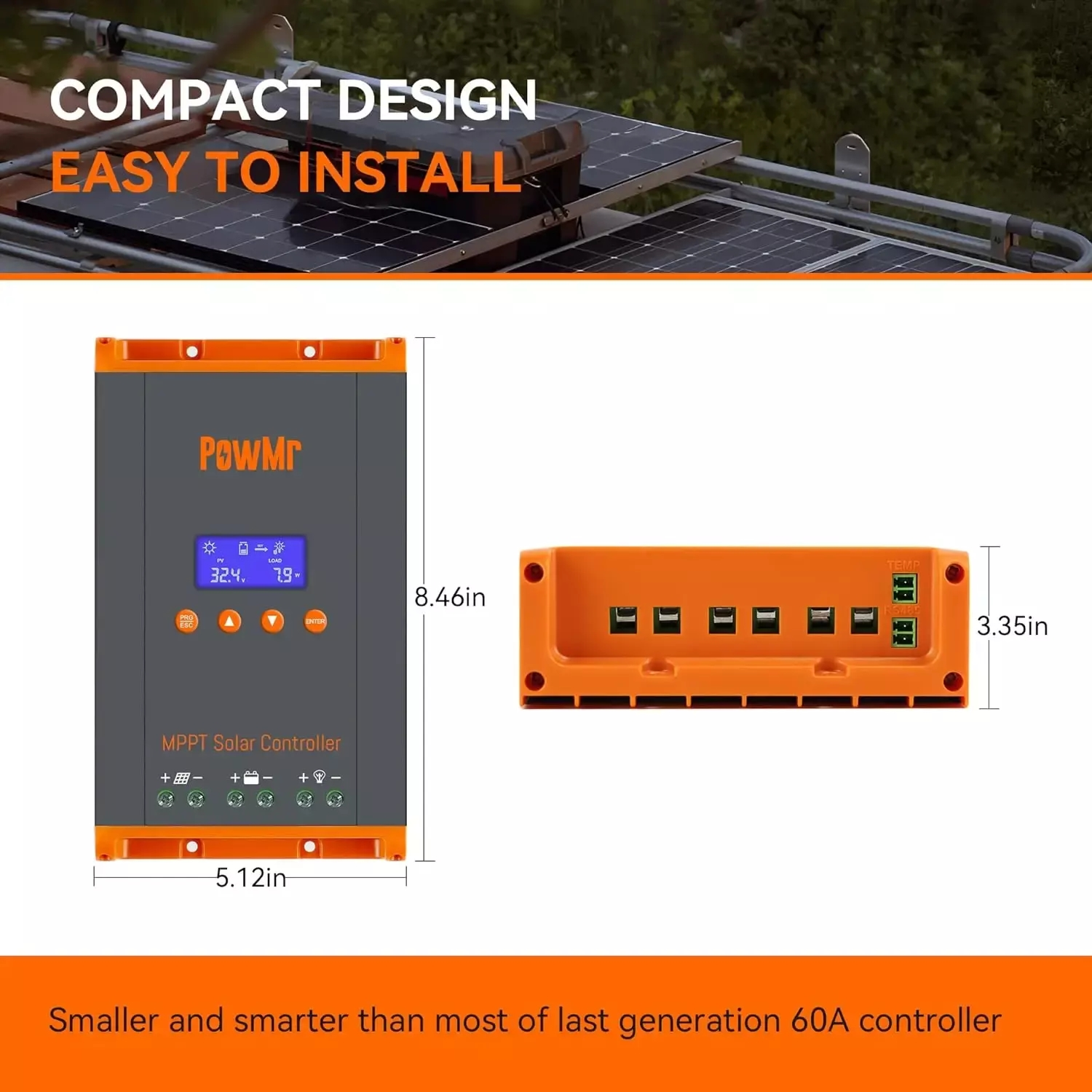

Dimensions	215x130x85mm / 8.46x5.12x3.35in
Net Weight	990g / 2.18lb

Recommend Product

FAQ

Q1: How to install and use the solar inverter?

A1: We provide English teaching manuals and instructional videos. Detailed visual walkthroughs of machine assembly, operation, and disassembly are available.

Q2: What if I don't have experience with exporting?

A2: We work closely with reliable shipping agents who can deliver items directly to your door via sea, air, or express. We will help you select the most suitable and efficient shipping arrangement.

Q3: What is the monthly production capacity?

A3: The typical production output ranges from 20,000 to 30,000 units per month.

Q4: How is technical support managed?

A4: We provide lifetime online technical support. For any operational issues post-delivery, we are available to assist via online video consultations.

Q5: Can the solar inverter be customized to our needs?

A5: Yes, product color schemes, custom branding configurations, and custom layout pattern designs are supported.
