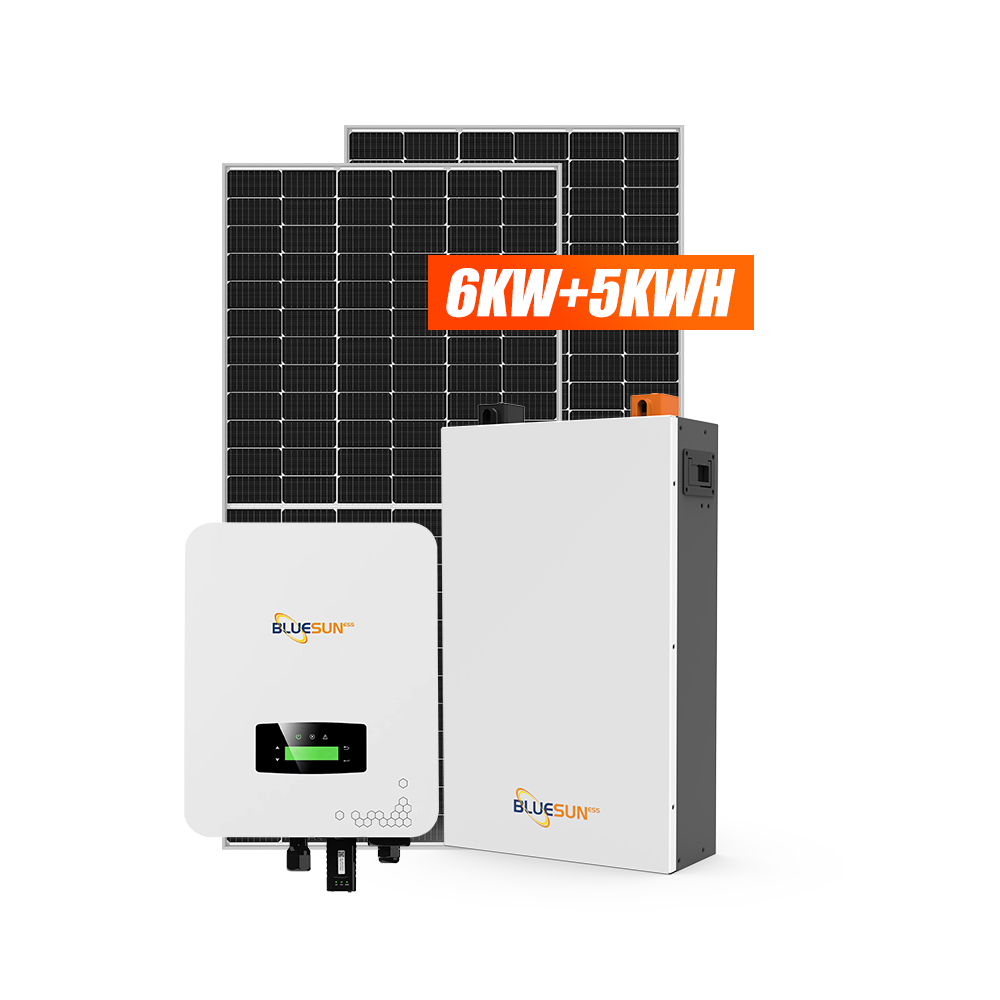

| 6KW Hybrid Solar Power System Configuration | |||
| Item | Model | Description | Quantity |
|---|---|---|---|
| 1 | Solar Panel | Half cut mono Black frame 425w solar panel | 14 pcs |

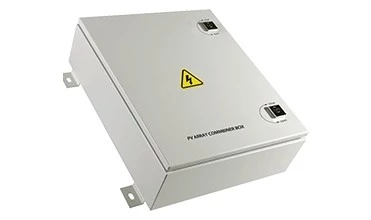

| 2 | Combiner Box | Optional | 1 pc |
| 3 | Lithium Battery or Lead Acid Battery | 10kWh Wall Mounted Battery | 1 pc |
| 4 | Hybrid Inverter | 6kva | 1 pc |
| 5 | Mounting Support | Roof/Ground | 1 set |
| 6 | Cable | 4mm² PV cable | 100m |
| 7 | Connector | Solar Connector | 4 pairs |
| 8 | Tools Bag | Solar Installation tools | 1 set |

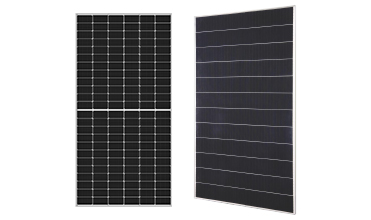

The Mono Solar Panels featured in this 6KW system have a peak power capacity of 425W per panel, a Max Power Voltage of 32.03V, a Max Power Current of 13.29A, an Open Circuit Voltage of 38.25V, and a Short Circuit Current of 14.18A. Dimensions per panel are 1722*1134*30mm, weighing approximately 21.5kg.

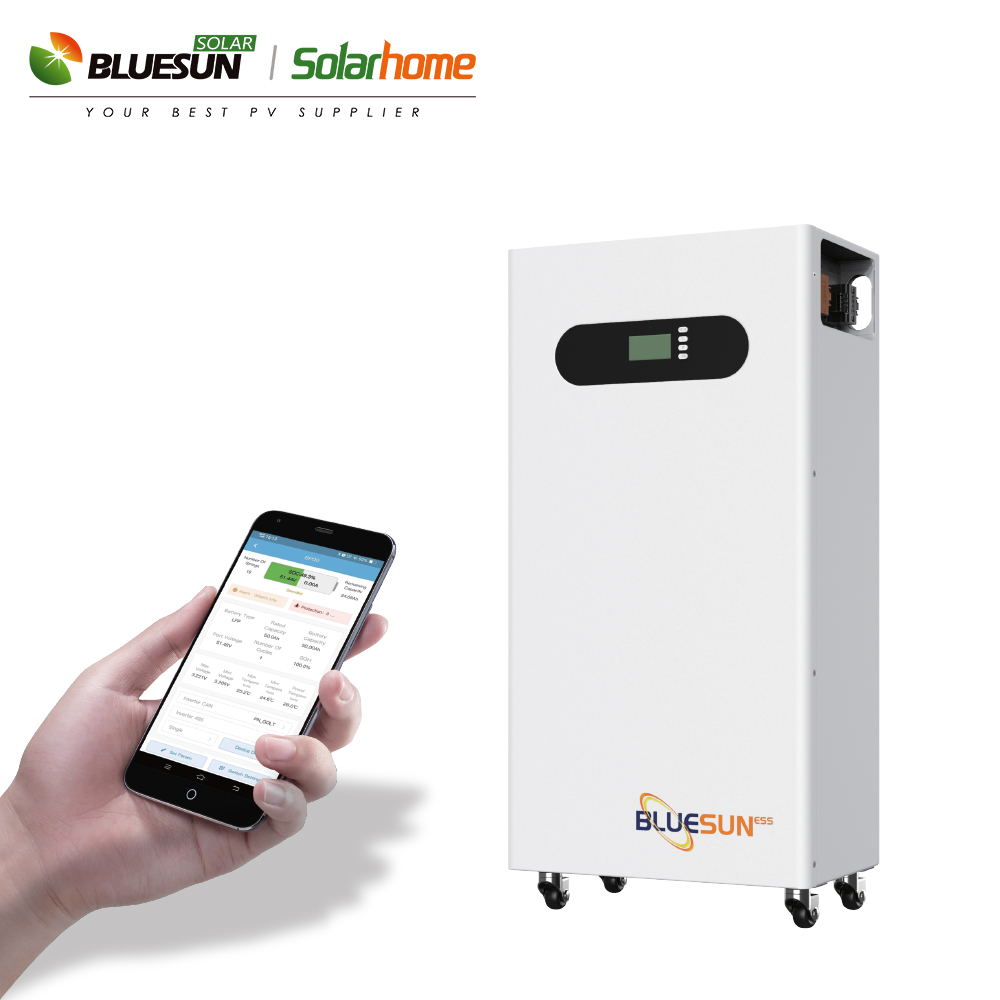

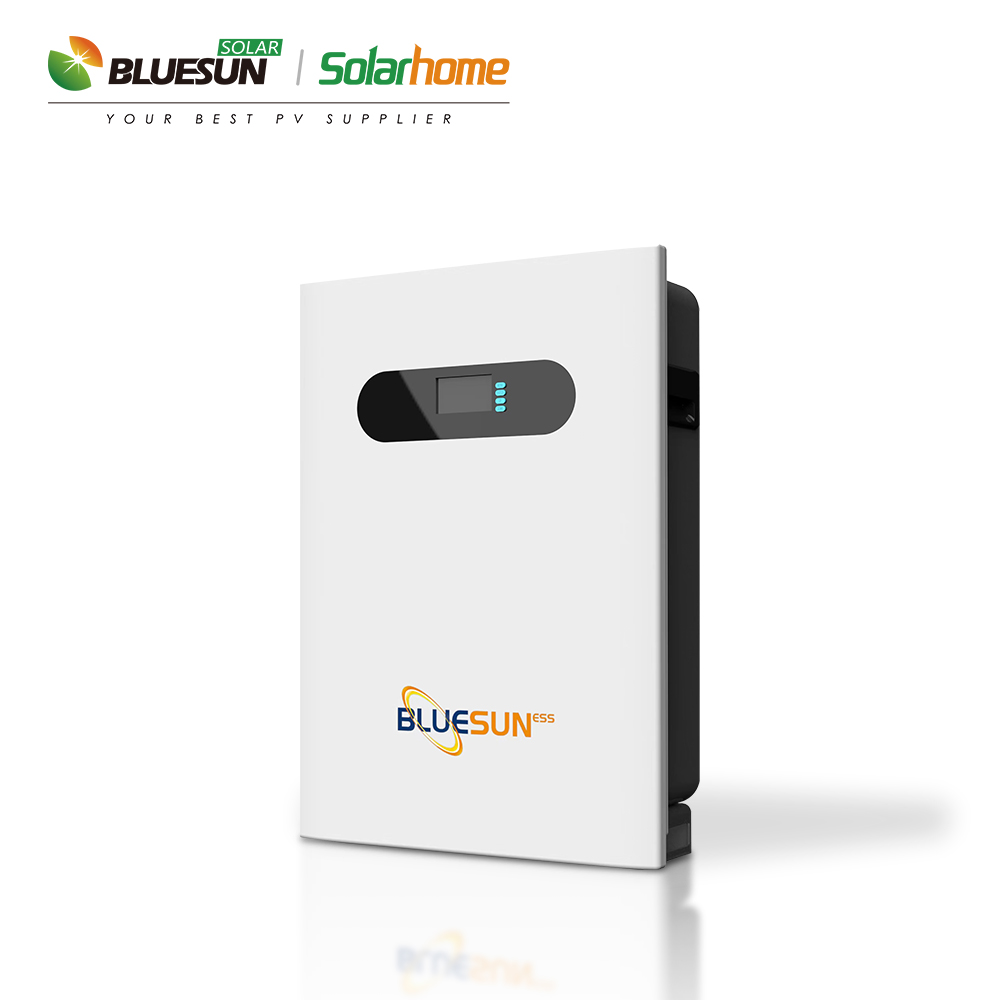

The configuration includes a standard 10kWh Wall Mounted Battery. The system is highly compatible and can support 2V/12V AGM batteries, 2V/12V Gel batteries, or 48V Lithium battery banks. Having a battery bank ensures you have continuous power supply even after sunset.

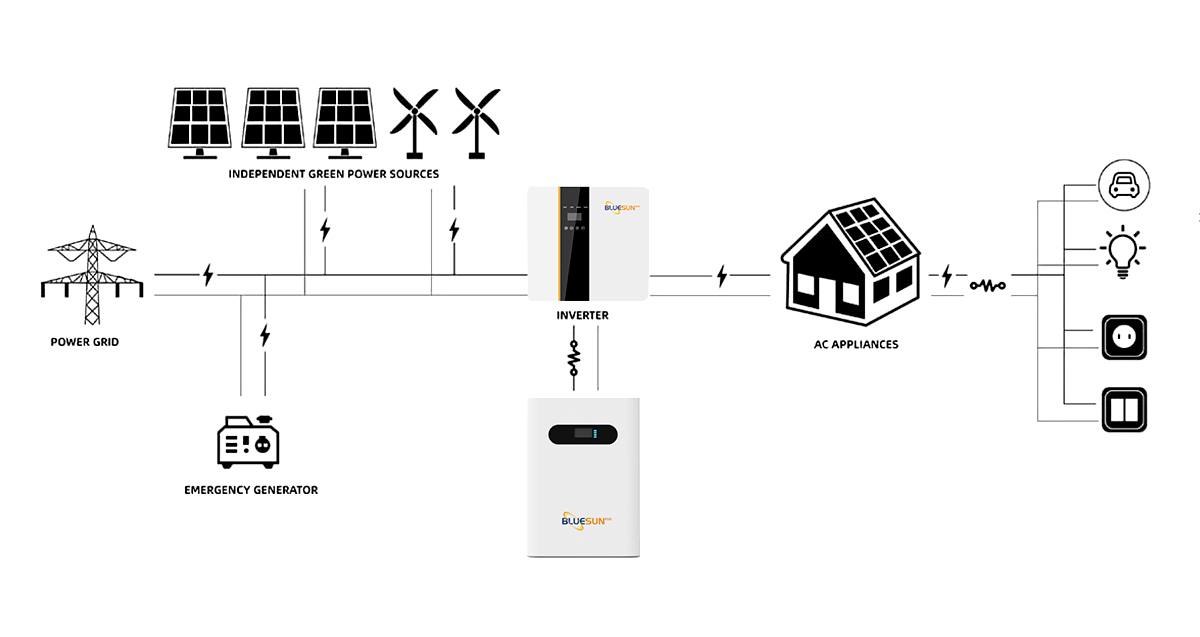

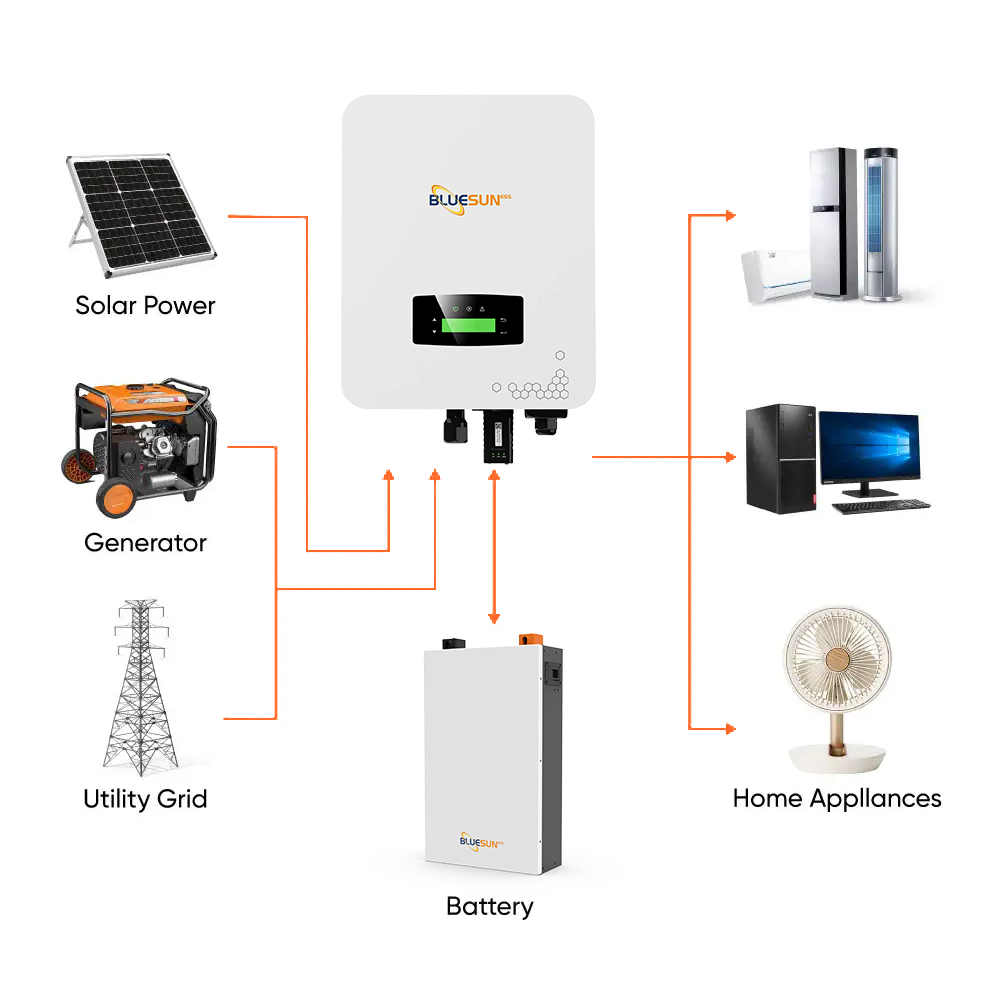

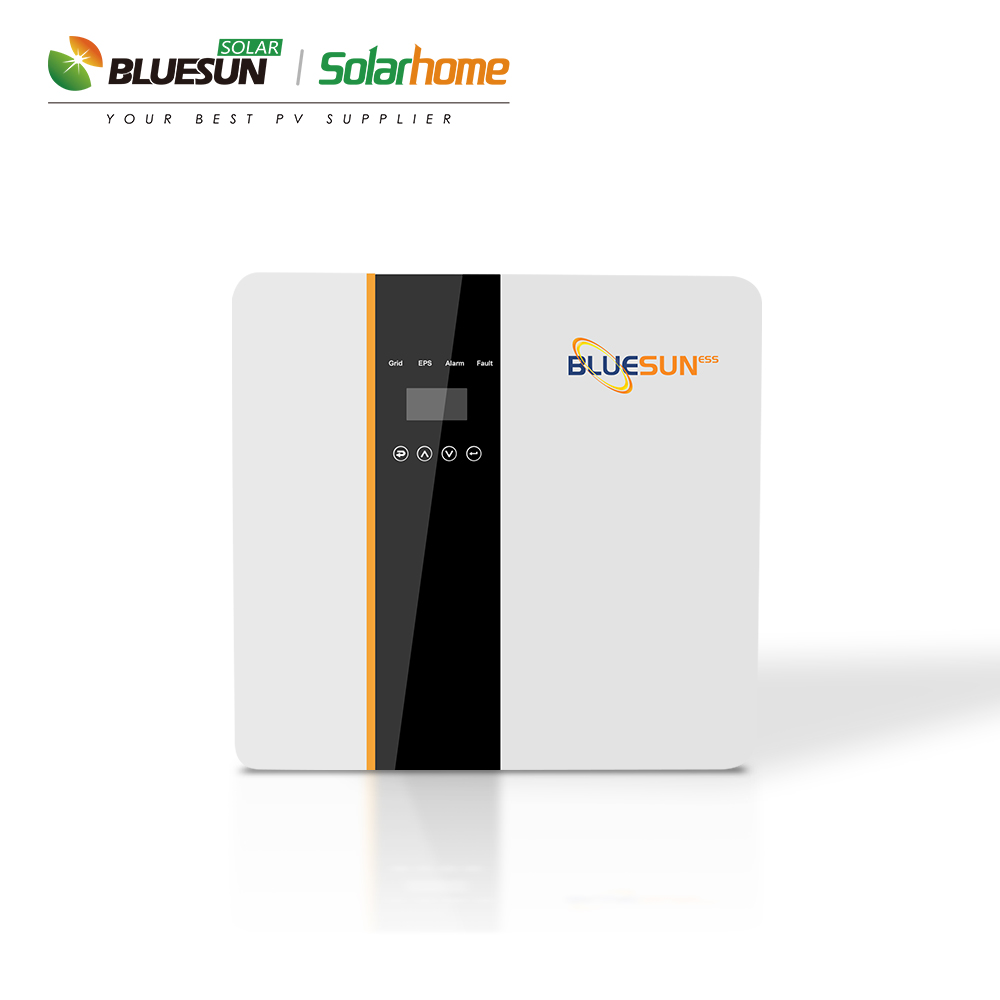

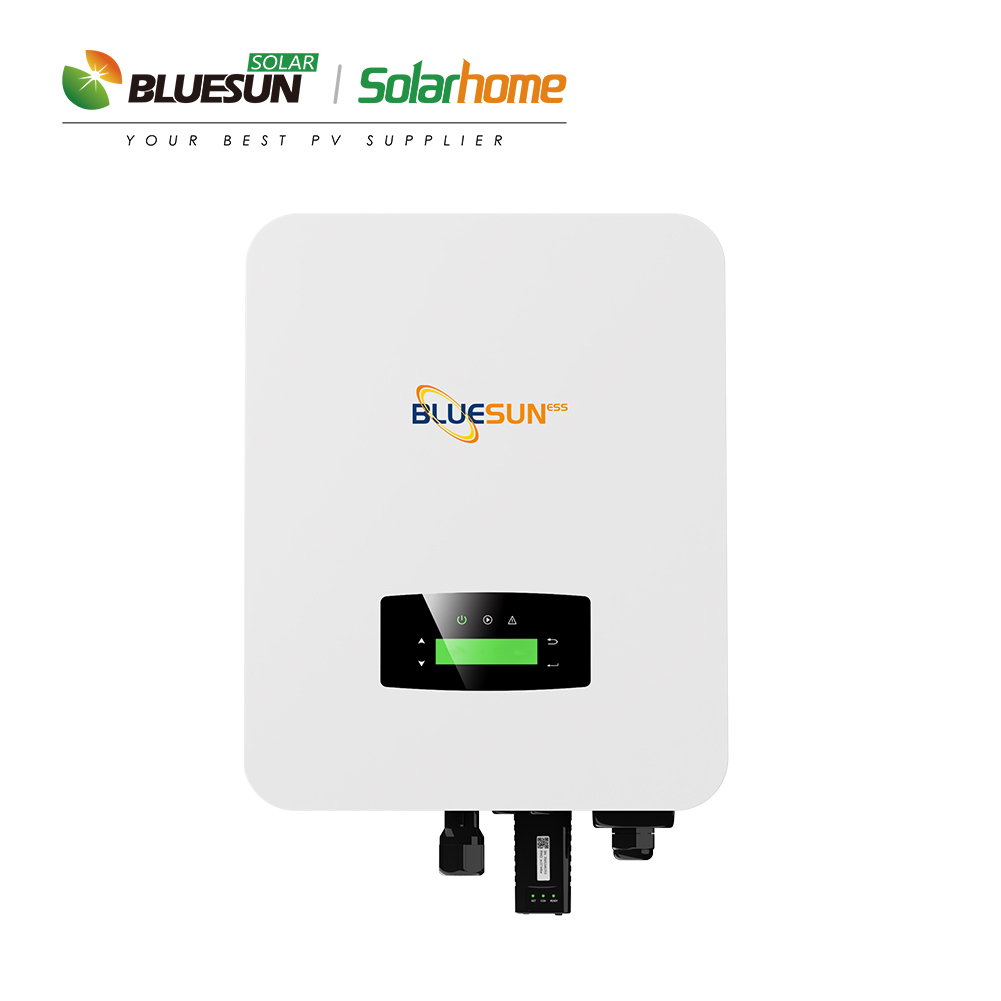

The system features a 6KVA Hybrid Inverter which uses a modular design and is NREL certified (PCS P-Q & V-F mode). It has built-in or external transformer options for 400Vac connection, and is integrated with highly reliable power distribution layouts.

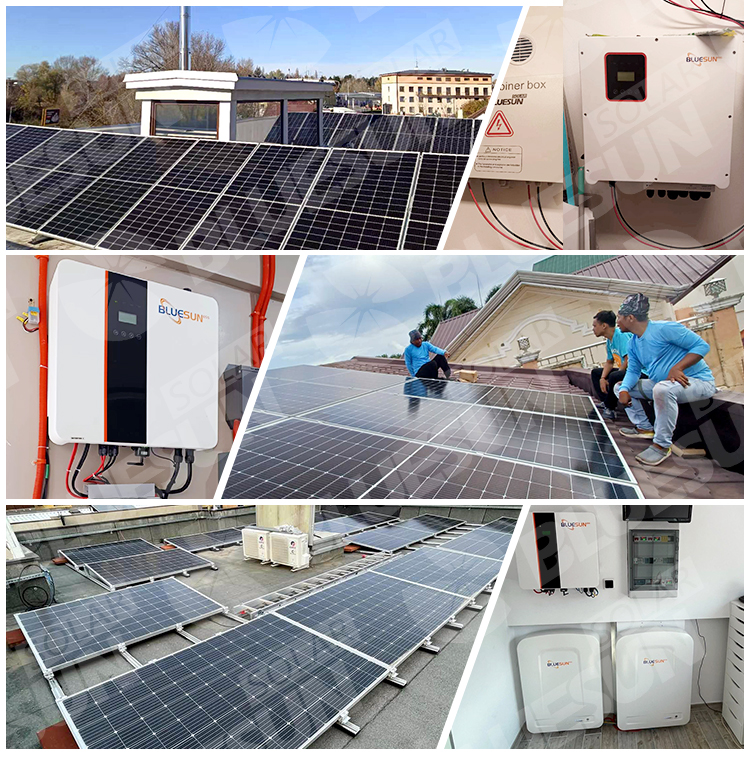

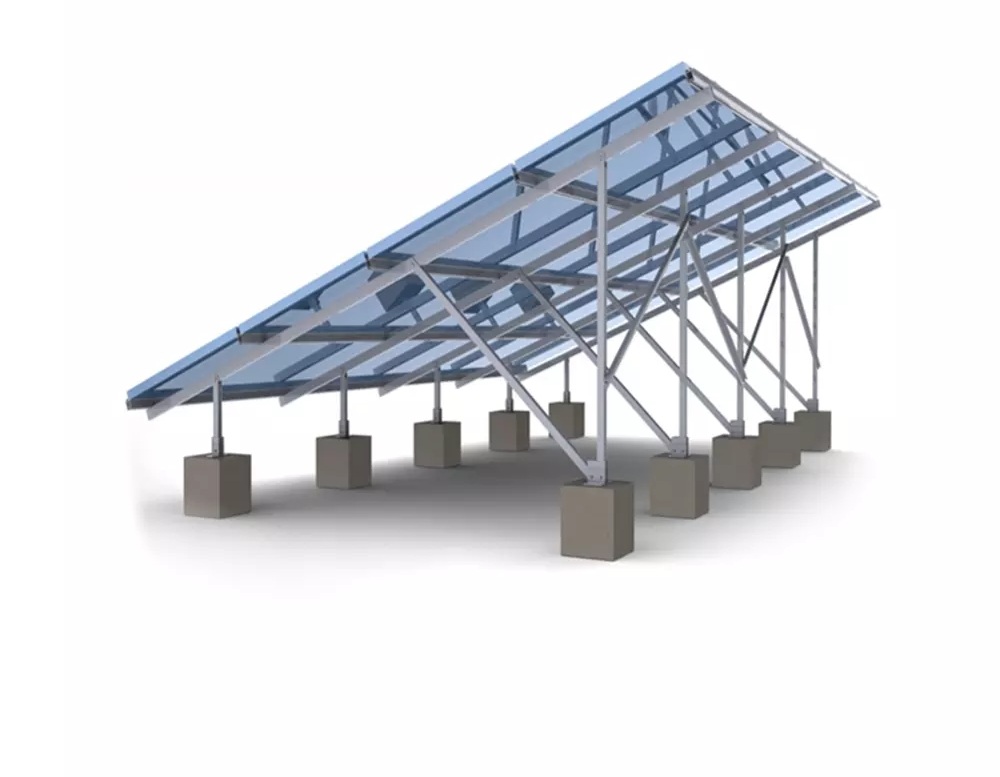

The mounting support can be adapted for multiple application environments, including residential pitched roofs, commercial flat roofs or workshop roofs, ground structures, vertical walls, car parking structures, and fully aluminum mounting setups.

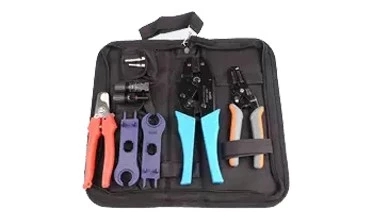

Yes, a dedicated installation tools bag is included in the package, complete with essential solar tools such as a wire cable cutter and stripper, alongside specialized disassembly tools to ensure a smooth setup process.
