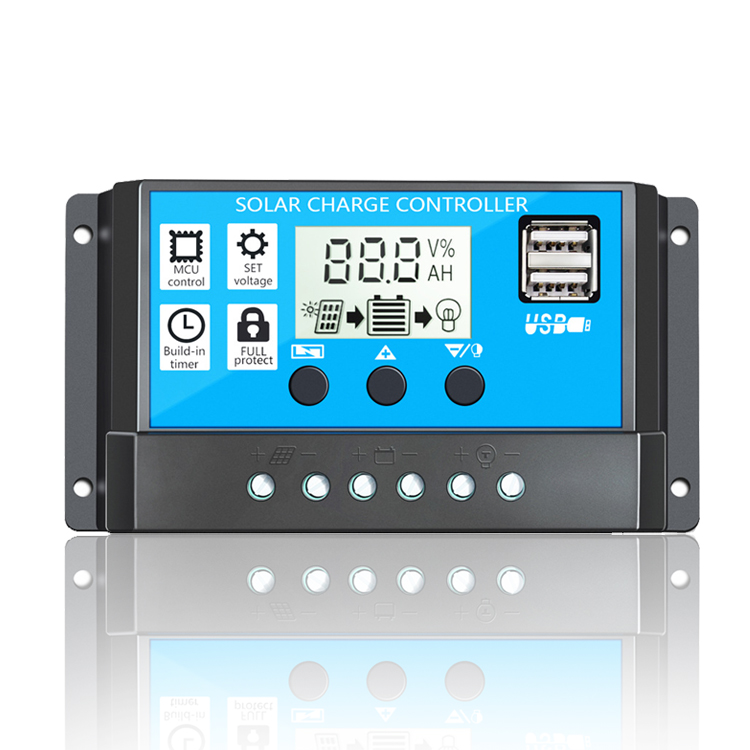

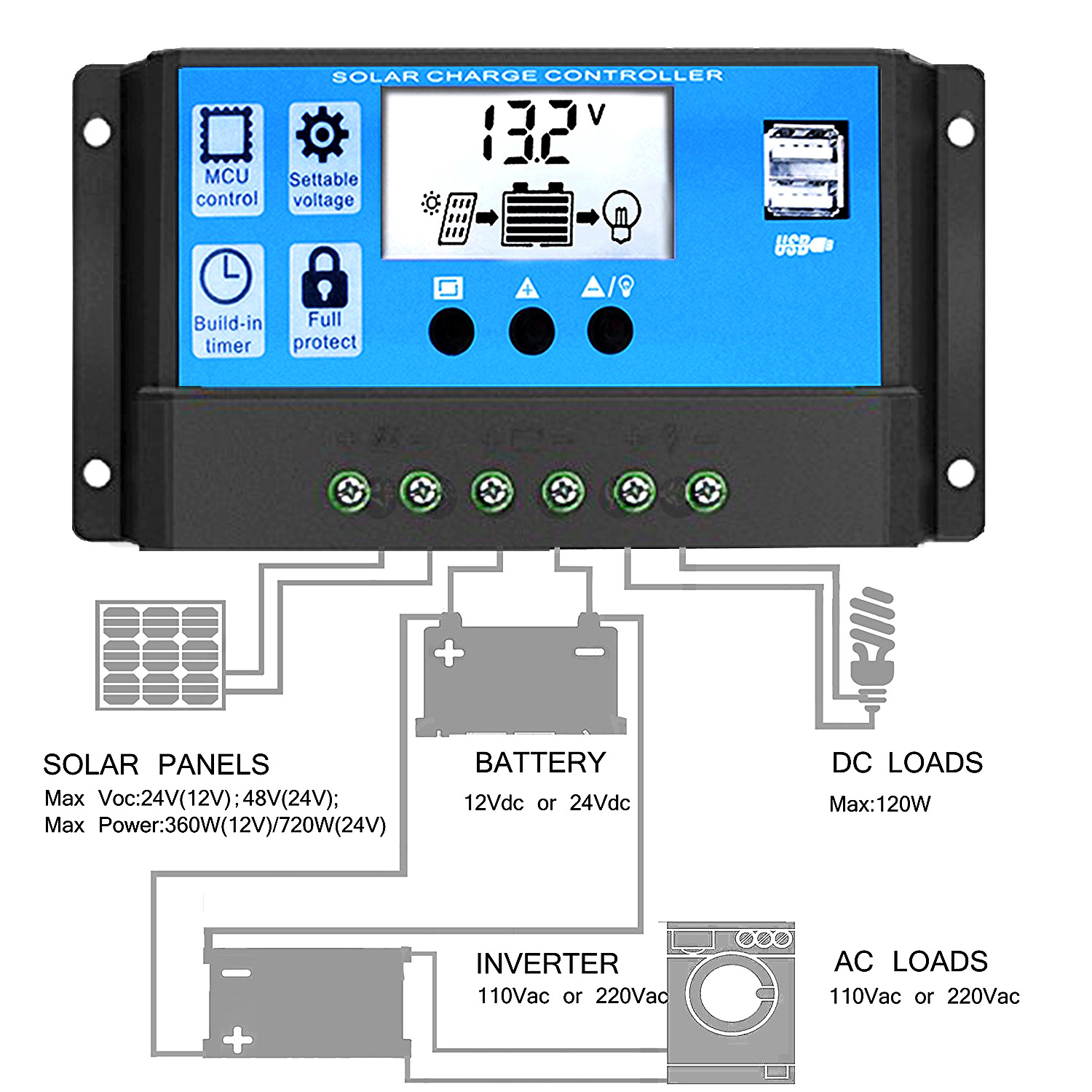

Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
1 / 5
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller
Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller

Cheap 12v 10A 20A 30A 40A 50A 60A Pwm Solar Inverter Charge Controller

Send Inquiry

Product Description

Cheap 12v 10A 20A 30A 40A 50A 60A pwm solar inverter charge controller

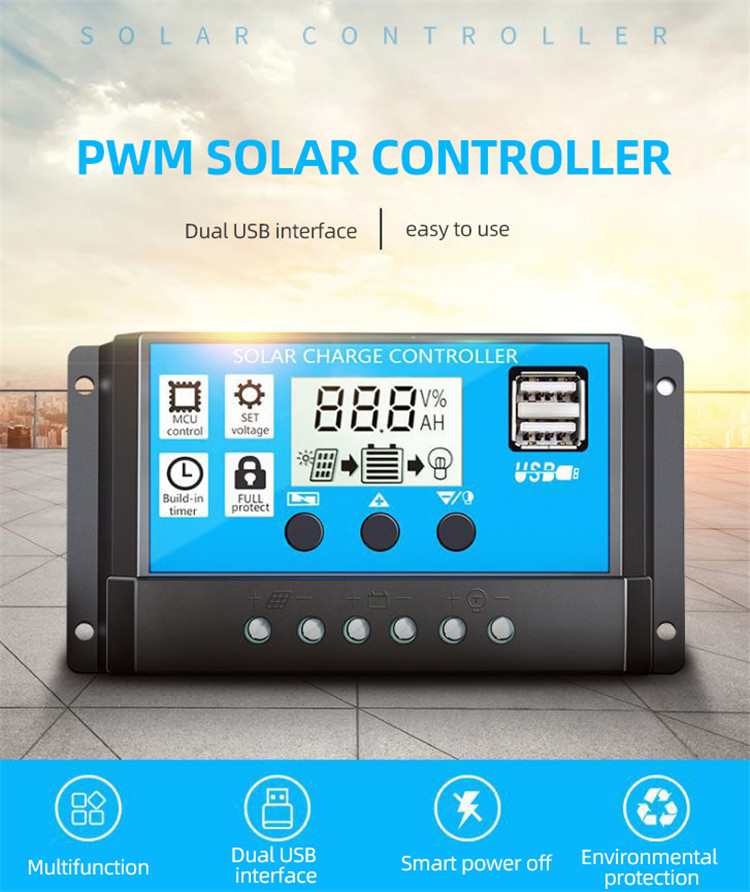

PWM Solar Charge Controller
Product Description
MODEL RBL-10A RBL-20A RBL-30A RBL-40A RBL-50A RBL-60A
Charging Current 10A 20A 30A 40A 50A 60A
Discharging Current 10A 20A 30A 40A 50A 60A
Battery Voltage 12V 24V Auto
Max Solar input 48V(for 24V battery) 24V(for 12V battery)
Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge 13.7V(default, adjustable)
Discharge stop 10.7V(default, adjustable)
Discharge reconnect 12.6V(default, adjustable)
Charge reconnect 13V
Voltage of open light Solar Panel 8V(Light lights delay)
Voltage of close light Solar Panel 8V(Light off delay)
USB output 5V/3A
Self-consume <10mA
Operating temperature -35°C~+60°C
Size 133.5*70*35mm 188*90*47mm
Specification

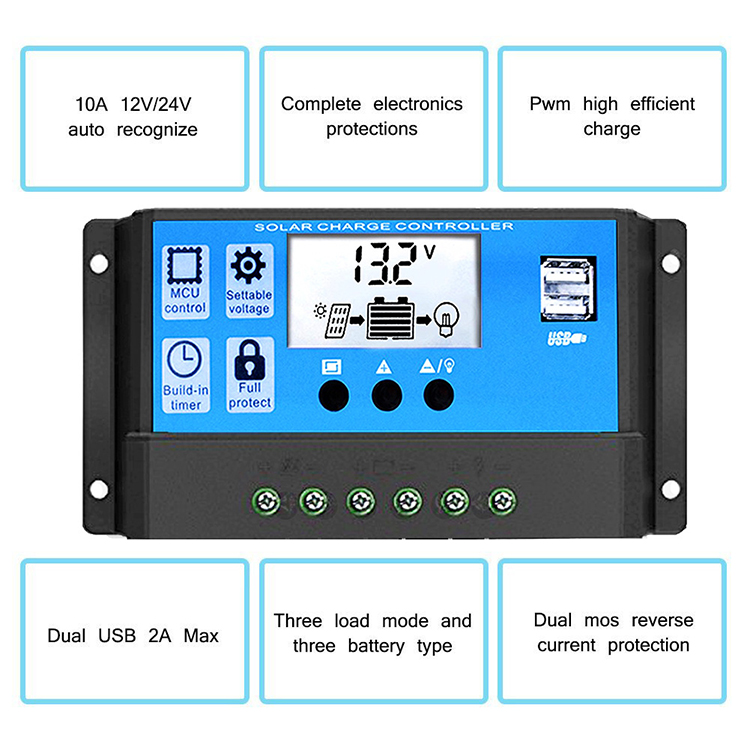

  • Build-in industrial micro controller.
  • Big LCD display, all adjustable parameter.
  • Fully 3-stage PWM charge management.
  • Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

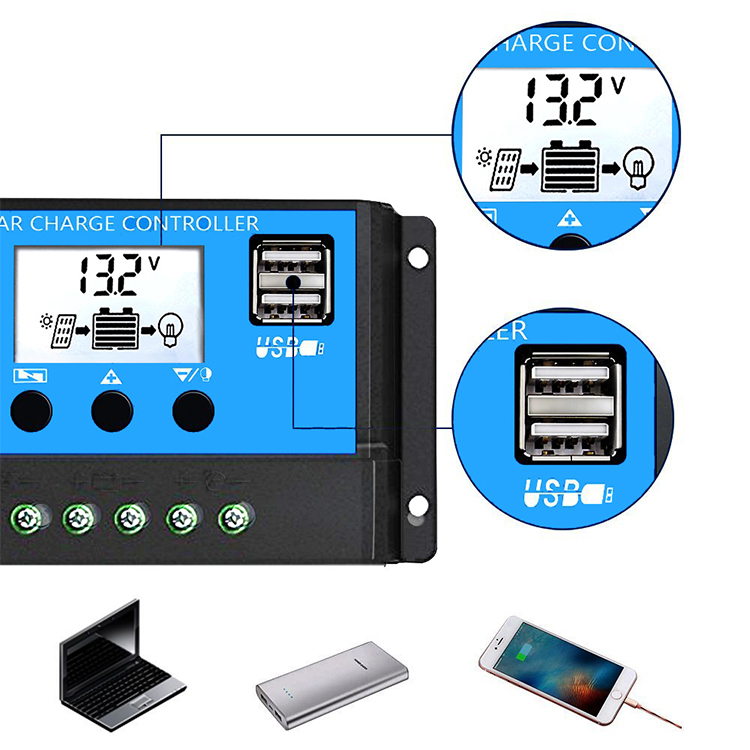

  • Dual USB output, the maximum current of 2.5A, to support mobile phone charging.
  • Dual mosfet Reverse current protection, low heat production.
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)

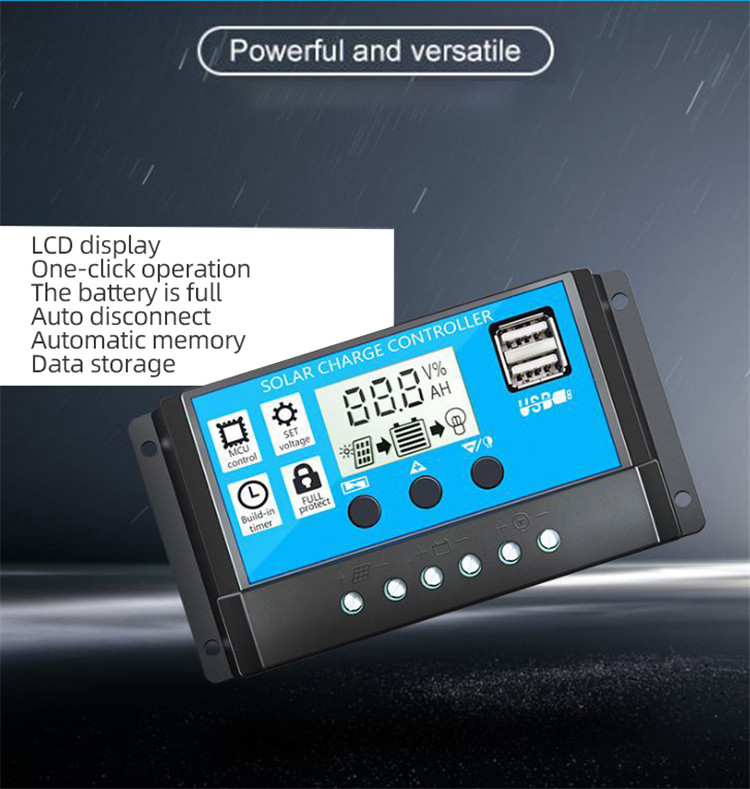

Product View 1

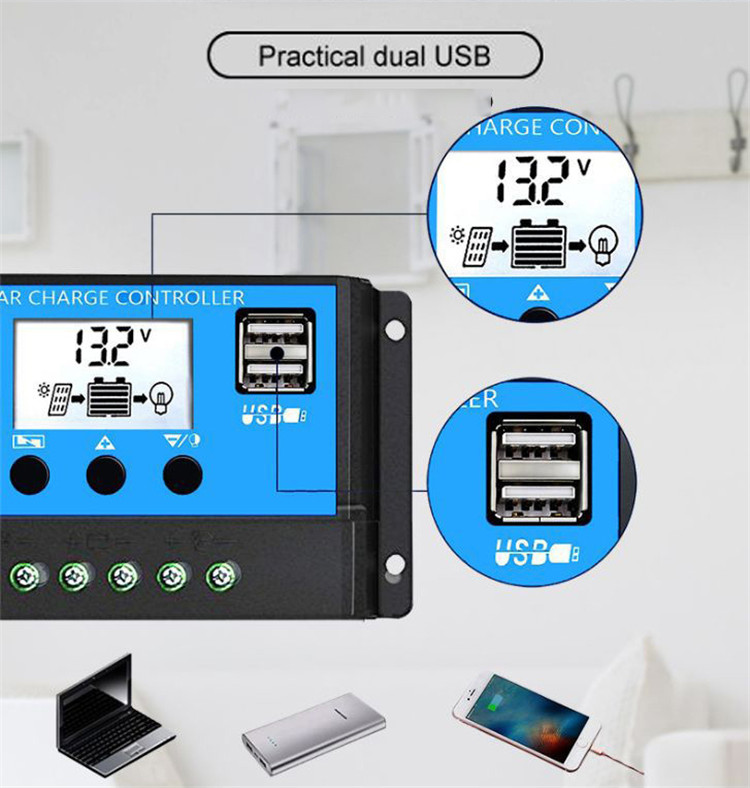

Product View 2
Product View 3

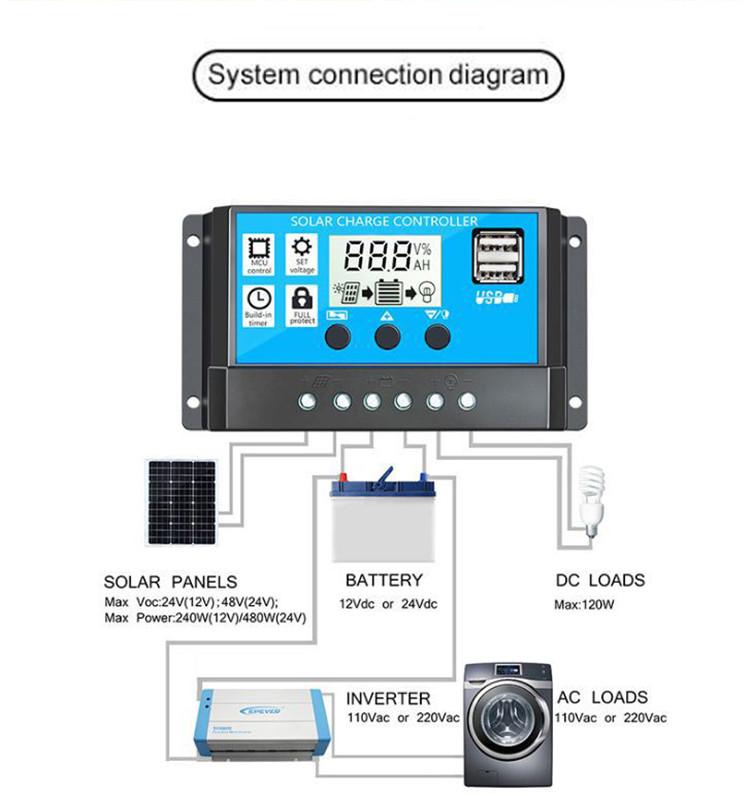

Product View 4

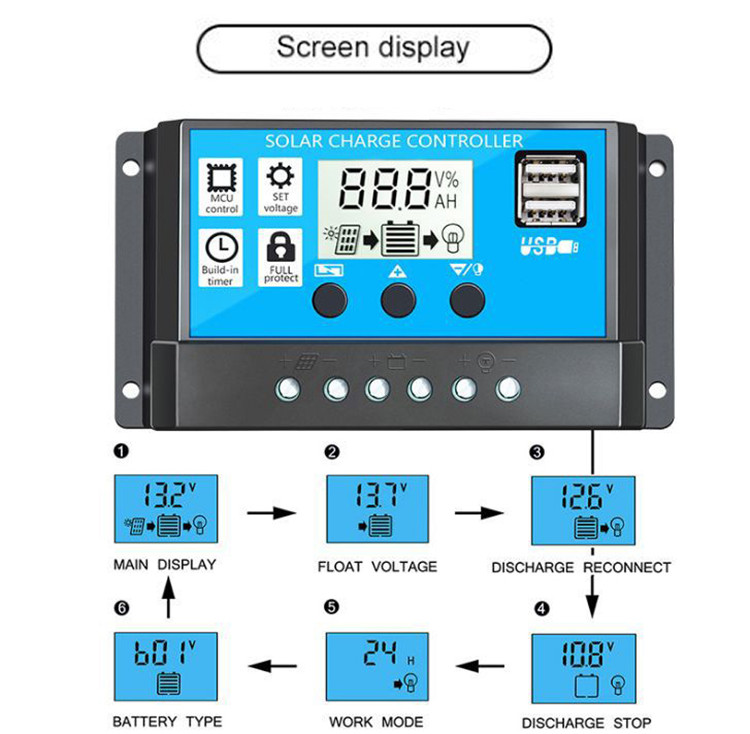

Product View 5

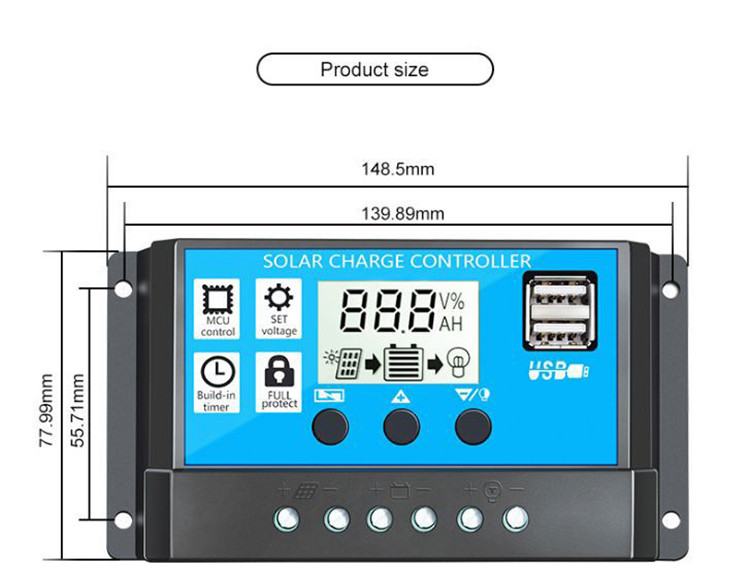

Product View 6

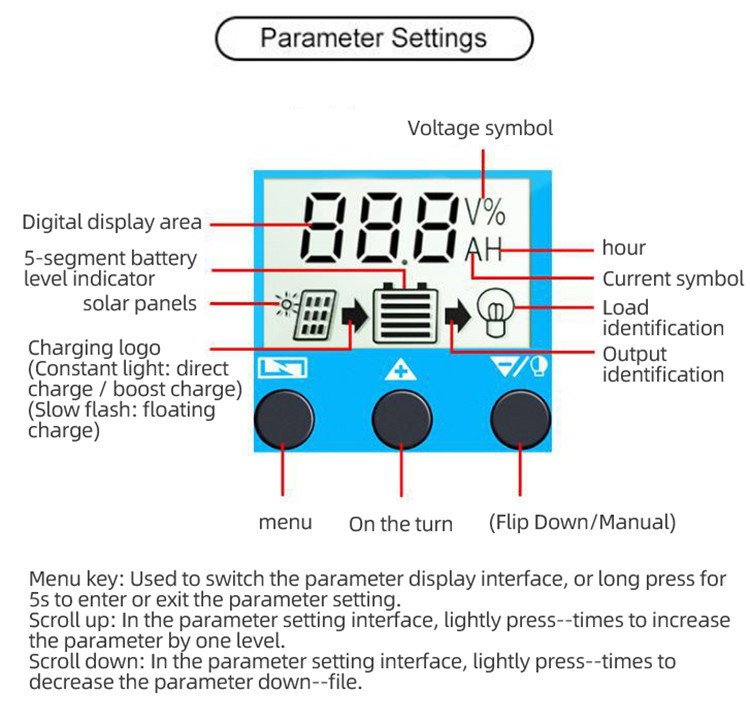

Product View 7

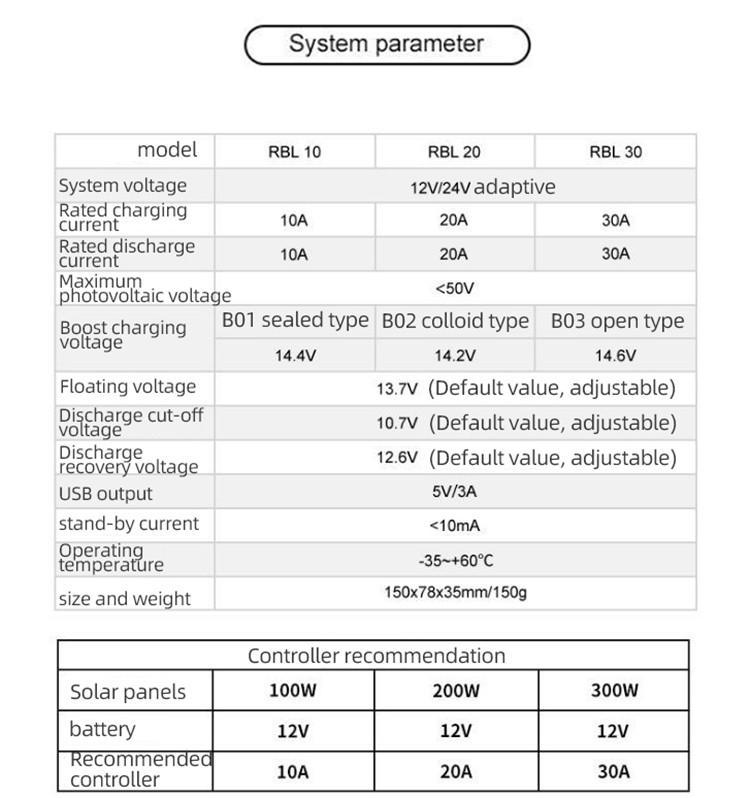

Product View 8
Manufacturing Gallery 1
Manufacturing Gallery 2
FAQ
What is the MOQ and delivery time?
No MOQ is required, and sample testing is welcome. Mixed samples are acceptable. Samples require 3-5 days, while mass production takes 1-2 weeks.
What about the lead time and ordering process?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
Can you do OEM?
Yes, we are a professional manufacturer with our own design team, engineer team, after-service team, and QC team to handle customization requests.
How about the shipping method?
We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive. Airline and sea shipping are also optional.
Do you offer a guarantee for the products?
Yes, we offer a 2-5 year warranty on our products.
How do you deal with the faulty?
Firstly, our products are produced under a strict quality control system. Secondly, during the guarantee period, we will send replacement units with new orders for small quantities. For defective batch products, we will repair and resend them to you, or discuss alternative solutions based on the situation.
