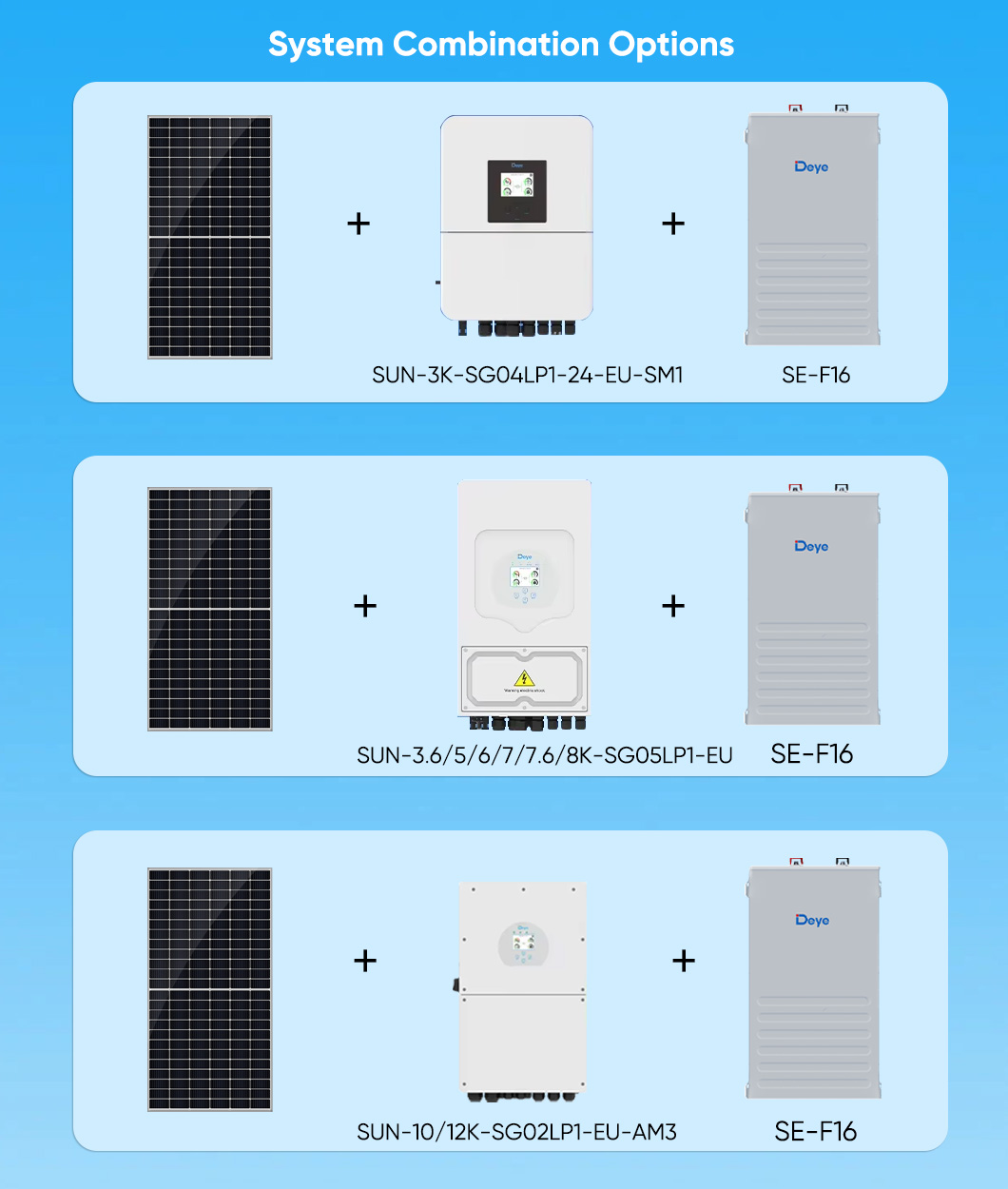

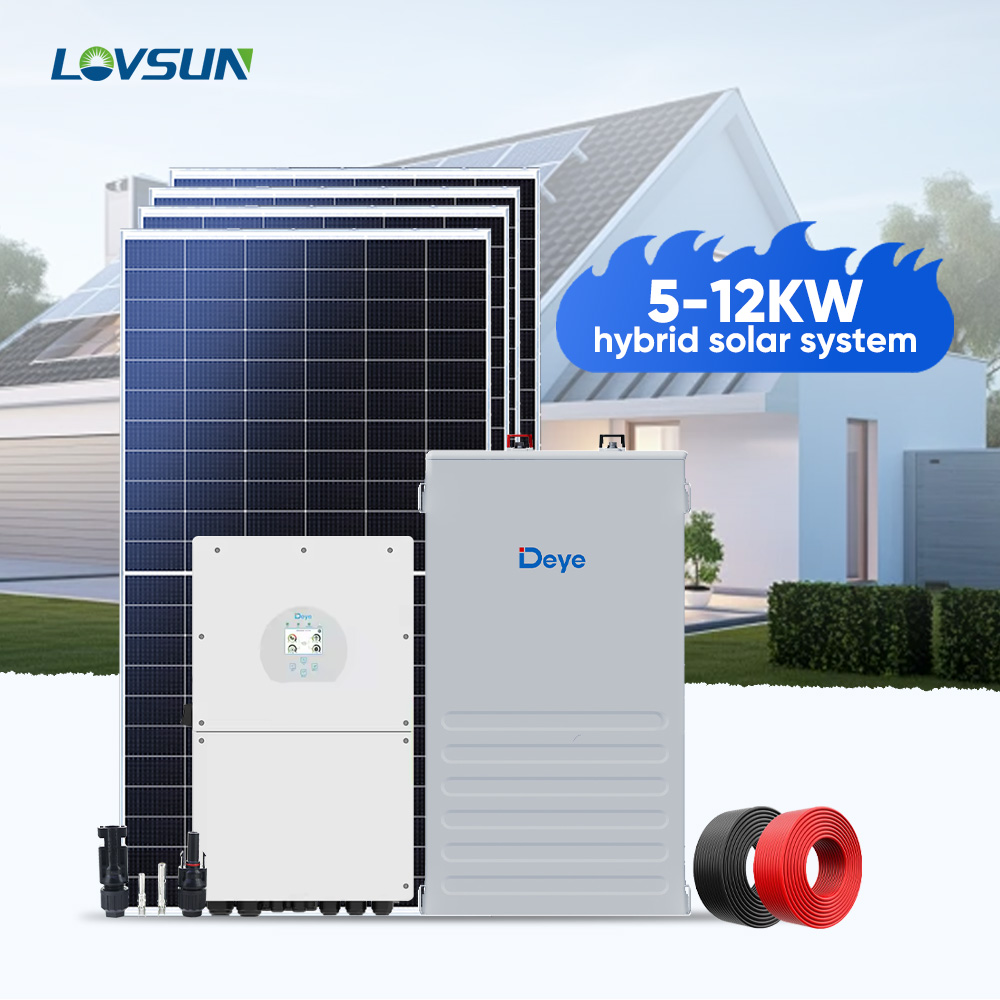

| Components | Hybrid Solar System -- Single Phase | ||
|---|---|---|---|
| Hybrid Inverter | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-8K-SG01LP1-EU |
| Wifi/GPRS Module | 1 Pc | 1 Pc | 1 Pc |
| 590W Mono Solar Panel | 6 Pcs | 8 Pcs | 14 Pcs |
| PV Cable | 30 meters | 40 meters | 60 meters |
| LV Lithium Battery Capacity (Lead acid battery optional) |
5.12 kwh | 5.12 kwh | 5.12 kwh |
| MC4 Connector | 3 Pairs | 5 Pairs | 6 Pairs |
| Mounting System | Roof or Ground | Roof or Ground | Roof or Ground |
| Components | Hybrid Solar System -- Three Phase | ||
|---|---|---|---|
| Deye Hybrid Inverter | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Wifi/GPRS Module | 1 Pc | 1 Pc | 1 Pc |
| 590W Mono Solar Panel | 14 Pcs | 18 Pcs | 20 Pcs |
| PV Cable | 60 meters | 80 meters | 90 meters |
| HV Lithium Battery Capacity | 7.68 kwh | 10.24 kwh | 10.24 kwh |
| MC4 Connector | 4 Pairs | 5 Pairs | 6 Pairs |
| Mounting System | Roof or Ground | Roof or Ground | Roof or Ground |

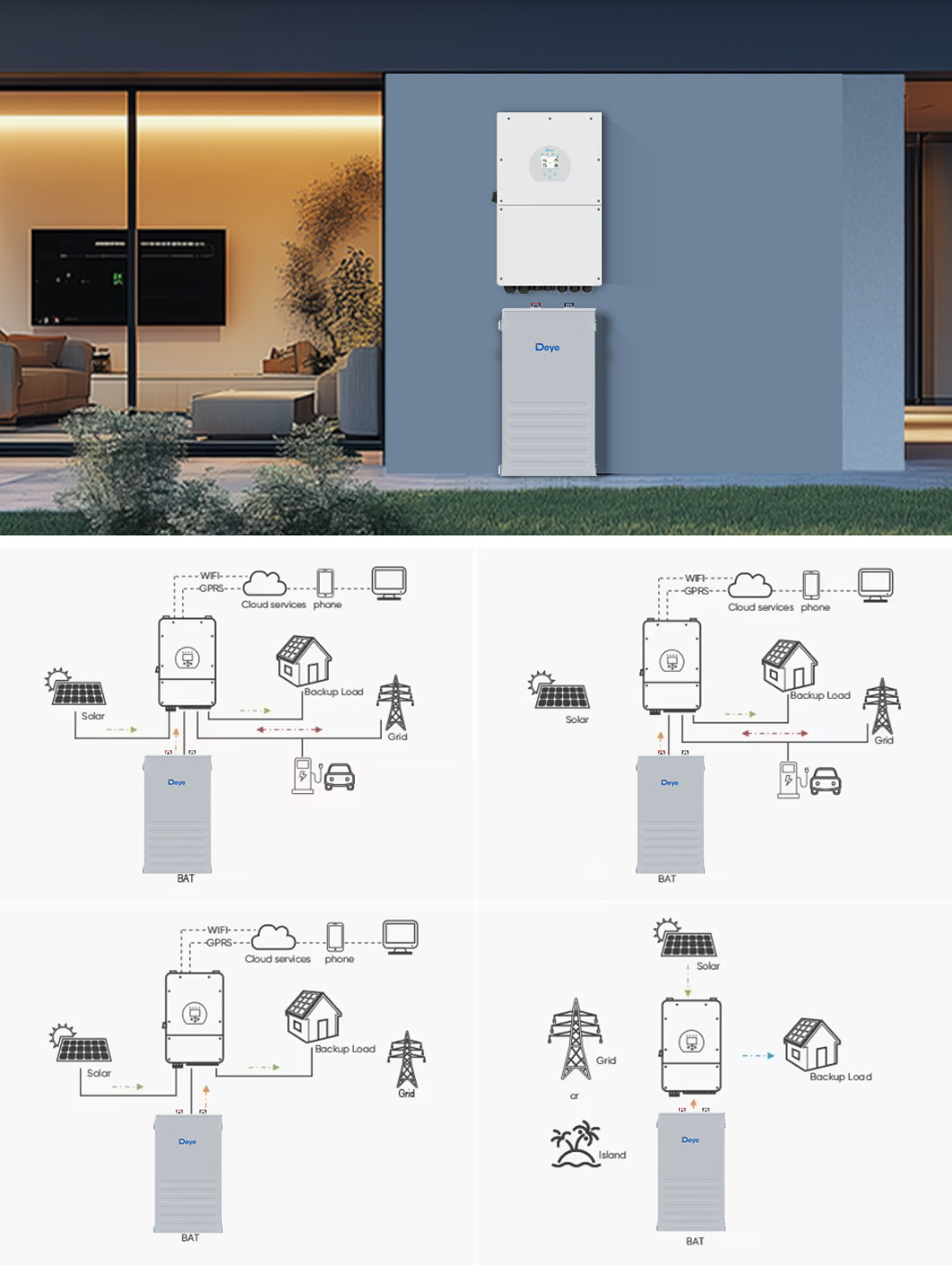

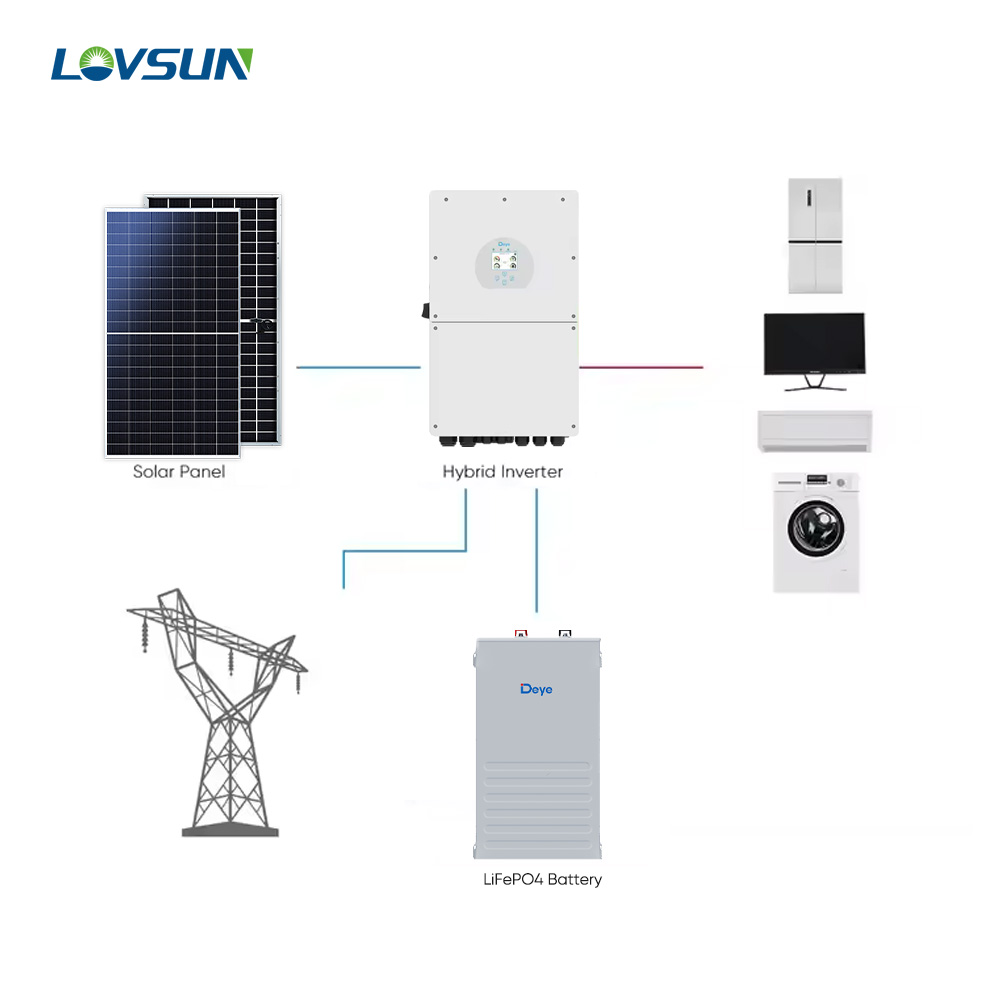

A hybrid solar system combines grid-tied solar panels with battery storage. This setup allows the system to run on solar power during the day, store excess electricity in the batteries for night use or backup, and draw power from the utility grid if the solar and battery capacity is insufficient.
Single-phase systems (typically 220V-240V) are designed for standard residential homes with lower electricity demands. Three-phase systems (typically 380V-400V) are designed for larger properties, commercial setups, or homes with high-power appliances (e.g., central AC units, heavy machinery) requiring balanced power distribution.
Yes. The mounting systems included are highly versatile and can be customized depending on your installation requirements, whether you choose to mount the solar panels on a flat/tiled roof or directly on the ground.
Yes, both Single Phase and Three Phase systems include a Wifi/GPRS module. This allows you to track and manage your solar power production, battery status, and load consumption in real-time via a smartphone app or web portal.

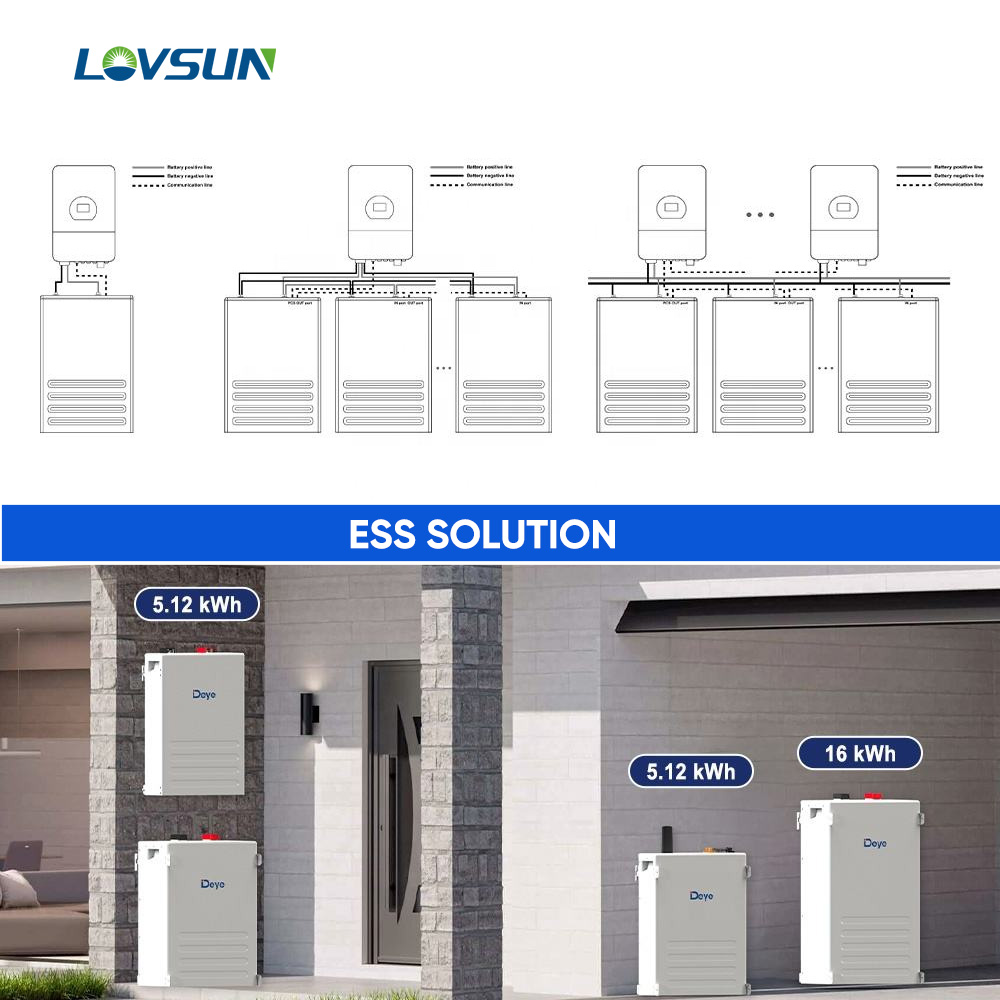

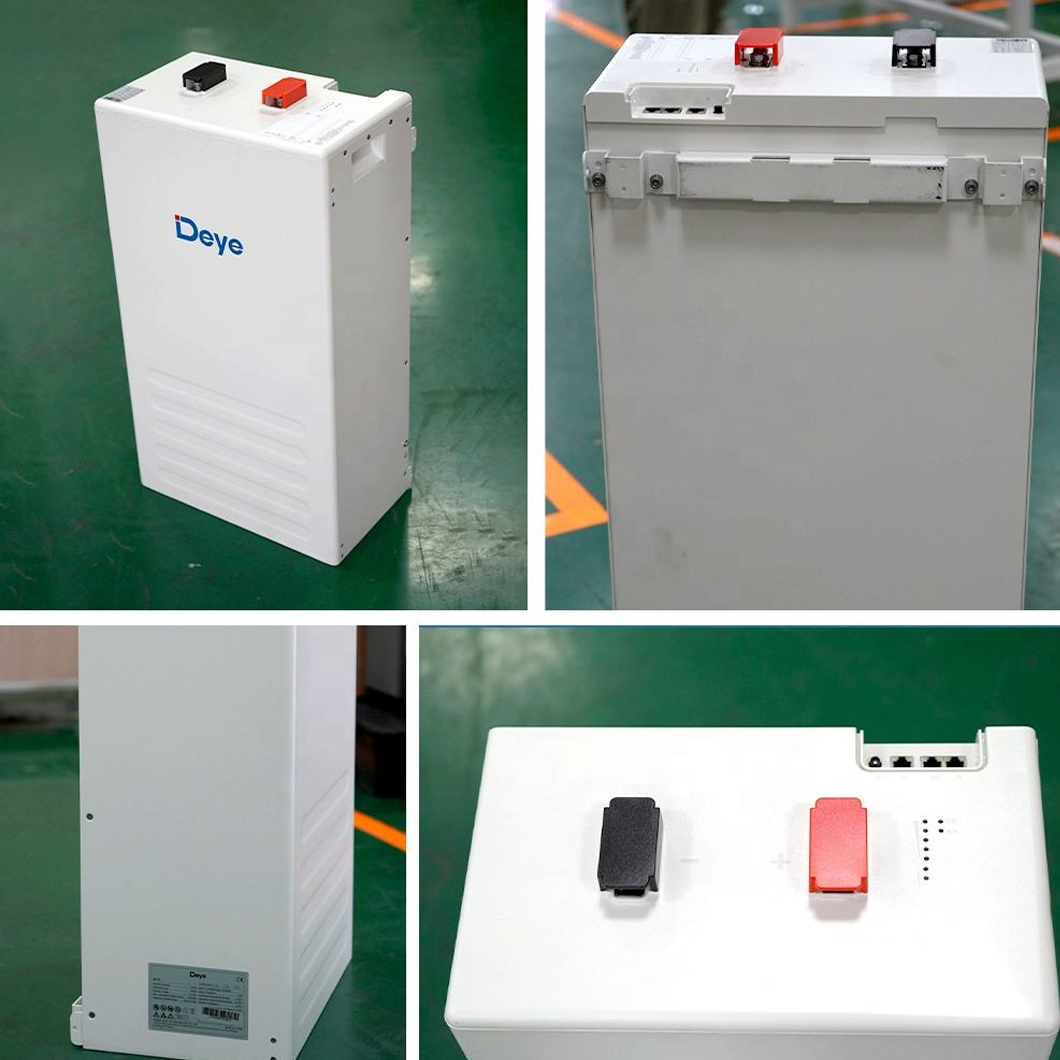

Our standard systems are configured with high-performance Lithium batteries (low voltage for single phase systems, high voltage for three-phase systems) due to their efficiency, longer lifespan, and higher depth of discharge. However, lead-acid batteries are also optional based on your project budget.
