Our dedicated team provides optimized solar solutions matching your power configuration requirements. We offer fast calculation, budgeting assistance, and comprehensive support services customized for different application scenarios.

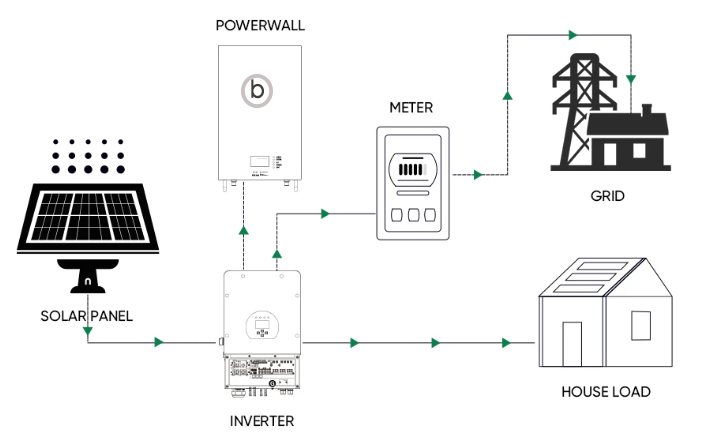

After receiving your requirements, we recommend a solar system suitable for you based on actual power usage. We also offer reliable local vendor recommendations for home decoration demands.
Tailored configurations for apartments, real estate development, and resorts. We customize system shapes, visual components, color schemas, and integration setups based on project layouts.

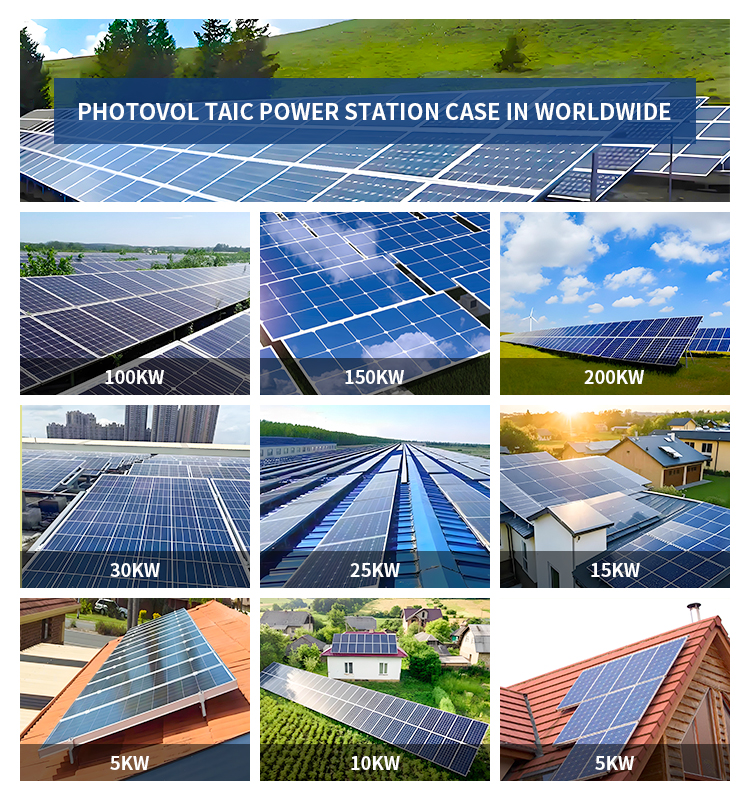

One-stop integrated service for factories, supermarkets, and village micro-grids. Scope includes layout surveying, terrain installations, architectural drafting, engineering, and maintenance inspections.

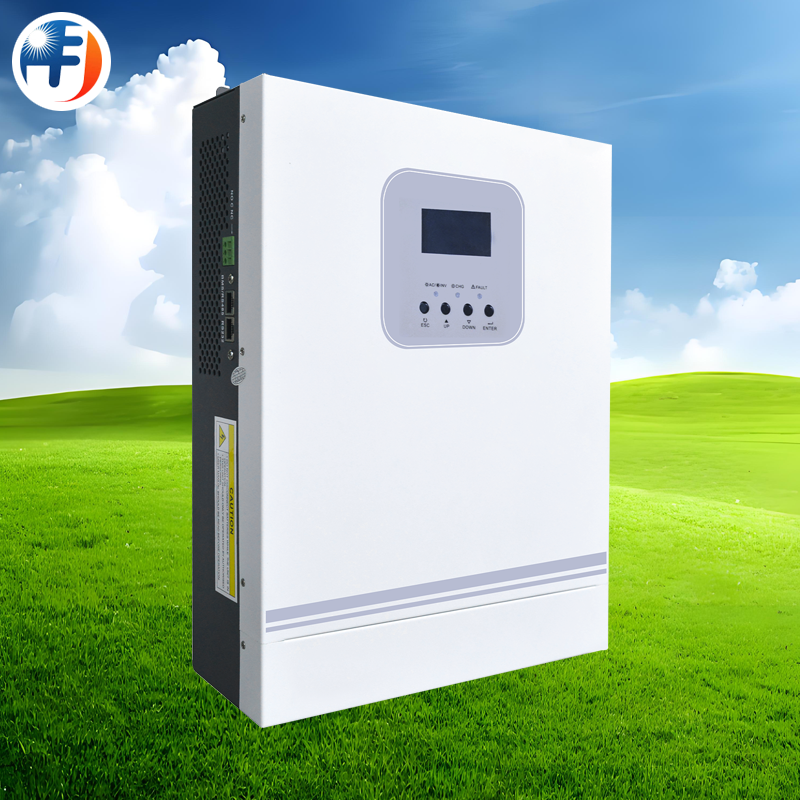

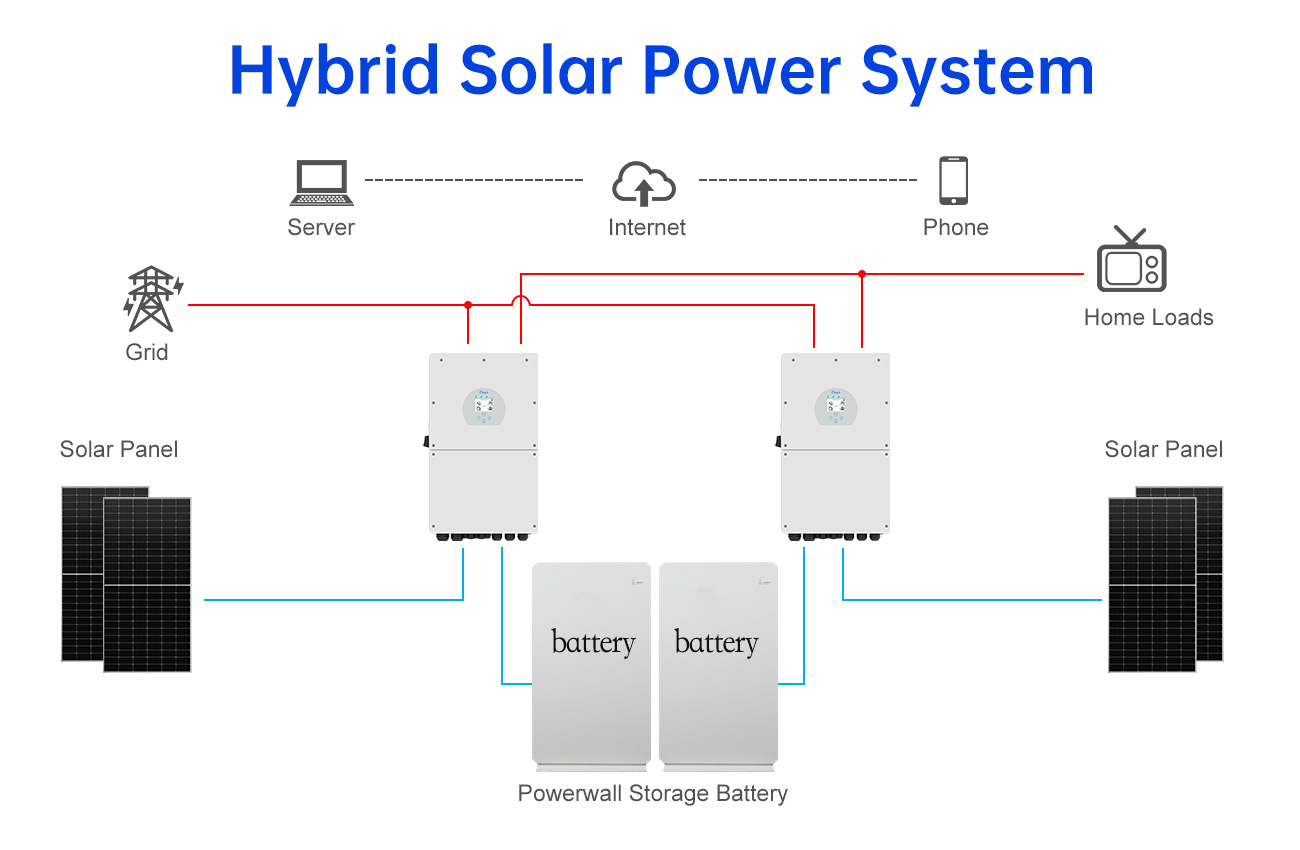

Full series string inverter supporting VSG applications. In case of grid failure, this string inverter can operate seamlessly with diesel generators directly, eliminating the need for extra EMS hardware. The frequency droop capability makes it highly effective in weak grid installations.

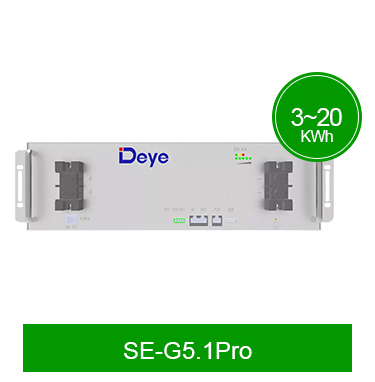

Smart battery module featuring auto-networking and simplified maintenance configurations. Supports complete remote monitoring, operations, updates, and local USB firmware upgrades. Manufactured with eco-friendly, non-toxic, and pollution-free safety materials. Built with standard 19-inch modules supporting rack, wall, or floor mountings to optimize room space.
| Solar Module Specifications | ||||||
|---|---|---|---|---|---|---|
| System MODEL | JAM72S20-445/MR | JAM72S20-450/MR | JAM72S20-455/MR | JAM72S20-460/MR | JAM72S20-465/MR | JAM72S20-470/MR |
| Rated Max Power (Pmax) [W] | 445 | 450 | 455 | 460 | 465 | 470 |
| Open Circuit Voltage (Voc) [V] | 49.56 | 49.70 | 49.85 | 50.01 | 50.15 | 50.31 |
| Short Circuit Current (Isc) [A] | 11.32 | 11.36 | 11.41 | 11.45 | 11.49 | 11.53 |
| Module Efficiency [%] | 20.0 | 20.3 | 20.5 | 20.7 | 20.9 | 21.2 |
| Weight | 24.5kg | |||||
| Dimensions | 2112±2mm × 1052±2mm × 35±1mm | |||||
| No. of cells | 144 (6×24) | |||||
| Packaging Configuration | 31pcs/Pallet, 682pcs/40ft Container | |||||
| Inverter Specifications | |||||
|---|---|---|---|---|---|
| Model Parameter | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Max. PV Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 |
| Start Voltage (V) | 160 | ||||
| MPP Voltage Range (V) | 200-650 | ||||
| No. of MPP Trackers | 2 | ||||
| PV Strings per MPPT | 2 | 2+1 | |||
| Full Load DC Voltage (V) | 350-650 | ||||
| Output Frequency & Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | ||||
| AC Output Rated Current (A) | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Rated AC Output Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 |
| Grid Type | Three Phase | ||||
| Dimensions (W x H x D mm) | 422W × 699.3H × 279D | ||||
| Weight (kg) | 33.6 | ||||
We recommend system capacities based on your monthly power consumption and electrical demands. Typically, standard homes require systems scaled from 5kW to 10kW. Contact us with your utility statements for a detailed design.
Yes. The hybrid string inverter supports VSG applications and can operate directly alongside diesel generator systems without needing an extra EMS unit, maintaining grid performance stability during power cuts.
Our rack-mounted modular batteries utilize a standard 19-inch safety cabinet design, allowing seamless installations in rack formats, wall mounts, or directly flat on the floor to save physical space.

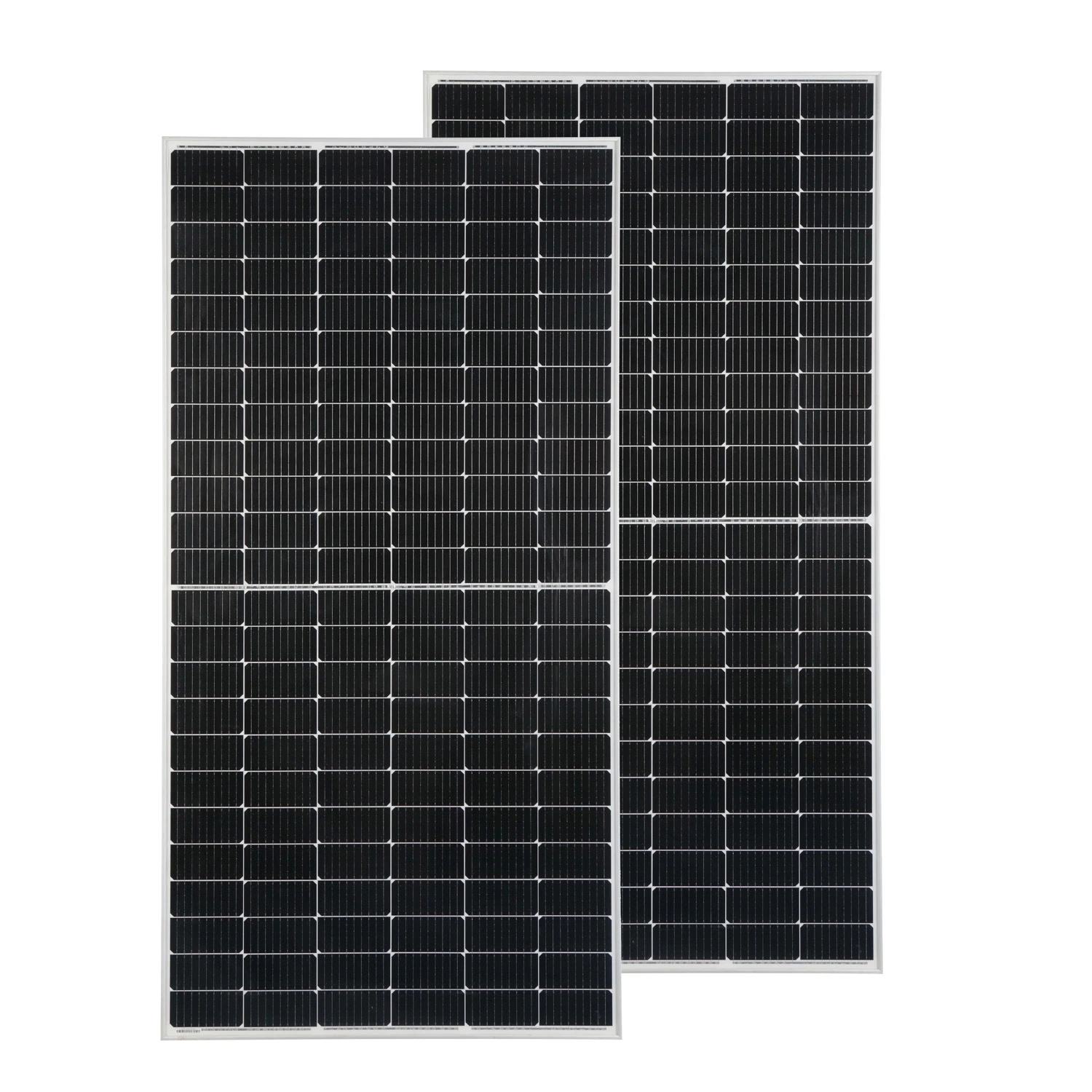

Our solar panels are manufactured with a positive power tolerance of 0 to +5W and are Potential Induced Degradation (PID) resistant. Each unit undergoes a comprehensive 100% dual electroluminescence (EL) scan inspection to ensure defect-free implementation.
We support commercial and village micro-grid developers with complete process execution, covering initial topographical surveying, system design and drawing generations, physical assembly installations, and annual safety maintenance inspections.
