MPPT Solar Charge Controller LCD Display 60A 120A for 12V 24V 36V 48V 96V Auto Regulator for Solar Panels Lighting Controller
12-96V MPPT Solar Charge Controller 230VDC 30A 60A 80A 100A 120A Solar Panel PV Charging Regulator RS485 For Lithium Lifepo4
Basic functions:
Innovative maximum power point tracking technology, which can significantly improve the energy utilization rate of the solar system, and the conversion efficiency is as high as 97%;
Quickly scan the entire I-V curve, and efficiently track the maximum power point;

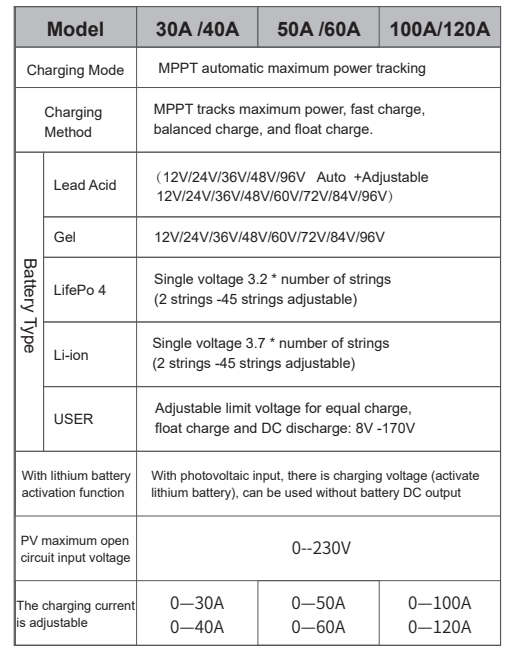

Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series charging programs are optional;
With automatic protection functions for overcharge, overdischarge, overload and short circuit;

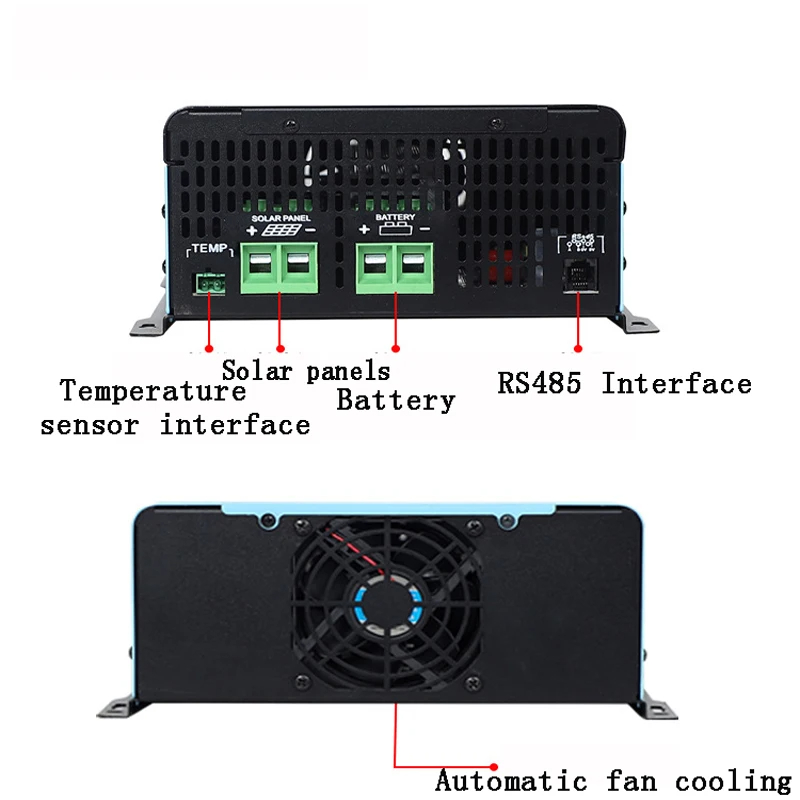

RS485 communication interface, multi-machine communication is possible, and it is convenient to view the operating parameters of the controller;
MPPT control features
This controller is used in solar off-grid power generation system to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage.
The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to allow you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.
PLEASE NOTE:
Please ensure that the rated power is higher than the appliance you want to apply.
If you want to run several devices at the same time, you should refer to the total wattage.
If you want to run the inductive load for a long time, choose the Pure sine wave inverter.
Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the spare fuses in the package are just used when the original ones are burned by accident.
Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drill, washing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside. Please make sure the constant power of our inverter meets your need before order.

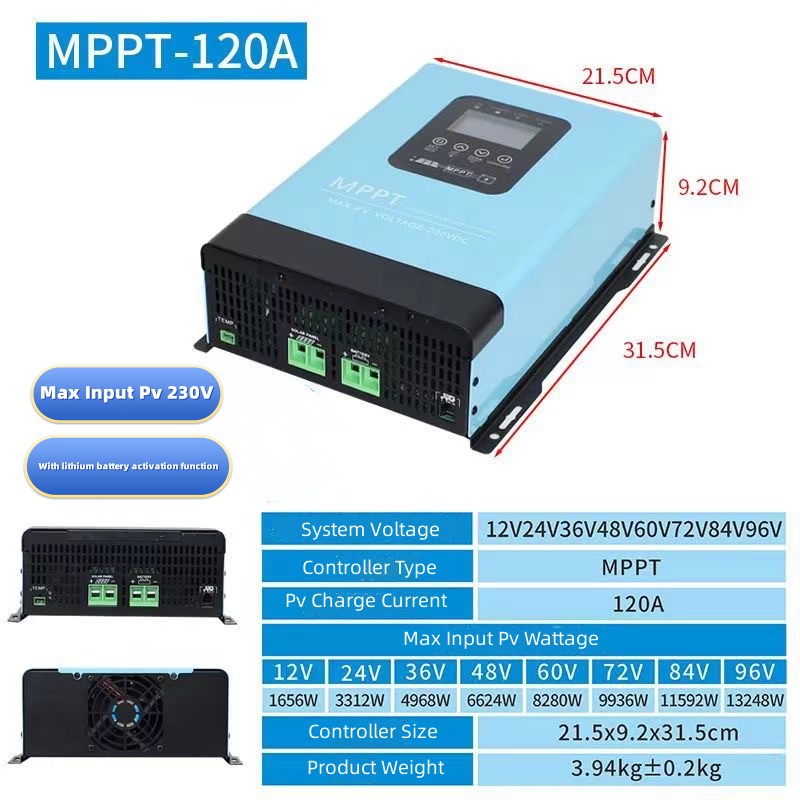

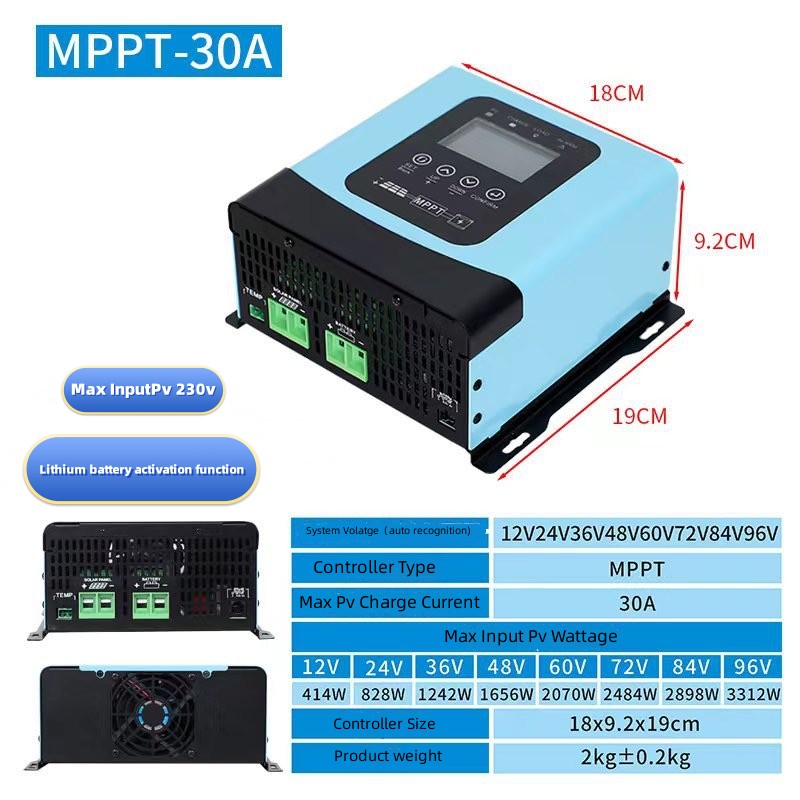

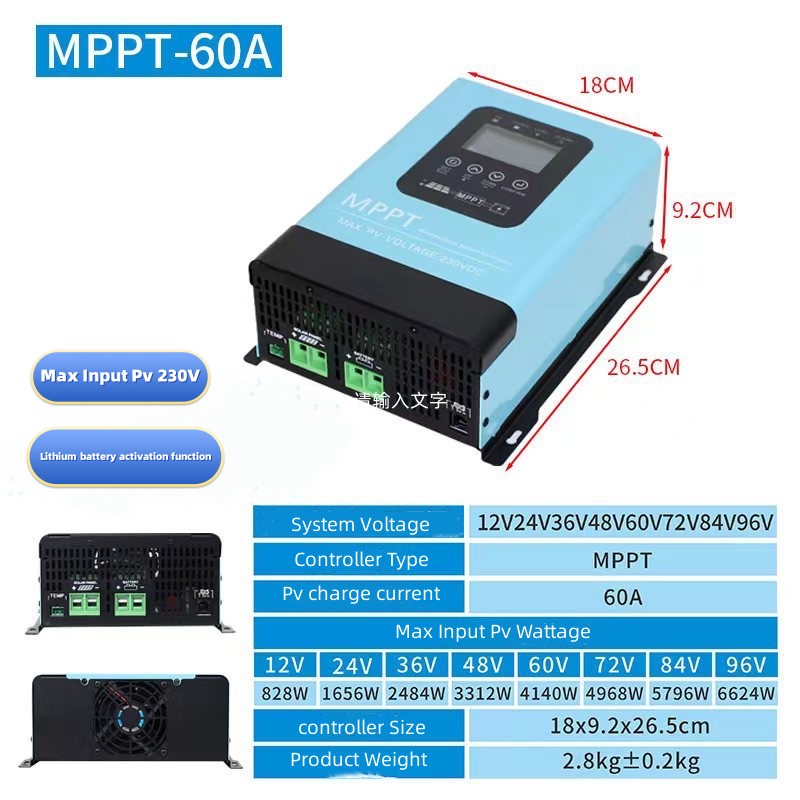

MPPT Model
30A
60A
120A
Rated charging current
30A
60A
120A
Maximum PV Input Power
12V system
414W
828W
1656W
24V system
828W
1656W
3312W
36V system
1242W
2484W
4968W
48V system
1656W
3312W
6624W
60V system
2070W
4140W
8280W
72V system
2484W
4968W
9936W
84V system
2898W
5796W
11592W
96V system
3312W
6624W
13248W
Frequently Asked Questions
What is the maximum conversion efficiency of this MPPT Solar Charge Controller?
The controller features innovative maximum power point tracking technology which efficiently tracks the maximum power point, achieving a peak conversion efficiency of up to 97%.
What types of batteries are supported by this controller?
This controller supports three standard types of lead-acid batteries (sealed, colloidal, and open type), and it features optimized charging programs selectable for lithium battery series (including LiFePO4).
What automatic protection features are integrated?
To ensure system safety and extend battery life, the controller is equipped with automatic built-in protections against overcharging, overdischarging, overloading, and short circuits.
Does this controller support communication interfaces for multi-device setups?
Yes, it features an RS485 communication interface which allows for multi-machine communication, making it highly convenient to monitor and view operational parameters across systems.
What is the purpose of the Low Voltage Disconnect (LVD) function?
The LVD function is a protective measure that automatically disconnects the load when battery levels drop below a critical threshold, preventing the battery from over-discharging and sustaining permanent cell damage.
What configuration steps should I take when powering inductive loads?
For inductive loads featuring internal motors (such as refrigerators, water pumps, or vacuum cleaners), select an inverter with a continuous power output 3 to 7 times higher than the appliance's rated wattage, and prioritize a Pure Sine Wave inverter for long-term reliability.
